Large 4 Slot Drink Pack Gravity Dispenser

🚀 Large 4 Slot Drink Pack Gravity Dispenser 🥤

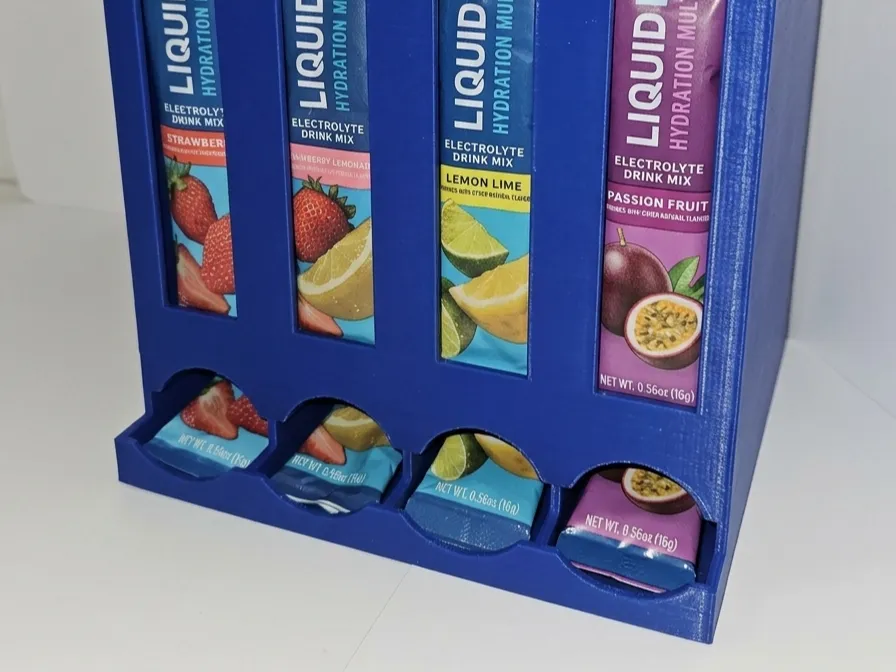

The Ultimate Hydration Station for Large Sticks!

Tired of your Liquid I.V., LMNT, or Zipfizz packets jamming in standard holders? This model was custom-engineered from the ground up to solve the "puffy packet" problem! 🛠️

✨ Why This Model?

• 📏 Perfectly Dimensioned: Specifically designed for 145mm hydration sticks. No more forcing them in!
• 🎢 15° High-Flow Ramp: A steep internal incline ensures your next packet slides forward automatically. No more fishing around!
• 🤌 The "Pinch-Notch" System: Features a unique top arch and bottom tray cutout so you can easily pinch and pull.

• 📐 180mm Footprint: Designed to fit perfectly on the A1 Mini, P1, and X1 series.



🖇️ Looking for the Standard Size? 📎

If you need a dispenser for standard-sized drink sticks (like Propel, Crystal Light, or Skittles), check out my original Gravity Fed Drink Mix Dispenser here!

While this new version is optimized for the giant Liquid I.V. foil packs, the original is perfect for saving space with standard 115mm sticks.

👉 Gravity Fed Drink Mix Dispenser w/ Display Windows

***For commercial licensing inquiries regarding the physical sale of these designs,

please message me directly for details on our available licensing tiers.***

🖨️ Recommended Print Settings

For that "Heavy Service" durability:

• Walls: 2 Loops
• Infill: 8% Grid (strong and saves filament) 🌀
• Layer Height: 0.20mm Standard 📏
• Pro Tip: Will not fit on a A1 Mini plate. 💡

📦 Plate Configuration & Printing Instructions

To ensure maximum quality and fitment, this model is split into 2 Plates:

• Plate 1: The Dispenser Body 🏗️



  • Orientation: Prints standing upright.



• Plate 2: The Precision-Fit Lid 🧢



  • Orientation: Prints flat. This lid includes a larger clearance for a smooth, frustration-free slide.
  • Pro Tip: If you're feeling fancy, use a different color for the lid to give your kitchen that extra pop! 🎨

🛠️ Assembly & Use

1. Slide the Lid On: The 3.5mm tolerance ensures it slides on easily even if your printer's flow isn't perfectly calibrated.
2. Load the Display: Slide a "sample" packet into the front vertical vertical slot so you always know what's in each chute.
3. Fill it Up: Gravity does the rest! The 15° internal ramp keeps the packets moving toward the front.
4. The Pinch: Use the mirrored finger cutouts (top arch + bottom tray notch) to easily grab the next hydration stick.

🛡️ Designer’s Commitment

This is an original design created in OpenSCAD. 💻 Check the gallery of original 3 slot version for the "code-receipt" screenshot! I built this to at the request of a user to provide a better solution for the hydration community. If you love it, please leave a ⭐⭐⭐⭐⭐ rating and post your makes! 📸

Designed by Sawyer Specialty Solutions Group.

Don't forget to post your makes!
