Toolgrid Ratchet Holders - 1/4in, 3/8in & 1/2in
Print Profile(3)
Description
Toolgrid Ratchet Holders – 1/2", 3/8", and 1/4" Drive (With & Without Pins)

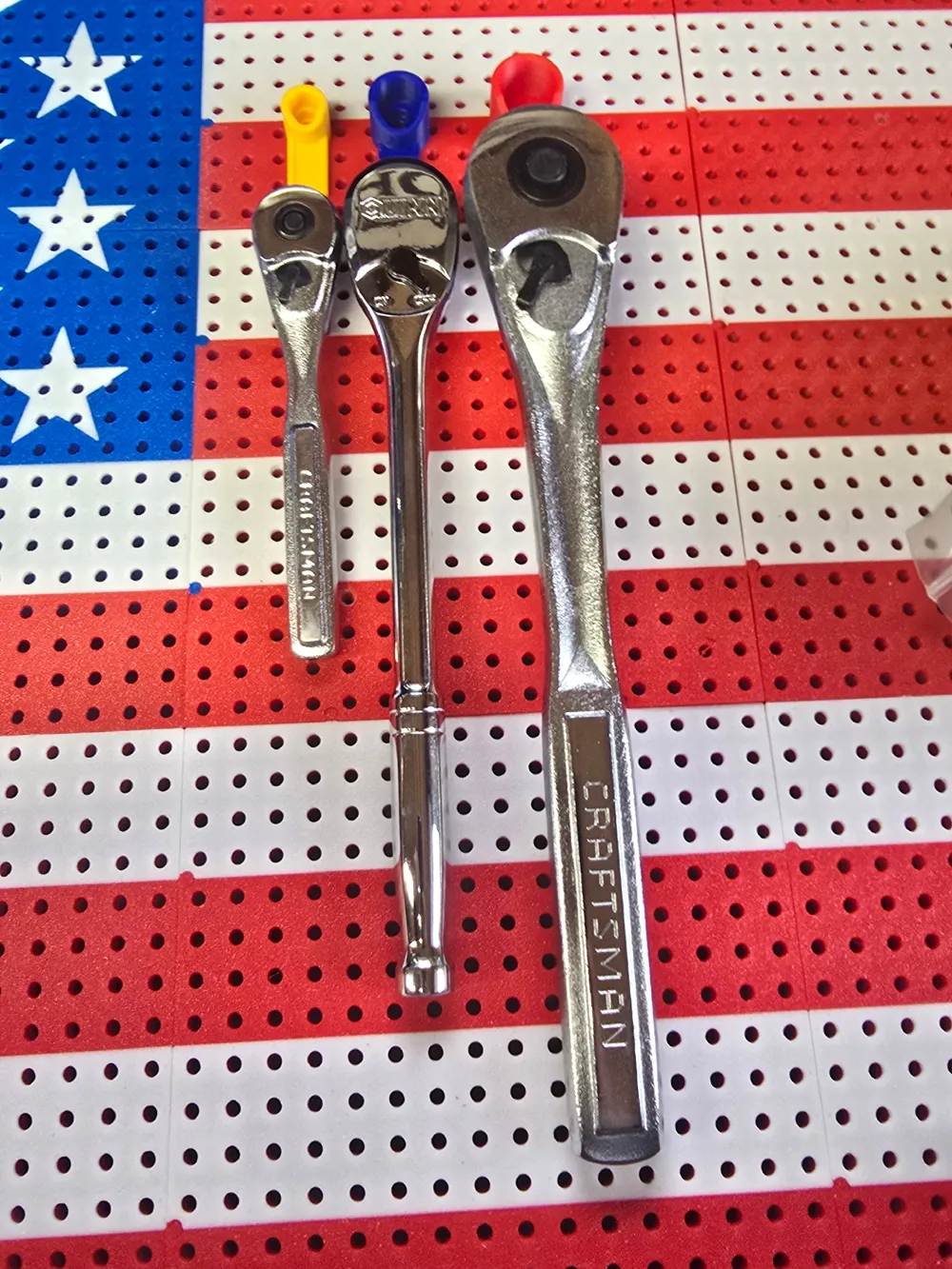

Organize your ratchets cleanly and securely with these toolgrid holders, sized for 1/2", 3/8", and 1/4" drive ratchets. Each size includes two mounting options so you can choose what works best for your setup:

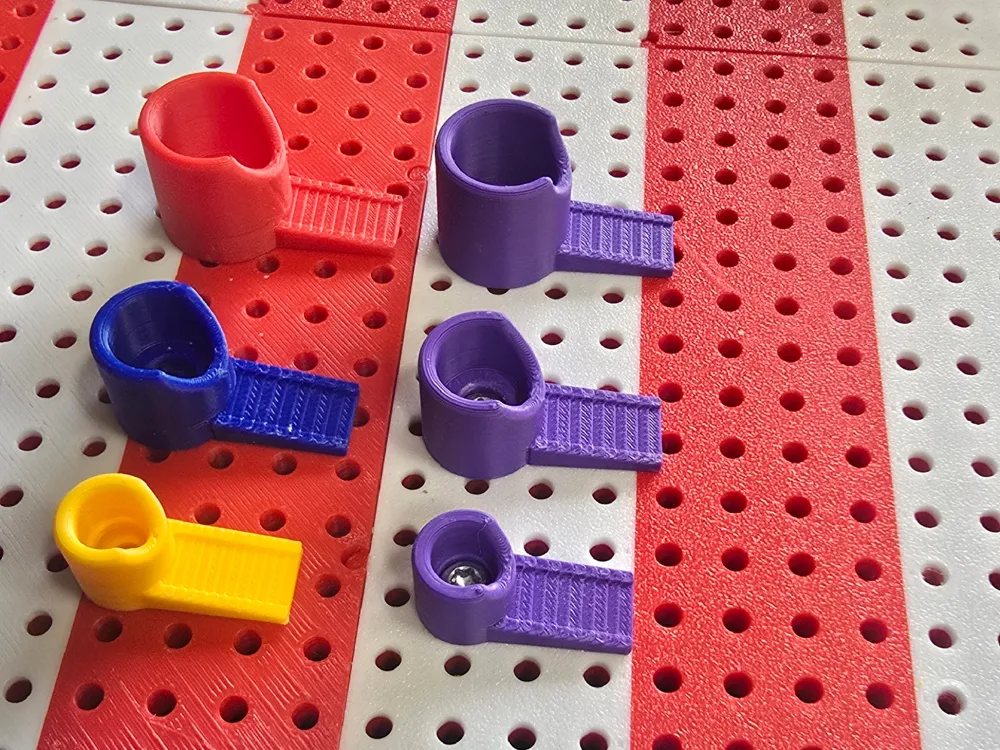

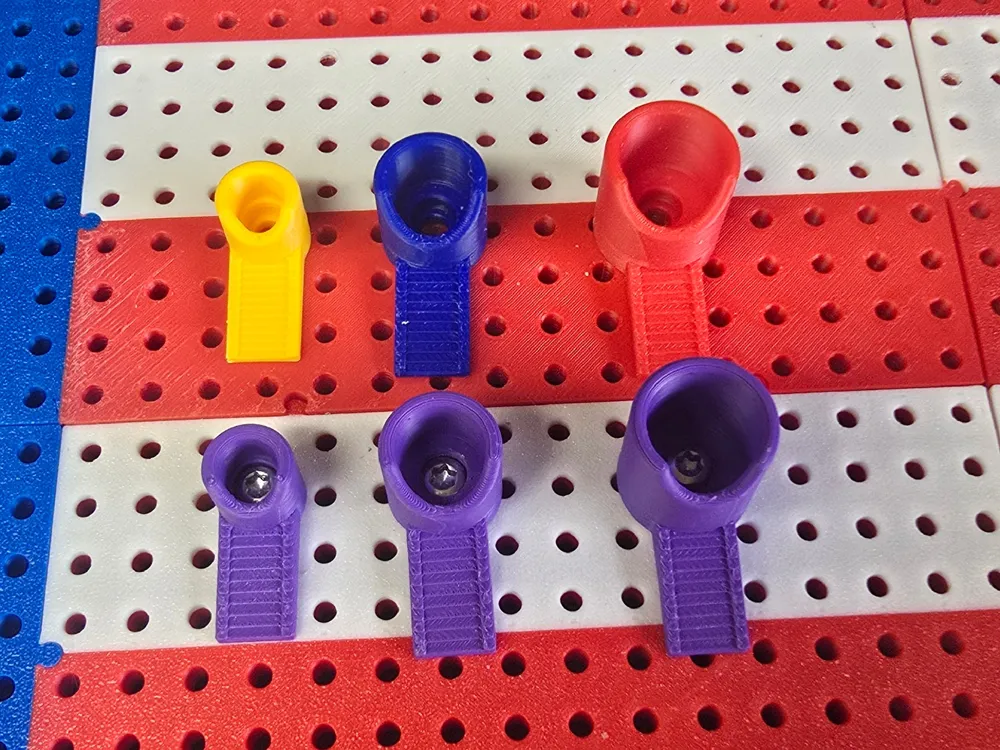

- Pegged version – integrates with the Mantis Toolgrid 4 mm peg system for a tight, wobble‑free fit
- Flat-base version – no pegs, perfect for support free printing and just use a screw.

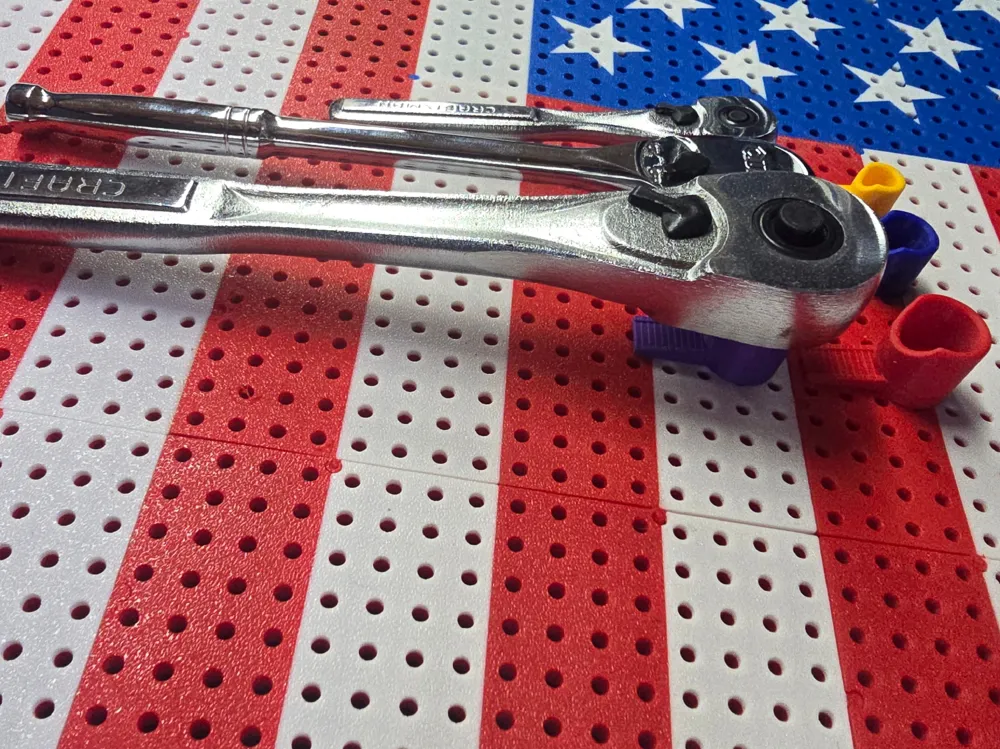

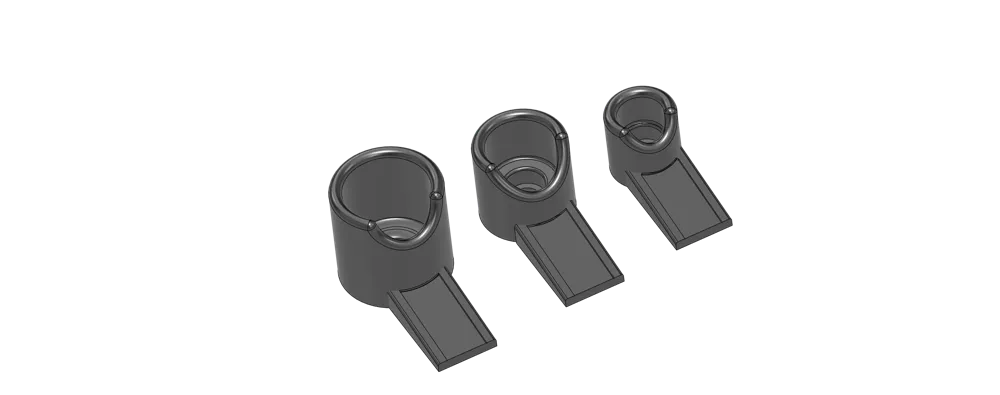

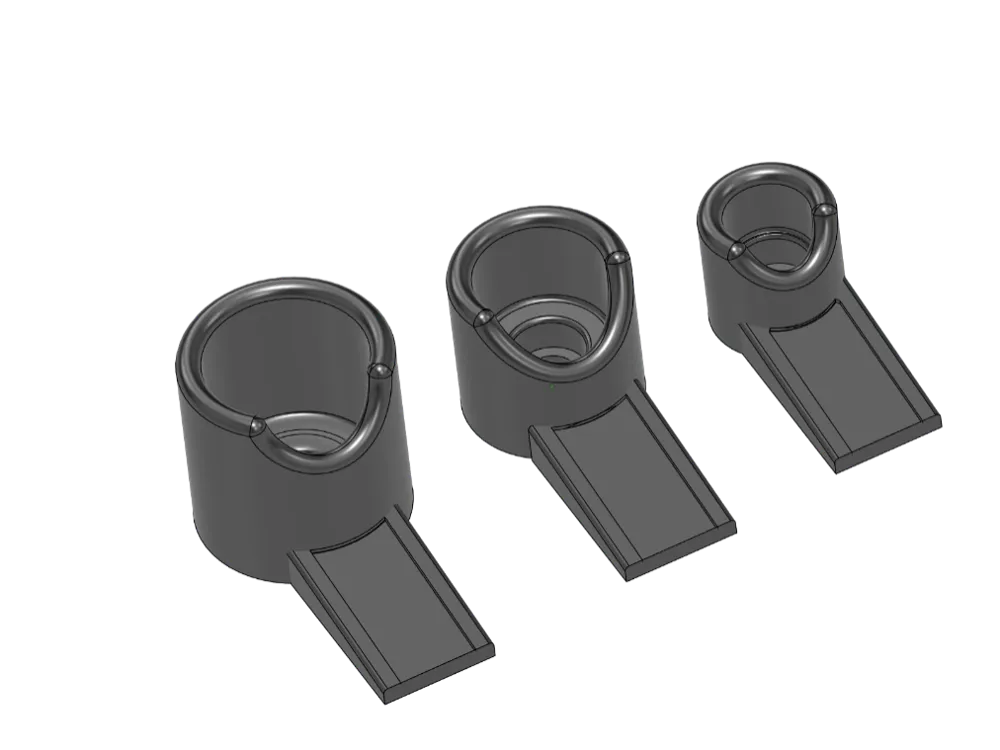

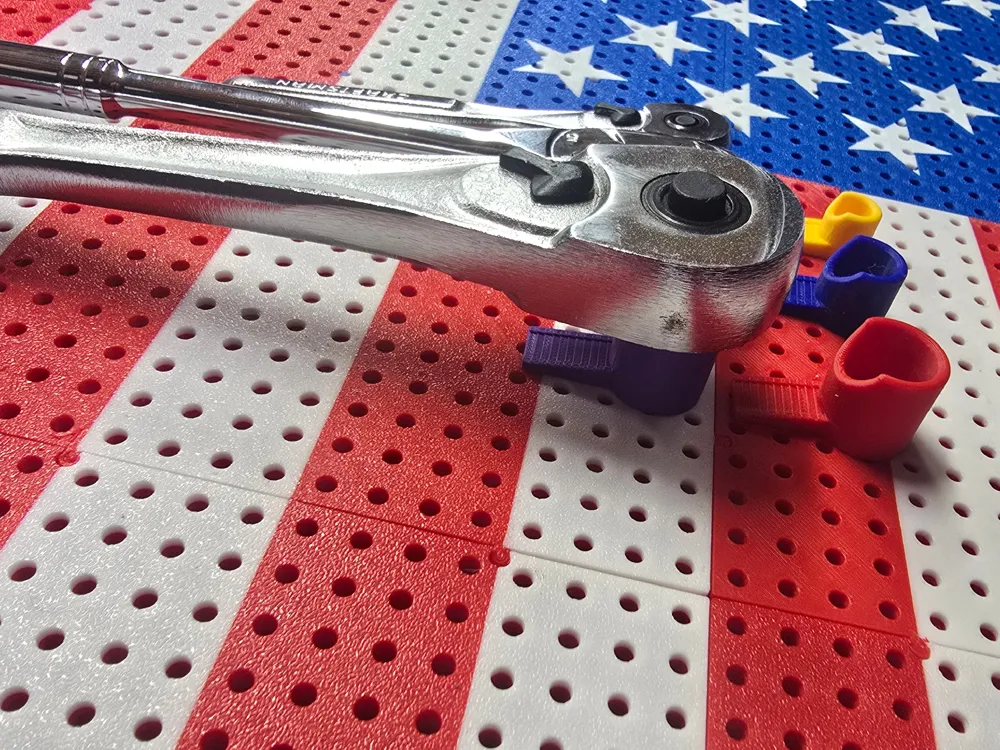

These holders feature a reinforced cup-style cradle that supports the ratchet head while the handle rests along a ribbed track for stability. Designed for strength, printability, and daily shop use.
Features
- Sized specifically for standard ratchet head diameters
- Strong cup design prevents tipping or rolling
- Ribbed support track keeps handles aligned
- Pegged versions use the 4 mm Toolgrid standard
- Flat versions allow universal mounting with a screw
- Durable geometry for daily tool use
Recommended Print Settings
- Material: PLA, PETG, ABS or ASA
- Layer Height: 0.24 mm
- Walls: 4
- Infill: 15%
- Supports: Only on Pegged versions
- Orientation: Base down or as in the file for pegged versions
Notes
These holders are part of my expanding Toolgrid-compatible collection. If you need additional ratchet sizes, extensions, or matching tool holders check my profile for additional options.
