FPV Head Tracker Case – ESP32-C3 & MG90S Setup
Print Profile(1)
Description

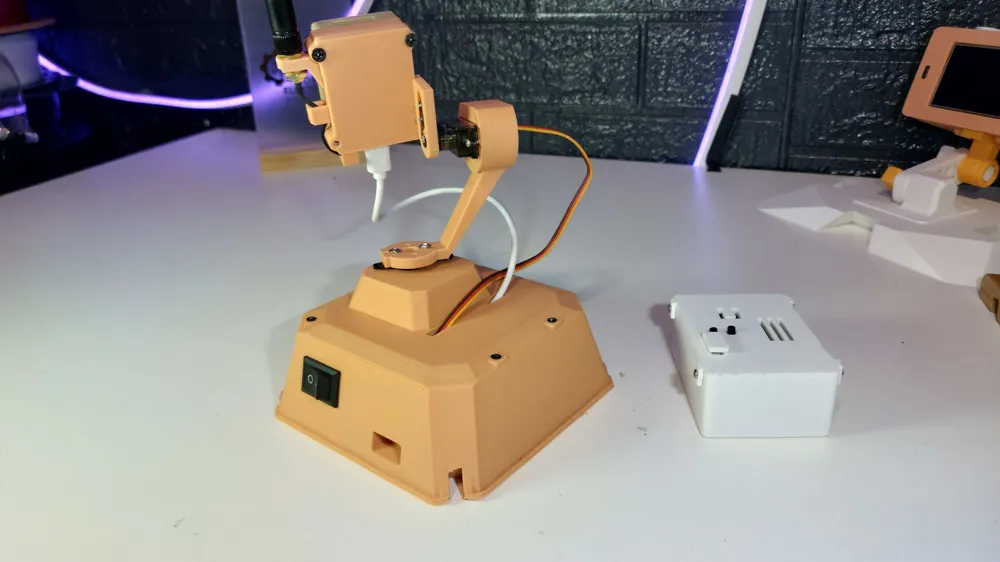

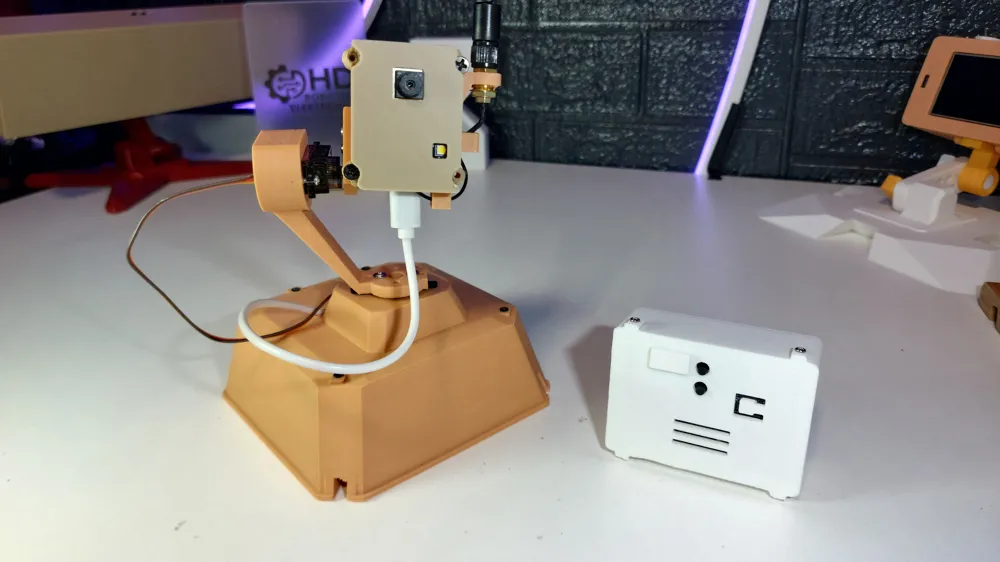

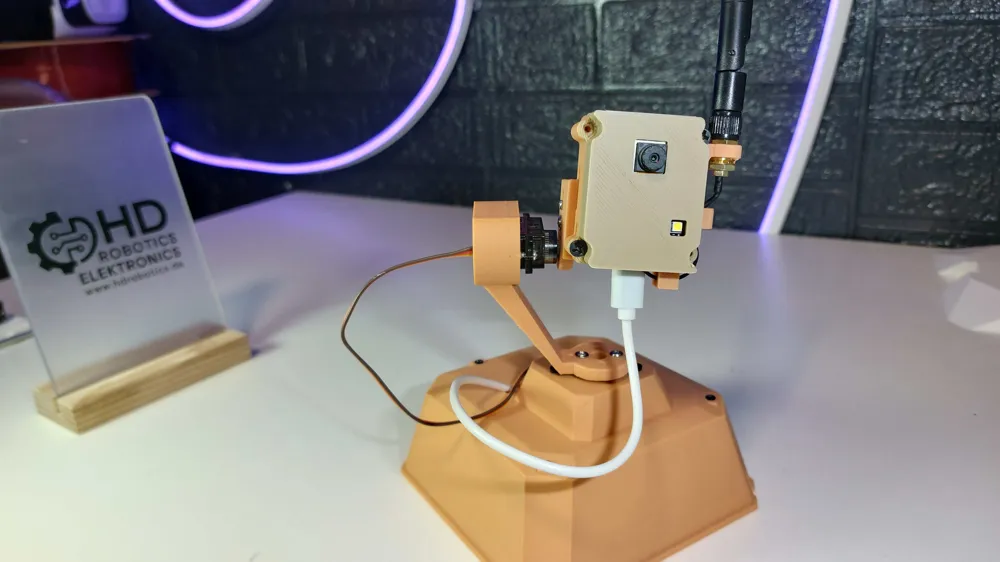

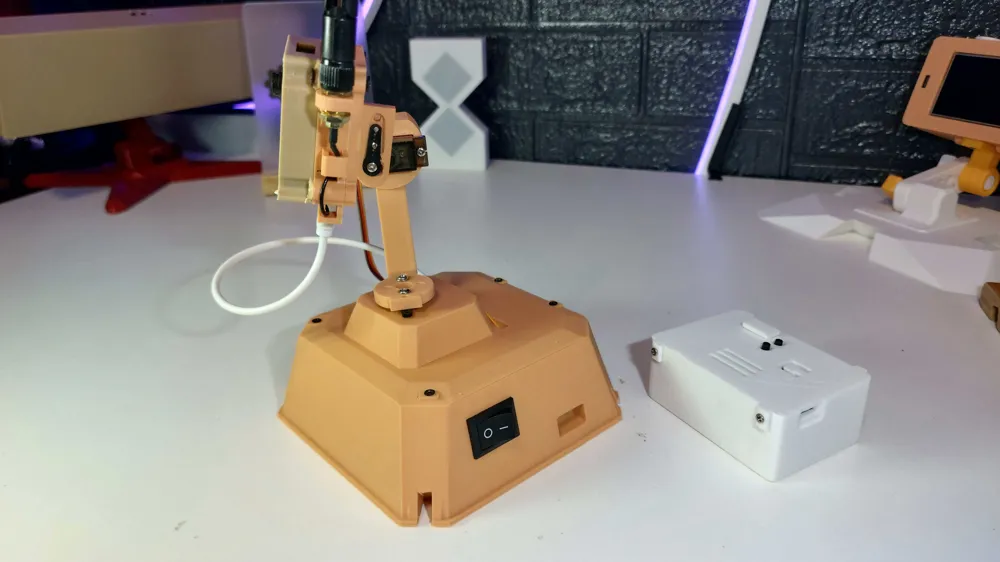

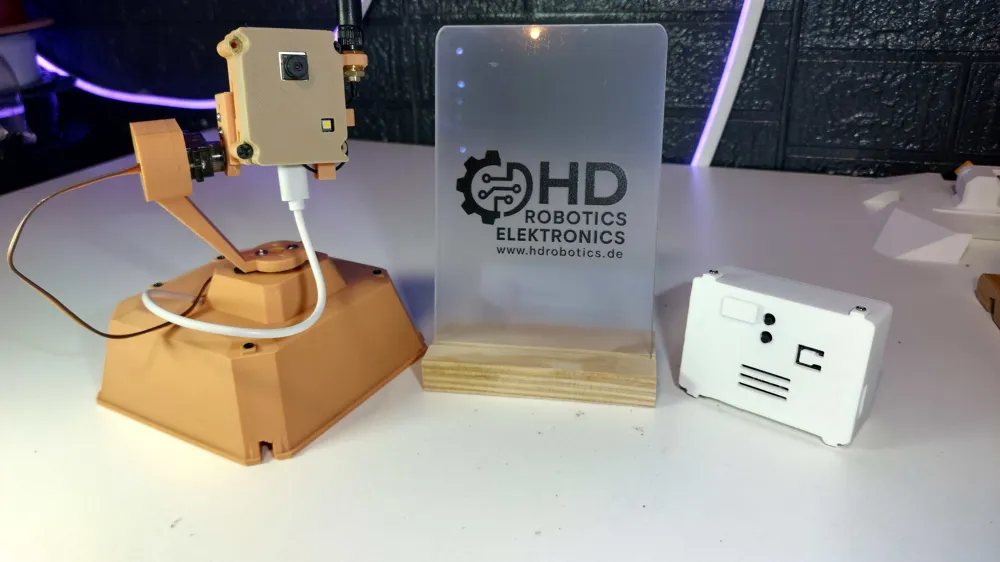

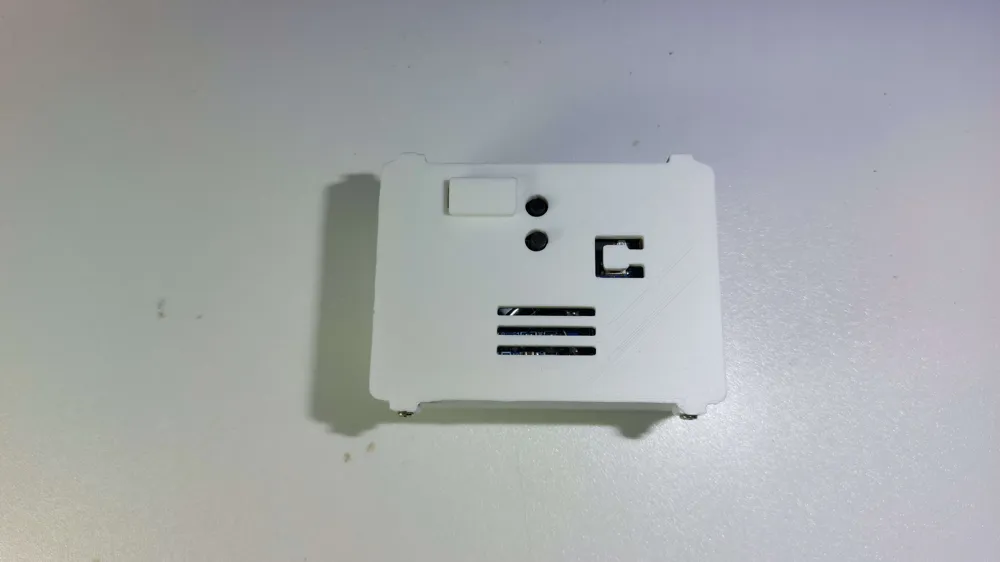

This is the official 3D-printed enclosure for the HD Robotics FPV Head Tracking System. With this system, you can transfer the head movements of your FPV goggles to a camera unit in real-time – for a completely new sense of immersion when flying!
🔹 Features:
- Plug & Play Firmware: No Arduino knowledge required! The firmware can be installed directly in the browser via our website.
- Minimal Latency: Uses the ESP-NOW protocol for a lightning-fast connection without WiFi delays.
- Precise Tracking: Optimized for the MPU6050 sensor with digital smoothing for soft camera pans.
- Compact Design: The enclosure is precisely tailored for the ESP32-C3 Super Mini board and MG90S servos.
🛠️ Required Hardware:
- TRANSMITTER: 1x ESP32-C3 Super Mini, 1x MPU6050 Sensor, 1x Lipo Battery.
- RECEIVER: 1x ESP32-C3 Super Mini, 2x MG90S Servos, 1x AMS1117 3.3V Regulator.
- Printing Material: We recommend PETG or PLA+ (e.g. from SUNLU).
🌐 Instructions & Firmware Download:
The complete step-by-step instructions, wiring, and the Web Installer for the firmware can be found on our project page: 👉 Here's the project page: HD Robotics Head Tracker

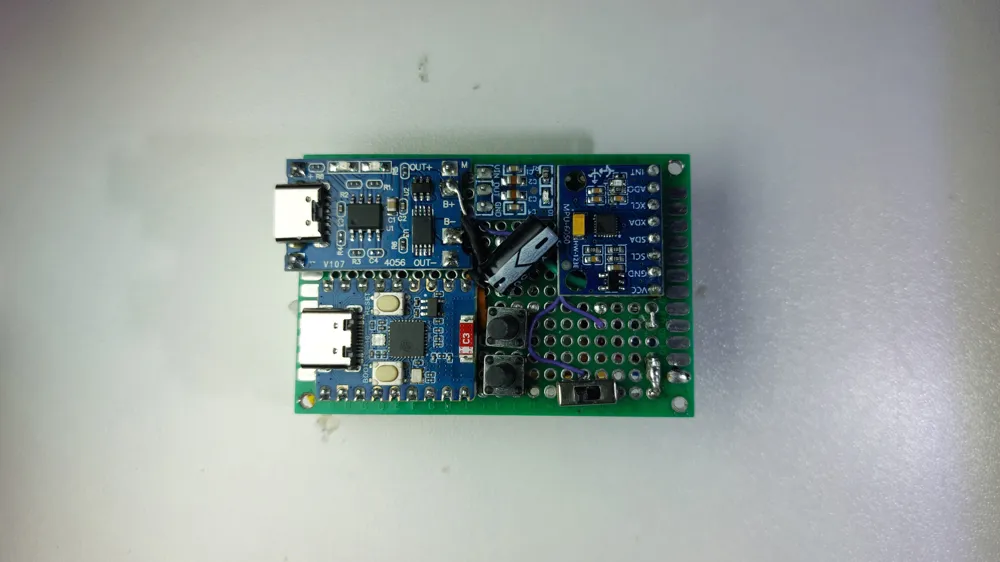

(Note: If you are using the DIY PCB, make sure to solder the component placements exactly according to the layout plan on the website so that everything fits perfectly into this enclosure!)
Print Settings:
- Material: PLA / PETG
- Infill: 15-20% (Grid or Gyroid)
- Supports: Minimally required at the cutouts.
- Wall lines: 3 for maximum stability.
Have fun building and flying! 🚁💨
