Ice Rink 2.0 N scale with NOCH 36824 figures
Print Profile(1)
Bill of Materials
- Neodym Magnete Extra Stark Quader 5x3x1mm x 6:
- Neodym Magnete N52 Quader 4x4x2 mm x 6:
Description

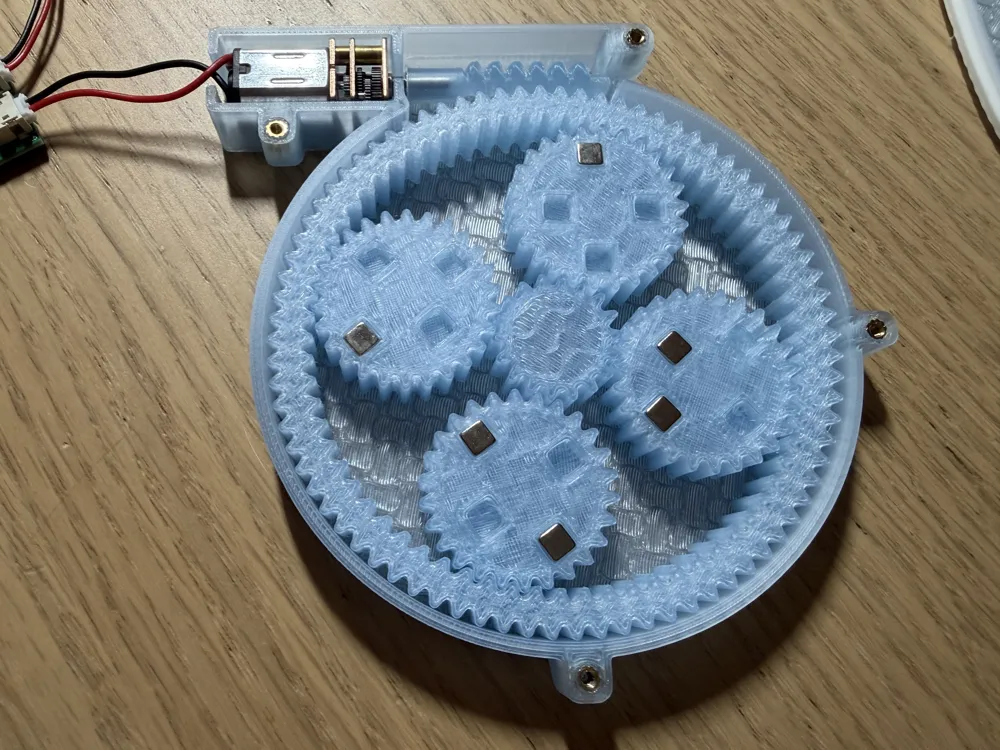

For my new model railway layout from Konzept-Bahn, I designed a new ice rink as a lake. Due to the worm drive, the installation depth is much lower.

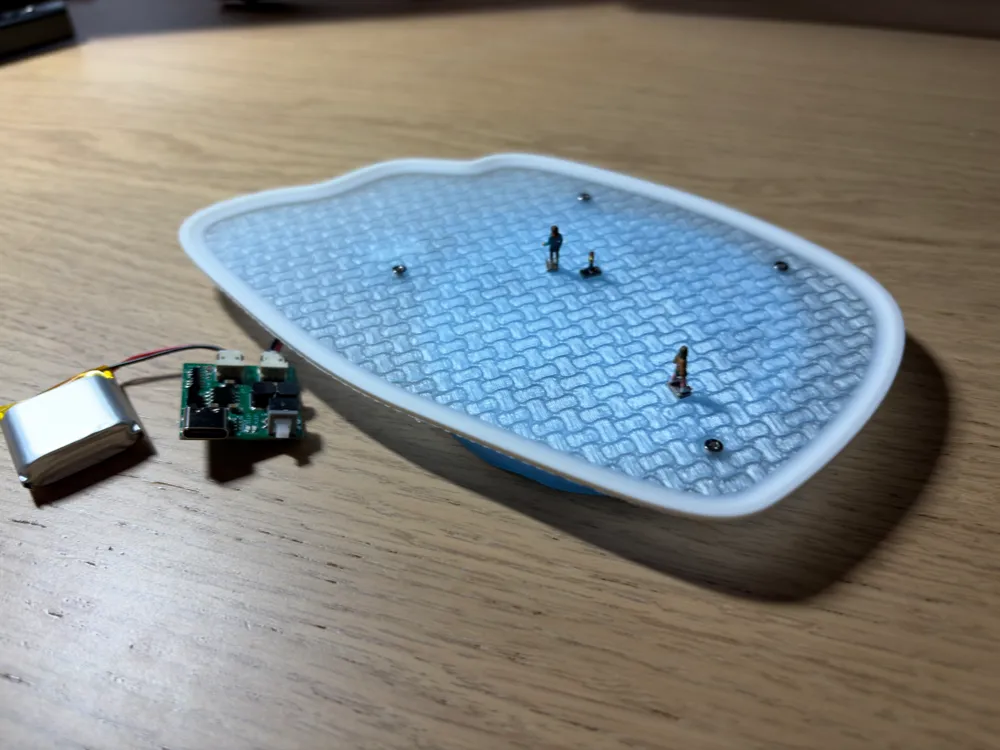

With the Bambu Lab PLA Translucent, the lake looks like an ice surface because it is slightly transparent. Everything except the ice surface can be printed without supports. I use Bambu Lab PETG for the support interface.
The surface of the lake becomes very smooth thanks to the "Surface Smoothing" setting in Bambu Studio, so that the magnets to which the NOCH 36824 skaters are attached with superglue slide very well.

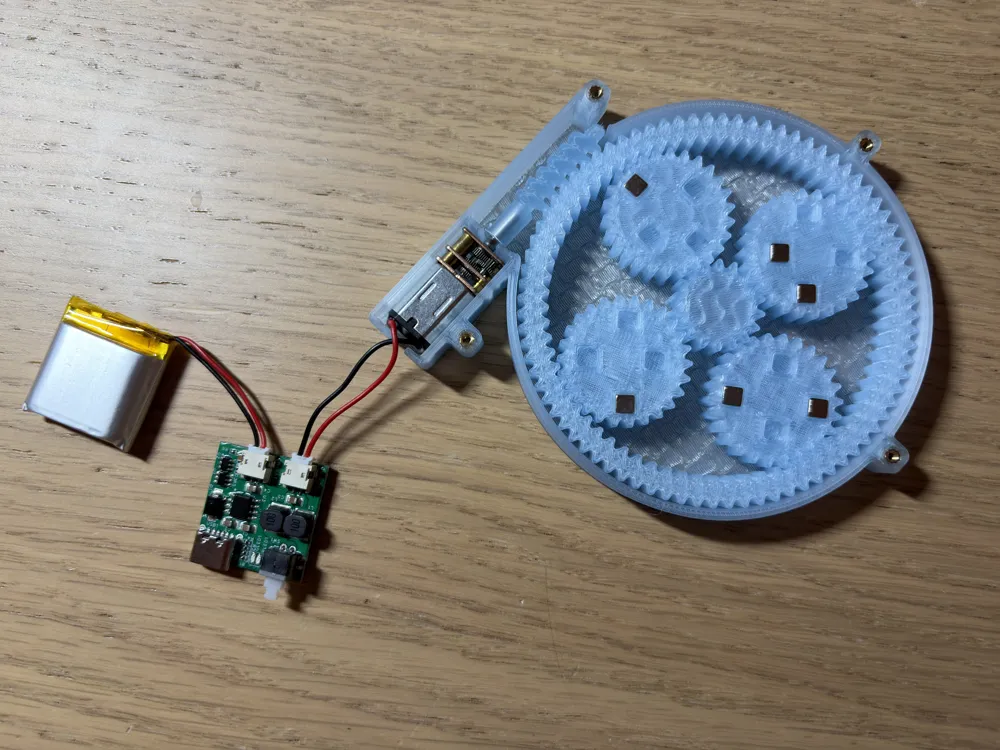

For demo purposes, I use the Rechargeable Power Kit from Bambu as the drive. Another N20 motor, e.g., with 12V suitable for the model railway, can also be used.
There is a YouTube video on my channel for the assembly.
