Auto Watering System Open Source under 10$

Keep your plants happy and healthy – completely automatically! This Arduino-based system monitors soil moisture in real time and waters your plant exactly when it needs it. No more overwatering, no more drying out.

Functions:

• Precise Control: Adjustable target moisture
• Intelligent Logic: Programmable watering duration and soak time (wait time after watering) to avoid waterlogging and obtain accurate readings
• Interval Measurement: Define pauses between measurement cycles to save power and protect the hardware

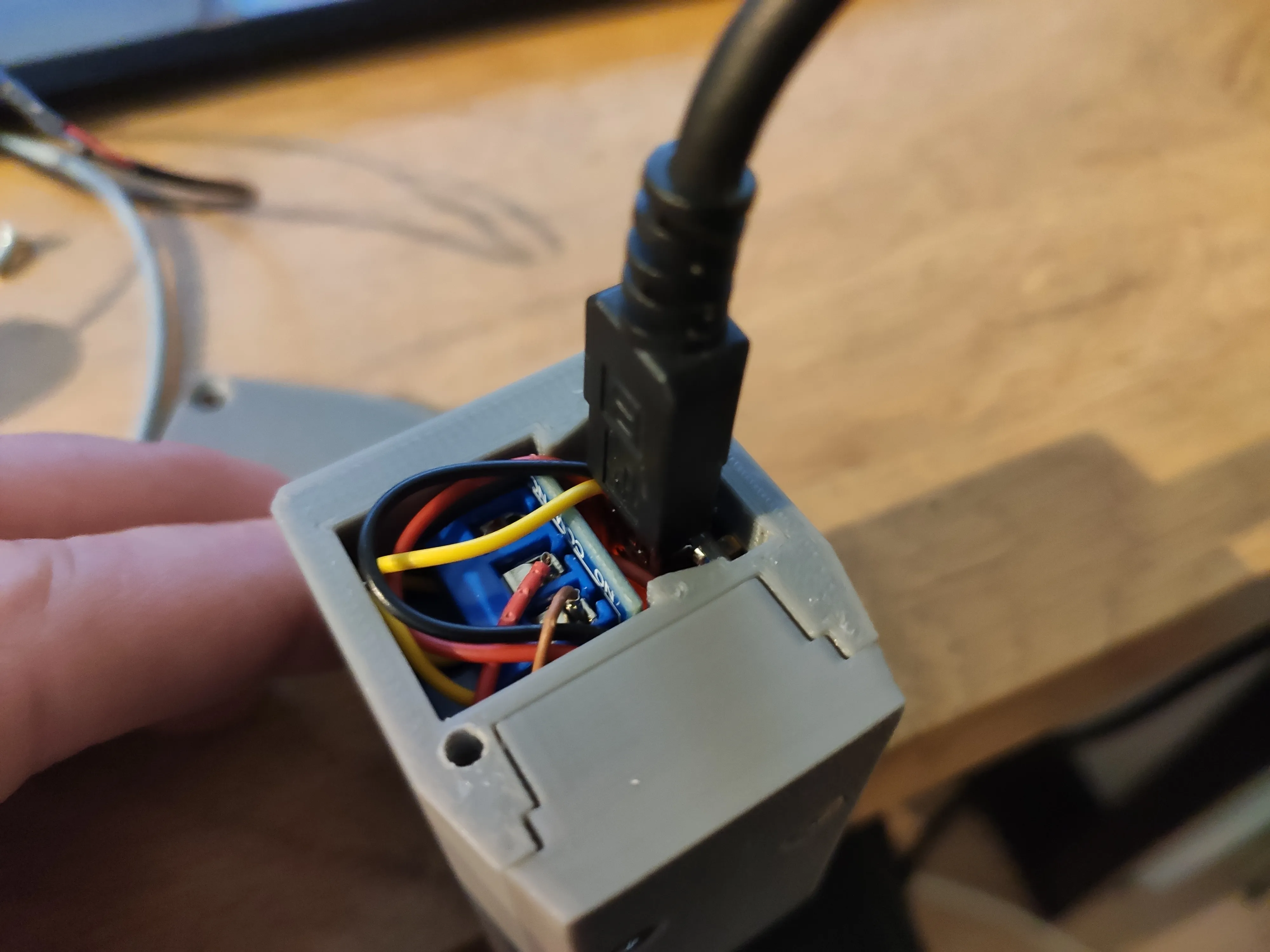

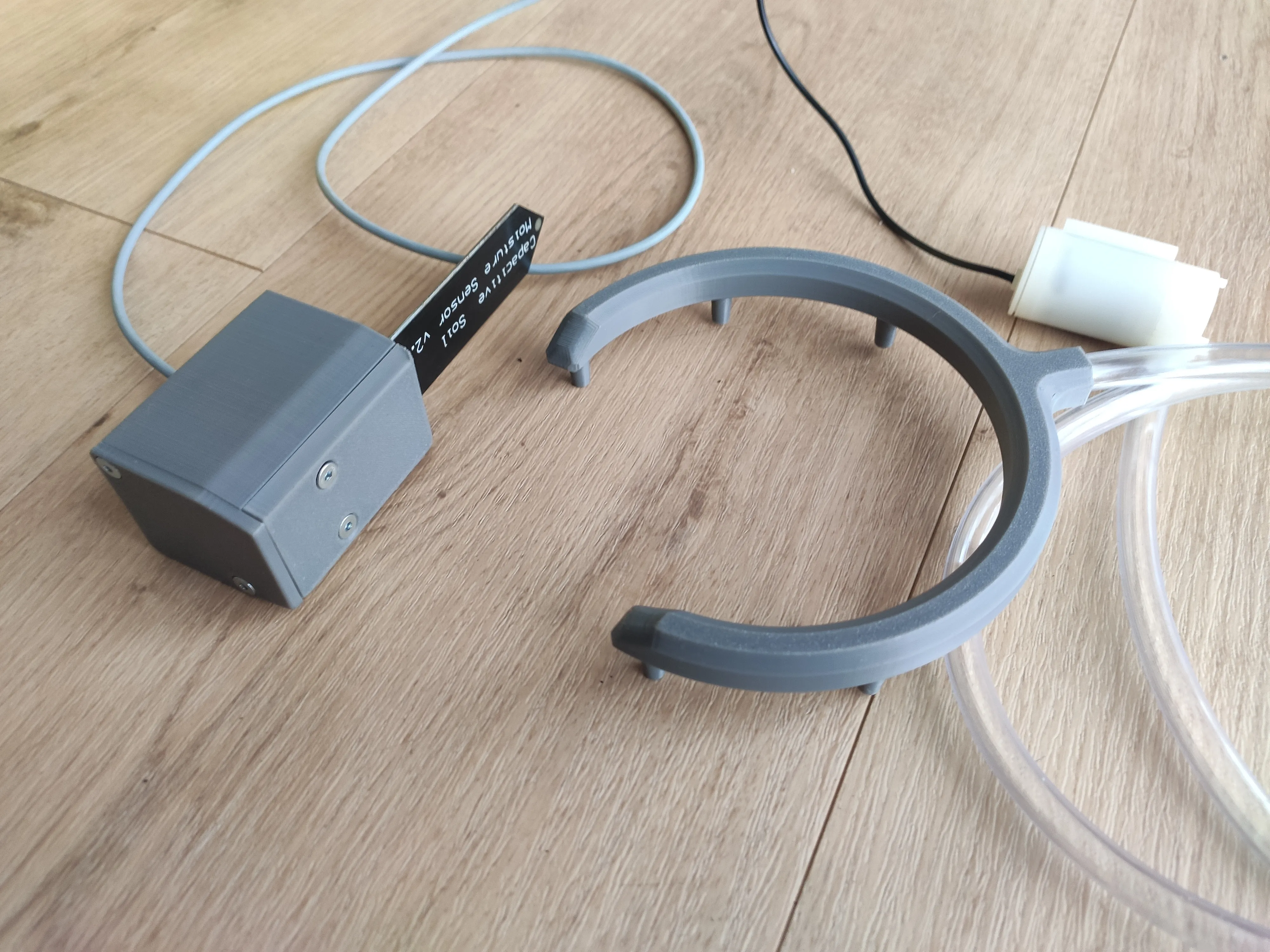

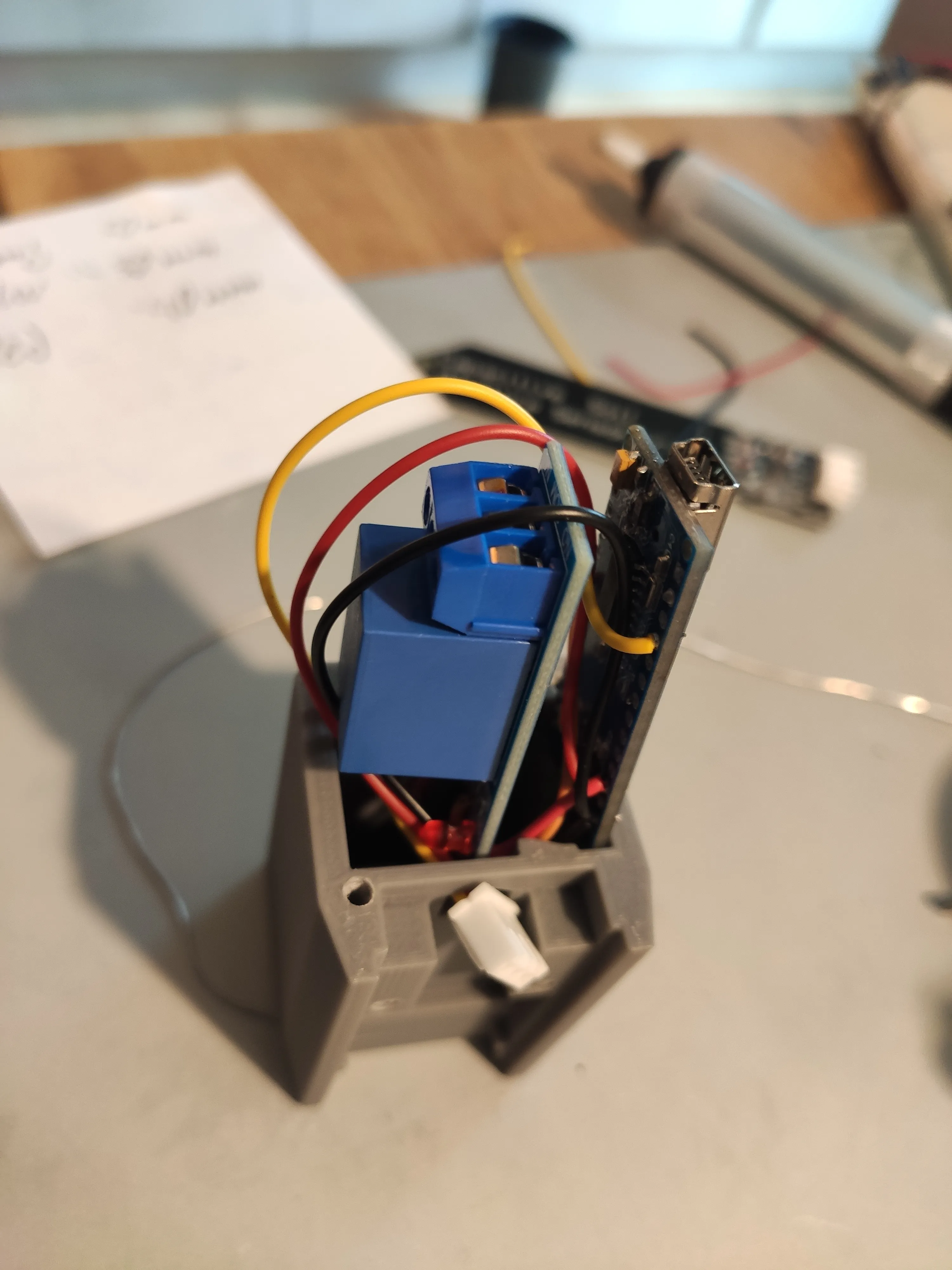

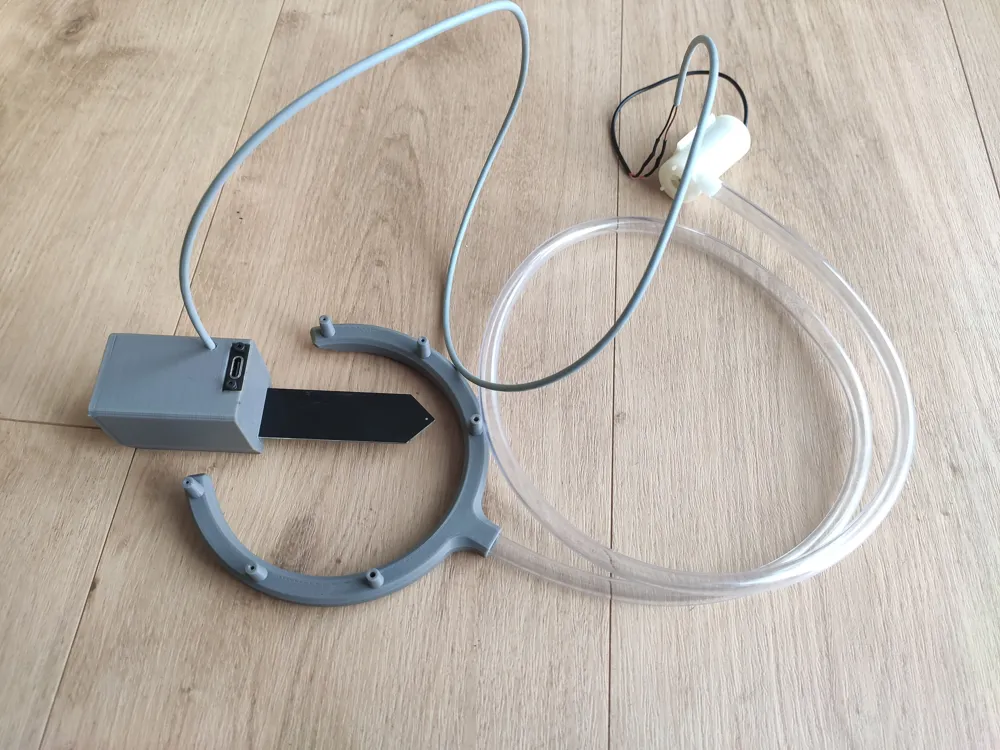

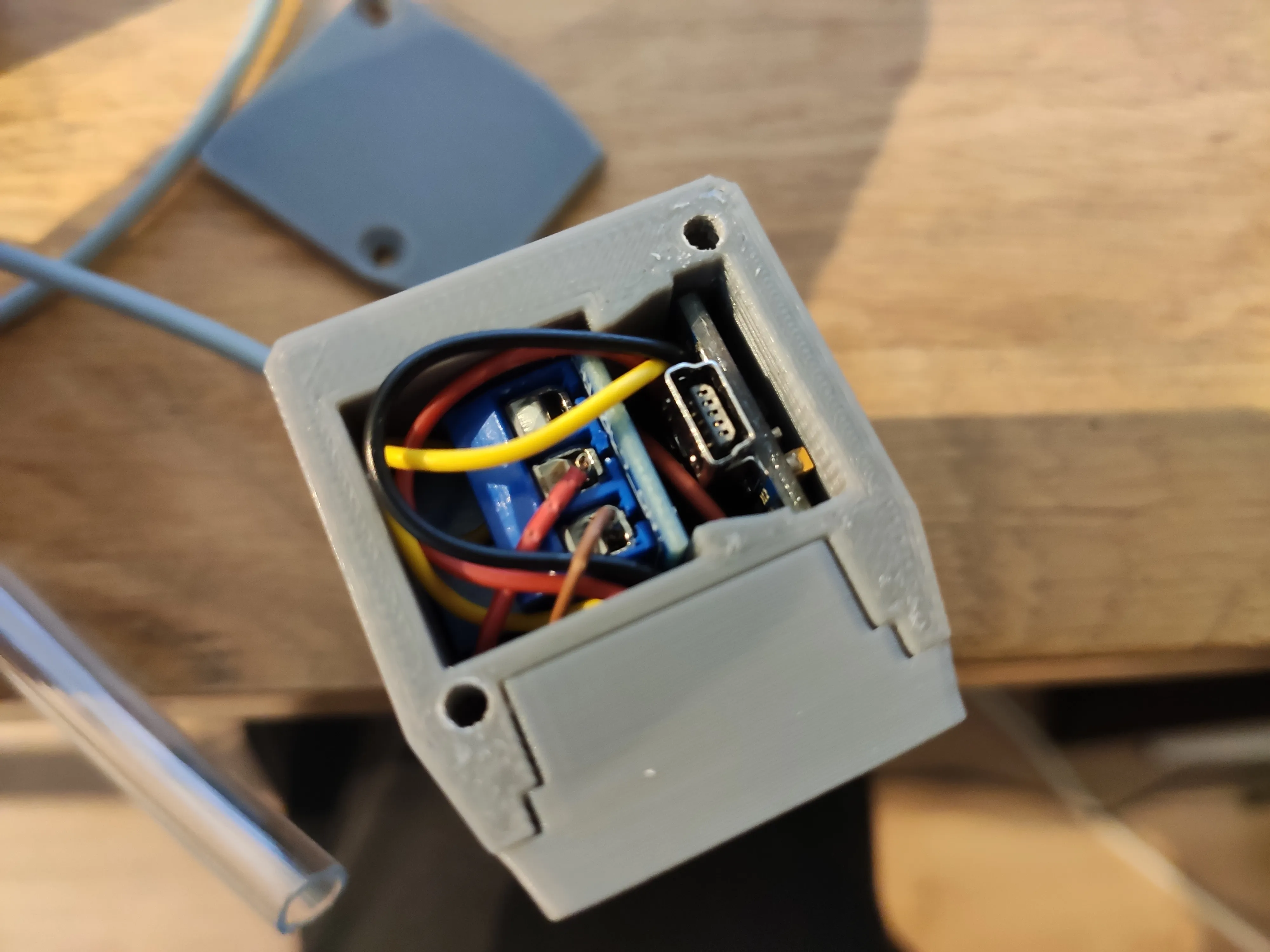

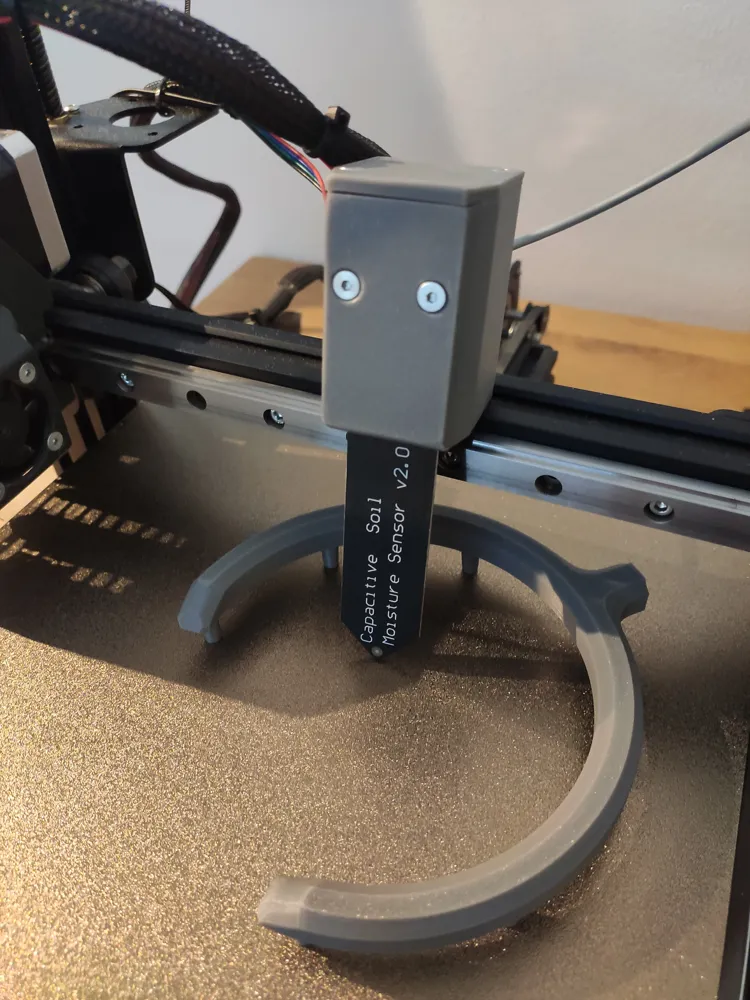

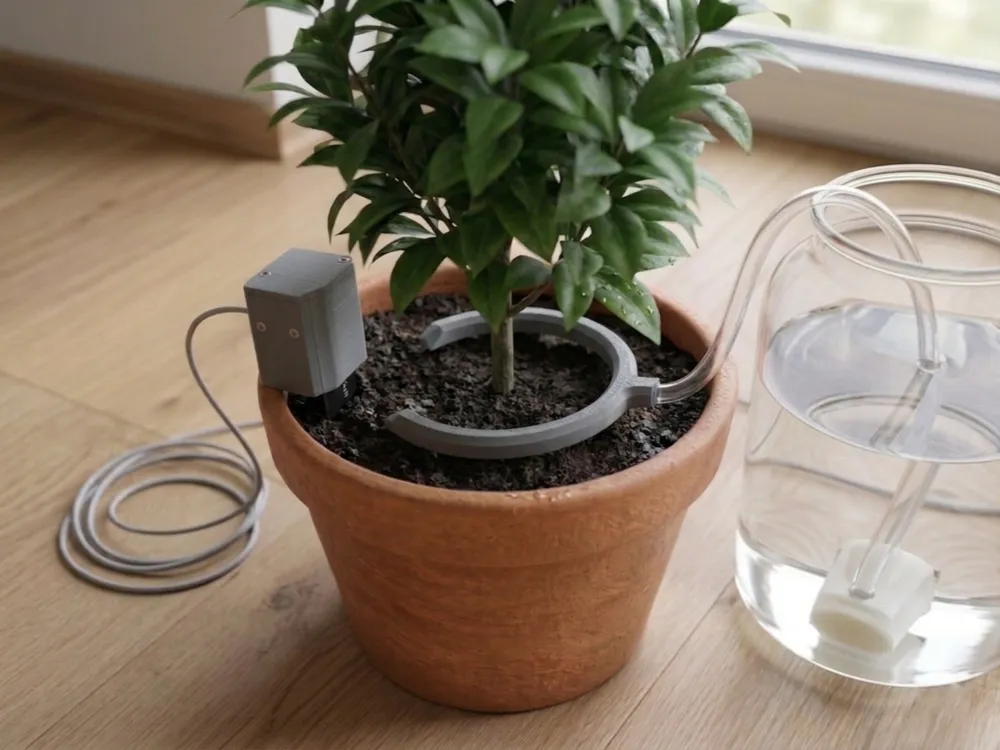

• Clean Design: Includes a custom-fit housing and watering ring for even water distribution

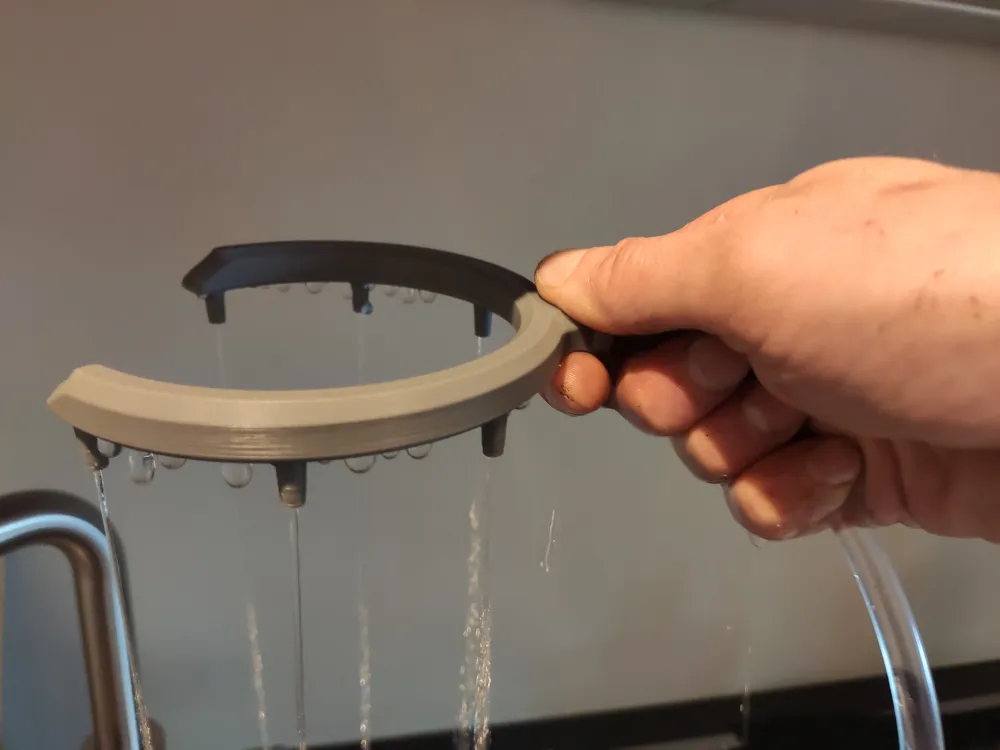

Watering rings are available in various diameters

Note (please read 😊)

This is not a step-by-step guide, but simply documentation of how I built my system. Maybe it will help you as inspiration – but there are many ways to implement something like this

If you want to replicate this, please do so at your own risk. Especially with electronics, water & co, things can go wrong (short circuits, damage, etc.). So it's better to check twice and only tinker if you know what you're doing

I assume no liability for anything that happens during replication or use

Feel free to modify, improve, or completely change it – that's what it's there for 🙂

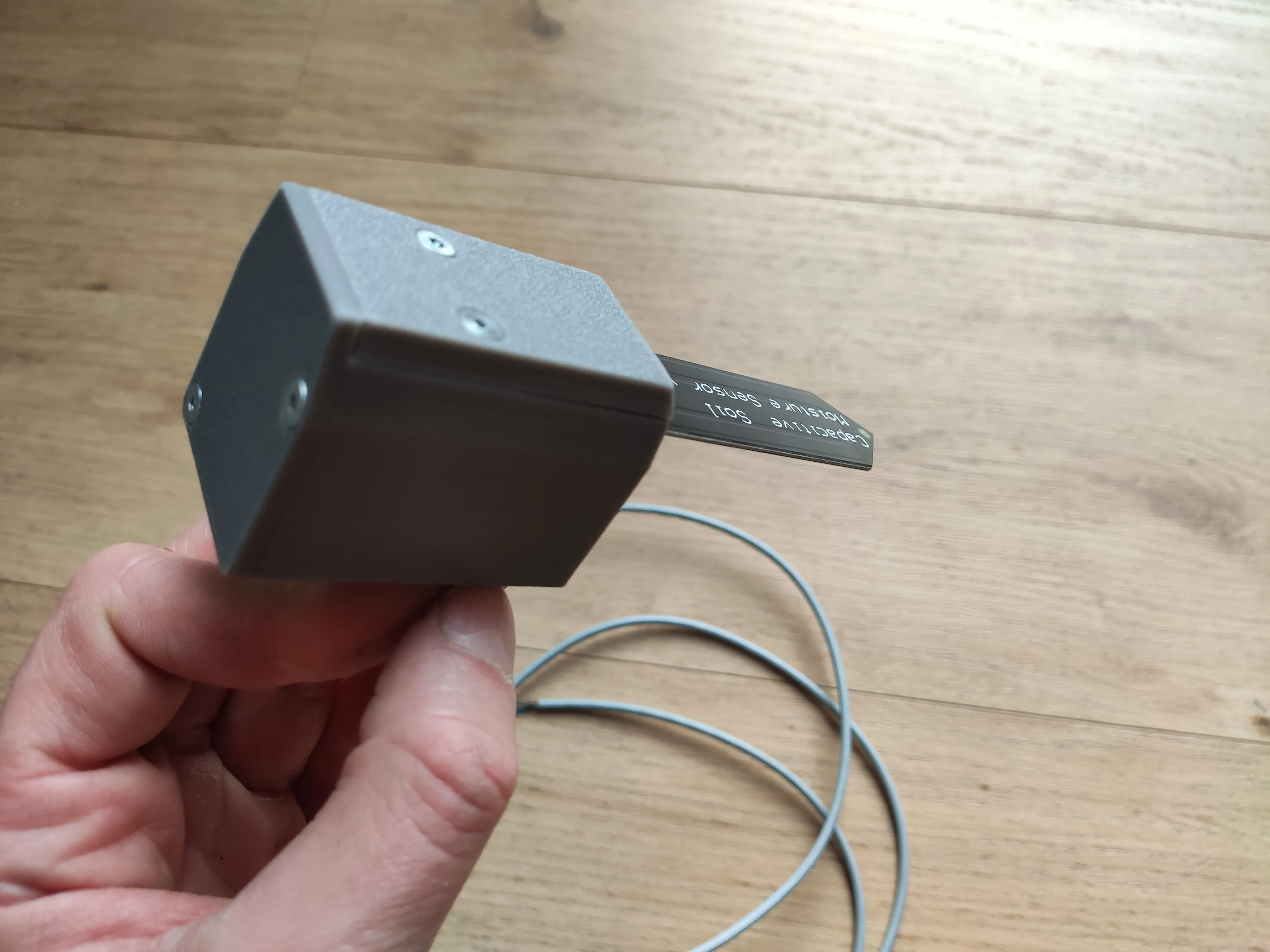

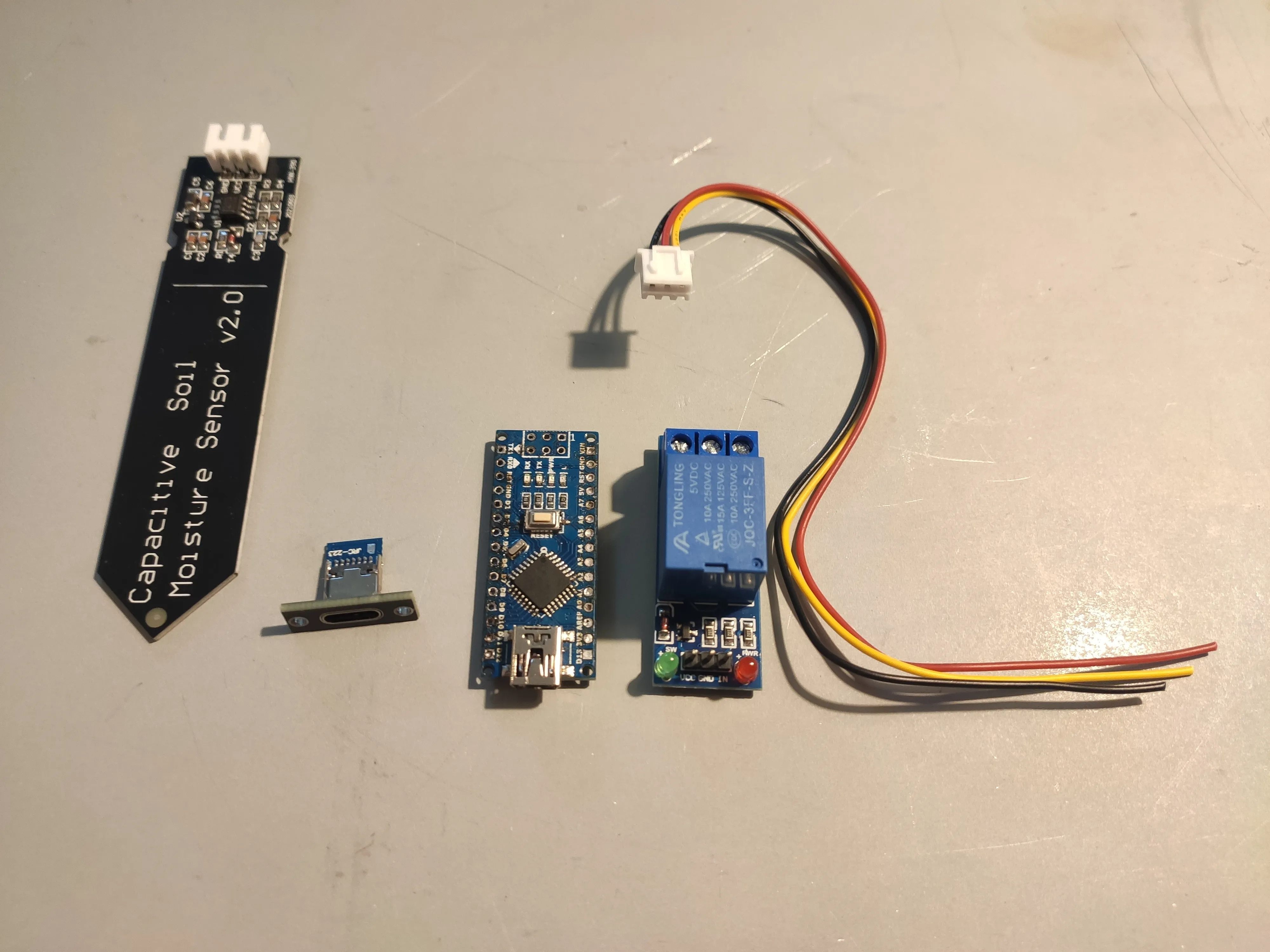

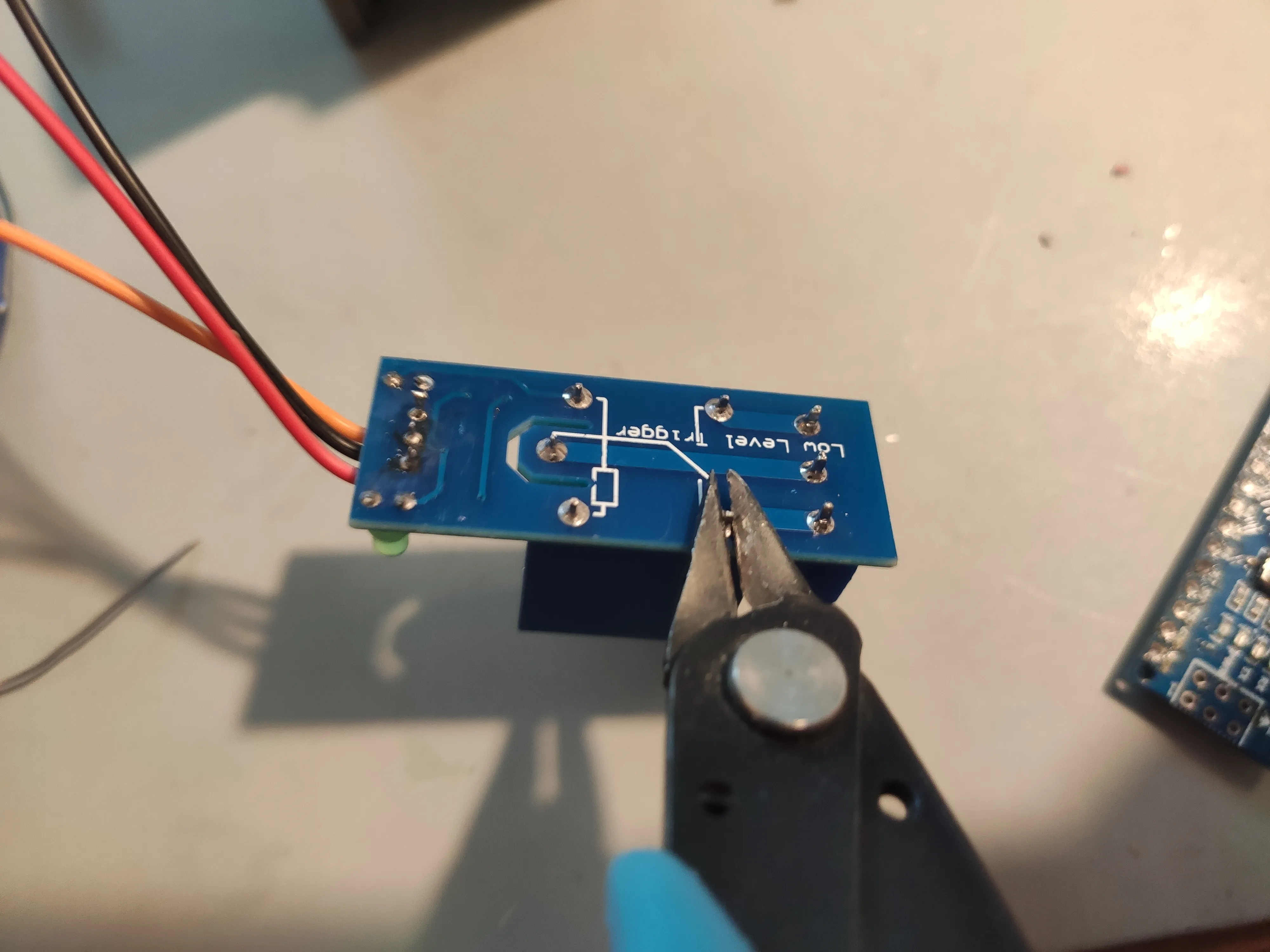

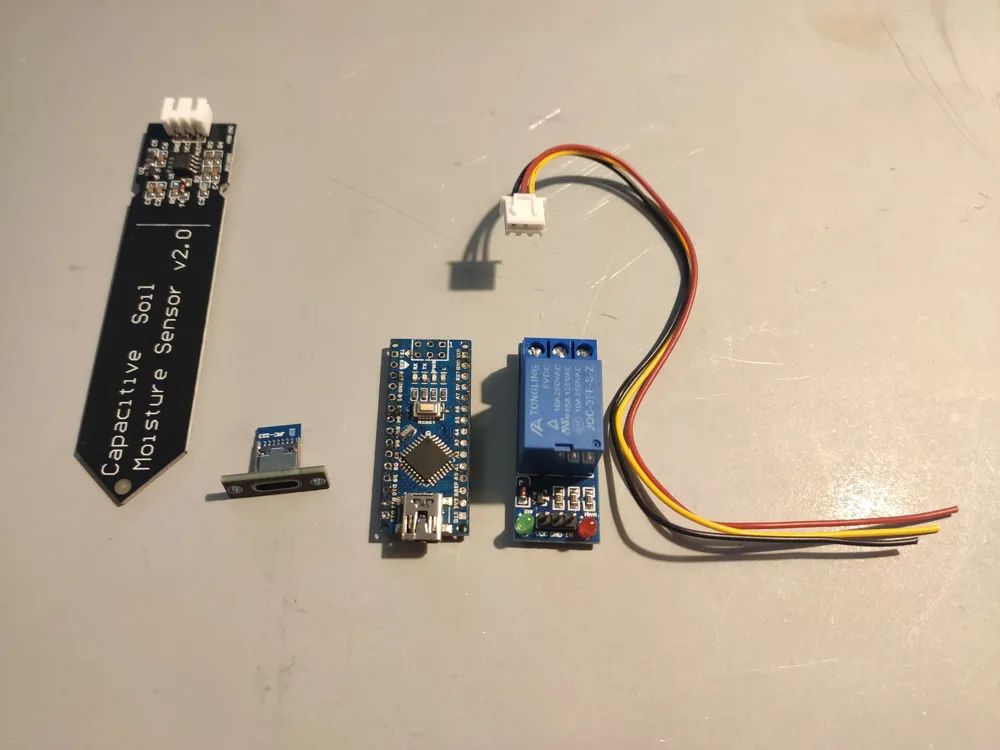

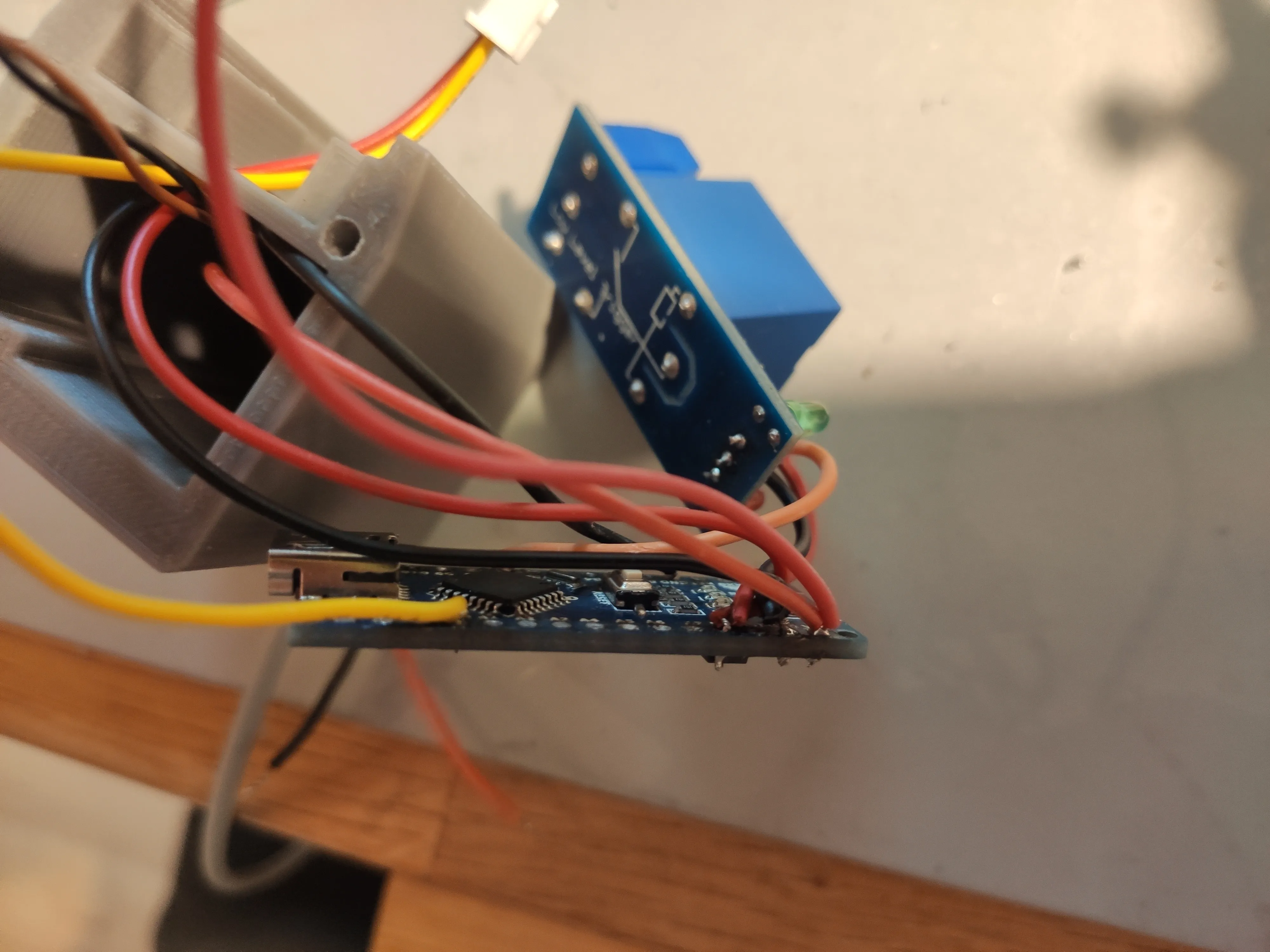

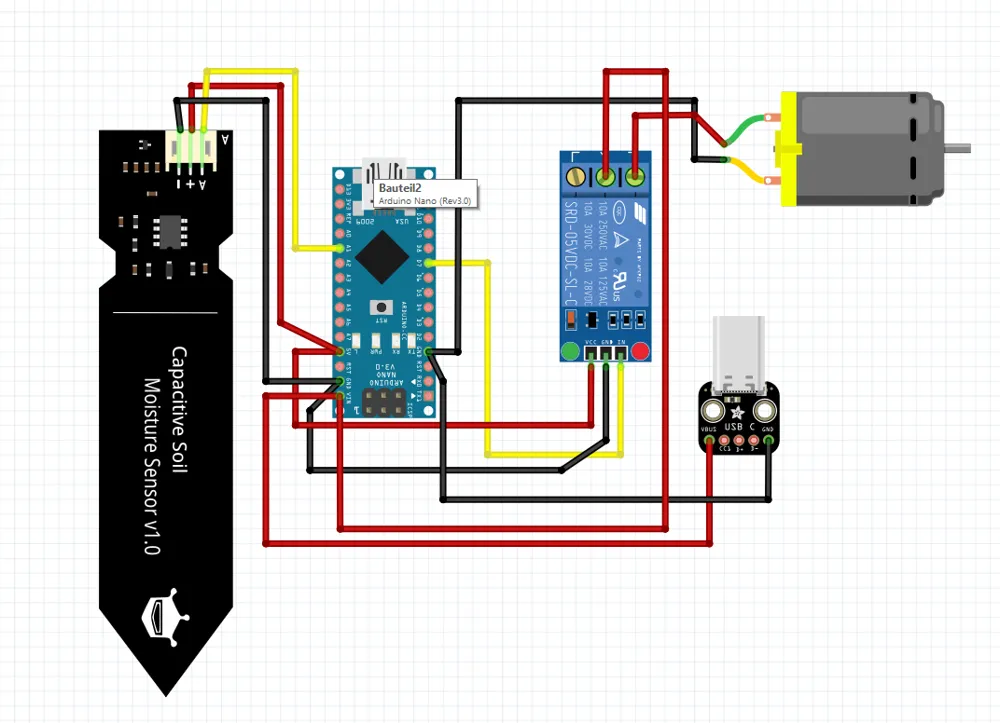

Required Accessories / Bill of Materials (BOM)

Code for Arduino

// -------- Pins --------
const int soilPin = A0;
const int relayPin = 7;

// -------- Sensor Calibration --------
int airValue = 580;    // Value in air (dry)
int waterValue = 256;  // Value in water (wet)

// -------- Settings --------
int moistureThreshold = 70;  // Percentage value at which watering occurs

unsigned long wateringTime = 5000;       // Pump time (ms)
unsigned long waitAfterWatering = 10000;  // Wait time after watering
unsigned long measurementInterval = 100000; // Measurement interval

// -------- Variables --------
unsigned long lastMeasurement = 0;

void setup() {

 Serial.begin(9600);

 pinMode(relayPin, OUTPUT);
 digitalWrite(relayPin, HIGH); // Relay OFF

}

void loop() {

 unsigned long currentMillis = millis();

 if (currentMillis - lastMeasurement >= measurementInterval) {

   lastMeasurement = currentMillis;

   int sensorValue = analogRead(soilPin);

   // Conversion to percent
   int moisturePercent = map(sensorValue, airValue, waterValue, 0, 100);
   moisturePercent = constrain(moisturePercent, 0, 100);

   Serial.print("Sensor Value: ");
   Serial.print(sensorValue);

   Serial.print("  Moisture: ");
   Serial.print(moisturePercent);
   Serial.println("%");

   // Check if watering is needed
   if (moisturePercent < moistureThreshold) {

     Serial.println("Too dry -> Watering starts");

     waterPlant();
   }
   else {

     Serial.println("Moisture OK");
   }
 }
}

// -------- Watering Function --------

void waterPlant() {

 digitalWrite(relayPin, LOW); // Relay ON
 Serial.println("Pump running");

 delay(wateringTime);

 digitalWrite(relayPin, HIGH); // Relay OFF
 Serial.println("Pump off");

 Serial.println("Waiting...");
 delay(waitAfterWatering);

}

If further instructions or descriptions are desired, simply leave a comment and I will do my best to describe it as thoroughly as possible
