Description

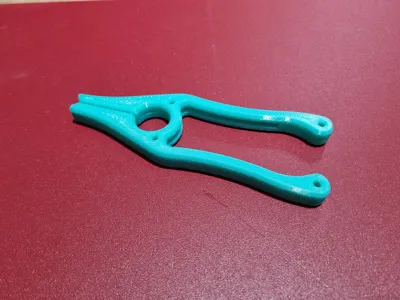

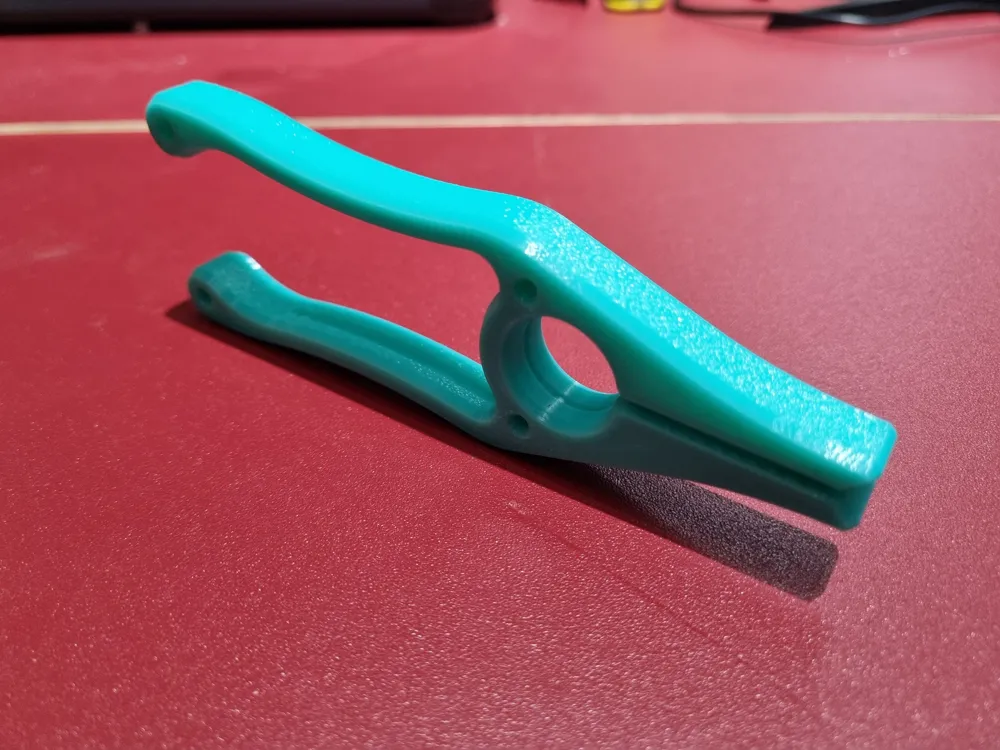

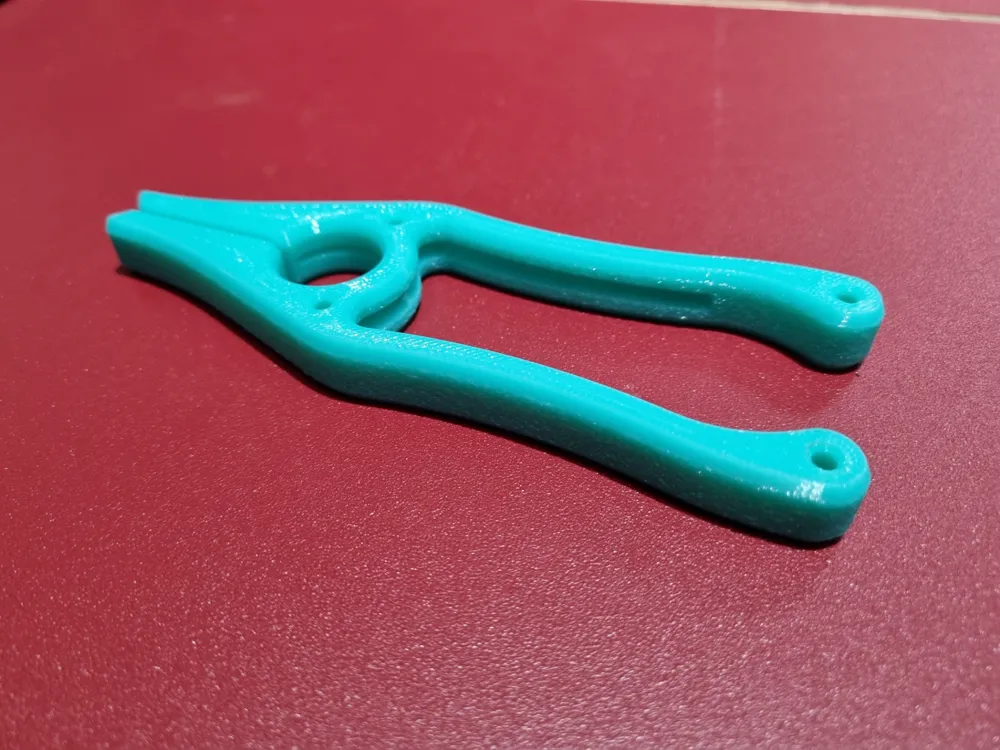

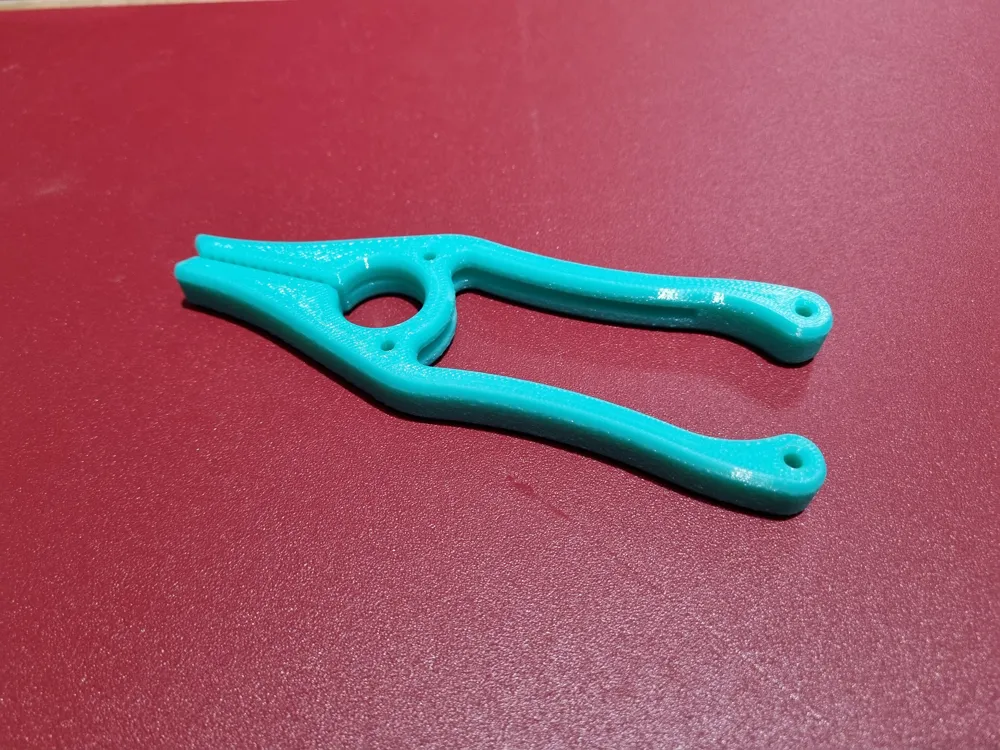

This tool is designed to quickly straighten twisted pairs in Cat5/Cat6 cables for easier crimping and termination. The plier-style grip provides mechanical leverage to remove kinks and bends without damaging the internal copper conductors.
Key Features
- Ergonomic Design: Mimics a standard plier grip for comfortable, repetitive use.
- Integrated Straightening Channel: Precision-aligned jaws specifically shaped (teeth one side, flat the other) to flatten and align Ethernet pairs.
- Print-in-Place Compatible: Designed for easy printing with no assembly required.
Print Settings
- Material: PETG or Tough PLA (recommended for hinge durability and spring tension / durability).
- Infill: 25% or higher (Grid or Gyroid for structural strength).
- Walls: 4-5 loops to ensure handle rigidity.
- Supports: Not required.
