Hopfenhöhle (Ground Cooler)

Brief Description

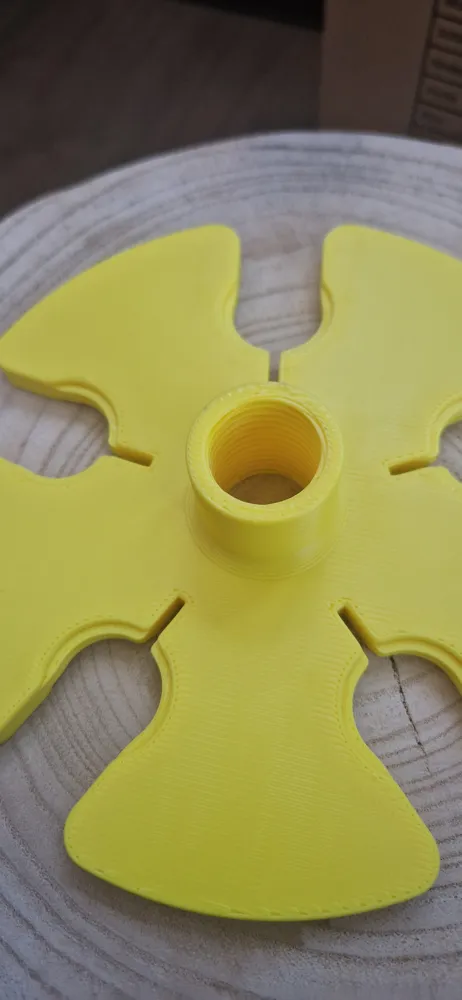

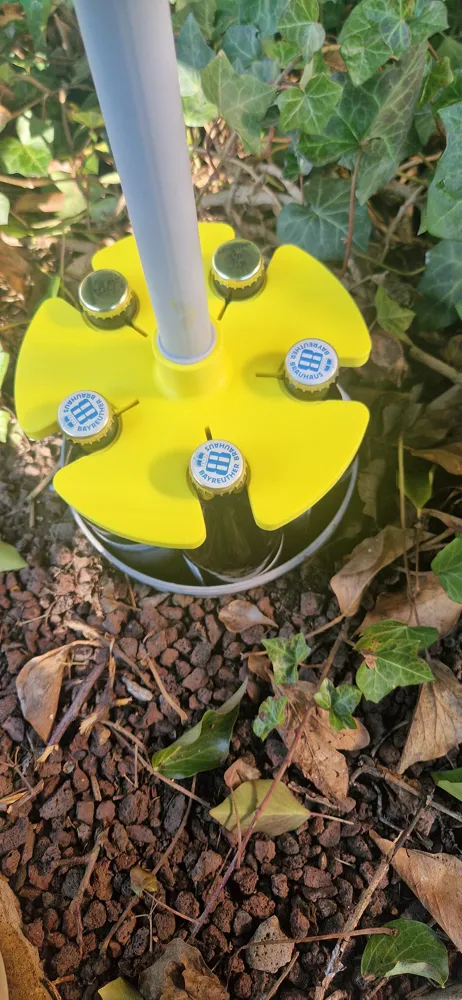

Design: Modular, 3D Printed bottle holder especially for beer bottles without swing tops. The construction consists of annular holding elements that are stacked via threads on a central pipe. The bottles neatly snap into the recesses and sit securely. The parts are printed with a 0.8mm nozzle, as the layers can better support the weight of the bottles, and print time is also reduced.

Technical Specifications

• Bottle Holder Diameter: 190 mm (Inner diameter of the annular holders).

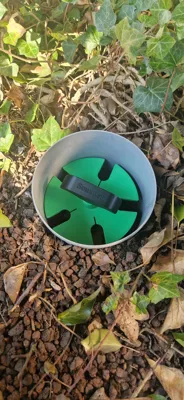

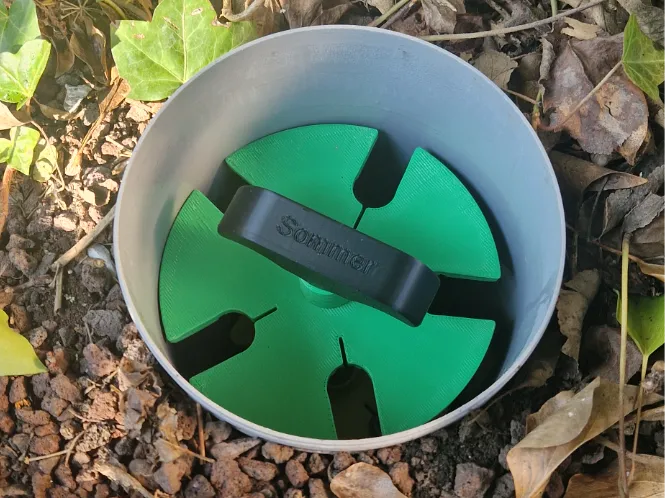

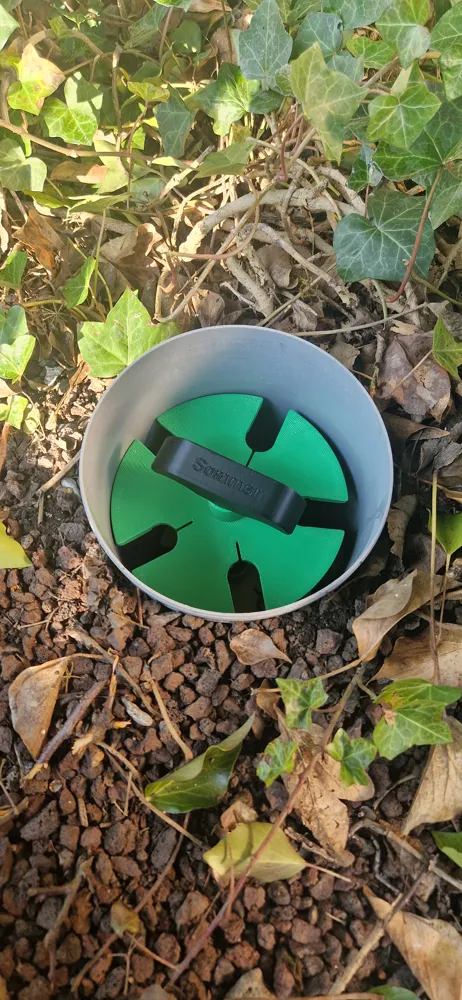

• Support Pipe: Minimum 200 mm outer diameter required (KG pipe); Seal pipe ends with suitable caps.

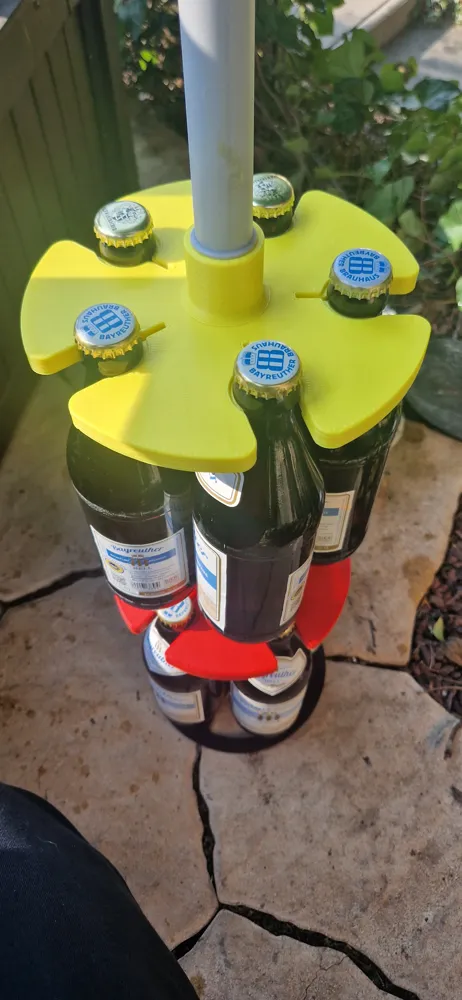

• Capacity: Standard version for 15 bottles, modularly expandable.
• Connection: Modules are threaded; central axle/pipe bears the load.

Notes on Reproduction and Material

• Hardware Store Components: Pipe and end caps are readily available at hardware stores.
• Tolerances: Ensure precise thread tolerances so that modules fit without play and securely.
• Stability Consideration: No problems were observed with 15 bottles; with further expansion, the load on the threads and the central pipe may increase, which can reduce stability.

Print Recommendations and Support Separation

• Material Recommendation: PETG is recommended due to its toughness and weather resistance.
• Separation Layer Tip: When printing with supports, use a thin PETG separation layer between the support and the part so that supports can be removed more easily. If the part itself is printed in PETG, PLA is recommended as a separation layer.
• Surface Finish: Ensure clean post-processing on the snap-in surfaces so that bottles snap in easily and do not get stuck.

Assembly and Use

• Assembly: Screw threaded modules onto the pipe, install end caps, and if necessary, use a central screw or nut for additional fixation.
• Use: Suitable for garden, patio, or events; modular design facilitates transport and storage.
• Safety: Regularly check threaded connections; replace modules if visible signs of wear appear. In winter, bottles must be removed, as ground frost can cause them to burst!!

Conclusion

A well-designed, modular 3D printing project for 15 beer bottles without swing tops, which can be easily replicated and expanded with commercially available KG pipes. When expanding beyond the 15-bottle configuration, the thread and pipe stability should be critically reviewed to ensure long-term safety.
