Ground spike for 20 mm aluminum tube

Search models, users, collections, and posts

Mario_L

Hobby & DIY>Sport & Outdoors

IP Report

Print Profile(1)

All

X1 Carbon

X1E

P1P

P2S

A1 mini

H2S

P1S

H2D

H2D Pro

H2C

X2D

A2L

Read DESCRIPTION

Designer

2 h

3 plates

Open in Bambu Studio

Boost

Released

Description

A strong, 3D‑print‑ready ground spike designed for a 20 mm aluminum tube (17 mm inner diameter). Created for fishing chairs to improve rod stability by anchoring the tube securely into the ground.

The model is available in two variants: fully printable and hybrid with metal stabilizing fins.

Versions

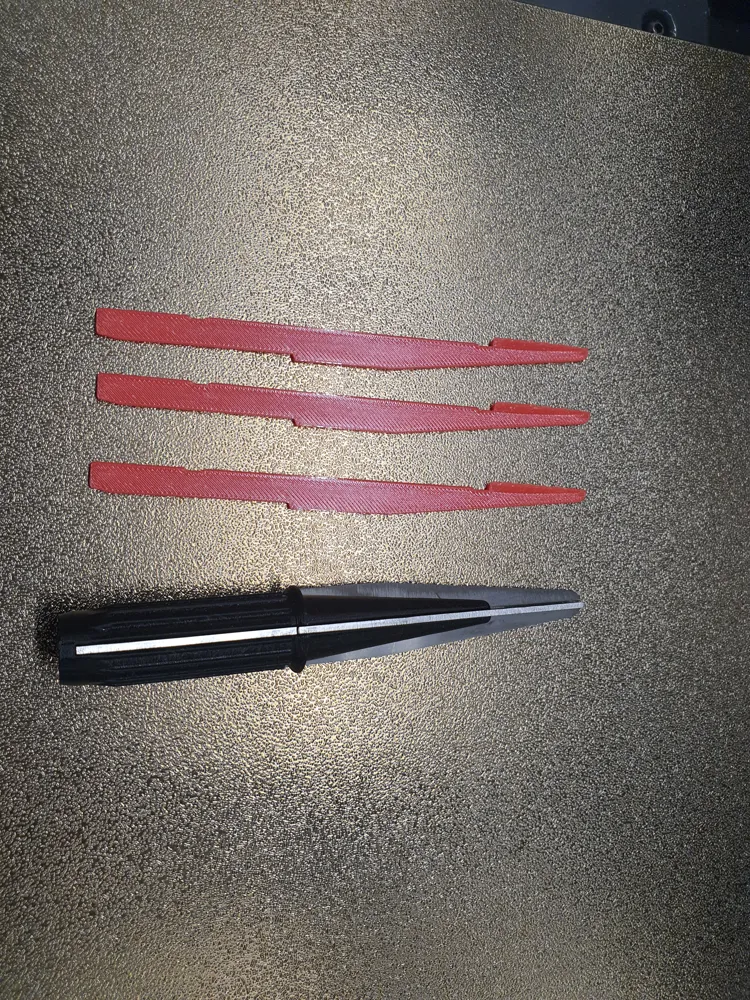

1. Fully printable

All parts printed in PETG.
Stabilizing fins must be glued to the printed core.

2. Hybrid version

Printed core.

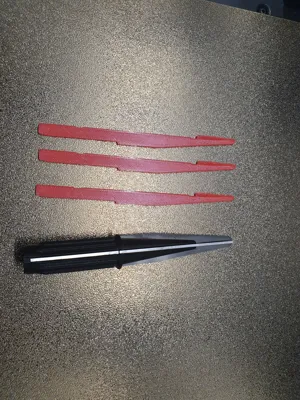

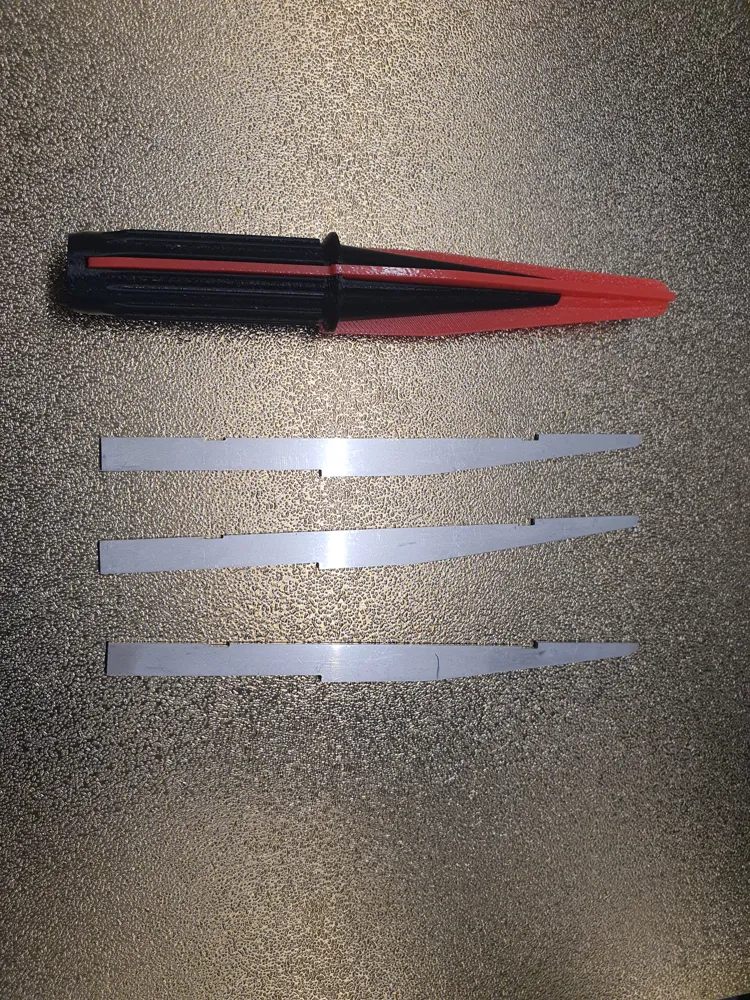

Three stabilizing fins cut from 1.5 mm sheet metal (DXF included).
Maximum durability and torsion resistance.

Print Settings

Core

Material: PETG
Layer height: 0.2 mm
Perimeters: 4
Infill: 0%
Supports: not required
Orientation: print vertically

Stabilizing fins (printed version)

Material: PETG
Layer height: 0.2 mm
Perimeters: 4
Infill: 100%
Supports: not required
Orientation: flat on the bed

Materials

PETG (recommended)
Cyanoacrylate glue (for fully printable version)
1.5 mm steel sheet (for hybrid version)

Assembly

Insert the stabilizing fins into the side slots of the core.
In the fully 3D‑printed version, the stabilizing fins must be glued in place.

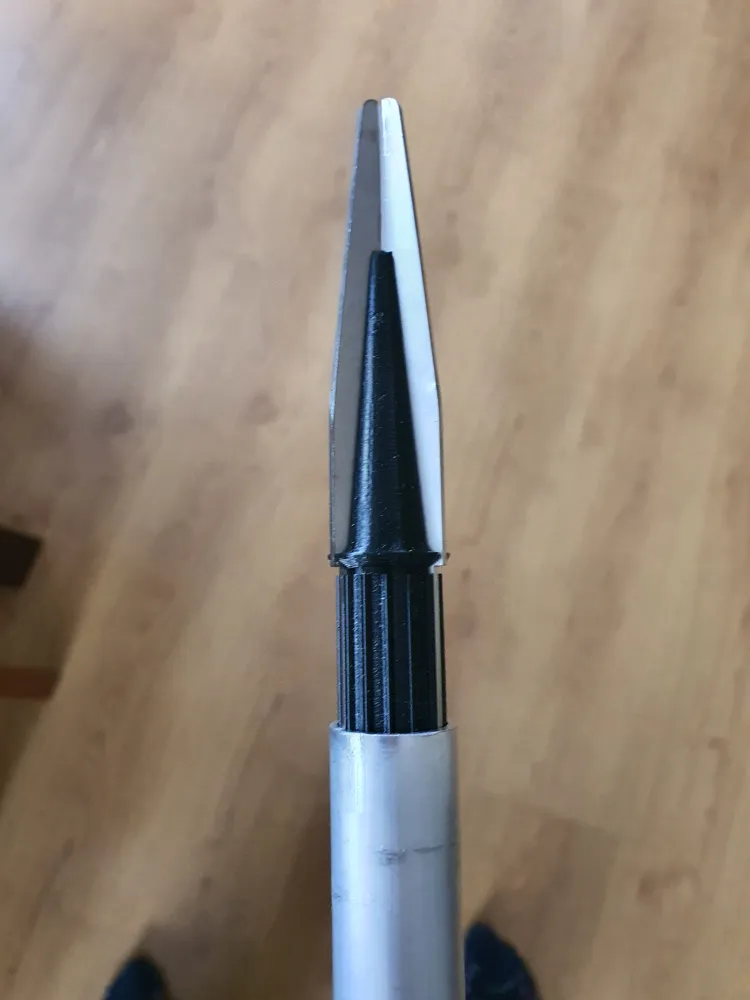

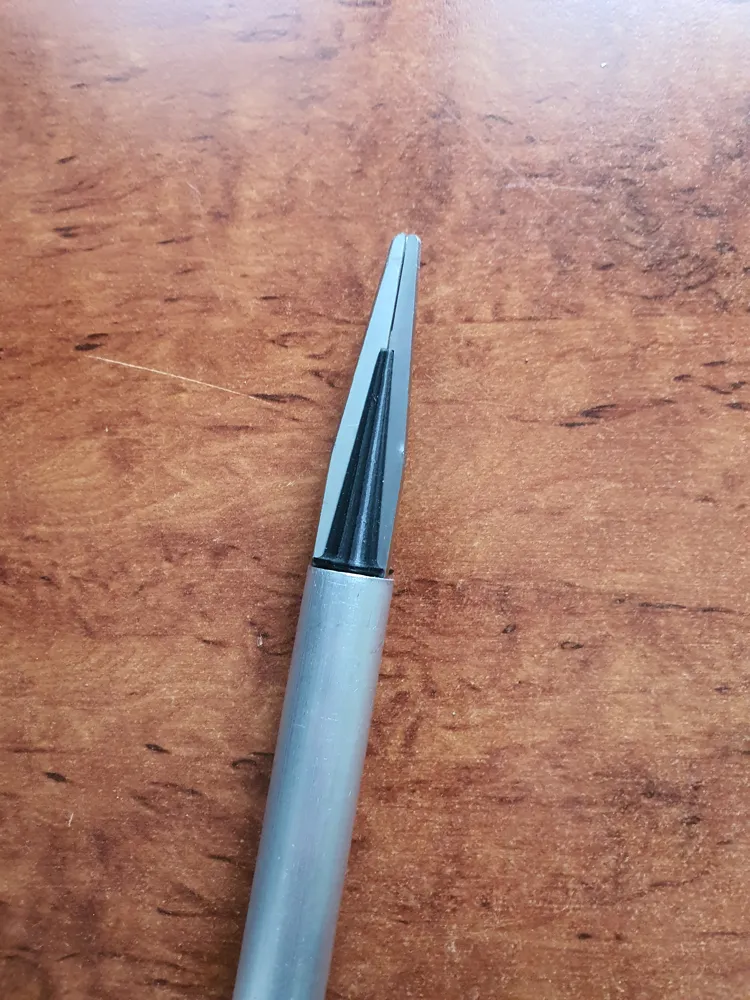

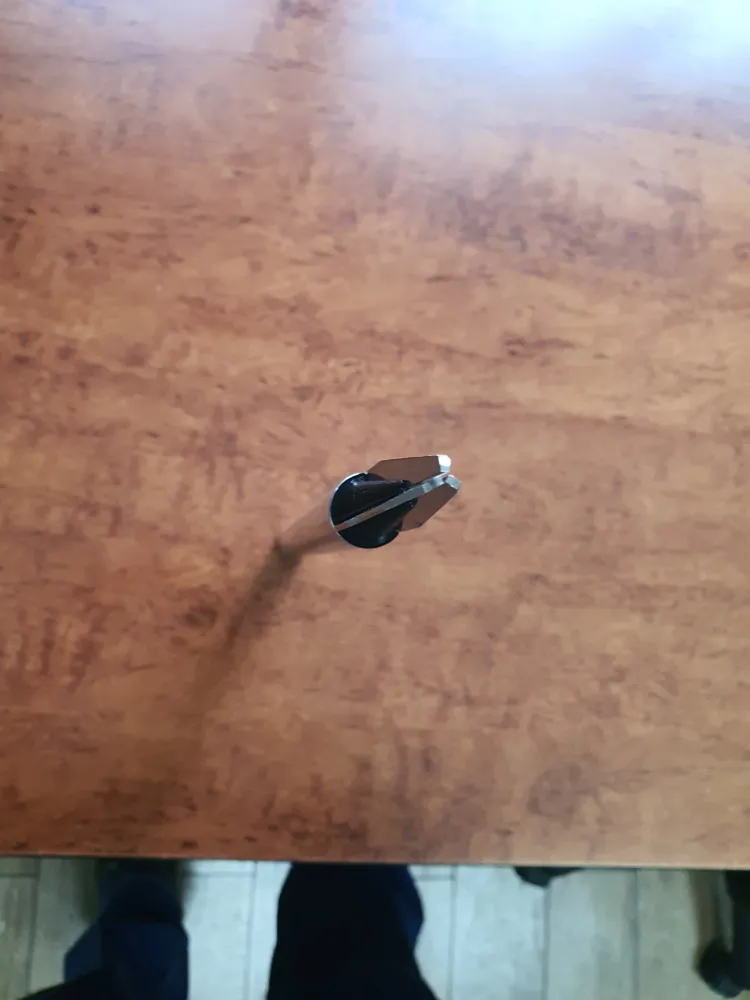

Slide the core with the attached fins into the tube.
The Ground_spike_montage_part placed on the sharp end of the Ground spike may assist with the assembly.

Use cases

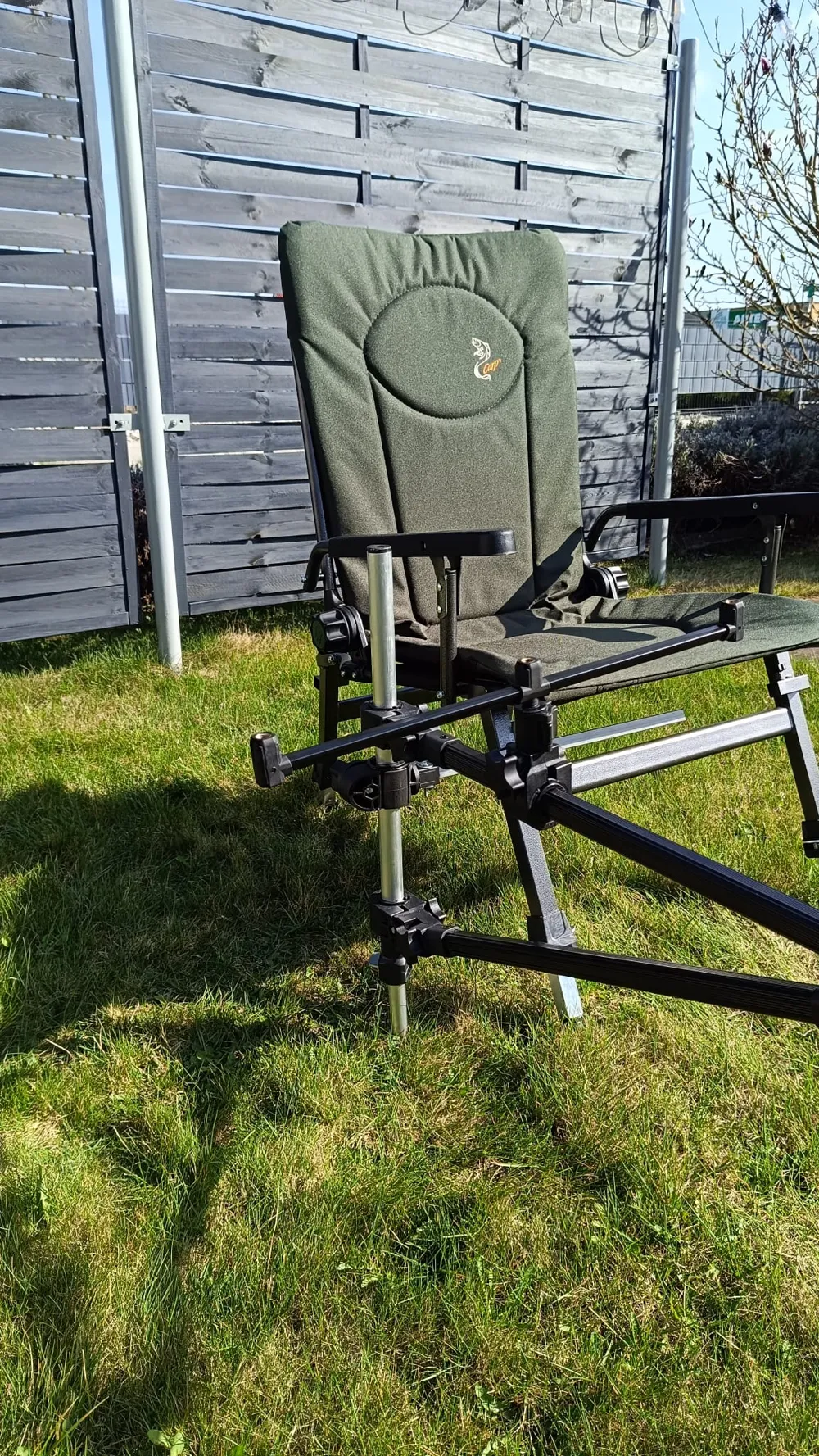

Fishing chairs
Rod holders
20 mm aluminum tubes
Ground stabilization in soft soil
