Description

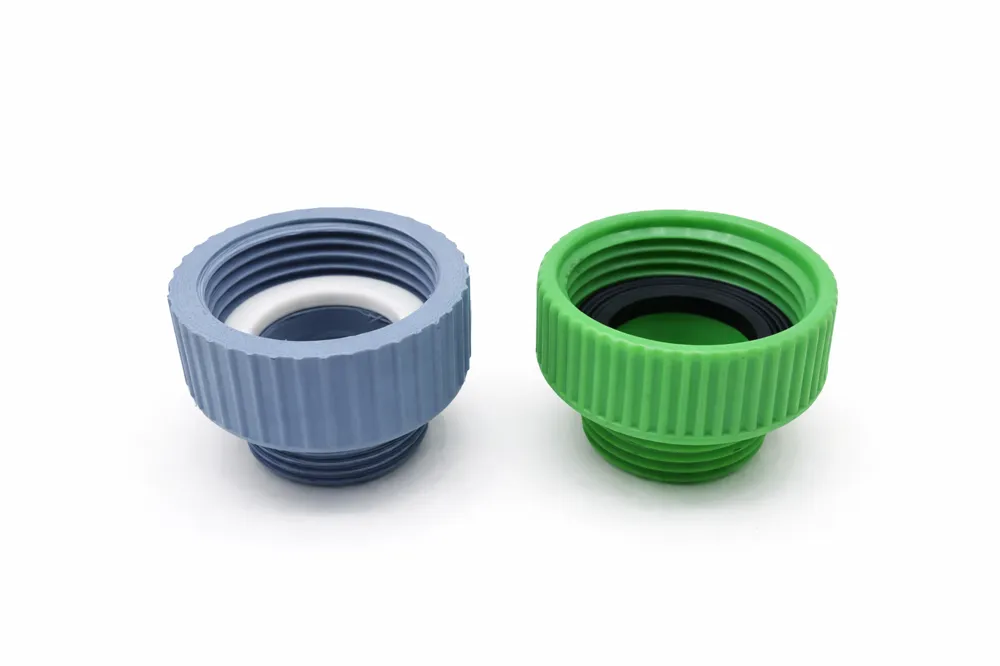

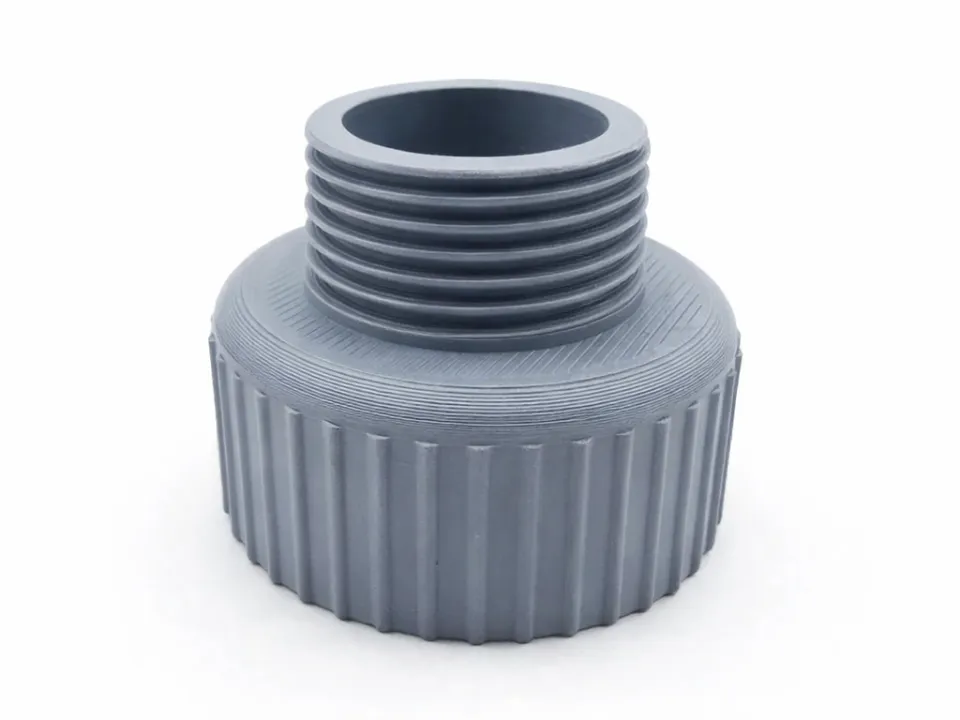

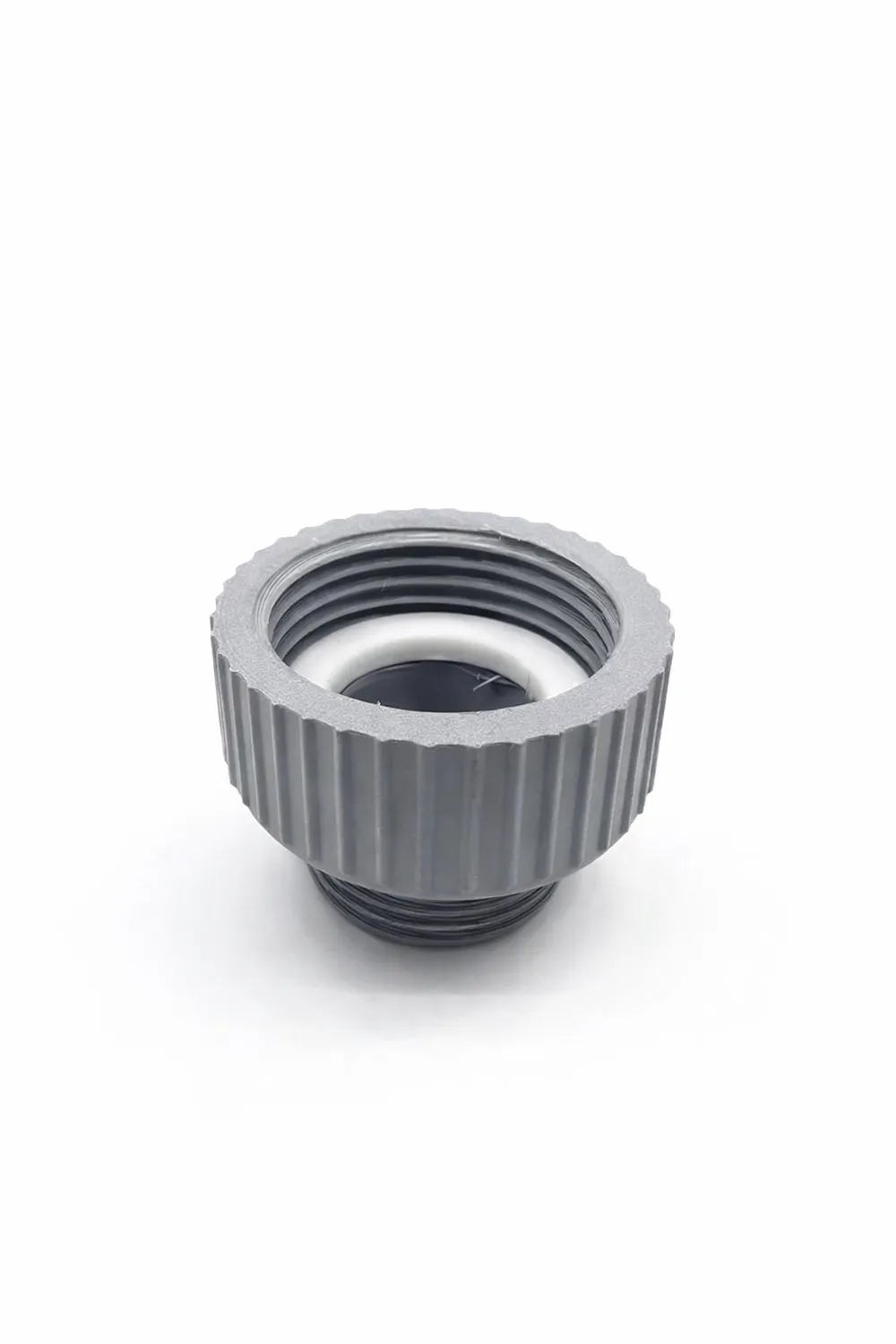

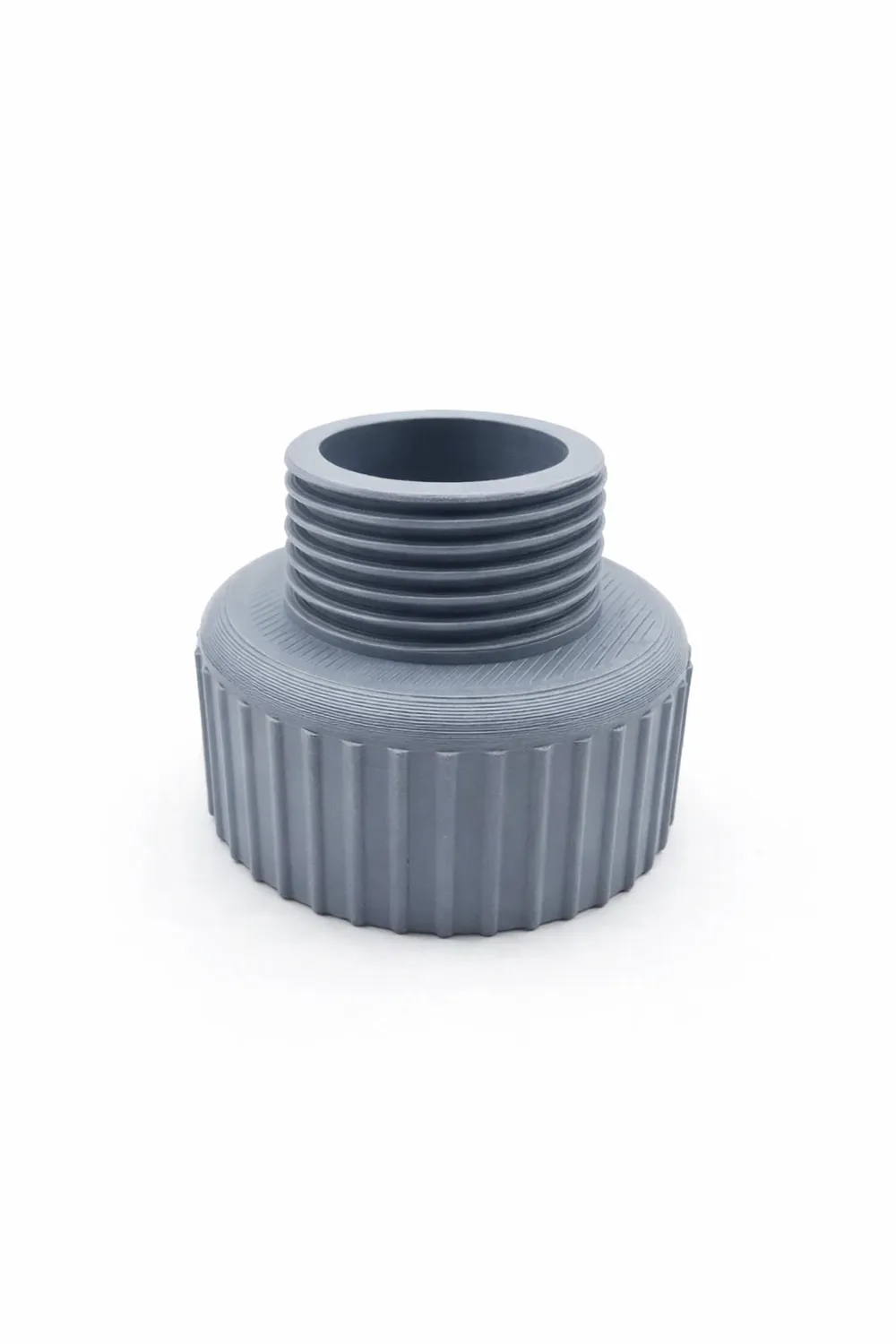

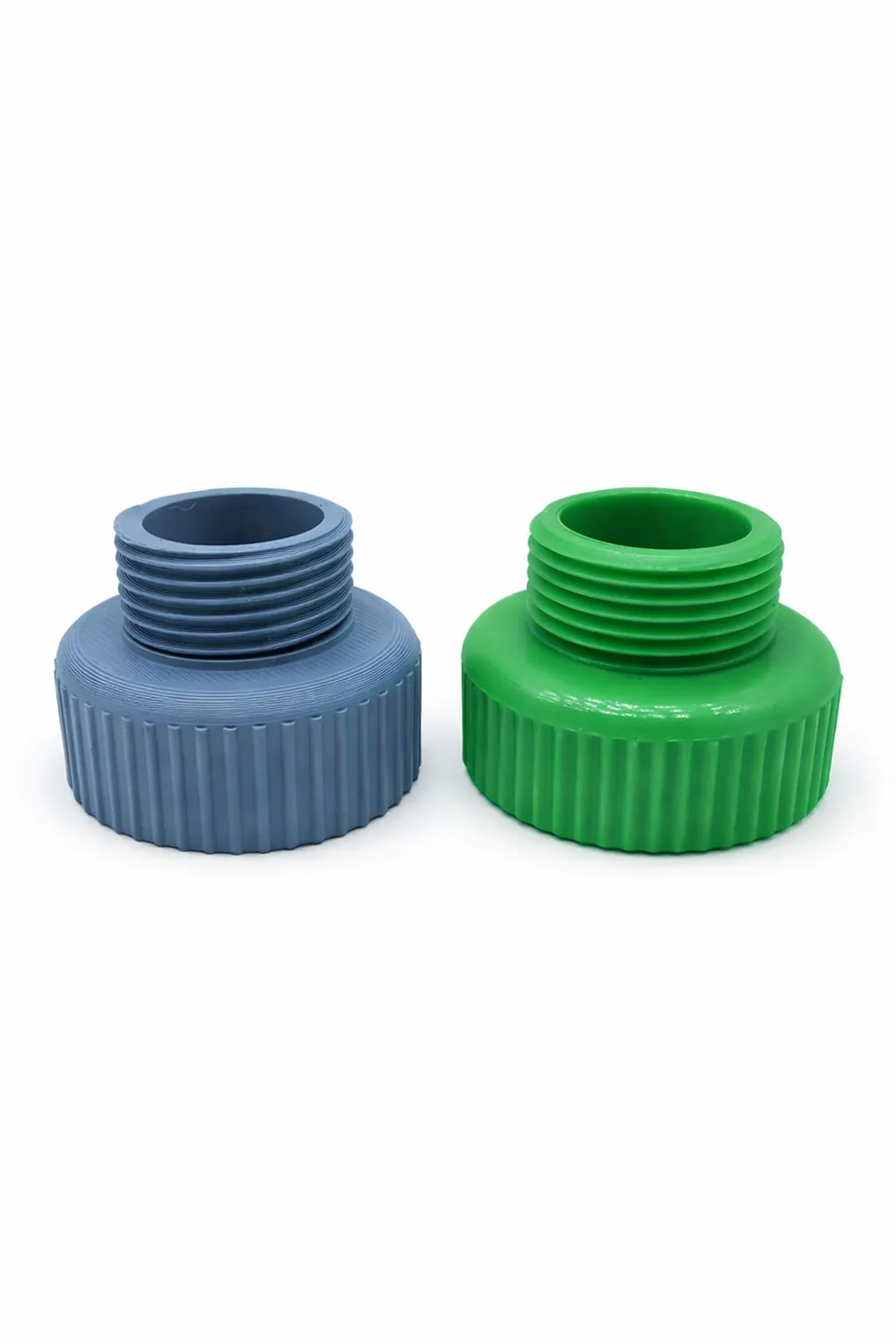

This is a BSPP Thread Tap Fitting Reducer. It is a 1" Female to ¾" Male Fitting.

The model was designed in Fusion360 and printed using a P1S on 0.12mm layers with other additional settings changed to get accurate thread profiles. These settings are found saved within the presets.

This particular model has been printed out of PETG HF to have a level of UV Stabilisation and Heat Resistance.

If printing to use this model in a practical application it is recommened to also use thread tape and a seal ring to tightly seal the connection and prevent any leakage. I have a seal ring model available for this reducer on my profile that can be printed from TPU.

1" Female Seal Ring TPU Model

I also have various other reducer fittings in various sizes and their corresponding seal rings available to download and print.

My Models

Appreciate any downloads, comments, and feedback on models.
