Tap Reducer Print Settings for PETG HF:&nbsp;<ul><li>0.12mm Layer Height</li><li>Outer/Inner Wall Order</li><li>2 Wall Loops</li><li>Concentric Top &amp; Bottom Surfaces, and Internal Infill Patterns</li><li>Concetric Infill Pattern @ 15%</li><li>Outer Wall Speed slowed to 35mm/s</li><li>Inner Wall Speed slowed to 60mm/s</li><li>Small Perimeters @ 20mm/s</li><li>No Supports Required - however, this can be changed if preferred or wanting to reorientate the model when printing.</li></ul>Filament Settings for Print (PETG HF):&nbsp;<ul><li>Flow Ratio of 0.95</li><li>Nozzle: Min Temp @ 245 and Max Temp @ 260<ul><li>Intial Layer @ 250 and Others @ 260</li></ul></li><li>Fan Speed: Min Fan Speed 40% and Max Speed 70%<ul><li>Overhangs @ 70%</li></ul></li><li>Setting Overrides:<ul><li>Length - 0.5mm</li><li>Z Hop Normal</li><li>Z Hop when Retract @ 0.3mm</li><li>Retraction Speed - 30mm/s</li><li>Wipe while retracting - ON</li><li>Long Retraction when cut - ON</li><li>Retraction distance when cut - 18</li></ul></li></ul>

0.12mm layer, 2 walls, 15% infill

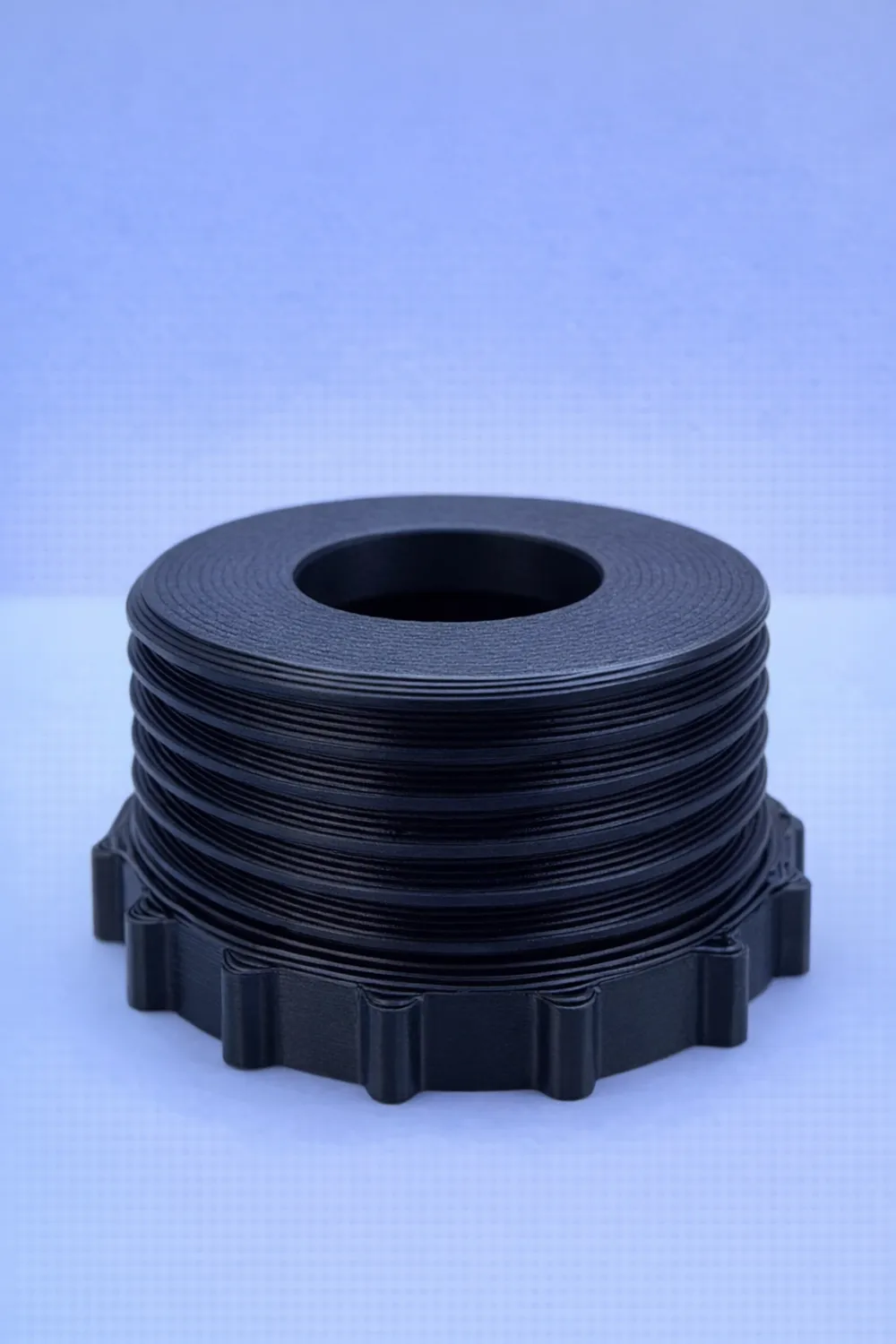

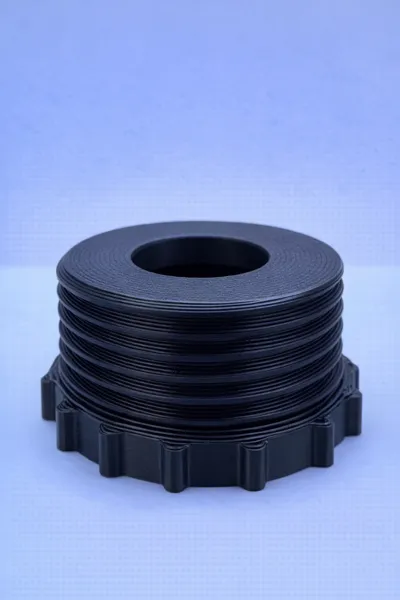

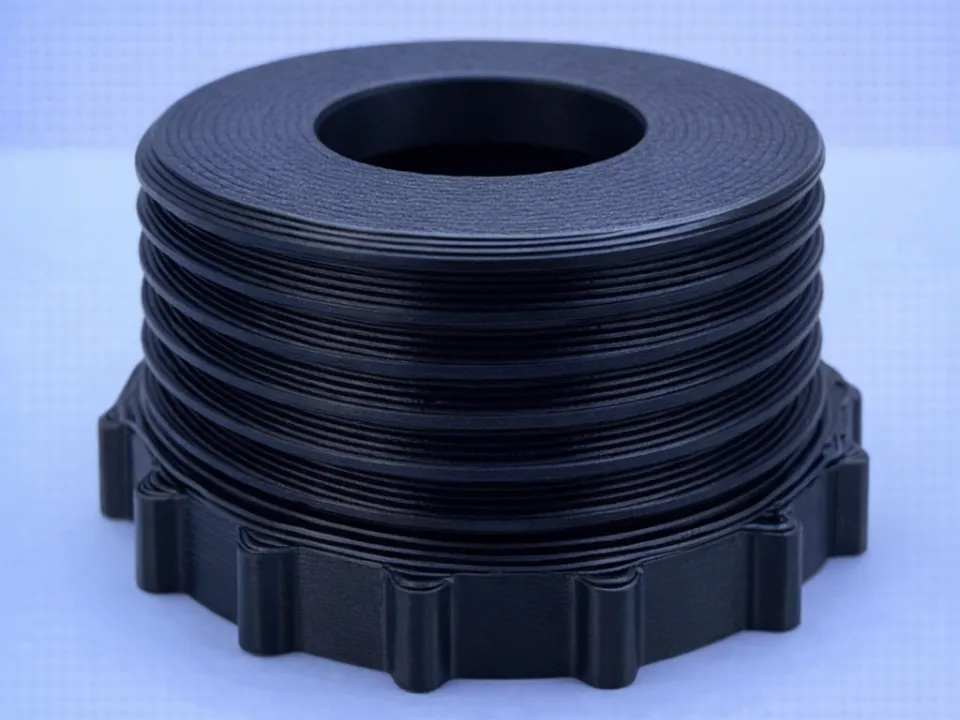

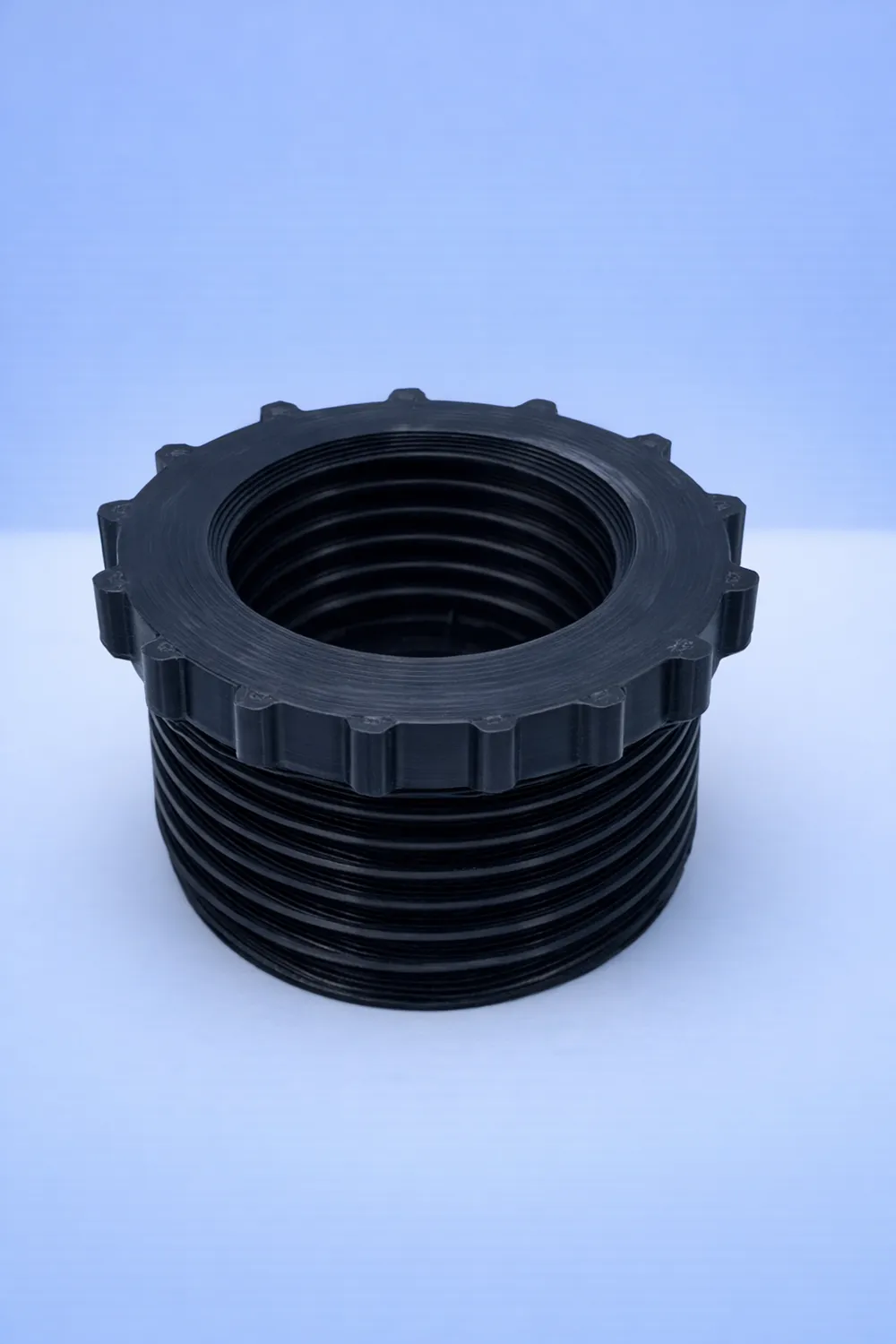

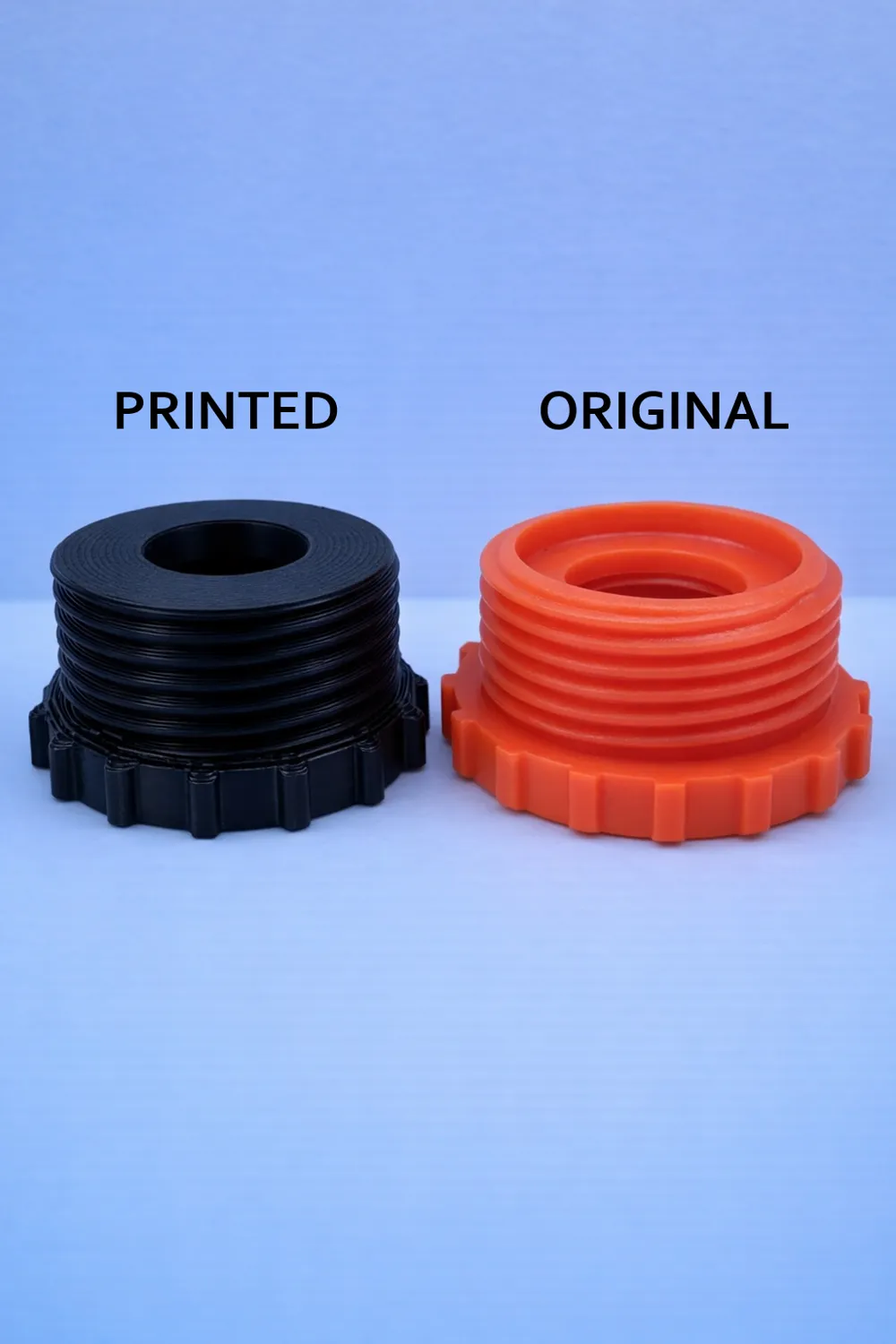

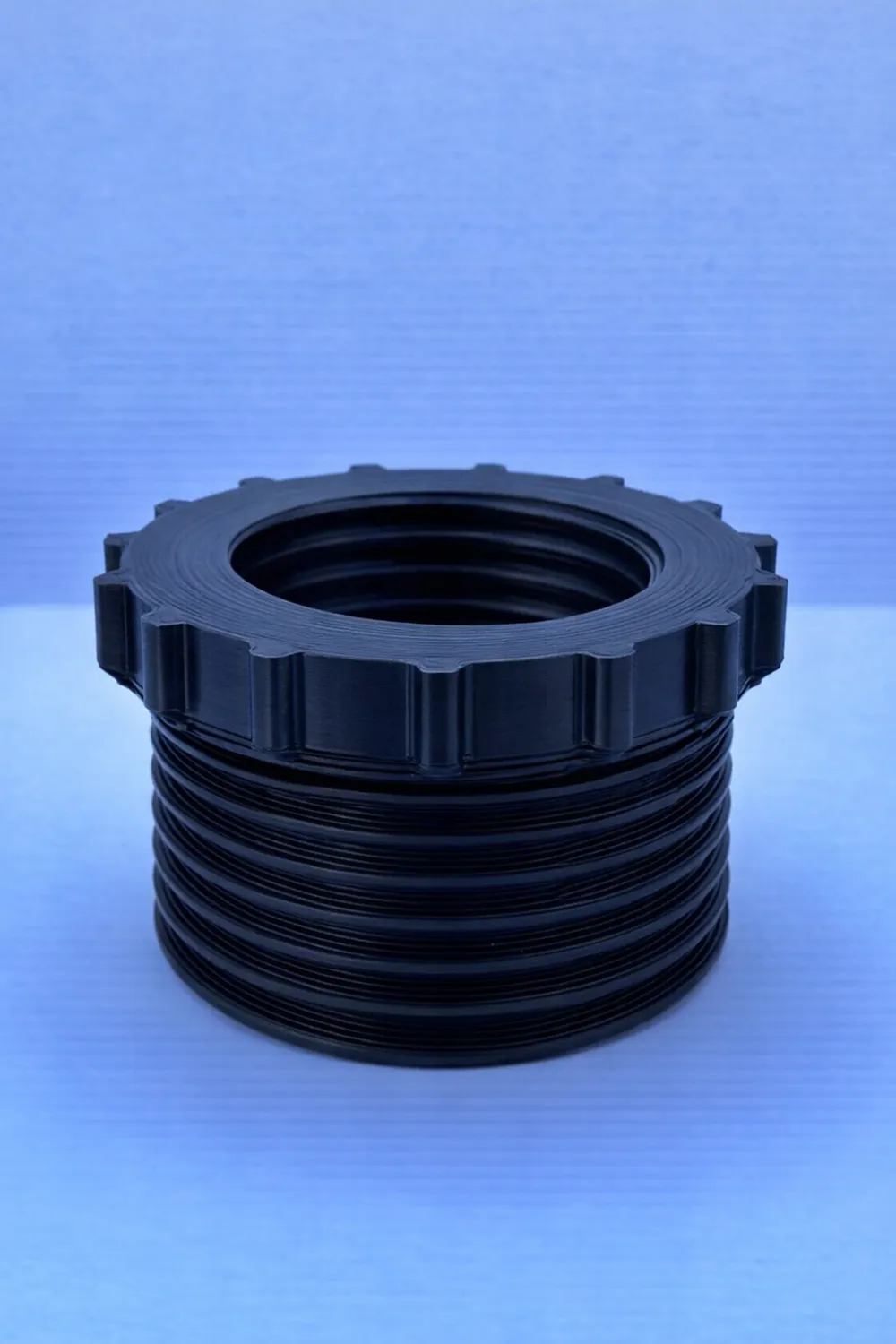

This is a BSPP Thread Tap Fitting Reducer. It is a ½&#34; Female to ¾&#34; Male Fitting. &nbsp;The model was designed in Fusion360 and printed using a P1S on 0.12mm layers with other additional settings changed to get accurate thread profiles. These settings are found saved within the presets. &nbsp;This particular model has been printed out of PETG HF to have a level of UV Stabilisation and Heat Resistance.&nbsp;If printing to use this model in a practical application it is recommened to also use thread tape and a seal ring to tightly seal the connection and prevent any leakage. I have a seal ring model available for this reducer on my profile that can be printed from TPU. &nbsp;I also have various other reducer fittings in various sizes and their corresponding seal rings available to download and print. &nbsp;Appreciate any downloads, comments, and feedback on models.

BSPP Tap Reducer Fitting - 1/2 F to 3/4 Male
