Custom M-LOK Bag Rider

Customize this simple MLOK bag rider to your exact needs.

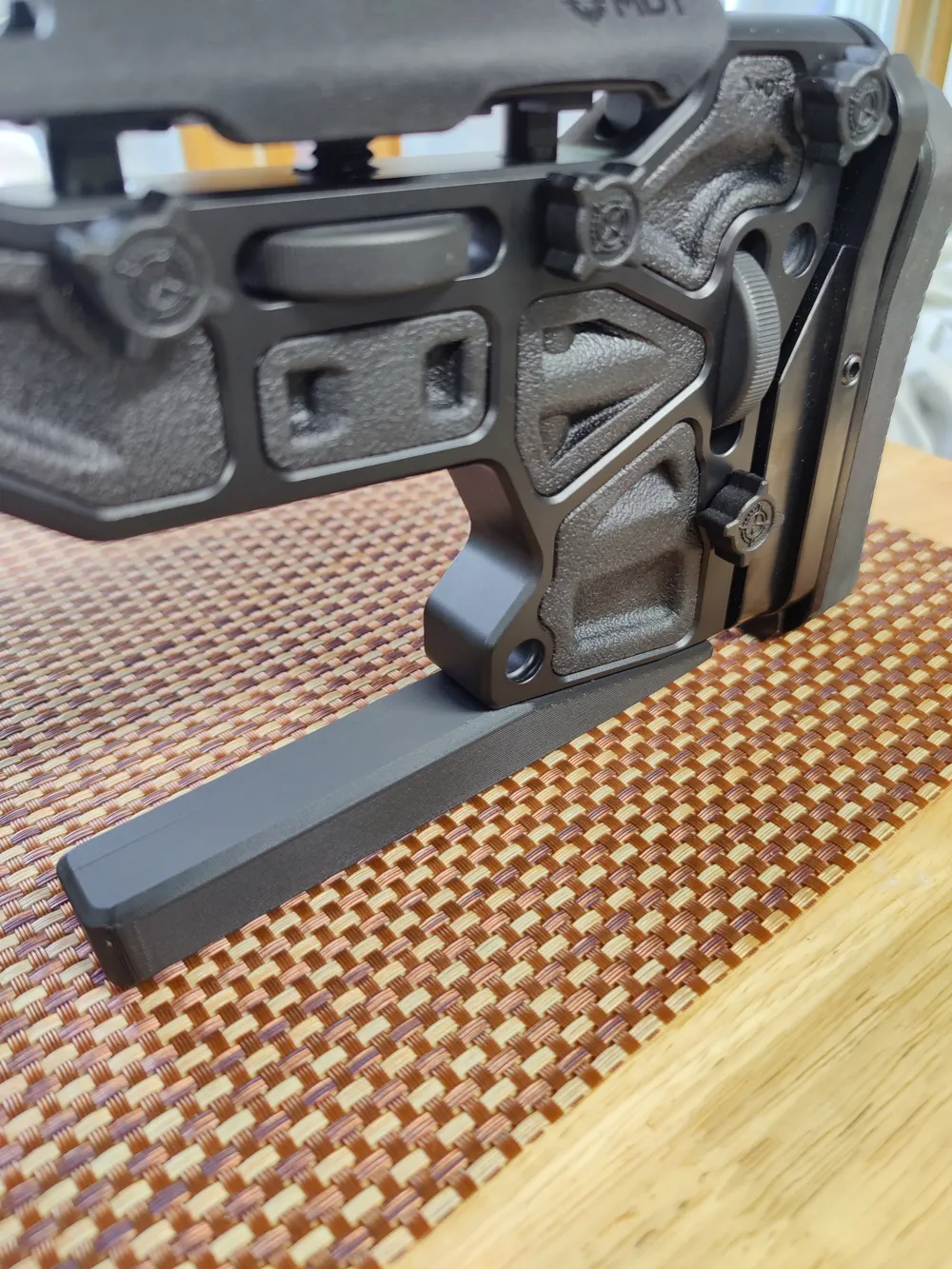

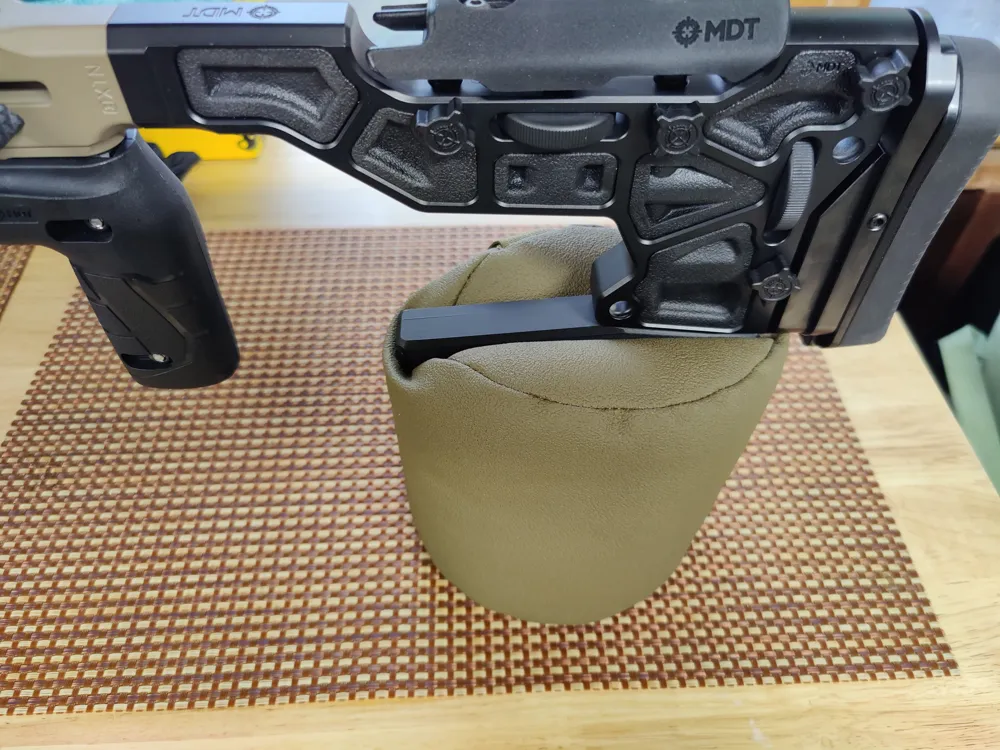

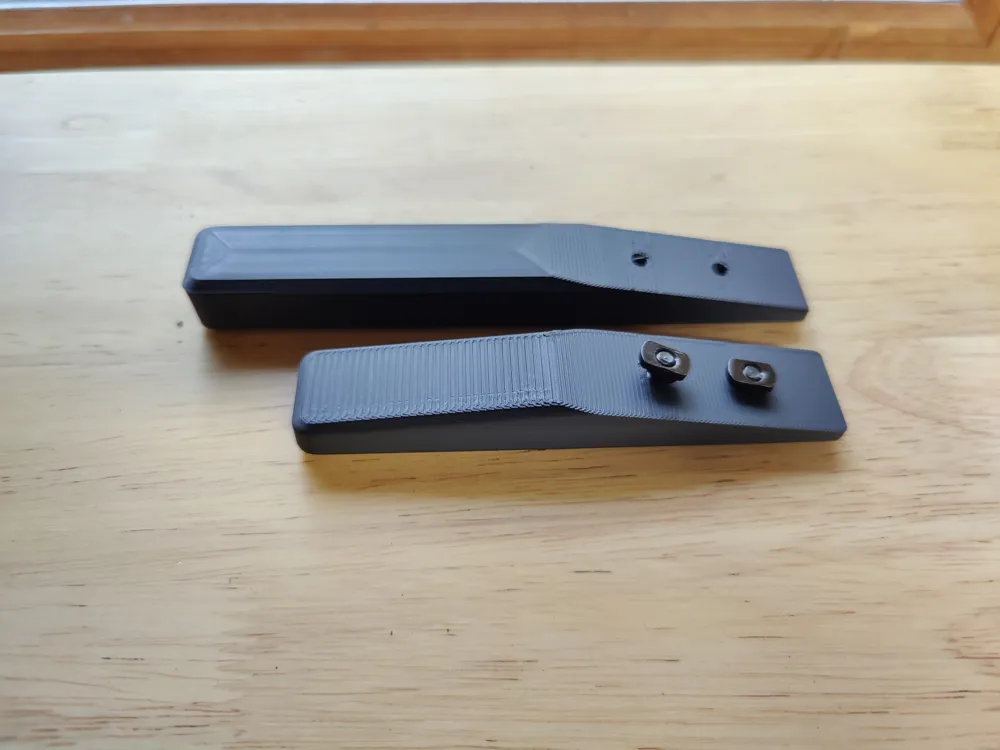

I wanted a bag rider with some angle to help push the buttstock up and muzzle down when the gun recoils backwards.

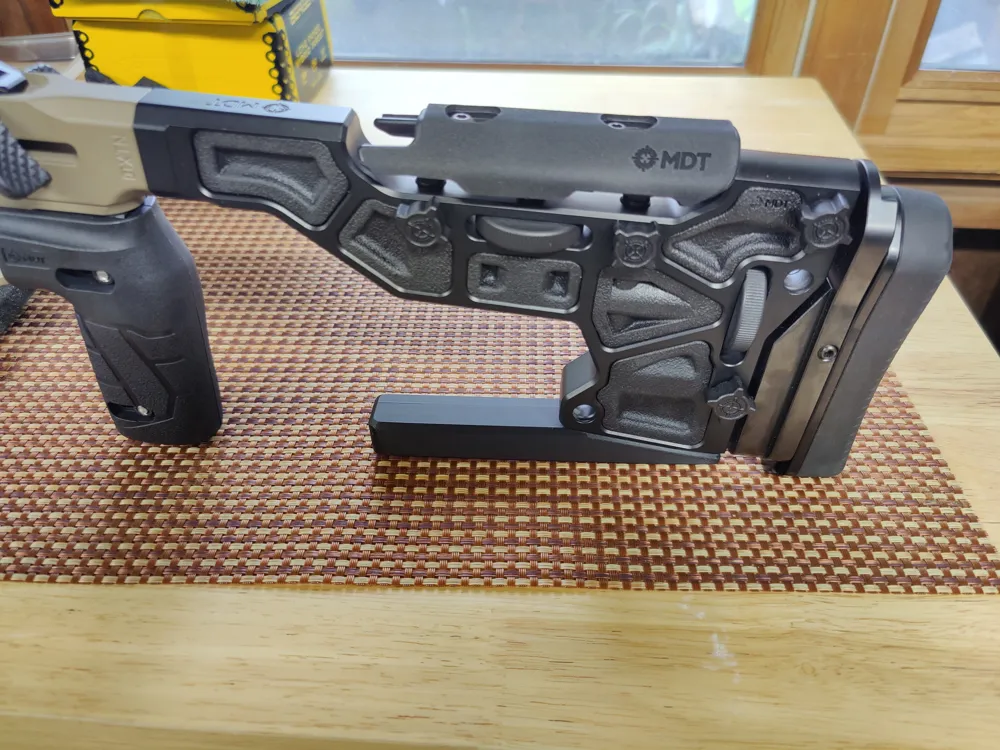

(2.5 degrees pictured here)

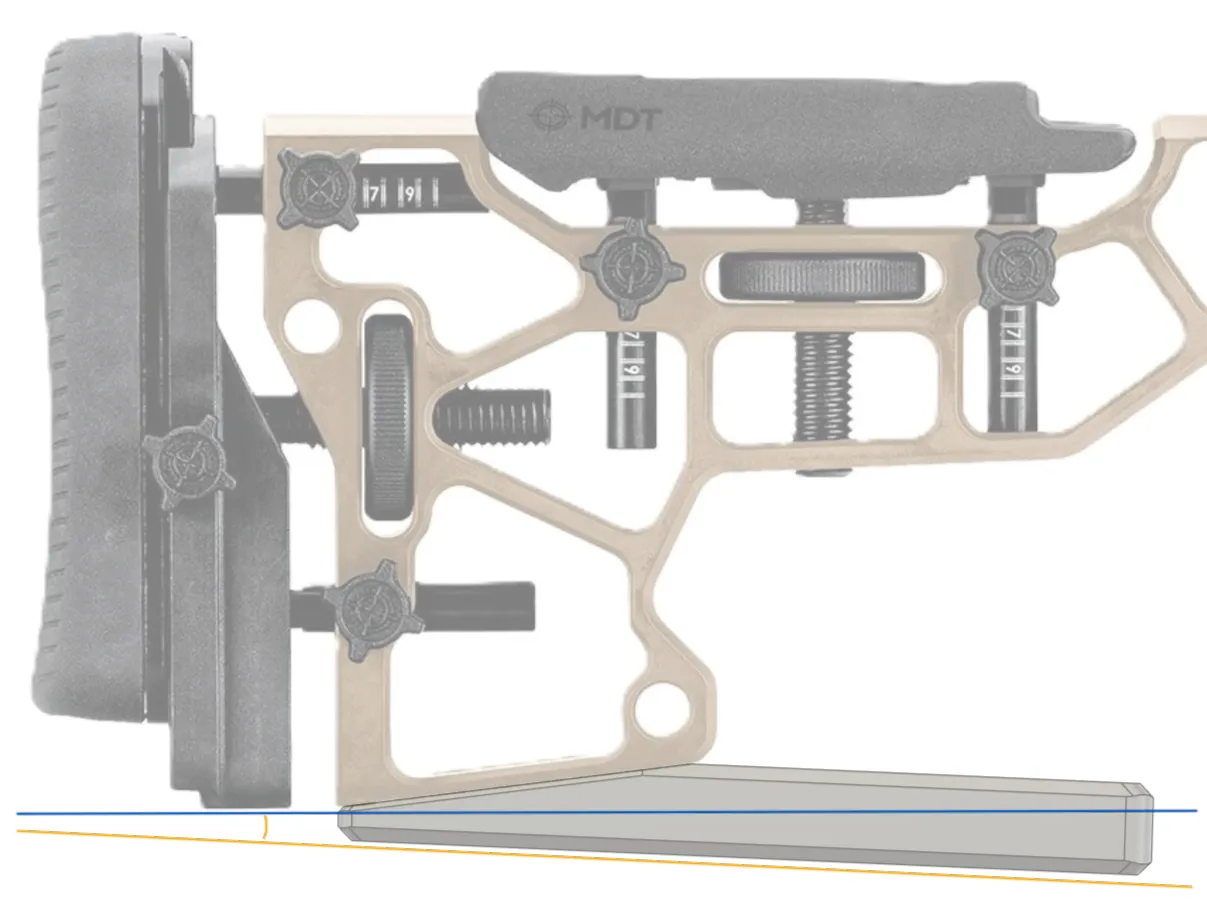

This was designed for use with the MDT SRS series buttstocks like those found on the ESS & ACC chassis. The MLOK attachment surface is at approximately 7.5 degrees of tilt. It can probably be used on other stocks as long as there is a full sized MLOK slot.

It's a cheap print so make it sturdy using 6+ walls & 50%+ high infill.

Hole spacing assumes a single standard MLOK slot and should work with standard MLOK hardware (can get cheap hardware on amazon).

Parameter descriptions:

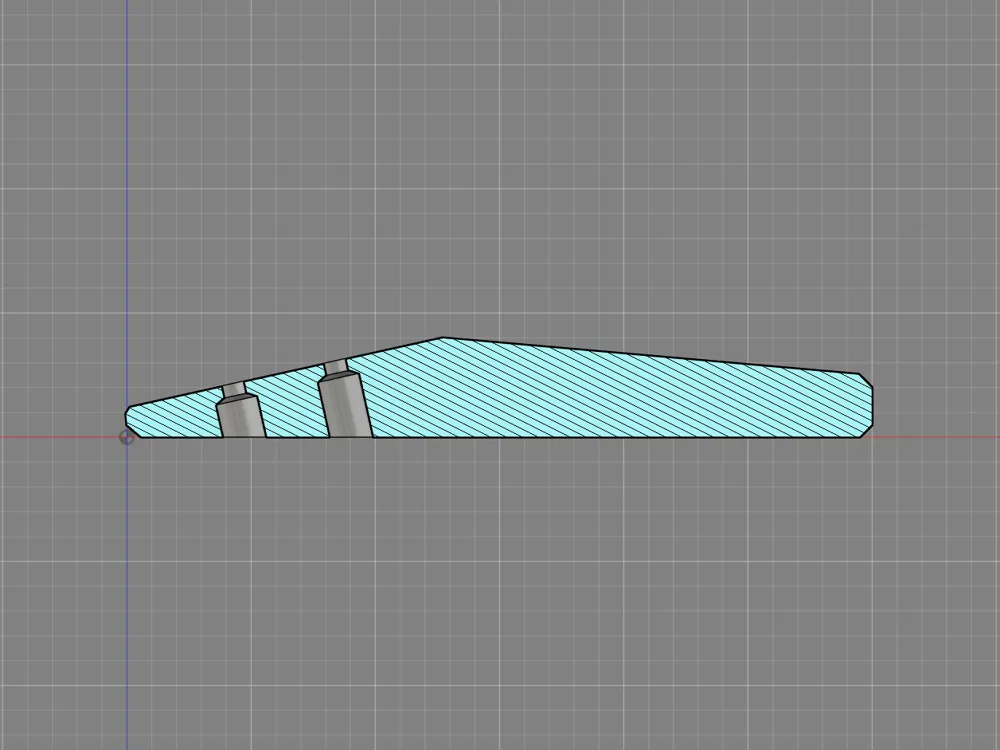

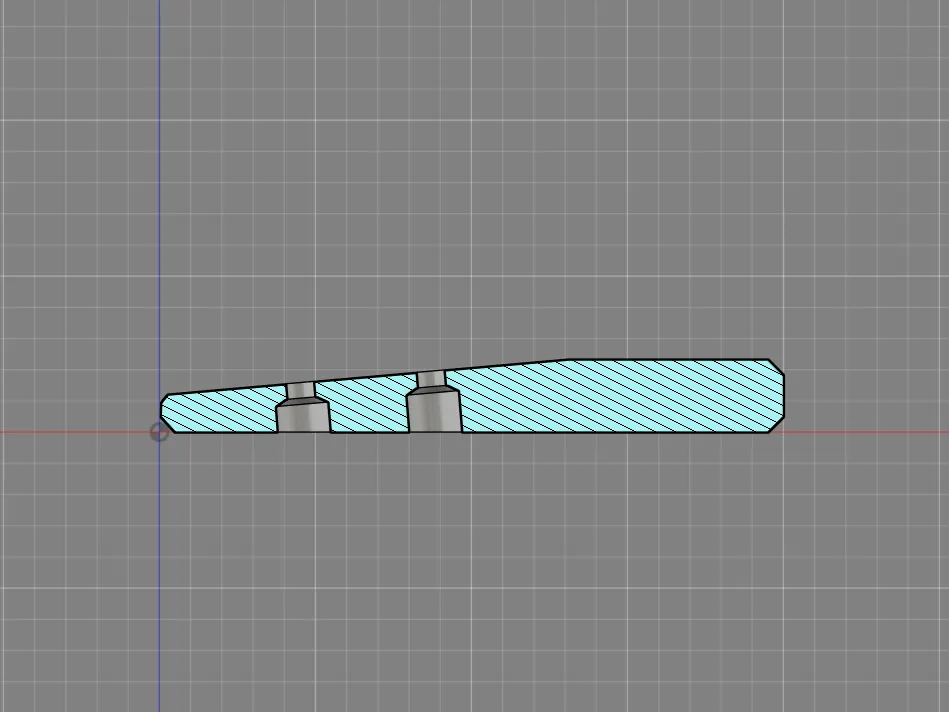

1. Tilt angle: angle of the bag rider. 0 degrees is level. 5 degrees will help point the muzzle down. -5 degrees will point the muzzle up.

2. Length: overall length (100-150mm is good)

3. Thickness: height of the bag rider (not the true overall height, just leave it at 6mm or go thicker)

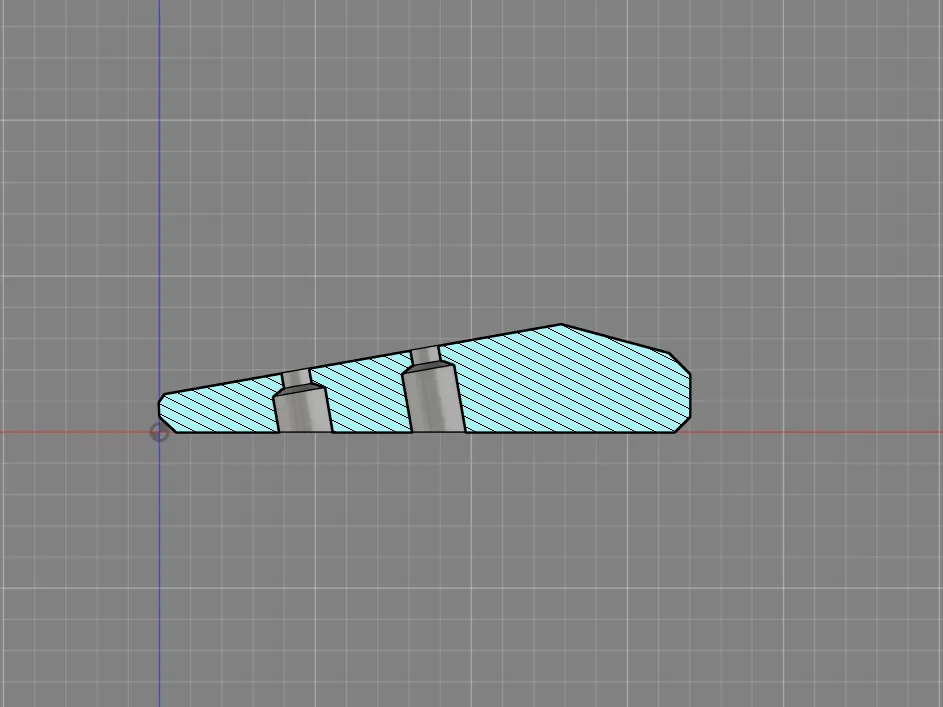

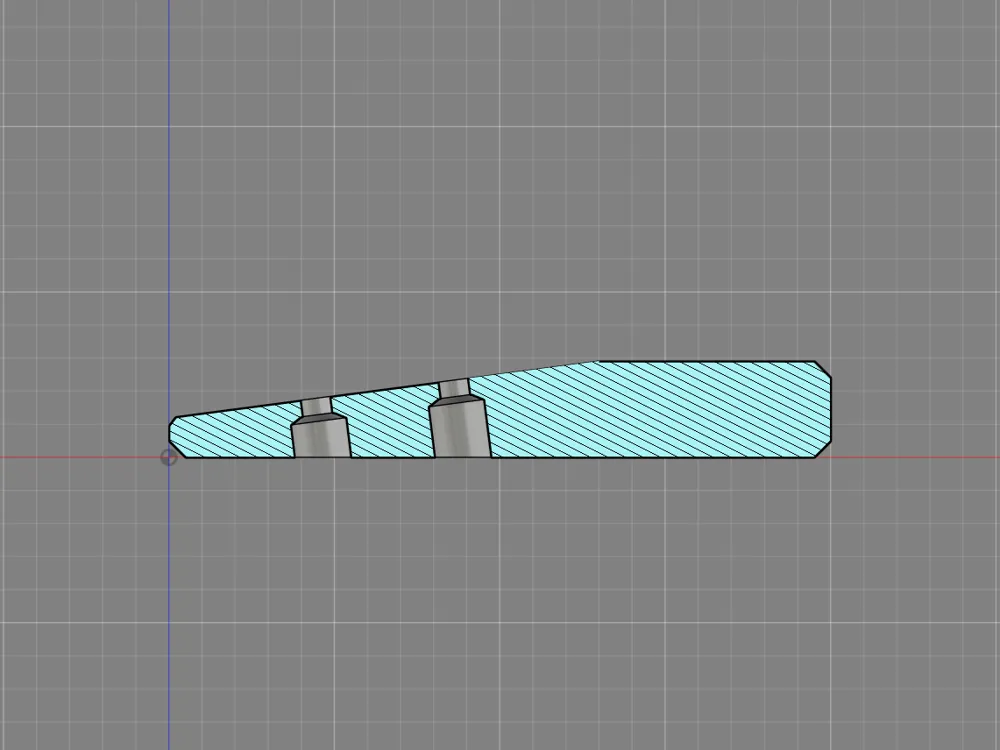

4. Secondary angle: adjust if you want the top surface of the bag rider to slope down (recommended to just leave at 0).
