Video Game Cartridge Trays (Consoles/Handhelds)

Changes from Original:

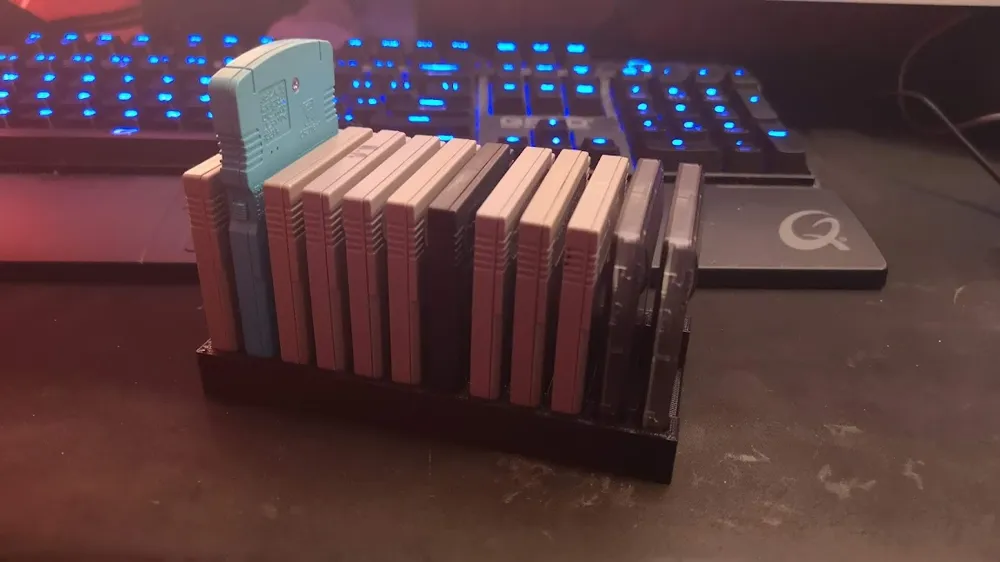

Nintendo GameBoy/GameBoy Color/GameBoy Advance:
- Thicker Bottom: ~1.4mm

Nintendo Entertainment System:
- Thicker Bottom: ~1.4mm

Super Nintendo Entertainment System (NTSC):
- Thicker Bottom: ~1.4mm

Super Nintendo Entertainment System (PAL) + Super Famicom (NTSC-J):
- Adjusted Cartridge Size, tighter fit
- Thicker Bottom: ~1.4mm

Super Nintendo Entertainment System (PAL) + Super Famicom (NTSC-J) - 2x Super GameBoy:
- Adjusted Cartridge Size, tighter fit
- Last 2 Slots are optimized for Super GameBoy
- space for the original and Super Game Boy 2 in a single tray
- Thicker Bottom: ~1.4mm

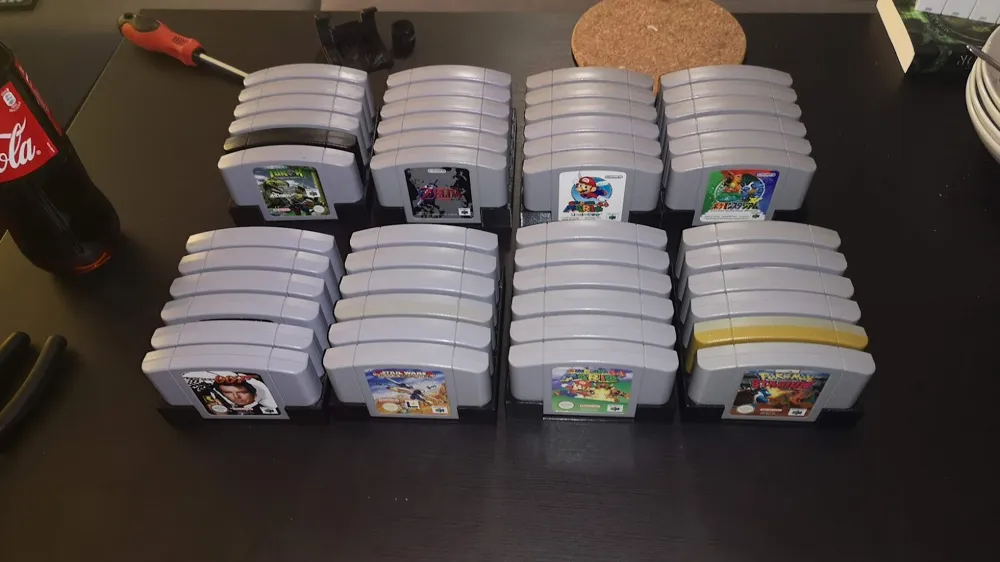

Nintendo N64:
- Thicker Bottom: ~1.4mm

Nintendo VirtualBoy - Cartridge only:
- Thicker Bottom: ~1.4mm

Nintendo VirtualBoy - Cartridge with Dustcover:
- Optimized for Cartridges with Dustcover
- Wall Height: +5mm
- Thicker Bottom: ~1.4mm

Nintendo DS/3DS:
- Adjusted cartridge size, slightly tighter fit, still works for DStwo card
- Thicker Bottom: ~1.4mm

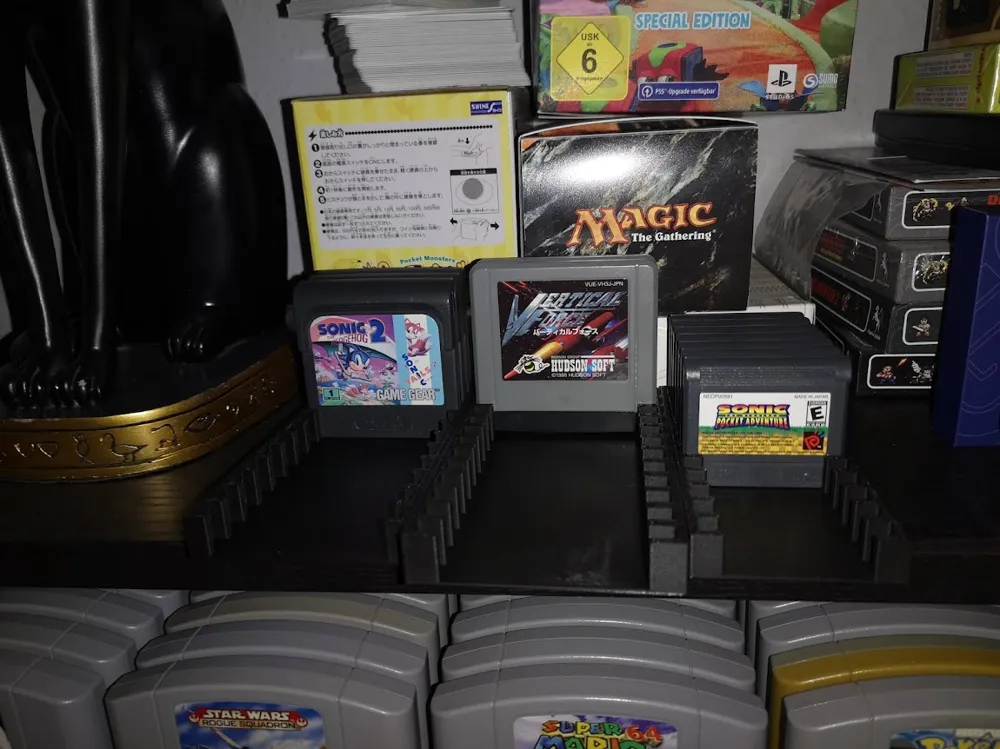

Sega GameGear:
- Thicker Bottom: ~1.4mm

Sega Genesis (NTSC) + MegaDrive (PAL):
- Adjusted Cartridge Size, tighter fit
- Thicker Bottom: ~1.4mm

SNK NeoGeo Pocket:
- Adjusted Cartridge Size, no more death grip
- Thicker Bottom: ~1.4mm

New:

Atari 2600:
- Based on NES Design
- Very thin walls between cartridges, still fits 6 cartridges
- Fits IMAGIC cartridges (near perfect fit)
- Normal cartridges slightly loose (less than 1mm left/right)
- Wall height around the N64 Design
- Thicker Bottom: ~1.4mm

Atari Lynx:
- Based on DS Design
- Thicker Bottom: ~1.4mm

Bandai WonderSwan - Cartridge only:
- Based on Nintendo DS Design
- Only works for cartridges without dust cover!
- Thicker Bottom: ~1.4mm

Nintendo Famicom:
- Based on NES Design
- Low wall height, cartridges not fully enclosed
- Thicker Bottom: ~1.4mm

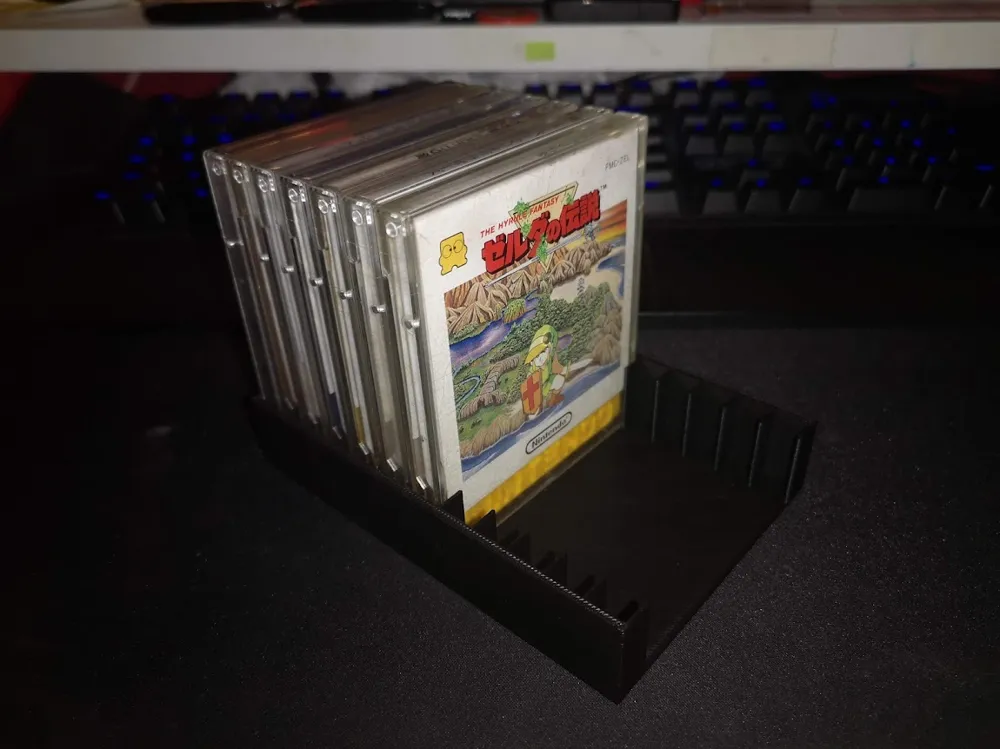

Nintendo Famicom Disc (with plastic case):
- Very thin walls between disks, still fits 12 disks
- Based on Nintendo DS Design
- Wall height around the N64 Design
- Thicker Bottom: ~1.4mm

Nintendo Famicom Disc + Manual in Box:
- Based on NES Design
- Wall height around the N64 Design
- Thicker Bottom: ~1.4mm

PlayStation Portable UMD:
- Completly new design
- Thick Bottom: ~1.4mm
PlayStation Portable UMD V2:
- Completly new design
- Thick Bottom: ~1.4mm
- Added: Cutout in the middle

Pokemon Mini:
- Completly new design
- Thick Bottom: ~1.4mm

Pokemon Mini V2:
- Completly new design
- Thick Bottom: ~1.4mm
- Added: Cutout in the middle

Sega Master System:
- Based on NES Design
- Wall height around the N64 Design
- Thicker Bottom: ~1.4mm

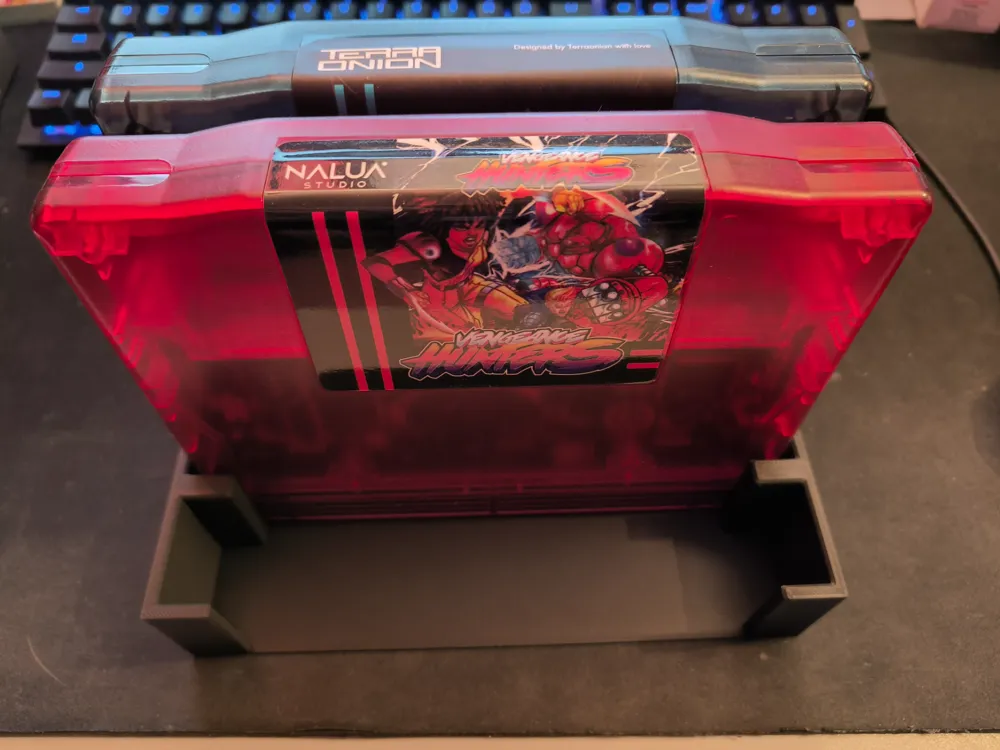

SNK NeoGeo AES:
- Completly new design
- Thick Bottom: 1.4mm
- Width: 125mm (instead of 135mm like the others)
- Tested with NeoSD Pro & Vengeance Hunters

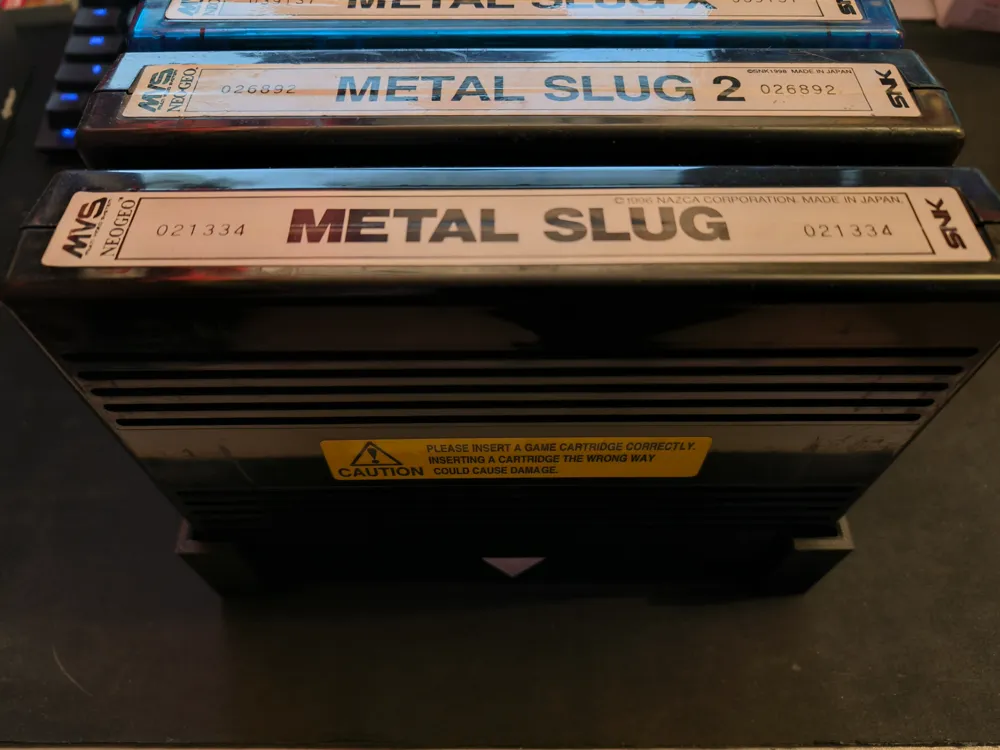

SNK NeoGeo MVS:
- Completly new design
- Thick Bottom: 1.4mm
- Width: 125mm (instead of 135mm like the others)
- Tested with original and third party shells
- because of high variances in the depth in tested cartridges, some cartridges are a bit loose. even if they are loose, due to the height of the tray, they don't fall out when moving around

Work/Modification in progress:
- Nintendo GameBoy with Rumble
- Bandai WonderSwan
- SNK NeoGeo
- Sega MegaDrive (JPN/NTSC-J)

Original: https://www.thingiverse.com/thing:1847983
NeoGeo Pocket: https://www.thingiverse.com/thing:3628909
Super Famicom/SNES PAL: https://www.thingiverse.com/thing:2828189
