Dart Tip Box with Click Mechanism
Print Profile(1)
Description
Boost Me (for free)
I would appreciate a small thank you

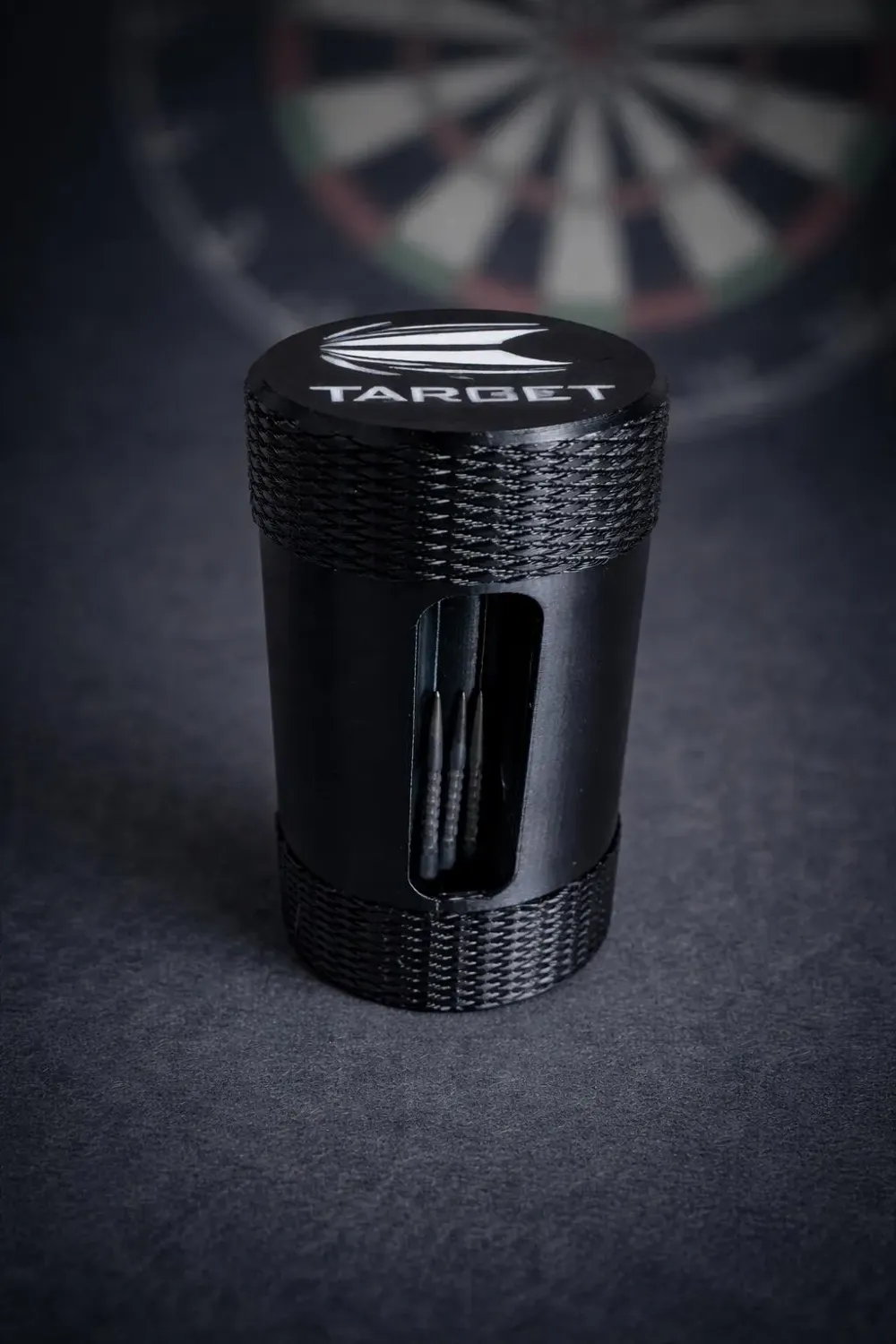

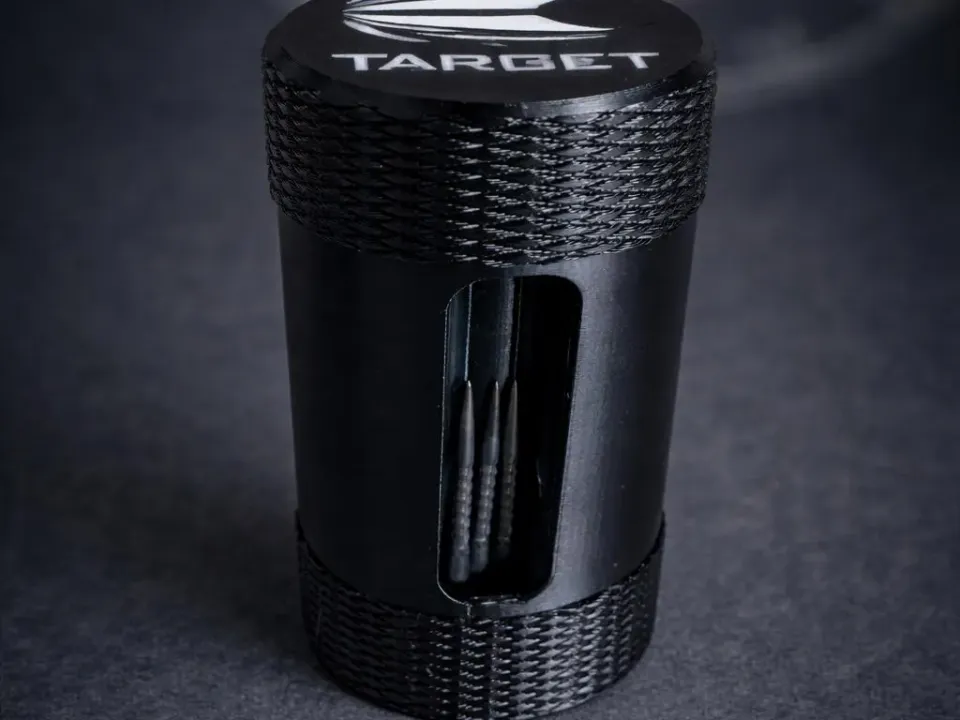

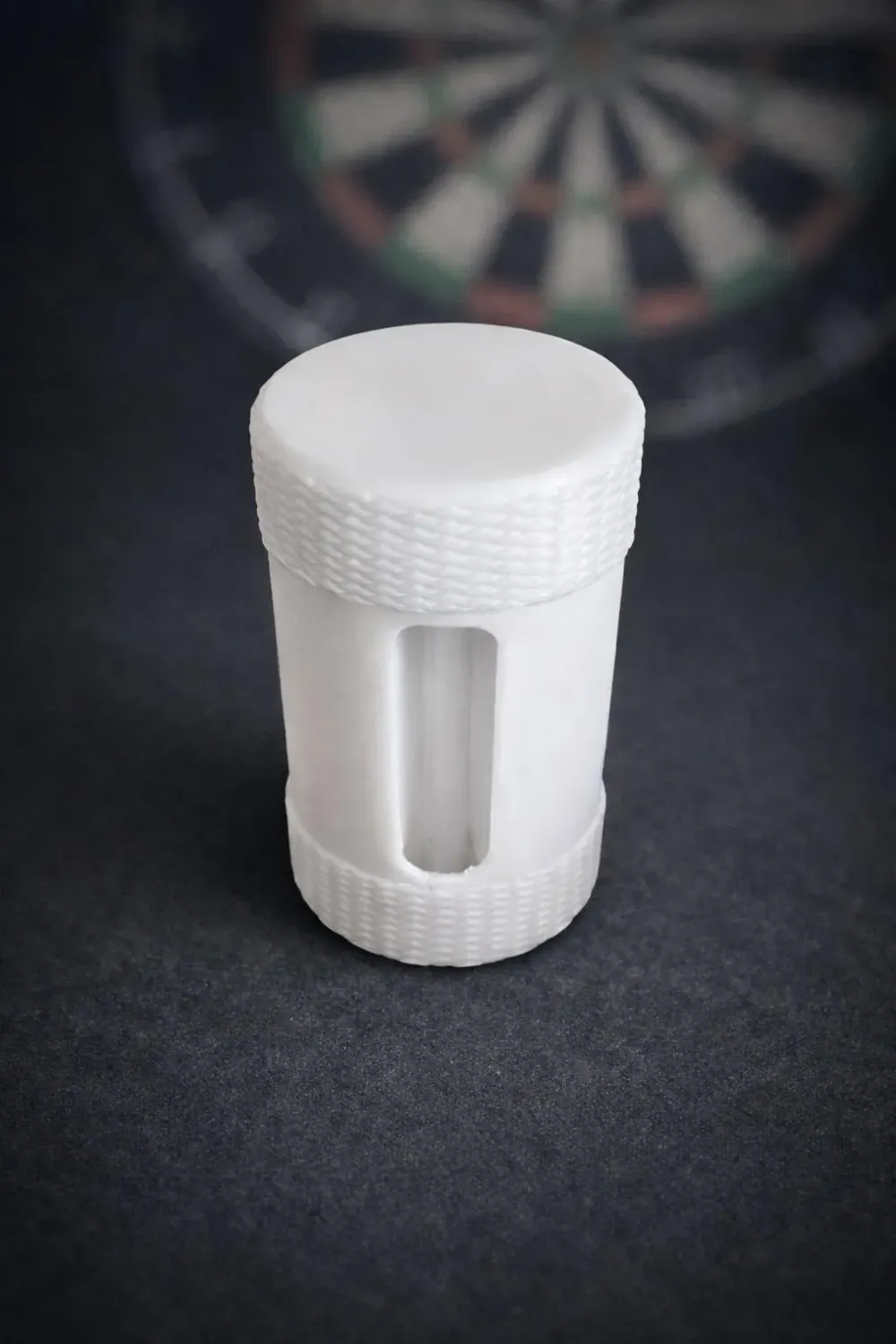

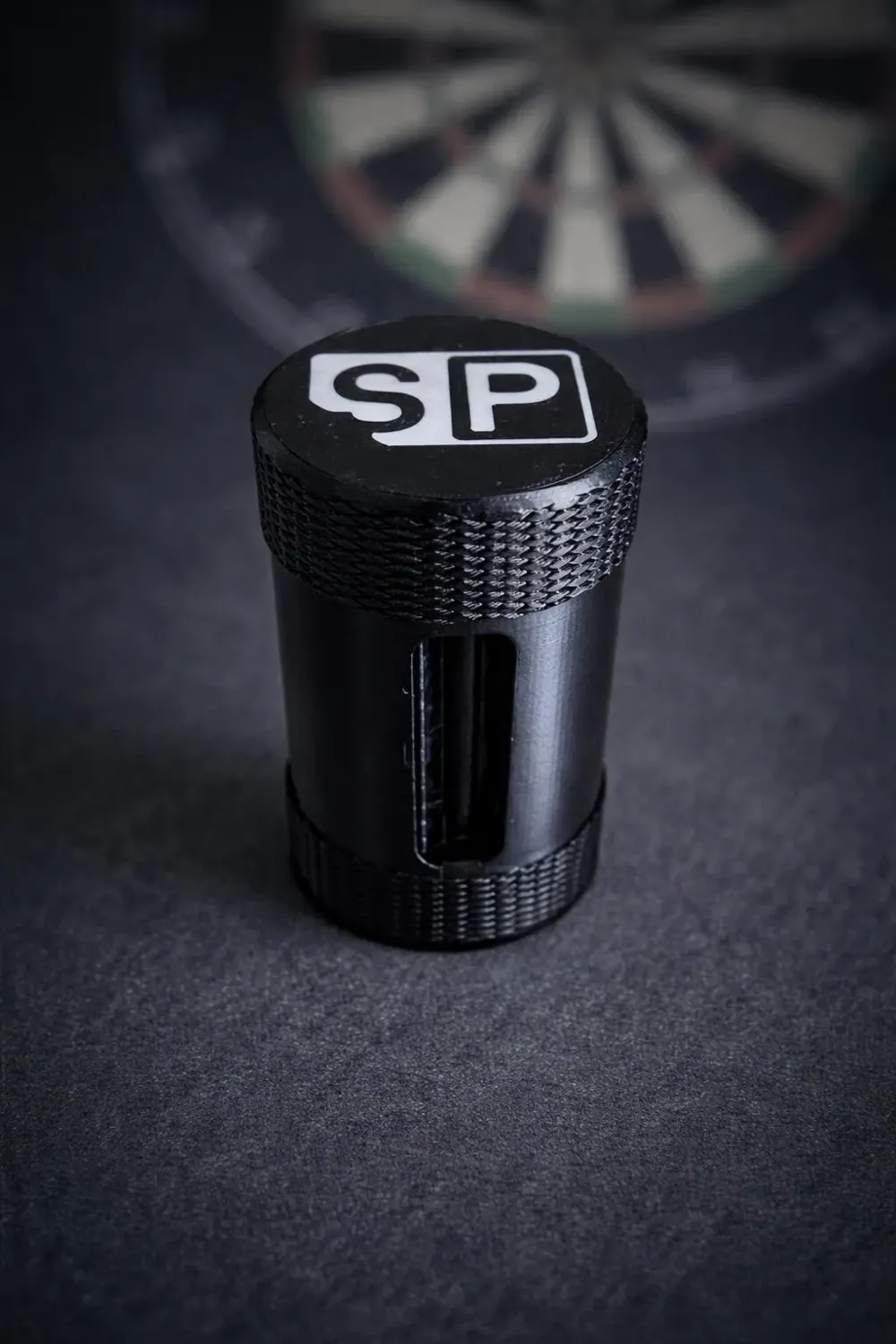

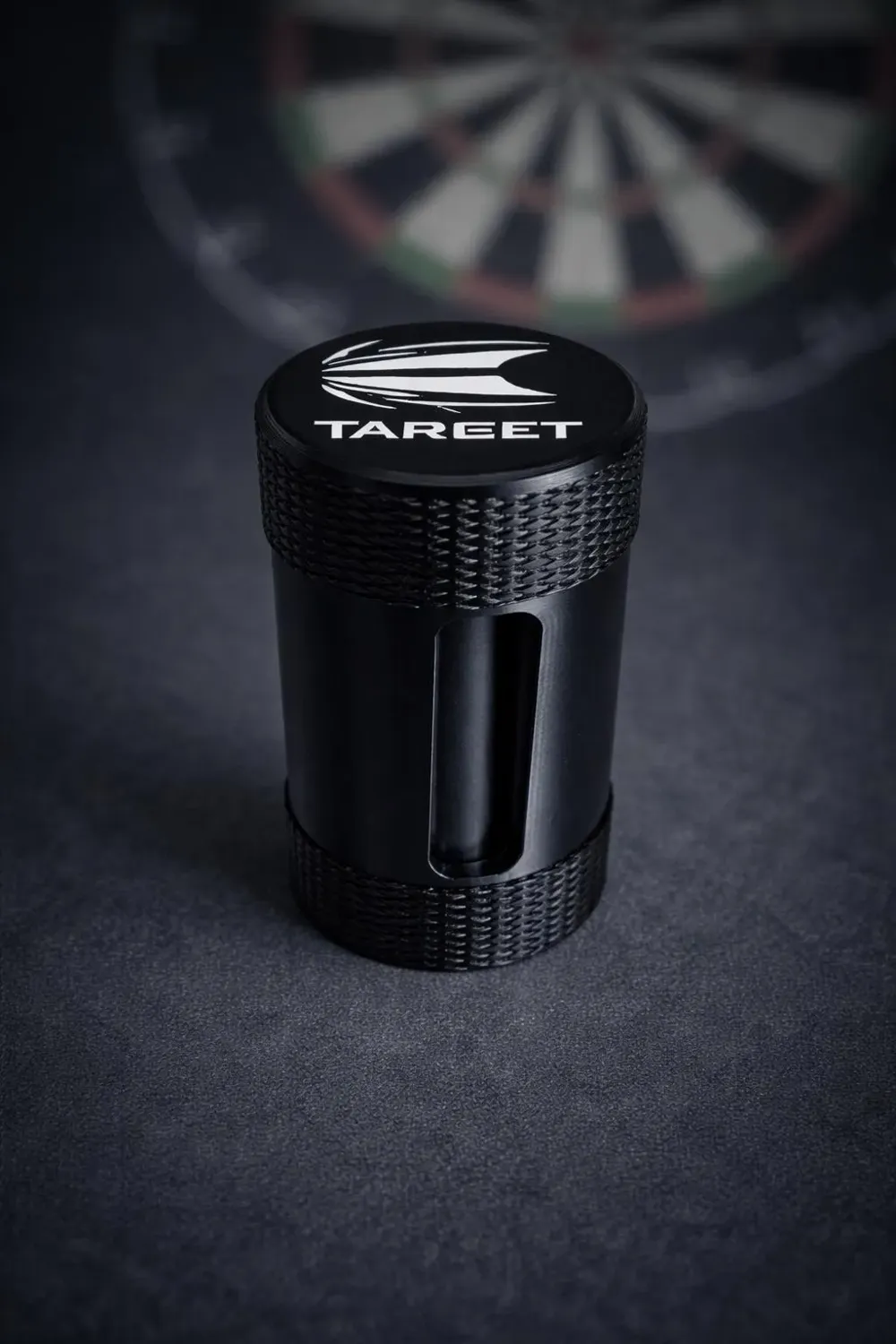

This compact dart tip box was specially developed for steel dart players who want to store their spare tips securely, neatly, and always within reach.
Inside are nine individual chambers, each holding three dart tips. This allows up to 27 steel dart tips to be neatly stored. The box is designed for dart tips with a total length of up to 65 mm.

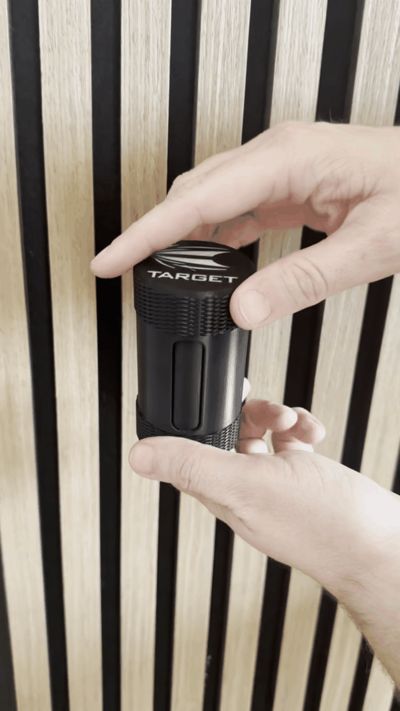

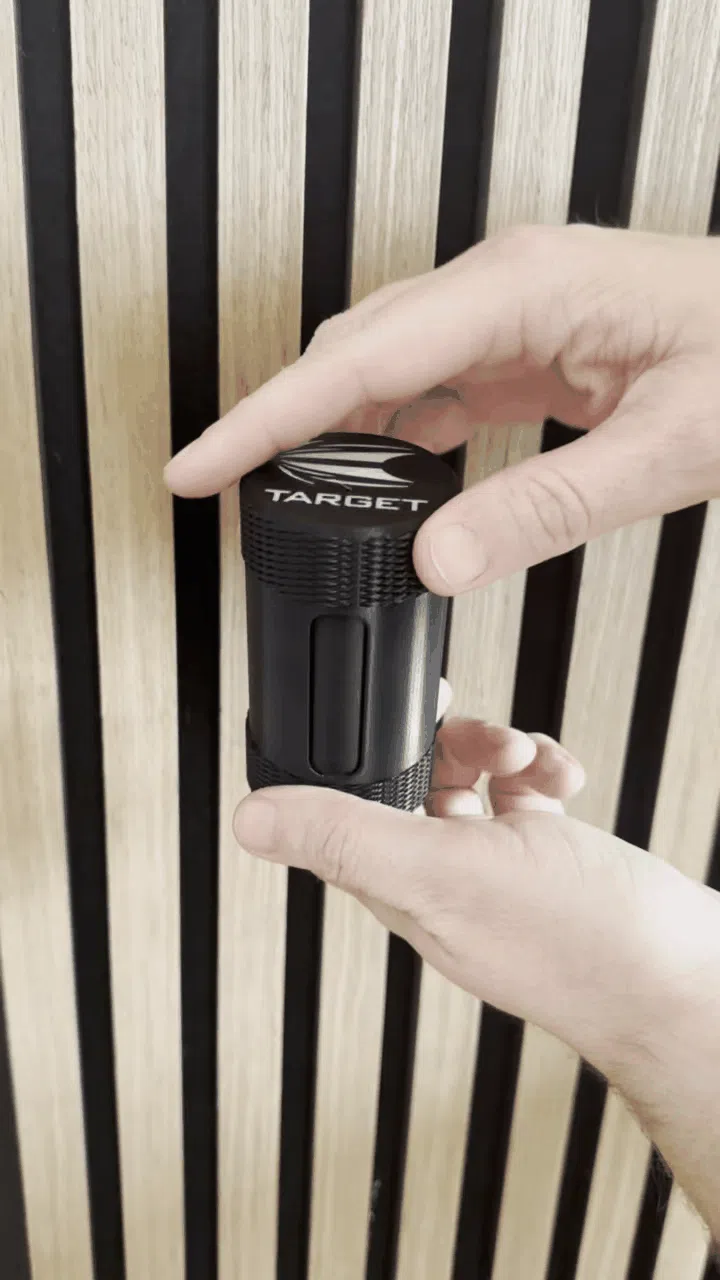

The chambers can be selected one after another via a precise click-and-turn mechanism. The position clicks cleanly into place, allowing for intuitive operation.
A side opening shows the currently selected chamber and allows for easy removal of the tips.
Each of the nine chambers is structurally designed to be deeper on one side than the outer opening. If the box is tilted slightly, the dart tips align diagonally to the opening without immediately falling out. This positions the tips slightly outwards, making them much easier to remove.
Secure operation
• Diameter: 53 mm
• Height: 95 mm
• Capacity: 9 chambers × 3 tips (up to 27 dart tips)
• Suitable for dart tips up to 65 mm total length
• Mechanism: indexing click-and-turn mechanism
• Removal aid: diagonally designed chambers for easier grasping of tips
Ideal for training, tournaments, or as a practical accessory for every steel dart player.
