P-51 Mustang Start & Armament Panel for Flight Sim
Print Profile(1)
Description

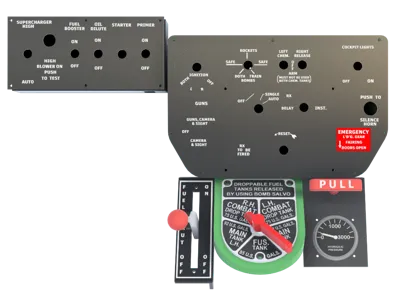

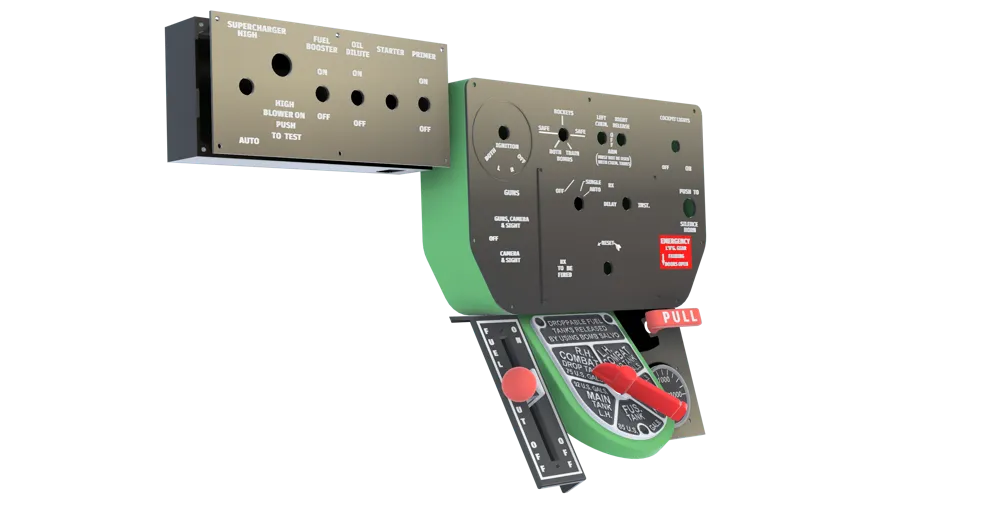

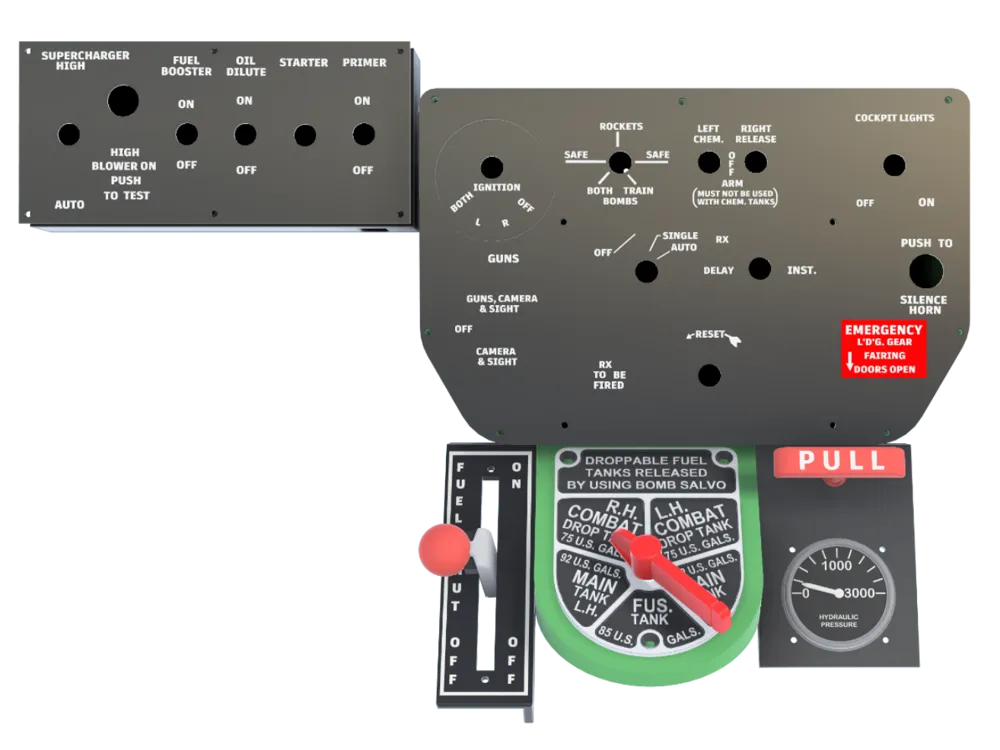

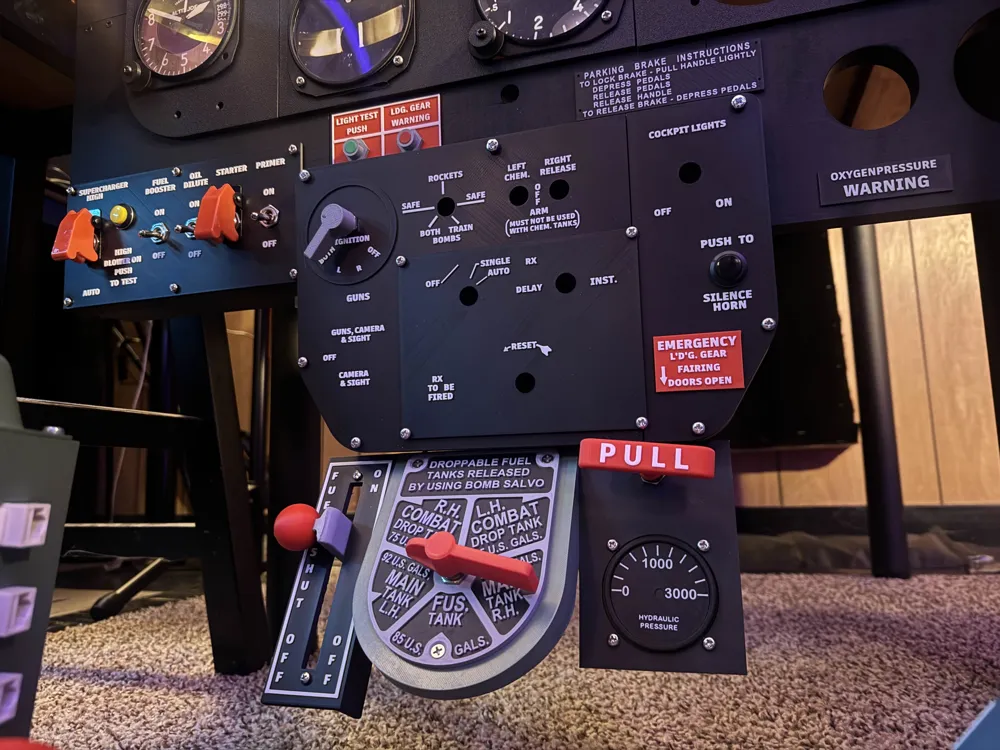

P-51 Mustang Start & Armament Panel for a home flight sim cockpit. Uses standard 12mm switches, potentiometers, and M4 screws in various lengths.
12mm toggle switches: https://a.co/d/0fcxP9E4
Fader Potentiometer used for Fuel Shutoff : https://a.co/d/08YLR1Bm
4-position switch used for Mag: https://a.co/d/08RnkXSI
Pull switch used for Hydraulic Pressure: https://a.co/d/08RnkXSI
For the Fuel Selector switch, I used a rotary switch from an old industrial machine from work, so you are on your own for that.

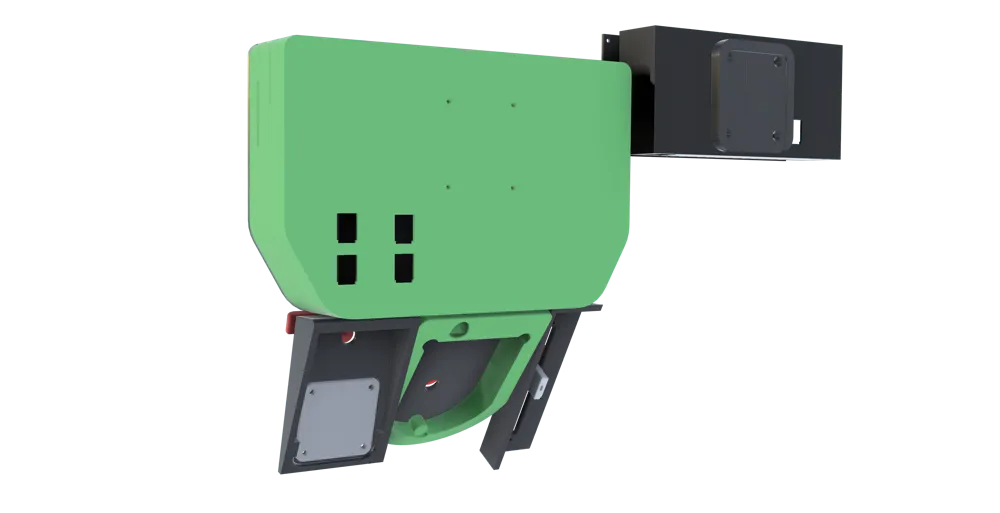

These are designed to work with the Authkentikit style dovetail quick-release mounts along with RJ45 connectors. Check out https://authentikit.org/p51d/ for official “Freeware” designs. If you are a warbird lover, that's the place to be!
*I am not a professional by any means; this is just something I like to do for fun with the little free time I have. Everything should fit/work just fine, but I can't guarantee it.
