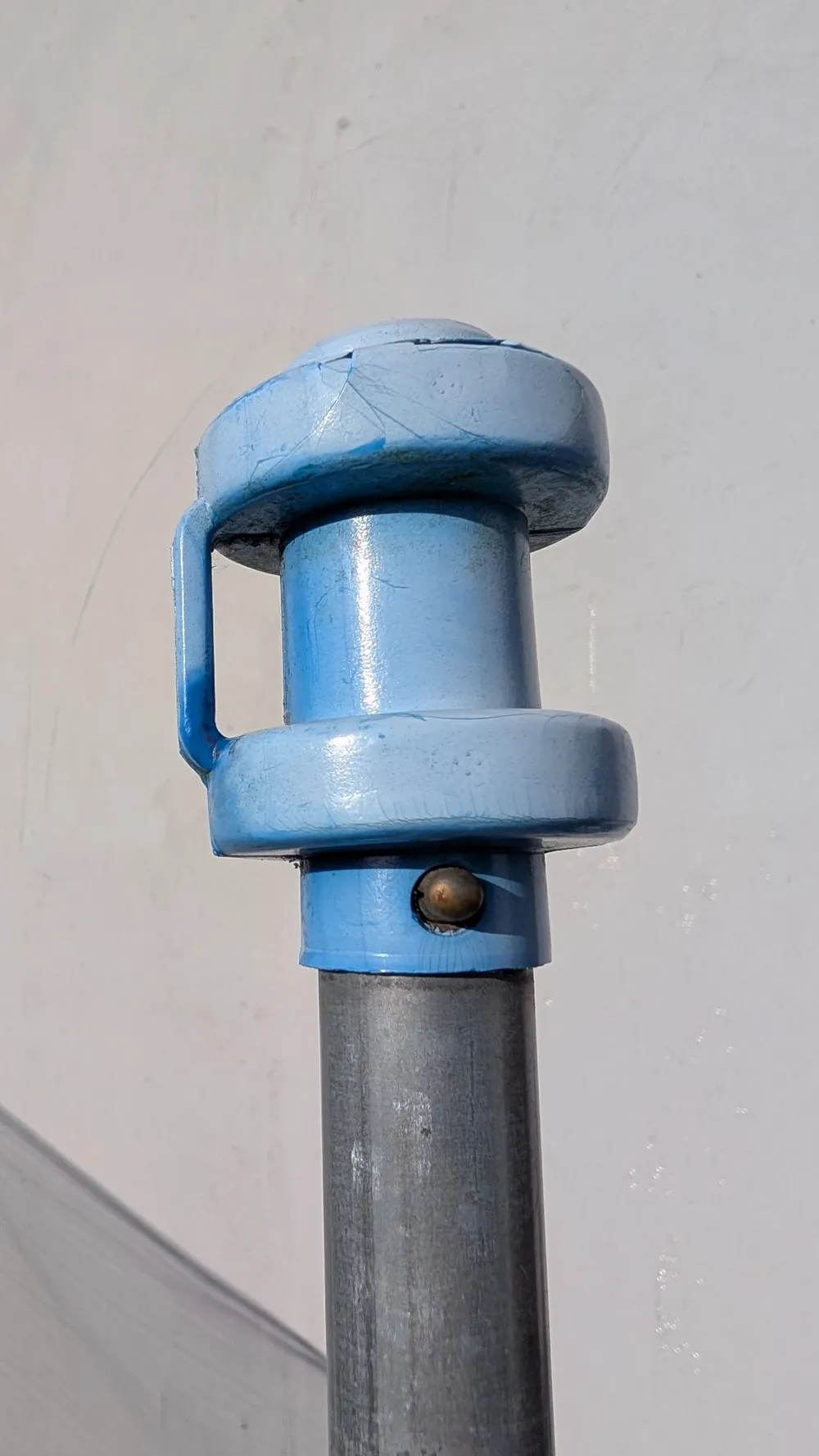

🏗️ Trampoline Safety Net Pole Cap Replacement
🇬🇧 ENG: Trampoline Safety Net Pole Cap Replacement

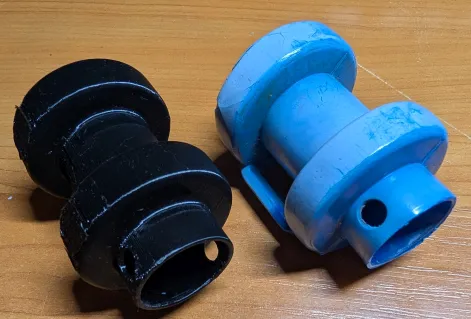

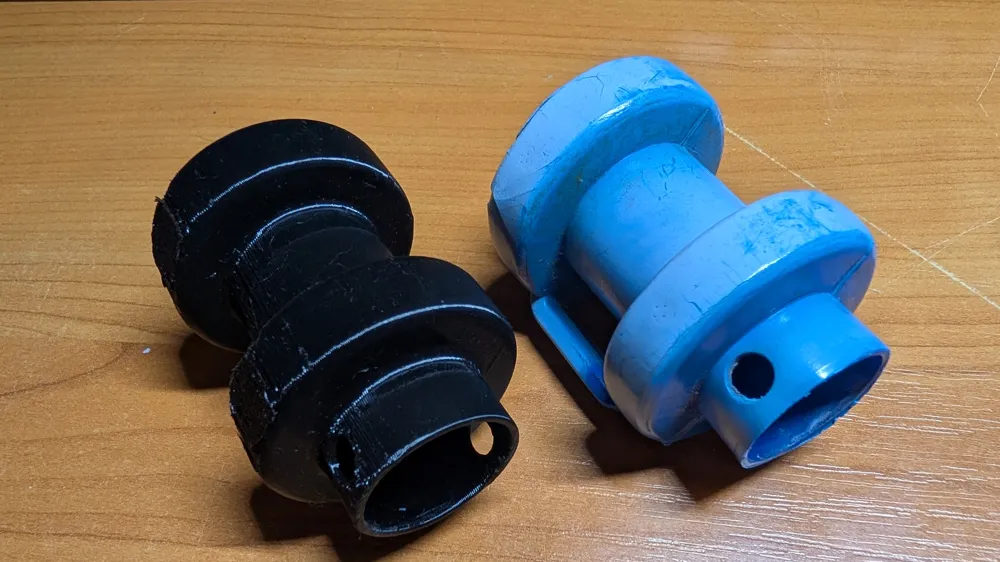

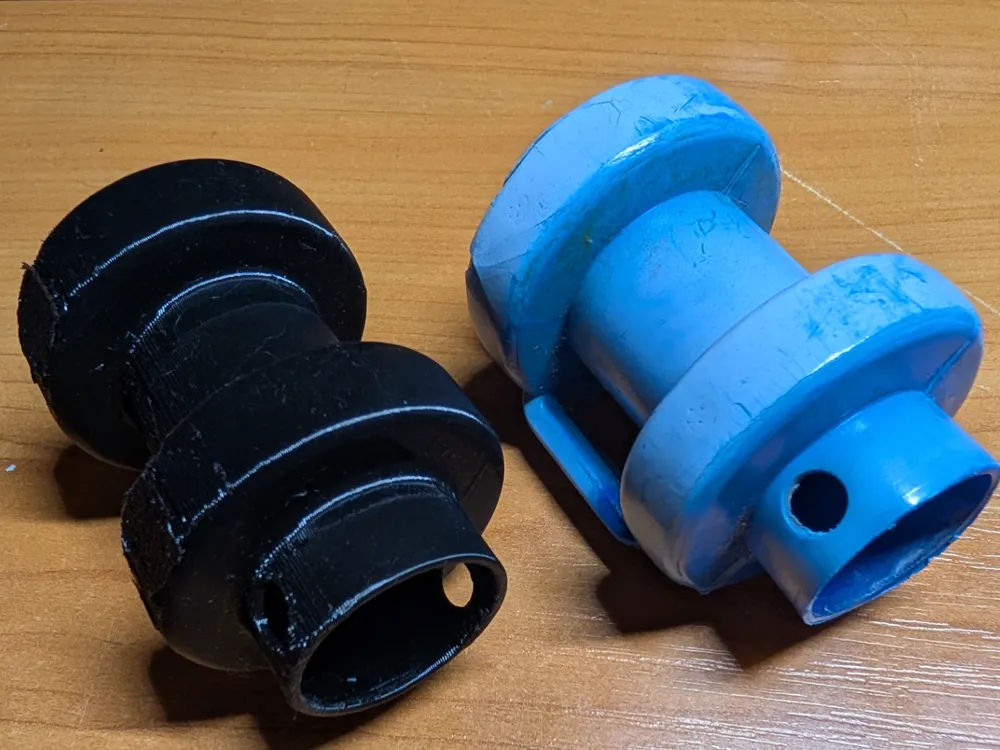

This is a durable, 3D-printable replacement for standard trampoline safety net pole caps. If your original factory caps have cracked or degraded due to UV exposure, this model provides a reinforced alternative to keep your safety net secure.
📐 Technical Specifications:
- Compatibility: Designed to fit standard 25mm poles
- Inner Diameter: The internal opening of the cap is 27.5mm, providing a perfect fit with enough clearance for easy assembly

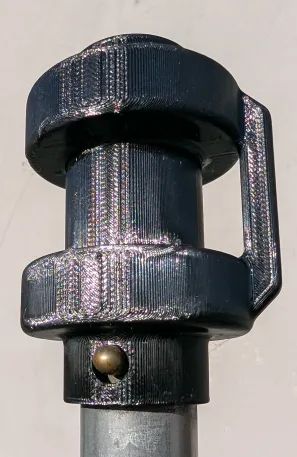

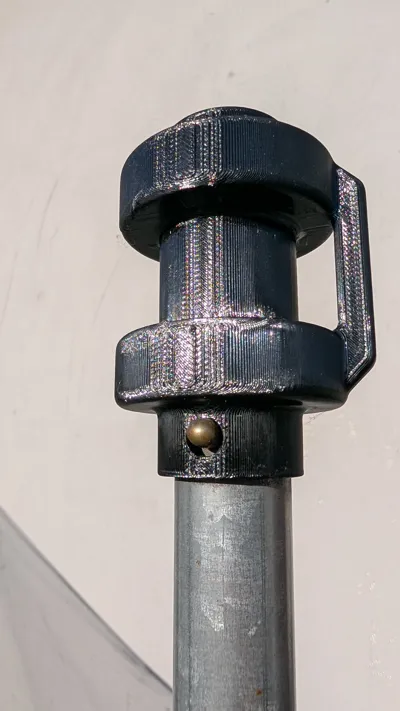

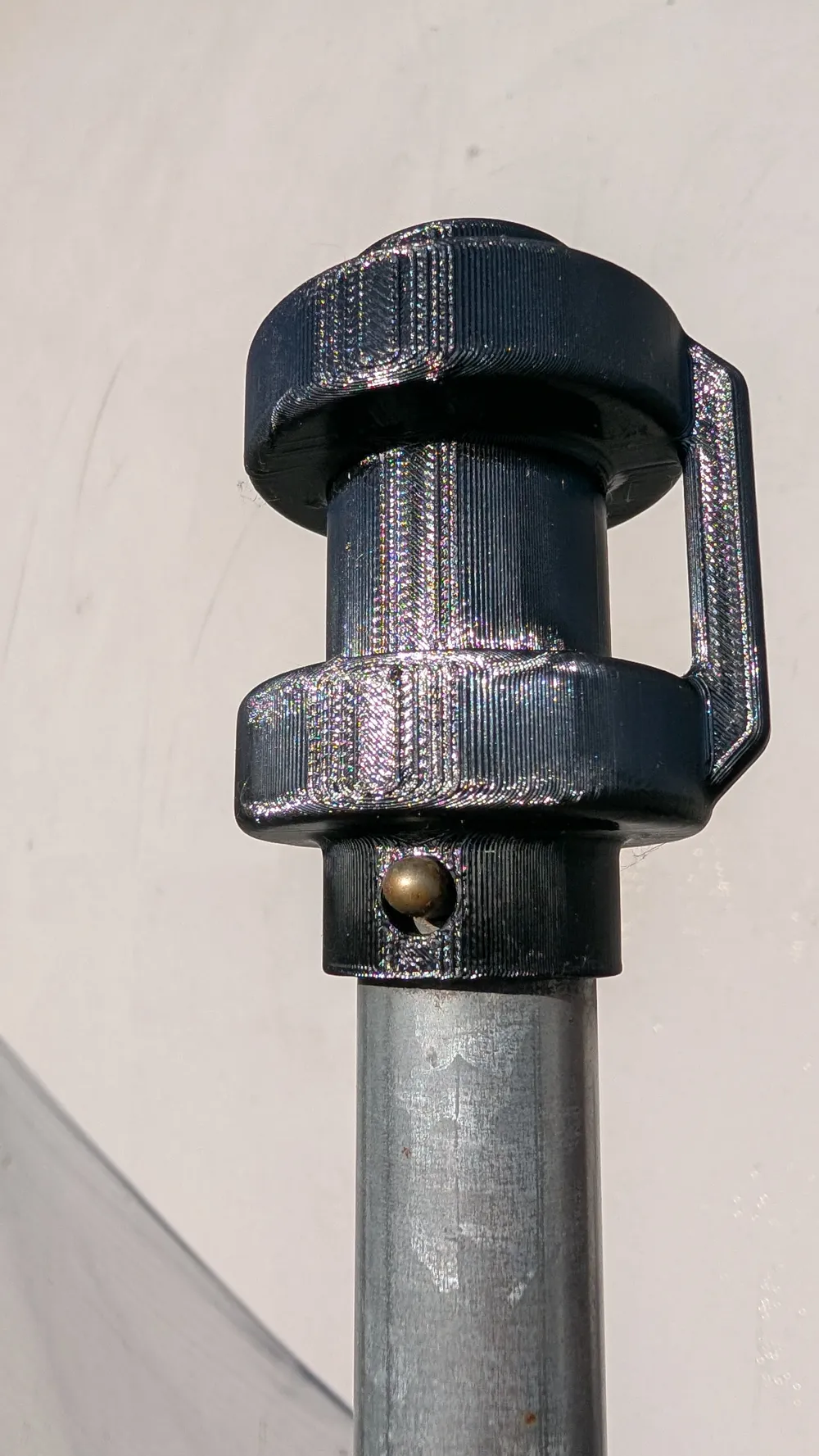

- Locking Mechanism: Features a side hole designed to align perfectly with the locking pin (spring button) on the trampoline pole
- Construction: This is a thin-walled model optimized for specific dimensions
🛠️ Recommended Print Settings:
- Material: PETG or ASA (Highly recommended for UV resistance)
- Infill: 100% (Recommended due to the thin-walled design to ensure maximum structural integrity)
- Walls: 4-5 perimeters

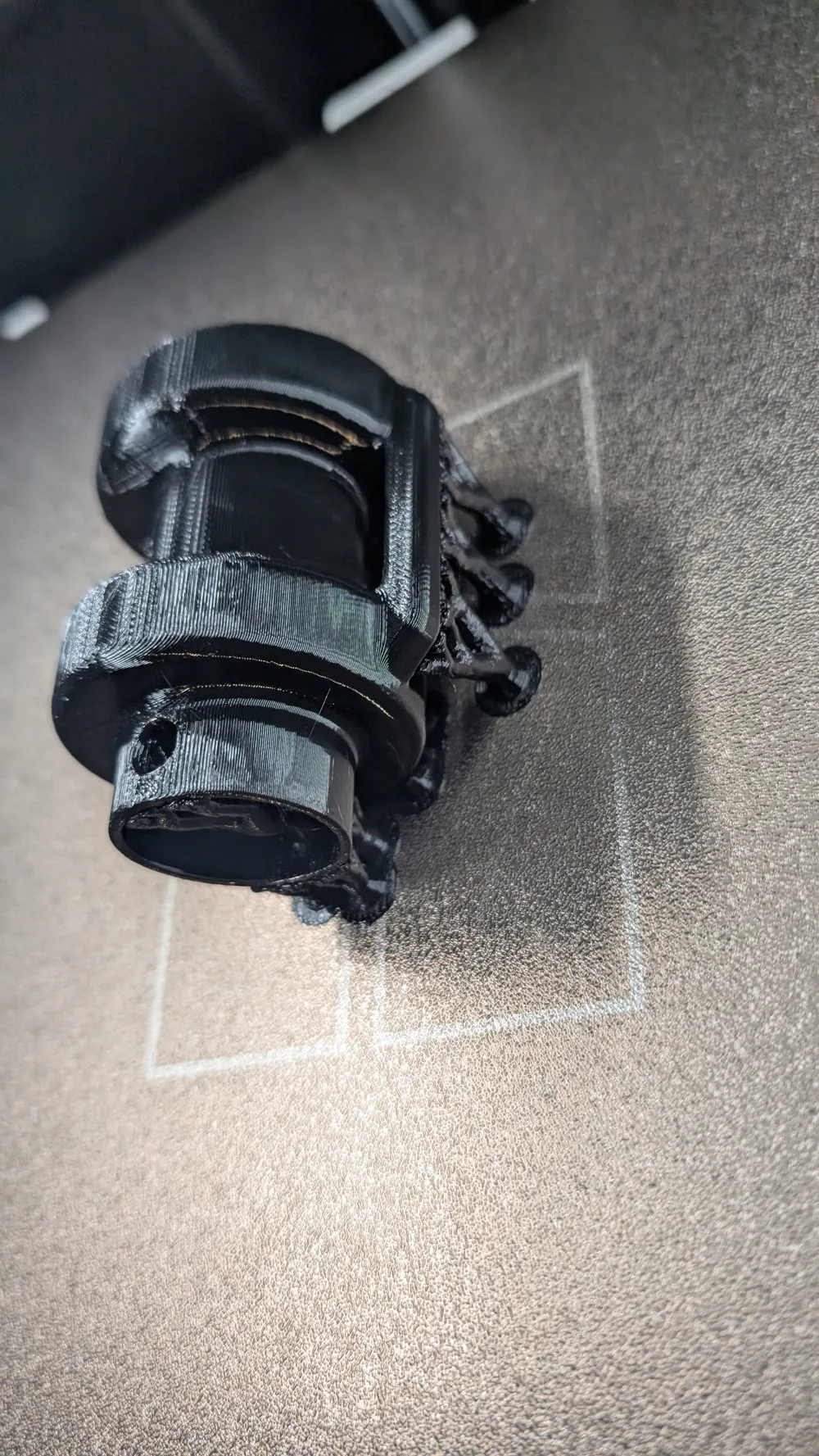

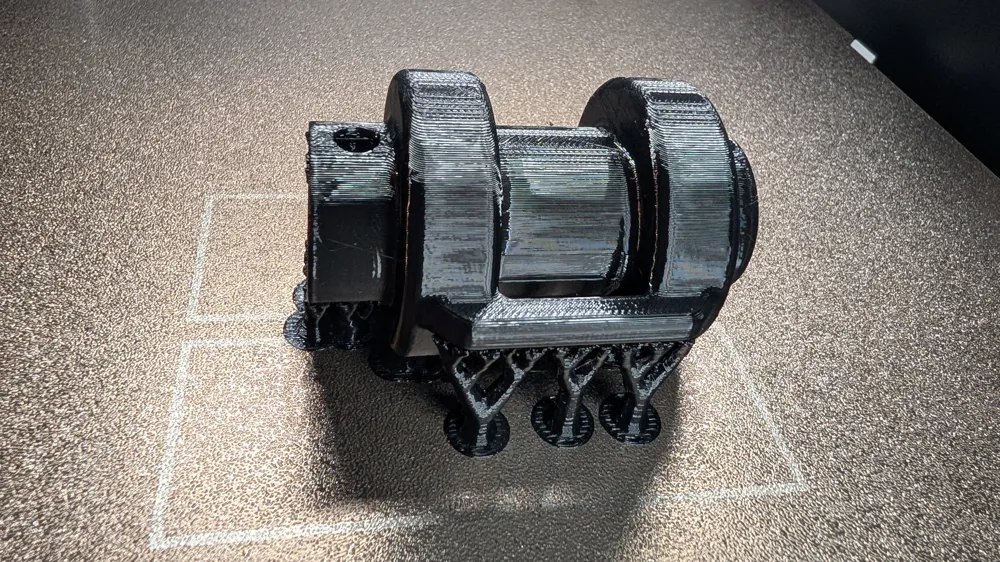

- Supports: no supports required if printed with the wide base down
🇩🇪 DE: Trampoline Safety Net Pole Cap Replacement
This is a durable replacement for standard trampoline pole caps. If your original caps have become brittle or broken due to UV radiation, this model offers a reinforced alternative.
📐 Technical Specifications:
- Compatibility: Suitable for standard poles with 25mm diameter
- Inner Diameter: The cap's opening is 27.5mm
- Locking: The cap has a side hole for the locking pin (spring button)
- Construction: This is a thin-walled model optimized for precise fit
🛠️ Recommended Print Settings:
- Material: PETG or ASA (Strongly recommended due to UV resistance)
- Infill: 100% (Recommended due to the thin-walled construction to ensure maximum stability)
- Walls: 4-5 perimeters
🇵🇱 PL: Durable Trampoline Pole Cap Replacement
A robust model of the cap securing the safety net. Designed as a direct replacement for standard components that often break under the influence of sun and stress.
📐 Technical Specifications:
- Fit: Designed for poles with a 25mm diameter
- Inner Dimension: The cap opening is 27.5mm, guaranteeing easy assembly and stability
- Locking: The cap has a side hole that fits the locking pin (latch) on the pole
- Construction: This is a thin-walled model, optimized for specific dimensions
🛠️ Recommended Print Settings:
- Material: PETG or ASA (Recommended due to sun and weather conditions)
- Infill: 100% (Suggested due to the thin-walled construction to ensure full solidity of the element)
- Walls: 4-5 perimeters
