Ackerschnacker 5/8 Coil Body (Gainmaster)
Print Profile(1)
Description
I developed this coil former for my 5/8 Ackerschnacker wire antenna
The original model was once the Sirio Gainmaster 5/8 which unfortunately is not available as a pure wire antenna for mountain radio use

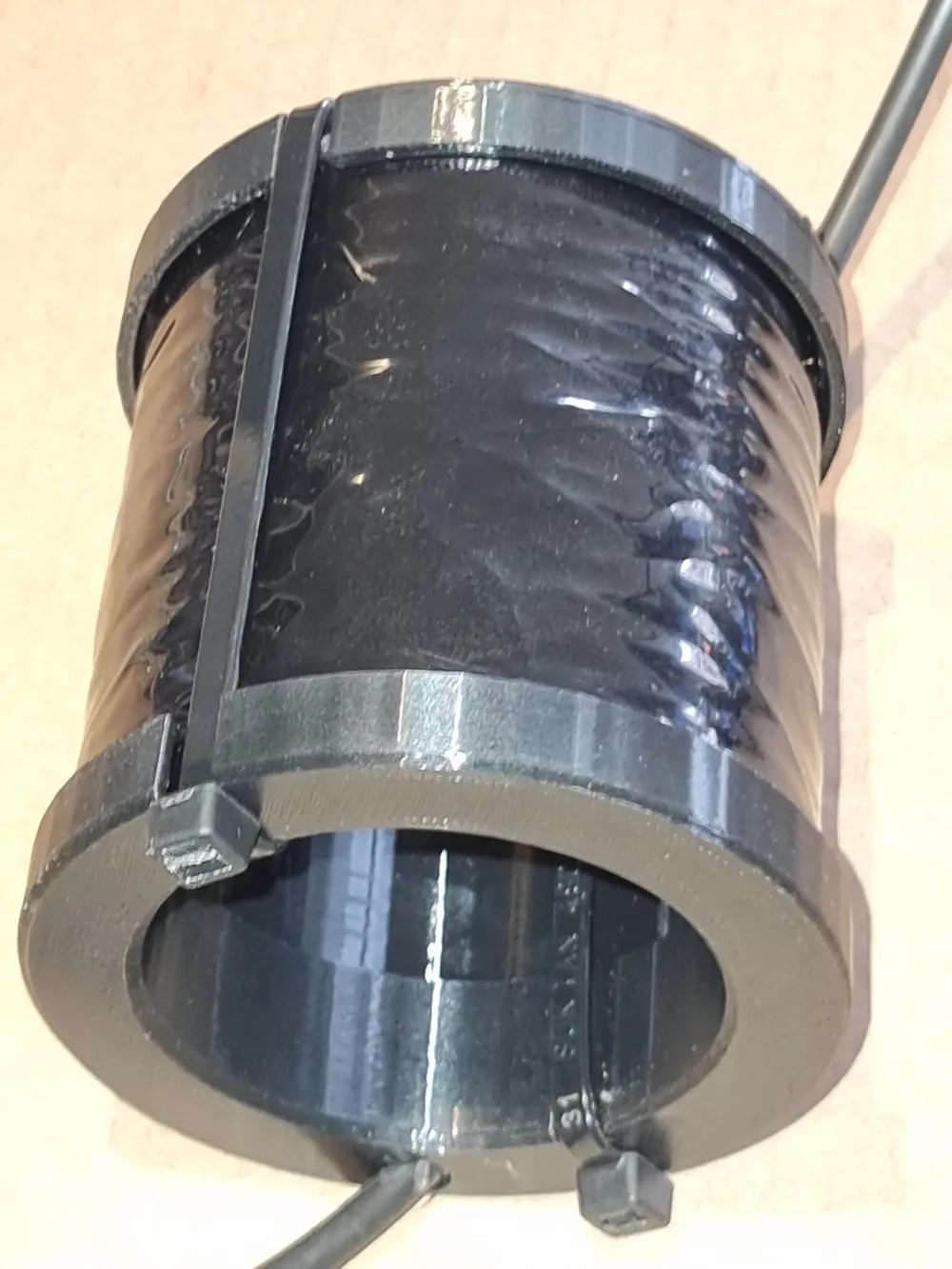

This coil former allows you to wind a truly massive common mode choke, well protected, and easily mount it on a fiberglass mast (Spiderbeam 12 meters)
Dimensions
Winding body 66mm
Turns: 16x
Inner diameter: 57mm
Overall coil height: 88mm
Wall thickness: 2mm / 4
Material: PETG
Walls / Infill: 3 / 15% (I would prefer 25% infill though)
Nozzle: 0.4mm
Line width: 0.2mm

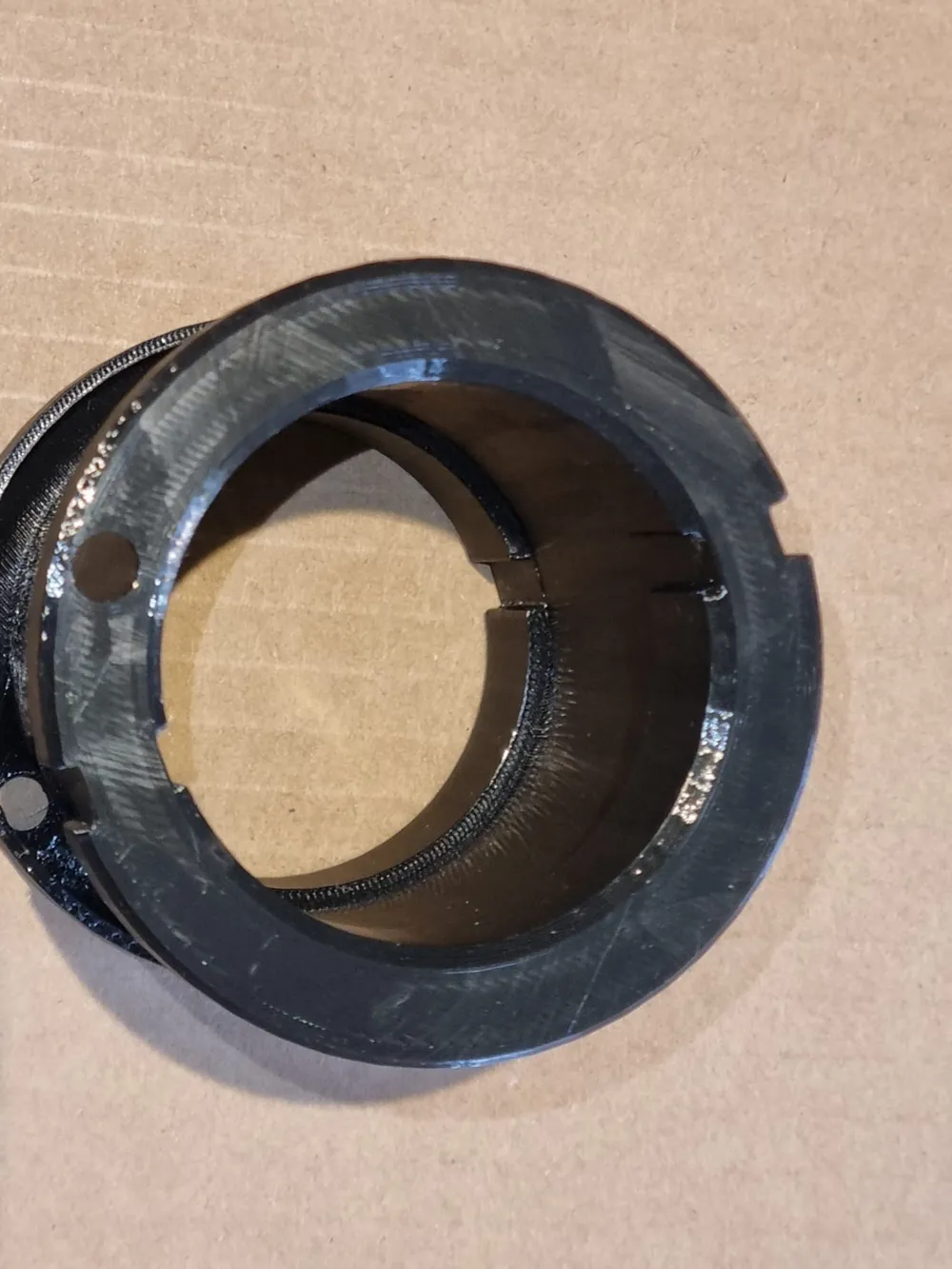

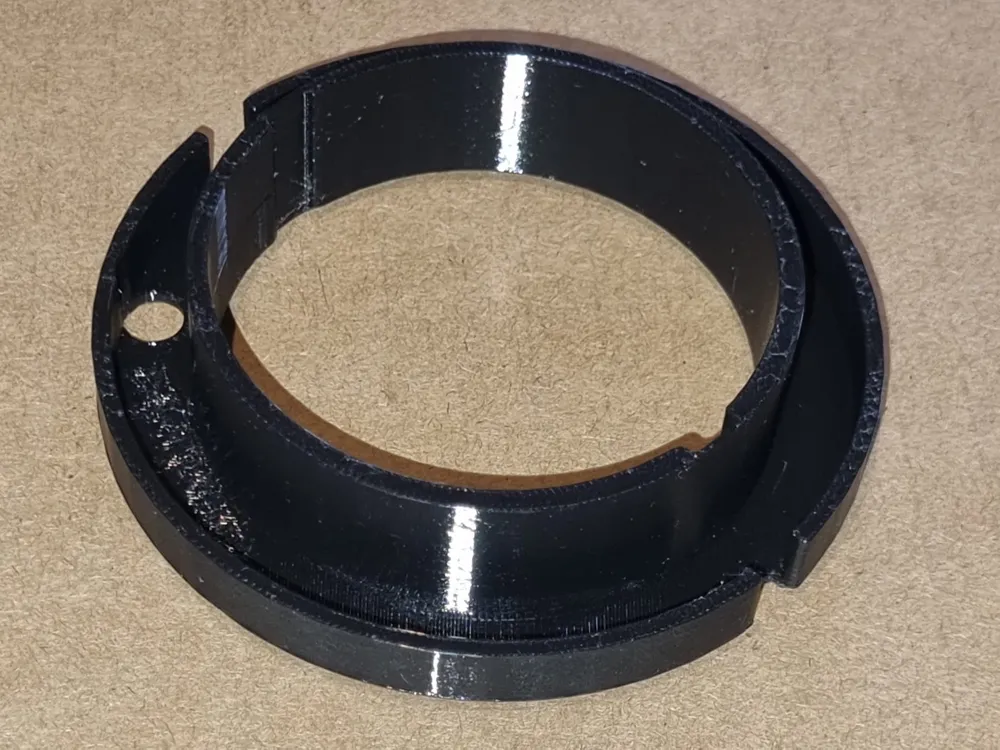

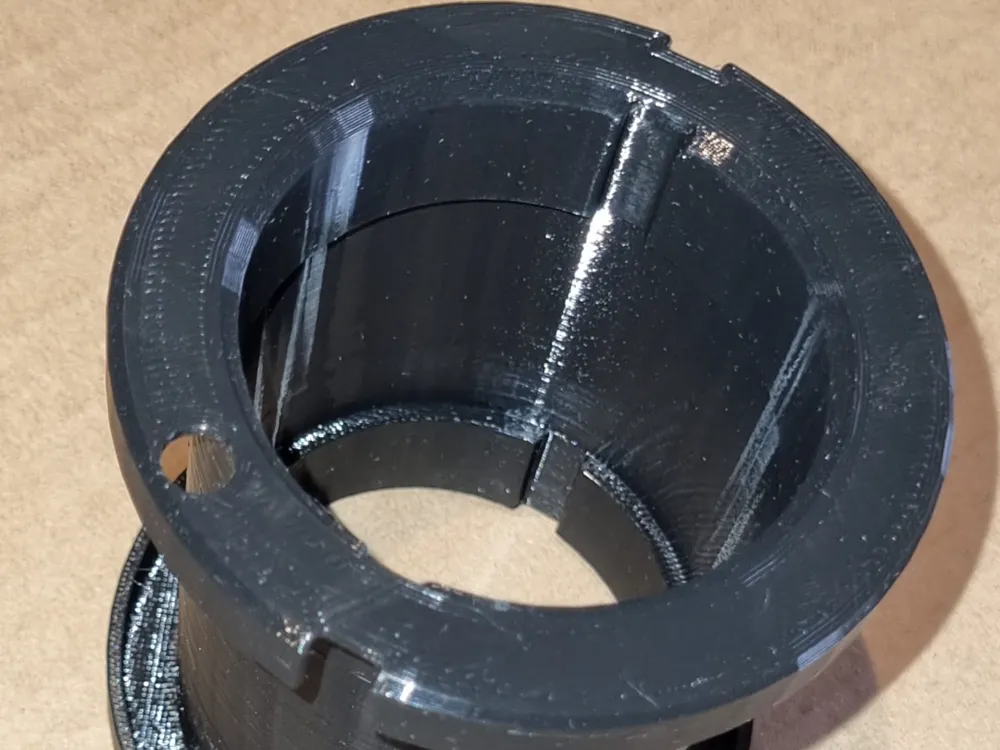

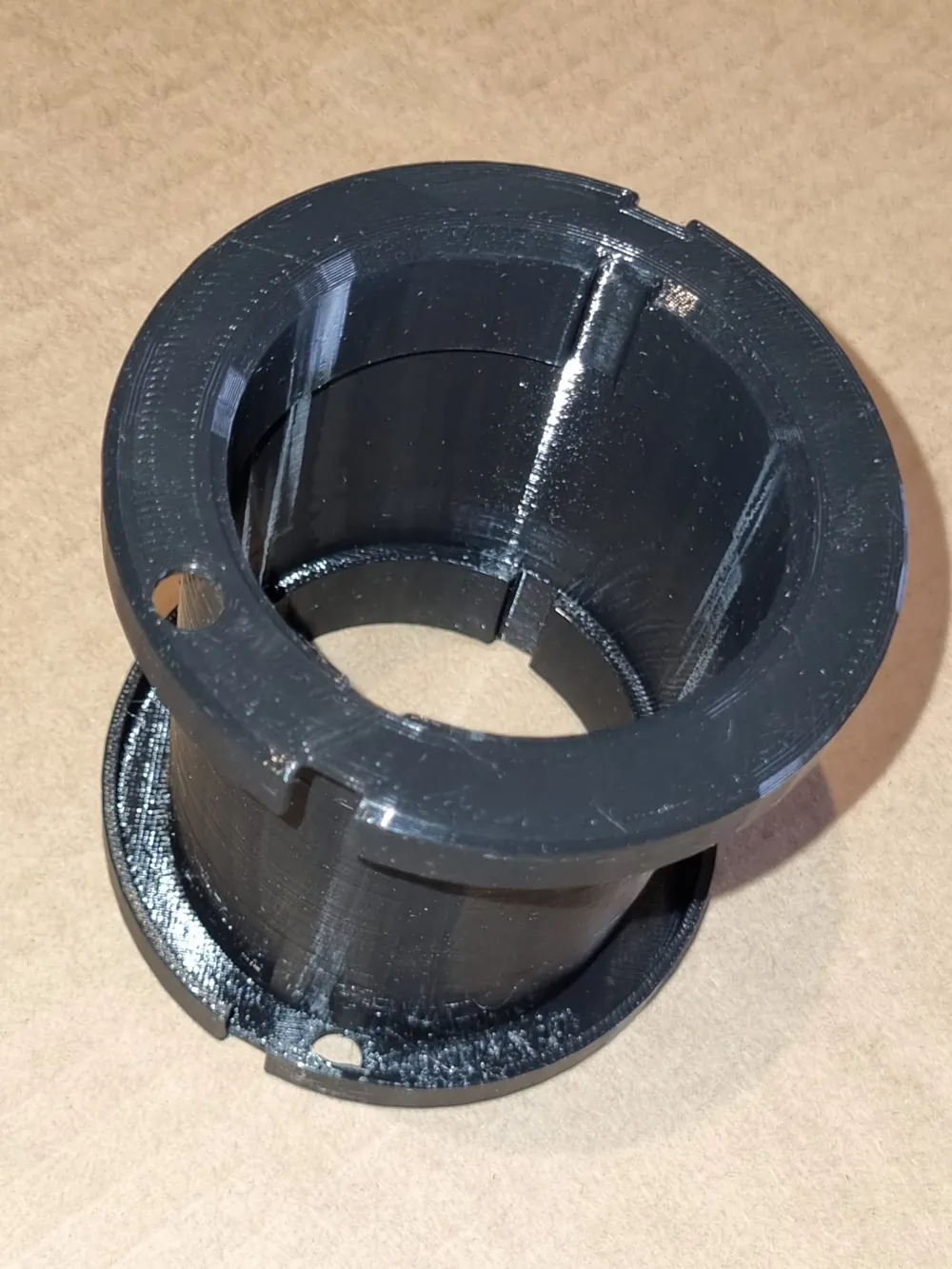

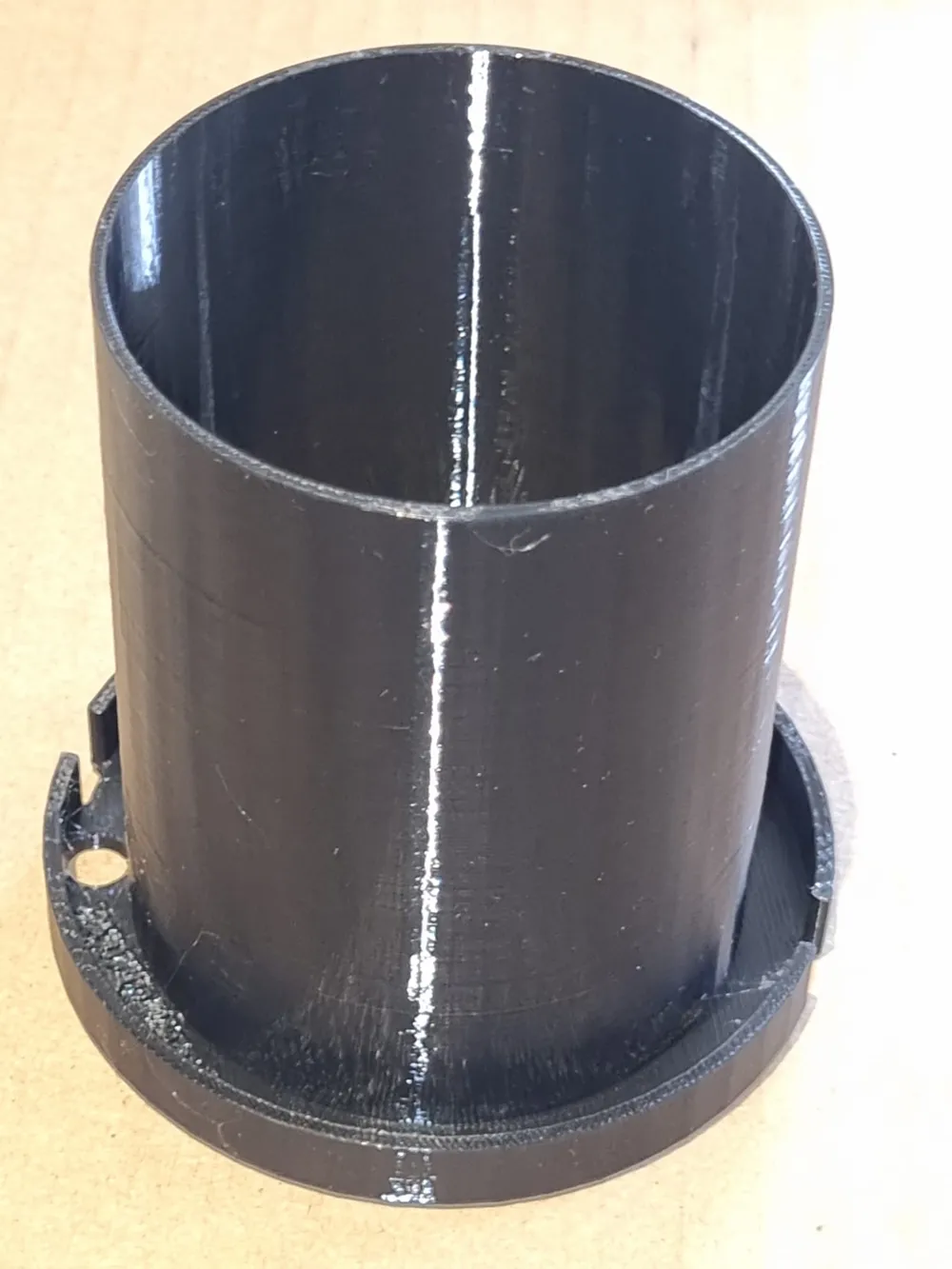

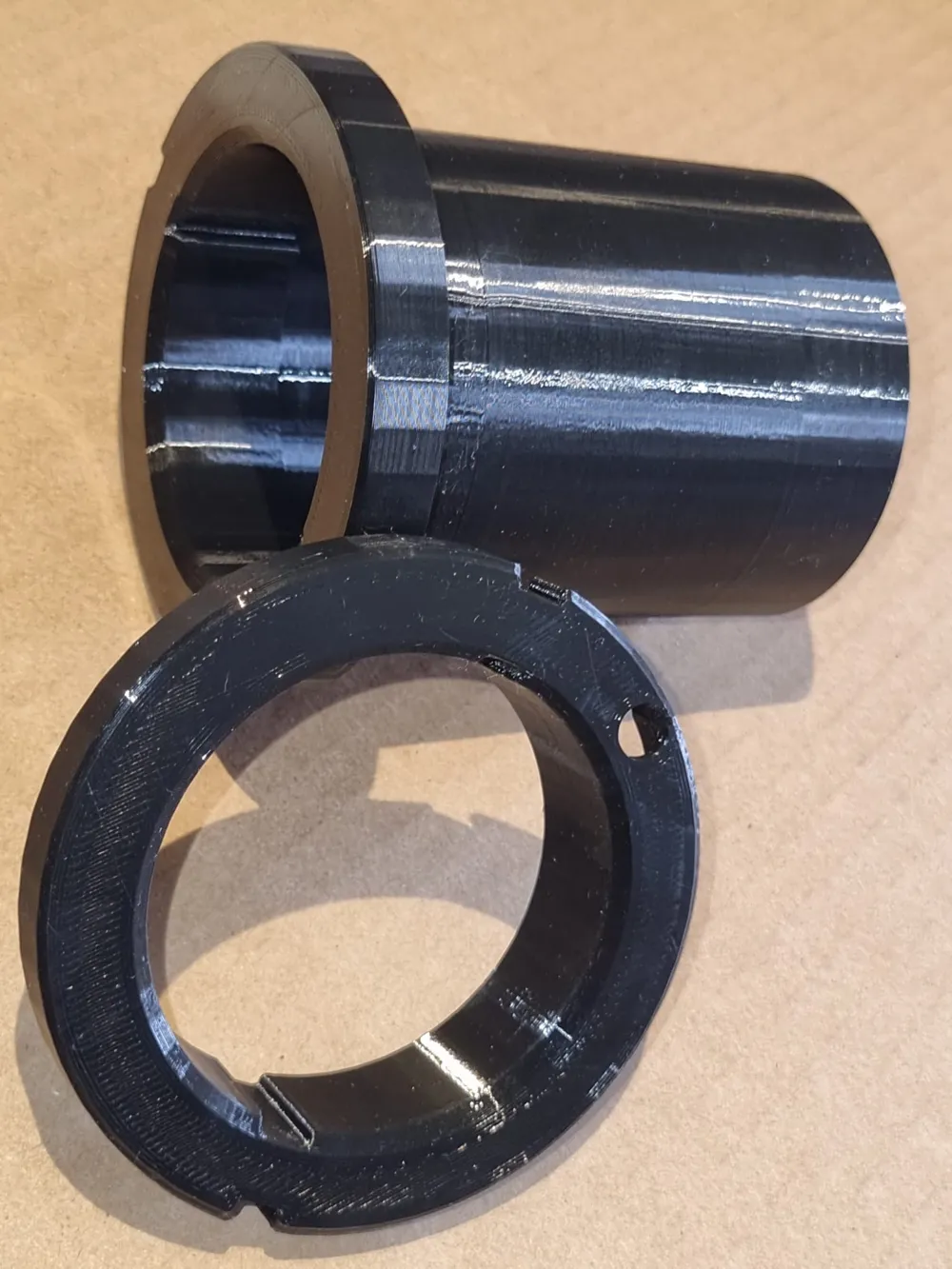

The entire body consists of 2 parts (the body and the base) and is suitable for 5mm coaxial cable
Unfortunately, uploading the printer profile fails every time, even though I set everything to original, if someone could do this, it would be really great
