IKEA Basket Rail Drawer System

Screws required

– be careful while handling them

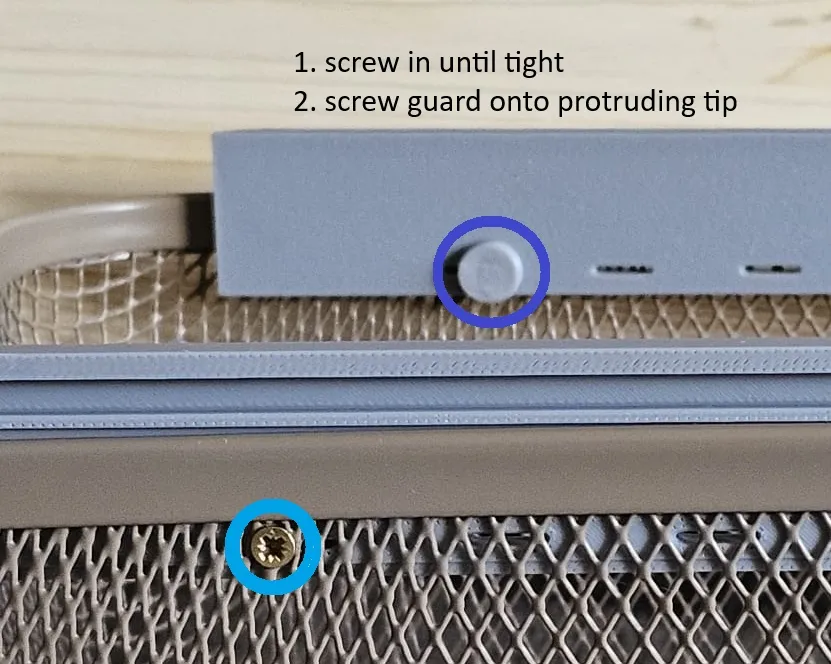

– basket screws : 2x8mm to 3x15mm

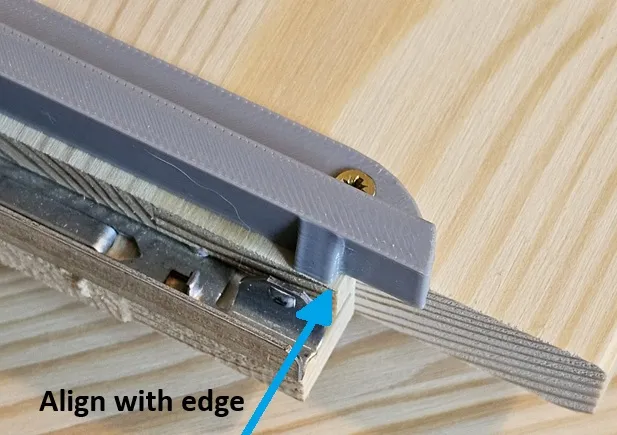

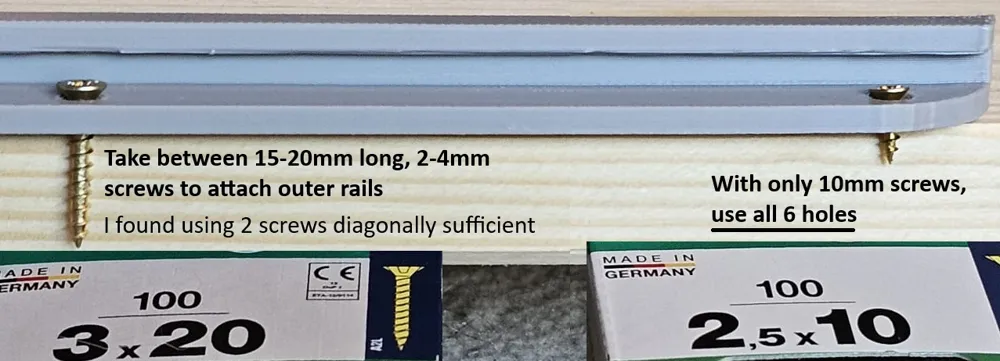

– rail screws : 2,5x10mm to 3x20mm (for light loads, just use adhesive)

Load

Tested with 4kg load at almost full extension

Bed Adhesion

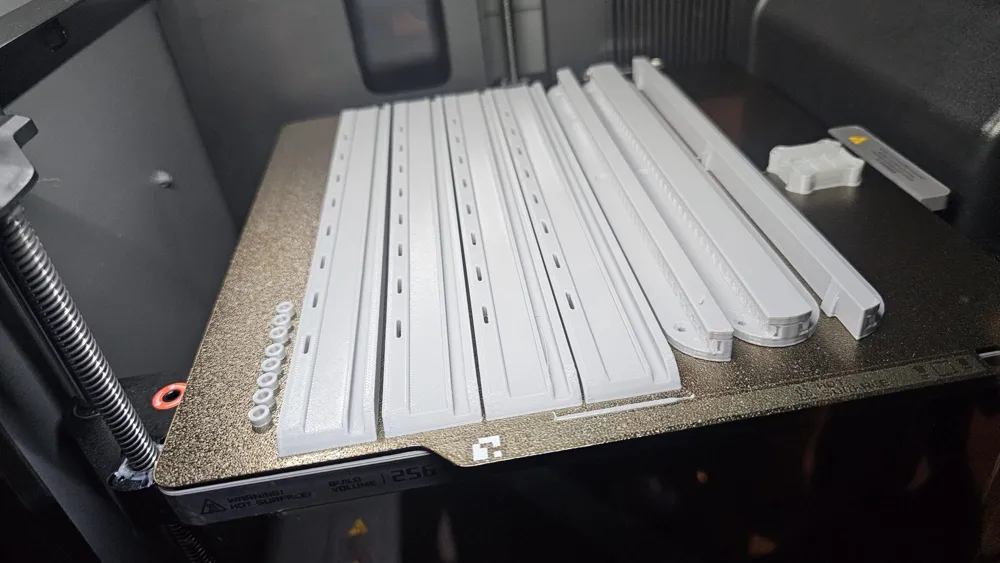

Contains many flat pieces. Ensure you clean your build plate. Oil residue from hands may cause issues.

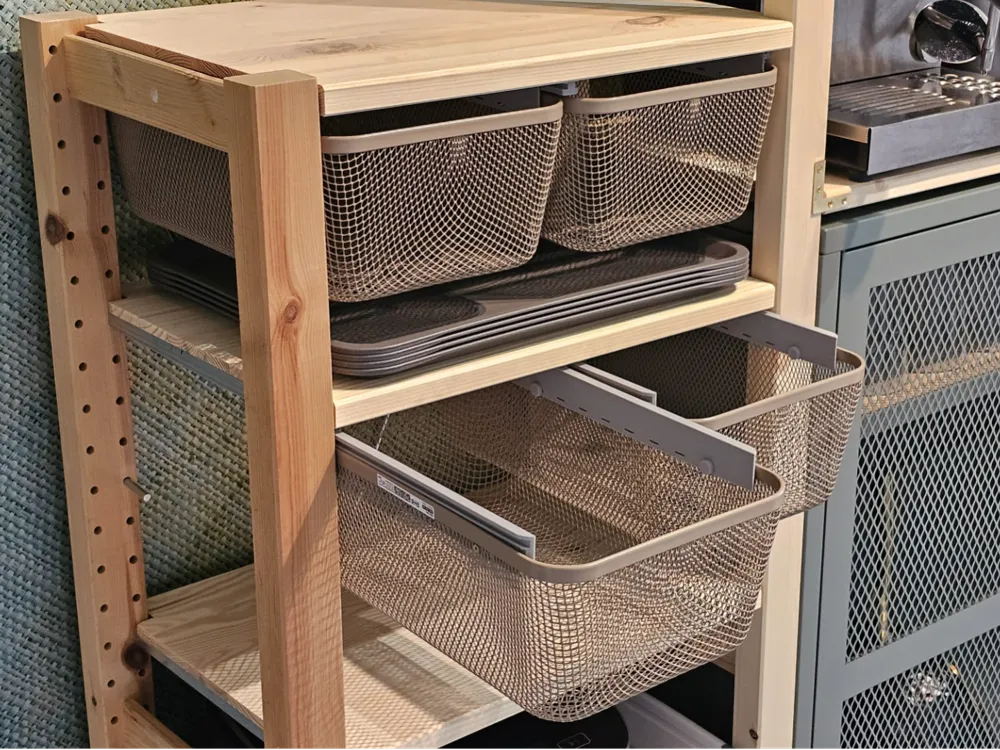

This Drawer / Rail system is designed for the "IKEA 365+ food storage basket" (905.996.45) intended to be mounted to the IKEA IVAR shelf or any other bottom surface.

Using these baskets on rails allows you to gain valuable space in your kitchen or office and gives the baskets a more solid and orderly look.

The rails are designed to be open with no ‘stop’ so you can simply pull out the whole basket and put it back with ease.

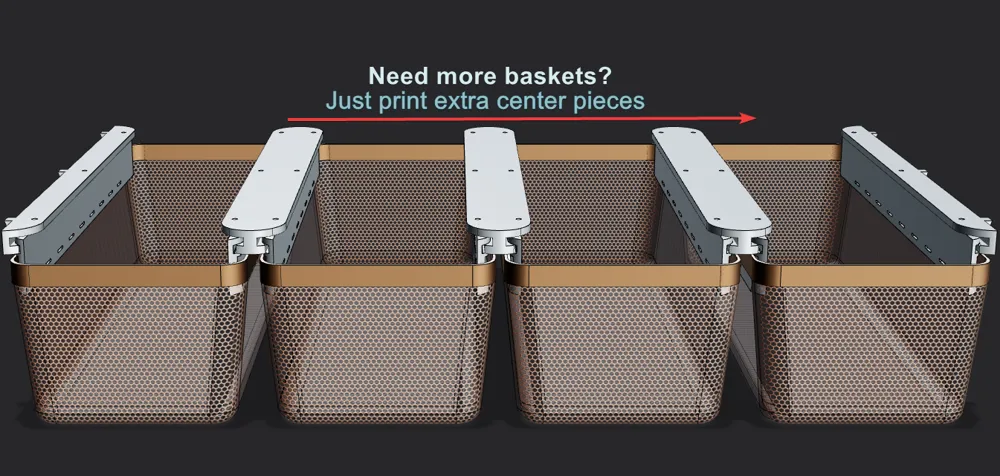

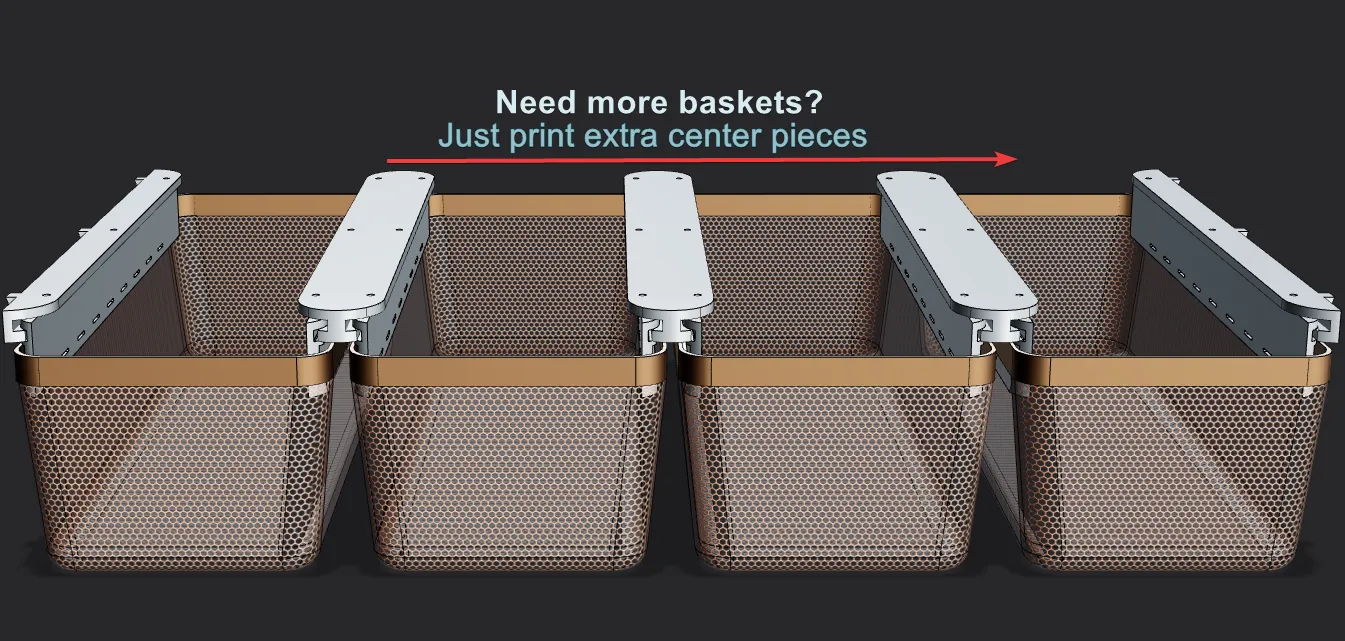

The design is customizable! Just print one center piece per basket after the first.

1 basket = 2 side + 0 center

2 baskets = 2 side + 1 center

3 baskets = 2 side + 2 center … you get the idea

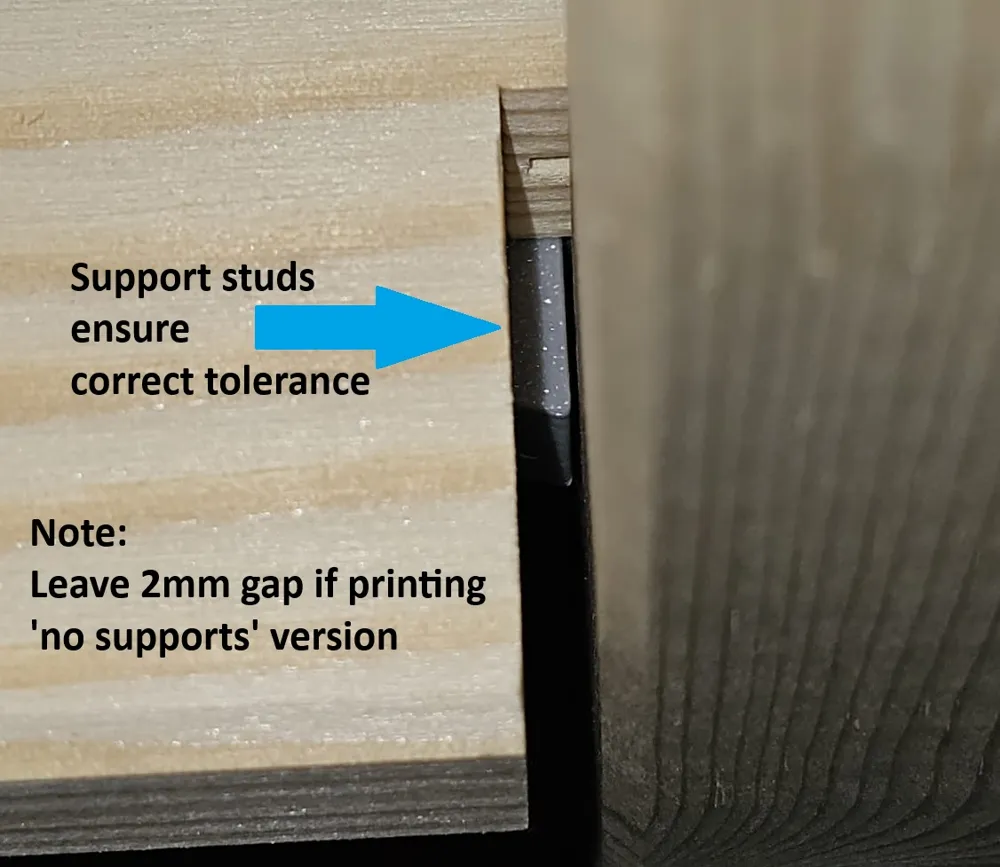

There's a “NO-SUPPORTS” plate variant for thsoe unable or unwilling to use support material as it's wasteful.
