MONO_Articulated 1/12 Figure
Print Profile(1)
Description
Now updated to V2! Using TPUforAMS as the joint axis to improve joint durability, reduce complex adjustments to dampening, and optimize the overall design ~
https://makerworld.com.cn/zh/models/2582337-mono_v2_ke-dong-1-12ren-ou#profileId-2971602
The character design is my original creation (OC) from 2022, MONO
Is a robot
The default material used is Bambu Lab PLA Basic
Using other materials such as PETG requires significant re-adjustment of joint dampening, and may even prevent assembly

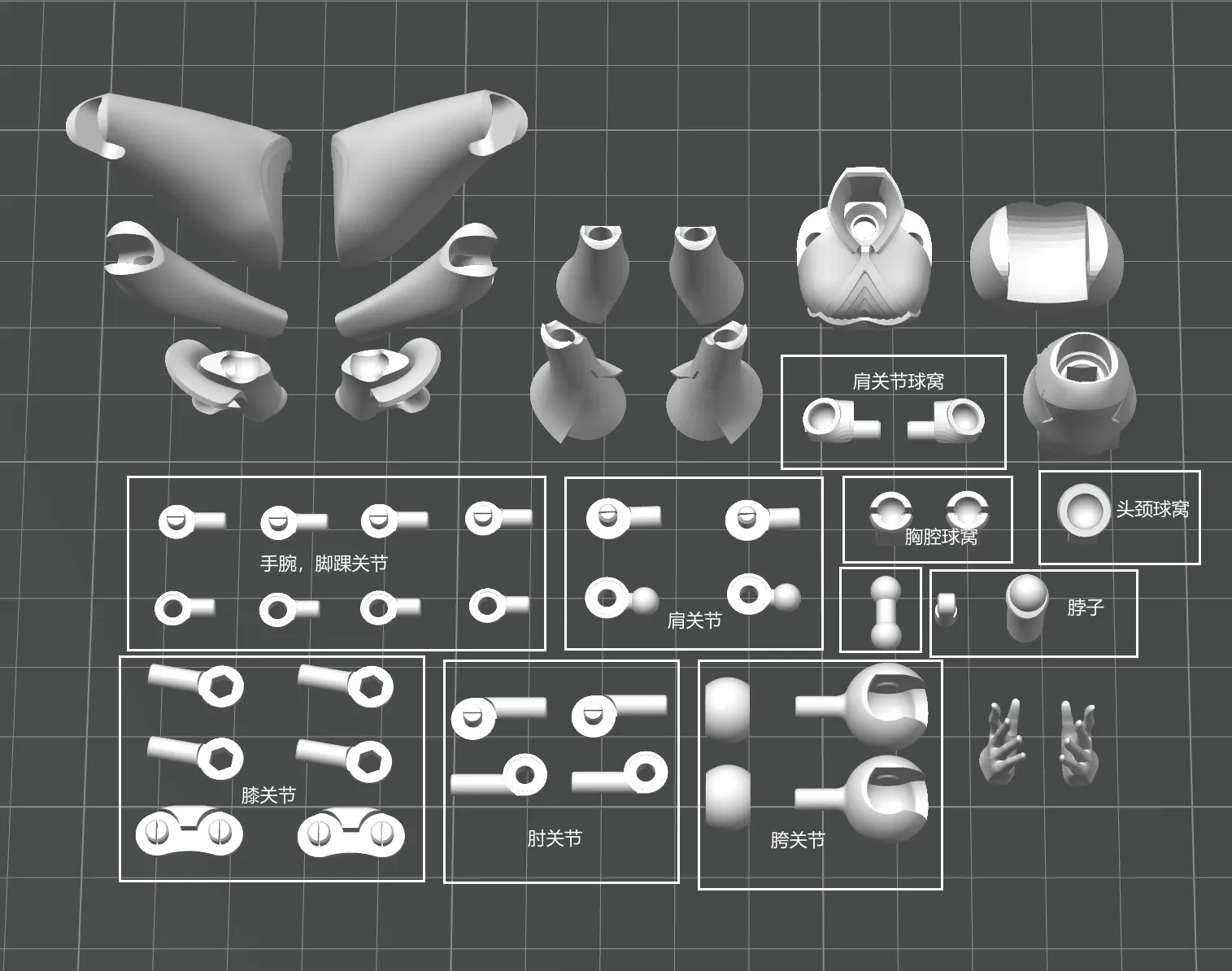

The image below shows the joint instructions, all joints are separate parts, if damaged, only the corresponding joint needs to be replaced, more joints can be printed as spares, which is also convenient for large-scale testing of joint dampening parameters

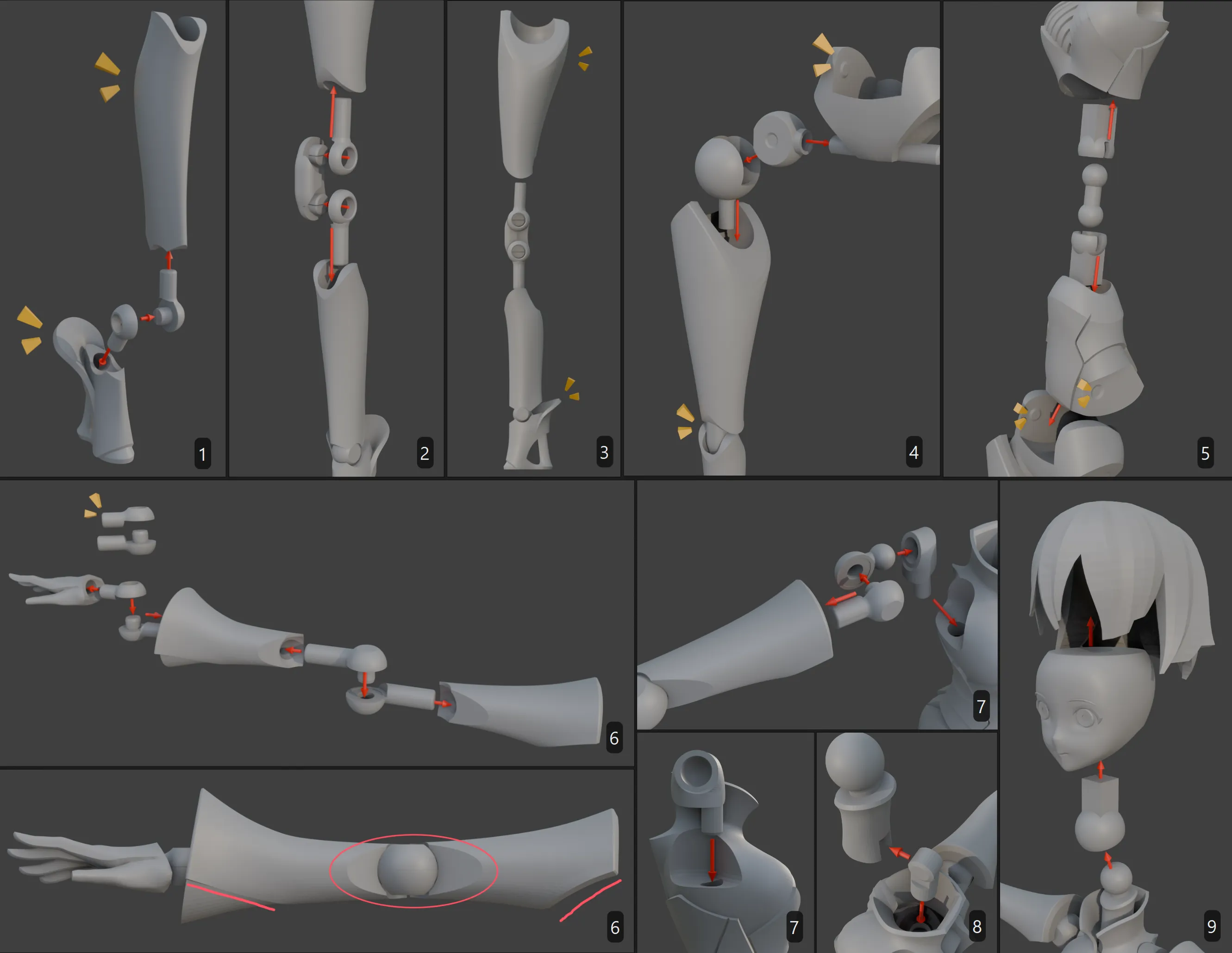

The image below shows the assembly instructions
This is currently a pre-release version, and there are some issues that still need optimization
For assembly, it is recommended to have sandpaper ready, as some pins may not be perfectly round in cross-section due to the printing direction and may require shaping with sandpaper

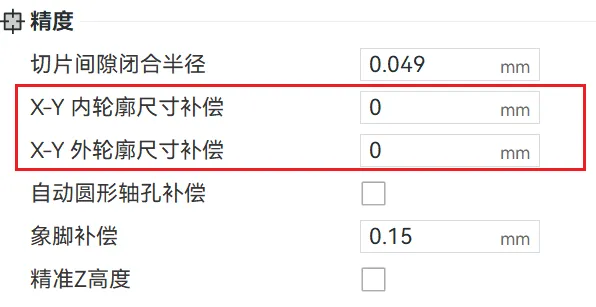

Dampening and fit can be adjusted using these 2 parameters, prioritize adjusting the inner contour
Thanks for your patience, and welcome to share your prints ~
