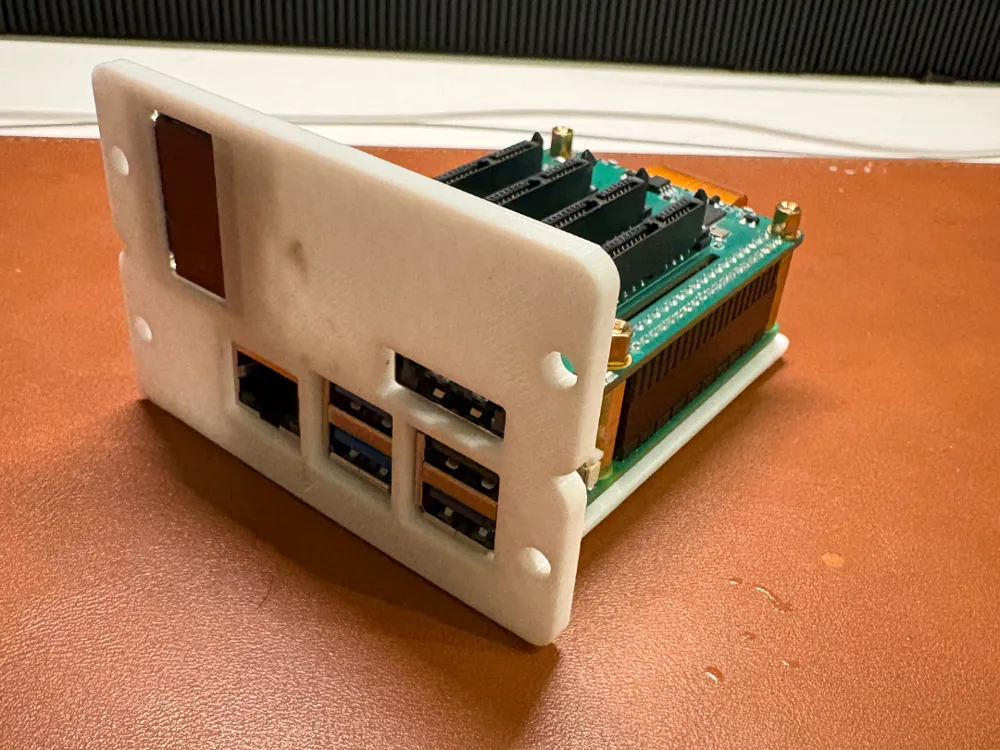

Mount for a Raspberry Pi 5 together with a Radxa Penta SATA HAT and a small OLED display. Fits and designed for
https://makerworld.com/en/models/1293865-2u-7-sbc-holder-for-10-rack#profileId-2812813

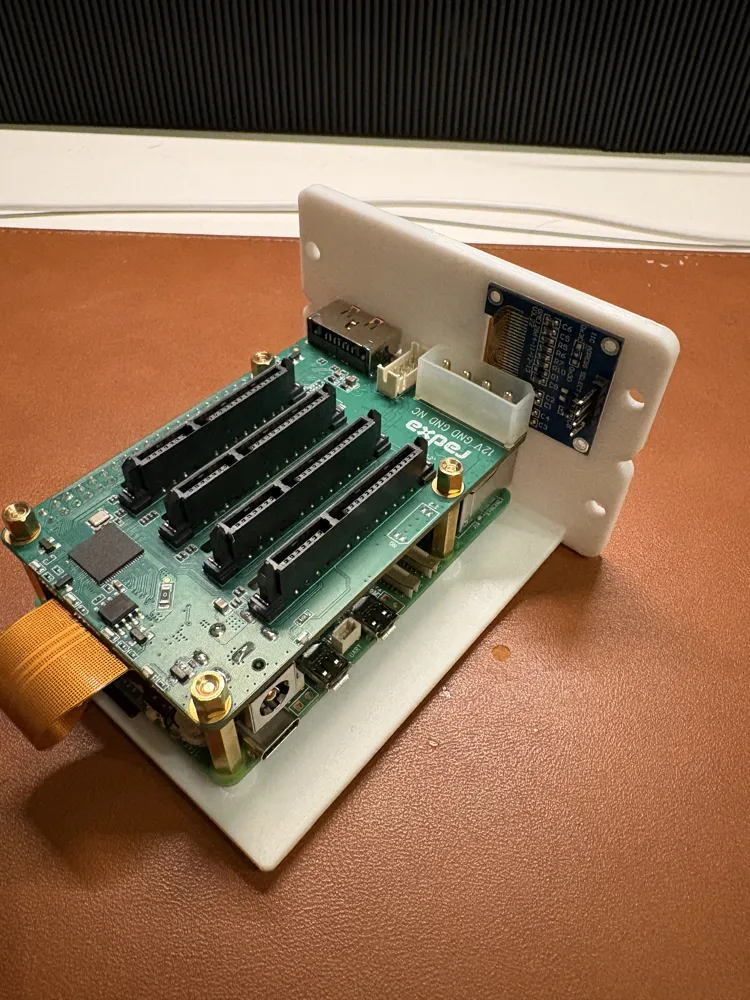

The Raspberry Pi is mounted using M2.5 hex standoffs.

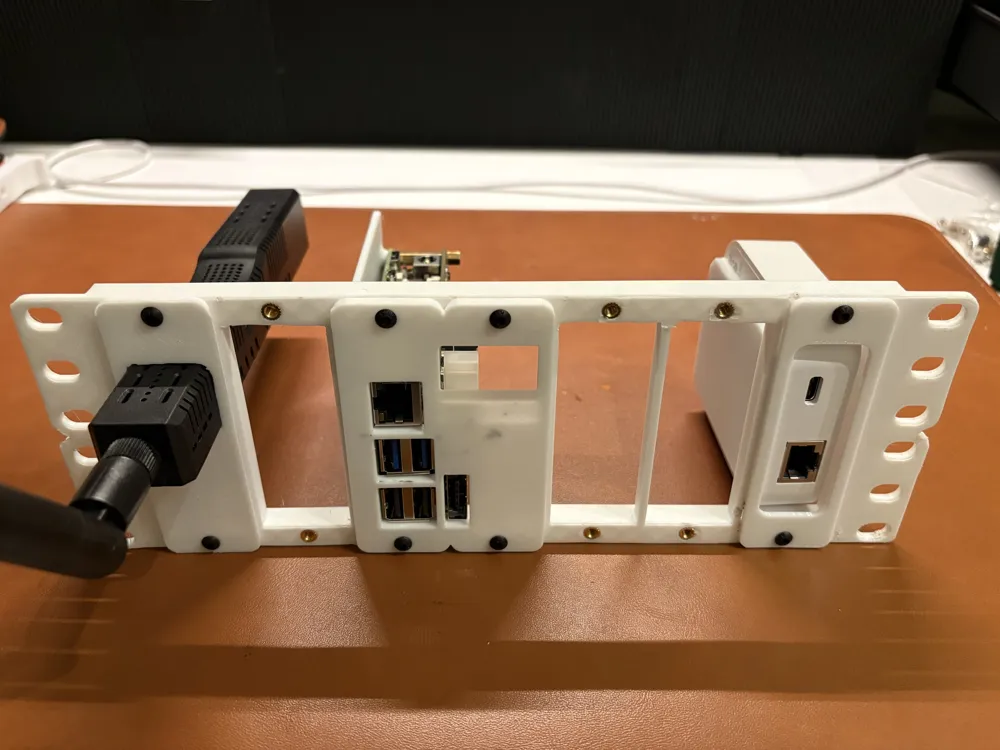

The only required modification to the original frame is to cut and remove one of the vertical connectors to make space for the setup.
Additionally, a mounting hole for a small OLED display has been included, heavily inspired by:
https://makerworld.com/en/models/1838701-1u-pi-nas-rack-for-10-rack#profileId-1964145
This remix is based on
