Cisco Aironet AP mount
Print Profile(1)
Description

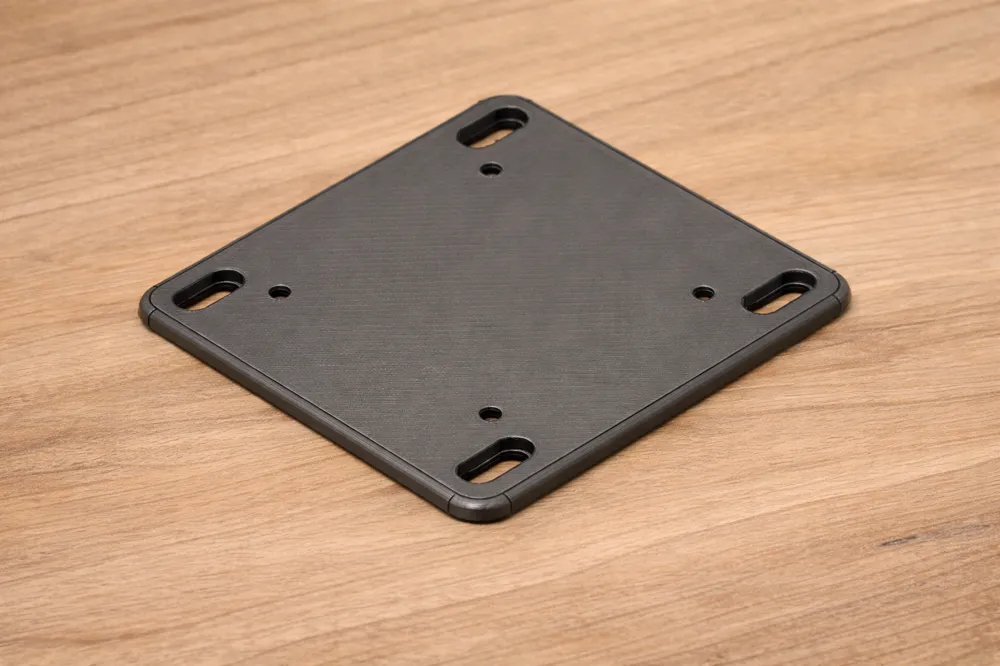

Made a simple bracket for a celling or wall mount, for the Aironet family of Access Points covering but limited to…
Cisco Aironet 1040 series
Cisco Aironet 1140 series
Cisco Aironet 1260 series
Cisco Aironet 1600 series
Cisco Aironet 2600 series
Cisco Aironet 2800 series
Cisco Aironet 3500 series
Cisco Aironet 3600 series
Cisco Aironet 3700 series
Cisco Aironet 3800 series
Cisco Catalyst 9130 series
Cisco Catalyst CW9100
and many more, basically all of them they are using the AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2
Installation notes

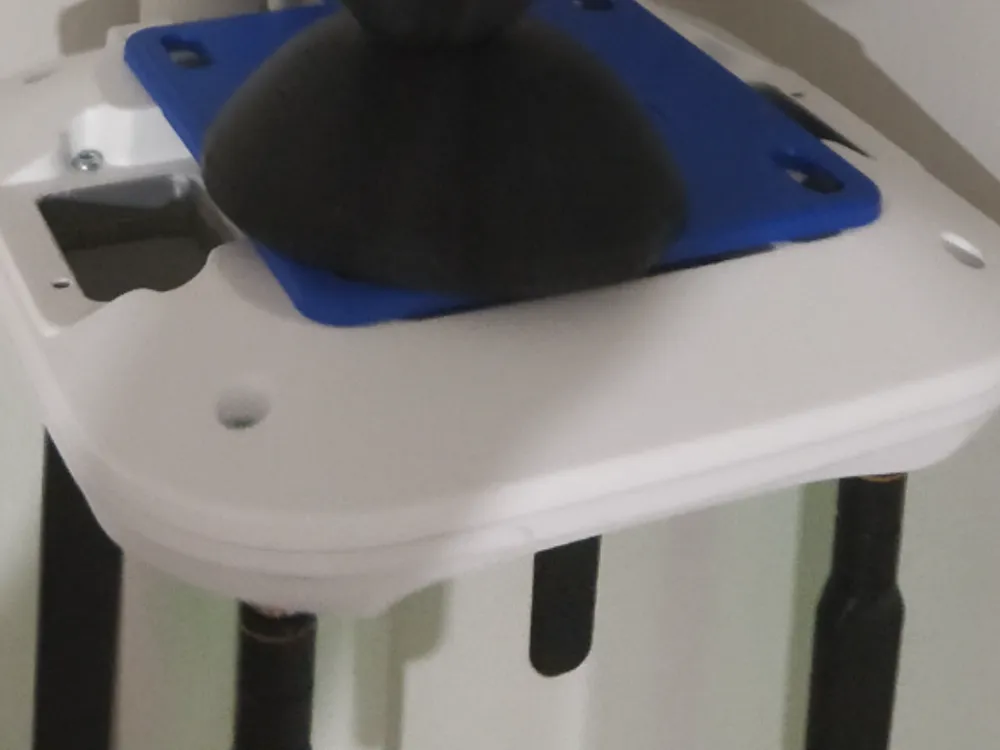

Please avoid overtighten the 4 screws and distorting the face of the plate, the AP black feet that interface with the mount have a small tolerance and any deformation could make the installation of the AP a nightmare. If the AP is having trouble aligning make sure that the 3d print is flat and not warped in any way!
Hardware
In the model they are 4 screw holes with 5mm diameter for countersunk screws. Make sure that the face where the AP is going to placed is completely flat, if a screw head is protruding the AP will not go in.
