SlimSlide Storage – M.2 SSD Case (2230 / 2242 / 2260 / 2280)
Part of the SlimSlide Storage Series
Check out SlimSlide Storage – SO-DIMM Memory Case (DDR1-5)
Check out SlimSlide Storage – 2.5" SATA Drive Case SSD / HDD.

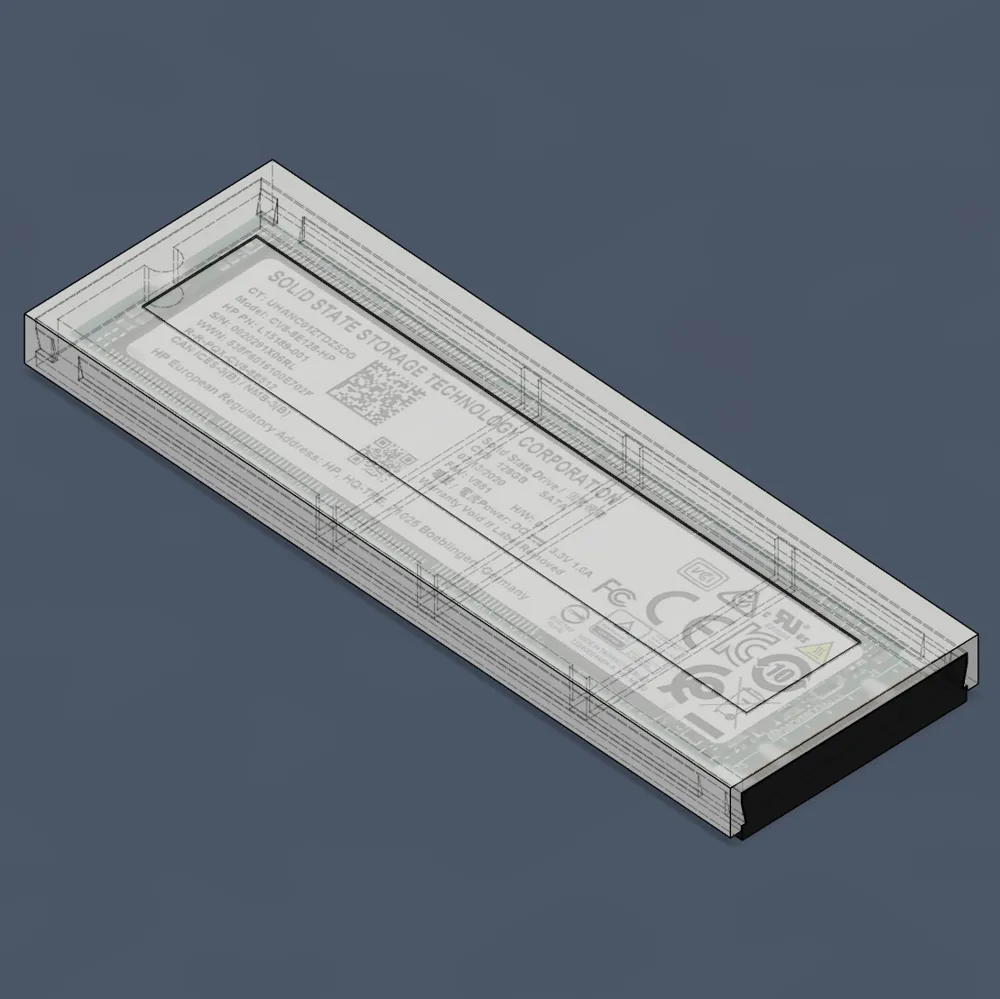

A slim, low-profile storage case designed for M.2 form factor expansion cards — optimized for 2280-size SSDs, with full support for shorter variants via optional printed spacers.
Part of the SlimSlide Storage Series: a collection of compact, labeled storage cases for small PC components.
Perfect for safely storing, organizing, or shipping loose M.2 SSDs and expansion cards.
🔒 SlimSlide Lid System

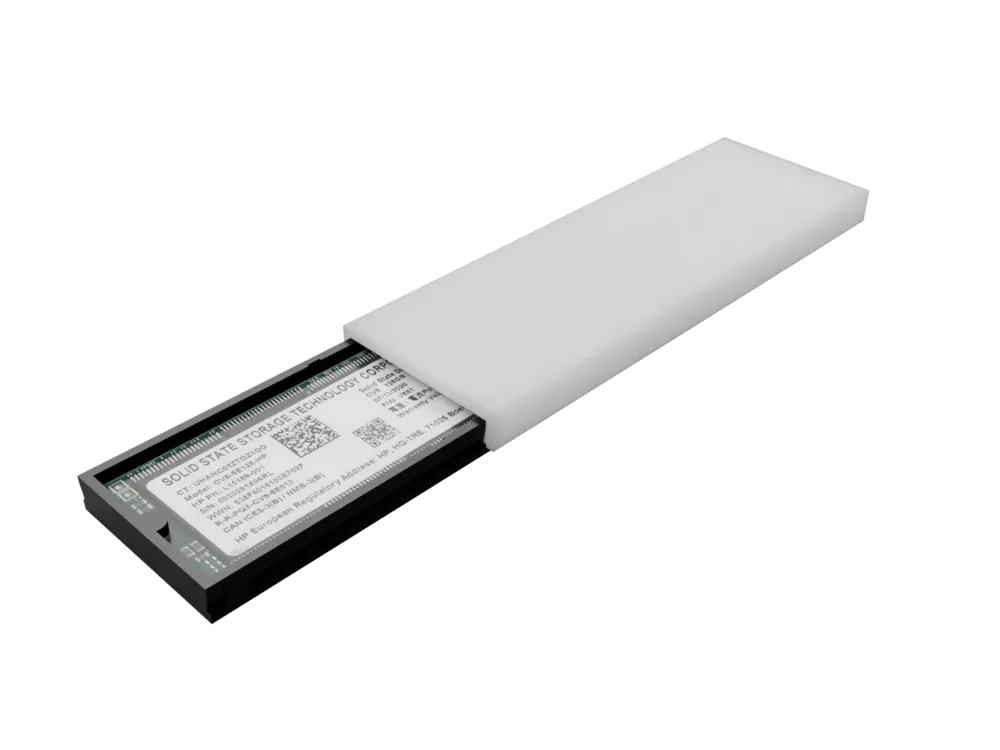

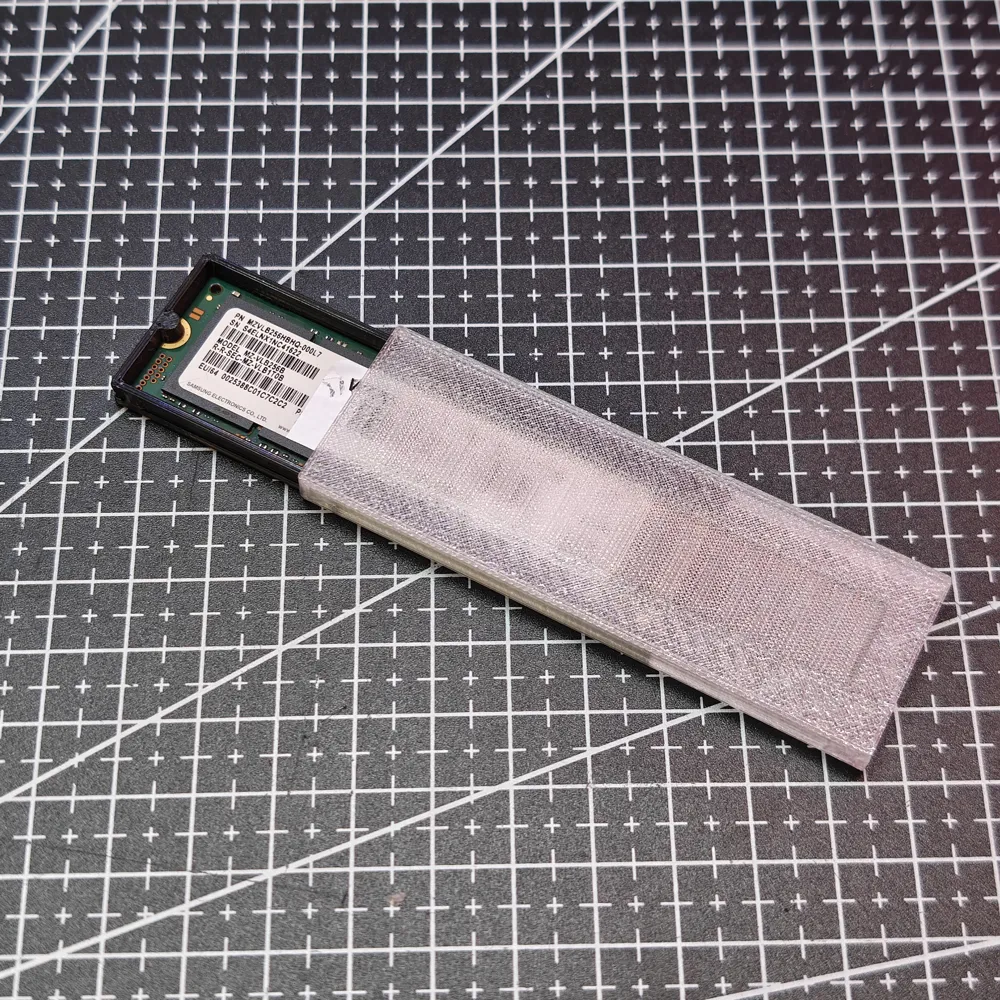

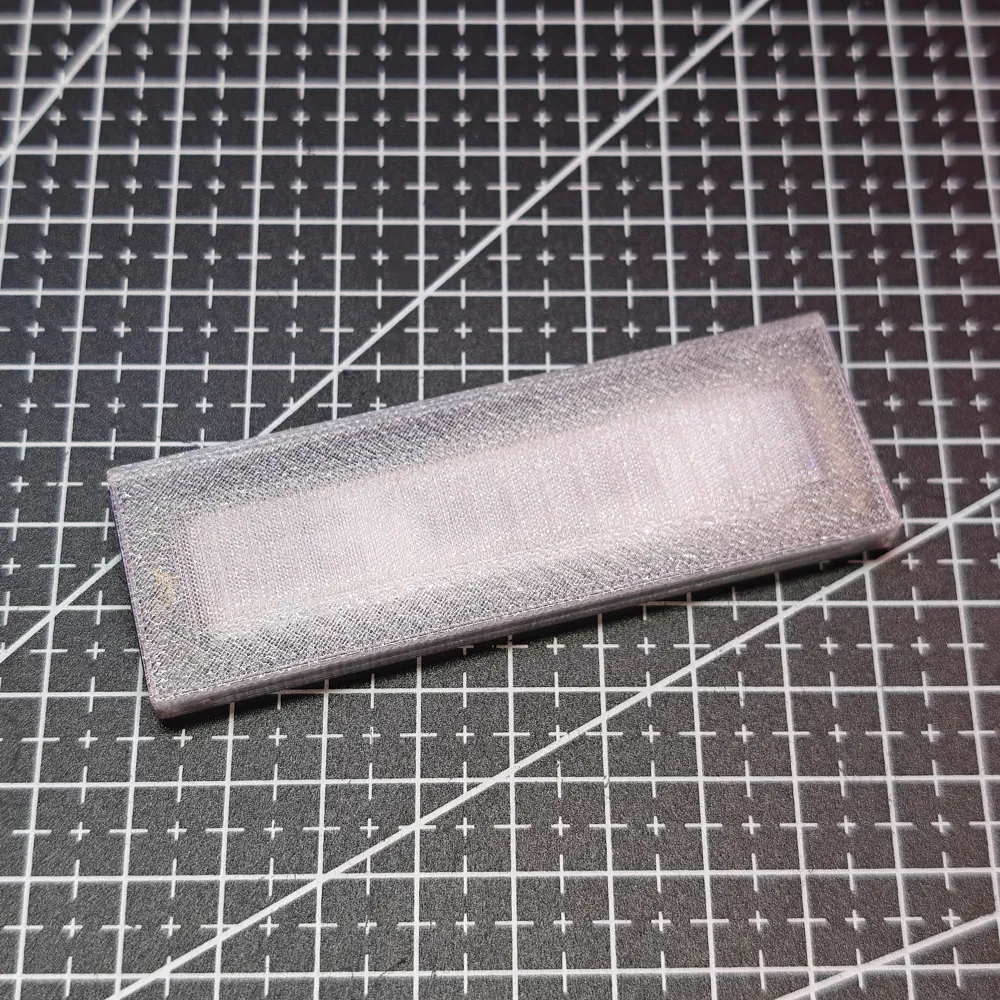

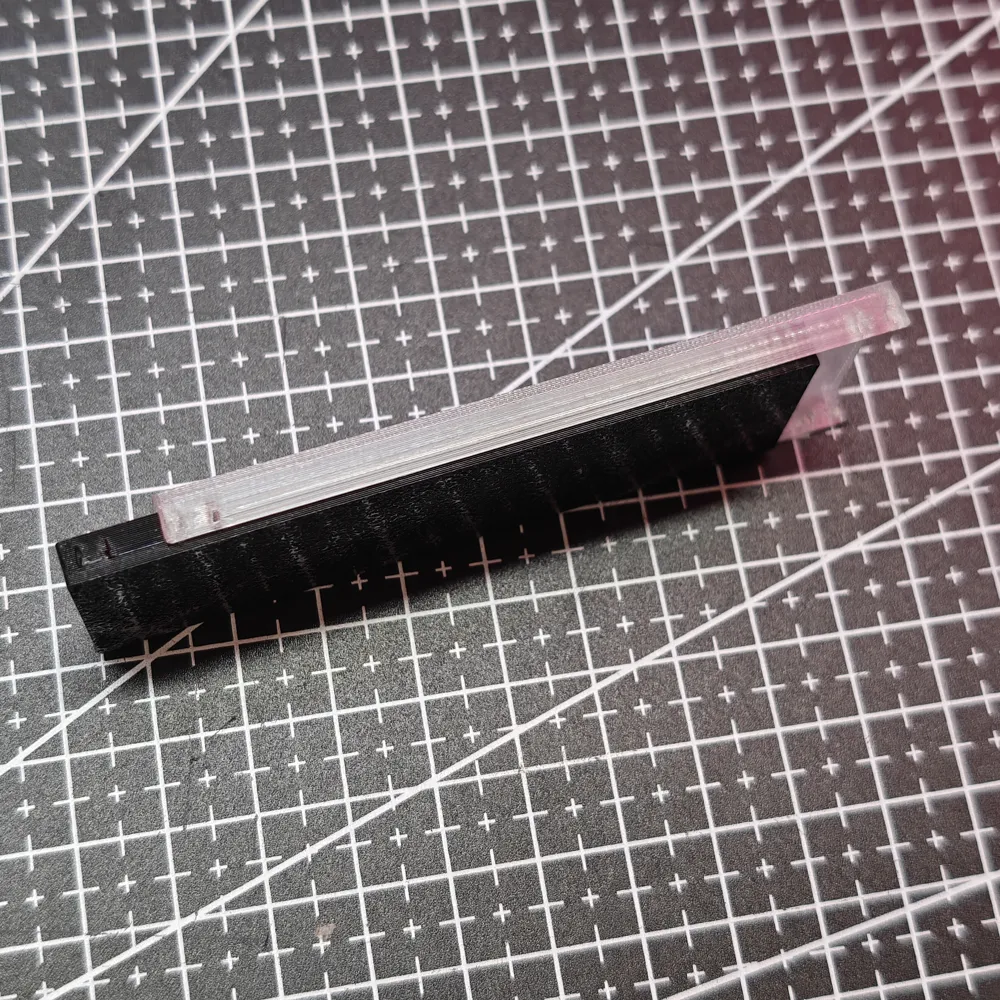

The lid uses a rail-and-click mechanism — slide it off from one end for easy access, or place it straight on. It snaps shut securely and stays closed. No tools, no fumbling.
A recessed area on the lid fits a standard Dymo label, so you always know what's inside.
📐 Compatibility

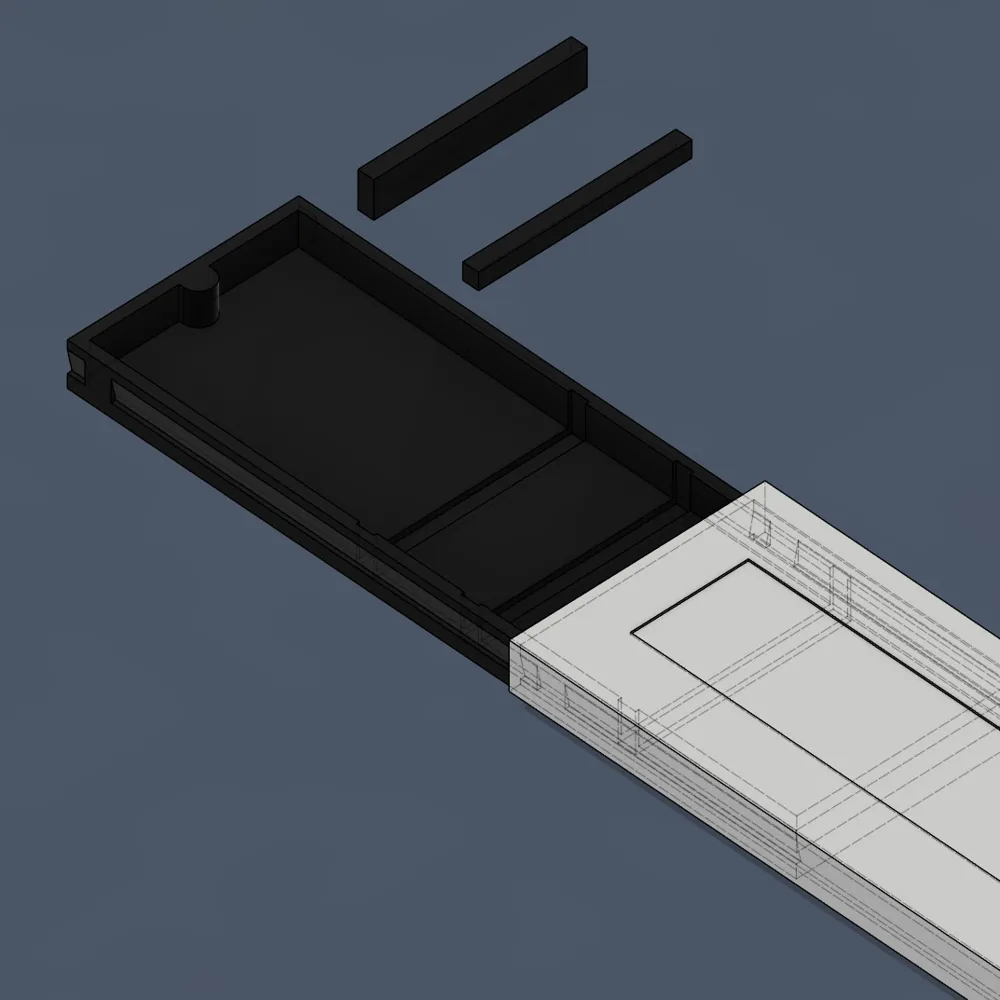

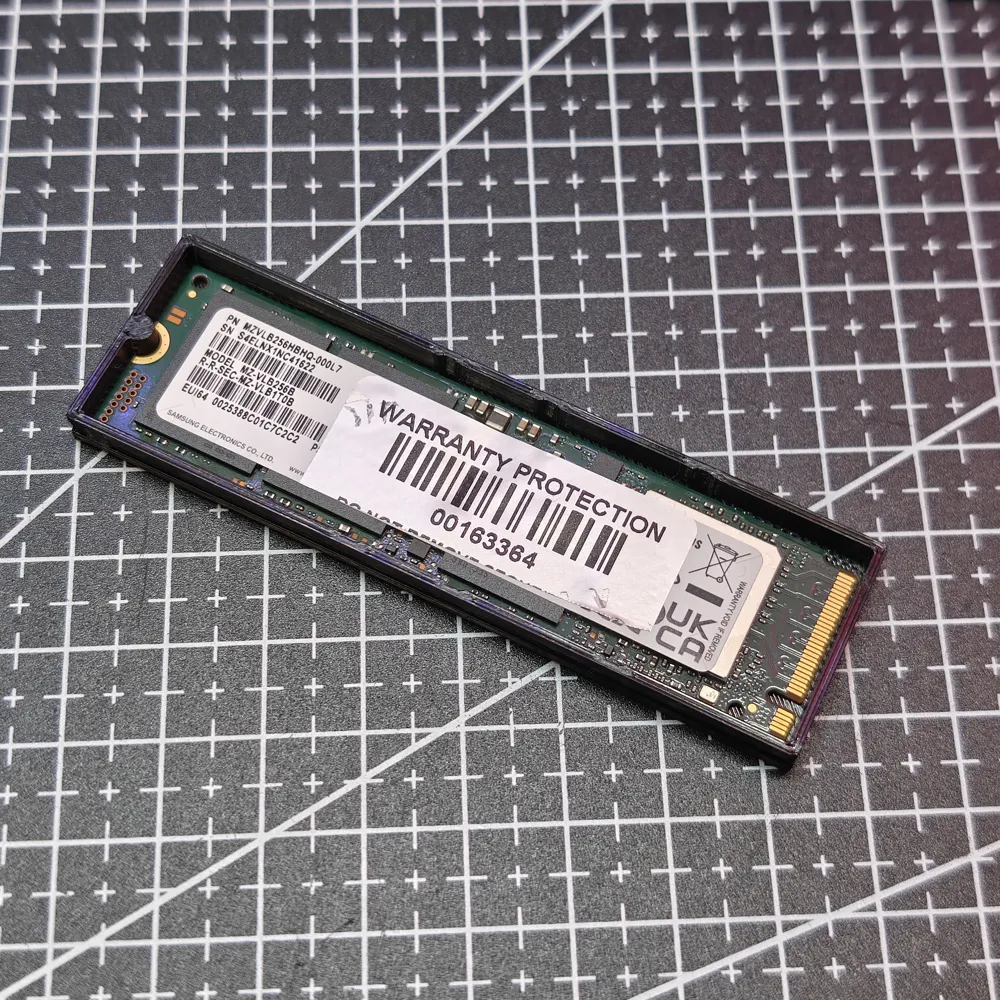

Supports M.2 2280 cards out of the box. With the optional spacer accessories (printed separately), the case also fits:
| Spacer | Use |
|---|---|
| 1.5 mm spacer | Better tolerance for single-sided SSDs |
| 3.8 mm spacer | Storage of shorter cards: 2230, 2242 & 2260 |
Supports double-sided SSDs as standard. Maximum combined component height: 3.8 mm.
🧱 Print Settings & Material
- Material: PETG recommended — colored or transparent. Durable and affordable to print.
- Layer height: 0.2 mm
- Print time: ~35 minutes per unit
- No supports needed. High quality results at standard settings.
📁 Files
This model uses a single print profile that includes all components pre-configured and ready to print:
🖨️ Print profile: M.2 2230-2280 Box.3mf

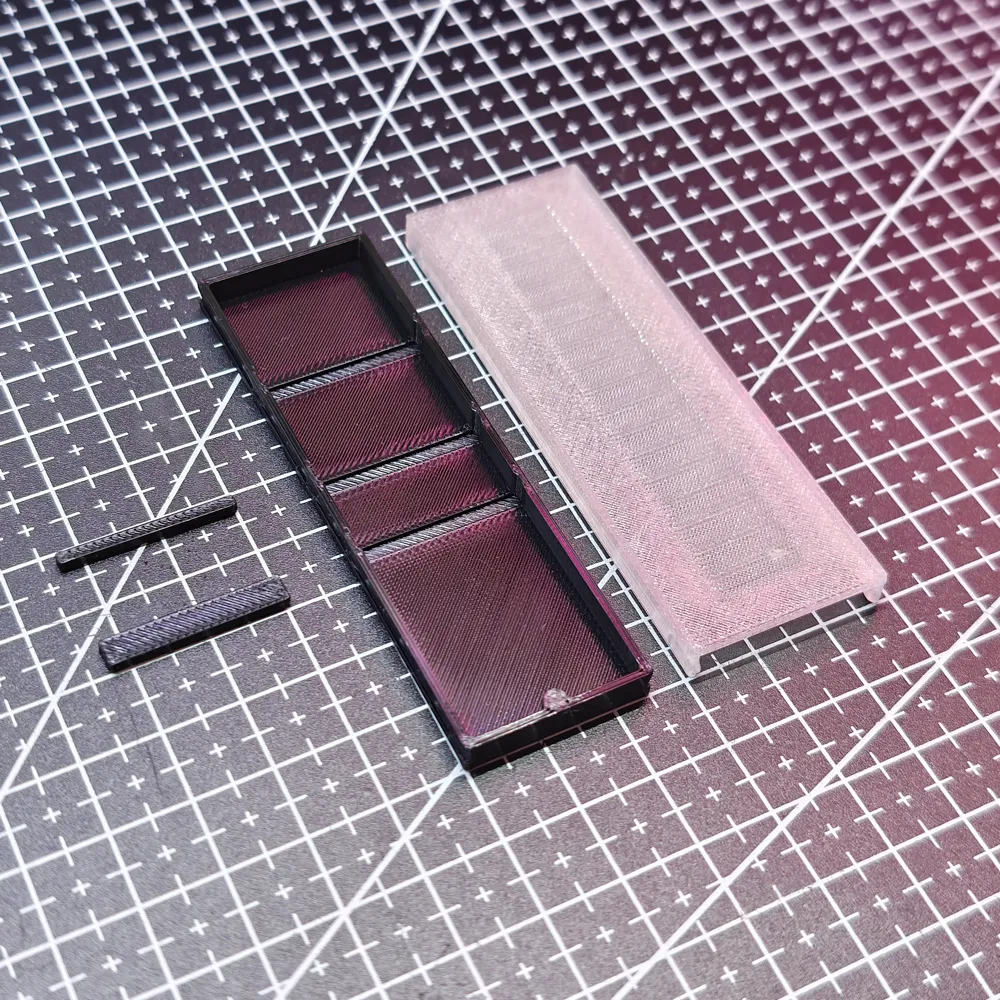

| Component file | Description |
|---|---|

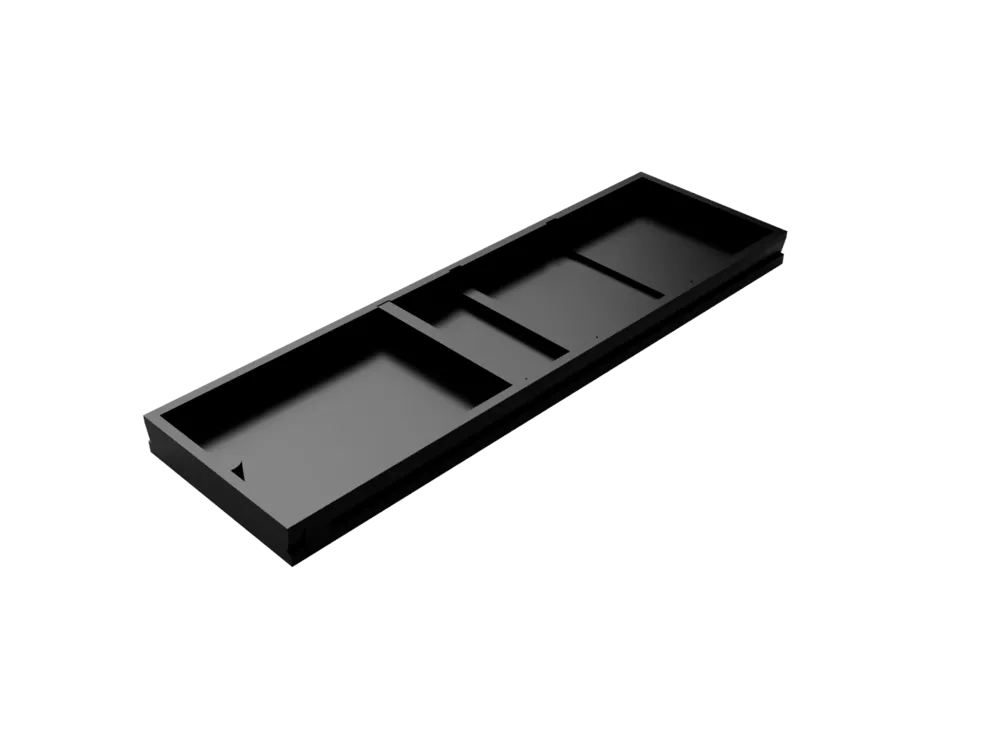

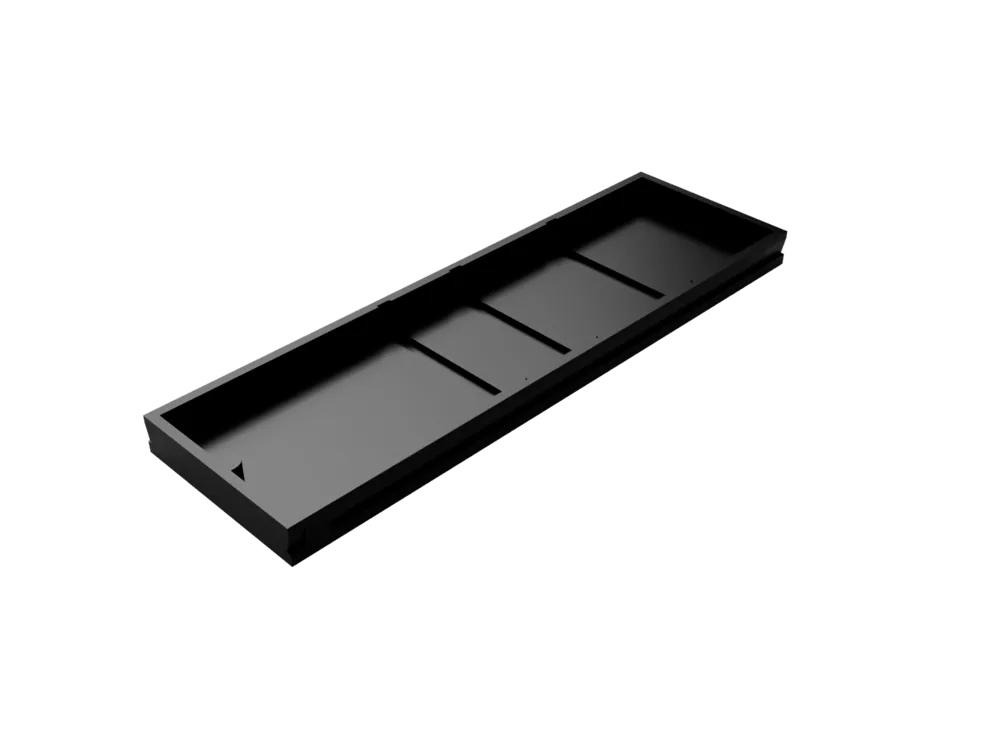

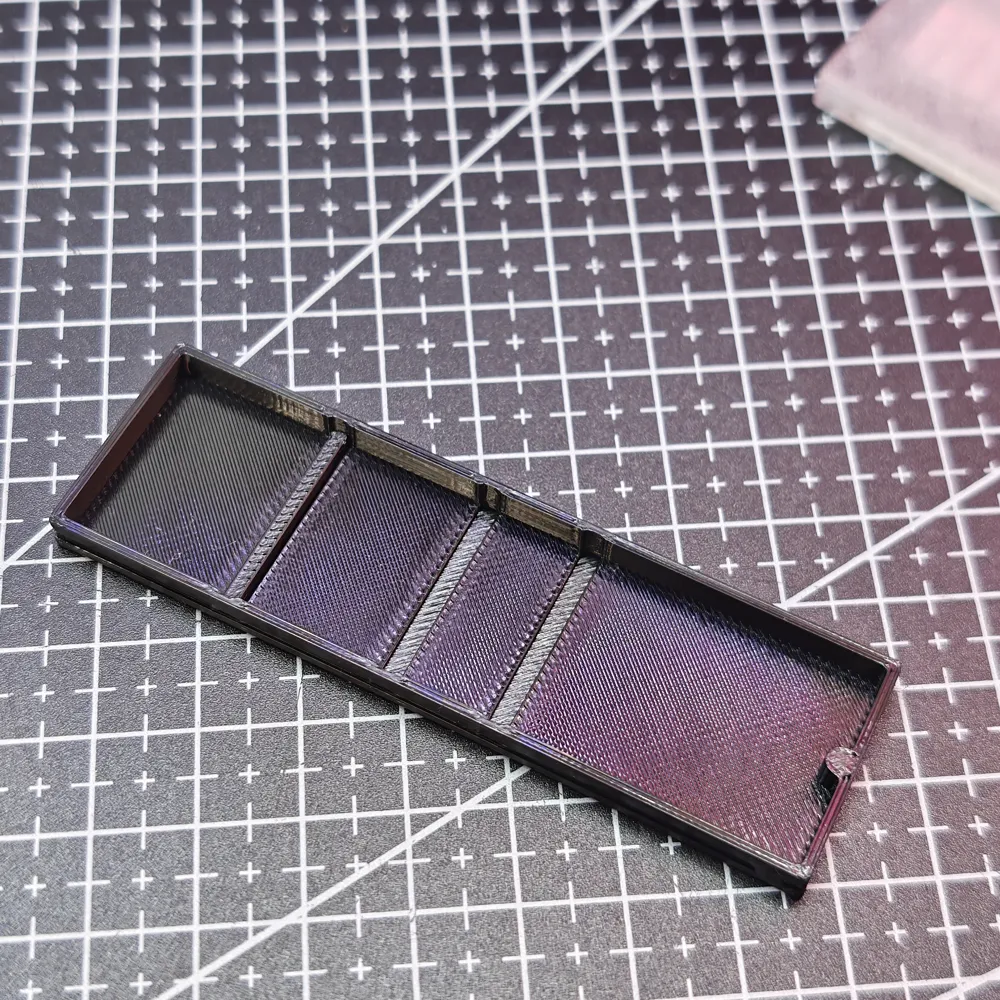

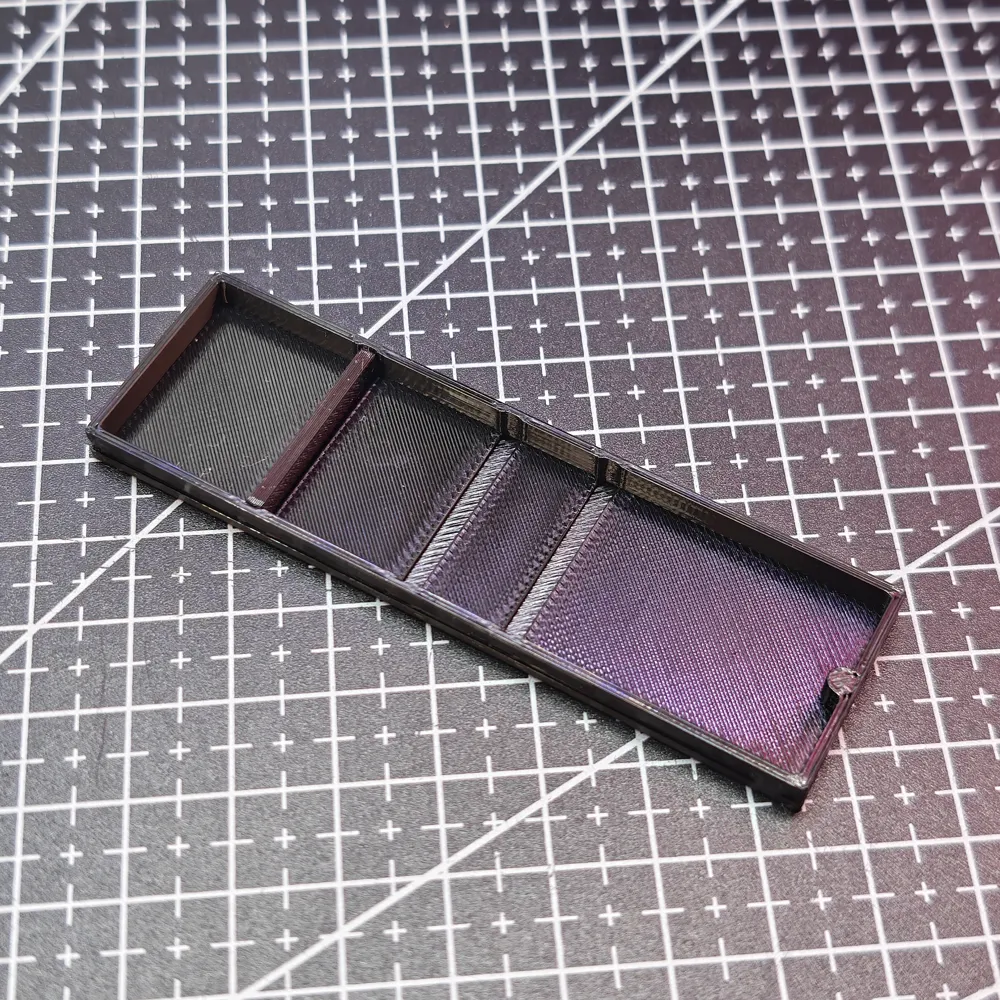

| M.2 2280 Wall.3mf | Main tray for components |
| M.2 2280 Lid.3mf | Sliding lid with Dymo label outline |
| Adjustment wall.3mf | Length spacer — separator for 2230, 2242 & 2260 |
| Single side support.3mf | Thickness spacer for single-sided PCBs |
Individual component files are also provided separately if you wish to print specific parts on their own.
Designed in Denmark by Kix @ Kixtips.dk
