Geocache or Spice Jar Lid (NFC/ Magnet/ Eyelet)

🧂 Spice Jar Lids – 3 Variants (Standard, Eyelet, NFC/Magnet)

This set includes three functional lid variants for spice jars, specifically optimized for outdoor use and geocaching – including smart and sustainable expansion options

🧭 Ideal for Geocaching but note do not use in the forest due to fire hazard

• Perfect as a robust, weather-resistant cache container
• Eyelet variant allows easy attachment to branches, fences, or structures
• NFC version is suitable for interactive or digital caches
• Also suitable for humid environments in combination with a TPU seal (seal is optional)

Also ideal for other applications:

• Camper / Vanlife: space-saving storage of spices or small parts
• Kitchen: neatly and sustainably transfer loose spices from bags into jars
• Workshop: perfect for organizing screws, nuts, or small parts
• General Organization: versatile, reusable container solution

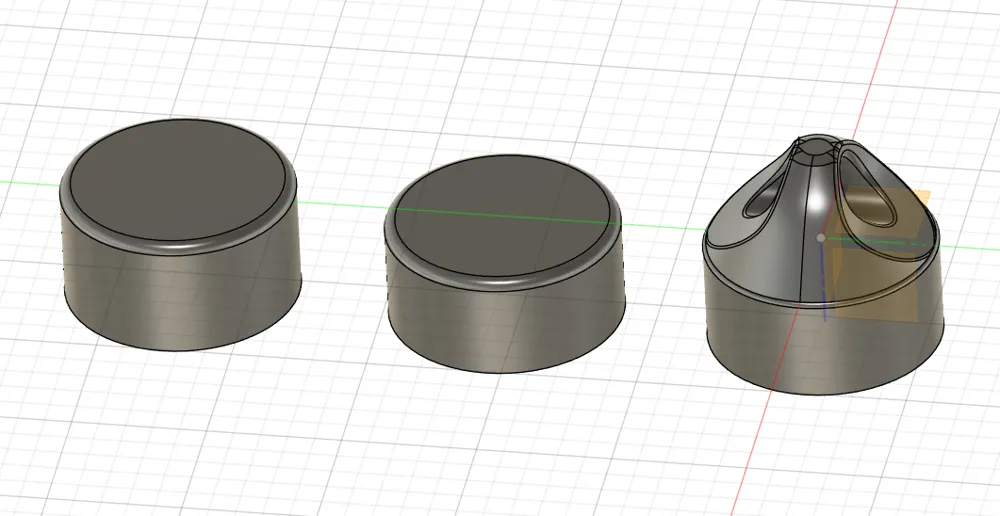

🔧 Variants at a Glance

1. Standard Lid

• Classic, simple lid
• Ideal as a replacement or for simple cache containers

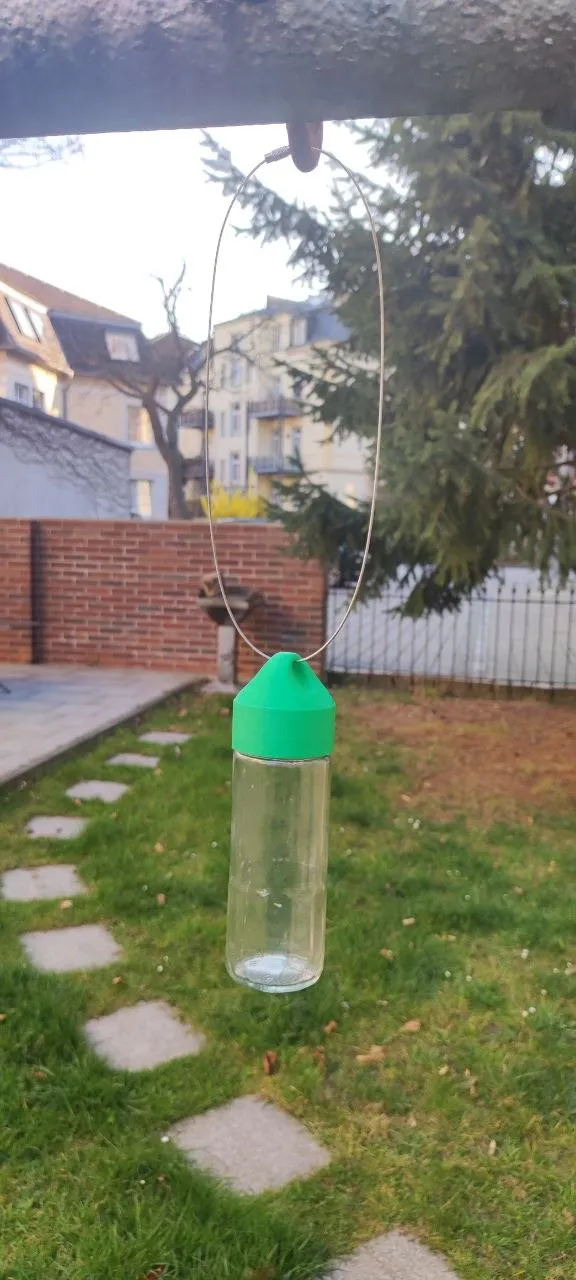

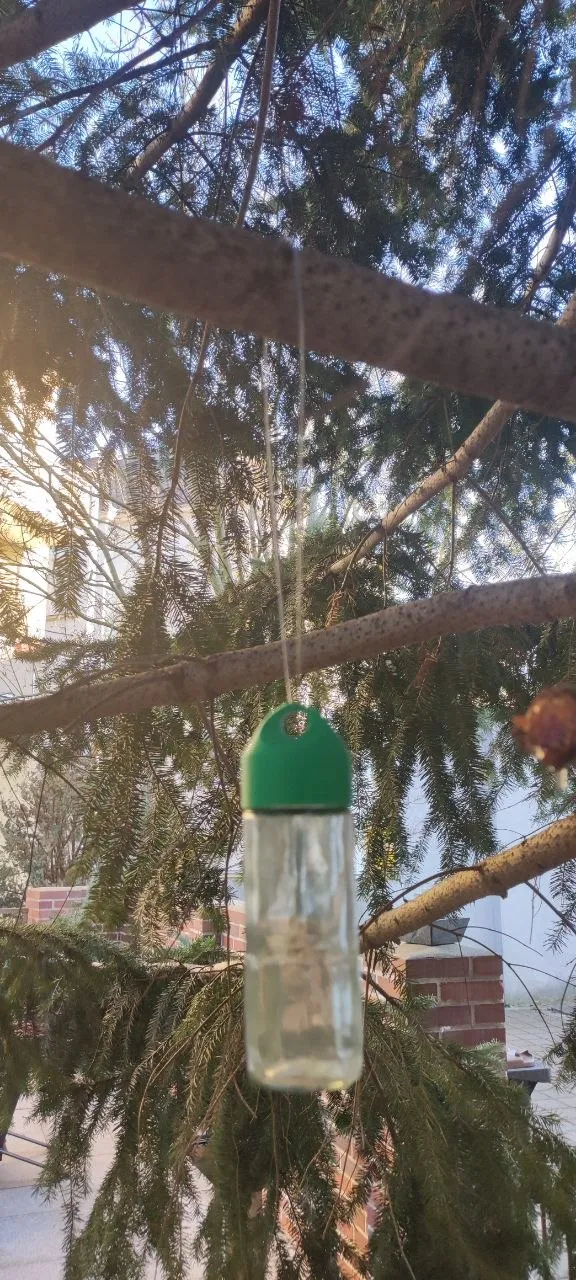

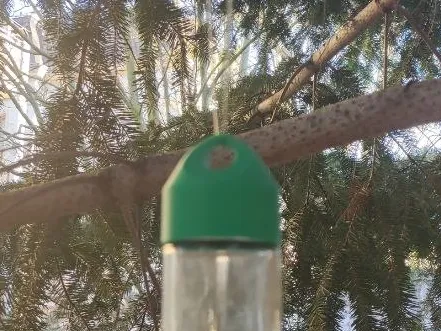

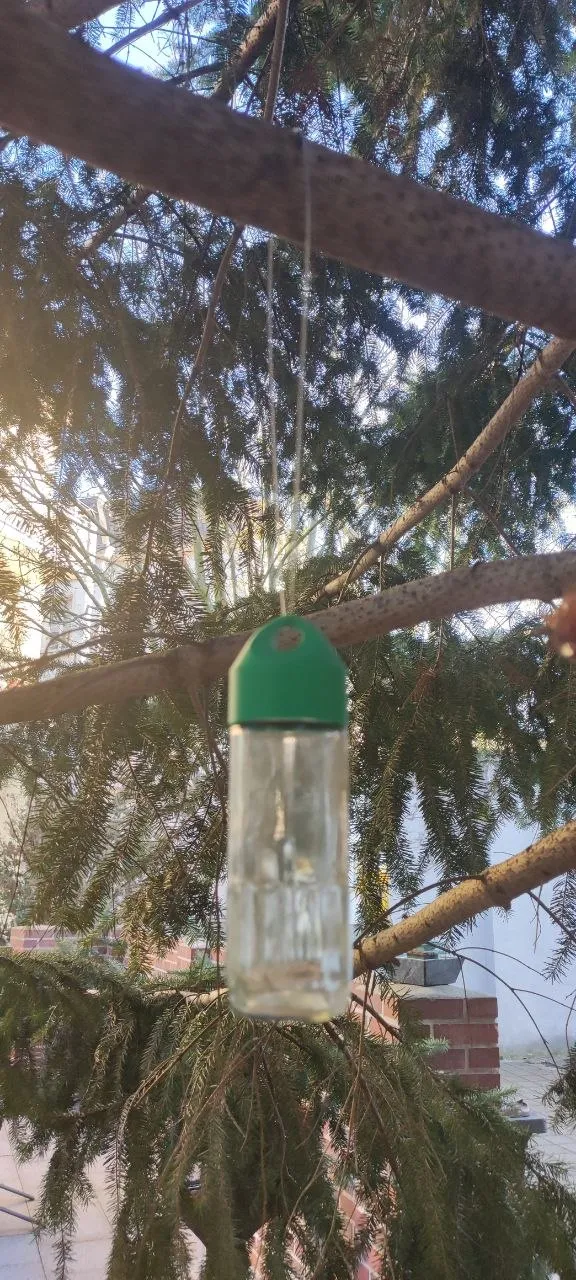

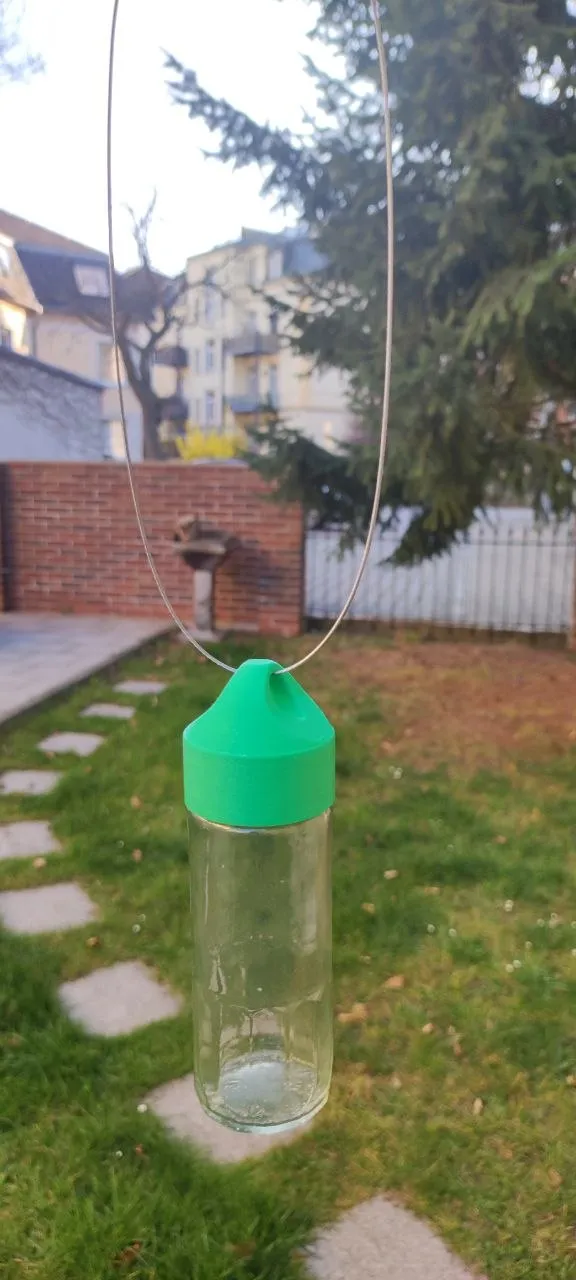

2. Lid with Eyelet

• Integrated eyelet for hanging
• Optimal for hidden or elevated placements

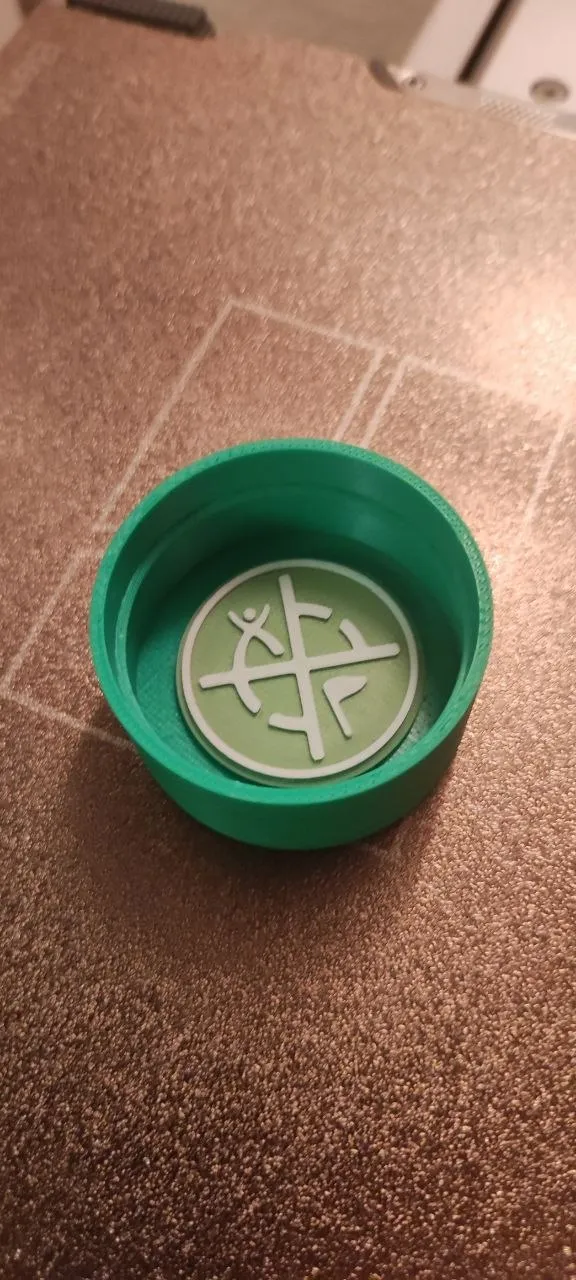

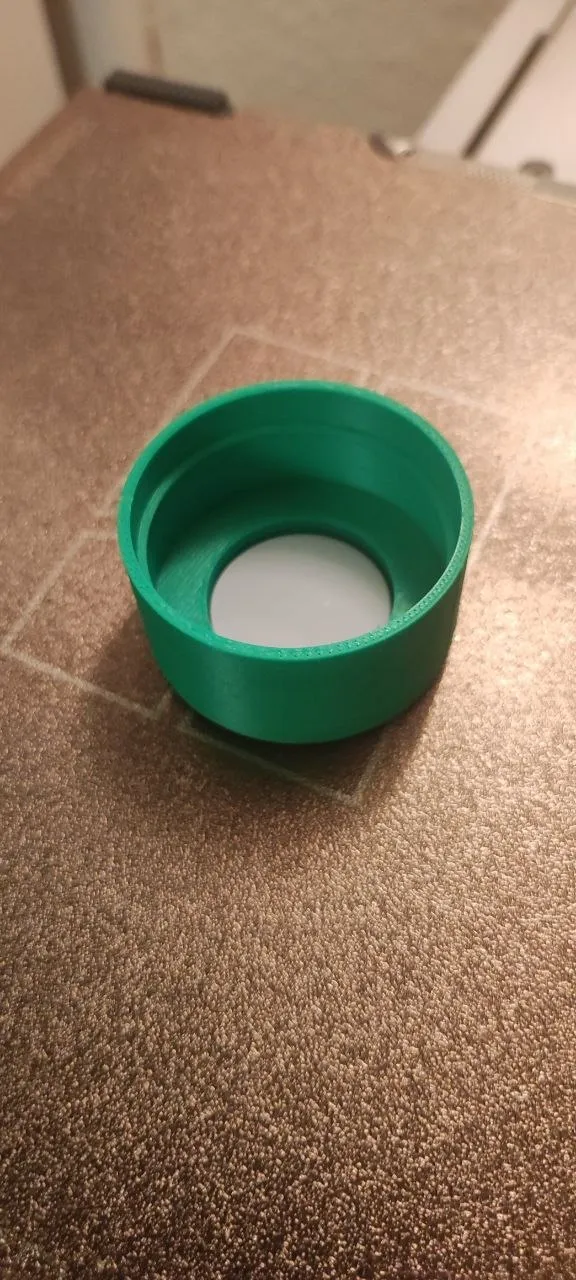

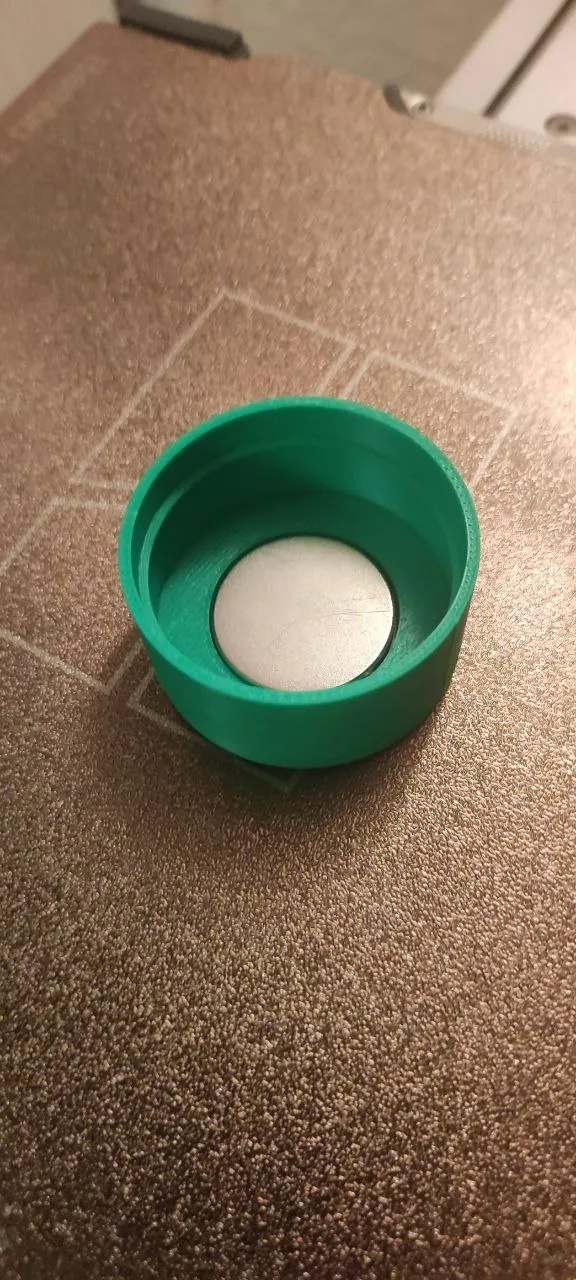

3. Lid with NFC/Magnet Holder

• Integrated recess for:
  • NFC chips (Ø 25 mm) or
  • Magnets (Ø 25 mm)

  • Metal disc (Ø 25 mm) for fishing caches



• Maximum height for magnet or NFC chip: 4 mm
• For smart caches or magnetic hiding spots
• NFC chip and magnets do not work either NFC chip or magnetic insert should be used

📏 Dimensions

• Lid diameter: approx 40 mm
• NFC/magnet/metal disc holder: Ø 25 mm / max 4 mm height

🖨️ Print Instructions

• Recommended materials:
  • PETG → good weather resistance, easy to print
  • ASA → high UV and temperature resistance, ideal for permanent outdoor use
• PLA is not recommended as it can soften when exposed to sunlight
• Supports:
  • Standard lid: not required
  • NFC/magnet version: not required
  • Eyelet variant: Supports required
• Infill: 15–25% sufficient
• Layer height: 0.2 mm recommended

• 3 walls



• Optional:

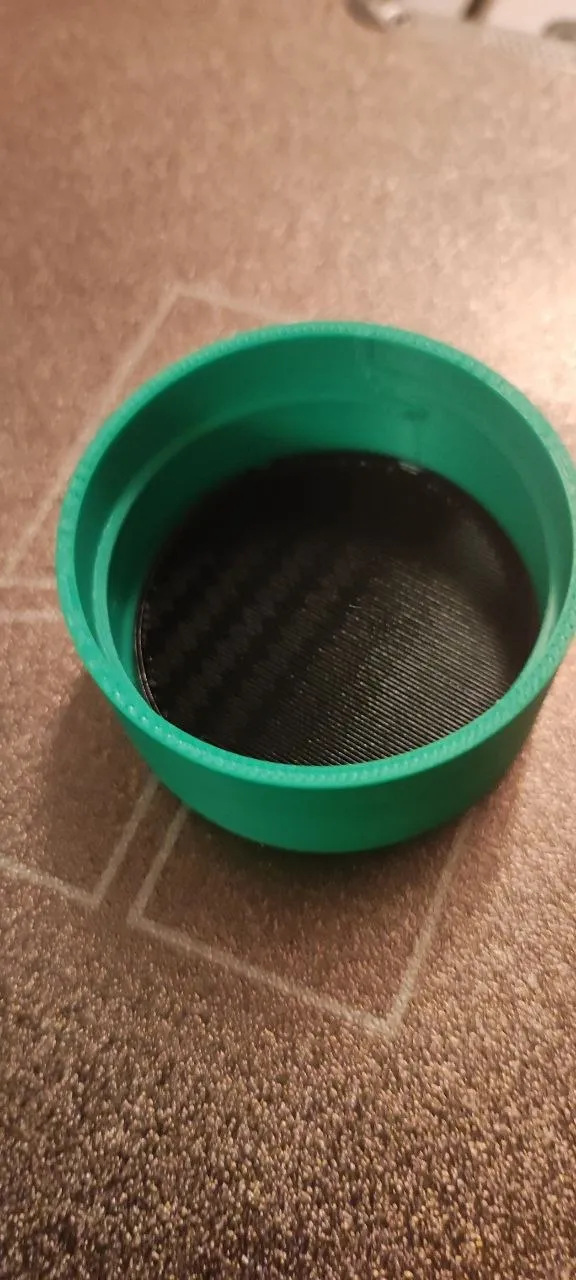

  • A TPU disc can be printed and inserted as a seal to improve sealing (recommended for geocaching)

🌱 Sustainability

• Existing spice jars can be reused instead of being disposed of
• Perfect for durable outdoor use
• Upcycling instead of throwing away

💡 Further Applications

• Outdoor kitchen / BBQ area
• Spice organization in the garden or camper

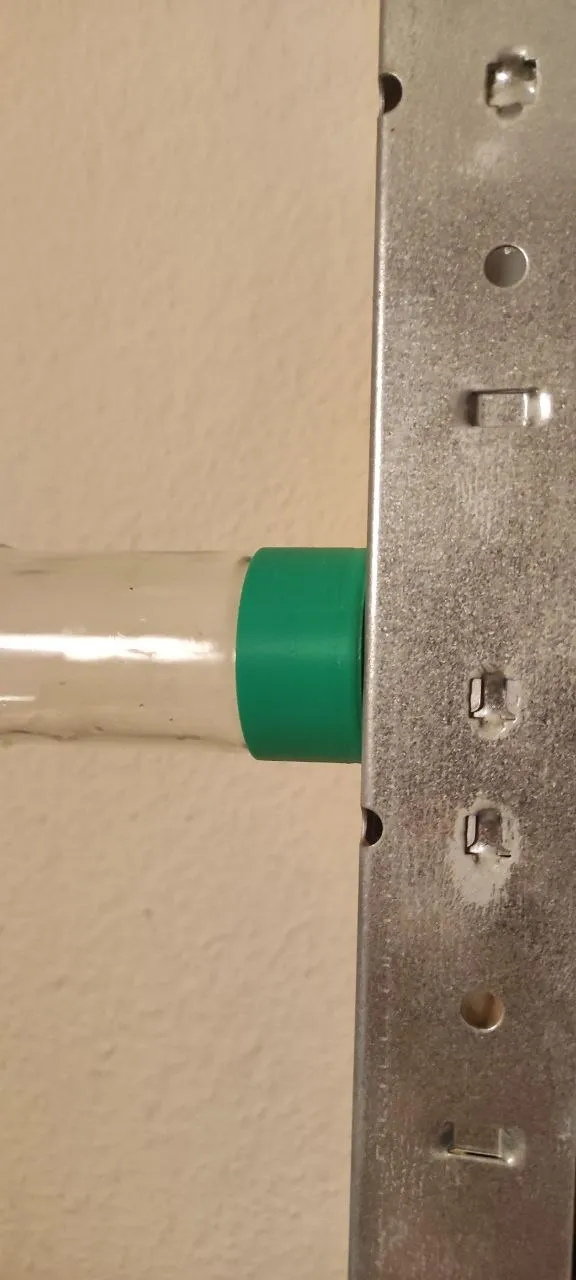

• Magnetic attachment to metal surfaces e.g. on a metal rail under the cabinet etc
• Smart systems with NFC tags (Programmable for content or geocaching like locations and number codes etc)

⚠️ Notes

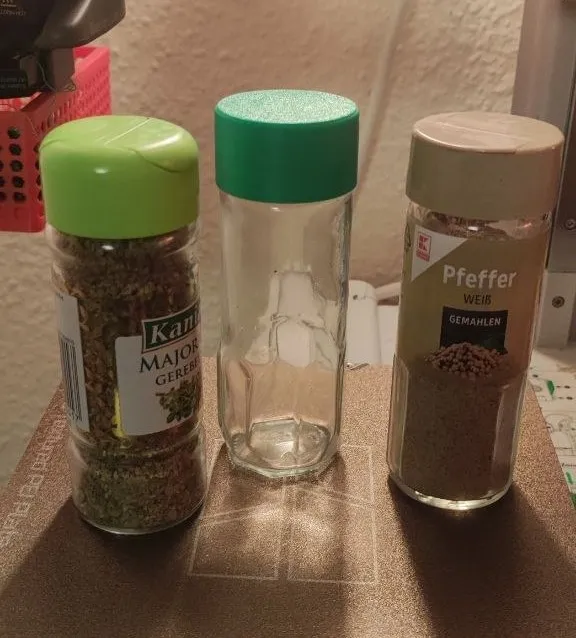

• Compatibility with spice jars see photos

• For direct food contact pay attention to suitable filament
