Adjustable Under-Cabinet Mount – Magcubic HY450

Adjustable Under-Cabinet / Ceiling Mount for Magcubic HY450

Overview

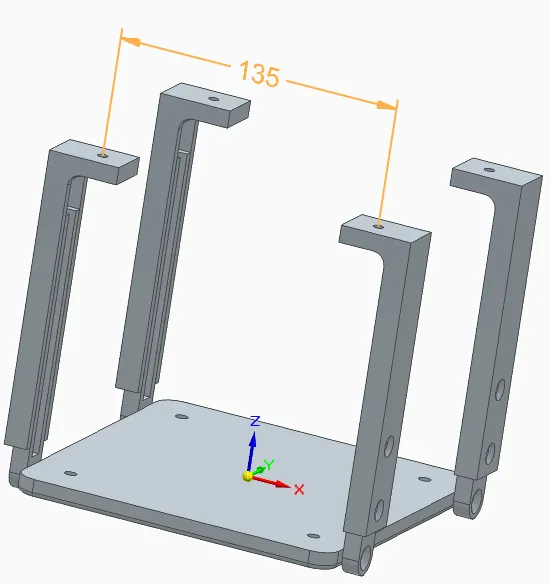

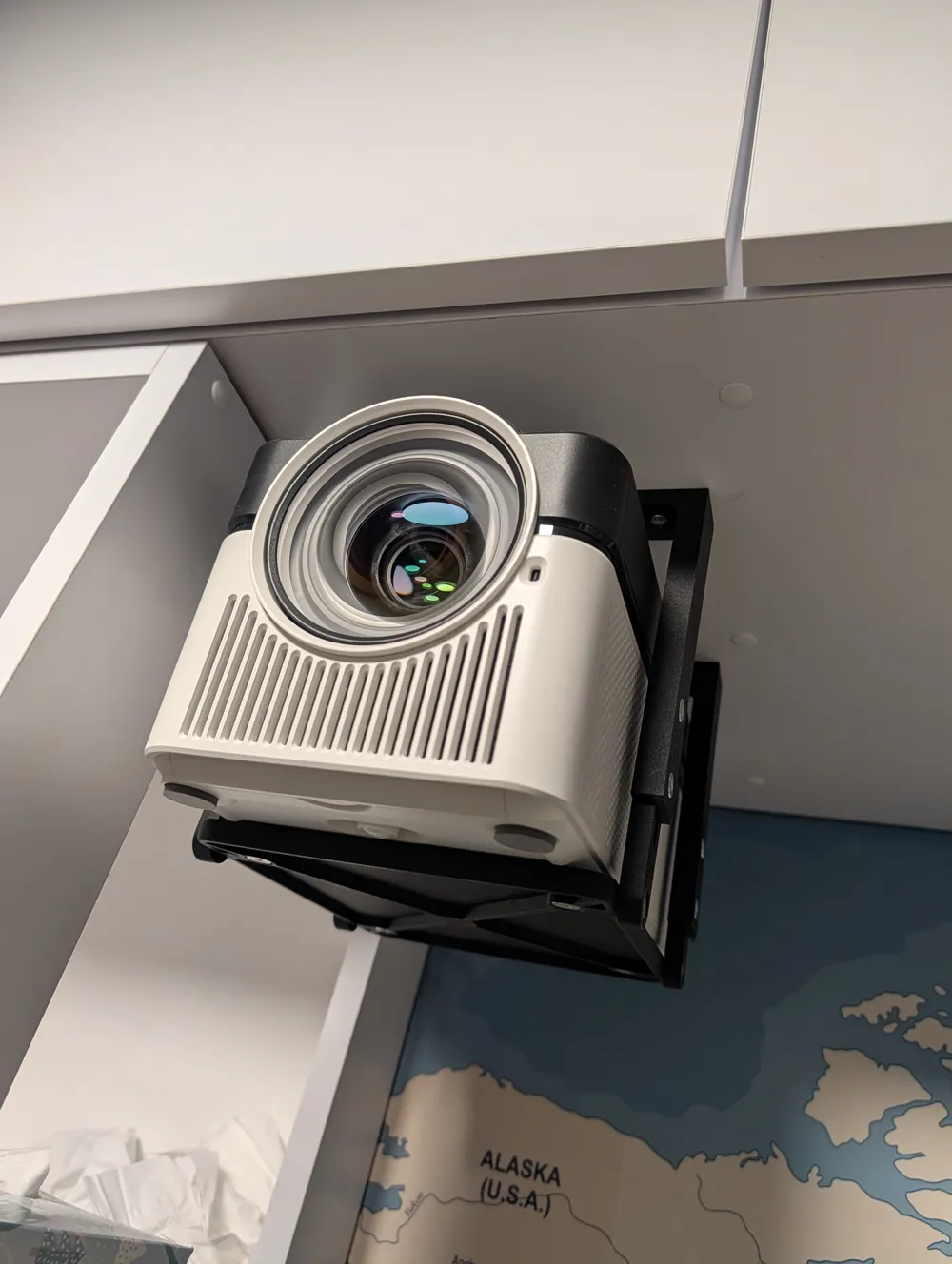

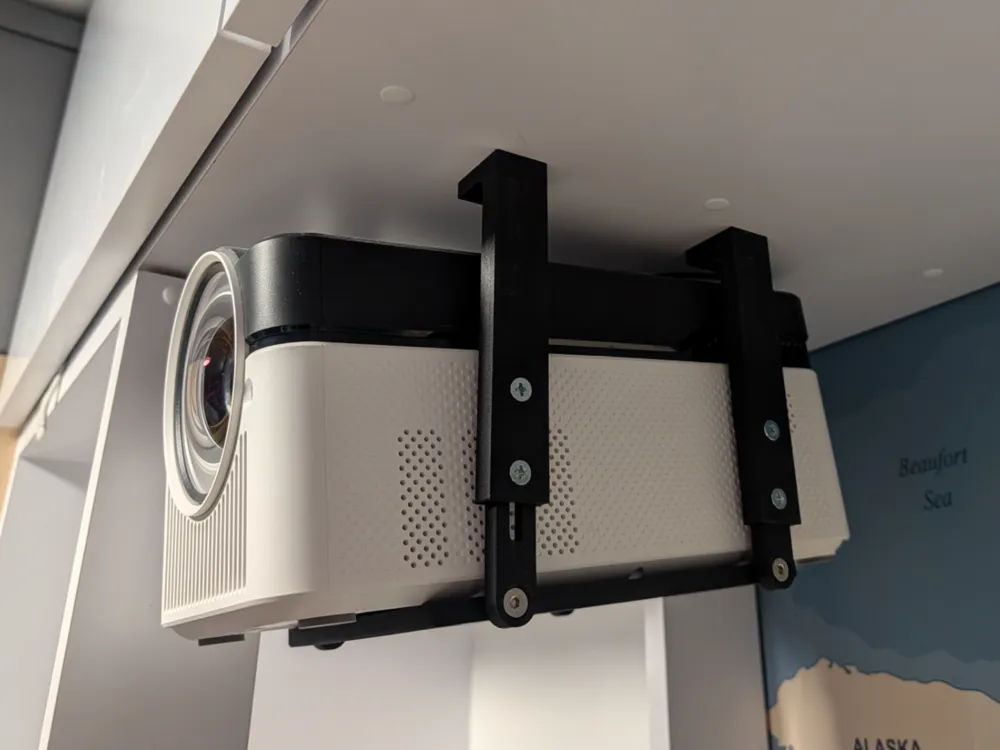

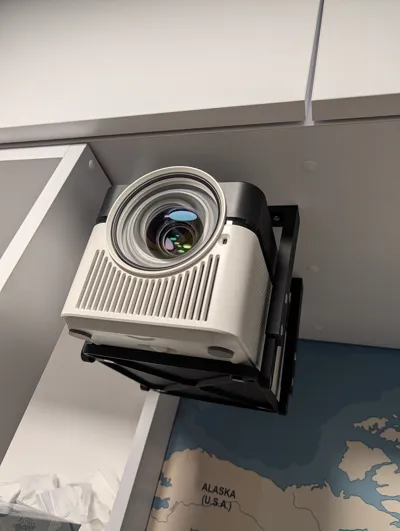

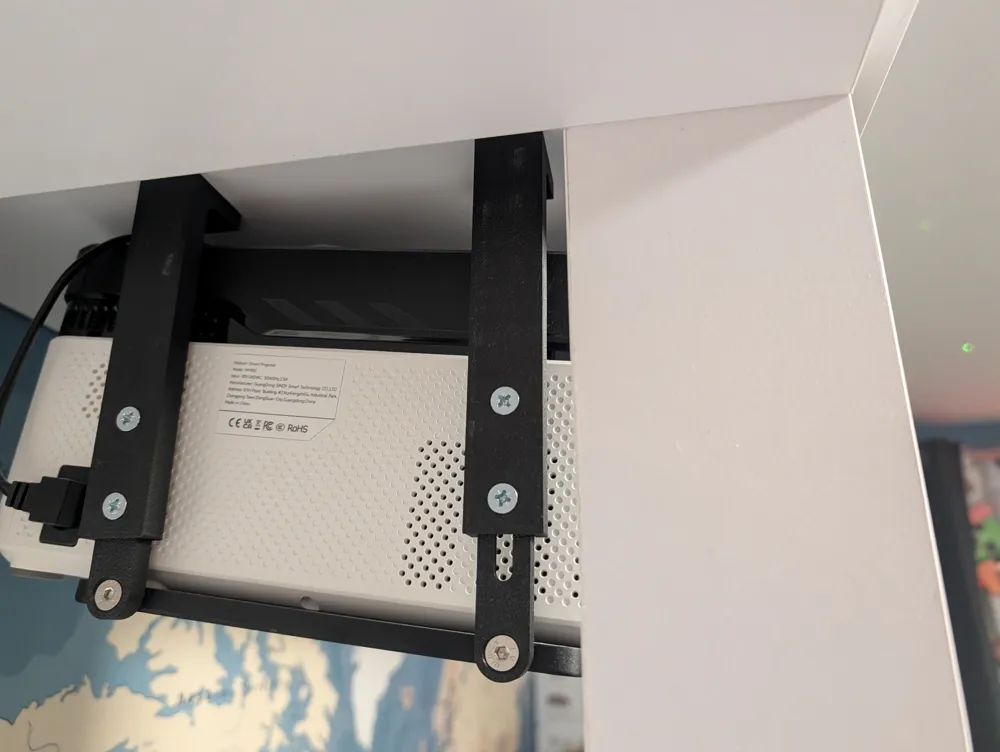

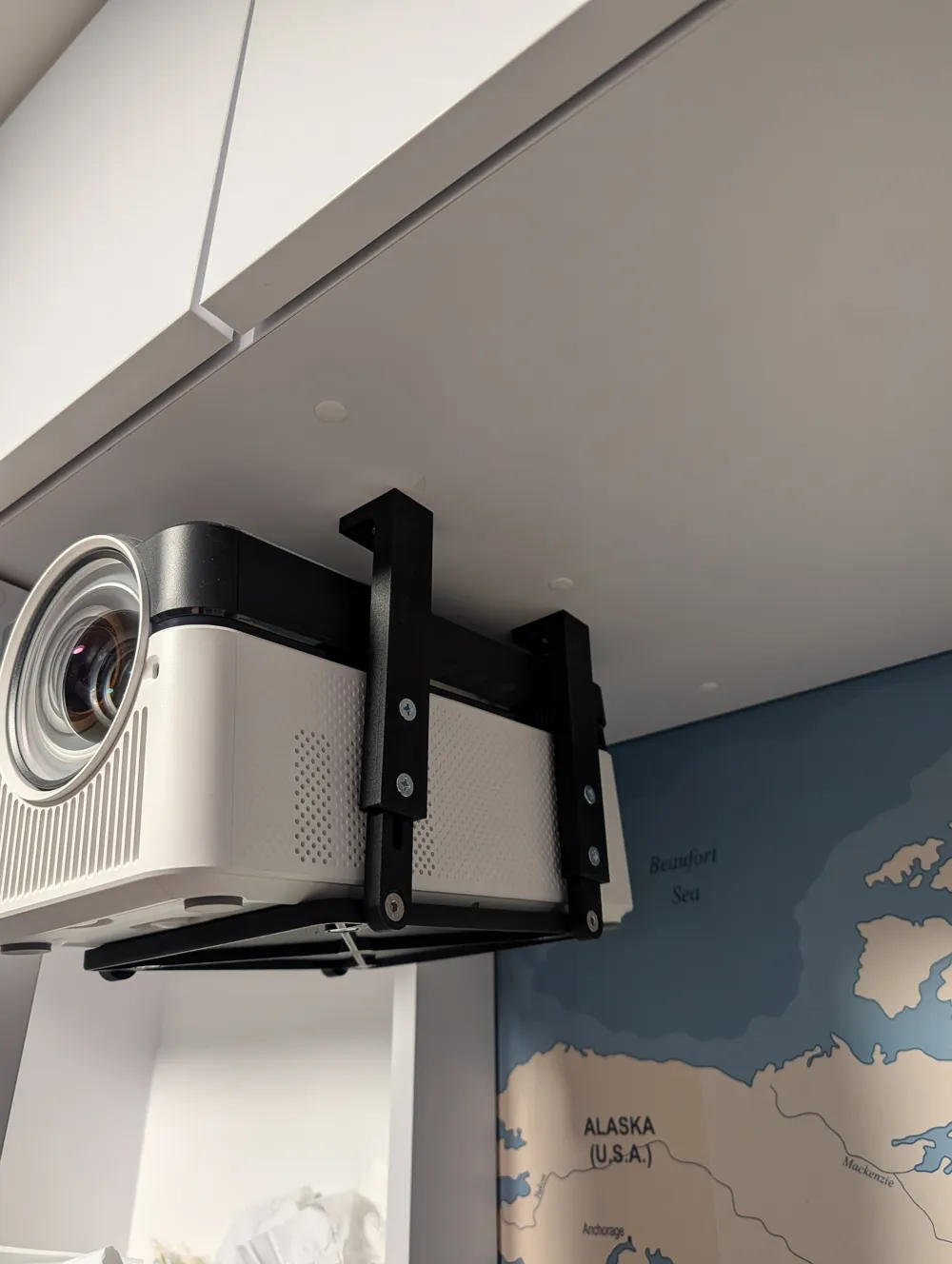

A professional, sturdy mounting system designed specifically for the Magcubic HY450 projector. This bracket allows you to securely hang your projector under a cabinet, shelf, or directly from the ceiling. It features adjustable side arms, which provide precise height adjustment for the projector in your home cinema setup

Key Features:

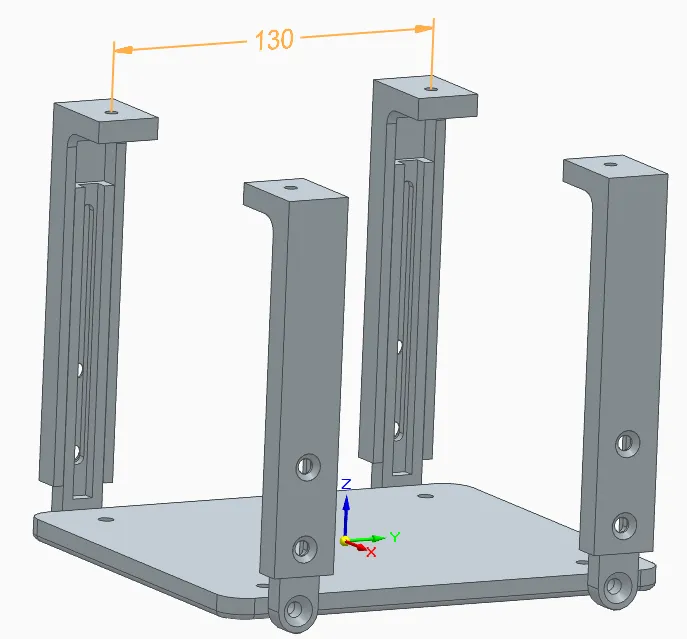

• Adjustable Height: Two-part side arms can be slid and locked at the desired length to clear obstacles under the cabinet
• Rock Solid Assembly: Uses M5 hardware and heat-set inserts for maximum structural integrity
• Ventilation Friendly: The frame is designed to ensure 100% airflow to the projector's intake and exhaust vents

Bill of Materials (BOM):

To assemble the mount, you will need:

• 4x Wood Screws (M3/M4/M5) – to mount the top brackets to your cabinet or shelf
• 4x M5 Heat-Set Inserts – to be pressed into the bottom plate of the mount
• 4x M5x12mm Screws – to secure the bottom plate to the side arms
• 4x M5x12mm Screws – to secure the MAGCUBE
• 8x M5x10mm Screws – to lock the adjustable side arms at the chosen height
• 8x M5 Nuts – for the side arm adjustment bolts

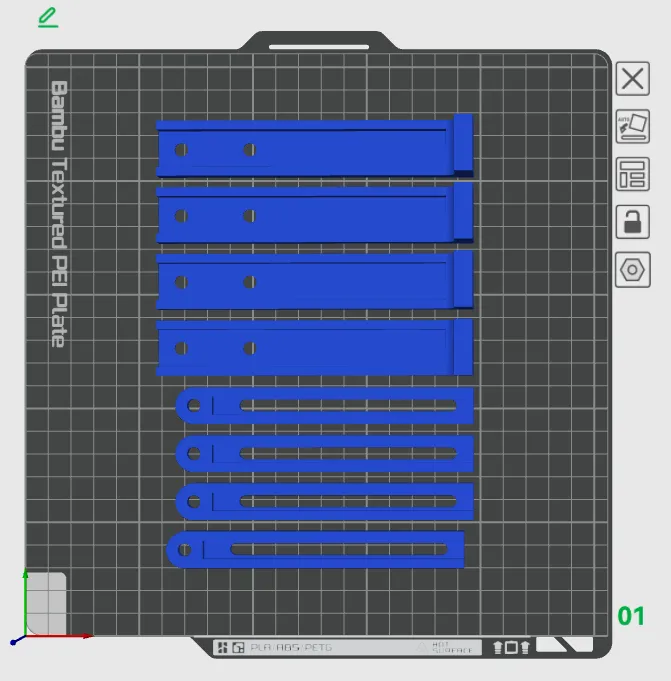

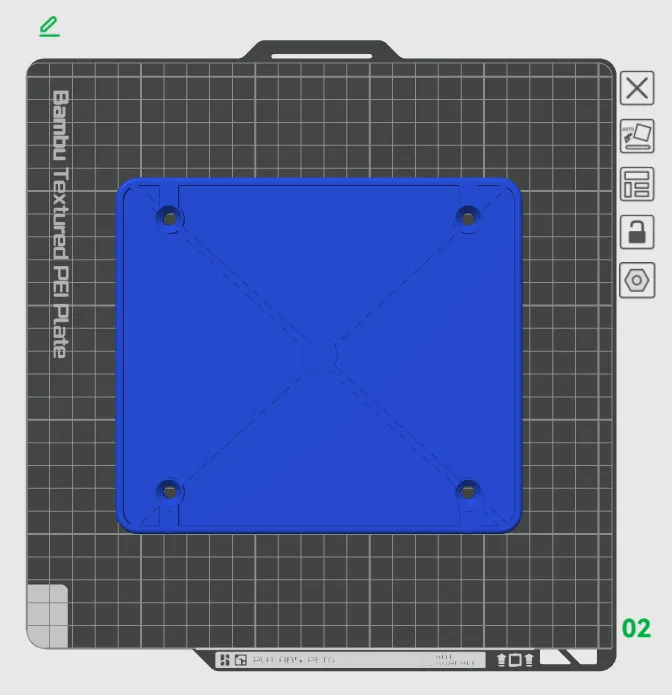

Recommended Print Settings:

• Material: PETG, ASA, or ABS is highly recommended due to the heat generated by the projector (regular PLA may soften over time)
• Walls: 4-6 perimeters for maximum rigidity
• Infill: 30-50%

Commercial License & Usage

[!NOTE] Personal Use Only: This model is published under a Non-Commercial license. You are free to print it for your own personal use

Commercial Use: Selling physical prints of this tool or redistributing the digital files is strictly prohibited without my consent. If you are a workshop or a professional seller interested in a commercial license, please contact me via private message
