EU Flush Mounting Box Template Set – 1 to 5 Gangs

Description (English)

Precise marking for EU sockets and switches – no more misaligned holes!

This set of templates (drilling jigs) is designed for fast and accurate marking of holes for standard European flush mounting boxes (diameter 60 mm). No more crooked rows or spacing errors – just apply the template to the wall and drill.

What's included:

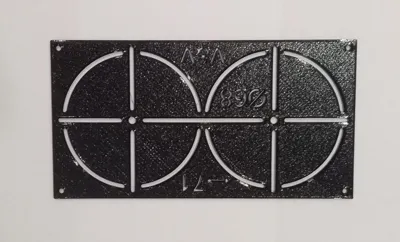

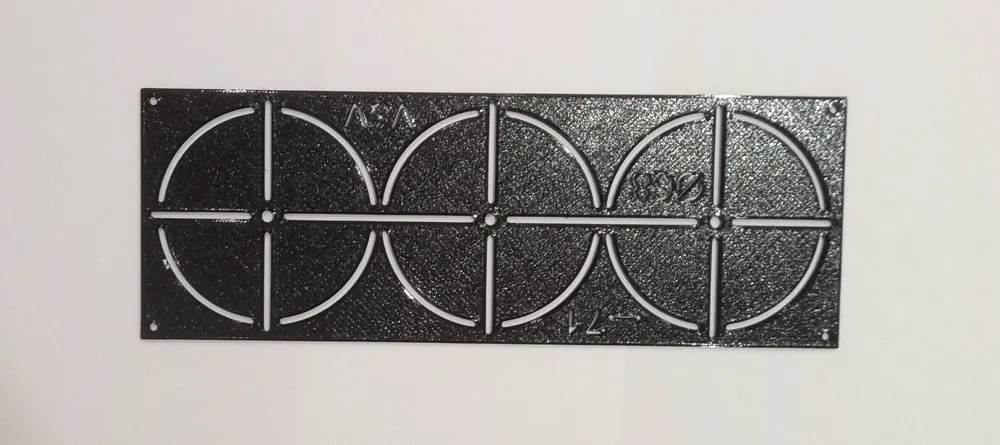

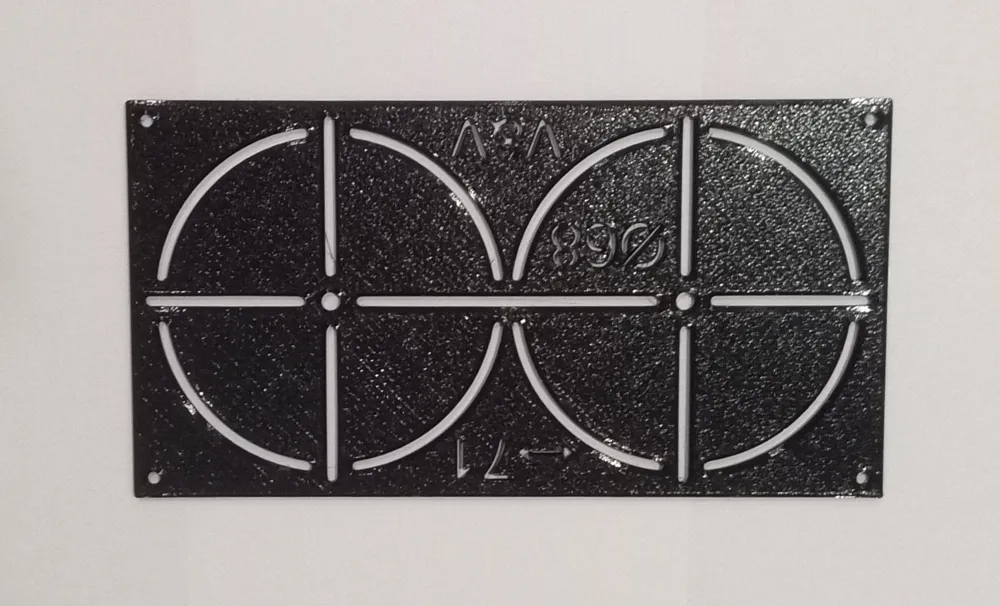

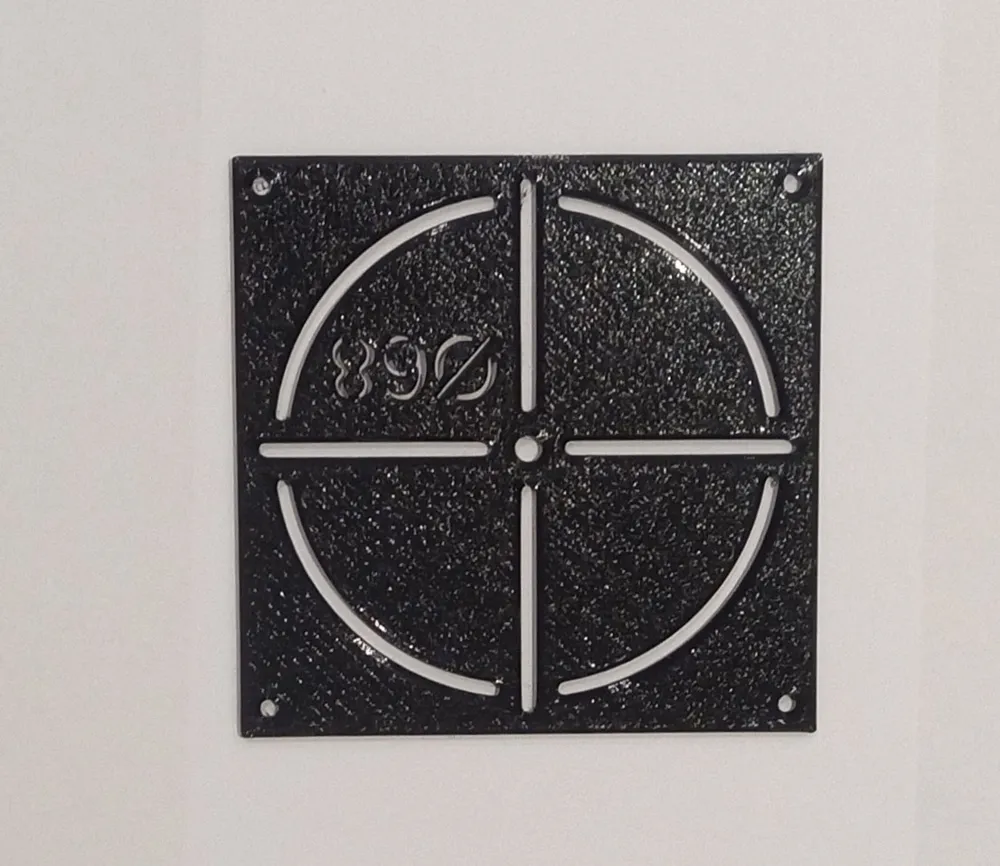

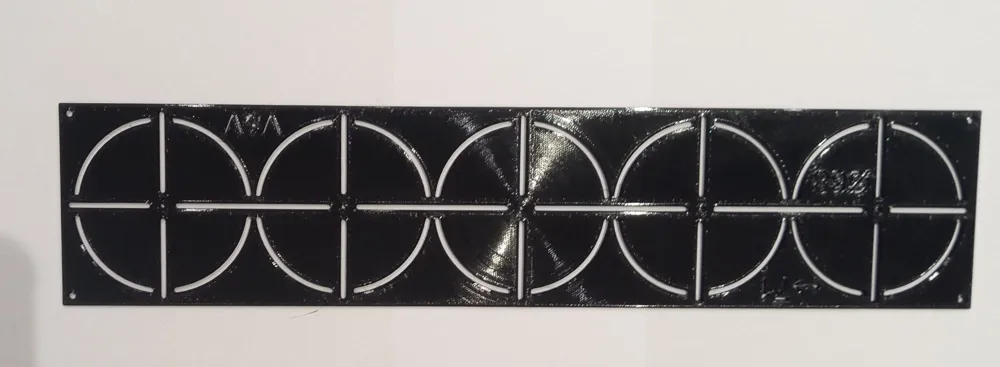

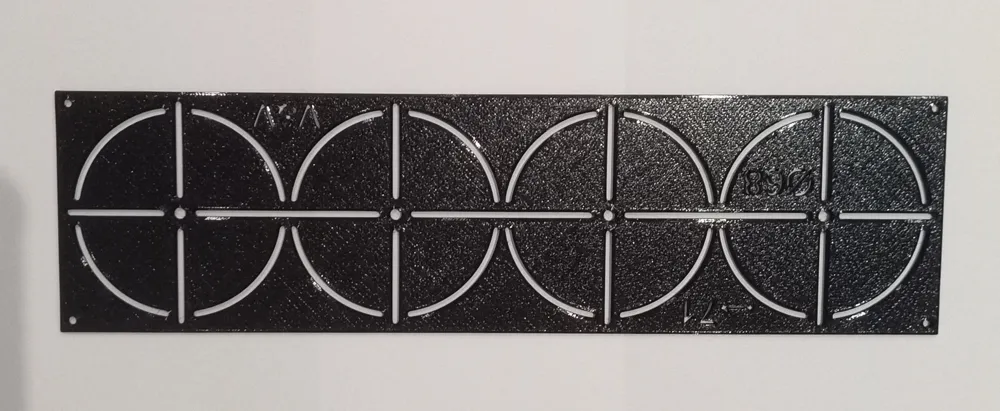

• 5 independent templates for 1, 2, 3, 4, and 5 mounting positions (sockets/switches in a row)
• Center marks for precise positioning
• Pencil or marker guide holes
• Optional mounting holes (you can screw the template to the wall before drilling)

Key features:

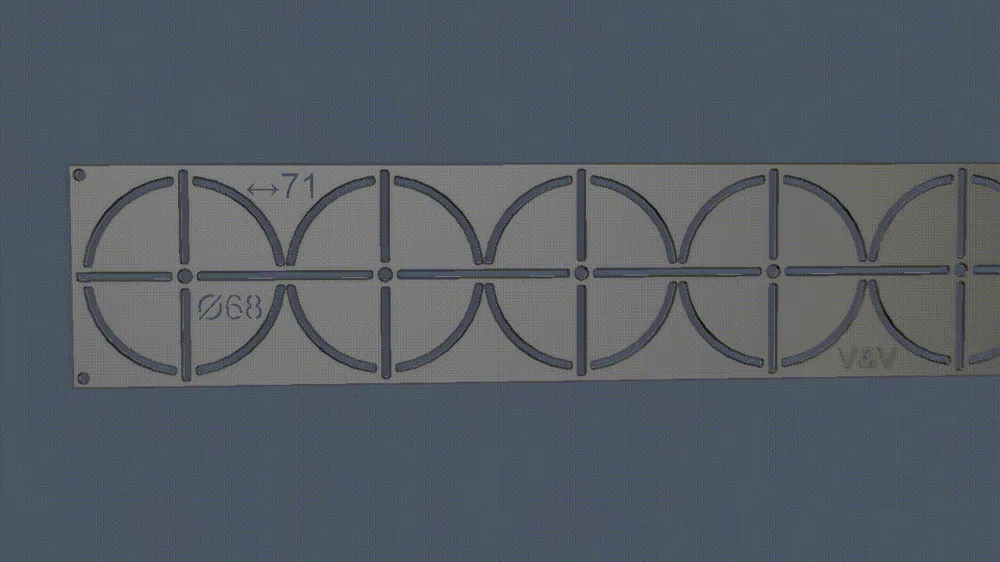

• ✅ Precise center-to-center distance: 71 mm (EU standard for Schneider, Legrand, ABB, Berker, Gira, Jung, and more)
• ✅ Diameter for the mounting box ring: 60 mm
• ✅ Template thickness: 2-4 mm (optimal rigidity)
• ✅ Optional screw fixing points for wall attachment
• ✅ Separate STL files for each gang count (1–5)

How to use:

1. Print the required template
2. Hold it against the wall (level it or align with a reference line)
3. Trace the holes with a pencil, or drill directly through the guides
4. Remove the template – you now have perfect markings for chiseling/drilling

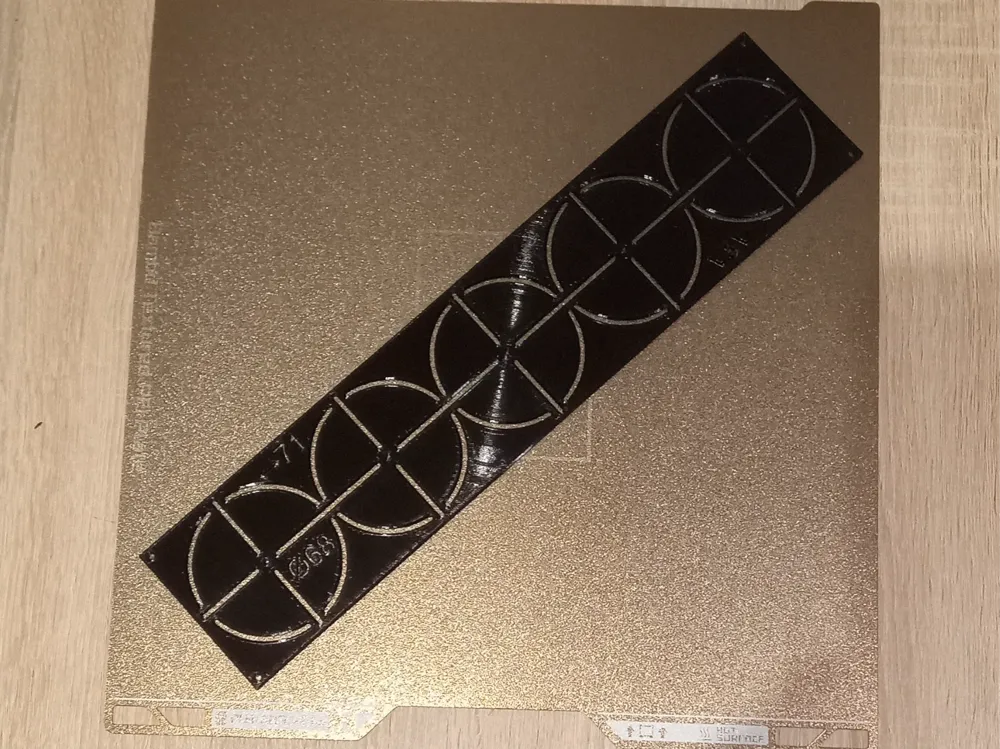

Print settings (recommended):

• Material: PETG or PLA
• Layer height: 0.2–0.3 mm
• Infill: 15–20% (for rigidity, use 3–4 perimeters)
• Supports: Not required
• Orientation: flat side down

Pro tip:

For repeated use, print the template in PETG – it’s more durable and impact-resistant than PLA.
