Dowel Drill Guide (⌀3-10mm)
Print Profile(2)
Description

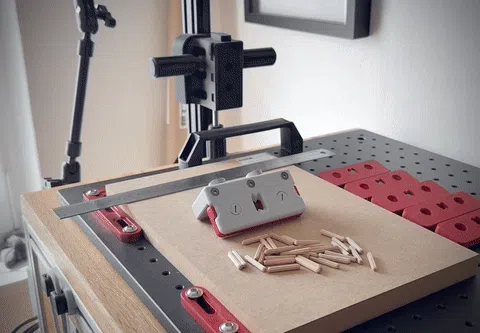

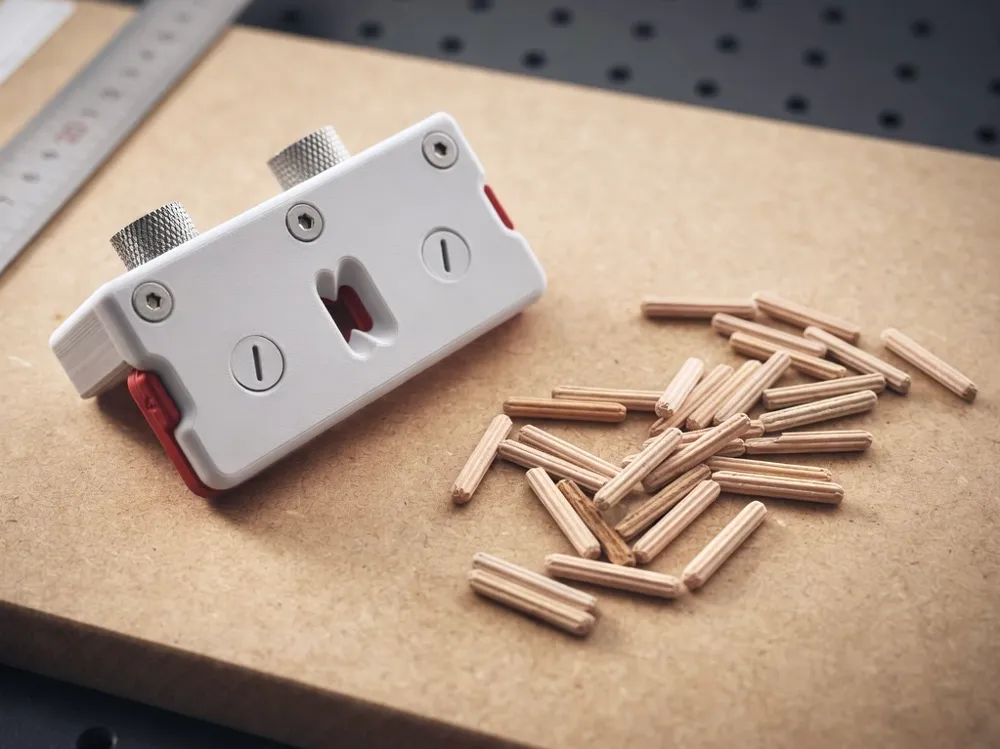

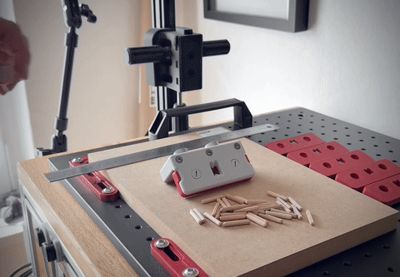

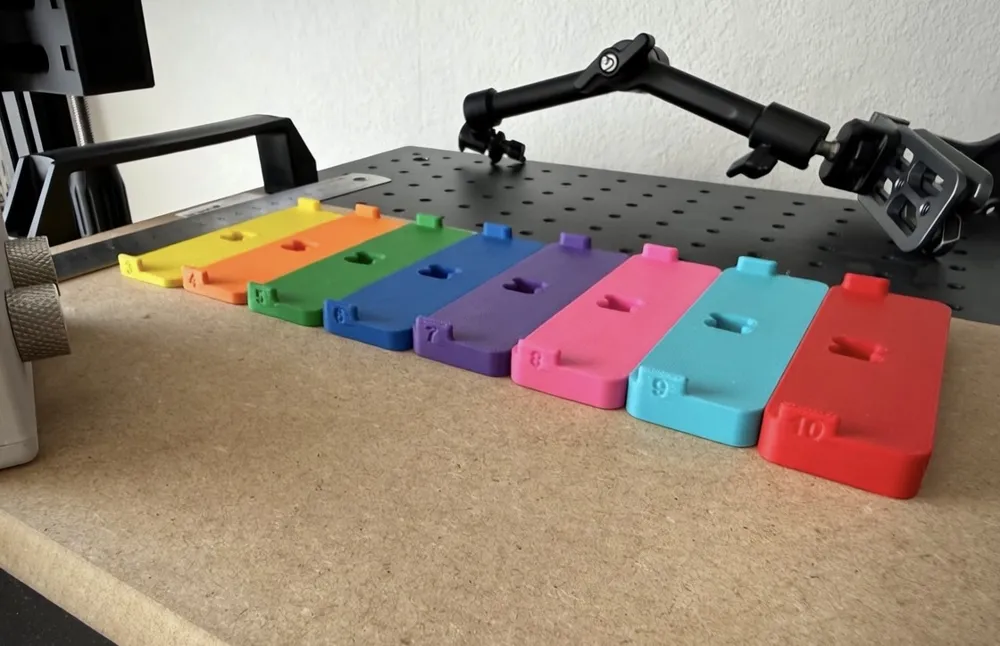

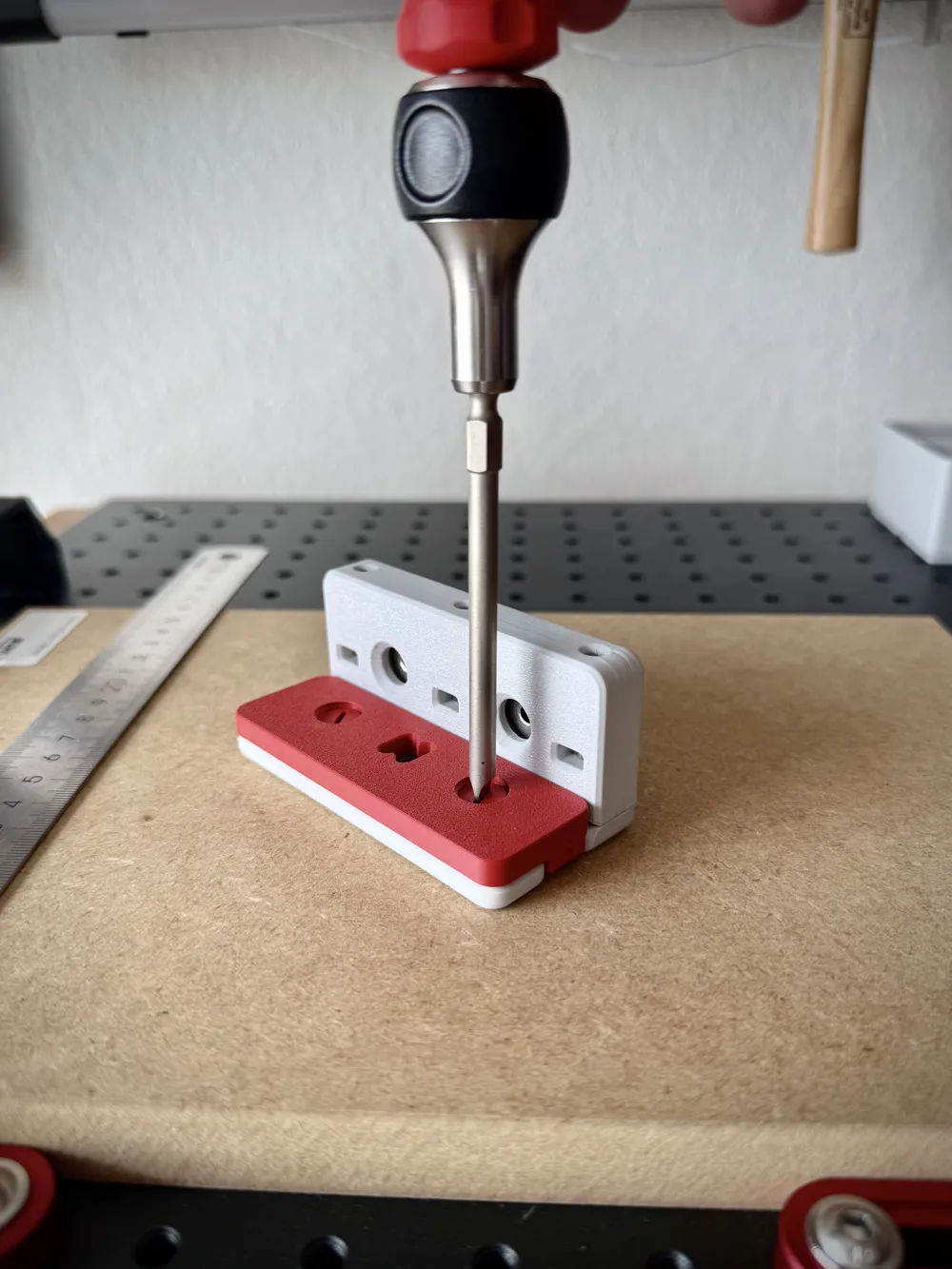

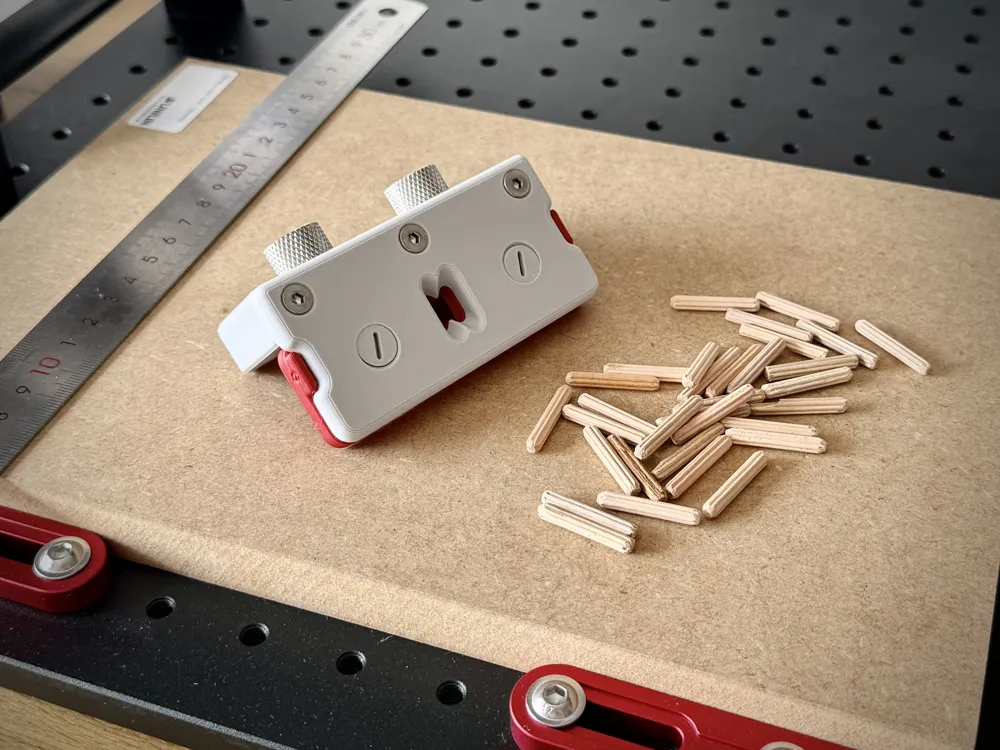

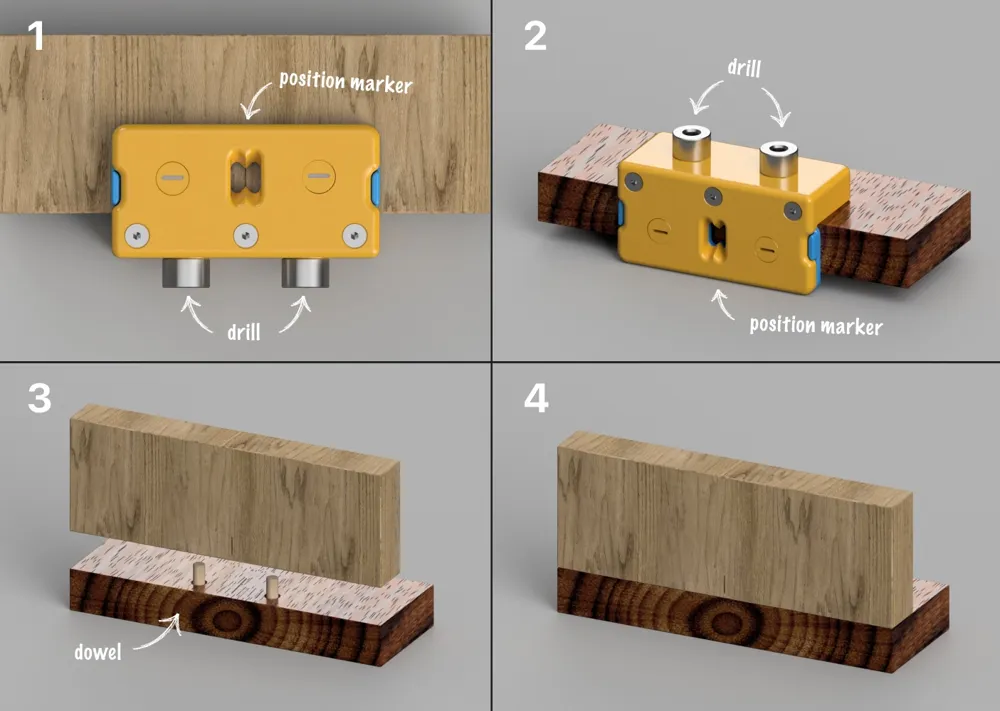

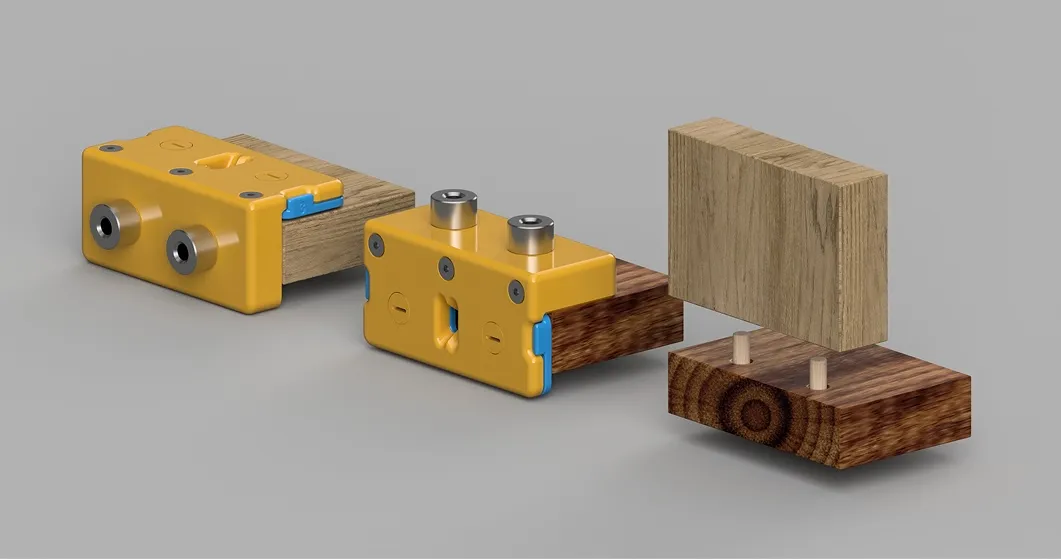

A modular drill guide that supports different bores (⌀3-10mm) and material thickness.
Hardware:
- 3x M4x25 countersunk screws
- 3x M4 nut
- ⌀10mm disc magnets (1-2mm height)

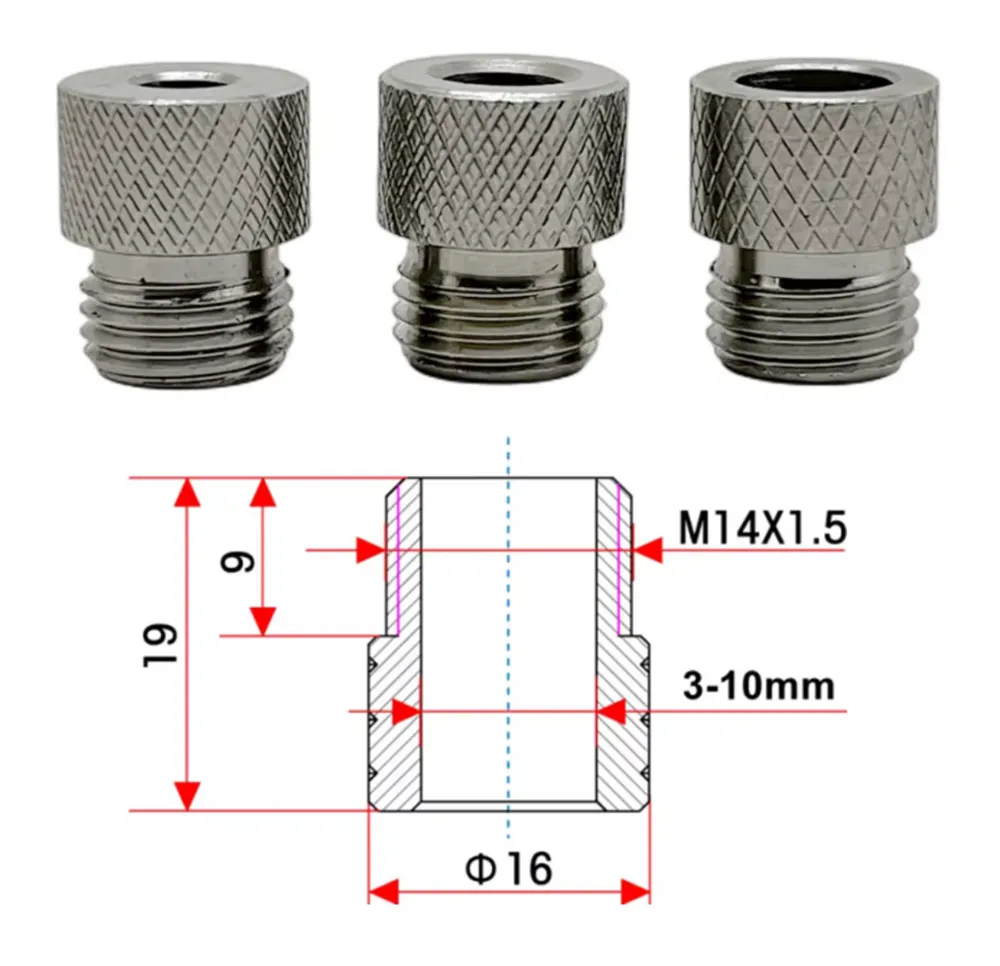

- drill guides (M14x1.5 / ⌀3-10mm) → aliexpress
You can also check out my PRINTED DRILL GUIDES (⌀2.0-10.5mm) if you are in a pinch:

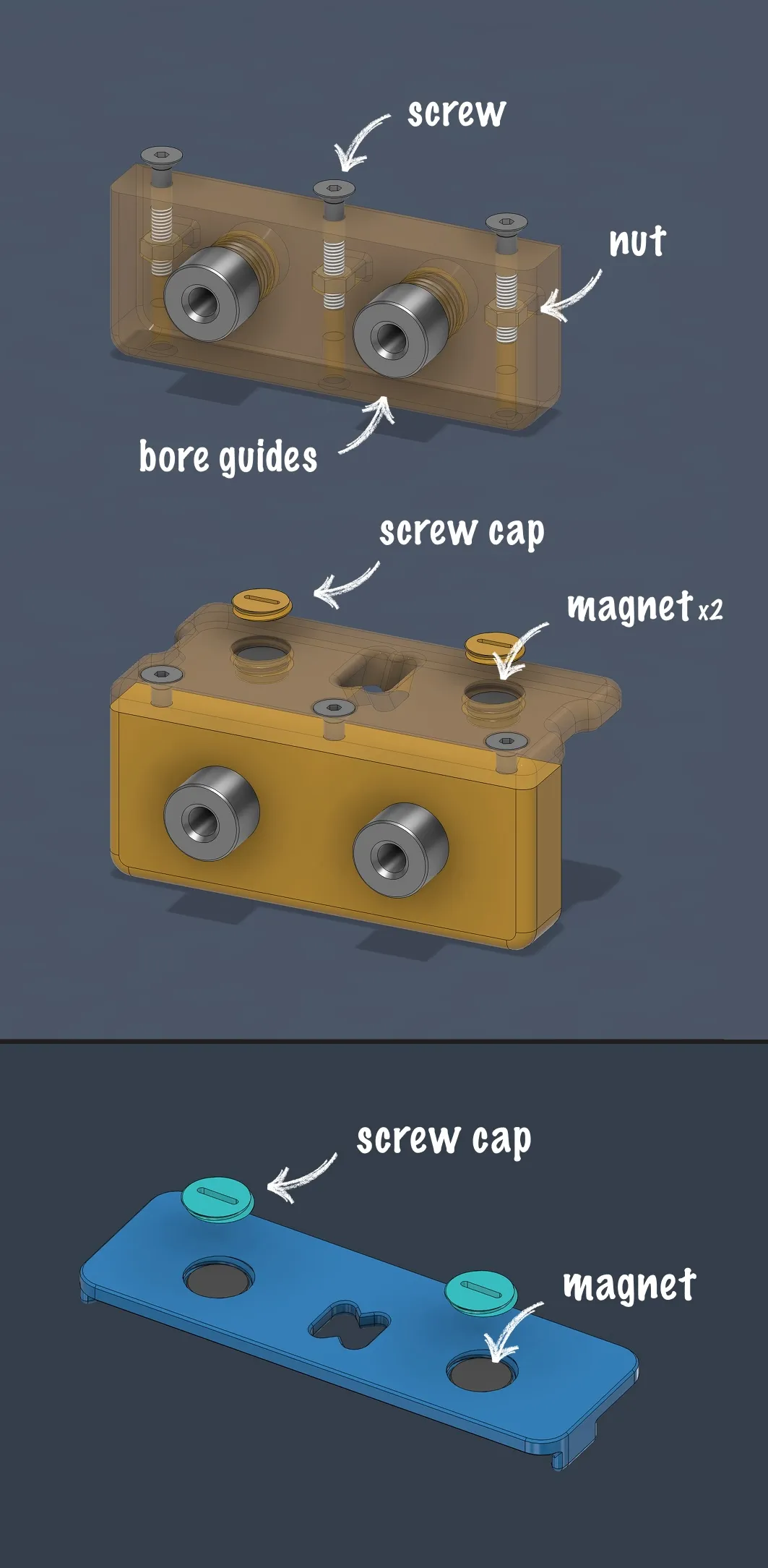

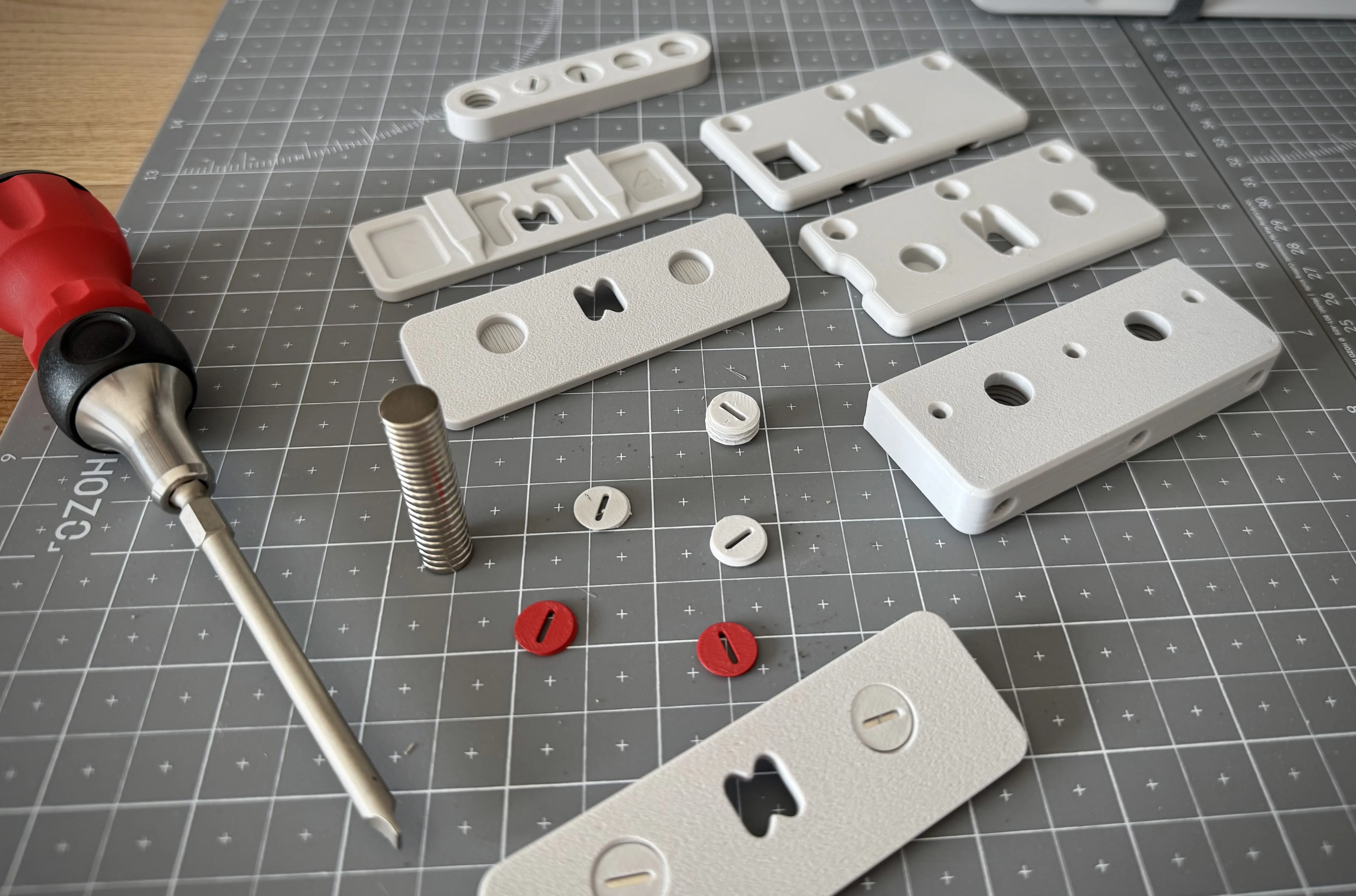

Assembly:

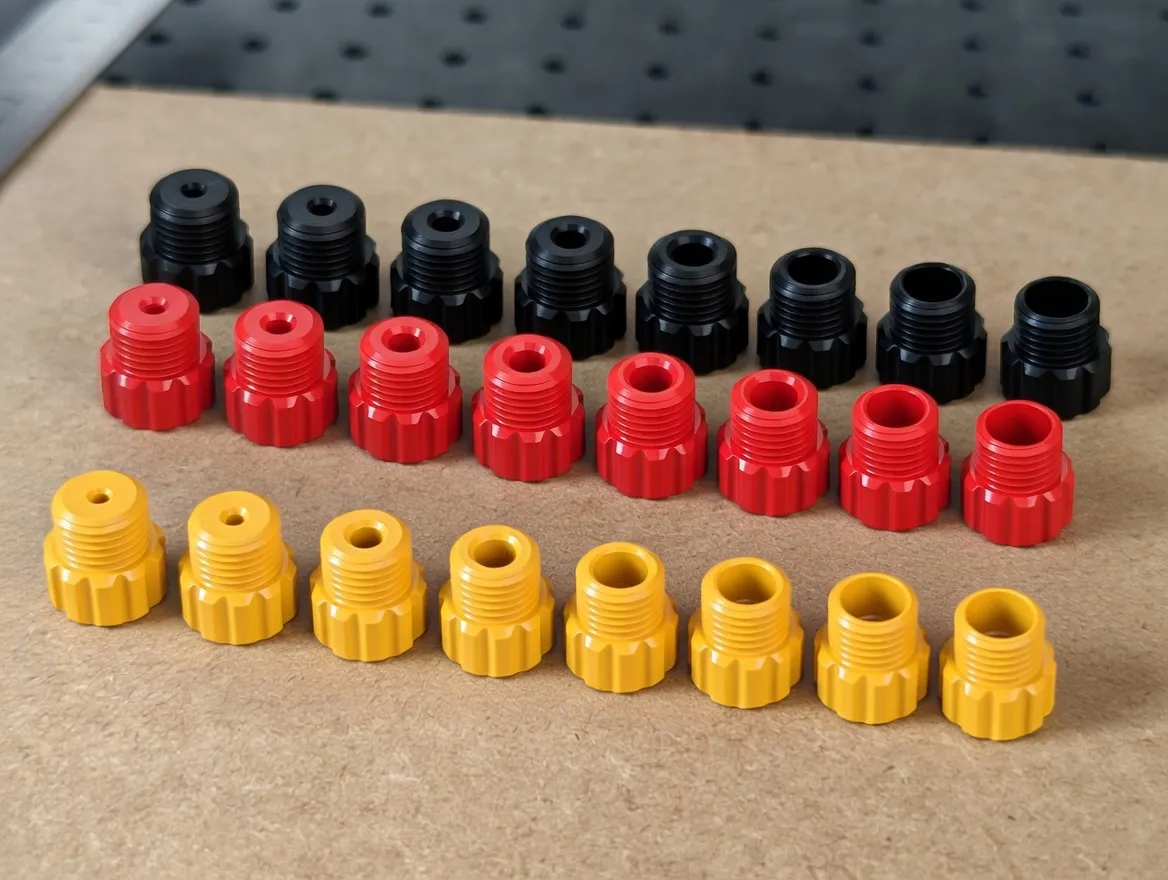

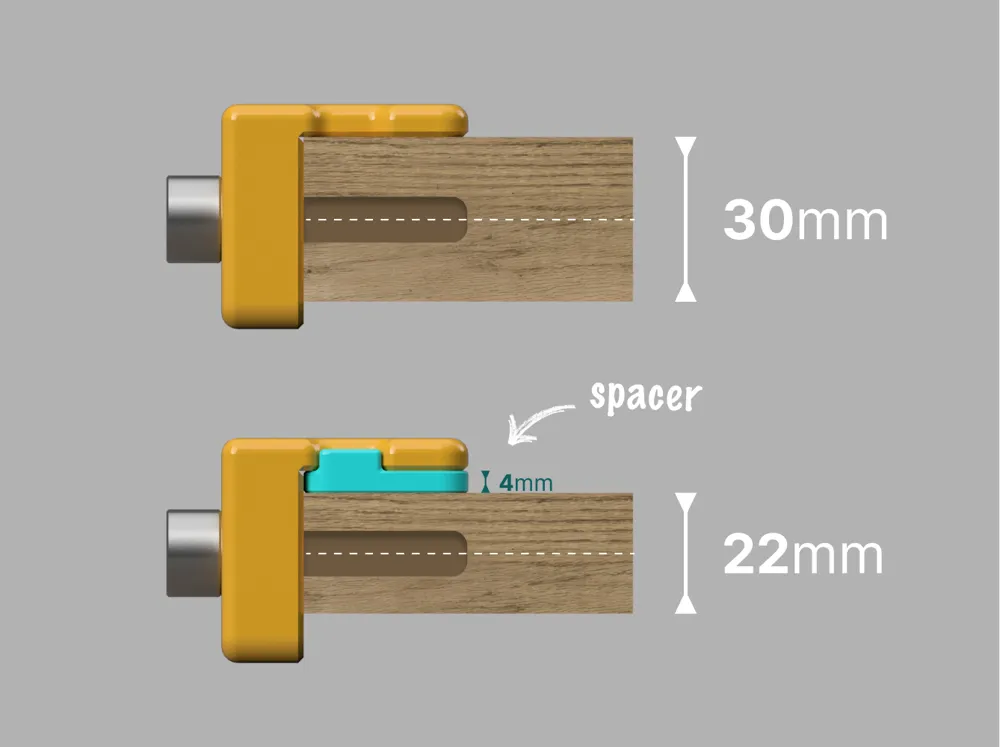

*For the 3 and 4mm spacer you might want to glue the magnets in because space is super tight. The rest you can use the printable screw caps!

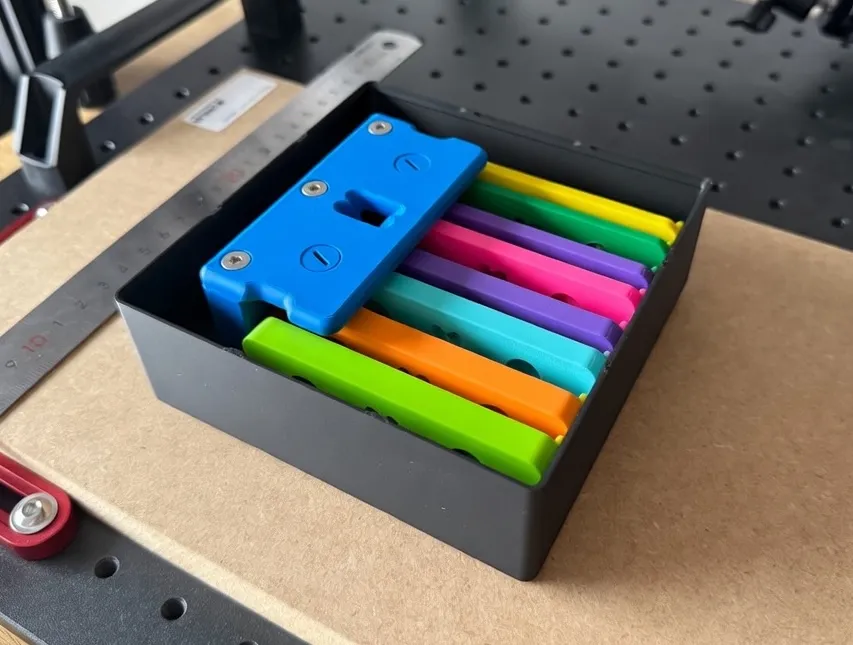

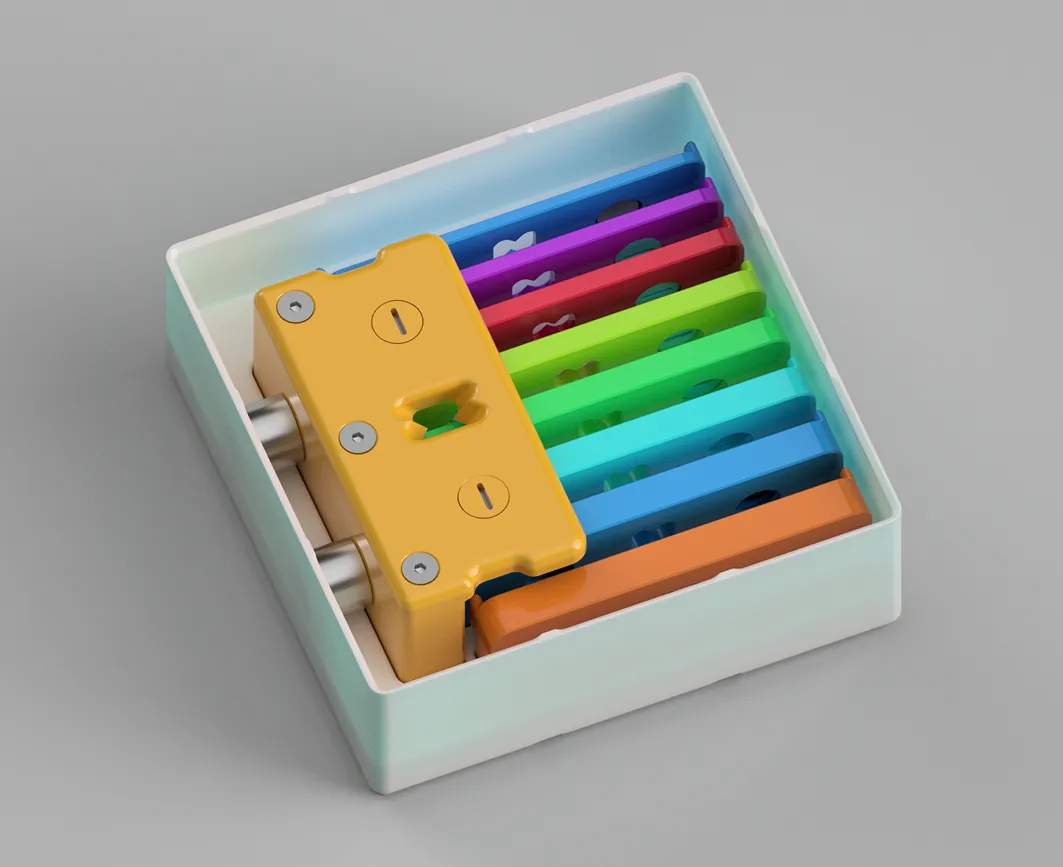

Gridfinity bin included as well:
I went through numerous prototypes and iterations so if you like the project help me out with a free BOOST. 😉
