Description

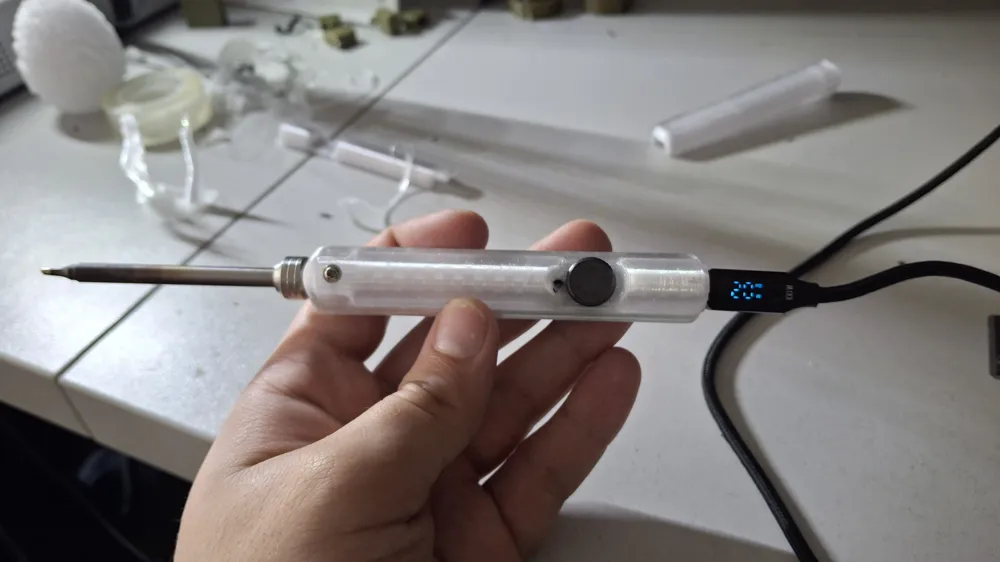

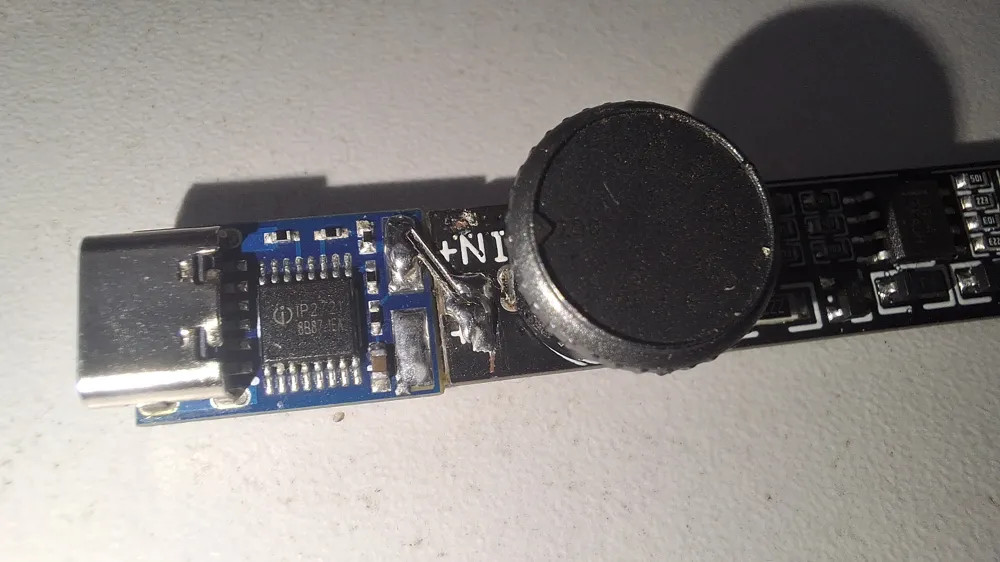

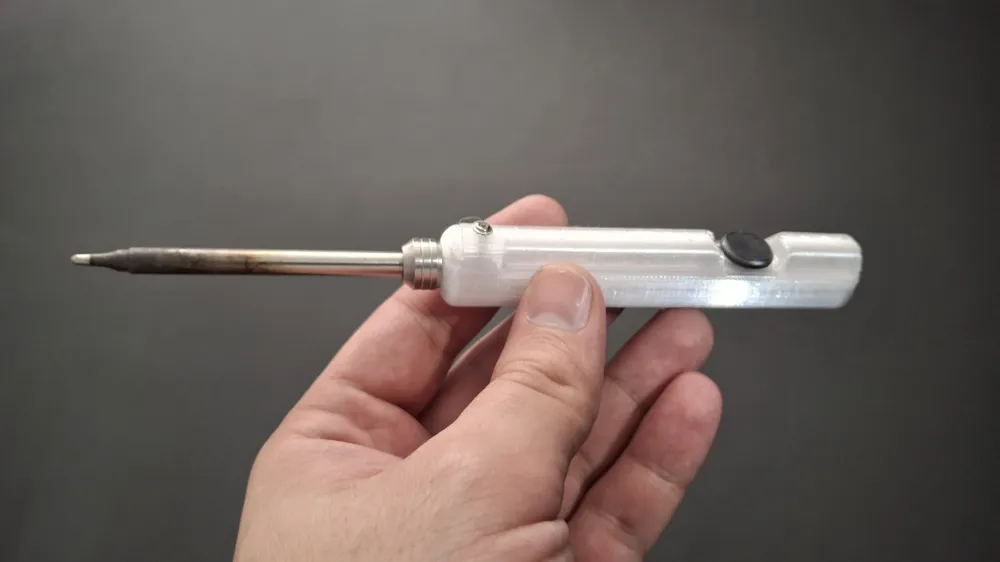

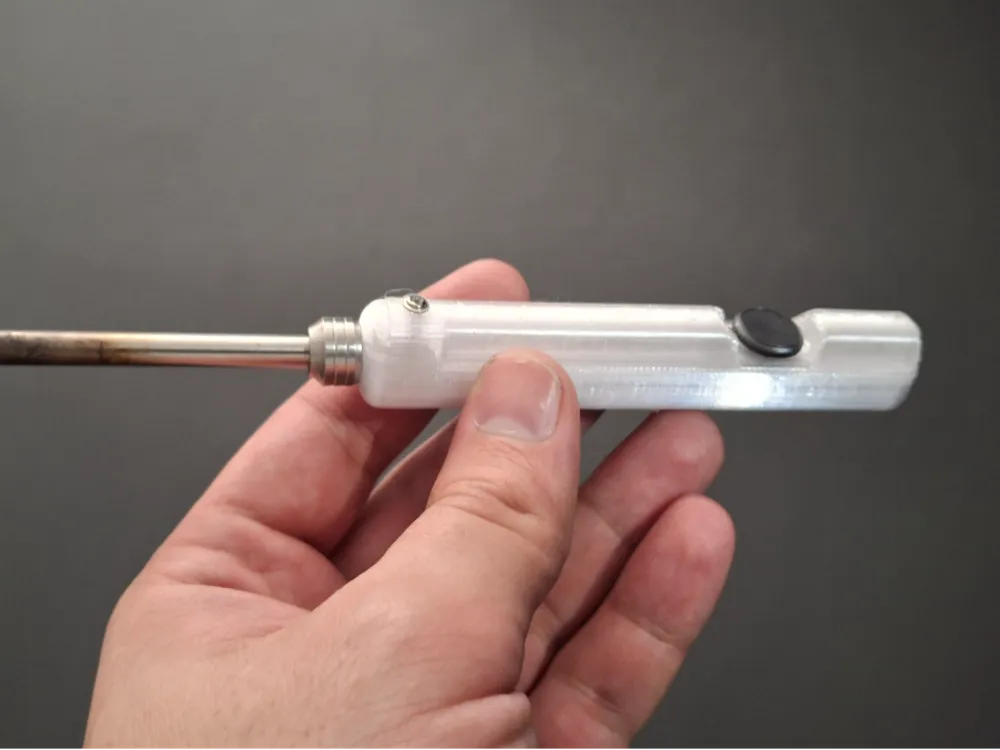

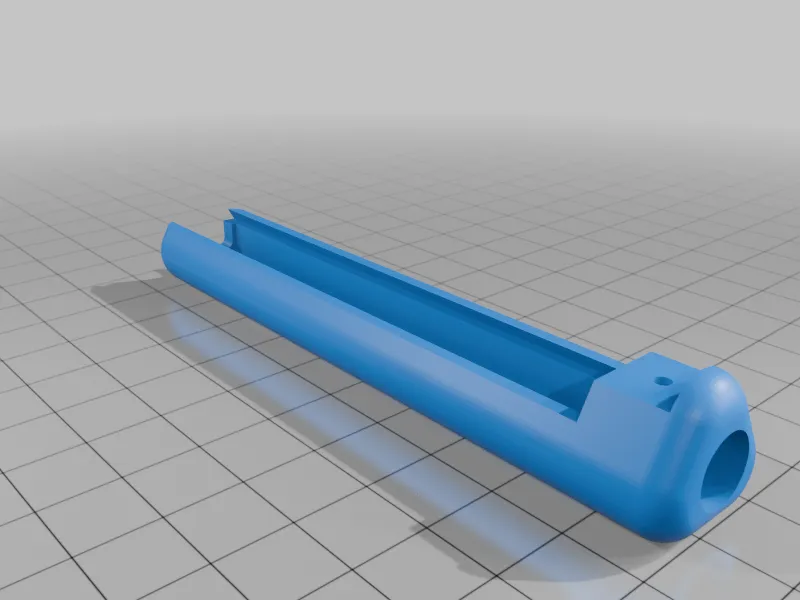

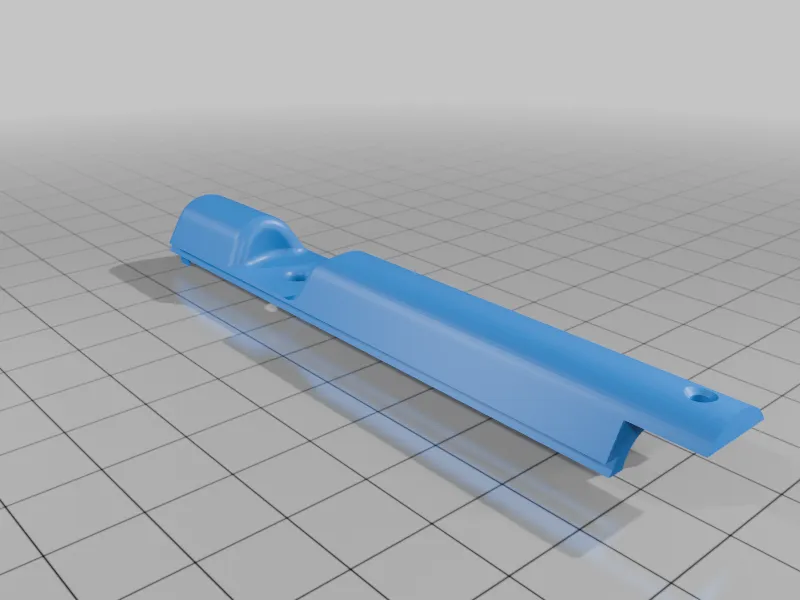

I didn’t like the original SH72 case, but just redesigning wasn’t enough for me. So, I decided to add a Type-C trigger to make it work only with my phone charger. It heats up perfectly fine; I don’t notice much difference compared to 24 volts DC, but you’ll need at least a 67W (20V 3A) charger. I personally printed it with natural PETG so the red bulb can shine through the case. You can also use non-transparent filament since there’s a hole above the diode. The old 5.5x2.1 port needs to be removed and replaced with a trigger, as shown in the photo. STEP file included.
