Helldivers 2 Mutant Larva Backpack

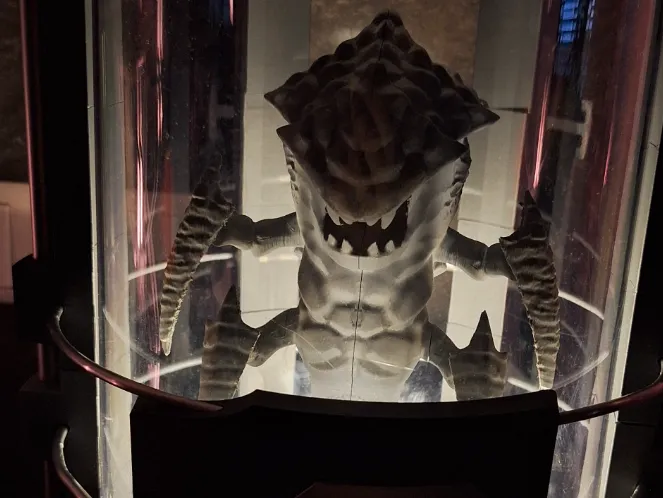

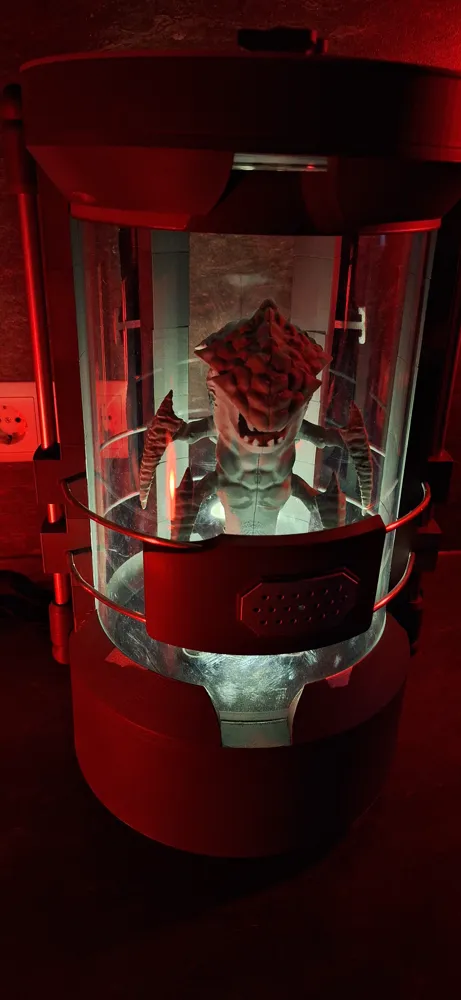

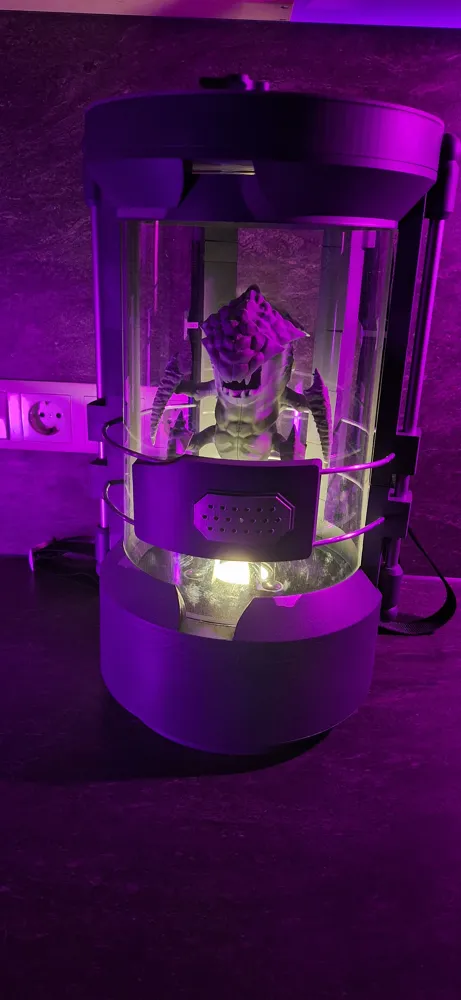

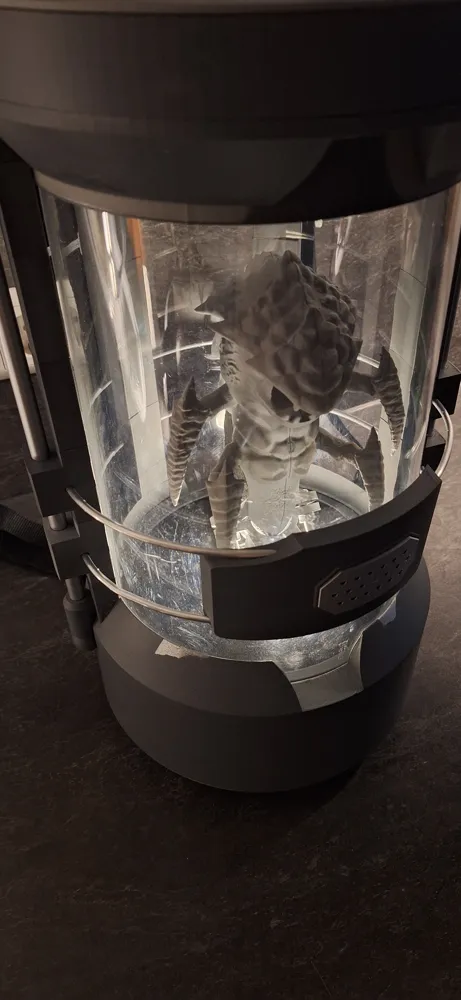

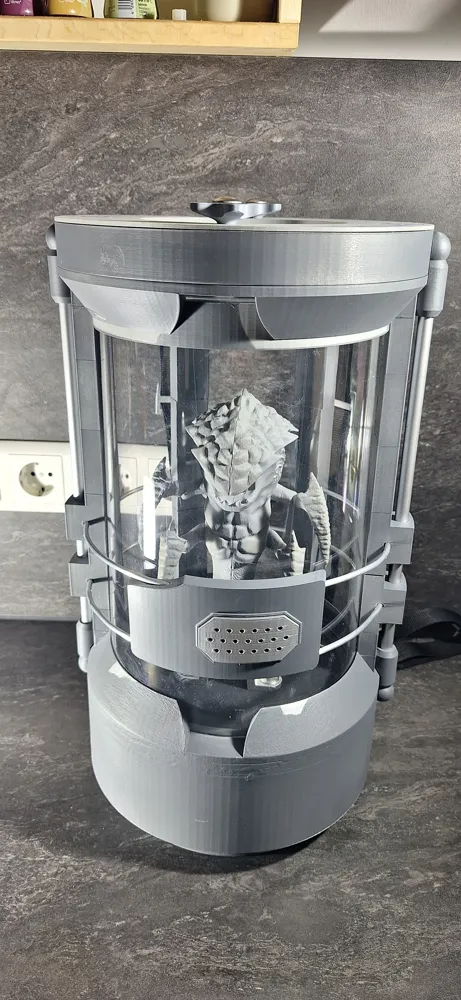

This is my take on a Mutant Larva Capsule inspired by Helldivers.
The project was designed to be fully modular, easy to assemble, and wearable as a backpack.

The structure is based on a central tube system with threaded rods, allowing all parts to be securely mounted without glue.


Part List / Hardware
Screws & Fasteners:
- 2x M6 x 40 mm (Terminid Holder)
- 2x M6 x 25 mm (Terminid Holder)
- 2–4x M6 x 40 mm (Top Ring)
- 4x M6 x 60 mm (Bottom Part)
- 18x M6 Nuts

Structural Components:
- 4x M6 x 300 mm Threaded Rods
- 12x M6 Sleeve Nuts (Coupling Nuts)
- 2x 4 mm Aluminium Rods
- 4x PVC Tubes (10 mm x 300 mm)

Electronics (optional):
- 1x Powerbank (approx. 65 x 90 x 25 mm)
- 1x USB LED Light (approx. 60 x 8 mm)

Additional Materials:

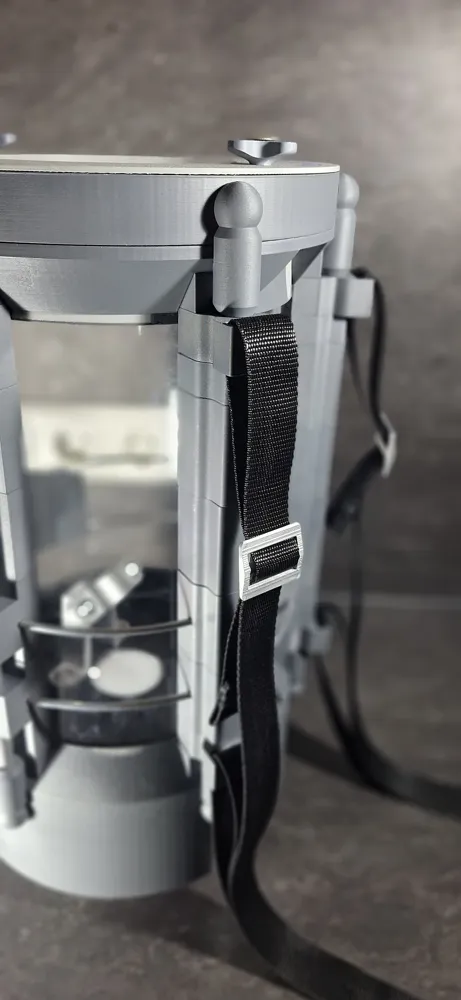

- Backpack straps (25 mm width)

- Acrylic Tube 200mm wide 300mm height

Middle Section Assembly:
Back Holder (top to bottom):
- 1x 20 mm Strap Holder
- 1x 16 mm Cover
- 2x 50 mm Cover (without hole)
- 2x 50 mm Cover (with hole)
- 1x 20 mm Strap Holder

Side Section (top to bottom):
- 1x 36 mm Cover
- 2x 50 mm Cover (without hole)
- 2x 50 mm Cover (with hole)
- 1x 20 mm Cover

Bottom Section Assembly (top to bottom):
- Bottom Ring

-> Important: Insert the four sleeve nuts into the ring so that the threaded side is facing the cutouts for the middle sections.
- Bottom Ring Connector
-> Important: Insert the screws into the connector
-> Then glue the Ring an the Ring Connector together using pins/dowels and PLA glue (the sleeve Nuts and the Screws nuts should no point in different directions!) -> Screws Downwards und Sleevenuts Upwards
Note: This is the only part that needs to be glued!

- Bottom Main Corpus
- Bottom LED Panel
- Powerbank Holder
- Bottom Ring End Section
- Twist Lock Lid

The larva itself is not included in this file.
You can find a suitable model here:
https://cults3d.com/@JACK-3D
