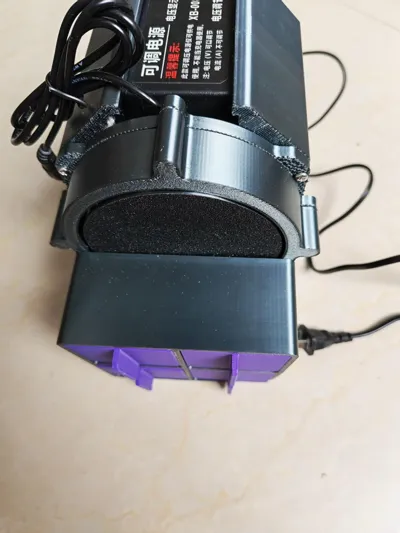

755 Dust Suction Disc Sanding Station
Print Profile(1)
Description

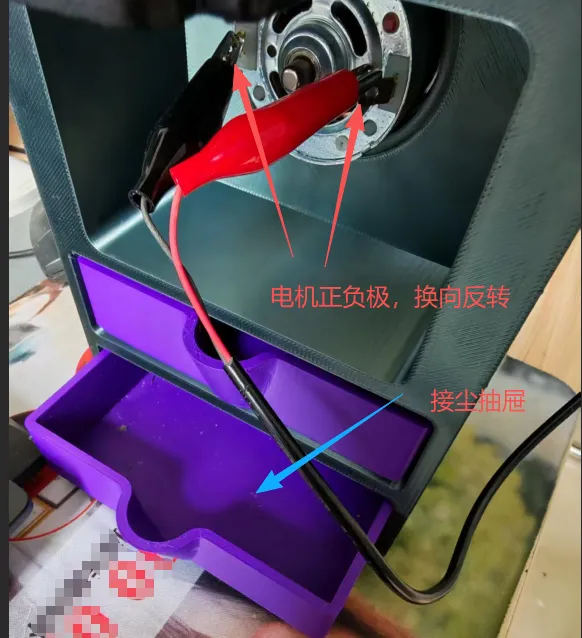

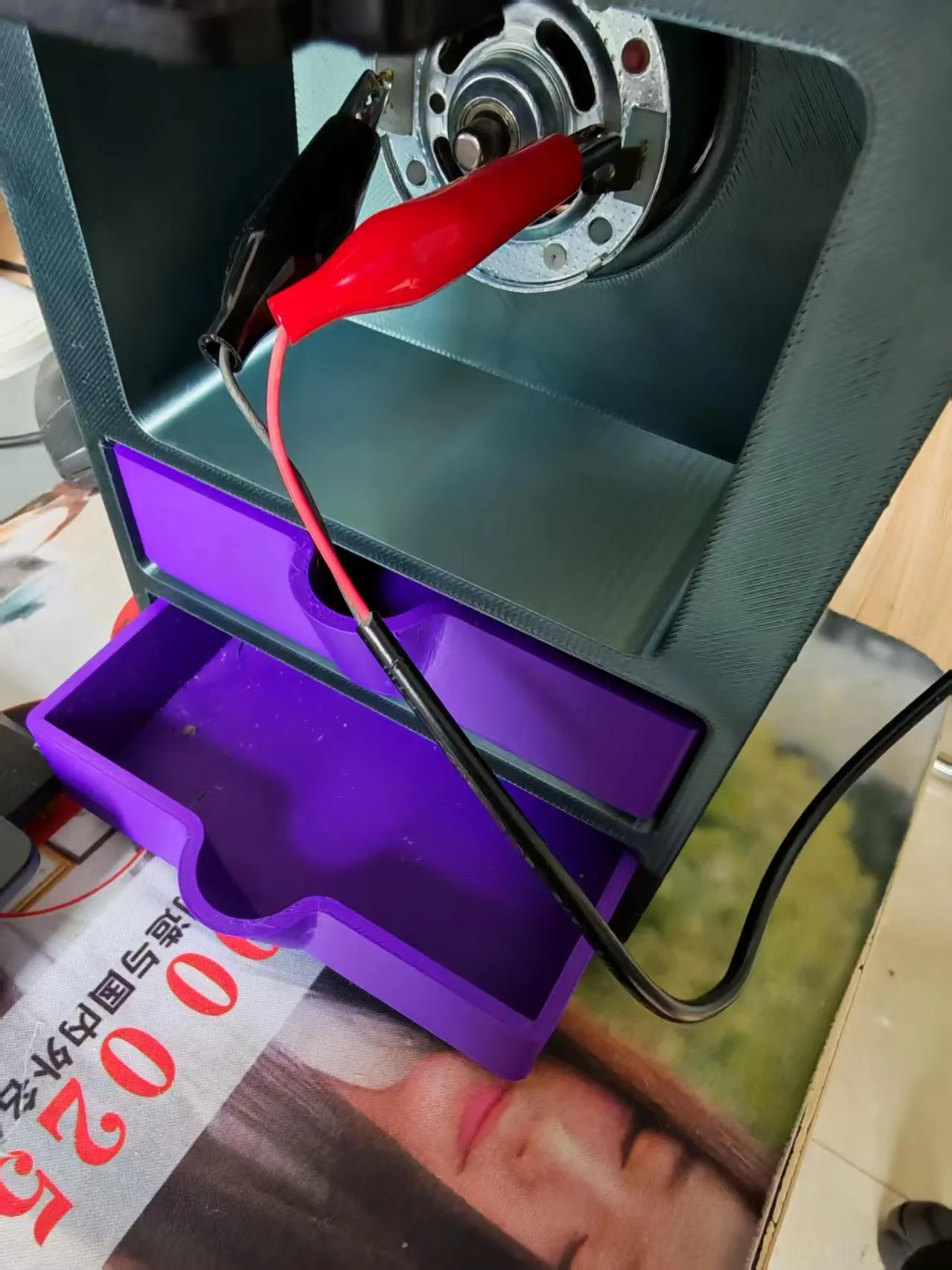

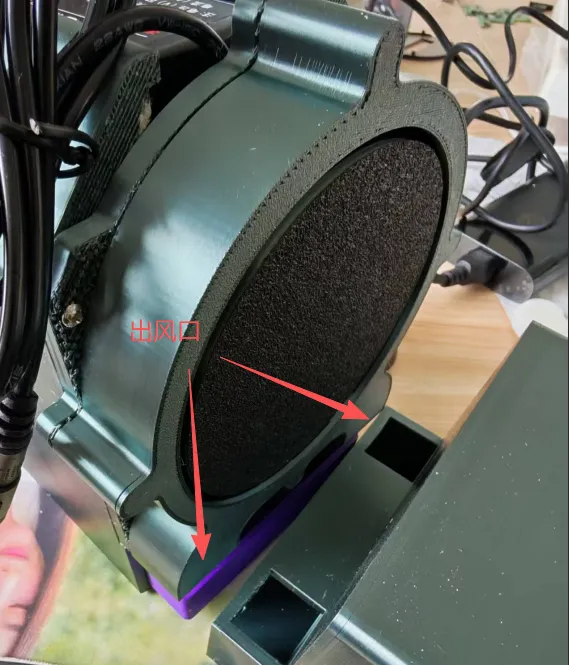

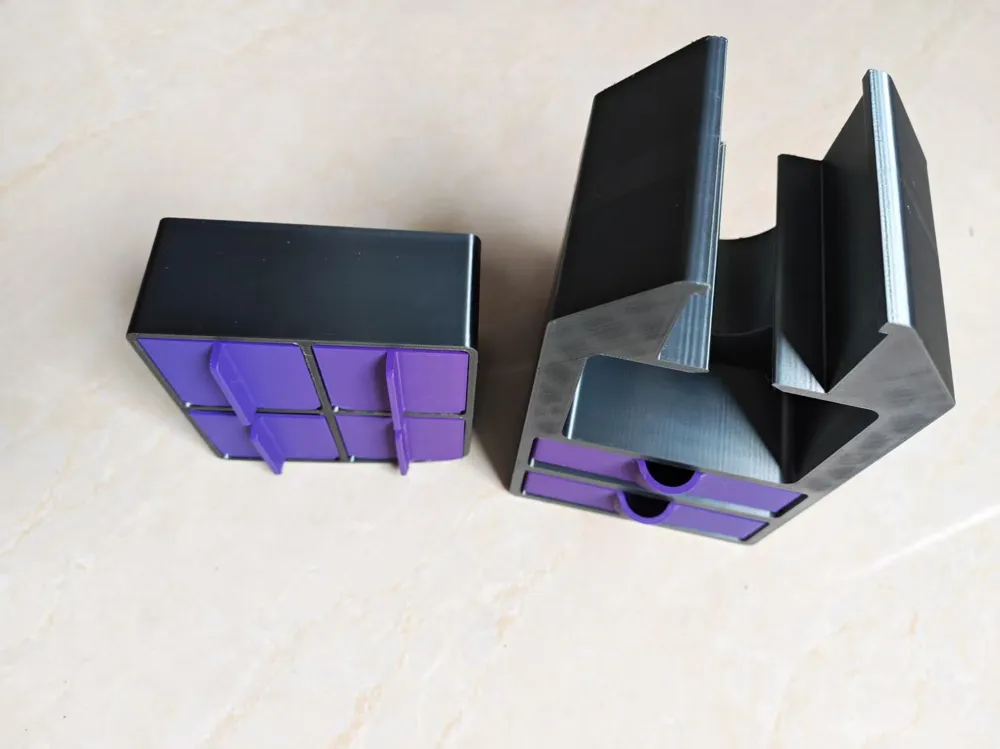

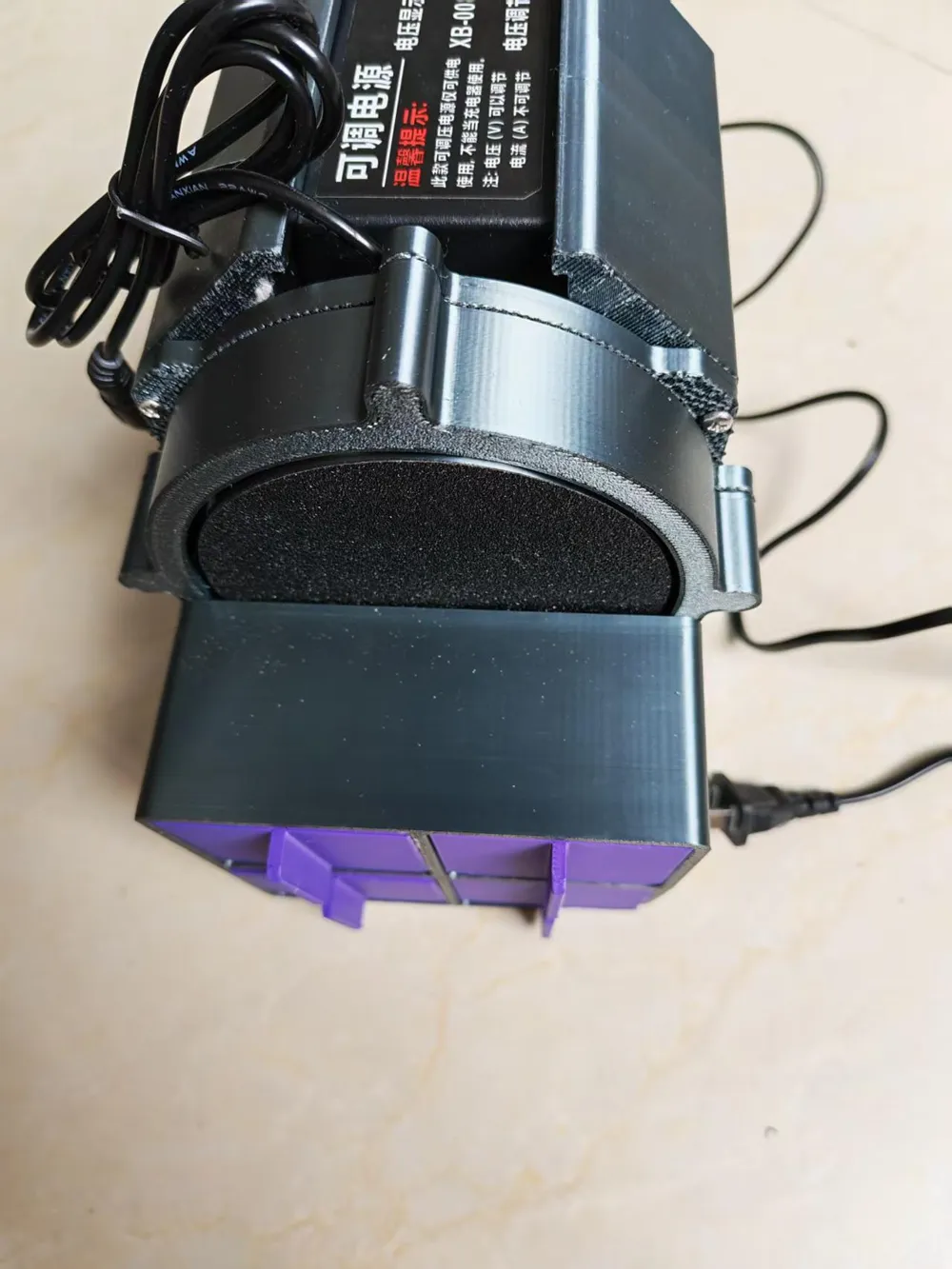

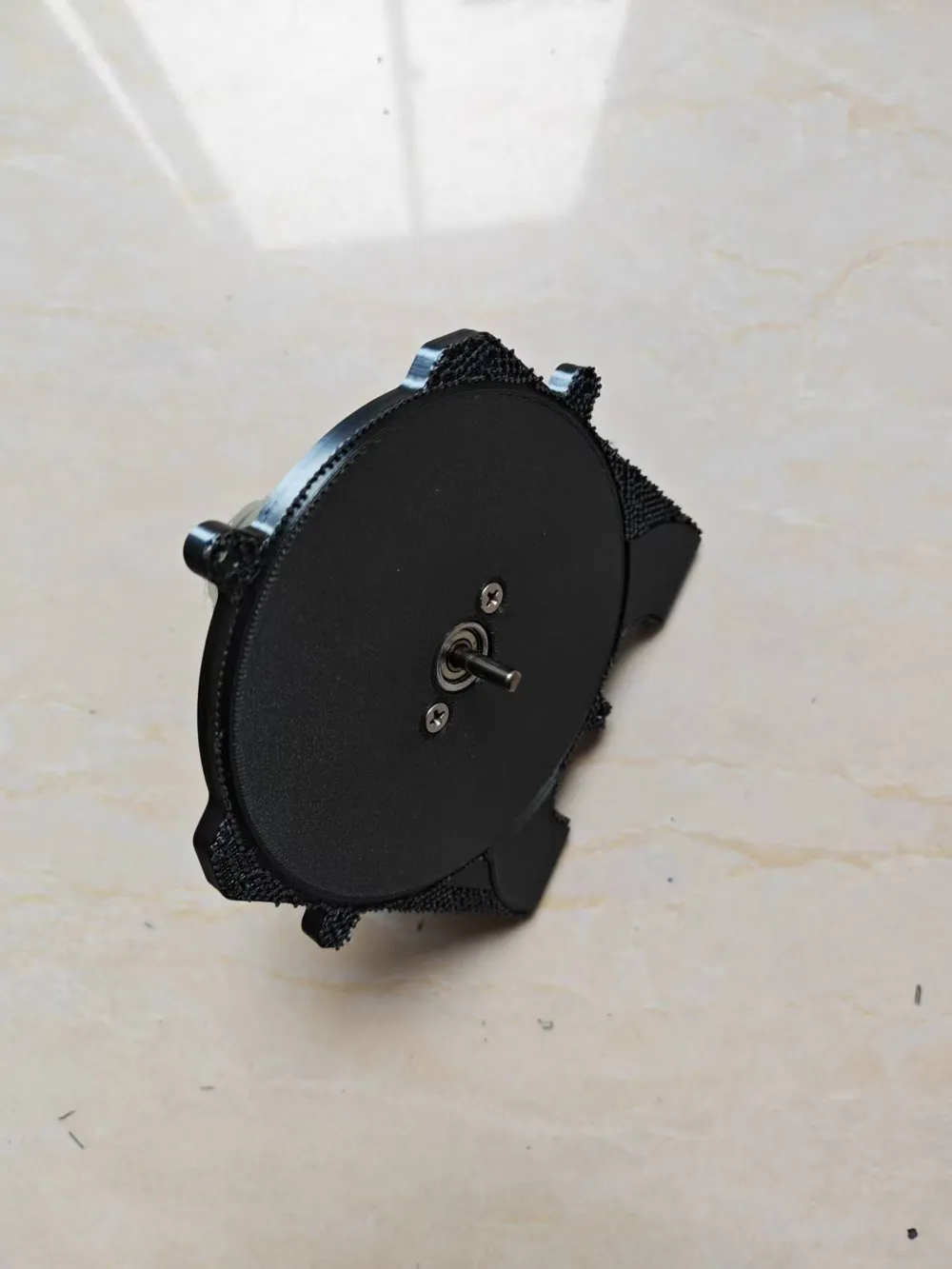

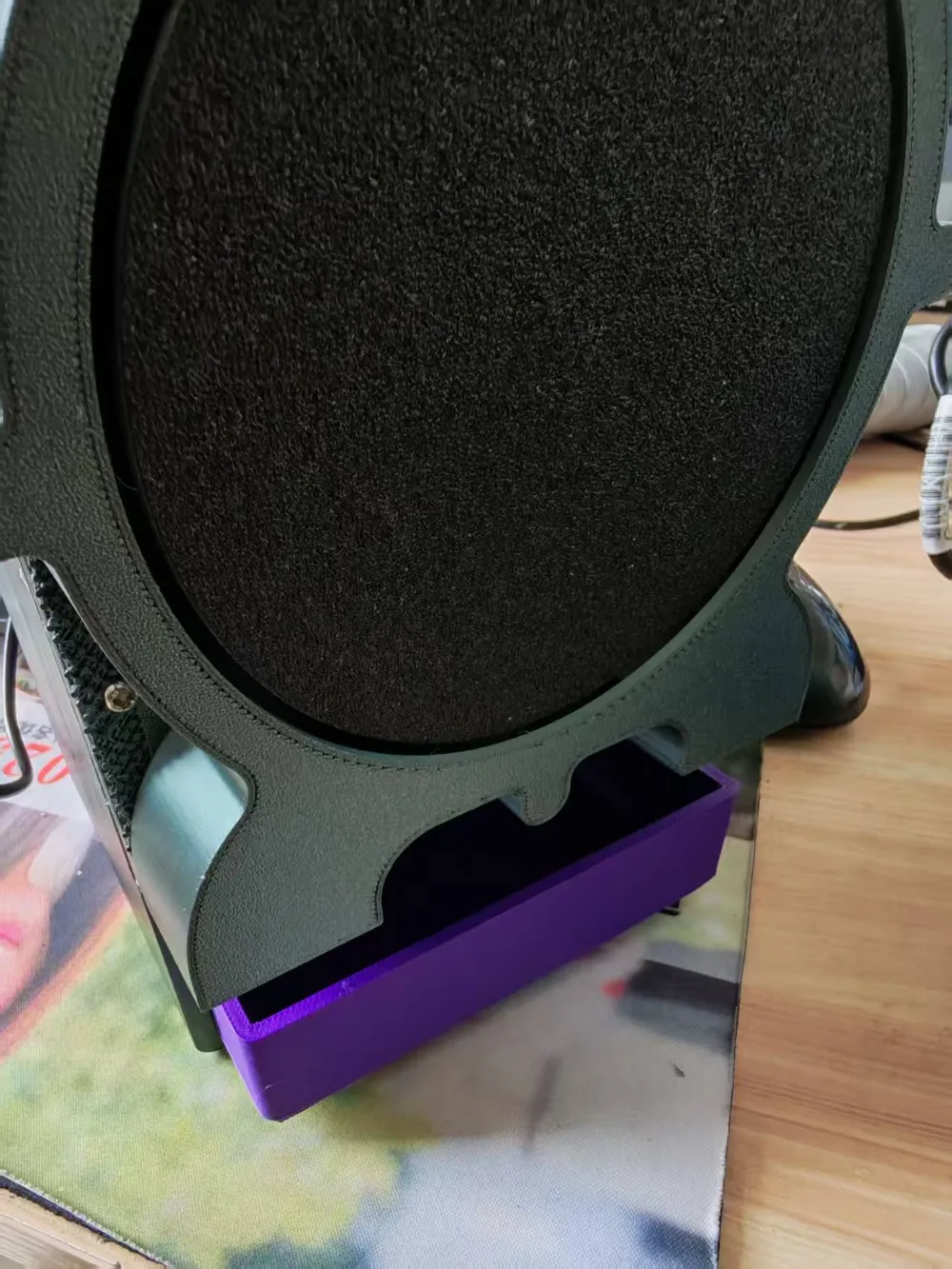

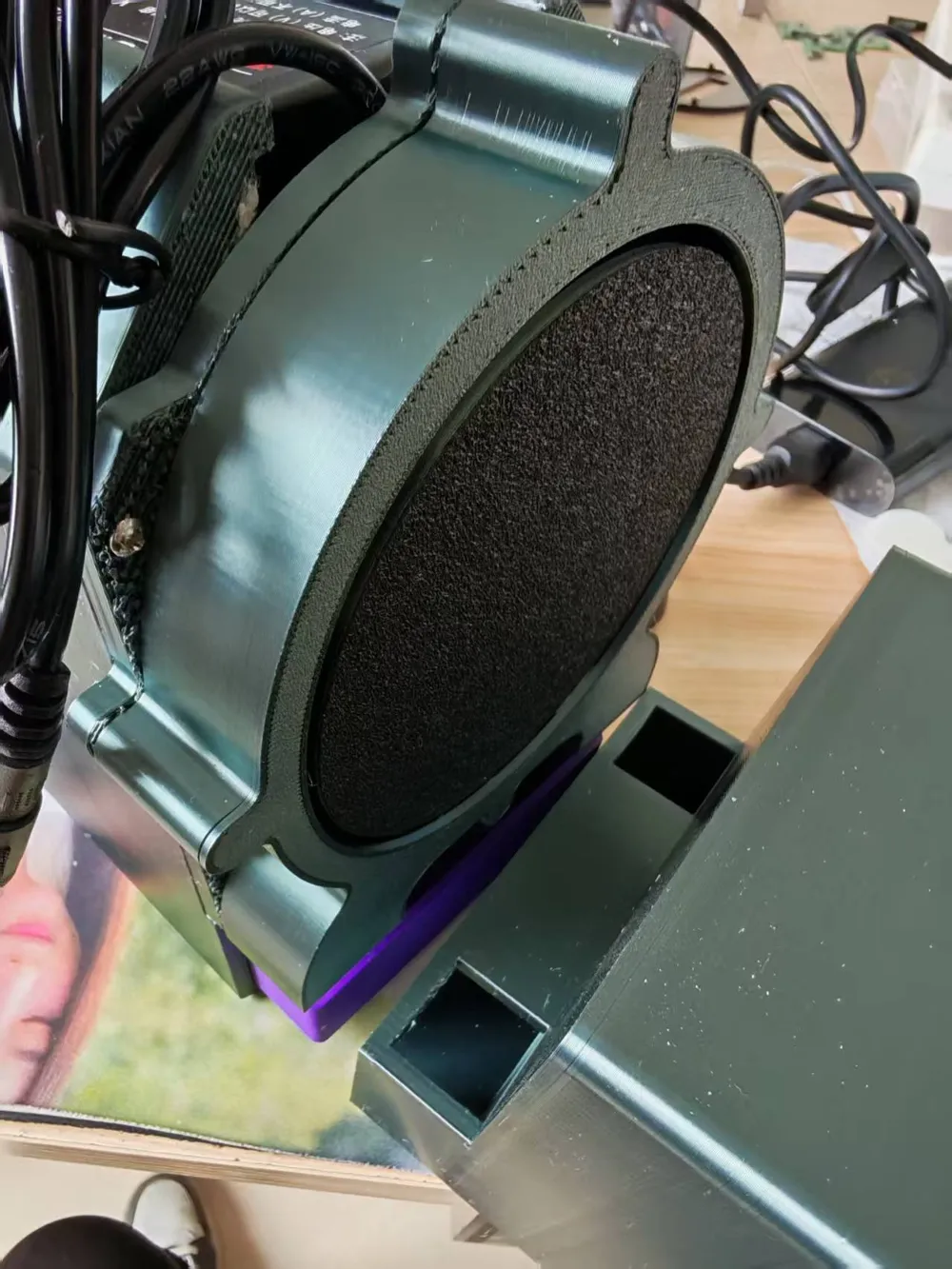

Driven by a 755 motor and an adjustable power supply, with disc sandpaper attached. The back of the disc has fan blades that can suck and blow some dust into the drawer below, where a little water can be placed.

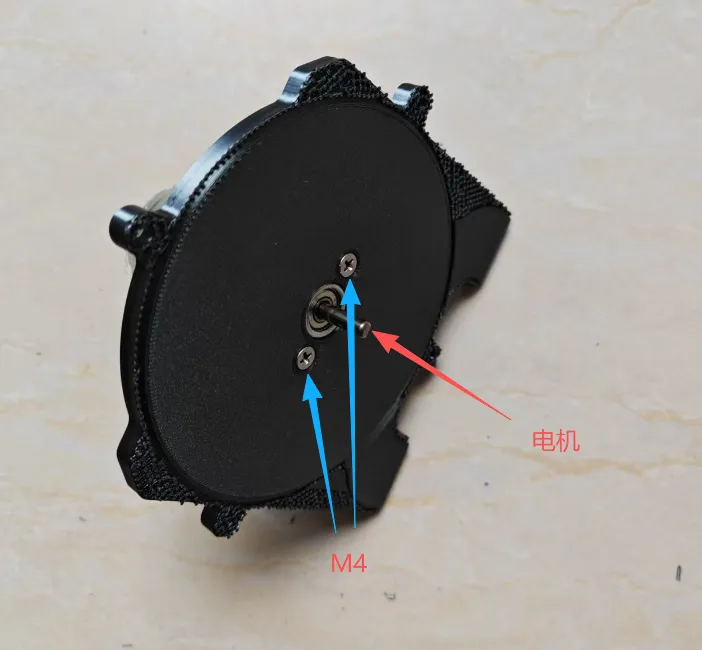

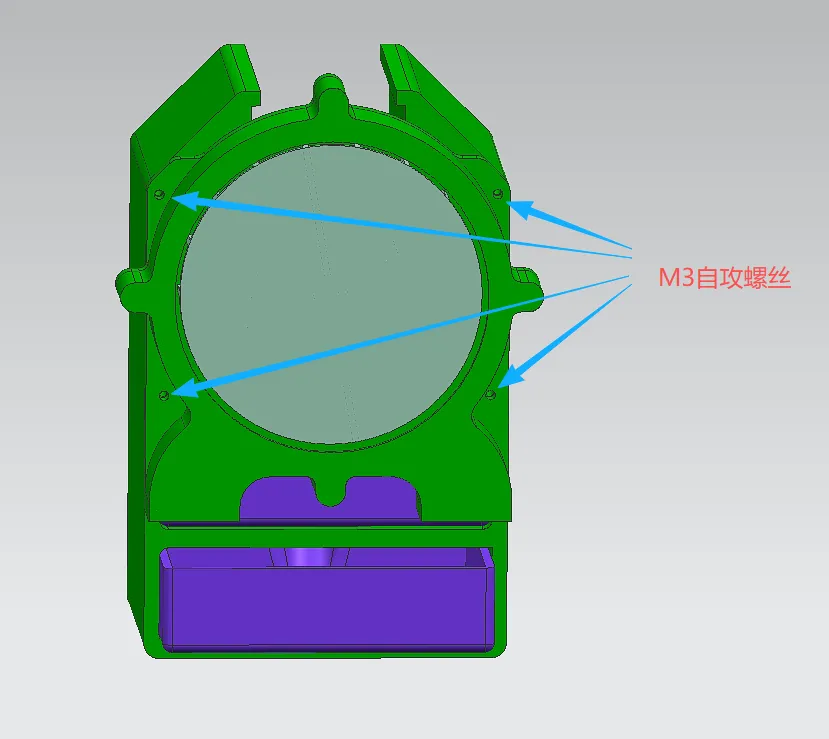

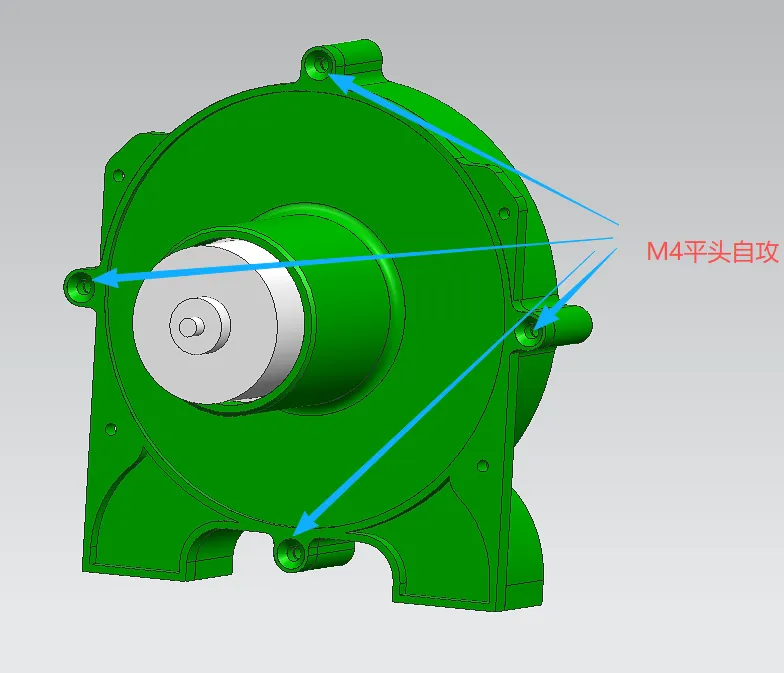

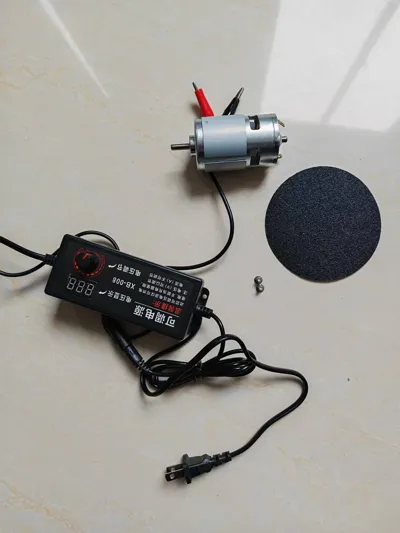

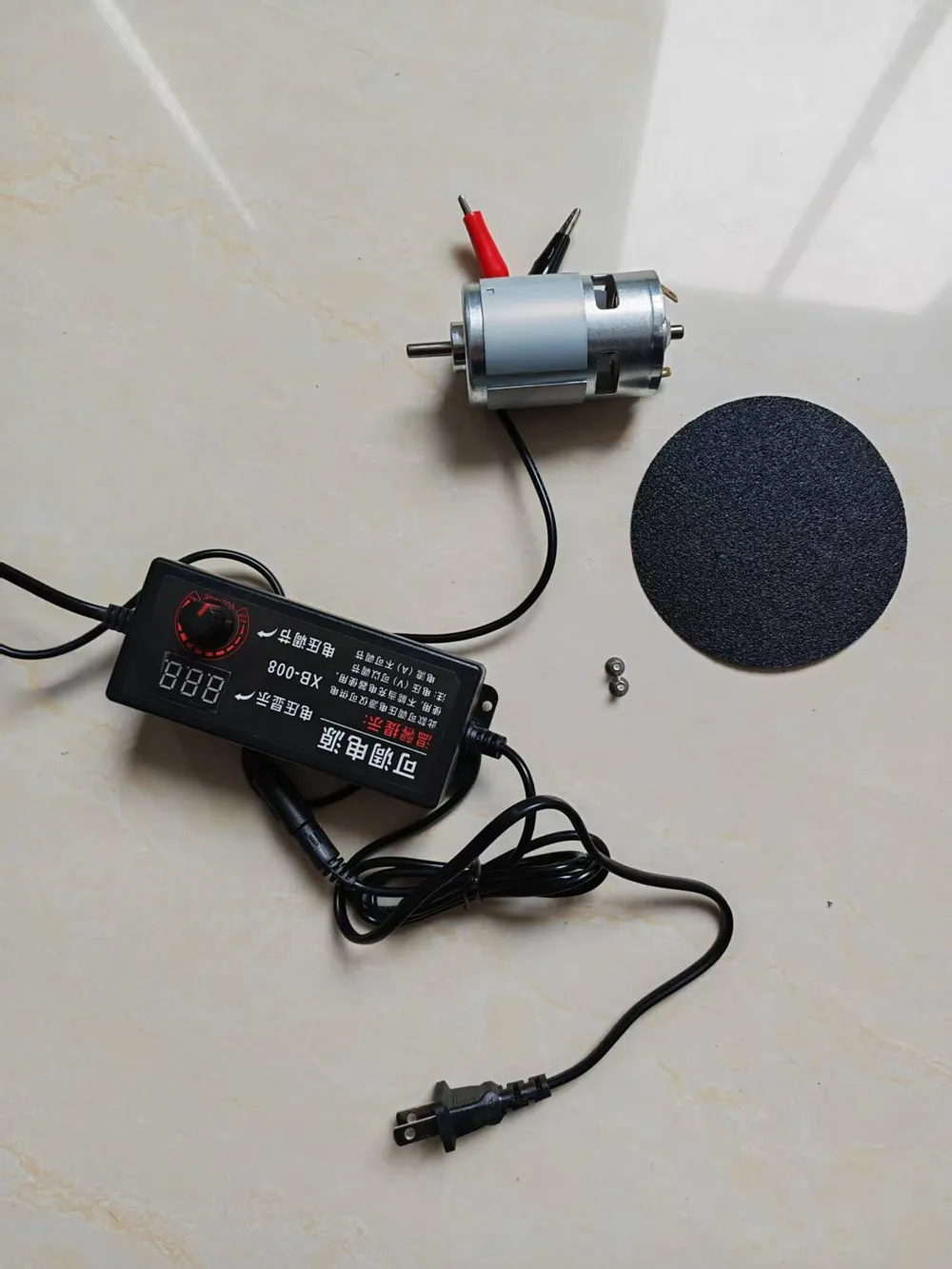

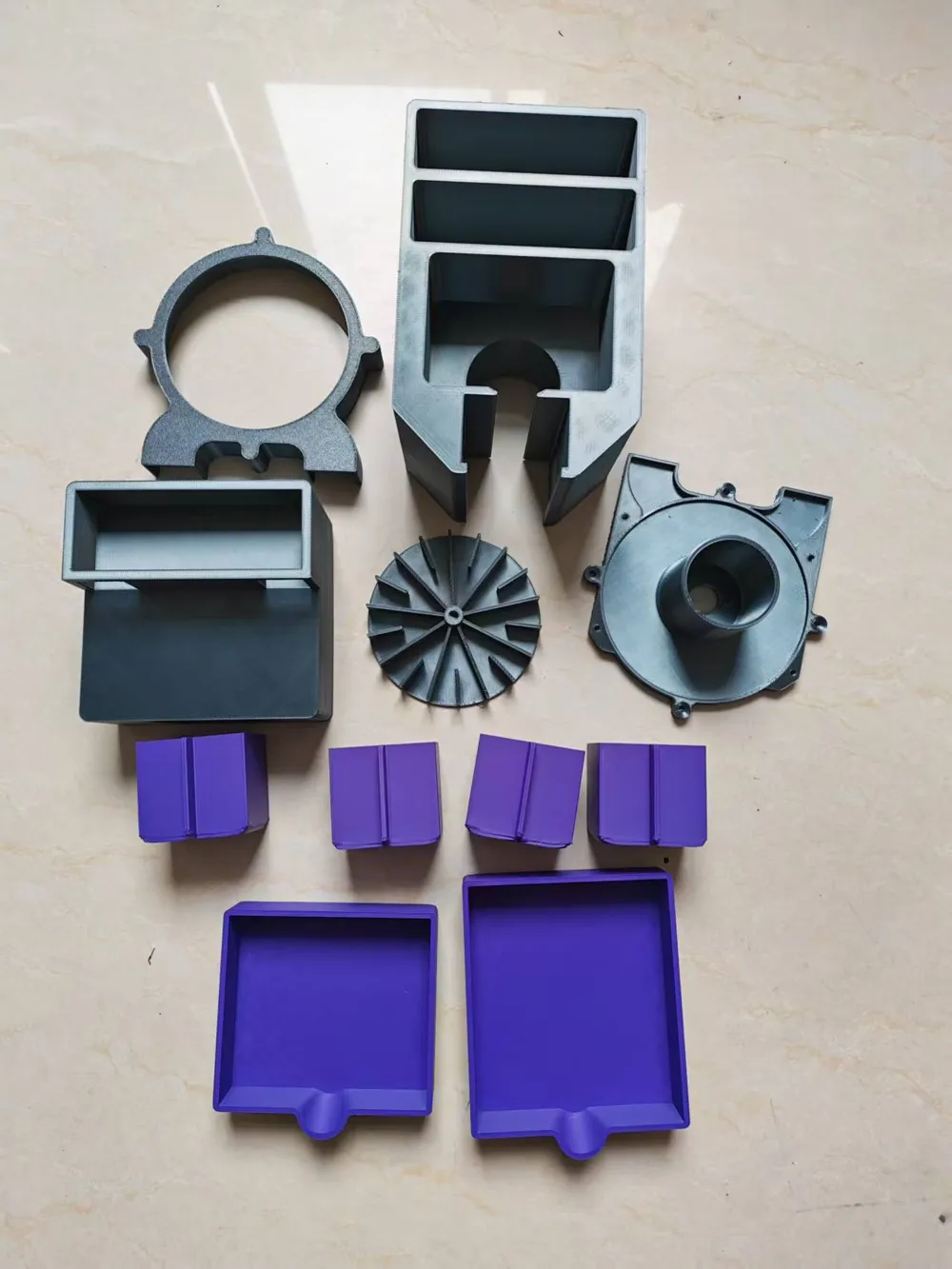

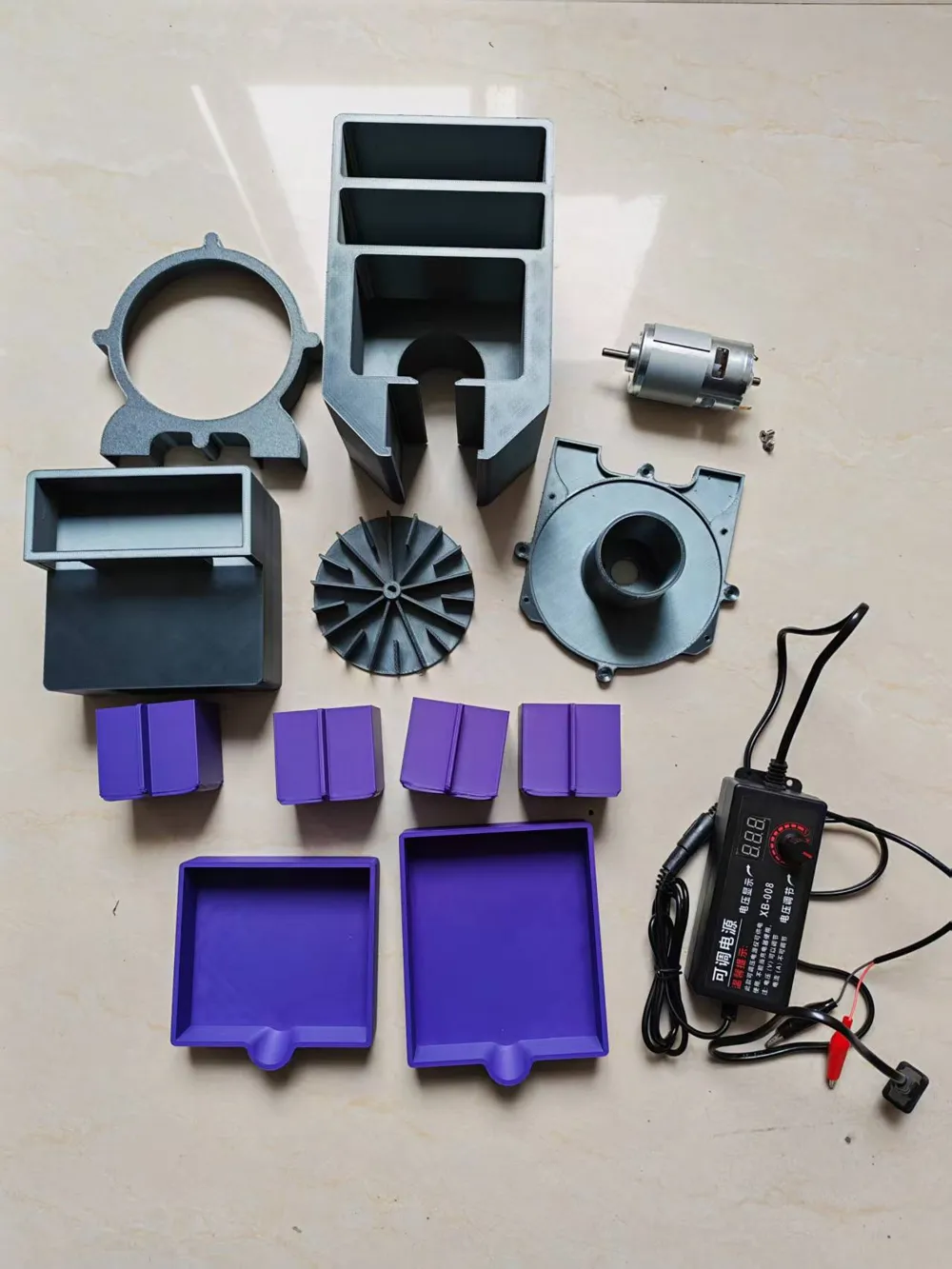

Accessories: 755 motor (D-shaft diameter 5mm, flat spot 1.5mm), adjustable voltage power supply 3-24V/3A with alligator clips, 4-inch (100mm diameter) disc sandpaper, M4 flat head screws*2, M4 self-tapping flat head screws*4, M3 self-tapping screws*4.

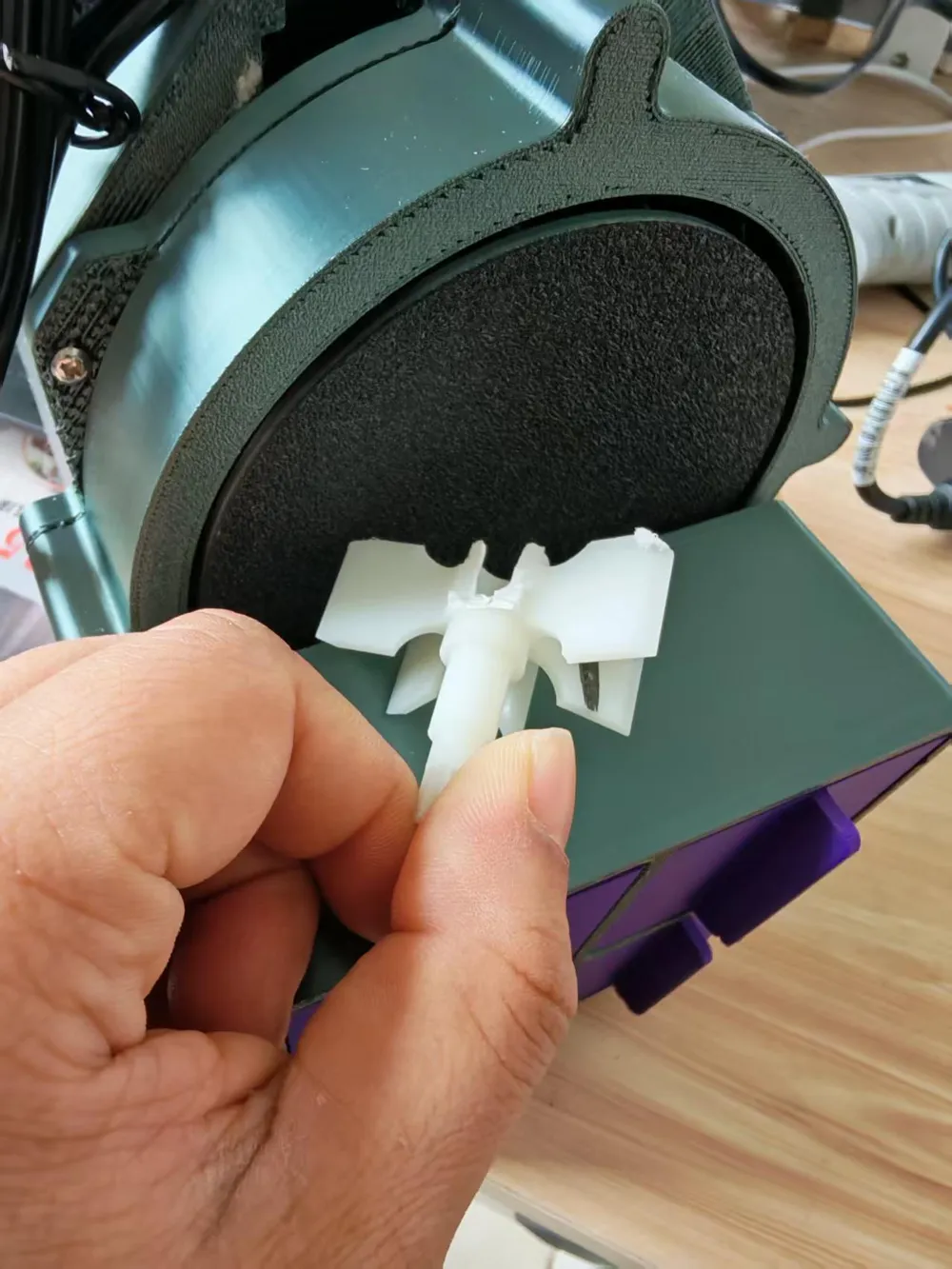

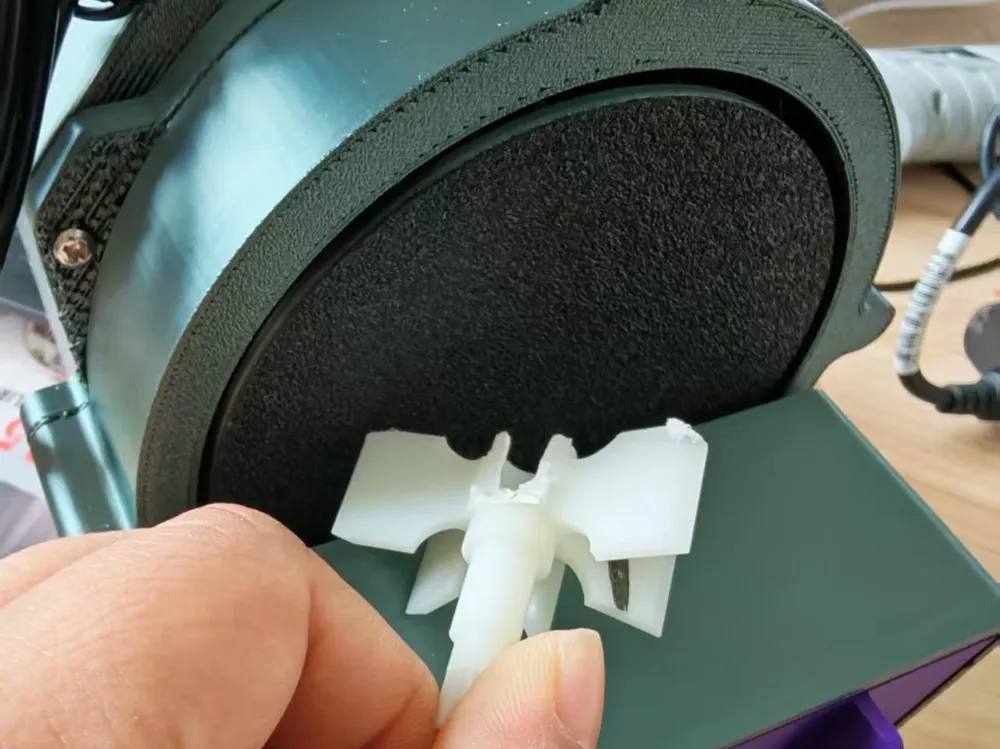

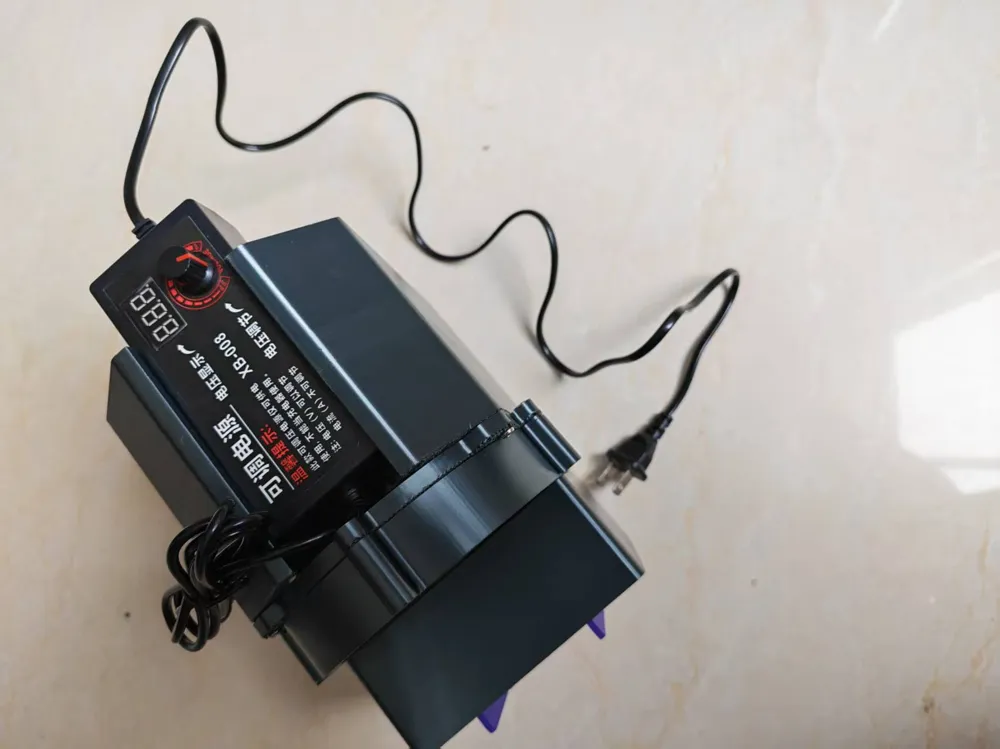

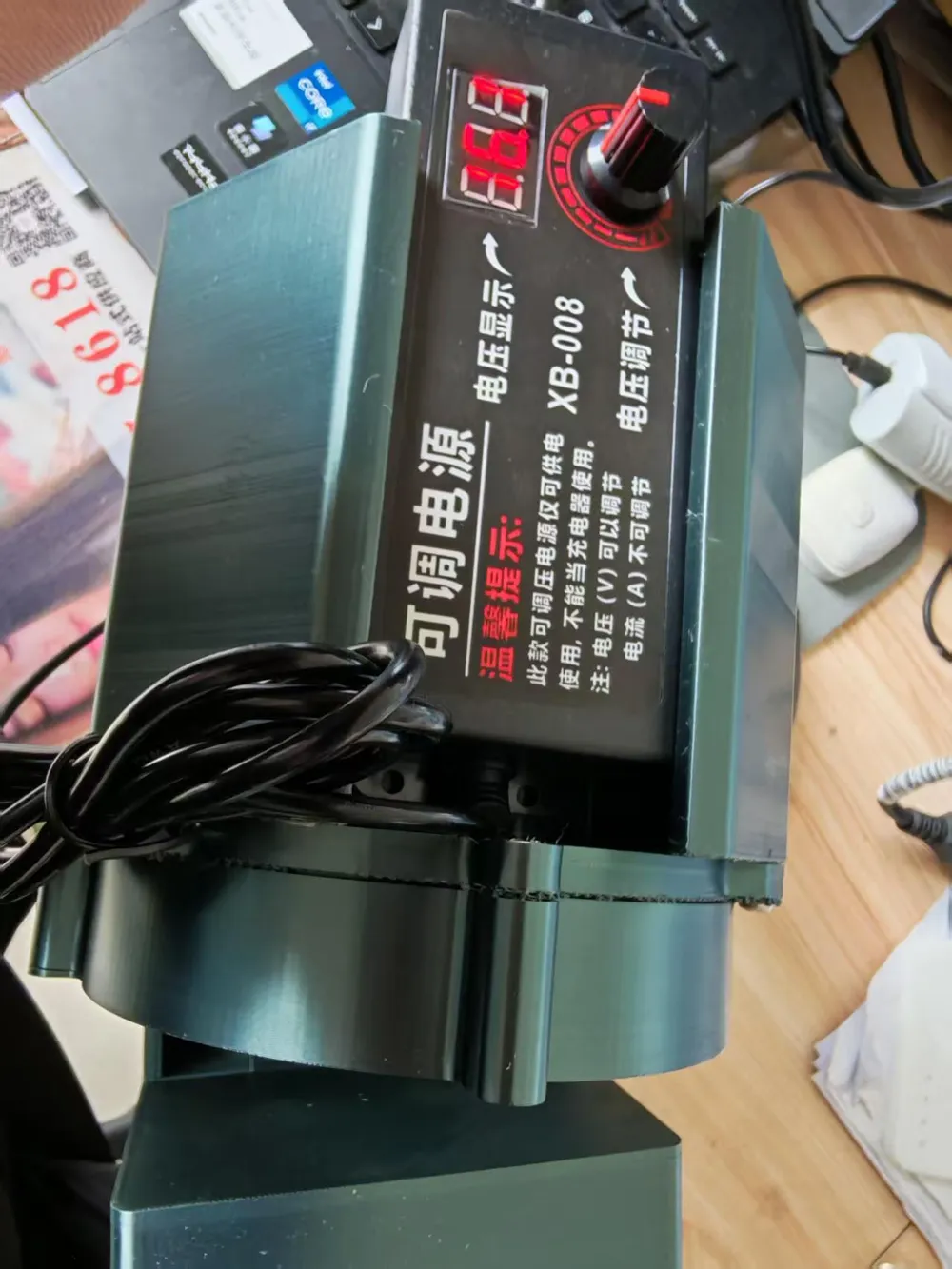

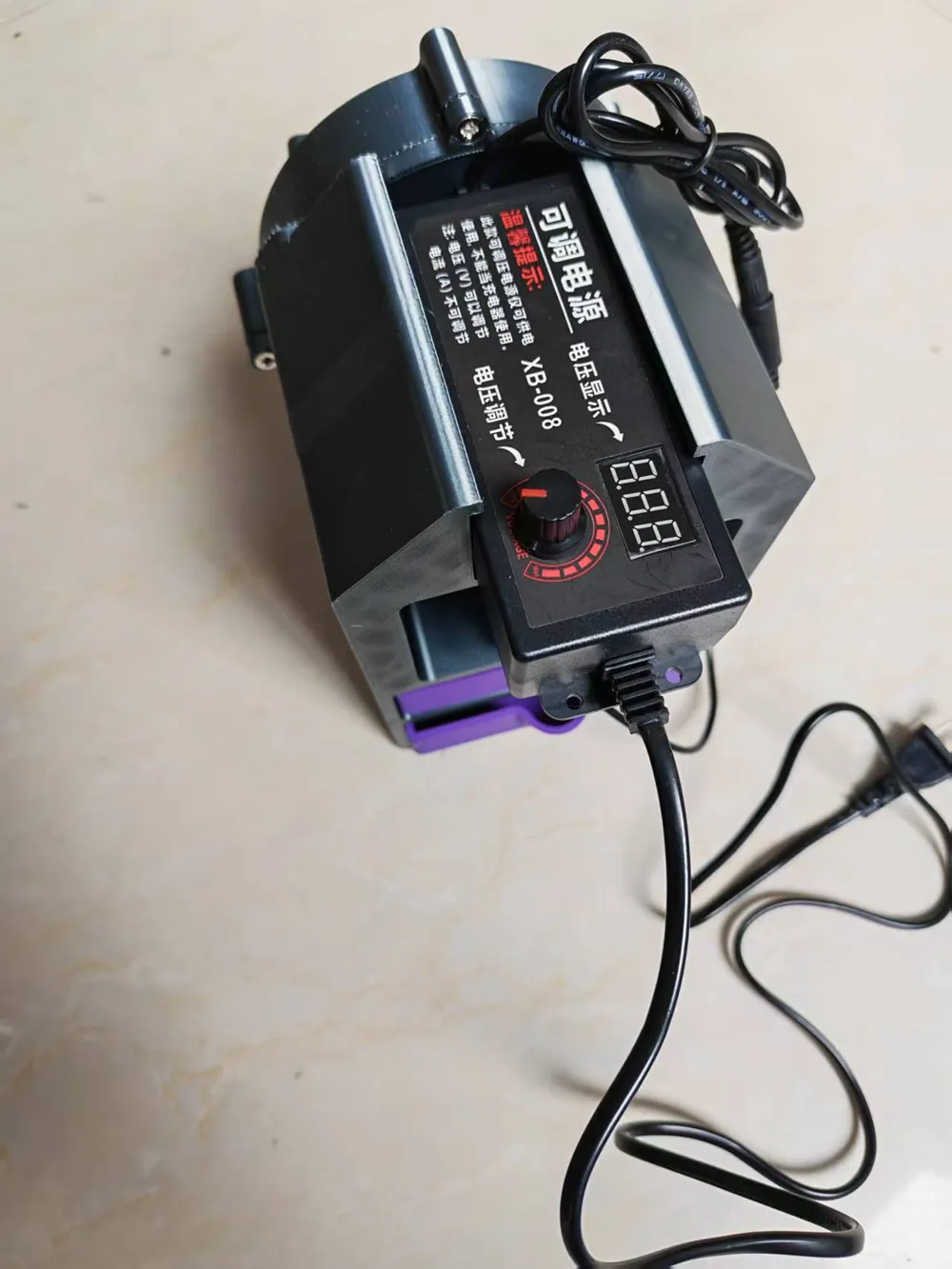

In actual use, sanding is very fast, and you might accidentally sand beyond the intended size. Printing material and infill need to be adjusted according to your own situation to prevent cracking when installing self-tapping screws. The wires of the adjustable power supply are on both sides, and one end will hit the casing; drilling holes or reserving holes might be a bit more convenient.
