Overview

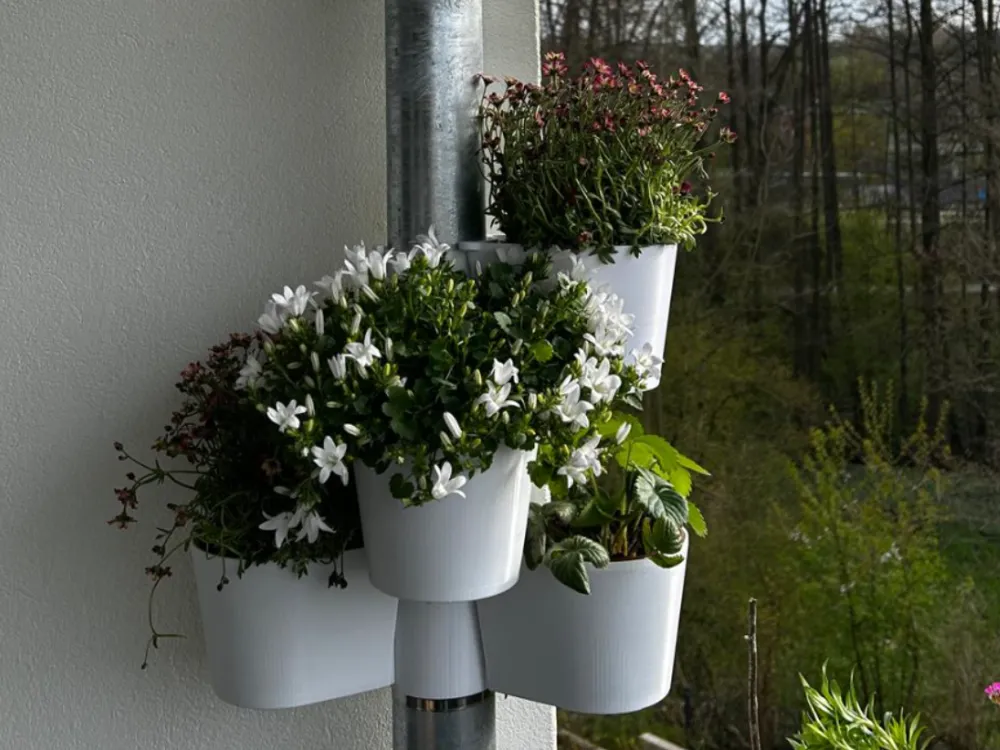

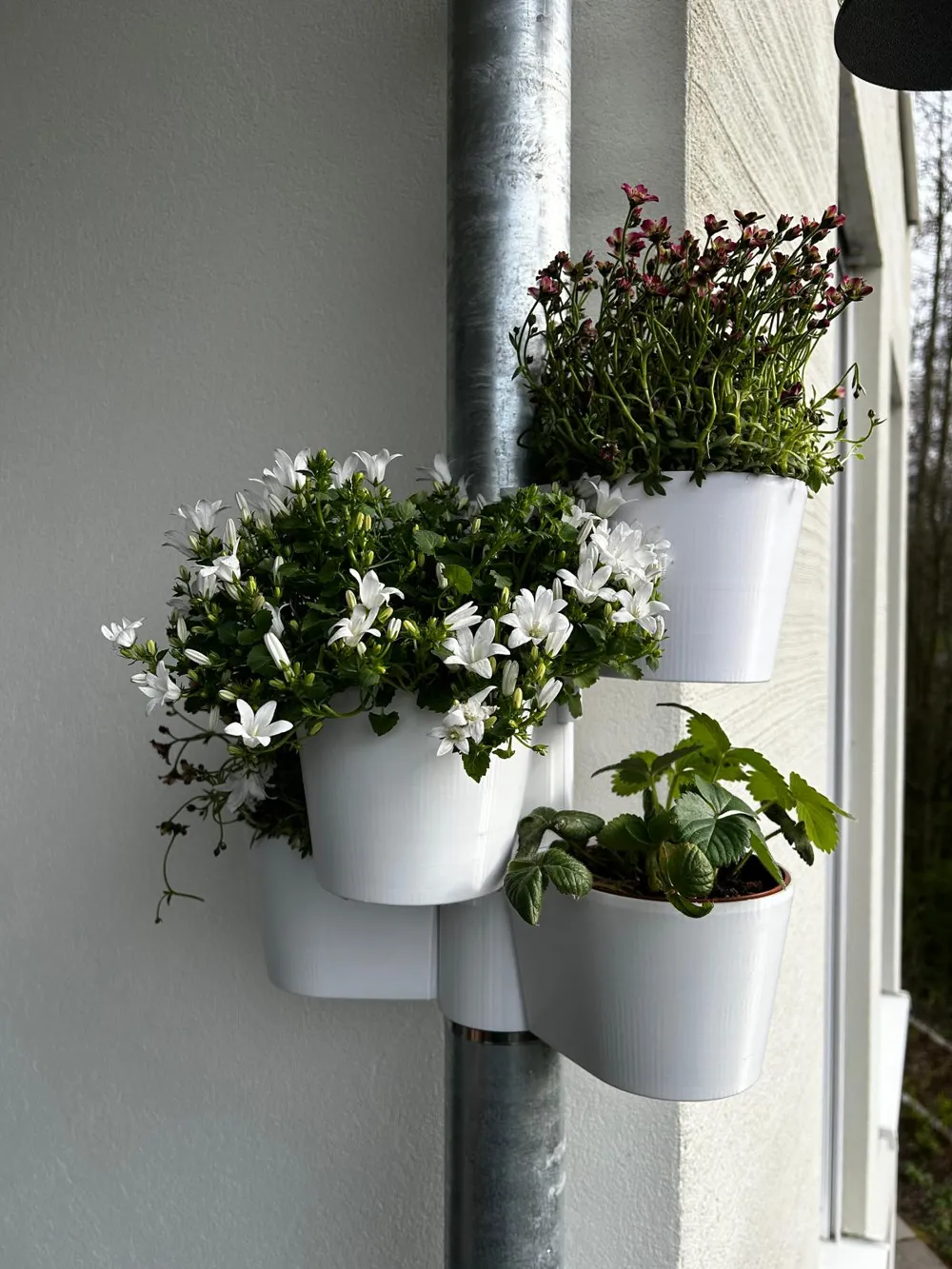

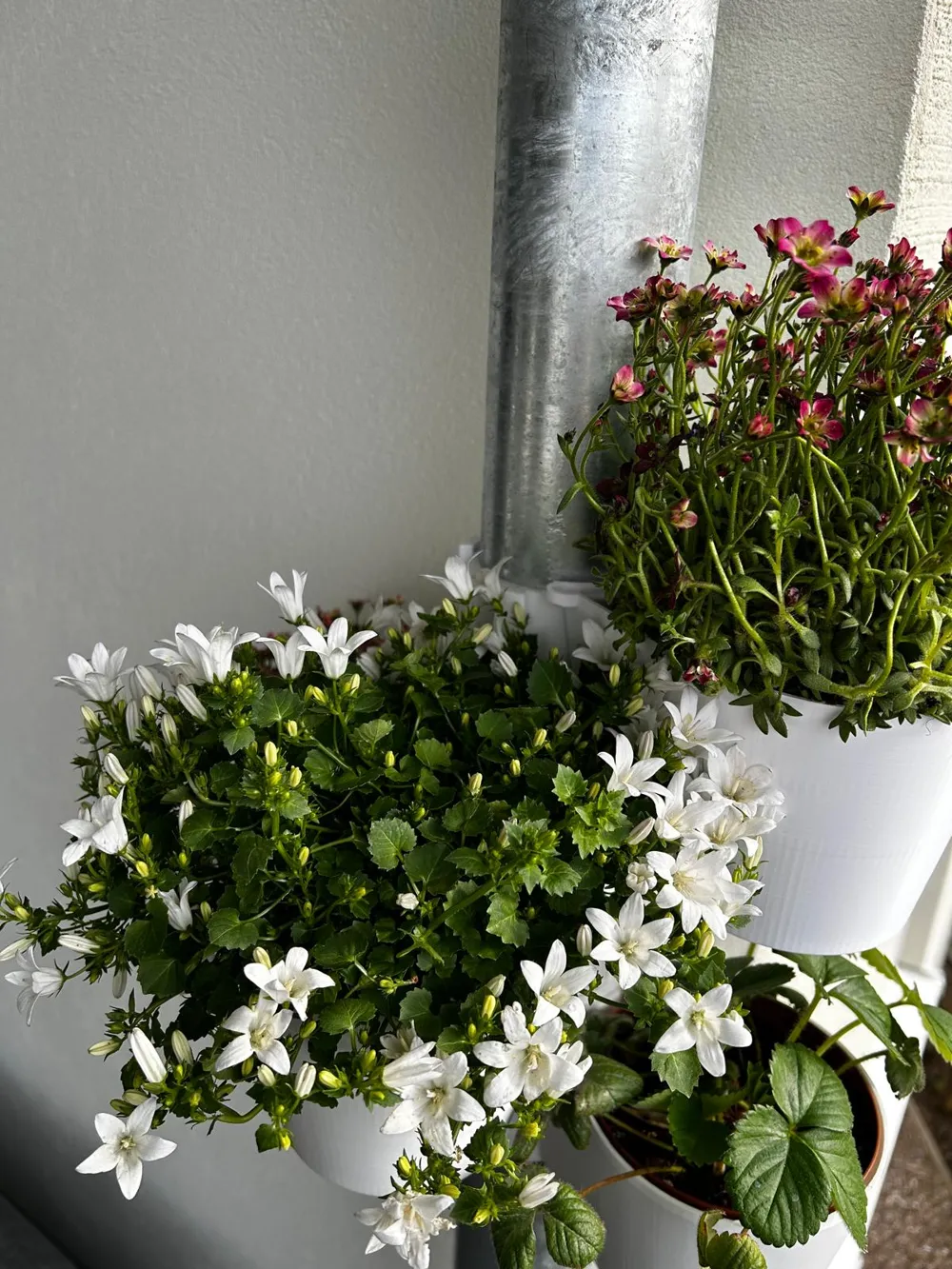

Transform your balcony downpipe into a lush vertical garden! This modular planter bracket is specifically designed for DN70 (75mm outer diameter) pipes. It features a smart "cascade irrigation" system, ensuring that excess water is shared between levels rather than wasted.
Key Features

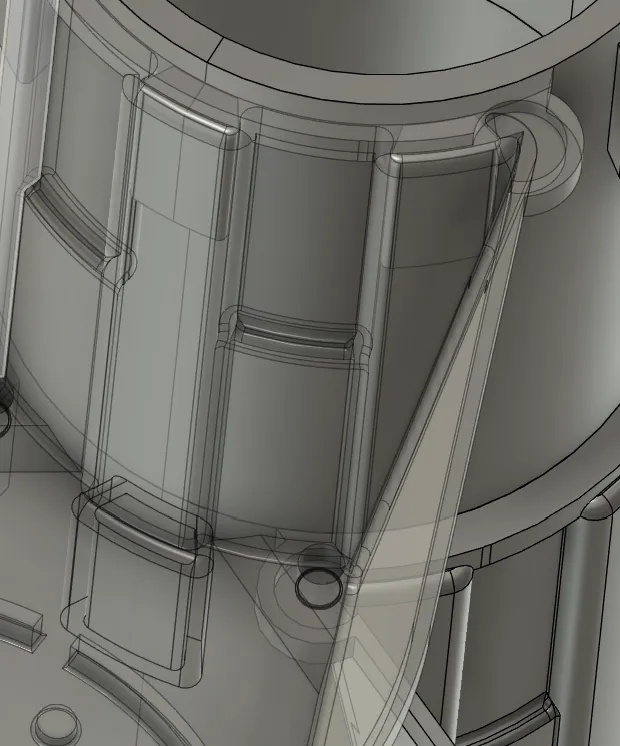

- Smart Irrigation: Integrated "Drip Ears" guide excess water directly into the pots on the level below.
- Water Management: * Holds up to 4mm of standing water for consistent hydration.
- At 5mm, excess water drains through the center to prevent root rot.

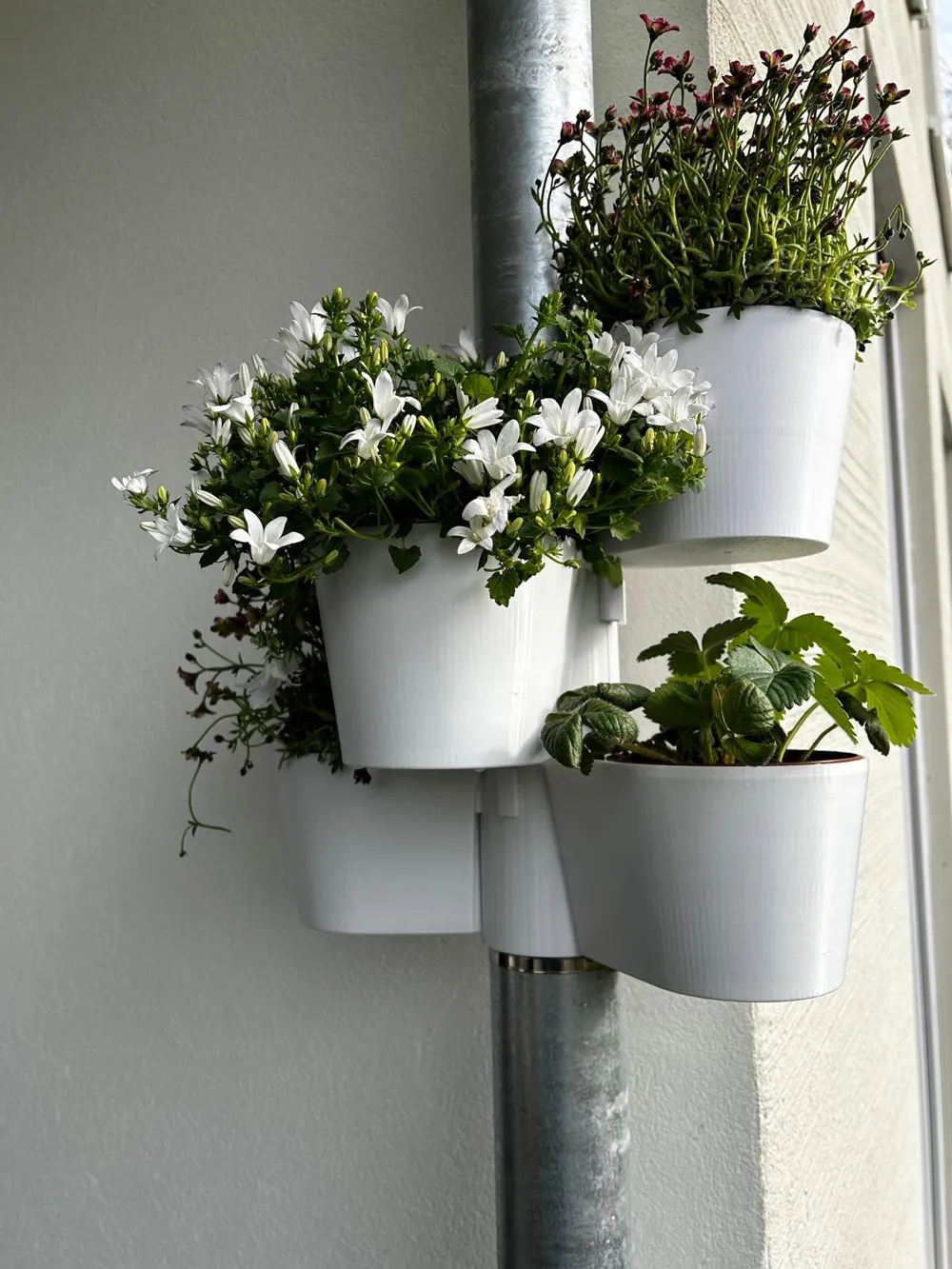

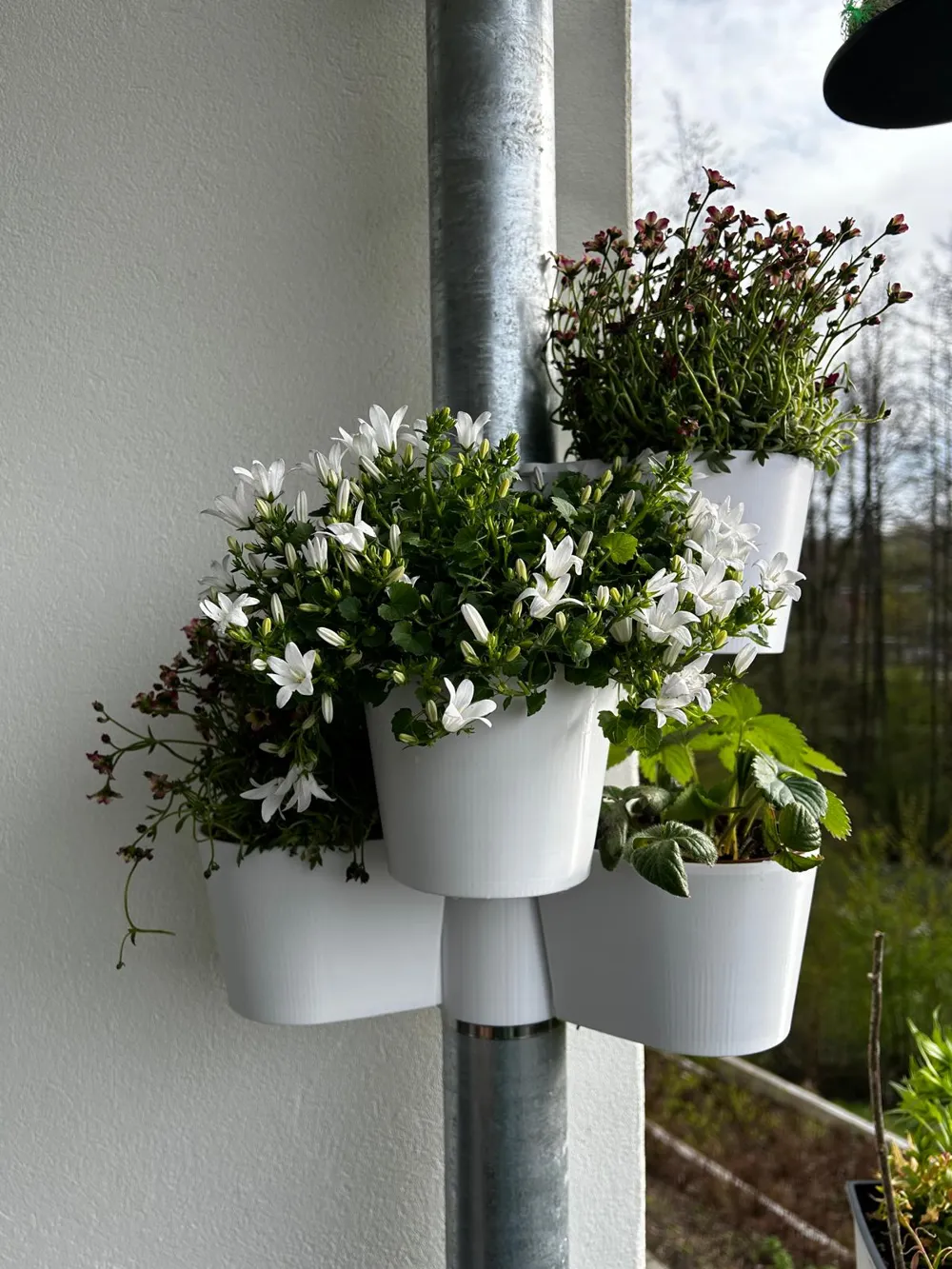

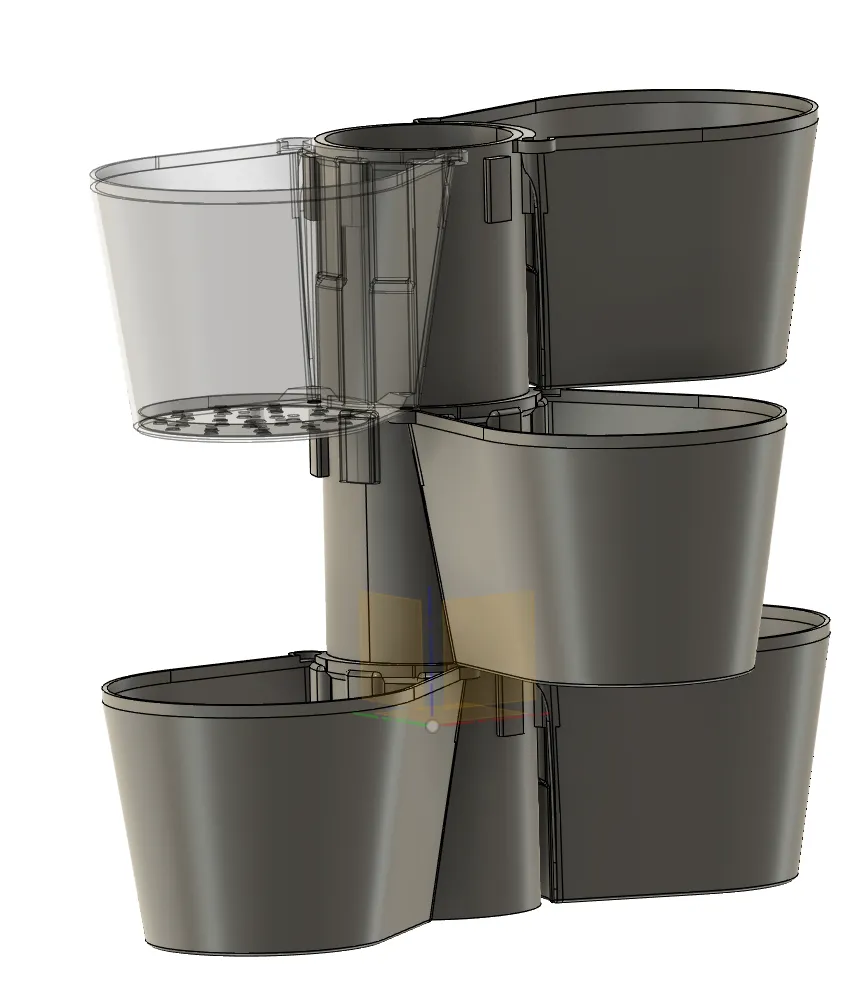

- Light Optimization: Modular design allows for 1 or 2 pots per level. You can stagger them in a zig-zag pattern so every plant gets its share of sunlight.
- Pot Compatibility: Tailored for pots with a 120mm top diameter and 97mm height.
Mounting & Safety
The bracket is designed as a friction-fit clamp.

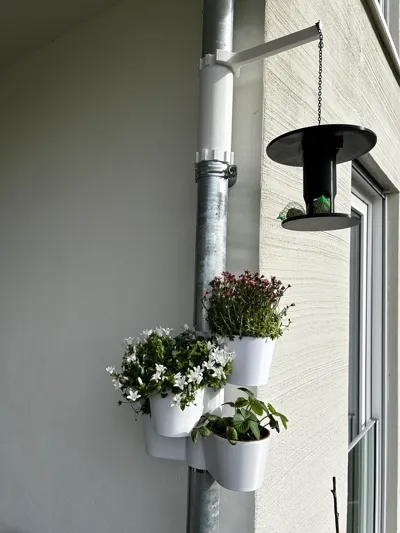

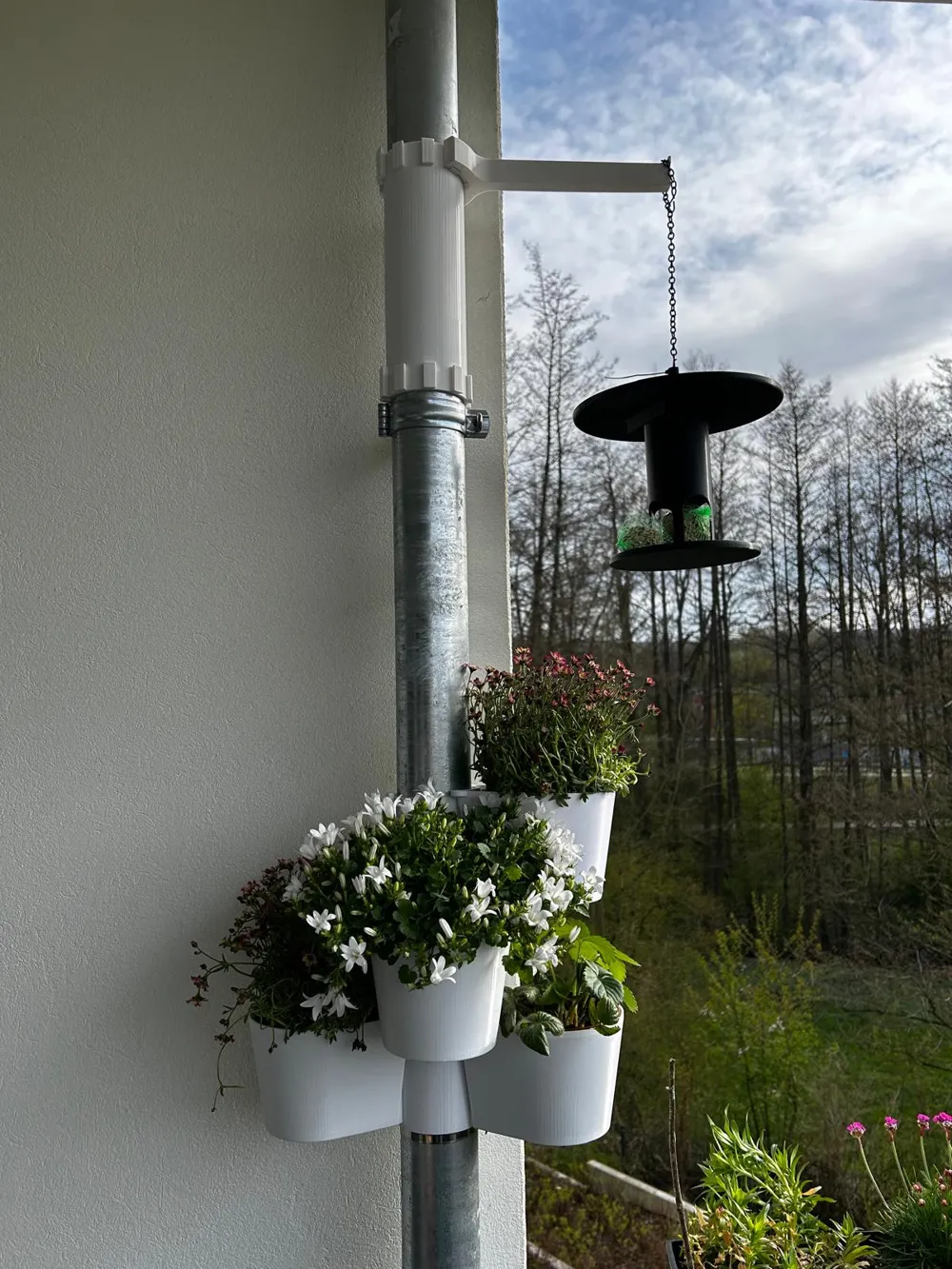

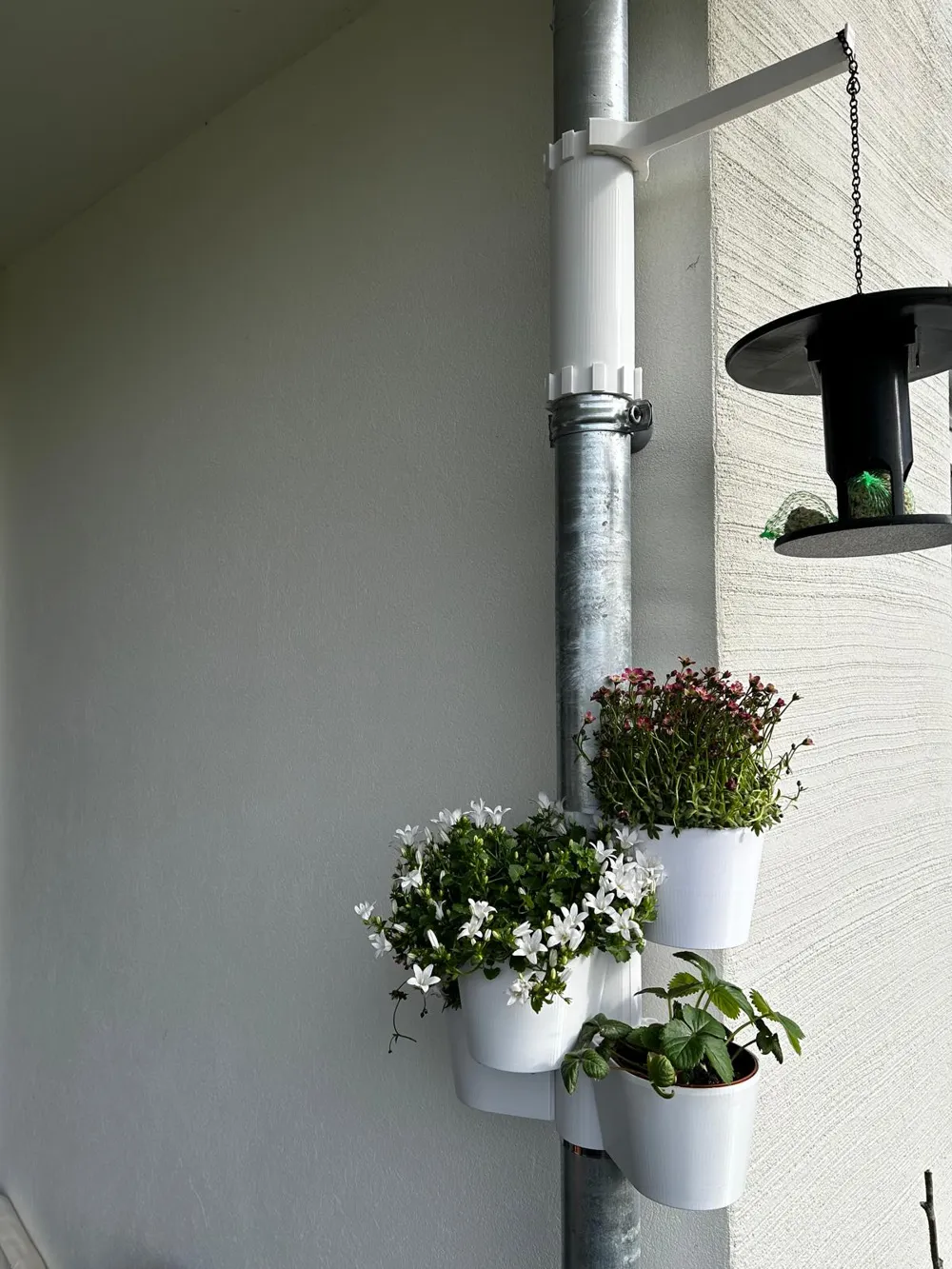

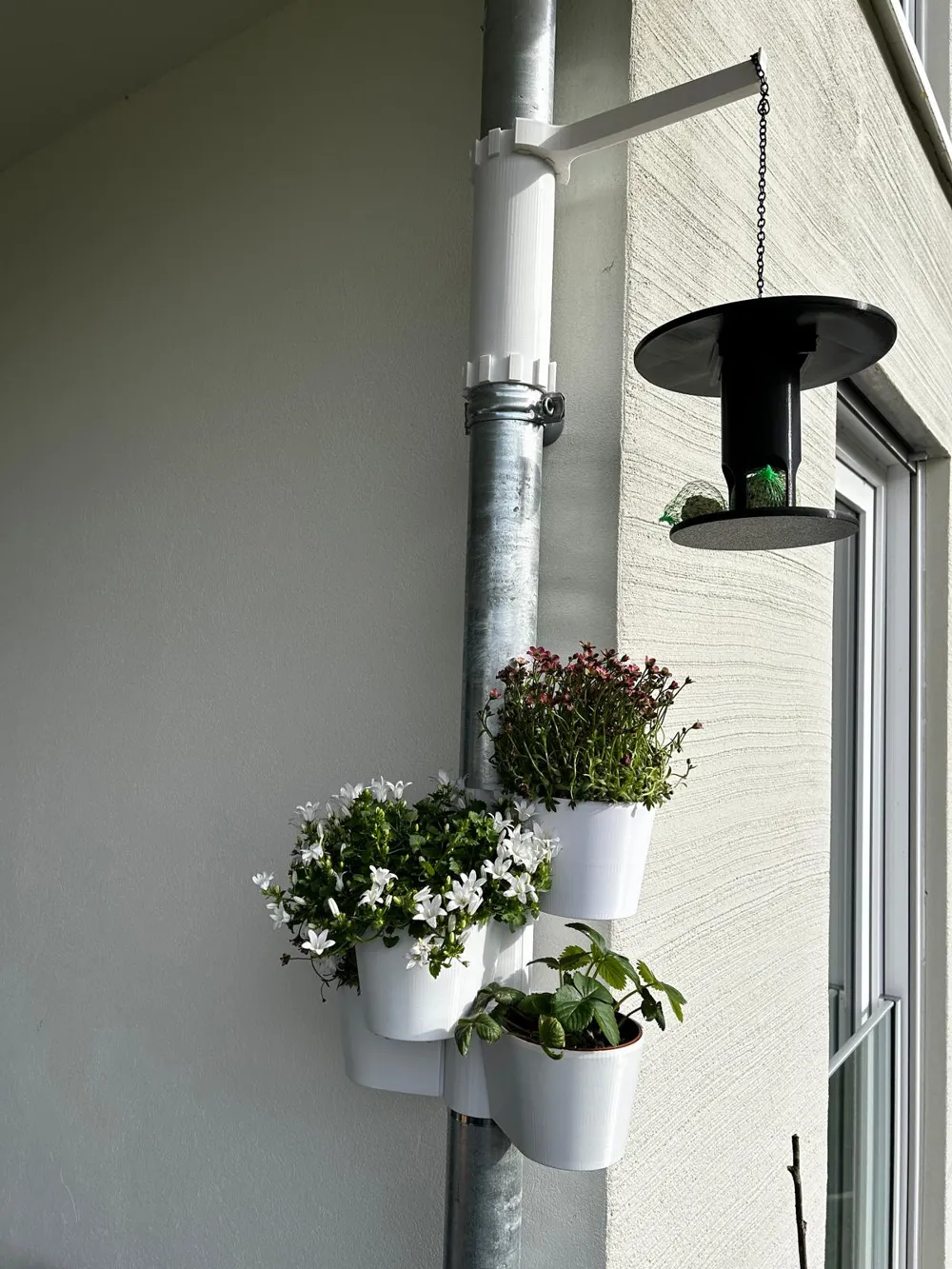

[!IMPORTANT] Safety Note: To prevent the brackets from sliding down due to the weight of wet soil and plants, it is highly recommended to install a metal hose clamp (Schlauchschelle) beneath the lowest bracket to serve as a fixed height limit.
