Quick-Change Jigsaw Handle
Print Profile(2)
Bill of Materials
Description

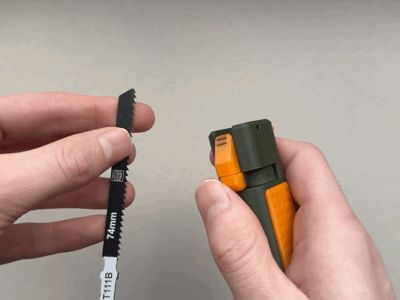

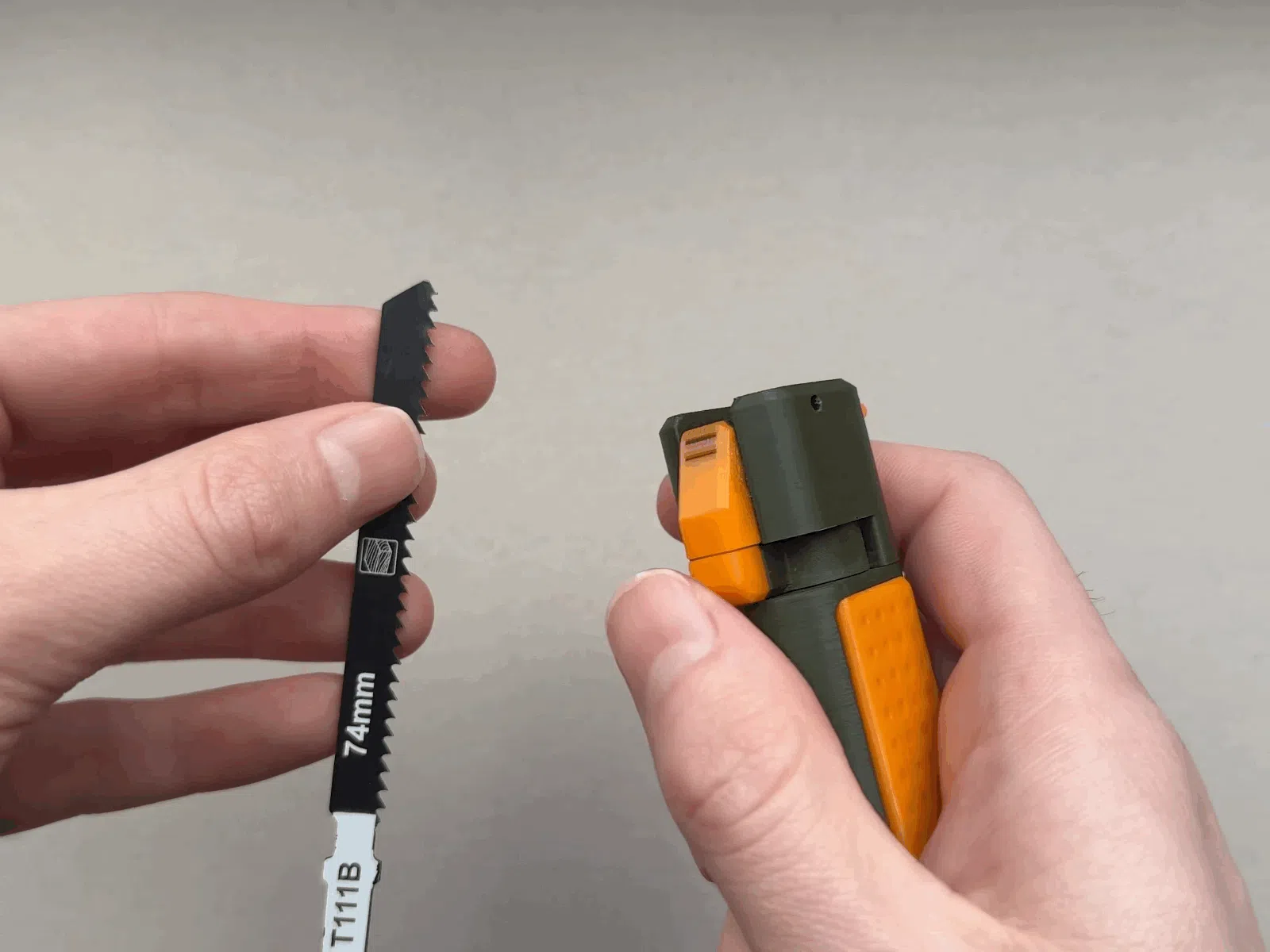

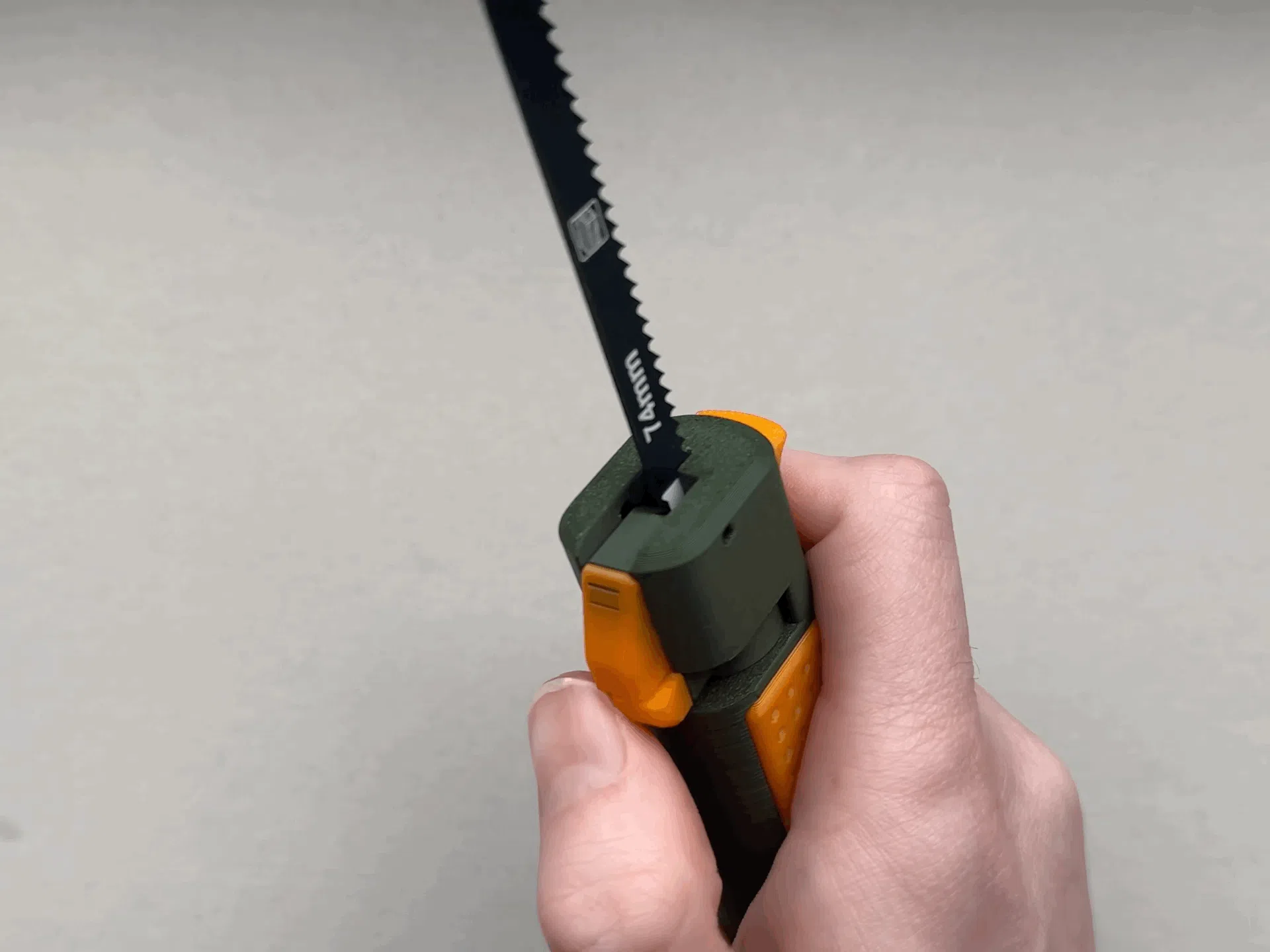

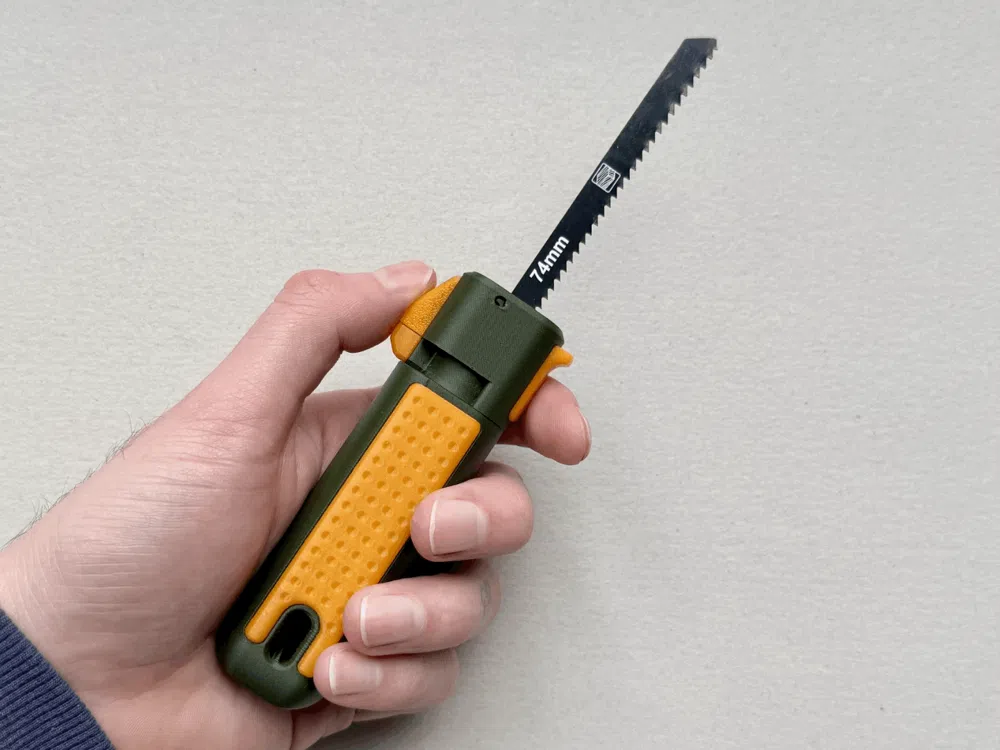

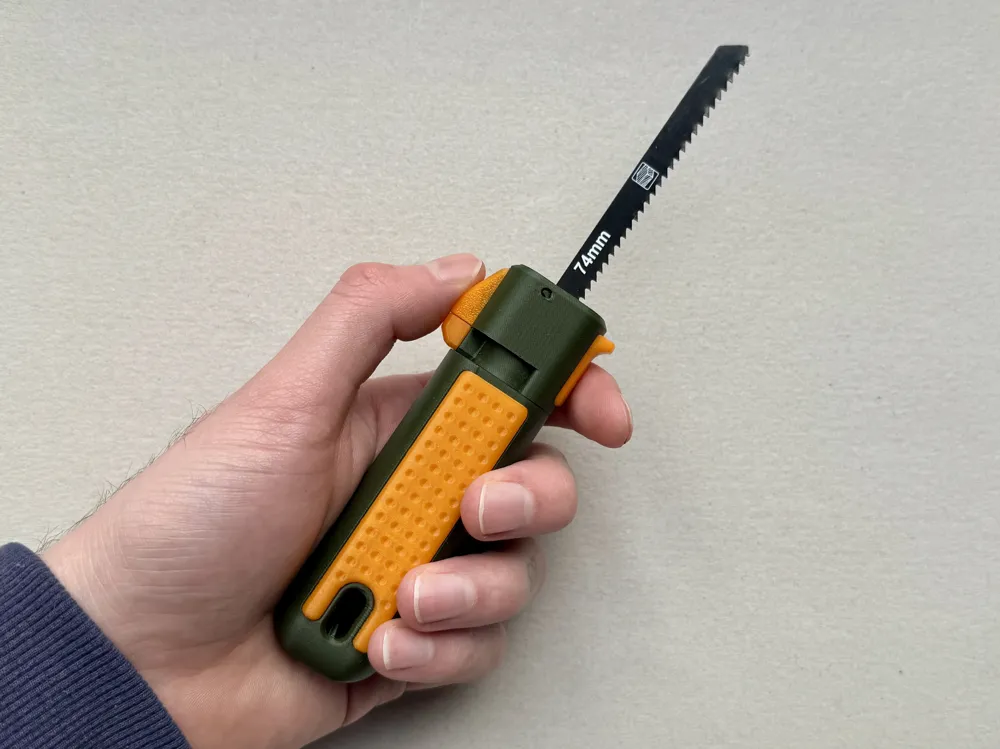

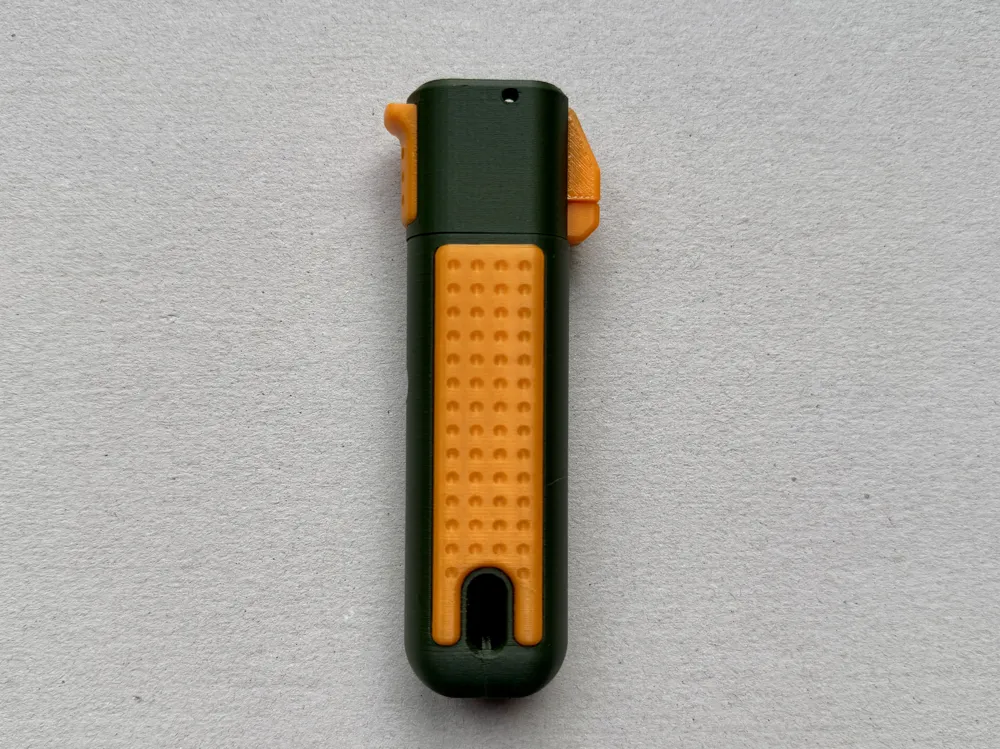

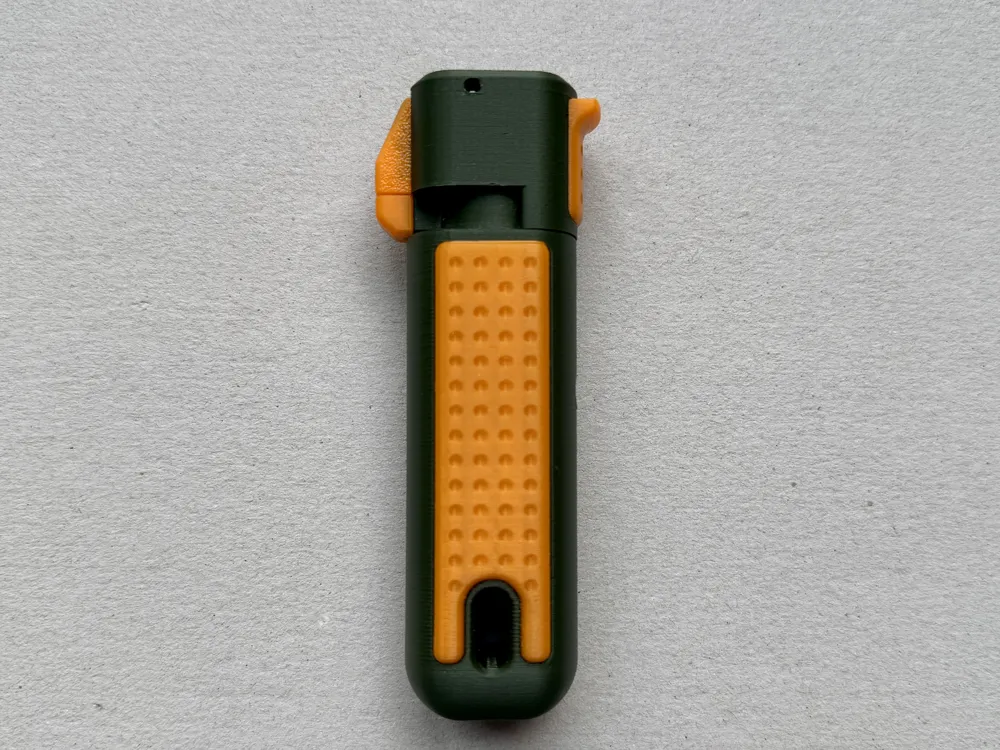

I created this handle as an easy and convenient way to use jigsaw blades as a hand saw. It has a quick change mechanism and lock, allowing you to quickly change blades. The handle is compatible with standard T shape Jigsaw blades. So it's easy to pick the right blade for the job.

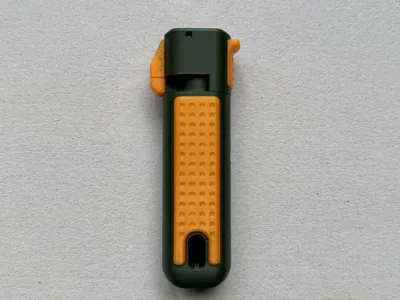

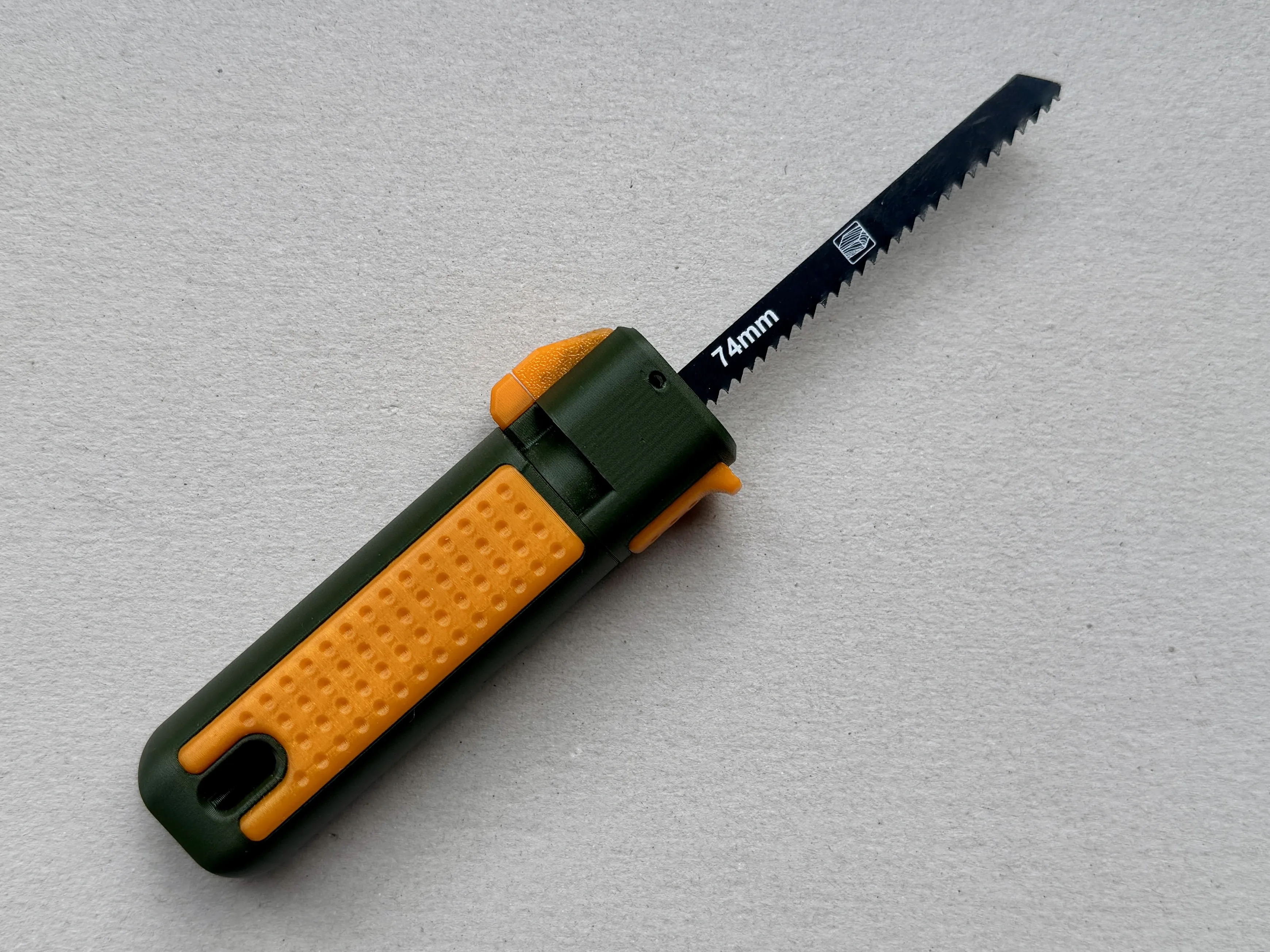

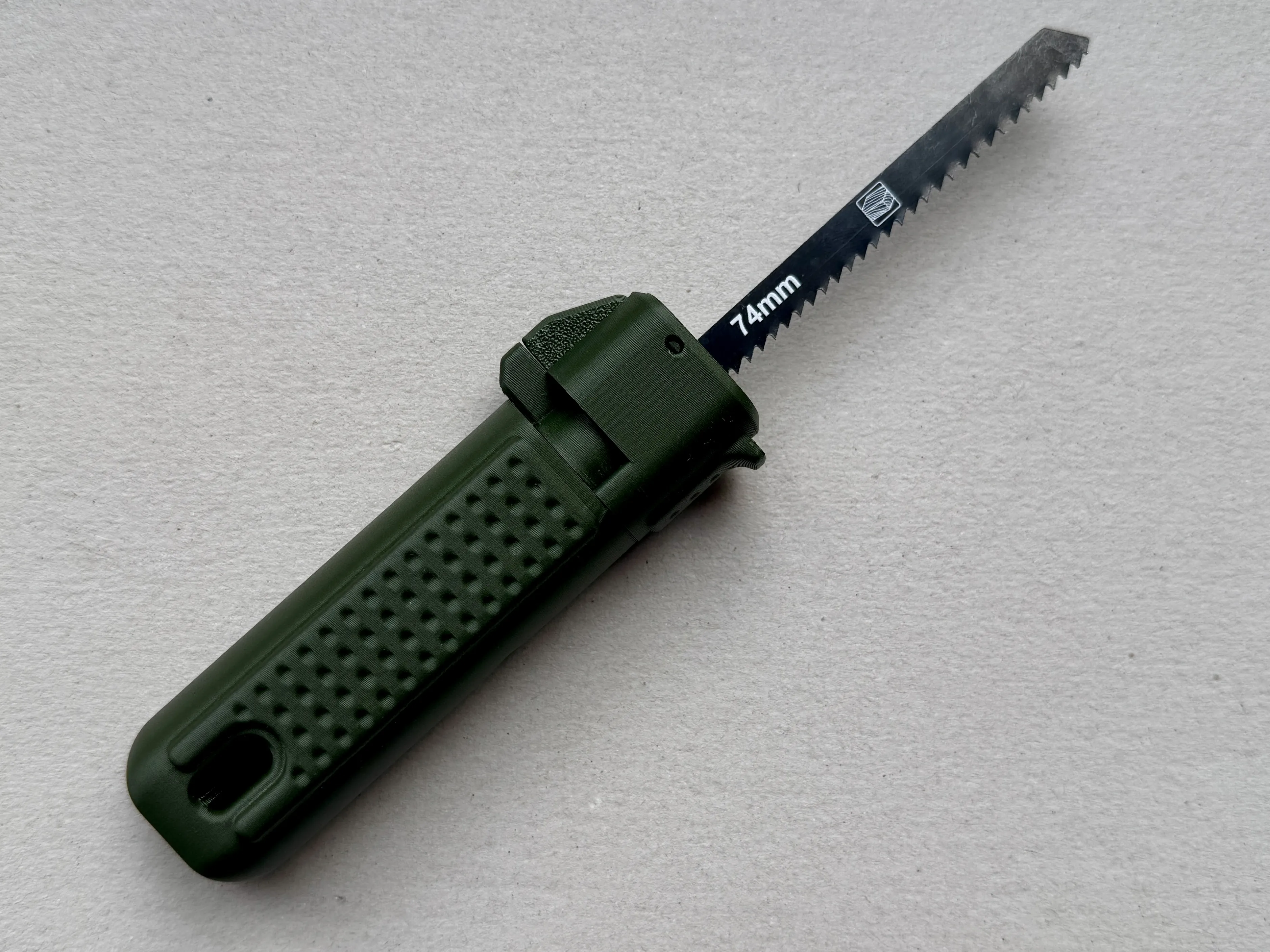

The original design is printed using TPU and PLA-CF. The TPU creates a nice grip. But it is also possible to print it with a single material (both profiles are available).
Assembly is easy, all the steps are clearly described in the Assembly Guide.
You will need the following hardware:
1x 2mmx12mm stainless steel dowel pin [available from MakerSupply(DA009)]
2x 3mmx10mm stainless steel dowel pin [available from MakerSupply(DA038)]
1x 5x10mm extension spring [available from MakerSupply (BA005)]
1x BT2.6x8 Self tapping screw [available from MakerSupply(AA004)]
Disclaimer: This is intended for light usage, such as cutting small pieces of wood and wooden dowels.
