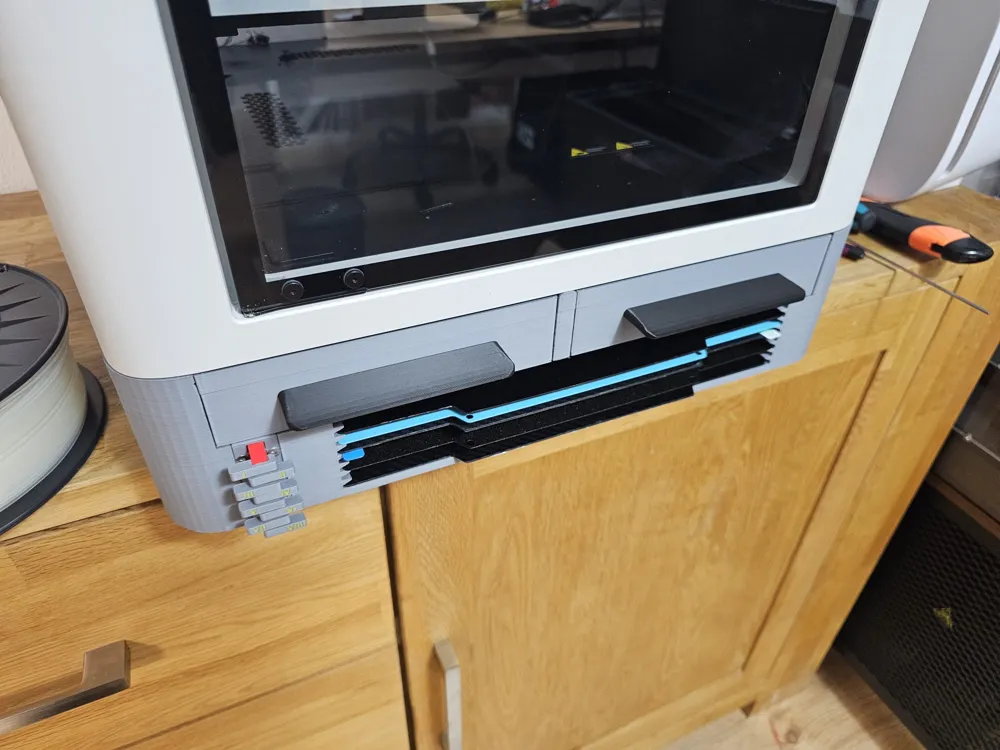

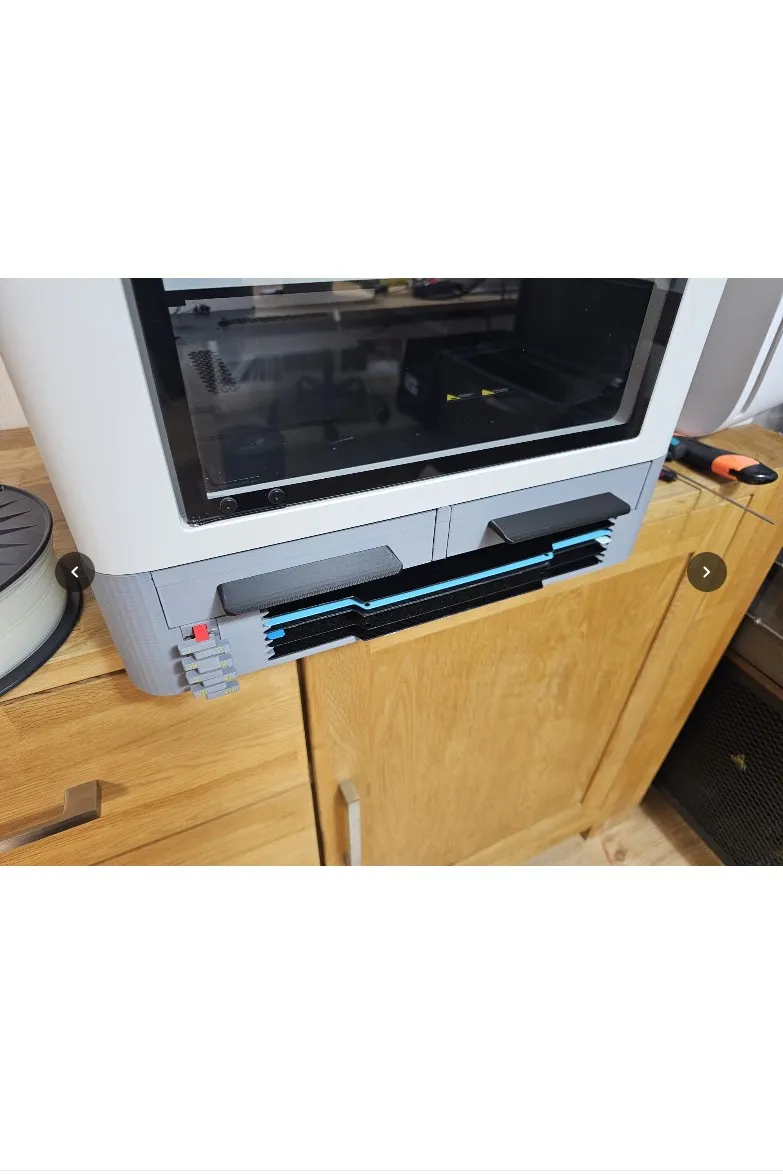

U1 Base Cabinet with Drawer and 8 Print Plates
Print Profile(1)
Description
First use for 4 nozzles: https://makerworld.com/en/models/2617059-u1-gridfinity-box-fur-4-nozzles#profileId-2888093
Additional files added for 0, 2, 4, and 6 plates!
Attention! Beta test!
Please let me know if something doesn't fit!
Heat-set insert M5x9.5 13x https://amzn.to/4cmg3U9
Heat-set insert M3x5 31x https://amzn.to/4v720JD
Magnet 5x3mm 8x https://amzn.to/48p0HMd
M5x25 cylinder screw, 3x https://amzn.to/4sJtcfT
M5x20 countersunk screws, 11x https://amzn.to/4c3FQzd
M3x6 countersunk screws 32x
M3x14 countersunk screw, 16x
M3x10 countersunk screws 12x

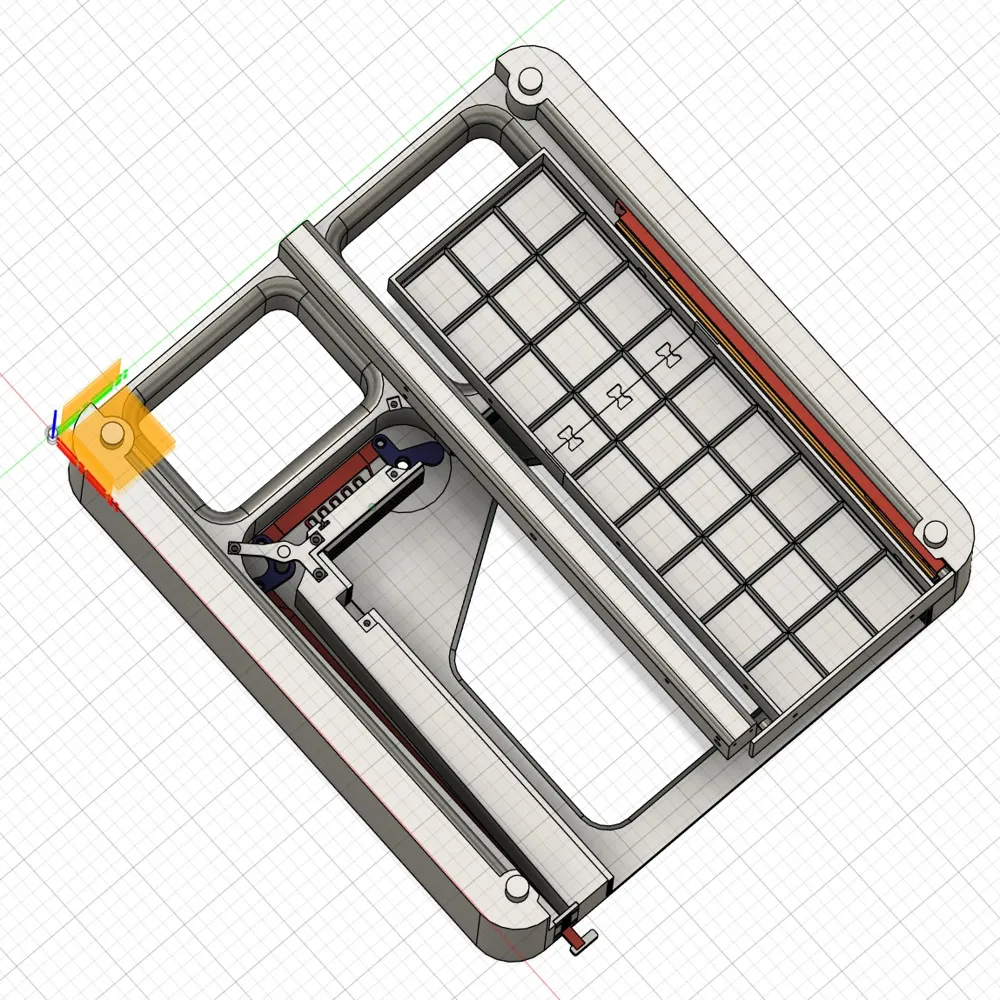

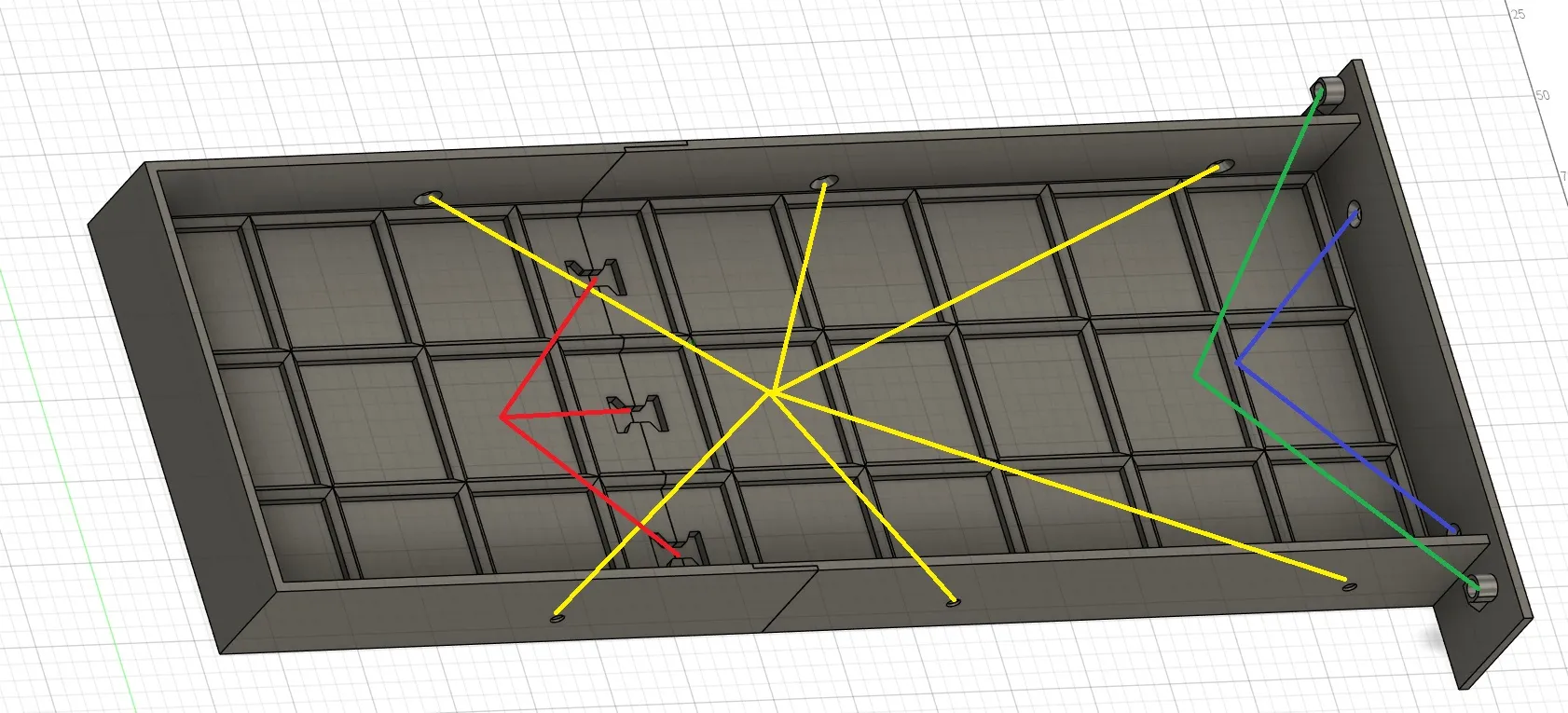

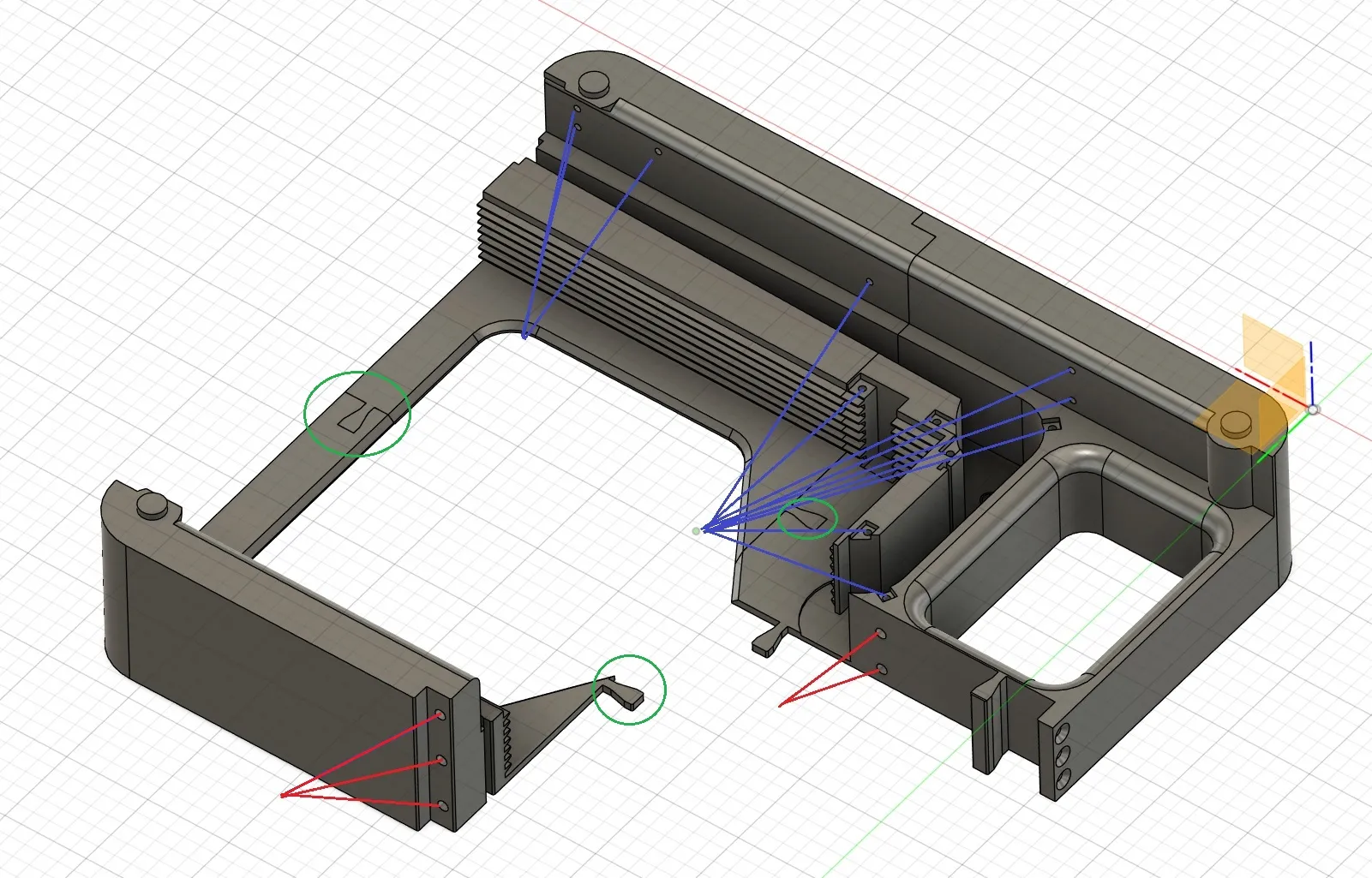

- Heat-set inserts: M5x9.5 for the red stitches, M3x5 for the blue ones
Then screw together with the M5x20 screws - when assembling, possibly glue at the green points

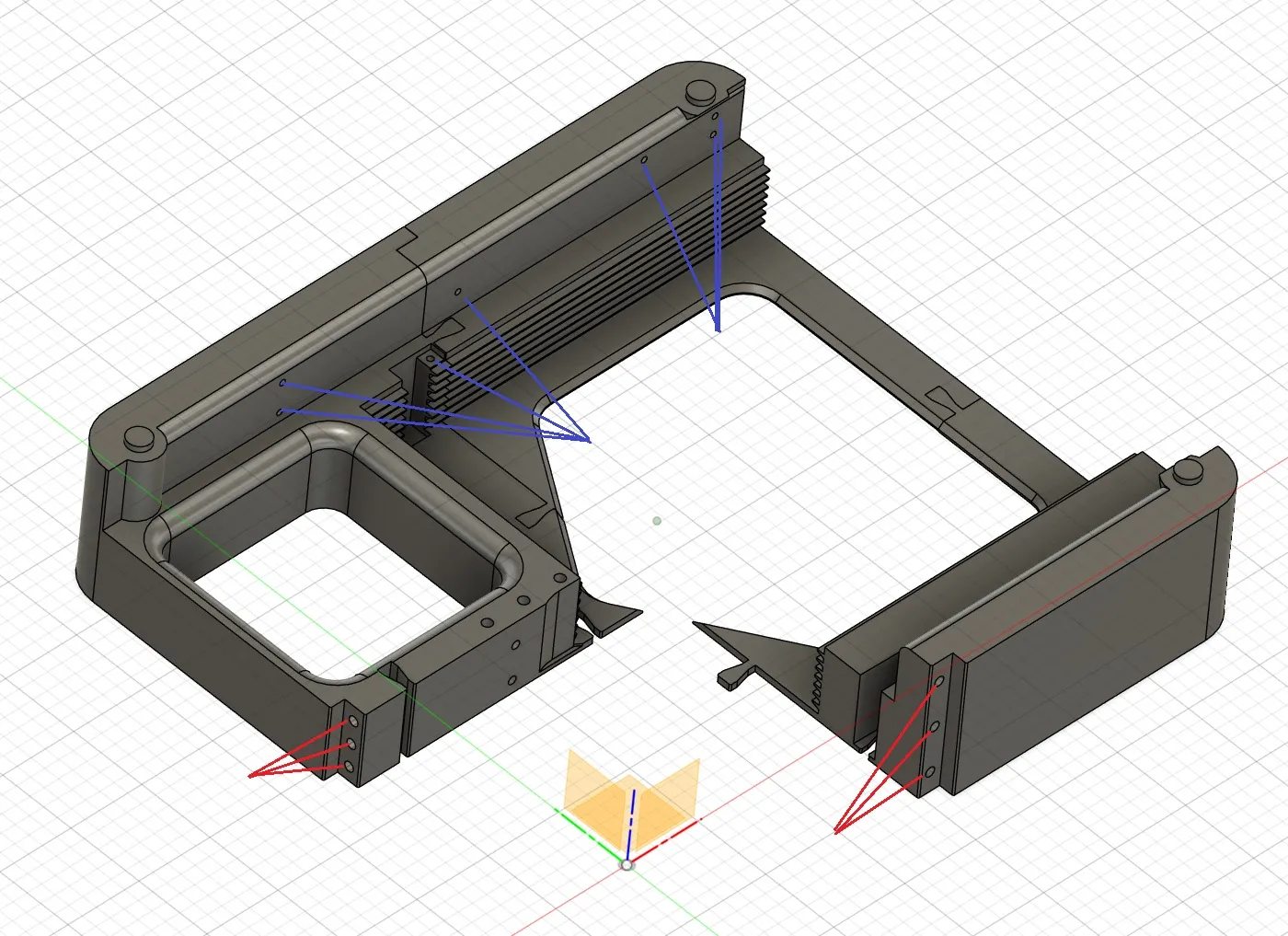

3. Assemble 8x
4. Insert 2x axles
5. Insert 8x

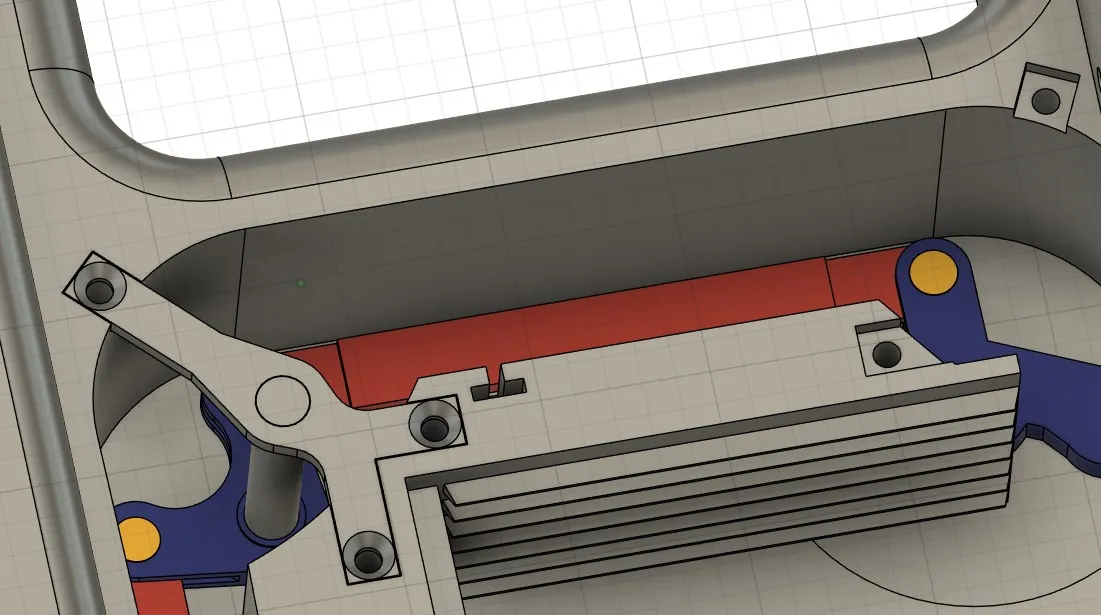

6. 4x M3x6 countersunk screws directly into the plastic

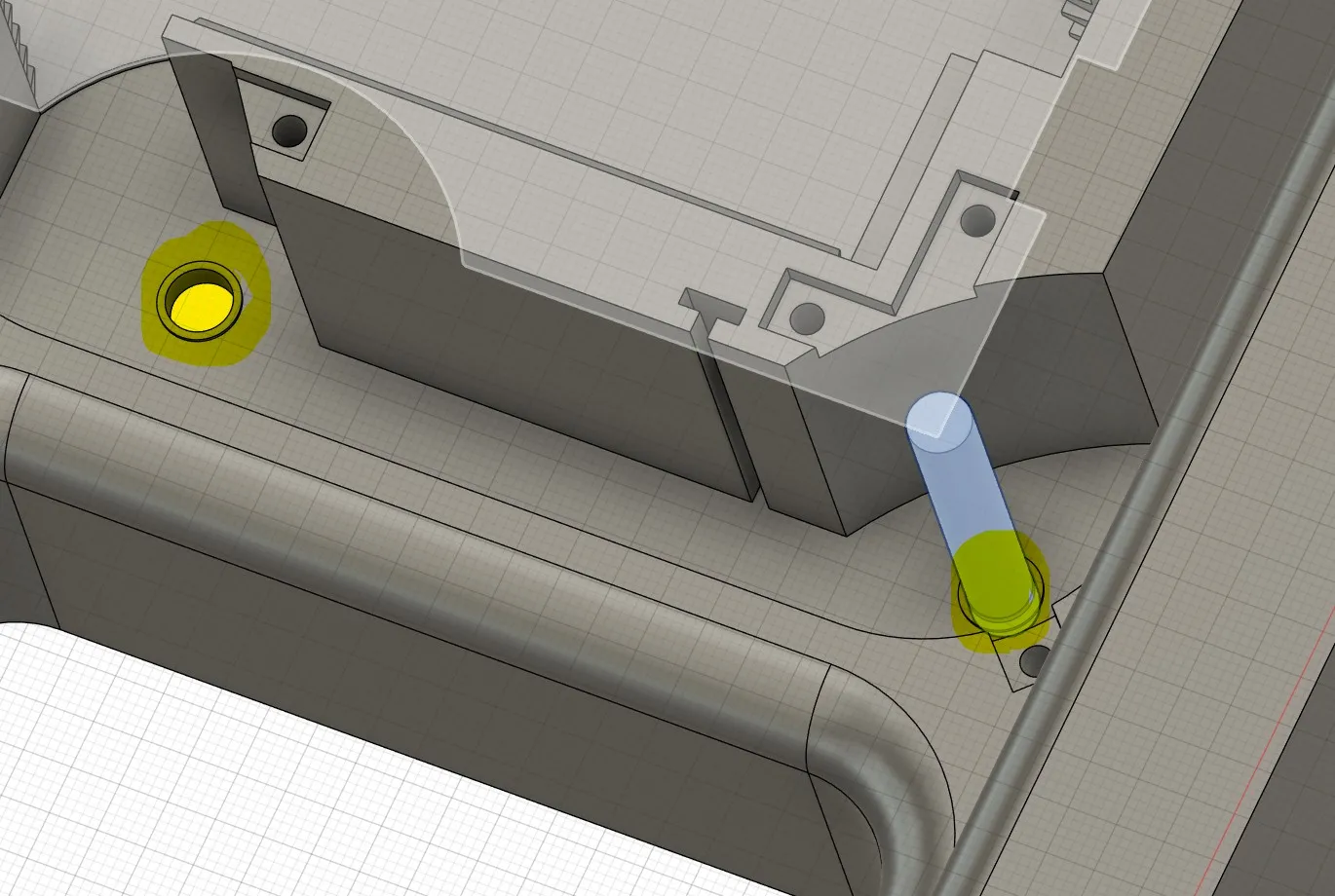

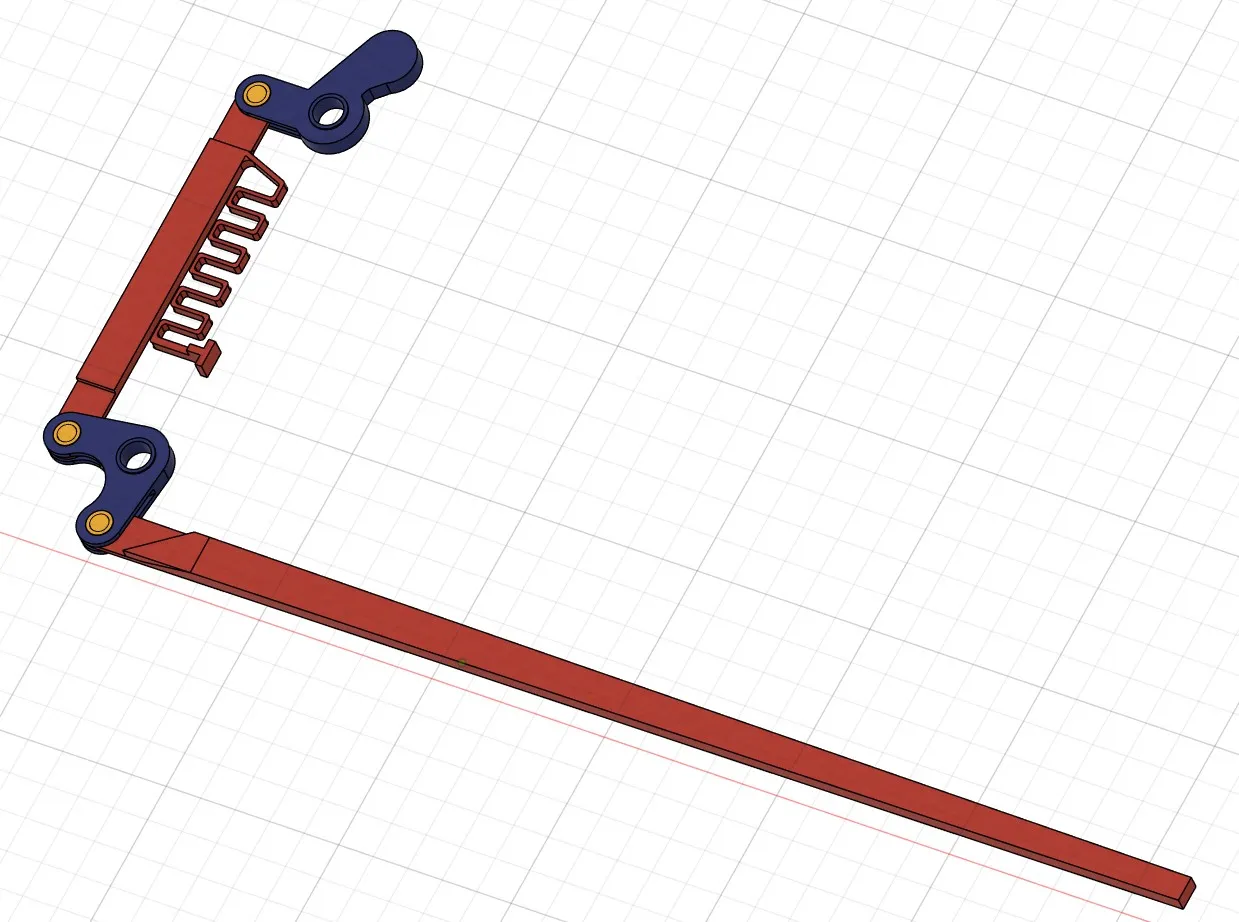

7. Mount both axle holders (you only see one in the picture)
M3x6 countersunk screws, 5x

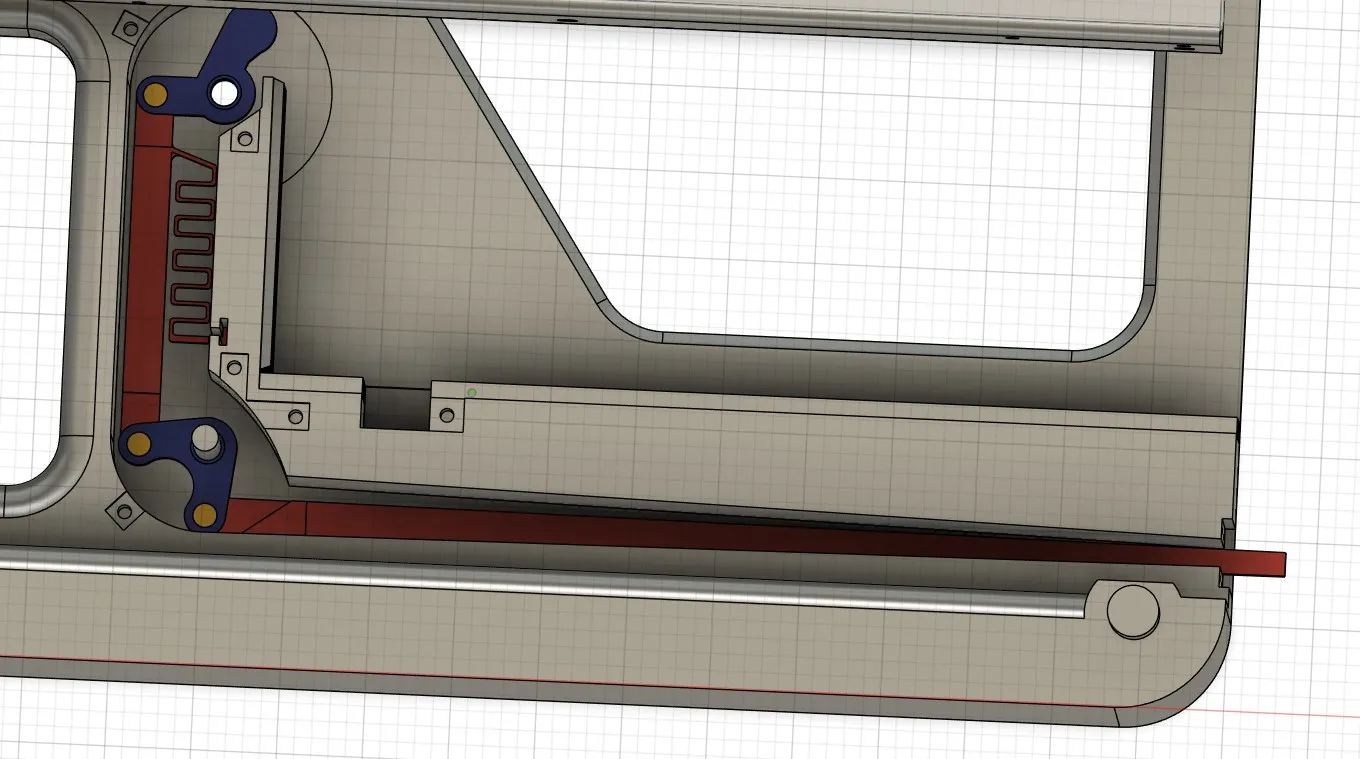

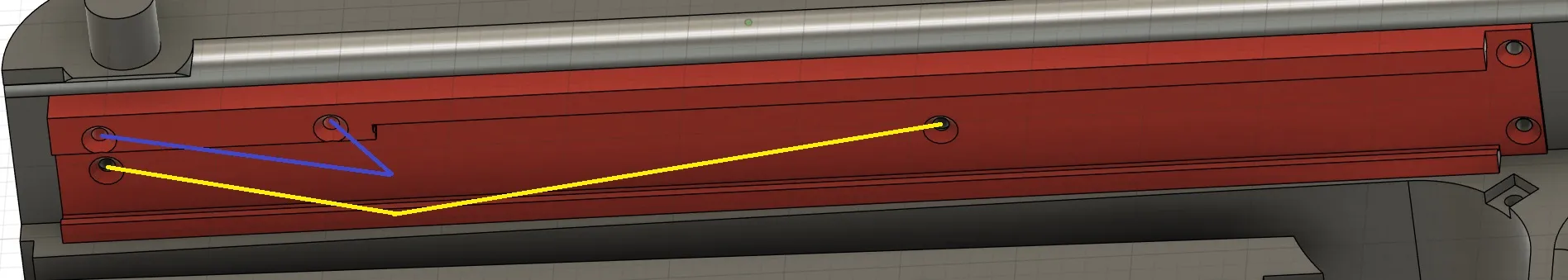

8. Mount both brakes, M3x6 countersunk screw

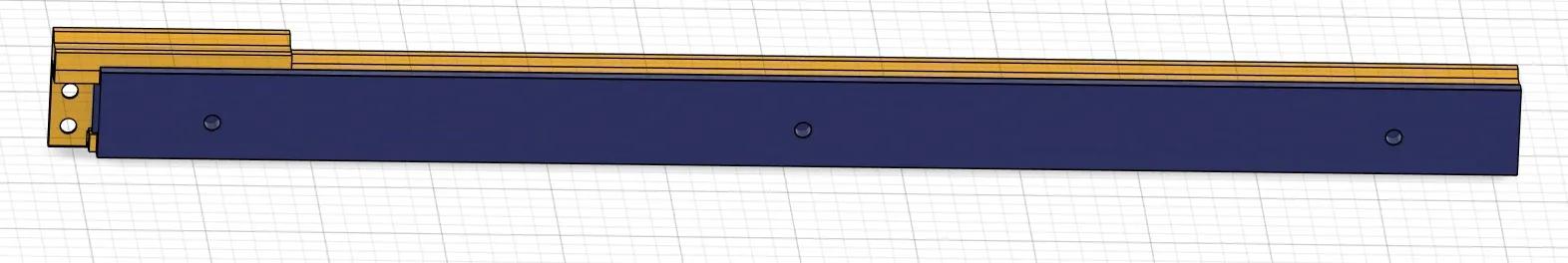

9. Assemble pull-outs: 4x

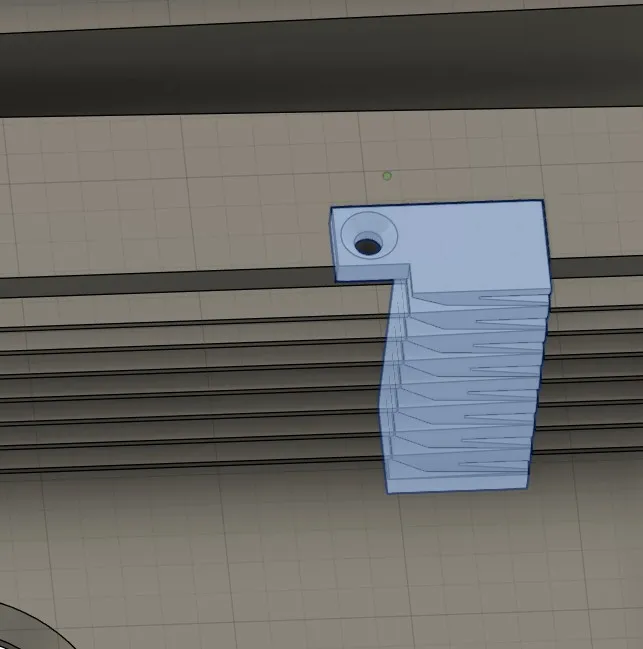

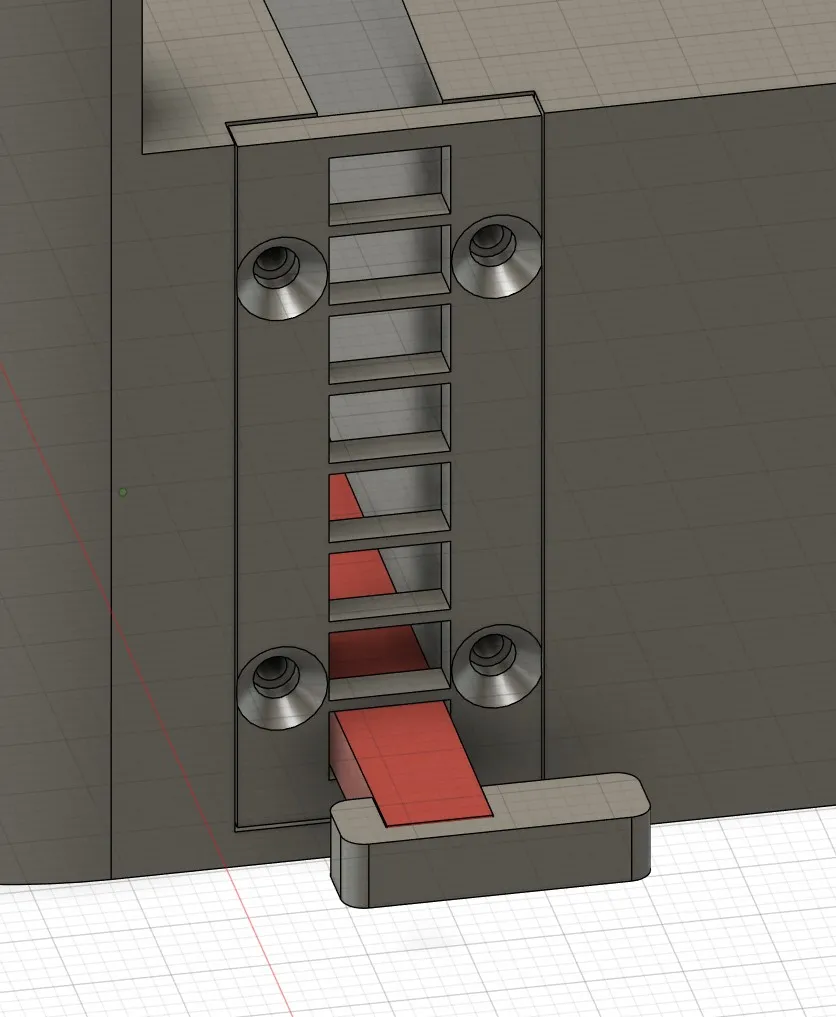

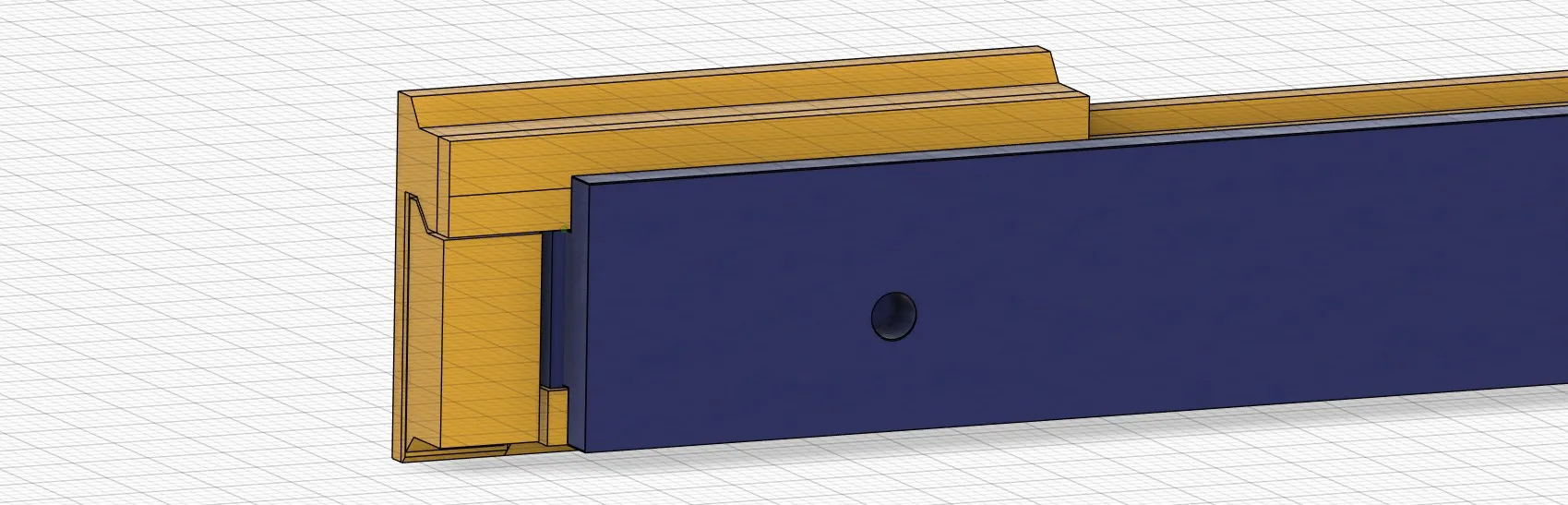

First insert the blue part, then mount the stopper. (M3x6 countersunk screw, 8x)

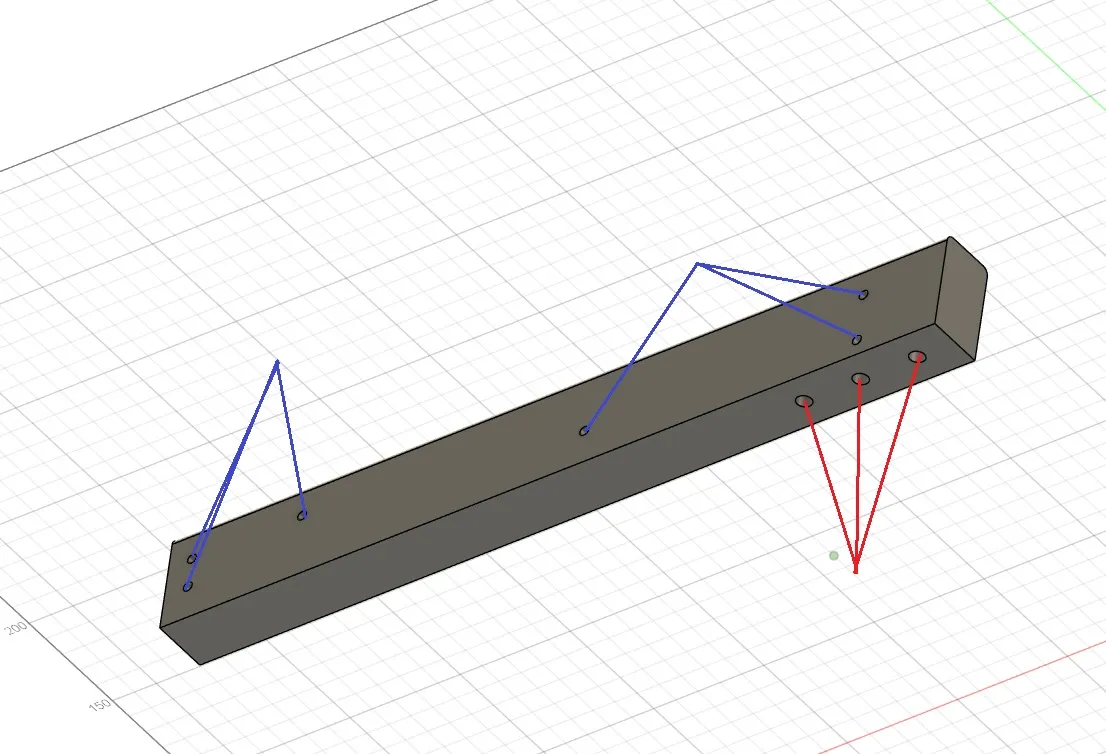

Insert 12x M3x5 heat-set inserts
Insert magnet 5x3mm 4x
blue: M3x14 countersunk screw, 8x
yellow: M3x6 countersunk screw, 8x

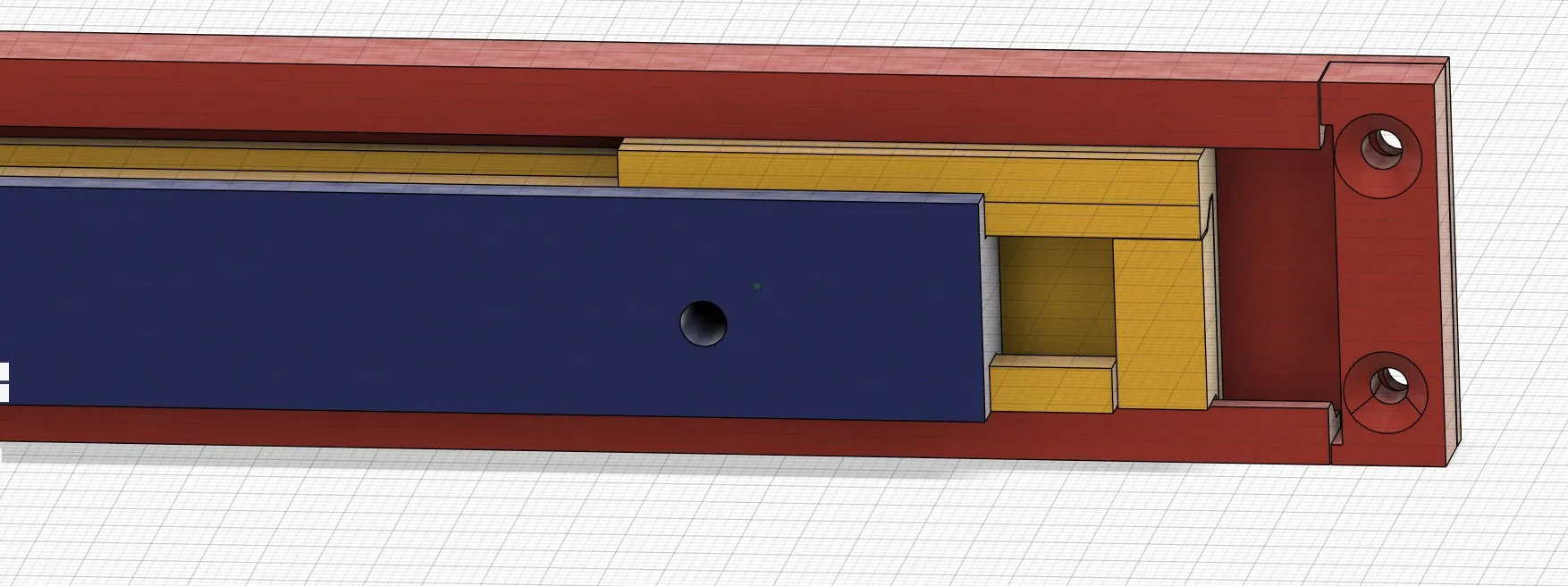

Insert pull-outs and M3x14 countersunk screw, 8x
10. Prepare drawers
green: glue

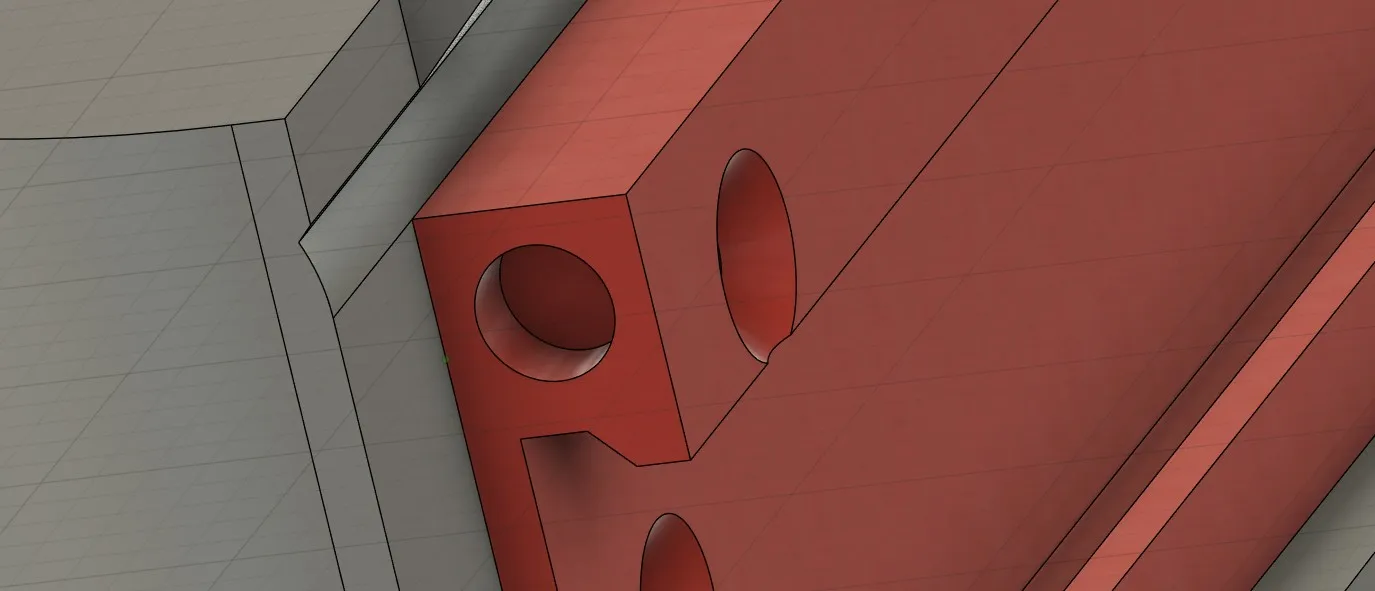

red: insert 6 connectors
green: glue in magnet 5x3mm (4x)
blue: M3x6 countersunk screws (4x)
blue: M3x10 countersunk screws (12x)
11. Melt in threaded inserts and loosely screw in with M5 screws.
Tighten only after inserting the drawers
