Ammo Box - 45-70 - 72 Rounds

45-70 Double Ammo Box — Built with BoxLoc

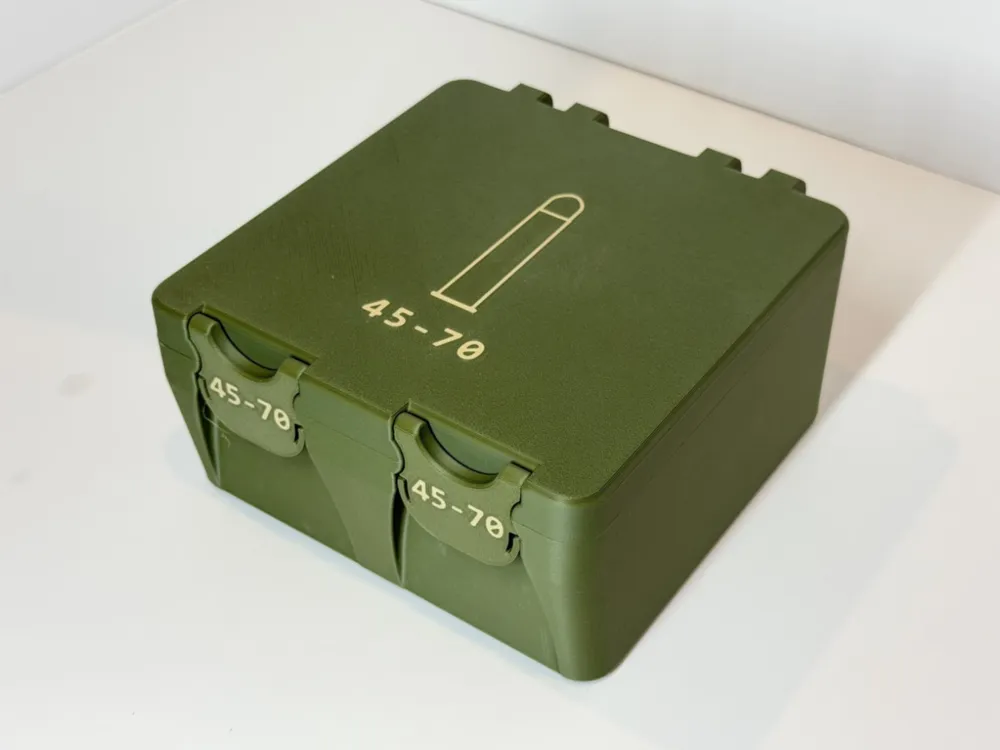

Expanding on the BoxLoc system, this version is designed specifically to store 72 rounds of 45-70 ammunition in a clean, modular format. It carries over the same smooth design language as my card boxes — rounded edges for comfort, a secure sliding hinge, and a crisp latch with an integrated finger lip for easy use.

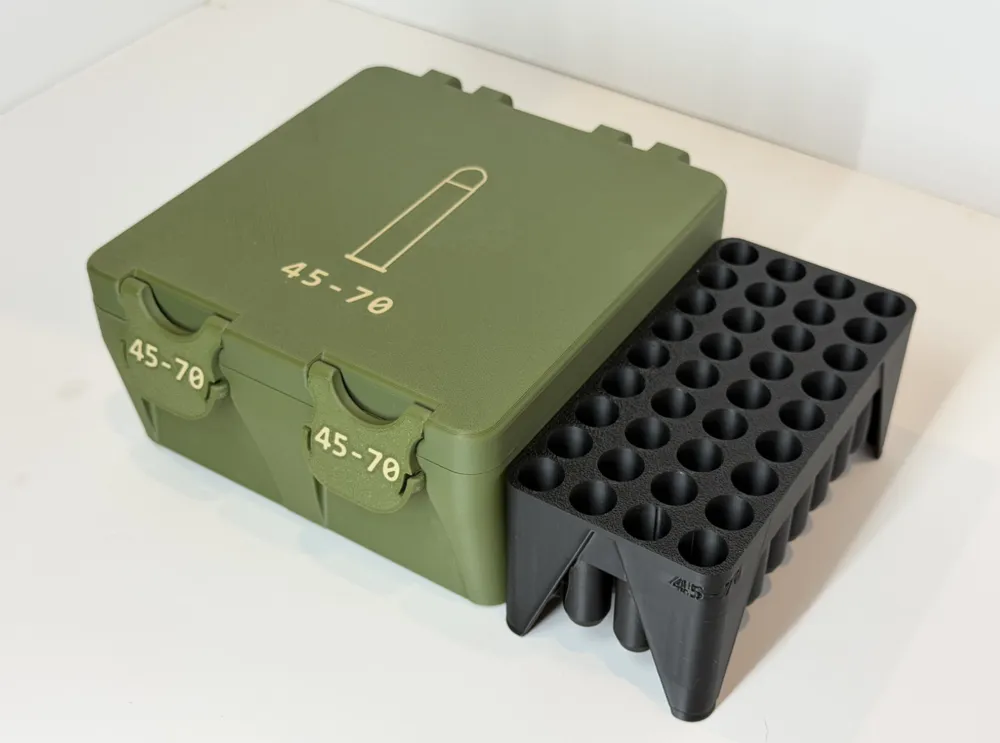

Each ammo box includes removable inserts, making it simple to load, organize, and clean. The inserts fit snugly inside the box but can be lifted out when needed, giving you more flexibility for storage or transport. Like other BoxLoc designs, assembly is hardware-free — no tools, screws, or glue required.

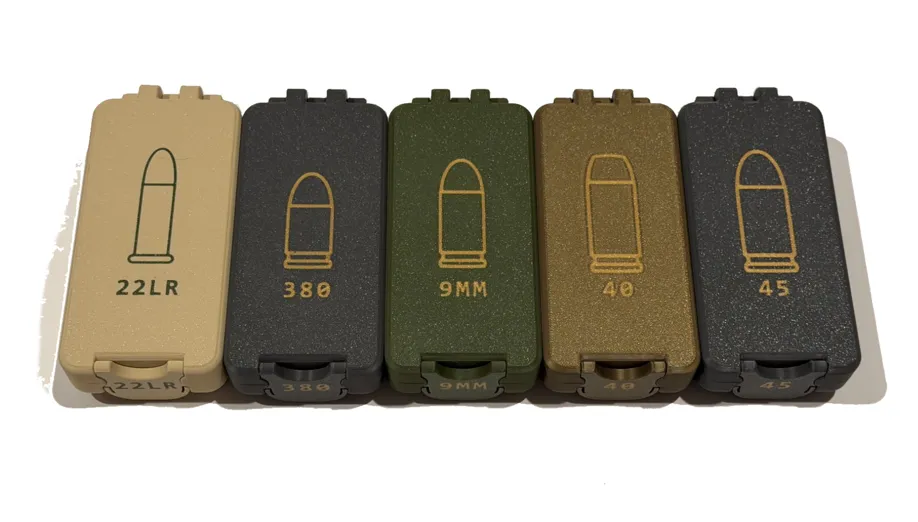

Click below for the full Ammo Box Collection:

• Update 5/23/26 - Increased fitment tolerances and revised design of the ammo insert - If you experienced any fitment issues, please re-download the model with the revised inserts.

Highlights – Double Edition

• Holds 72 rounds of 45-70 ammunition
• Compatible with one 72-round tray insert (if available) or two original 36-round inserts
• Removable inserts for easy loading and organization
• Ammo size labels on the legs of the tray inserts for quick identification
• Rounded edges for comfort and a clean, finished look
• Refined rear hinge system for smooth, secure lid movement
• Crisp latches with integrated finger lips for easy opening
• Stands on all sides for convenient storage and transport
• Hardware-free assembly — no tools, screws, or glue required
• Compact and durable — ideal for range use or long-term storage
• Built on the BoxLoc platform for a consistent look and modular compatibility with future boxes

Assembly Instructions

1. Join the lid and base
   • Align the lid’s hinge tabs with the grooves on the bottom of the base.
   • Gently slide the lid upward into the hinge slots.
   • When you feel resistance, lightly wiggle the hinge along the pivot joint as you continue sliding upward to help it seat properly.
   • Double version - Because it includes an additional hinge set, you may need to work each hinge section individually, guiding them upward one at a time, a little at a time, to prevent binding or potential breakage.
   • Continue until the lid clicks securely into place and pivots smoothly.
2. Attach the front latches
   • Position the latch so the rounded side inserts into the lid at a slight angle.
   • Lightly squeeze the top of each latch to help them pop into place.
   • Make sure the flat side faces outward, so the finger lip curves toward the box.
   • While the latches will technically fit either way, this orientation provides the best comfort and clearance when opening or closing.
3. Ammo Tray Installation

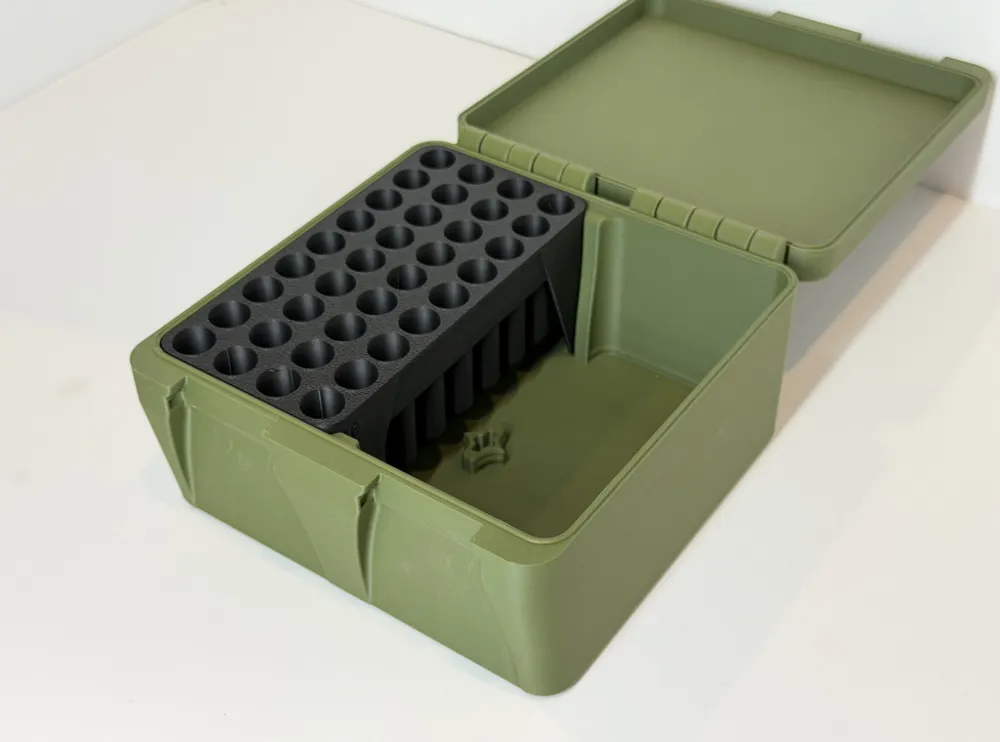

   • Place the insert tray into the box and press firmly down on all four corners to lock the legs into place. You’ll know it’s fully seated when the top surface sits flush all the way around.
4. Ammo Tray Removal
   • Remove one round from a corner, then insert the end of a pencil (or similar tool) into the empty hole to gently pry the tray upward at an angle. Once it starts to lift, you can continue with the pencil or grab the exposed edges to fully remove the tray from the box.

NEW - Support & Commercial Use Memberships
Supporter and limited commercial license memberships are now available on Patreon @ (https://patreon.com/Layer51).
