Raiser for oec/oect modified dual-bay Macintosh NAS enclosure (12V power supply does not require soldering to the easy-drive cable)

Base compatible with the oec/oect modified dual-bay Macintosh NAS enclosure published by 方阿成

Because repeated attempts at different soldering solutions were unsuccessful, with 3.5-inch hard drives constantly dropping connection, I directly abandoned soldering the 12V easy-drive cable. Instead, I bought a DC round-port connector (5.5x2.1mm) from Taobao and plugged it directly into the easy-drive cable for power supply. However, because I chose to directly plug the round-port DC connector into the easy-drive cable, there was interference between the connector's tail and the bottom of the enclosure, so I redrew the base. There are many round-port DC connectors, so I won't provide a link here. If the size isn't suitable when you buy it, you can just cut it to fit with a knife, but be careful not to damage the wires (damaged wires can easily short circuit).

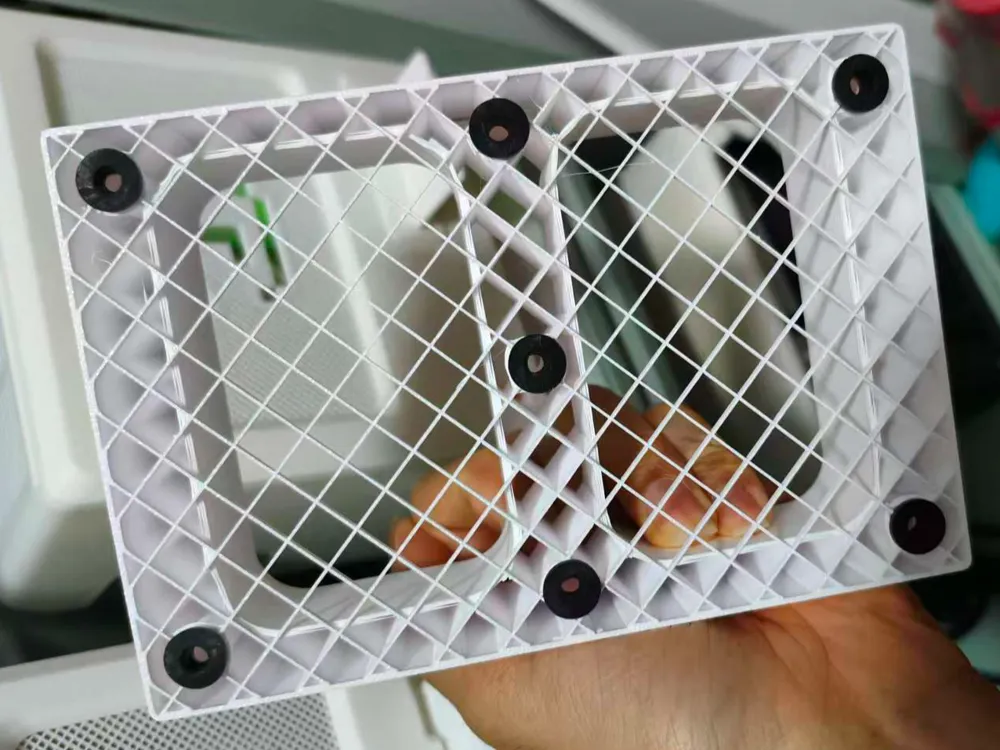

Additionally, the model includes assembly points for foot pads. You can directly use the rubber pads from 3.5-inch hard drive anti-vibration screws. The hole sizes are designed to fit the hard drive anti-vibration screws from the materials recommended by 方阿成; compatibility with other types is not guaranteed.

Finally, the SW model is also provided; if you find the size unsuitable, you can fine-tune it.
