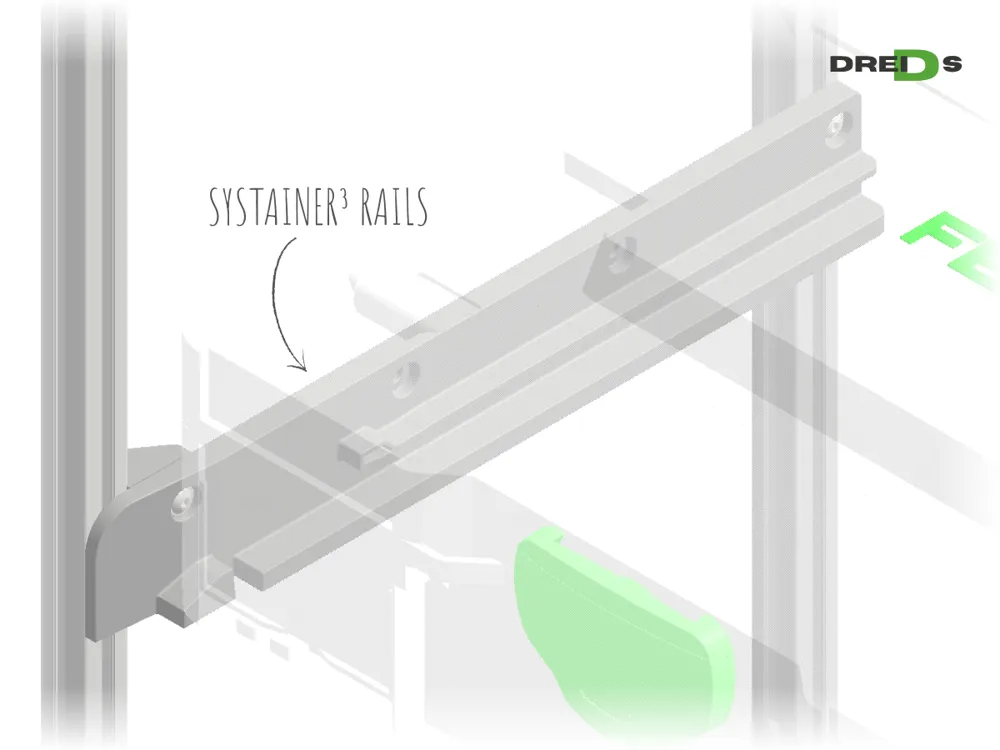

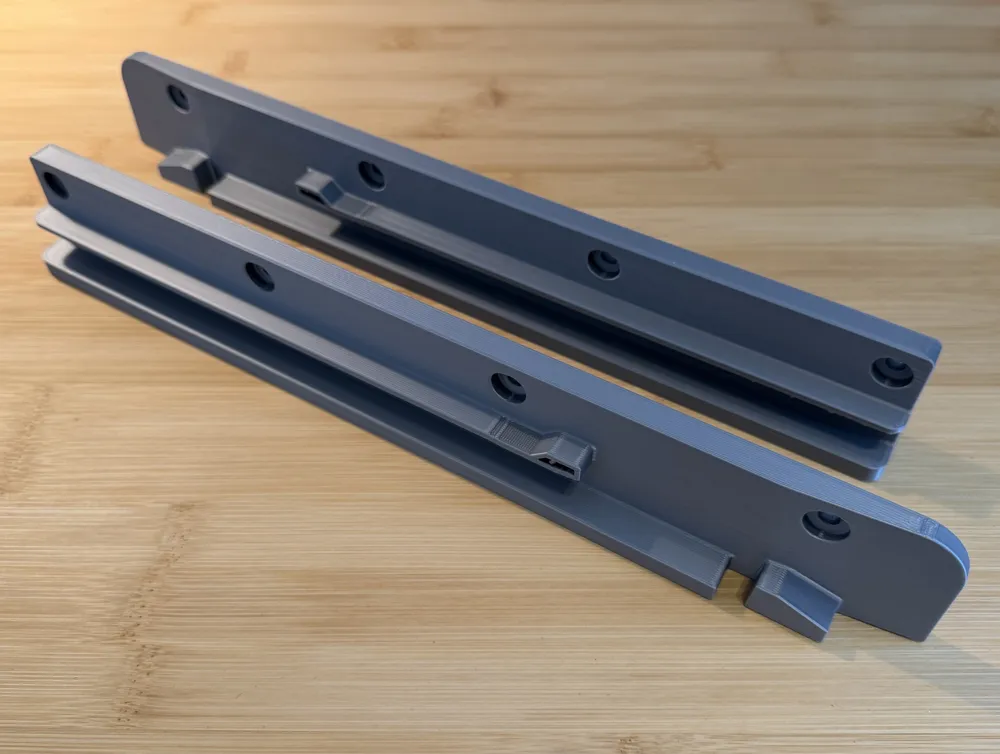

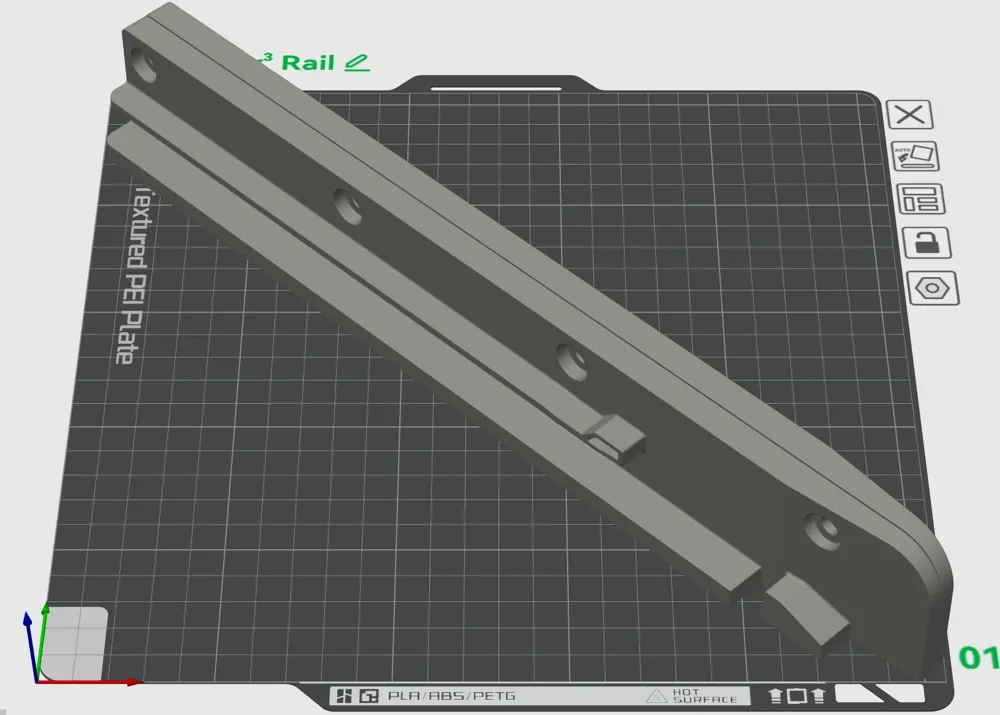

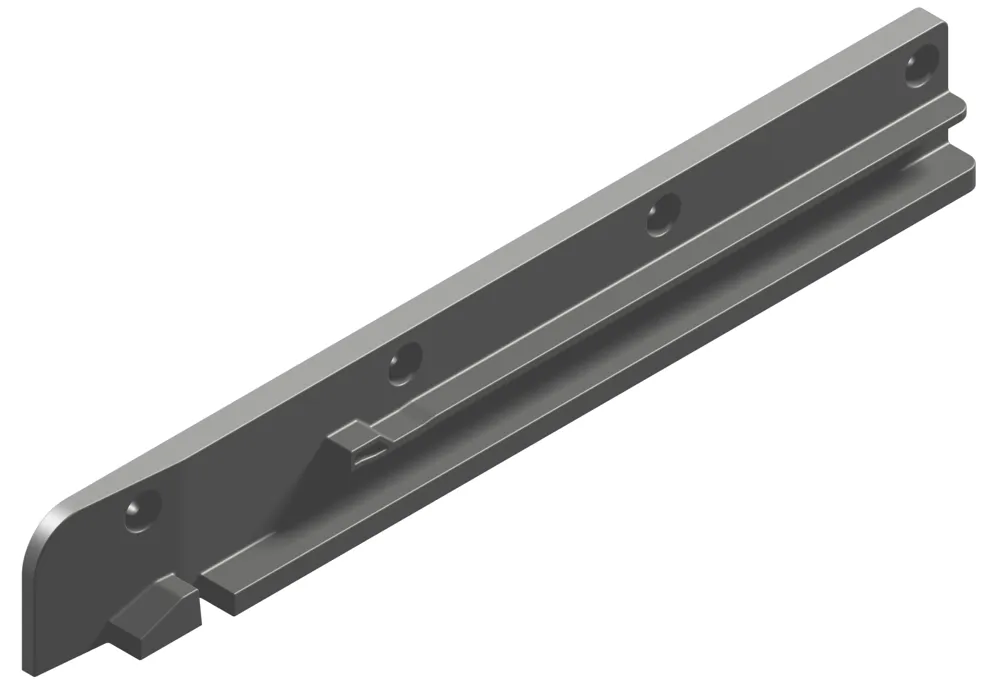

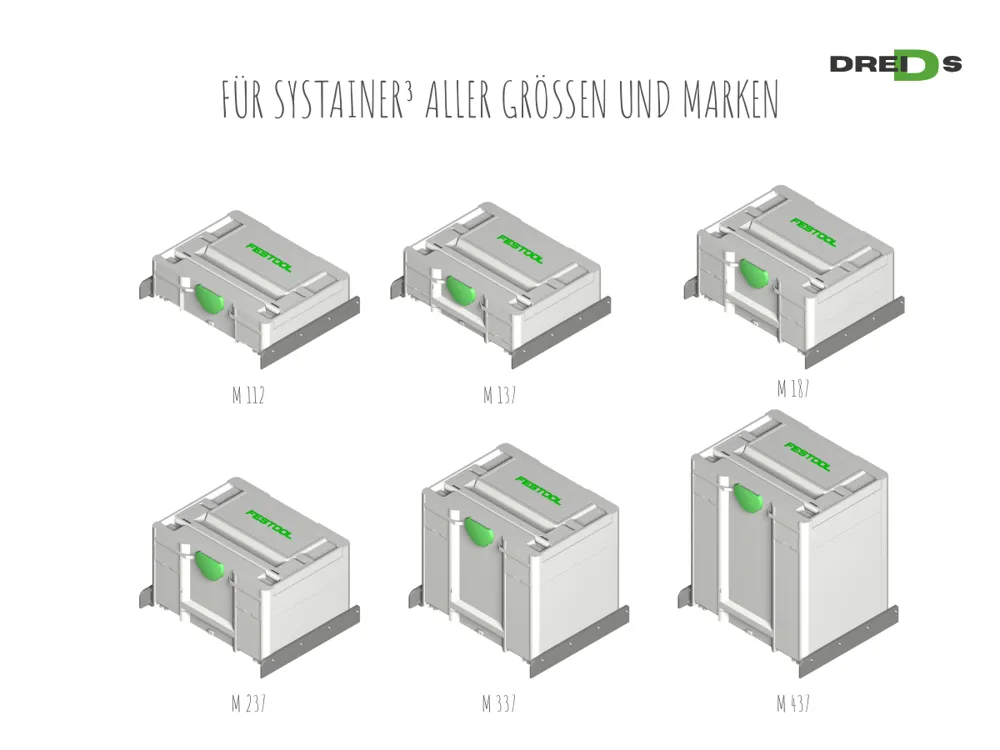

Systainer³ Rails for the 32mm hole line system in a wood or aluminum carcass

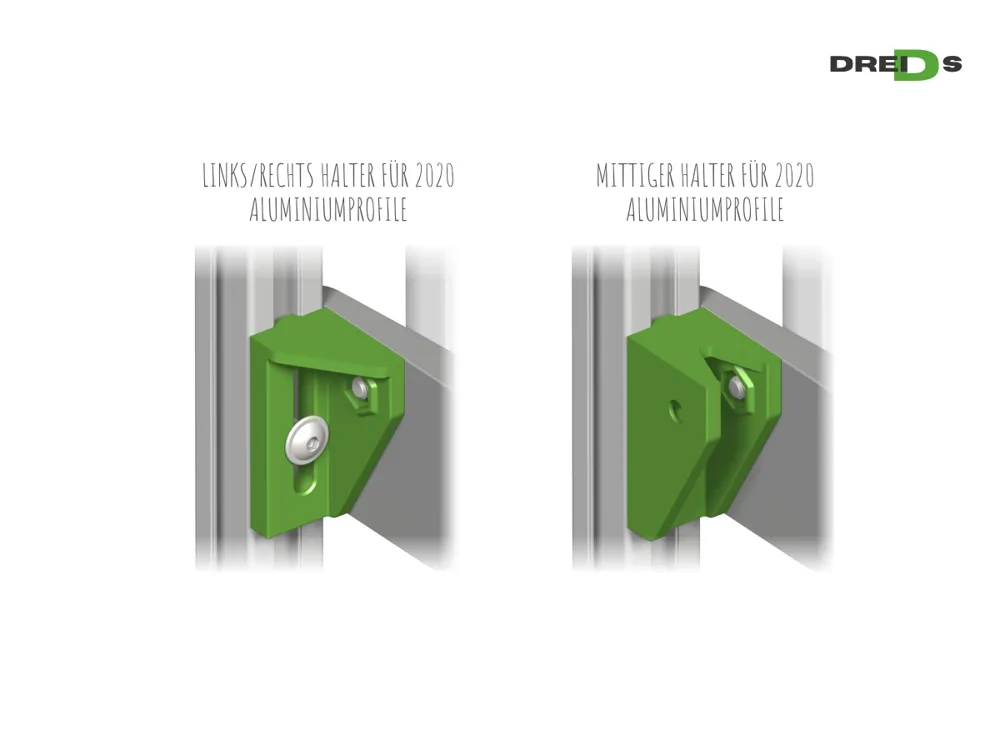

To attach the rails to a 2020 aluminum profile frame, corresponding holders are available These can be secured with M5x10 pan head screws

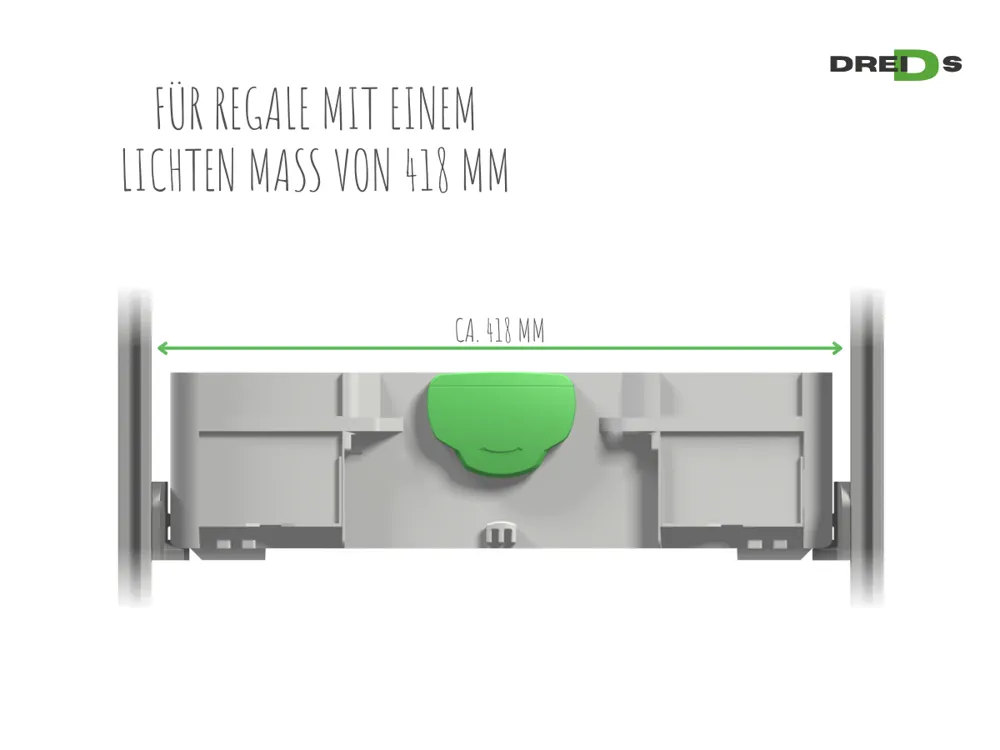

General information about the hole line system:

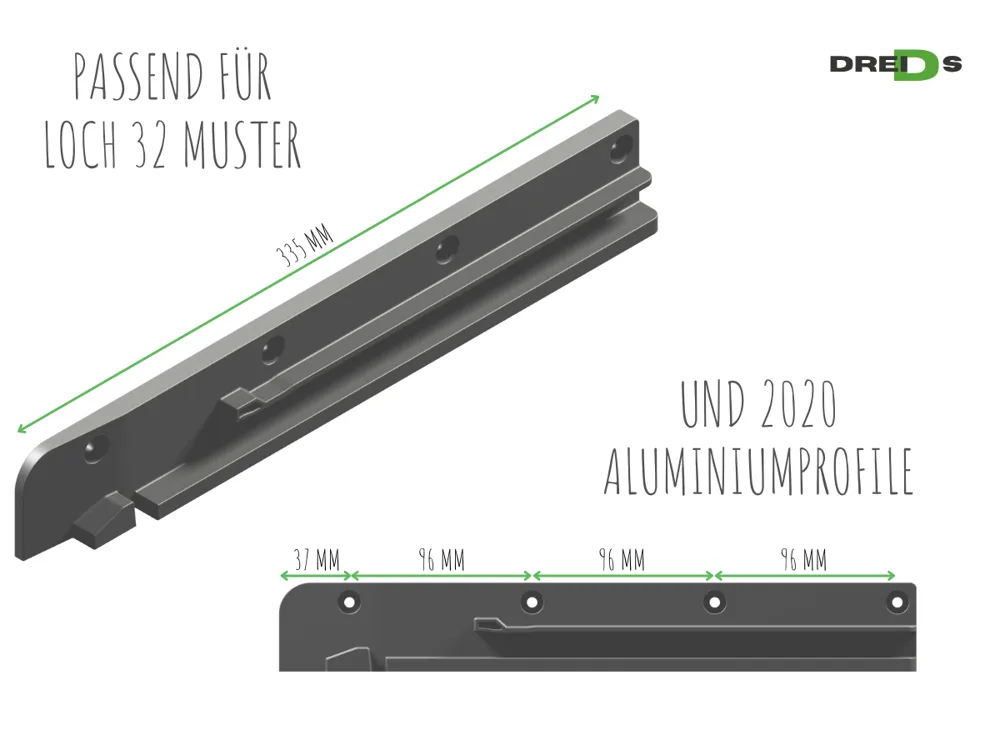

- The 32mm hole line system is an industry-wide standard in furniture and interior construction
- The hole spacing in the row is 32 mm or a multiple thereof
- The hole diameter is typically 5 mm
- The distance from the front hole row to the front edge is typically 37 mm

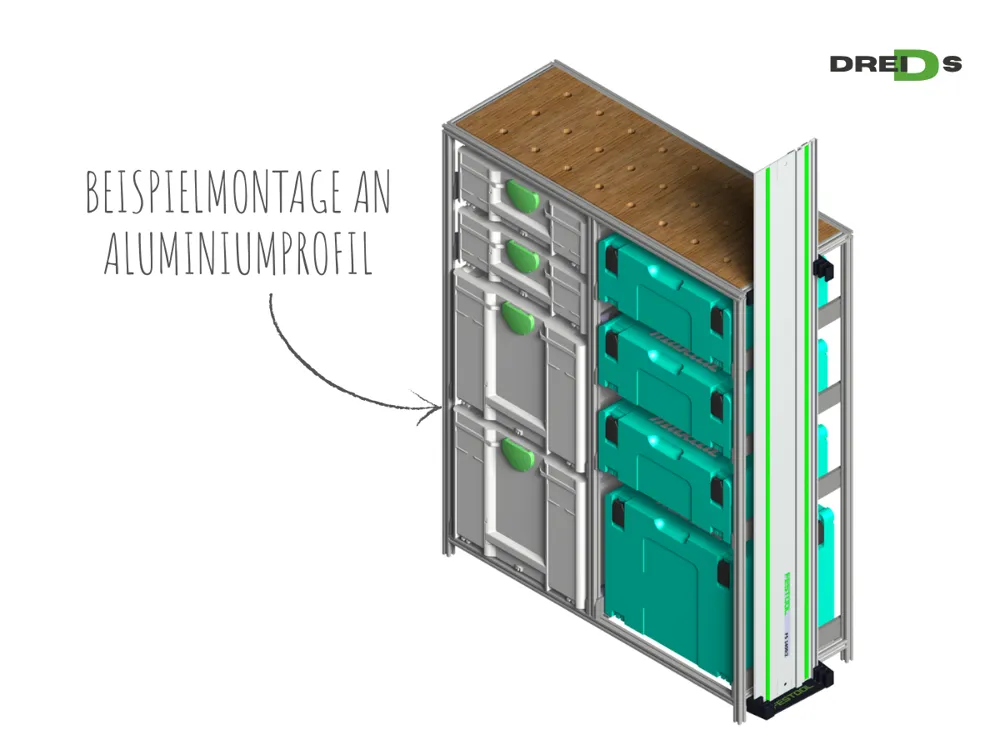

Example aluminum shelf with 2020 profiles:
- Height (without screw-in feet): 1120 mm
- Width: 896 mm
- Depth: 335 mm
- Aluminum profiles:
- 4 x 1100 mm (Vertical outer profiles)
- 2 x 1040 mm (Vertical middle profiles)
- 2 x 896 mm (Horizontal top cross profile)
- 2 x 856 mm (Horizontal bottom cross profile)
- 4 x 295 mm (Depth profiles)
- Worktop:
- 856 mm x 295 mm
