Aluminum Profile - Connector Plates (20/30/40) Series
Series:
- 2020: 2.5 mm thick, hole diameter 5.5 mm for M5*8 screws
- 2040: 2.5 mm thick, hole diameter 5.5 mm for M5*8 screws
- 3030: 3 mm thick, hole diameter 7 mm for M6*12 screws
- 3060: 3 mm thick, hole diameter 7 mm for M6*12 screws
- 4040: 4 mm thick, hole diameter 9 mm for M8*16 screws
- 4080: 4 mm thick, hole diameter 9 mm for M8*16 screws

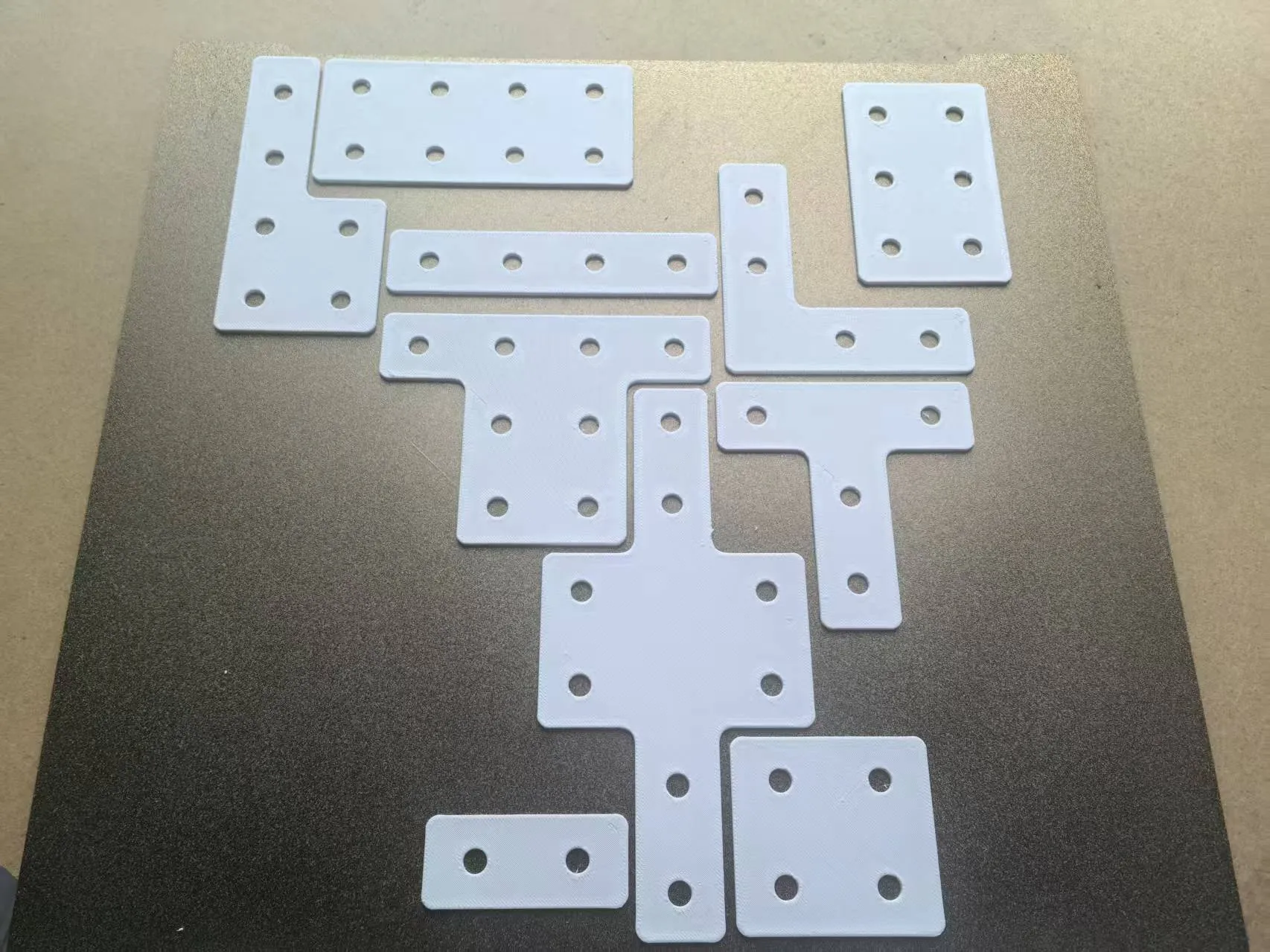

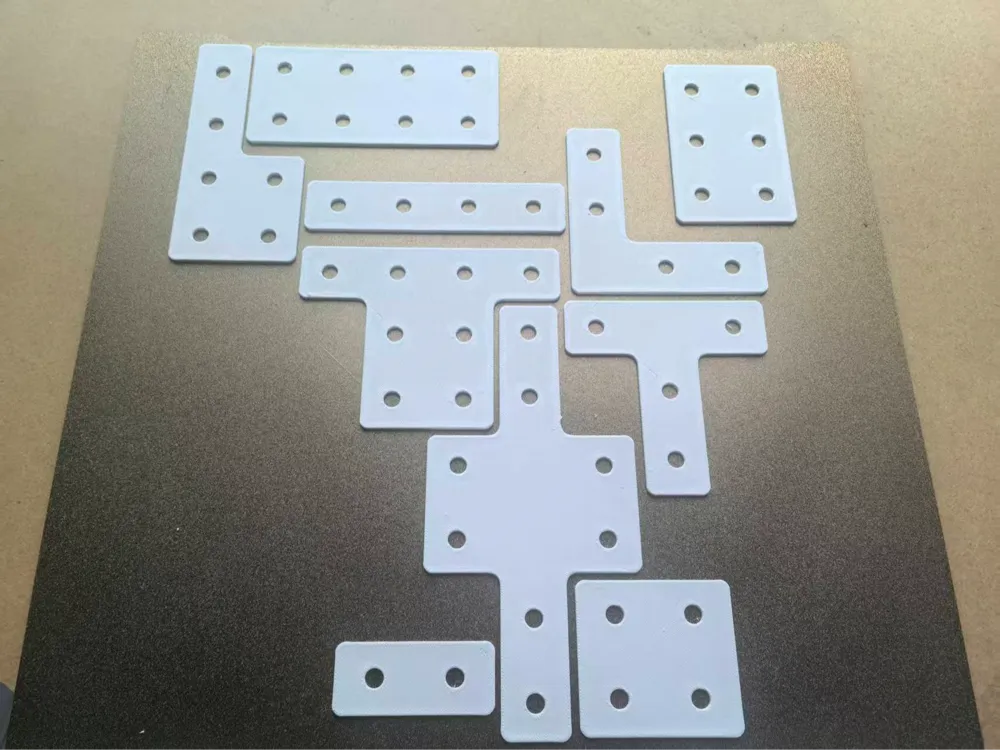

Each series has the following classifications:
- 2-hole straight plate
- 3-hole straight plate
- 4-hole straight plate

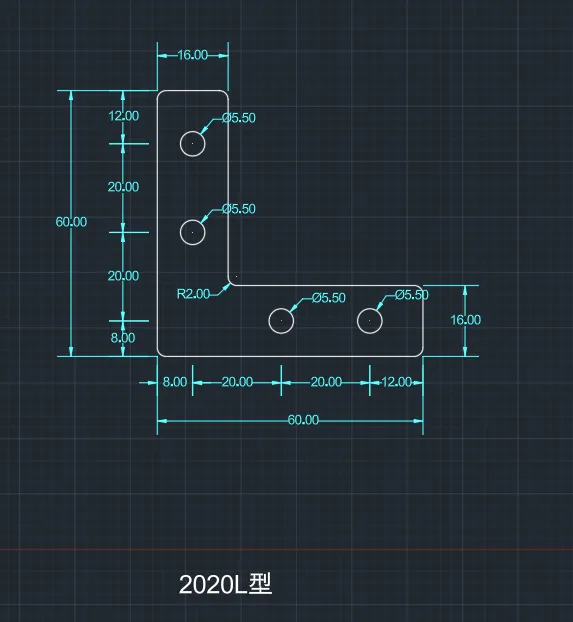

- L-shaped
- T-shaped

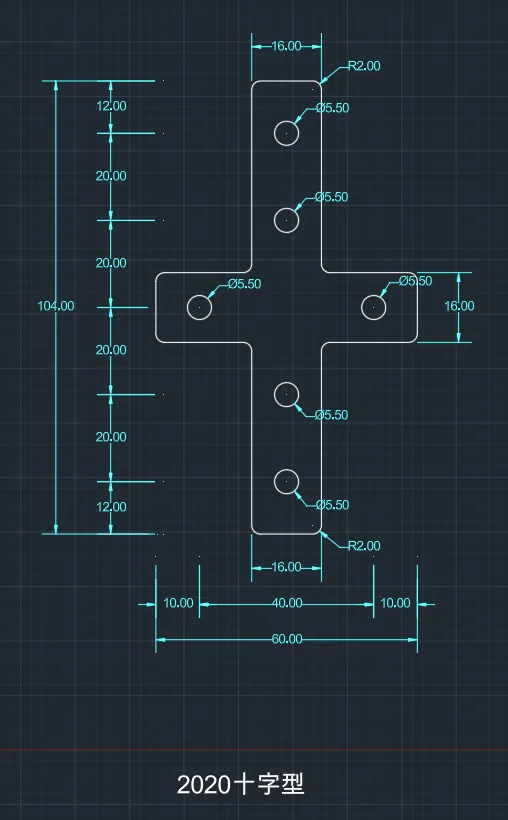

- Cross
