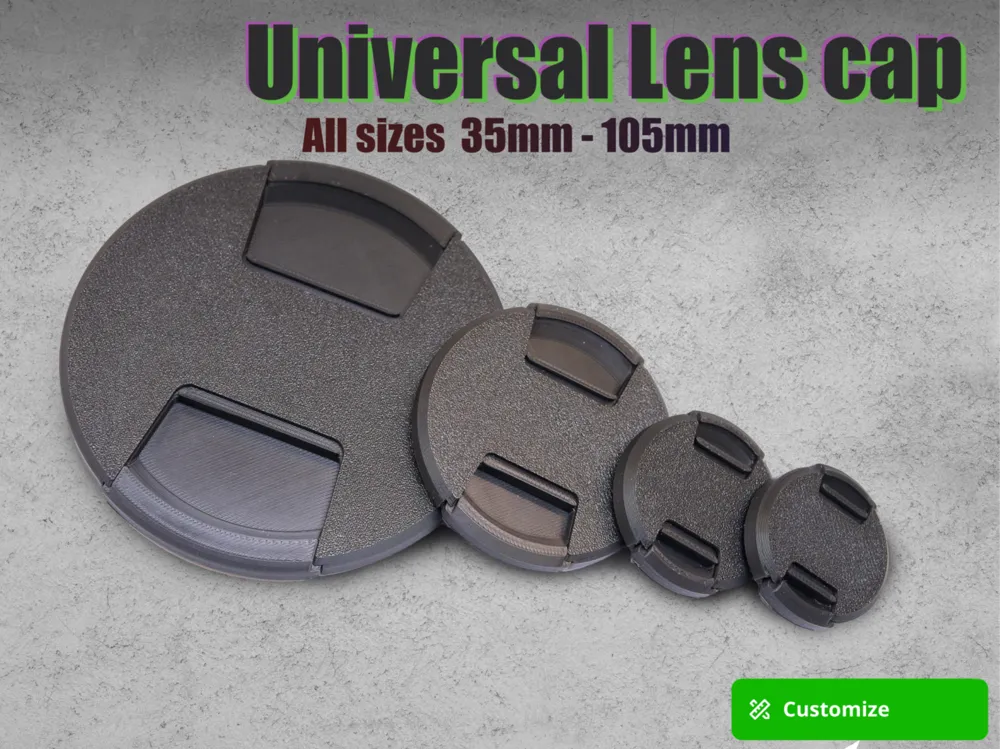

Universal lens cap - all sizes
Print Profile(2)
Bill of Materials
Description
Description:

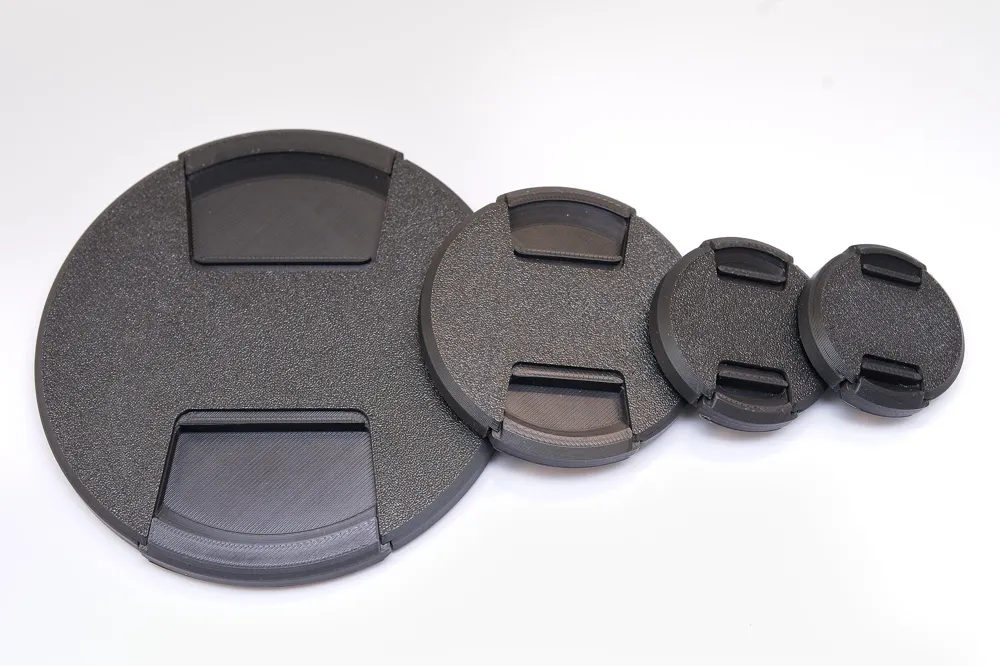

There should be all normal lens cap sizes, if there is any size you cannot find you can use the parametric option and make what you want between 105 and 35mm. Have not tested outside that but I think you can go bigger.
Note: There is two options to generate using the parametric model:
1. One with build in support. The distance between support and model is based on 0.2mm layer height.
2. Without support remember to add your self in slicer!
Two options for print profiles:
- AMS option where you HAVE to use PETG and PLA. This will give you the best overhangs
- No AMS option if you do not have AMS or only have one type of filament.

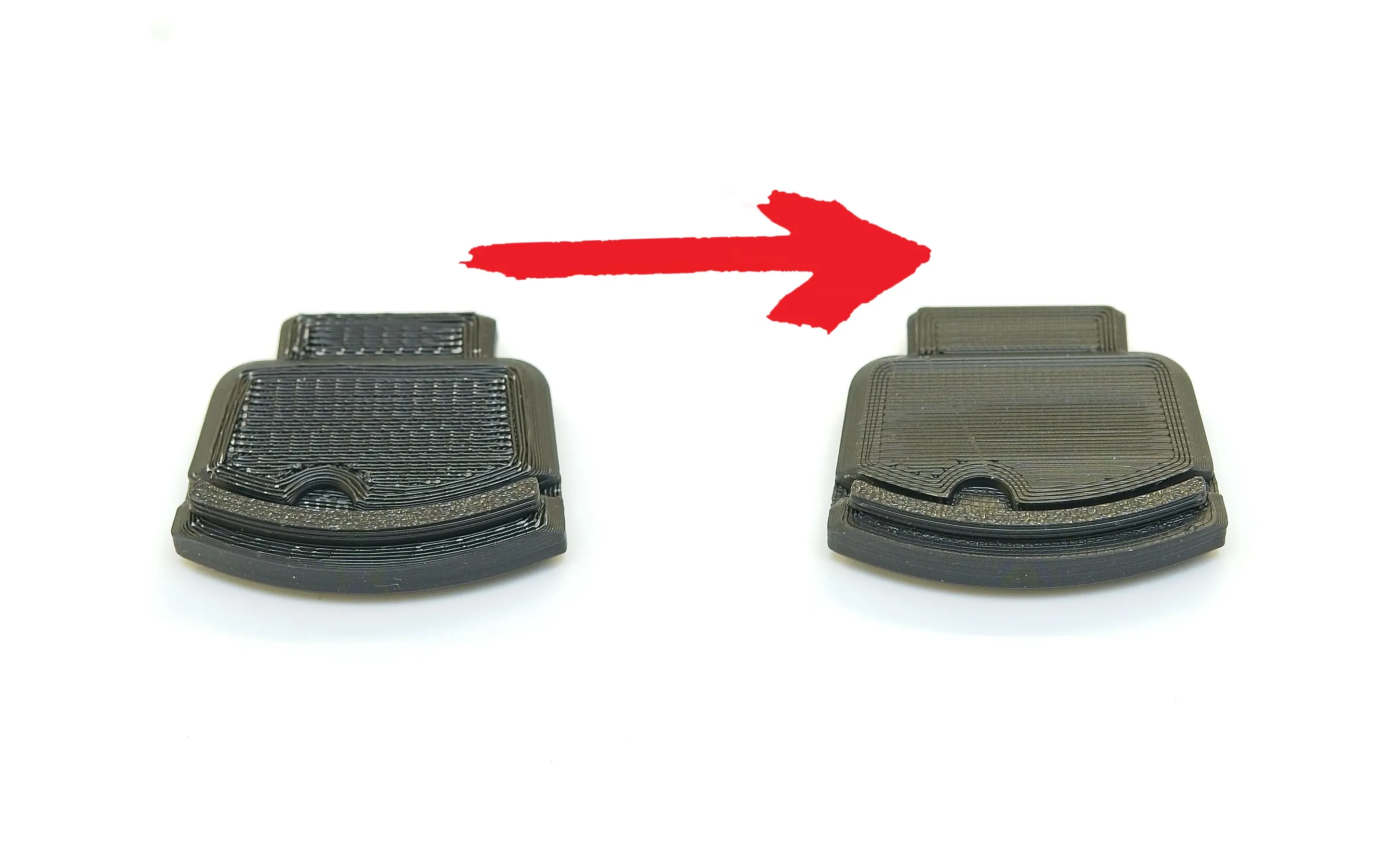

This is the difference between support with PETG or normal support:

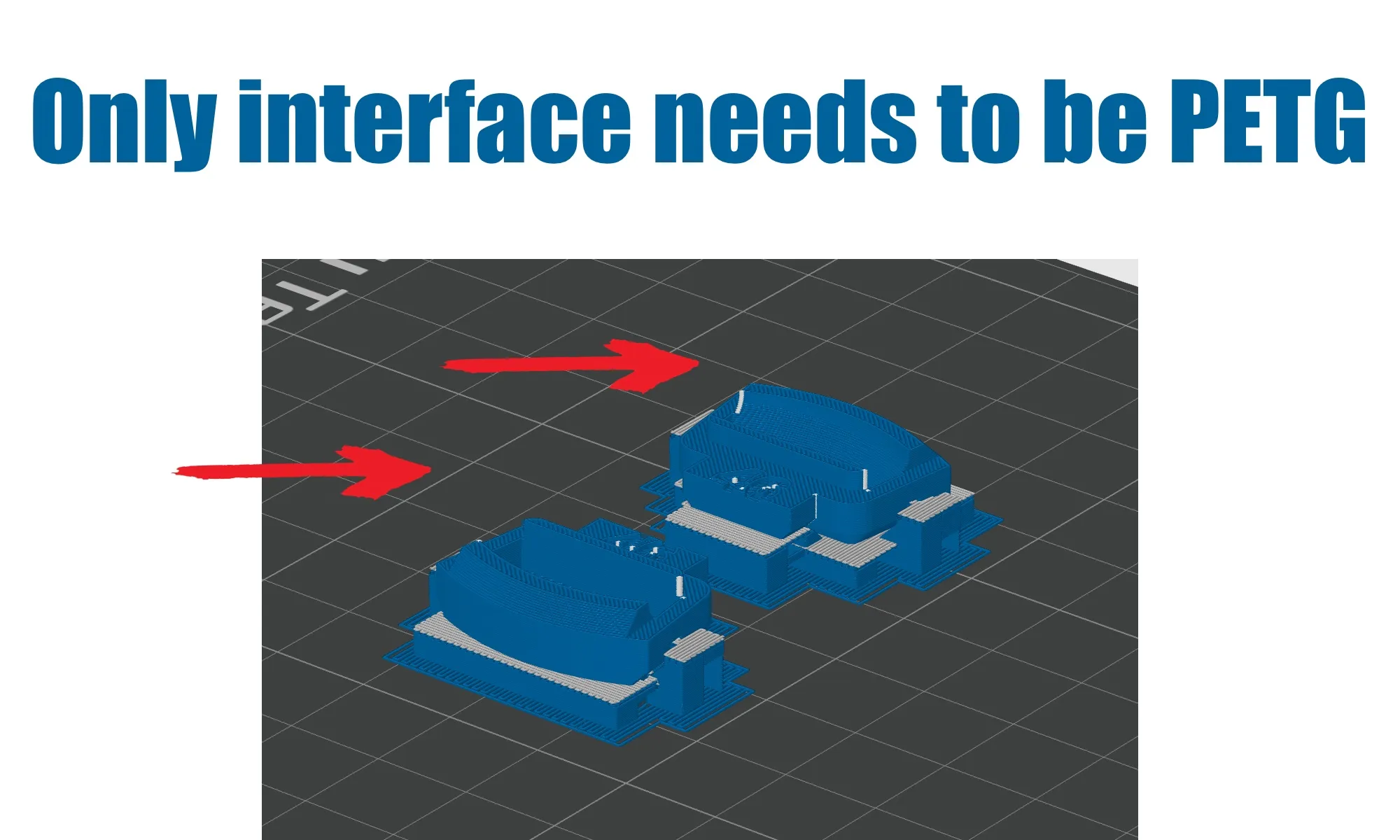

Only the interface needs to be PETG:
Assembly:

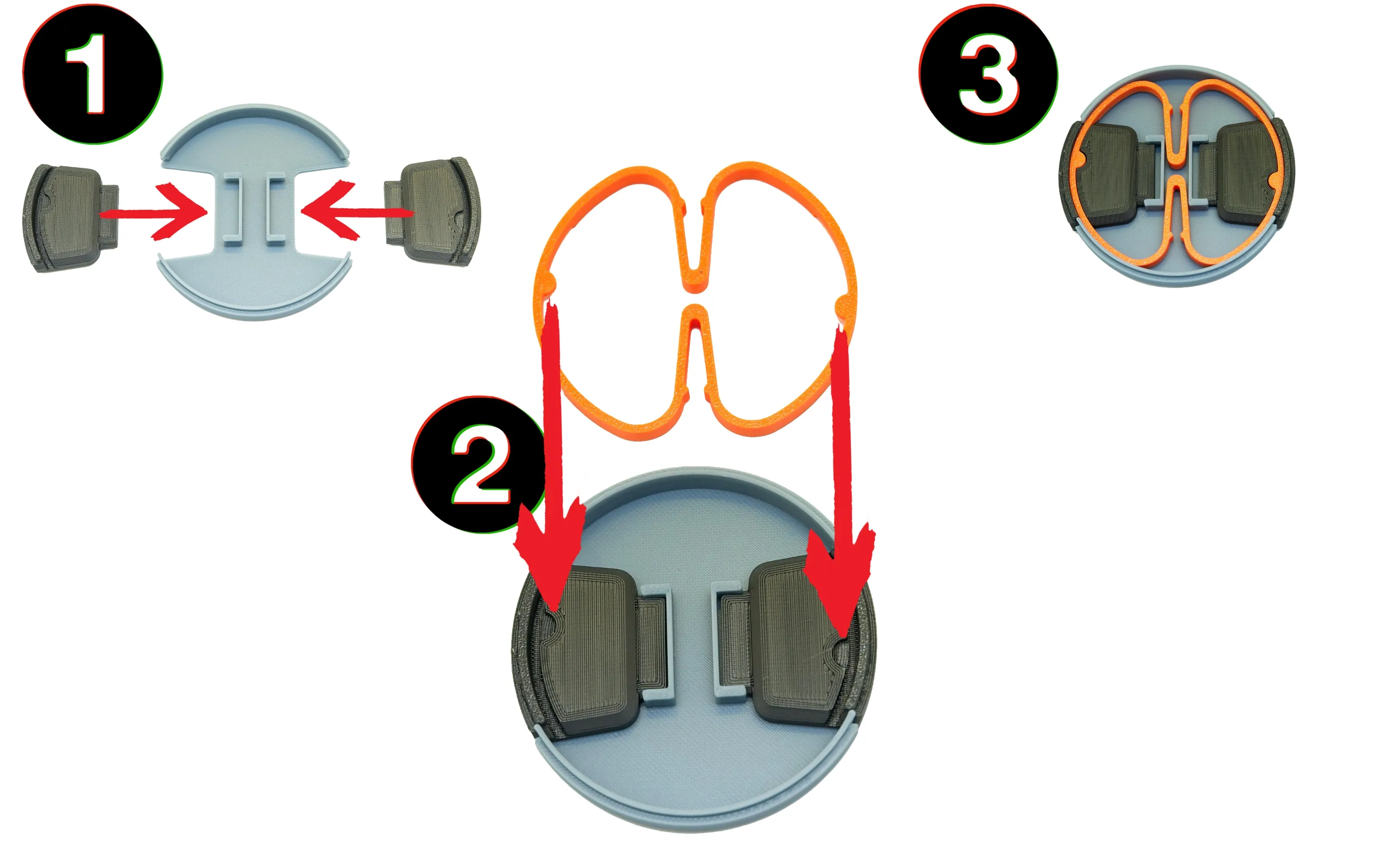

Super simple assembly in three steps:

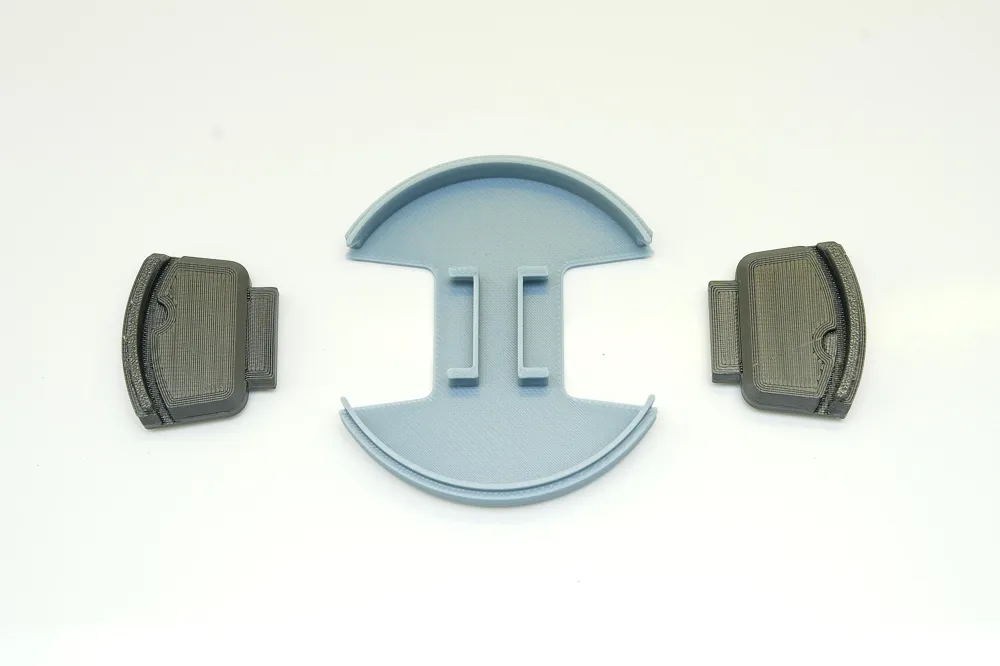

- Slide the “buttons” in from the side so they wedge in and sit firmly

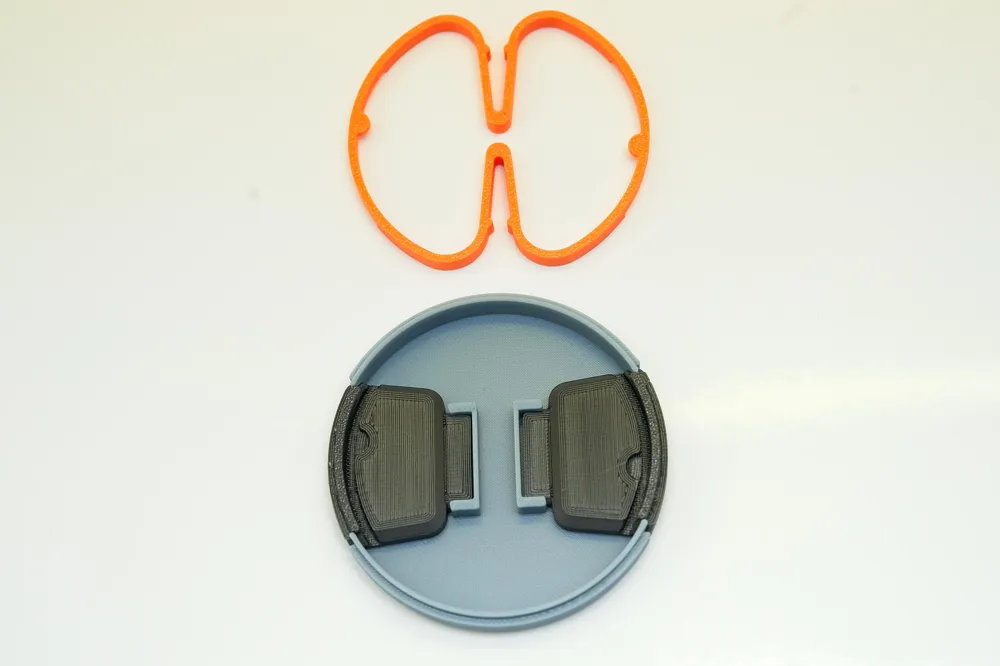

- Align the “spring” into the slots - please be aware that it should only fit one way
- Pres the “spring” down firmly until it is flush with the “button”
