BMW Motorrad Locknut Wrench S1000R
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 100% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
3
12
0
0
8
8
Released
Bill of Materials
Bambu Filaments
Select all
Description
Content has been automatically translated.

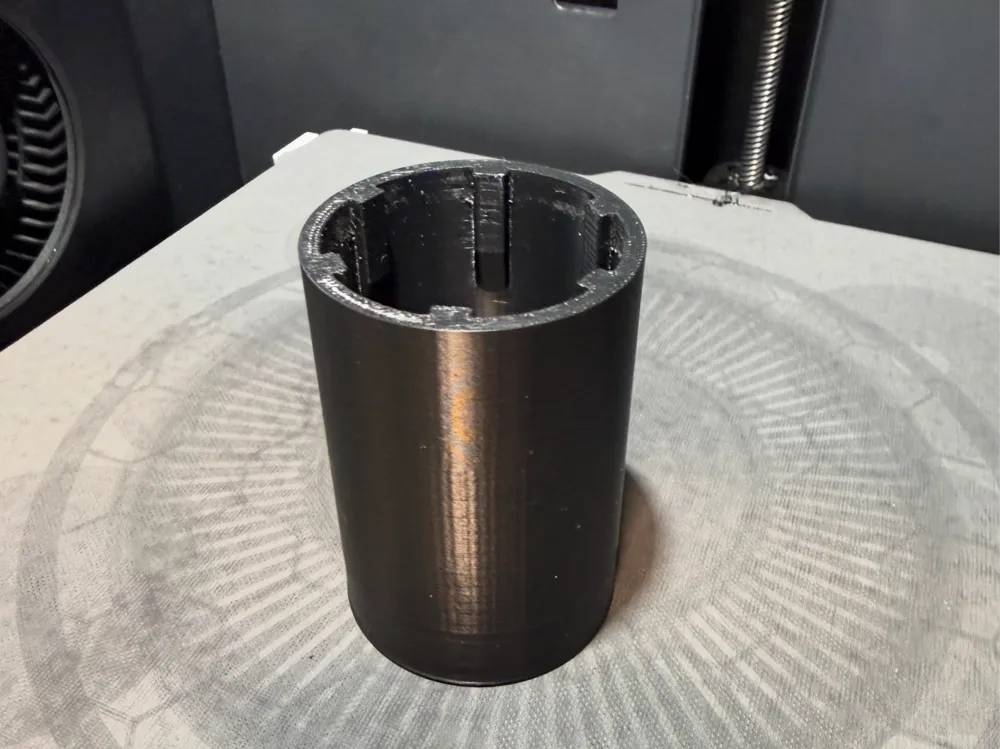

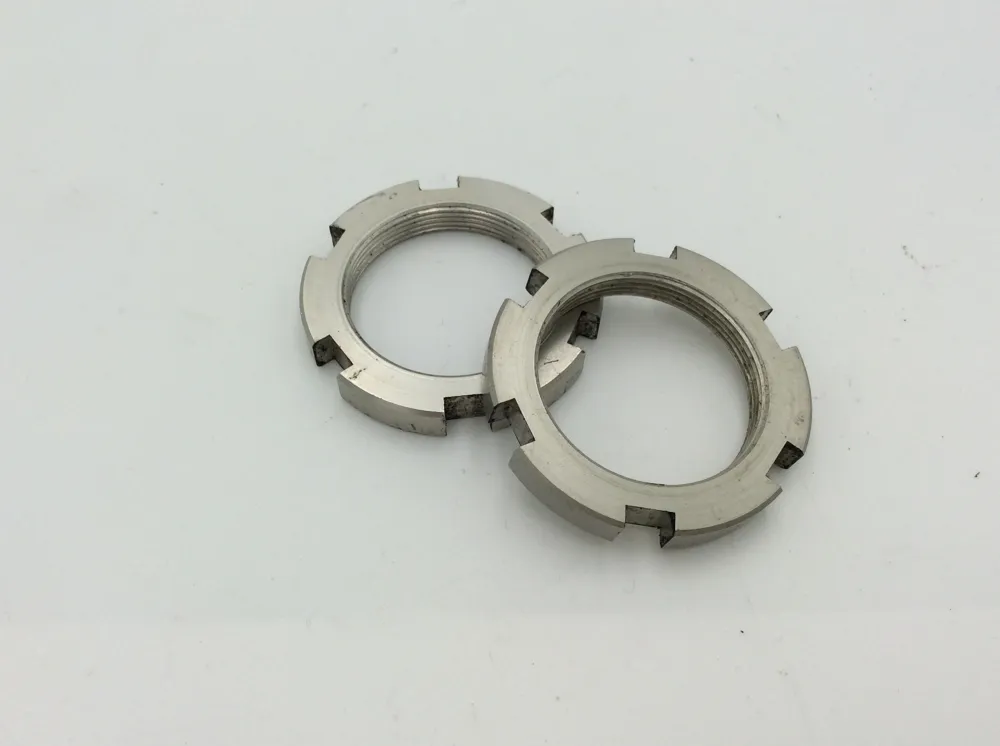

I needed a tool to tighten and loosen the steering head bearing nut on my S1000R, so I designed this model. It is inspired by the original BMW tool and other locknut wrenches but features internal pins, allowing them to be printed as part of the wall rather than added separately, which improves strength and durability.

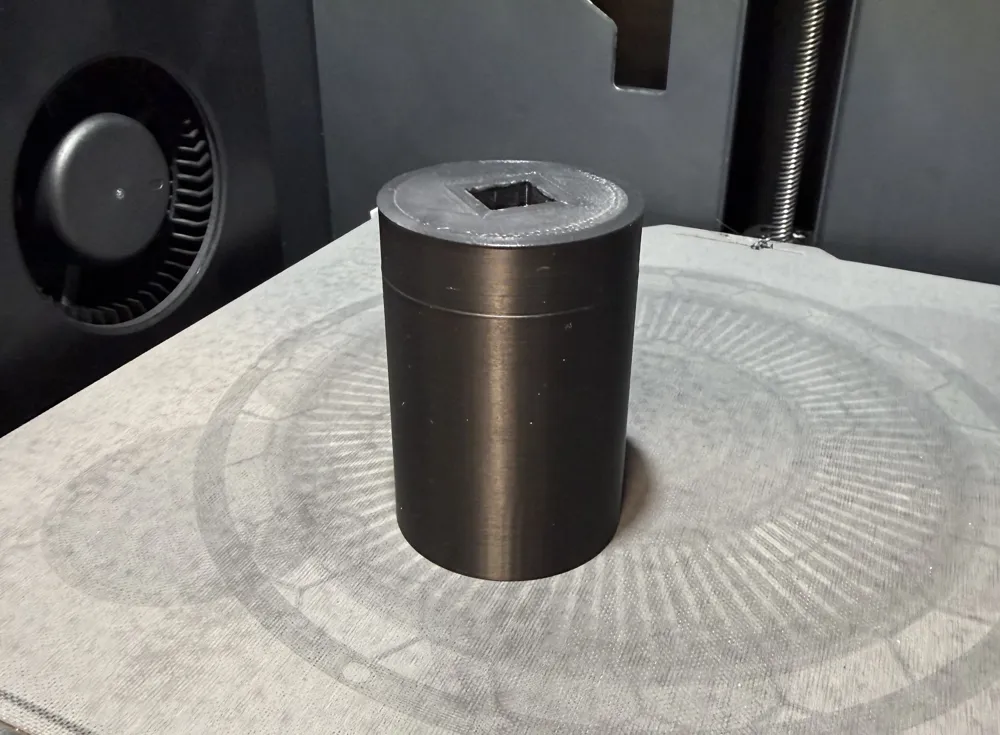

The tool fits the nut precisely with no play. It features a 1/2-inch drive, making it compatible with standard ratchets or torque wrenches. If needed, I can also provide a version with increased tolerances. It should be compatible with the S1000R, S1000RR, as well as the M1000R and M1000RR models.
The tool was printed using Bambu ASA and tested with torque levels of up to 30 Nm, where it performed reliably.
