Universal 9mm Softair Mag Pouch (AAP-01 / Glock / SMG)
This project arose from the need for a rigid, lightweight, and highly customizable magazine pouch for the airsoft world. Originally designed for Action Army AAP-01 gas magazines, the design is perfectly compatible with Glock magazines (G17/G18/G19) and most 9mm SMG magazines (such as MP5 or ARP9).
Main Features
- Hybrid Design & Active Retention: The system uses a 3D Printed body coupled with an elastic paracord (shock cord). This allows for precise tension adjustment, ensuring the magazine remains in place during movement, but is smooth for rapid extraction.

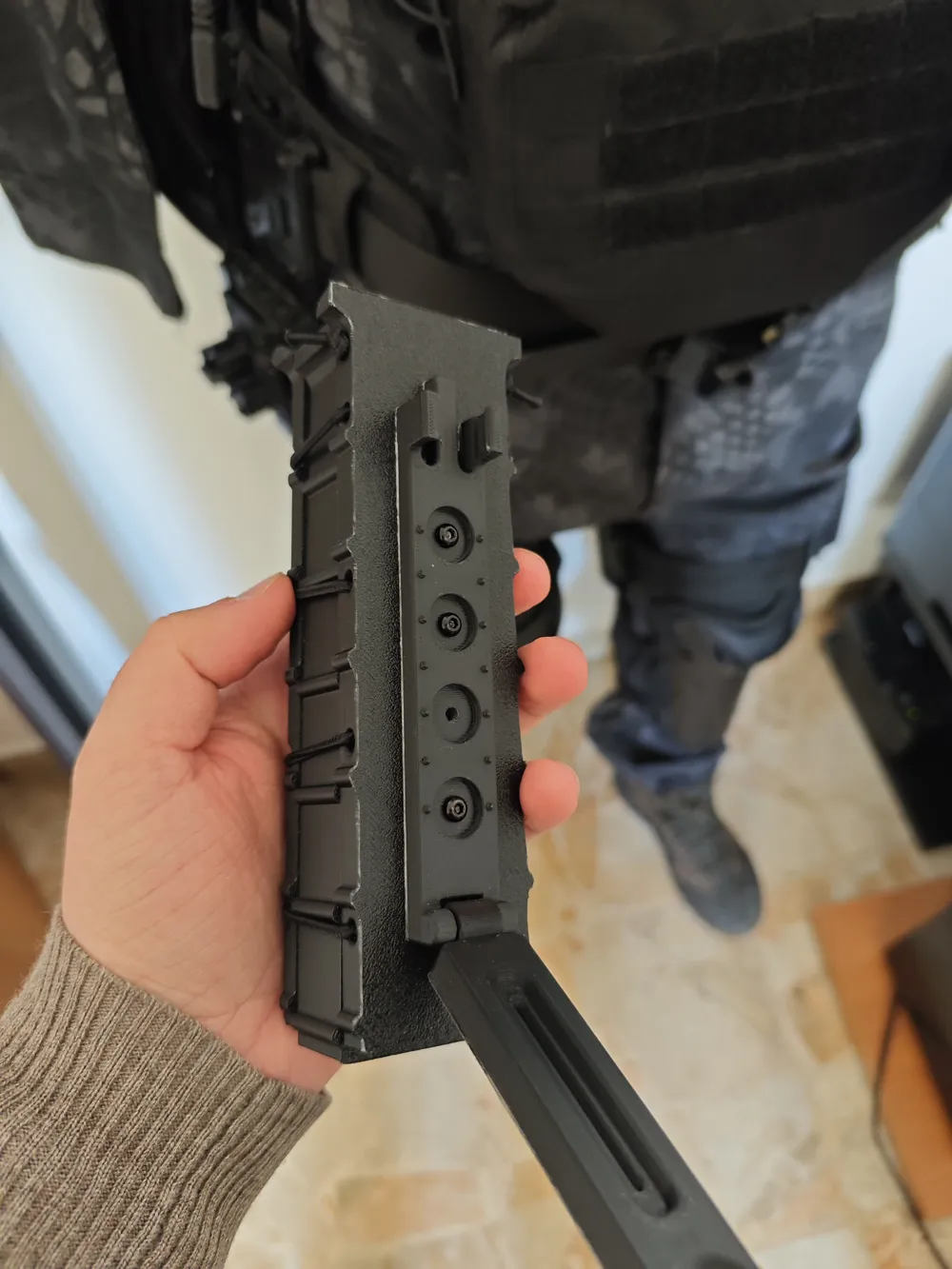

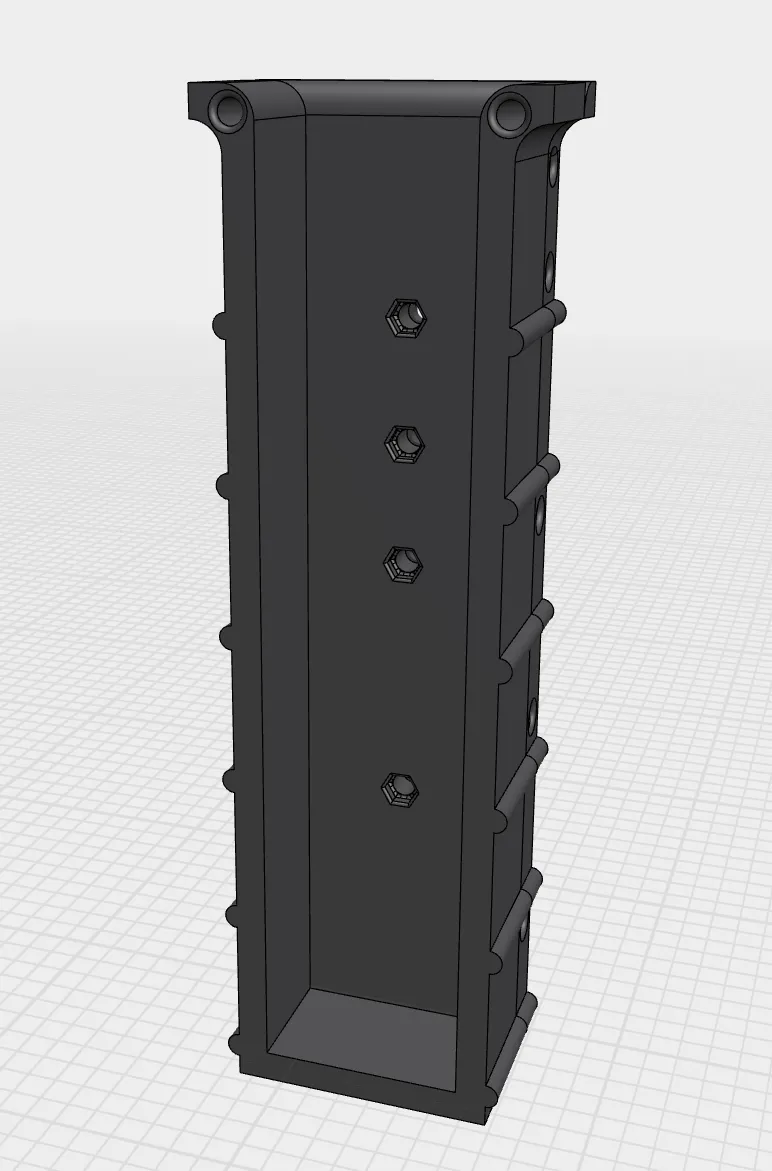

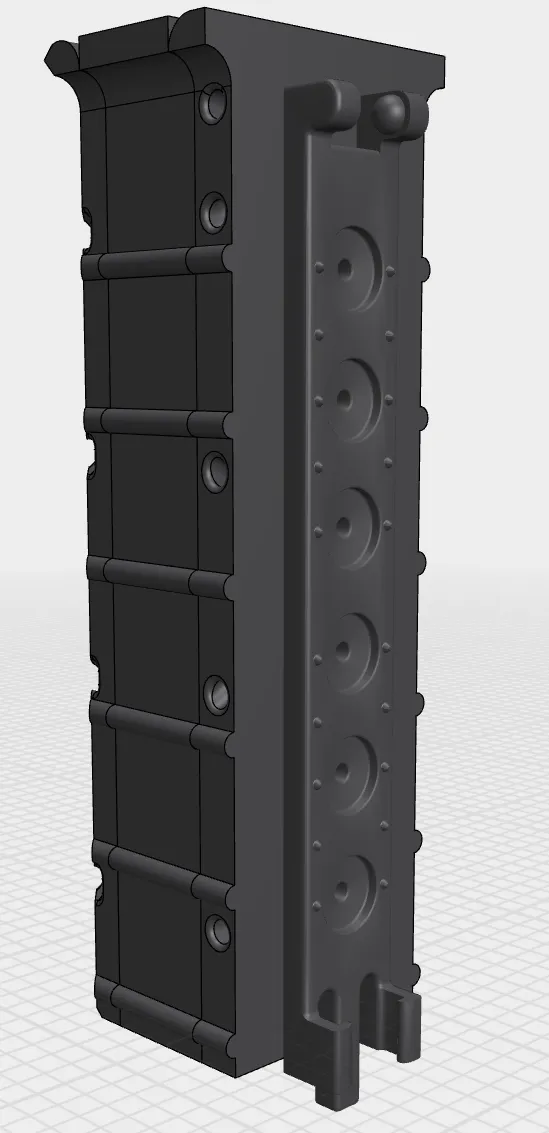

- Universal Compatibility: Thanks to the series of rear holes with M3 bolt seats, it is fully compatible with the most common MOLLE attachment systems, allowing for secure mounting on tactical vests, belts, or chest rigs.

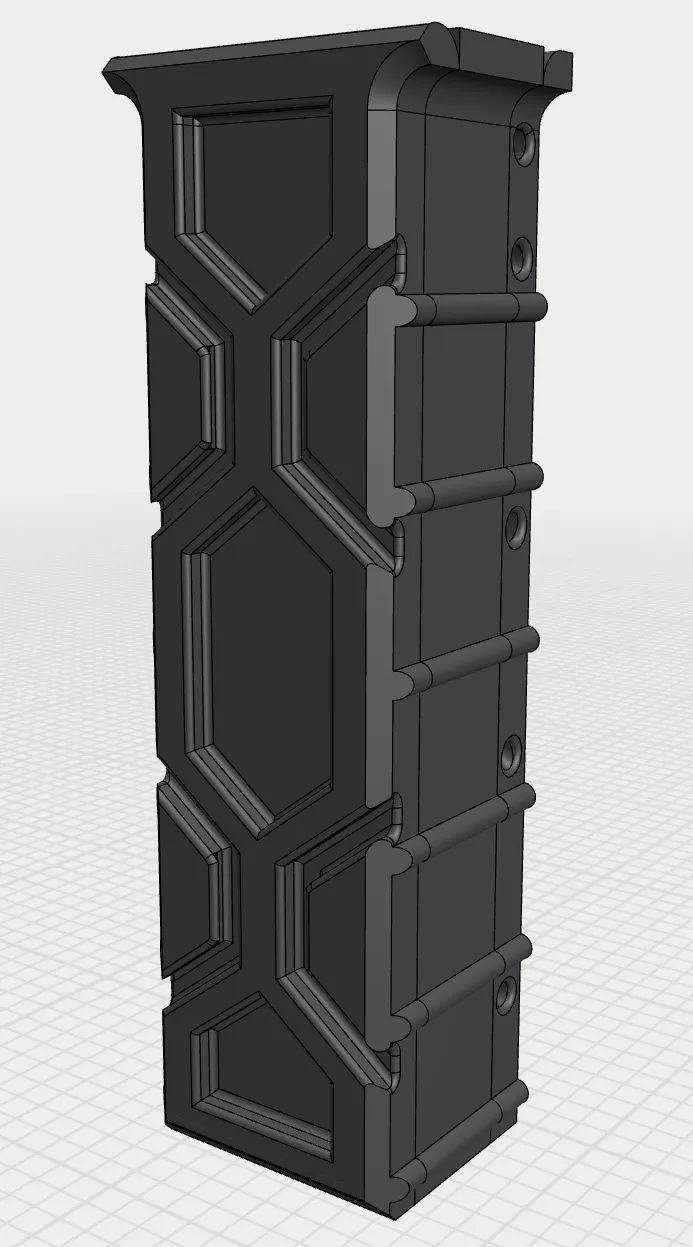

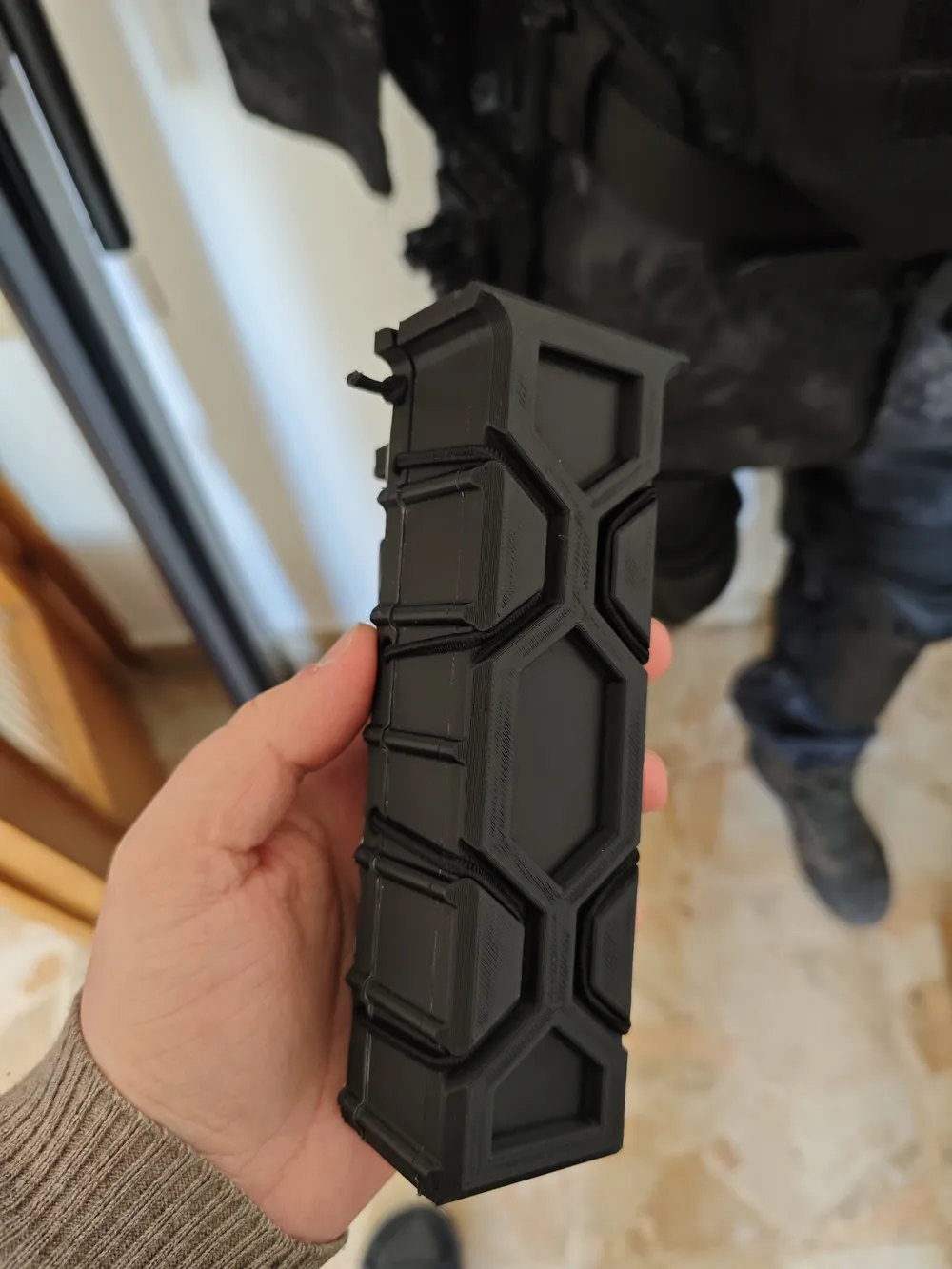

- Modern "Hex" Aesthetic: The front hexagonal pattern reduces weight without sacrificing rigidity and facilitates the passage of the paracord along the sides, maintaining a clean and professional profile.
3D Printing Guide
The model has been optimized for simple and clean printing:
- Supports: Not necessary. The design is engineered to be printed without supports, reducing waste and post-production.
- Infill: From 15% to 30% (Gyroid or Grid pattern recommended for maximum impact resistance).
- Bed Adhesion: The use of an Outer Brim is highly recommended to ensure stability during printing and prevent corner detachment (warping).
- Walls: At least 3-4 walls to reinforce the M3 screw seats.
- Recommended Material: PETG, ABS, or ASA for greater mechanical and thermal resistance in the field. PLA can be used for less demanding setups.
Required Hardware
- Elastic paracord (3-4mm diameter).
- M3 screws and nuts for attachment to mounting systems.
Extra Notes

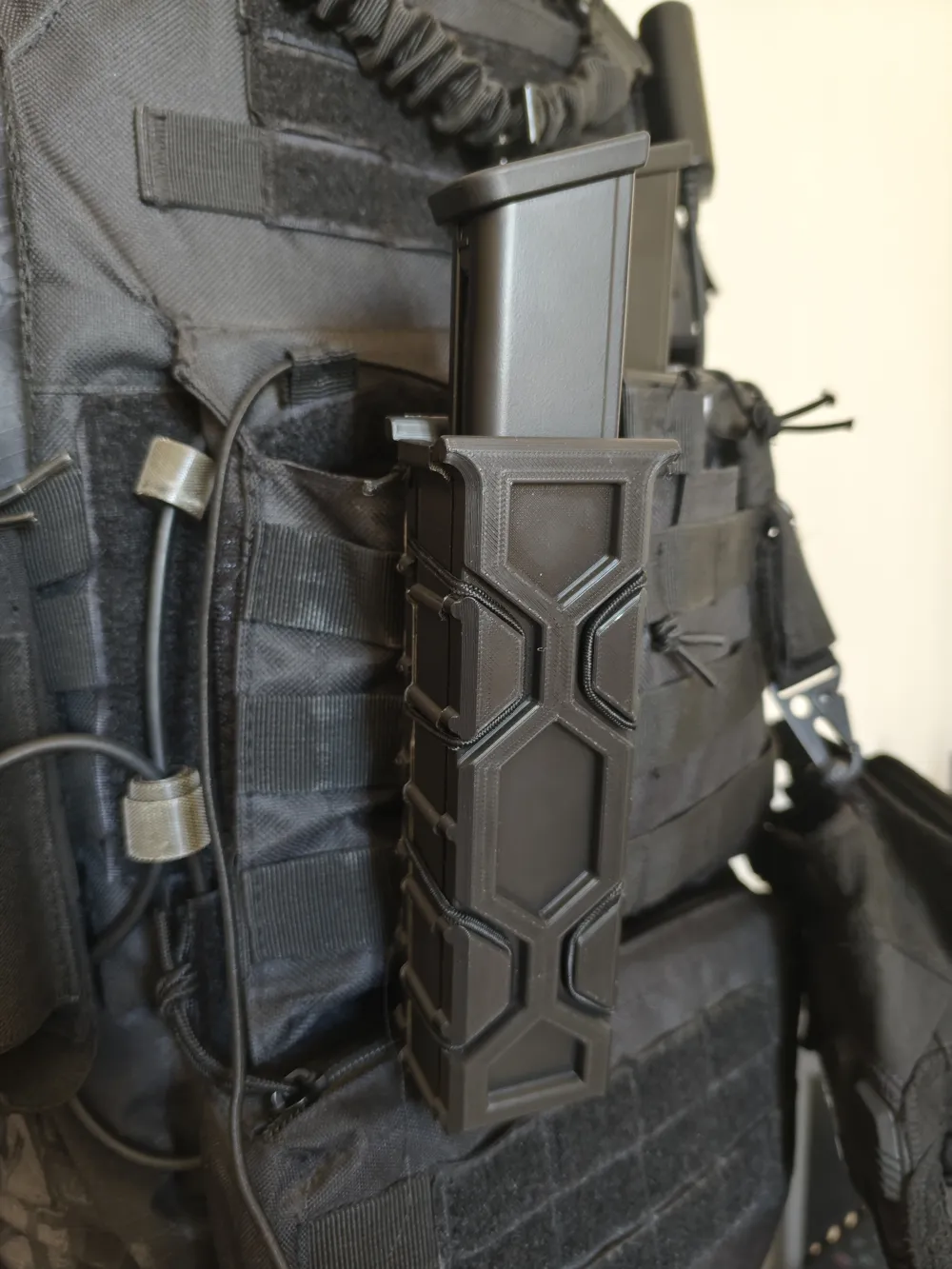

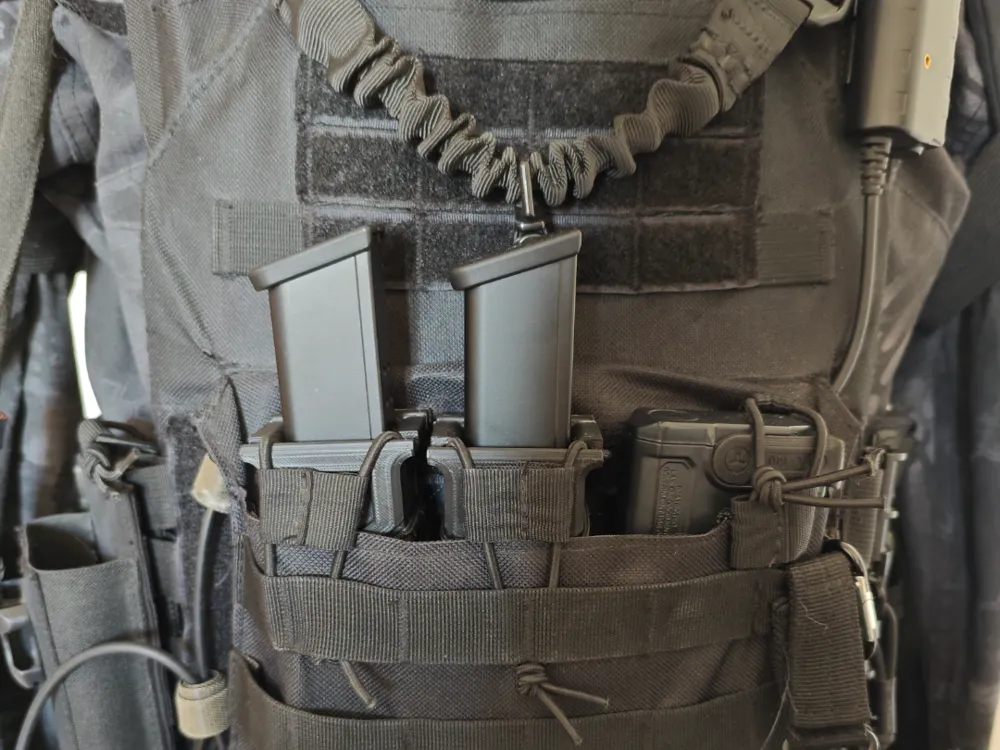

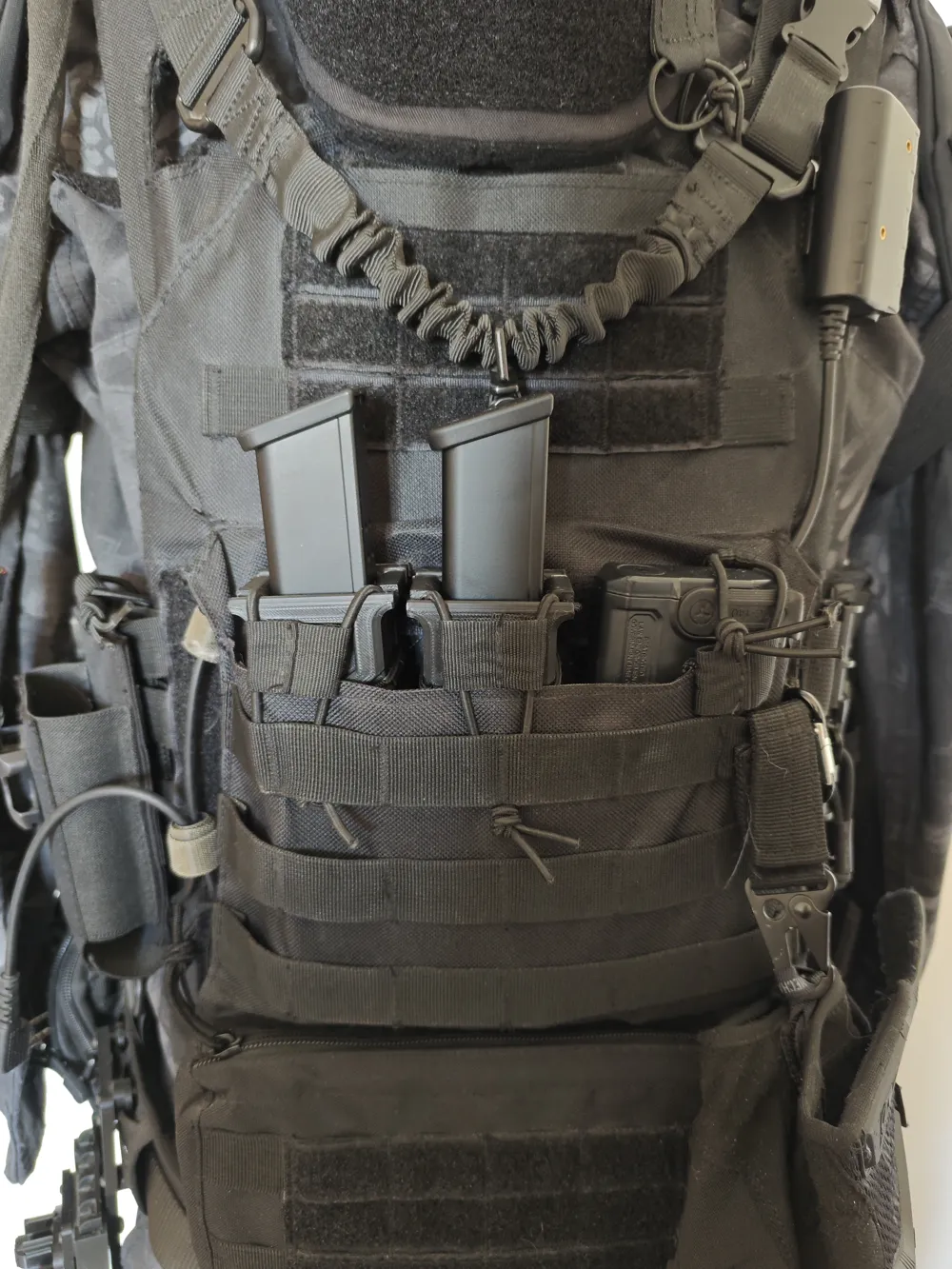

The design allows for perfect integration into a tactical setup. The hexagonal pattern is not only aesthetic but also serves as a natural guide for threading the cord, ensuring that tension remains constant over time.
