Description

Content has been automatically translated.

Show original

Boost Me (for free)

If you like it, I hope for your boost

===============================================================

2026-4-8 Update:

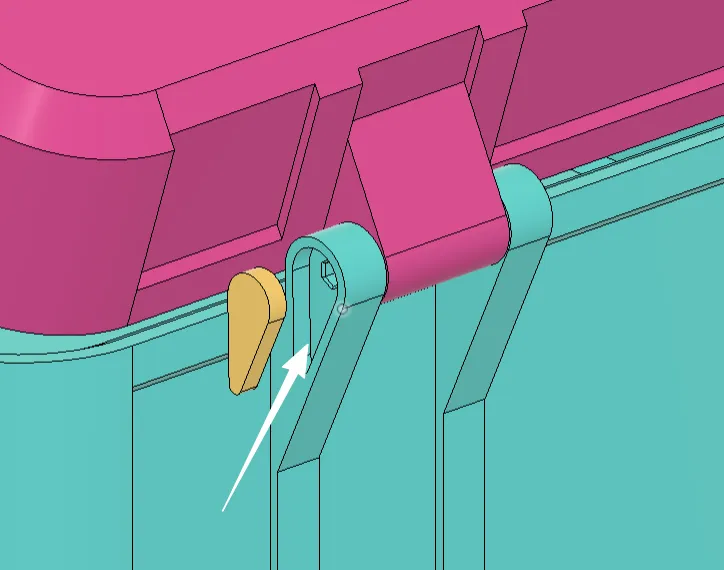

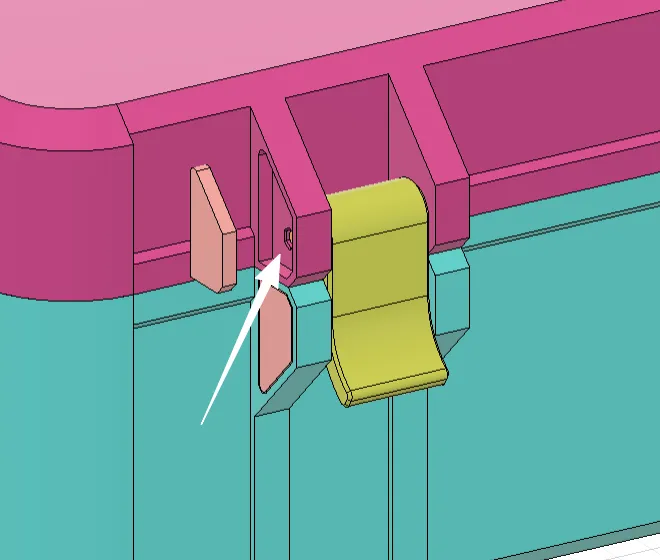

Added the "buckle - optimized version" profile, mainly to solve the problem of the buckle getting stuck when closing the top cover

===============================================================

1. Easy to print, no supports

2. Items to prepare:

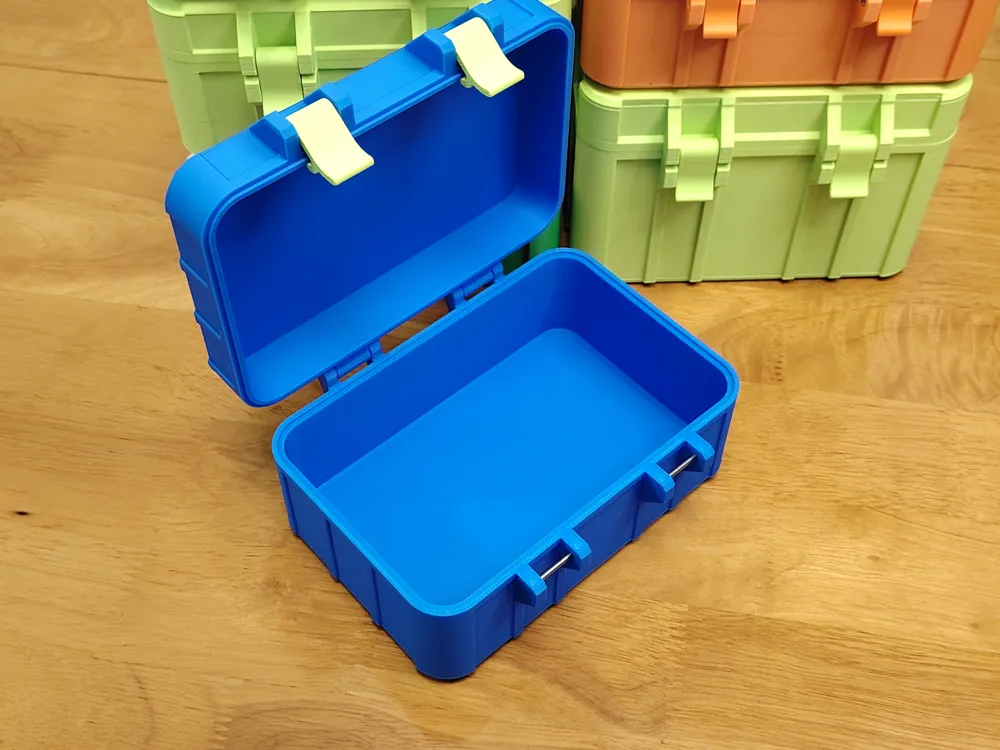

1. Dowel pins (roller pins) Quantity: 6 pieces Diameter: 2mm Length: 20mm

2. Glue (for baffle fixing, needs adhesive application)

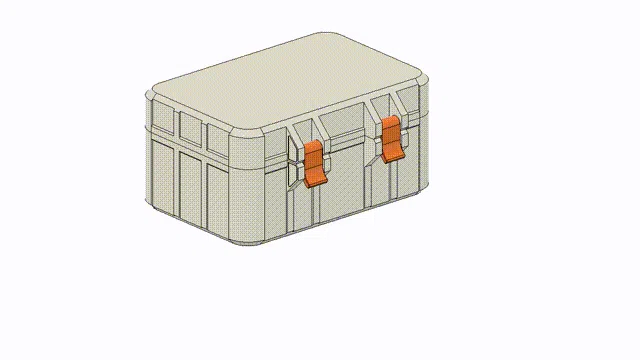

3. Assembly:

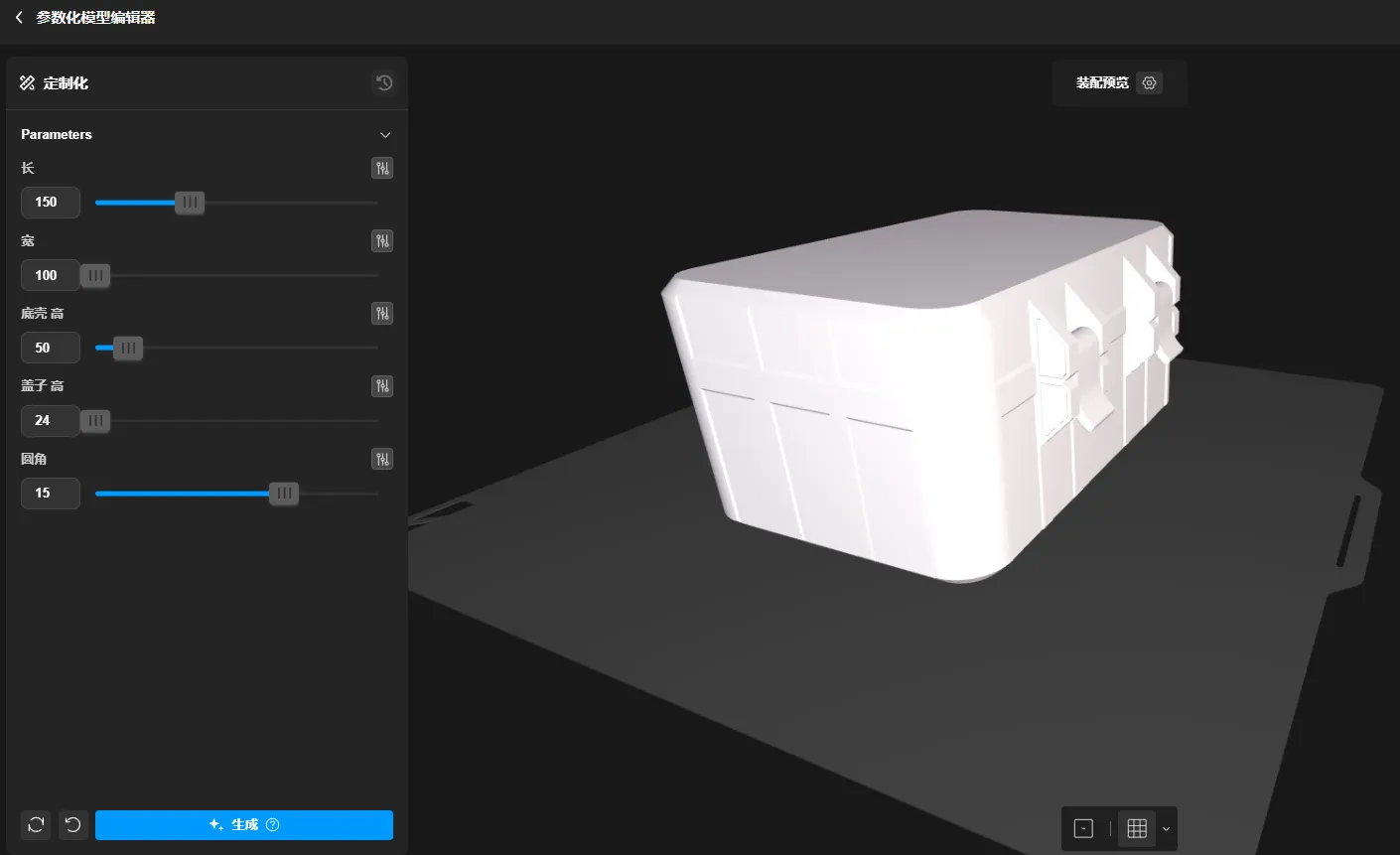

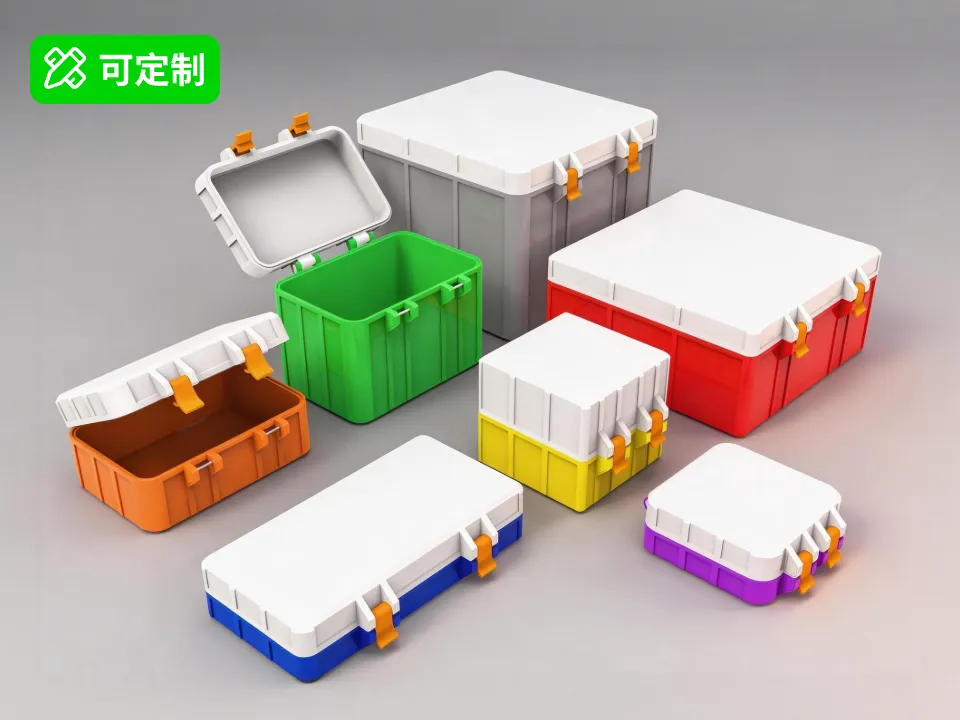

4. Customizable

Parameters such as length, width, bottom box height, lid height, and fillet can be customized

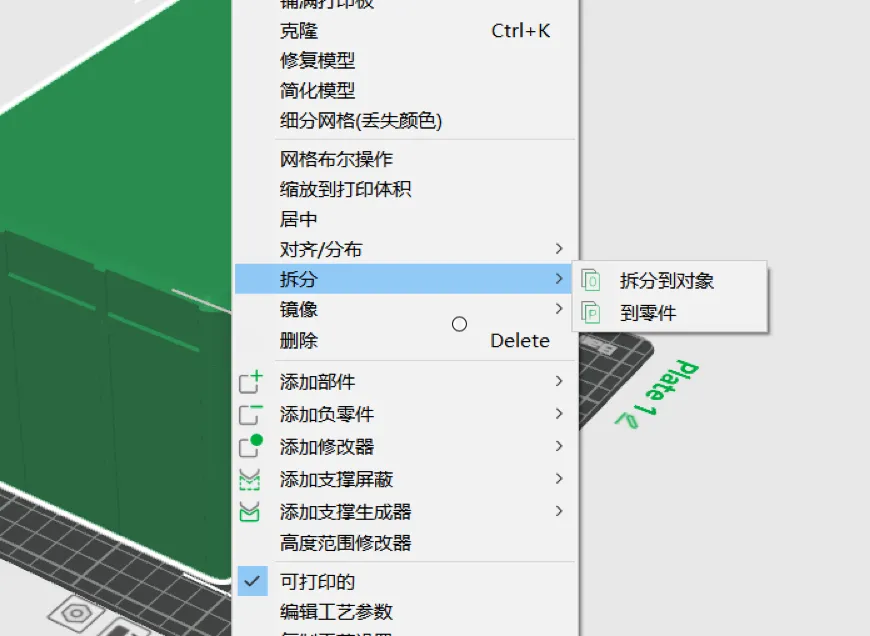

Note: Customized models need to be split and re-arranged on the plate when imported into slicing software

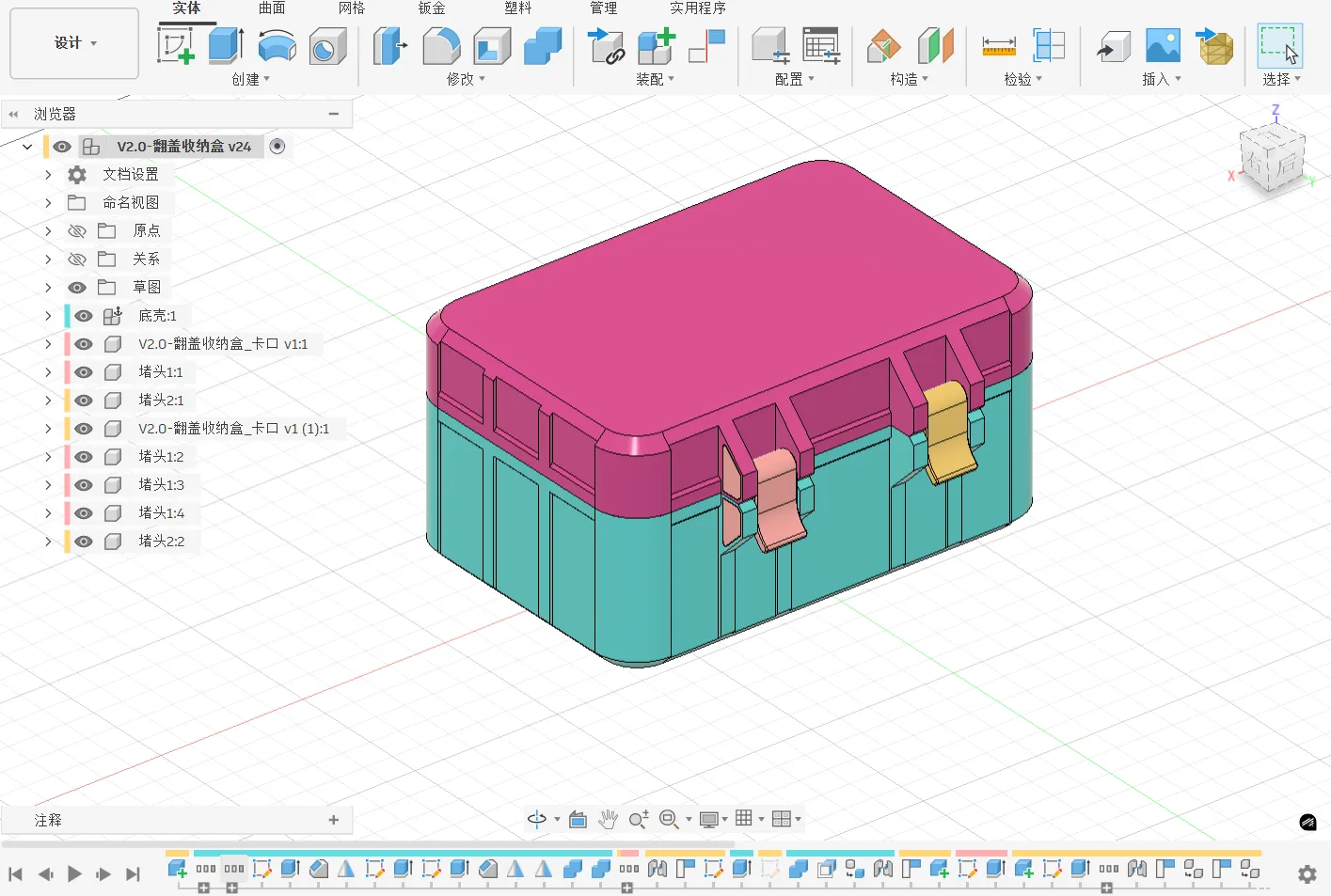

4. Open-source Fusion360 source file

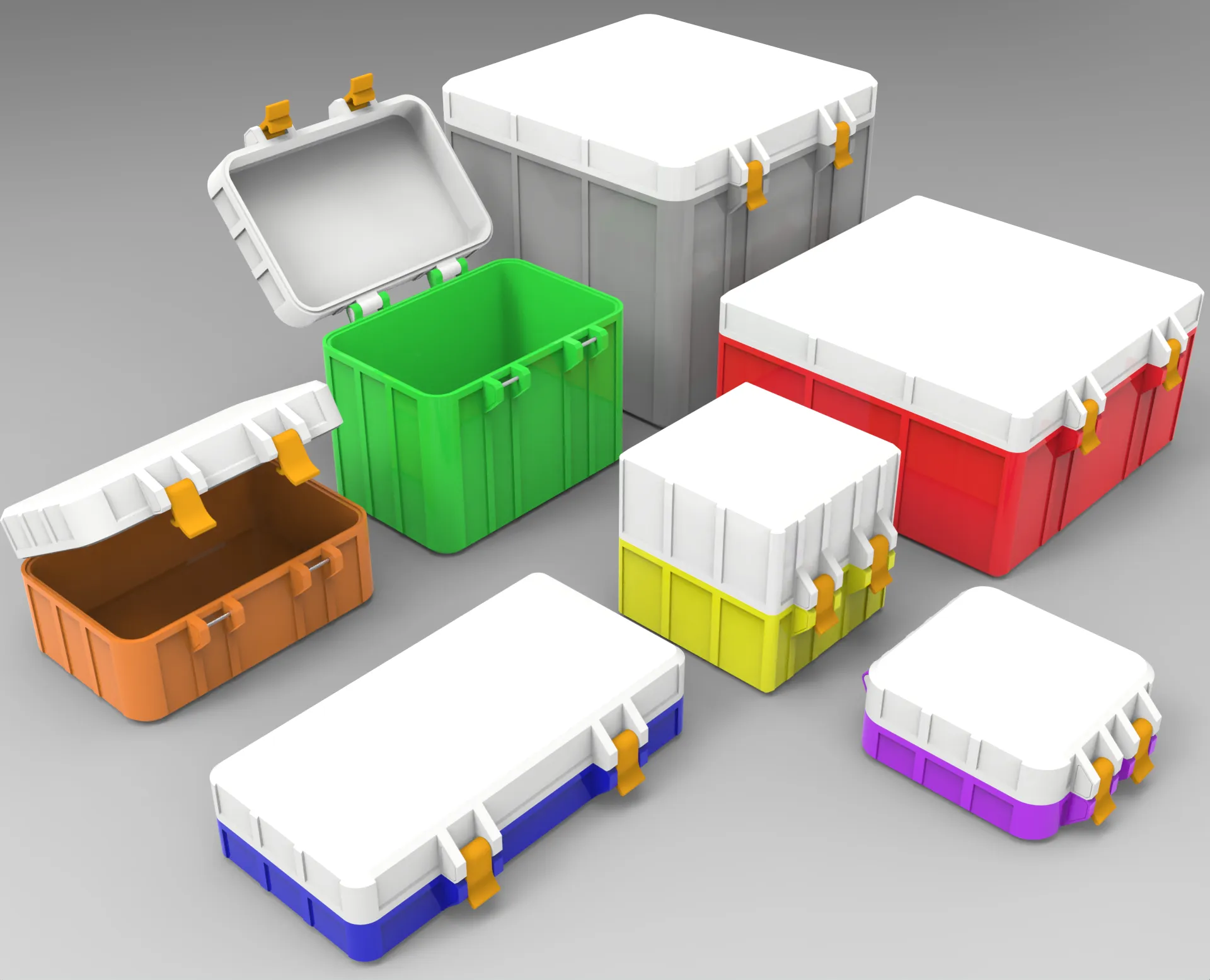

5. Modular printing, colors can be freely matched

6. Model warping issues

Clean the build plate in advance
Spray glue

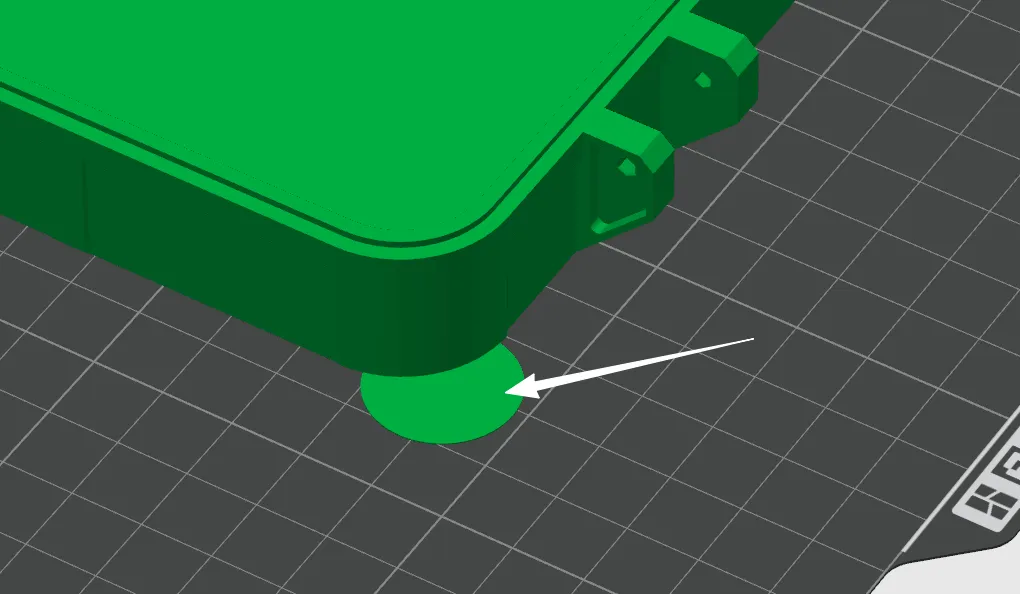

Add a 0.2mm small circular disc (about 20mm in diameter) to the 4 corners of the box body, then combine them

Comment & Rating (10)

@user_3858881658

Very nice box, thank you very much for the file. Printed with PLA+ from Sunlu Black Gold Purple, closures and covers made of PLA Translucent Purple. I played with smoothing. Matching 2mm nails were found, head removed

Show original

@profbarbara

I can't rate this model because I print offline, but I'd definitely give this 5 stars! Our Yahtzee box was falling apart, so I wanted to 3D print one. None of the models I found online were quite what I wanted. I loved that I was able to customize this box for exactly the size I wanted -- and so easily! Great job! Also, for the dowel pins, I just printed my own -- super easy and super fast. They probably wouldn't be great if you wanted a heavy-duty box, but they work for this purpose. Thanks for sharing this file!

@pyro472

Boosted

Thank you for your work, please make it in English for the dumb americans

@user_433721448

Just use the translate feature in the browser. I did and it helped make sense of the slider's titles, not to mention the translation is kind of funny. Just a thought.

@user_821254579

Very beautiful

Show original

@sundance4

Hey thinks for these. Any way to add text to the top?

The designer has replied

@user_2368613444

My idea is: 1. You can design an SVG pattern yourself, or convert an existing image into an SVG file 2. Drag it into Bambu Studio, set the color, adjust the pattern by scaling, the thickness does not need to be too thick to reduce the number of filament changes 3. Drag it onto the top cover (pay attention to whether the image needs to be mirrored) 4. Combine the SVG pattern with the lid, and then you can print in multiple colors

Show original

@user_3075166131

Do you happen to have this model in dxf or cdr? I'd like to cut it with a CO2 laser and MDF

Show original

@ailtonlopes

Boosted

Thanks for sharing this model! Very useful.

@edbuko

Print Profile

0.2mm layer, 2 walls, 15% infill

No more
