Proboat Jetstream 1:6 Quick Release Battery Tray
Print Profile(1)
Description

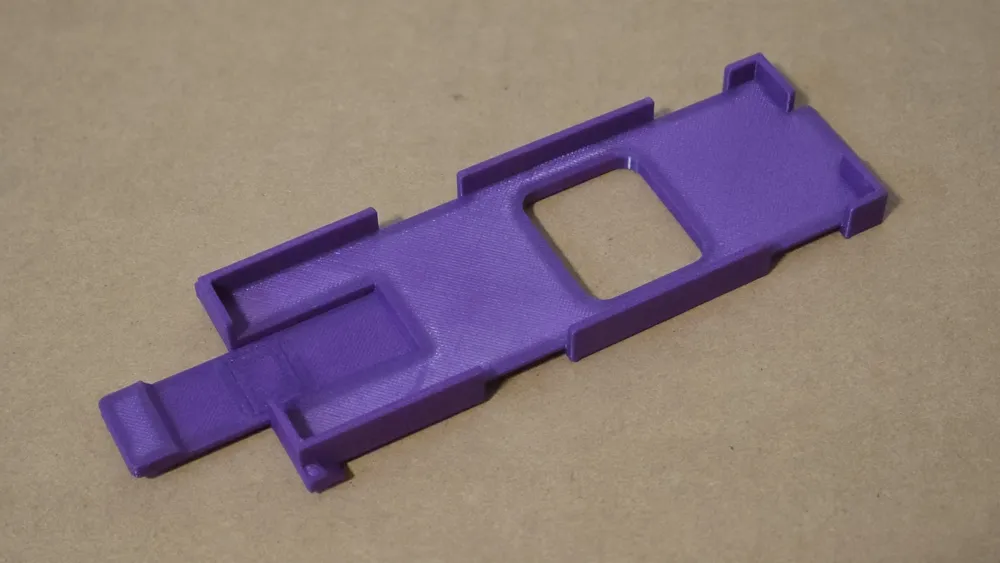

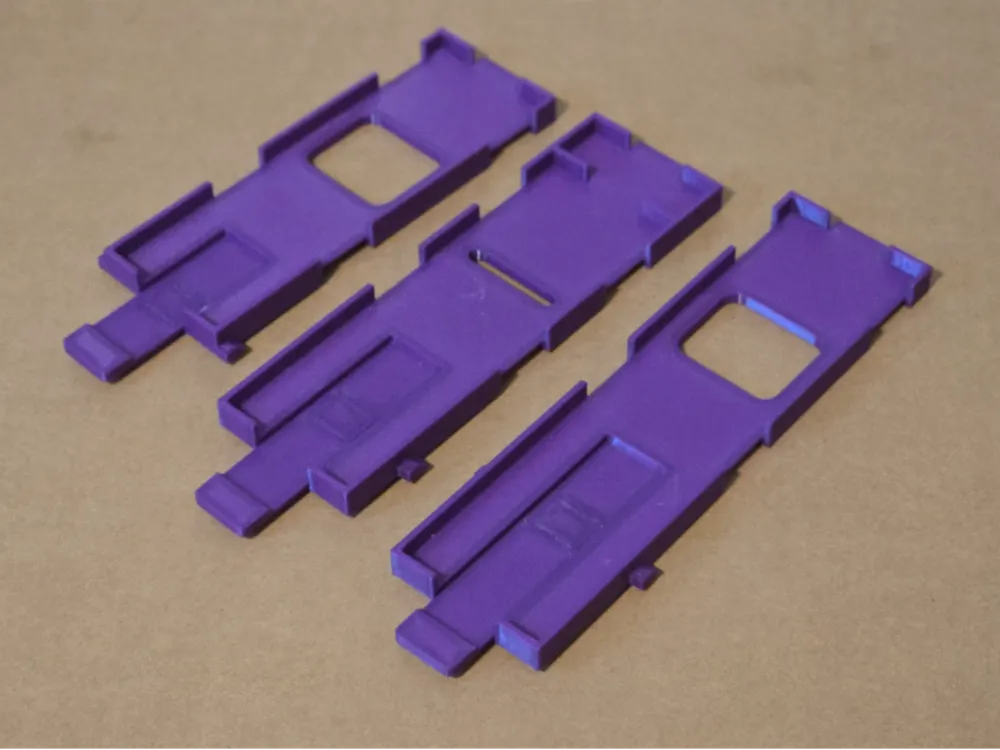

This is a replacement SSL battery tray for the Proboat Jetstream 1/6 RC jet boat. The print profile includes individual plates for the following battery trays, but let me know if you need specific dimensions and I can try to make another print profile for it.

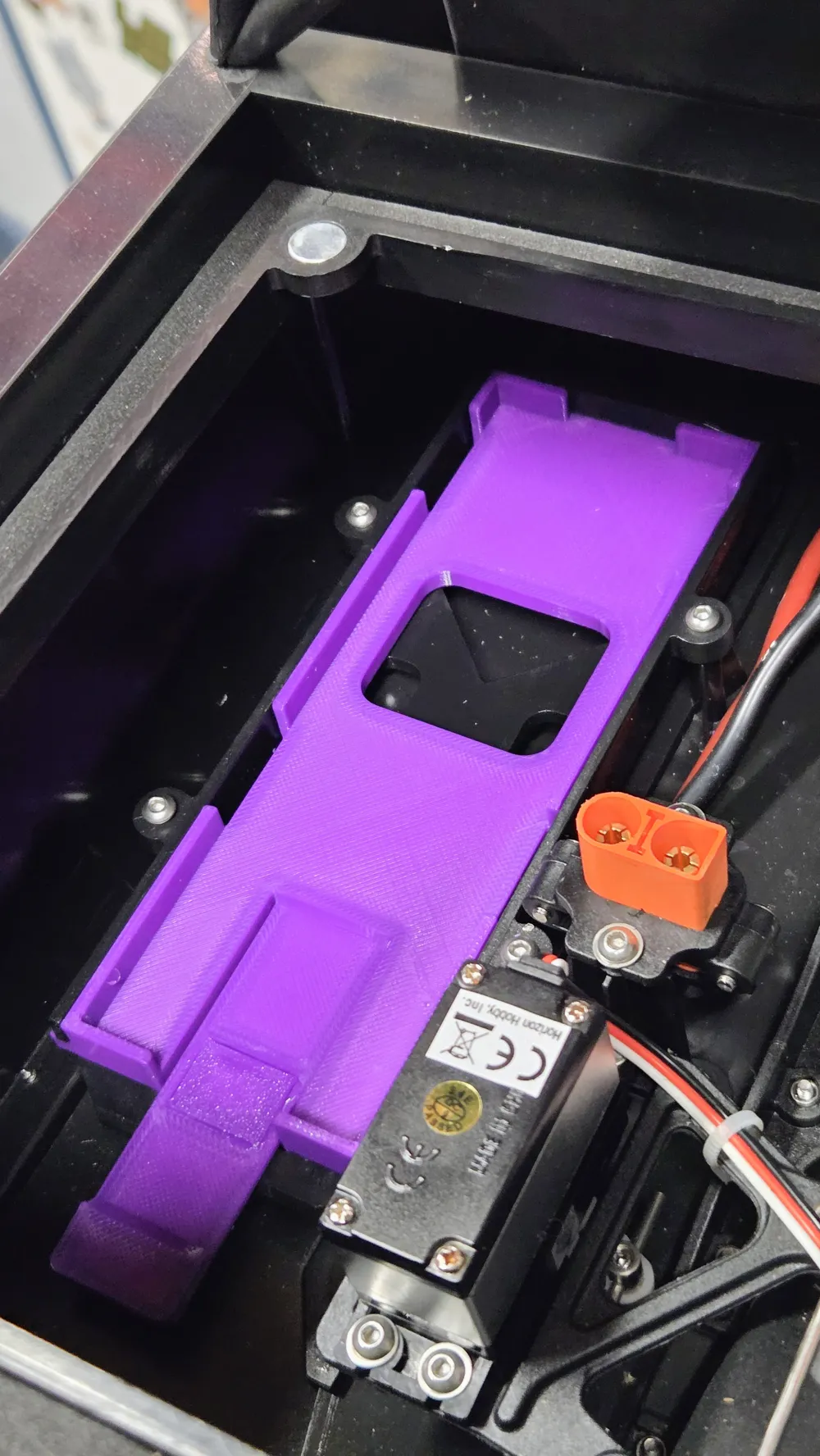

- Standard - for 138mm length batteries - this is a direct replacement to the factory Proboat battery tray (for hard case 3s or soft case 4s batteries)
- Tall 138mm - this tray shifts the battery fully behind the cockpit so that hard case 4s batteries will fit

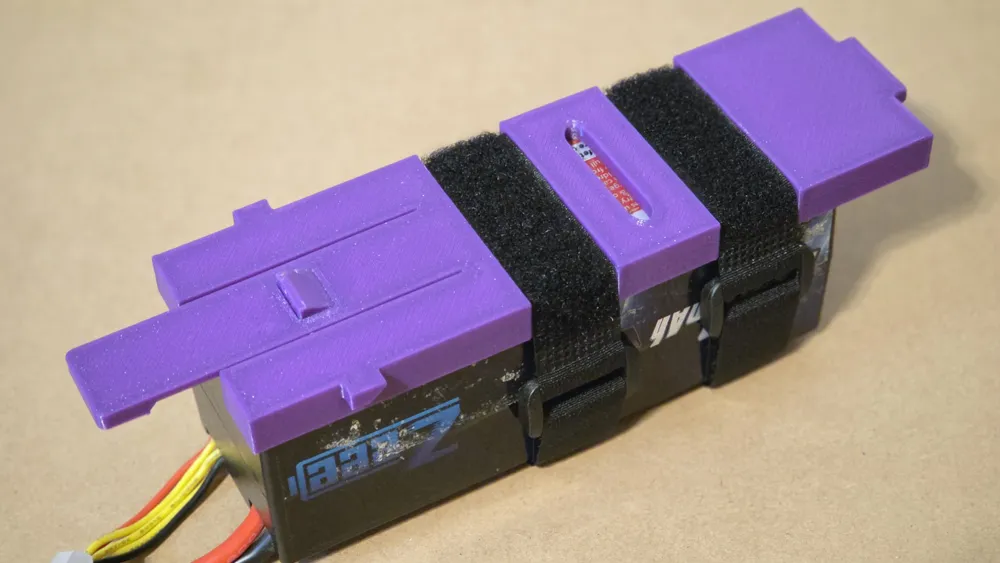

- Extended 176mm - this is for those really long 4s soft case batteries. I made it specifically for an Ovonics 9000mah battery that I have.

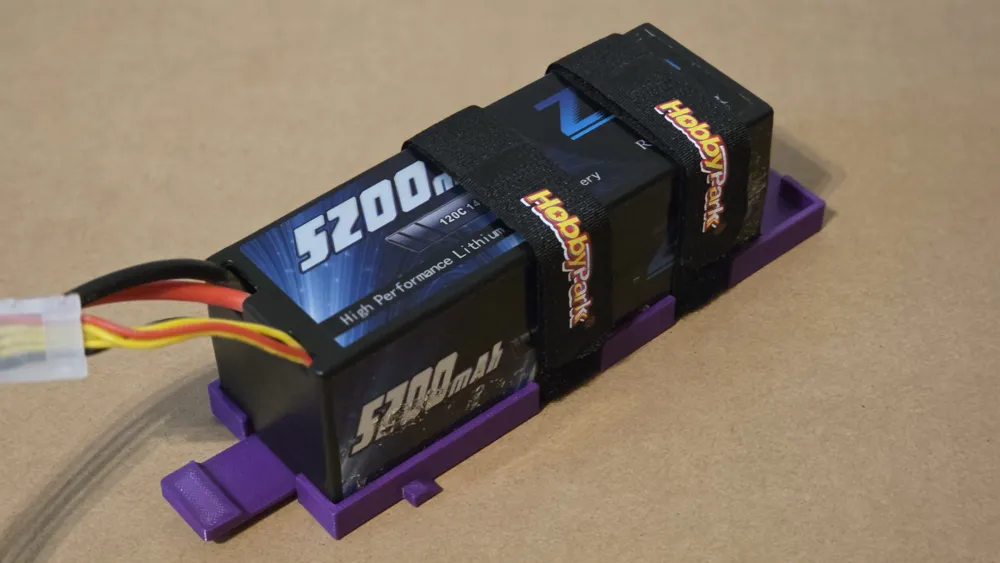

All trays are for batteries with a width less than 48mm; I tested the fit with a Zeee 5200mah hard case 4s lipo which has dimensions of 138mm x 47mm x 48mm.

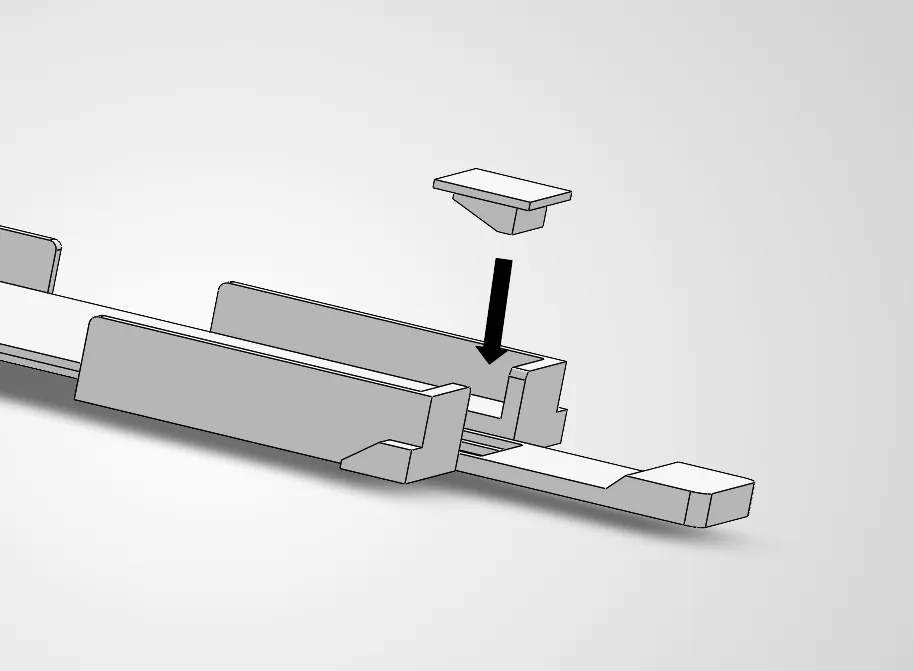

The tab that locks the tray in place needs to be glued into the tray after printing. The flat side of the tab should face the back of the boat.
