NuclearWork's

cover






0.2mm layer, 3 walls, 15% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

<h3>Solucion Para montar altavoces con imán grande sin interferir con la ventana</h3><p>Estos separadores están diseñados específicamente para solucionar el problema típico de la Volkswagen T5: al instalar altavoces aftermarket con imán grande, el cristal de la ventana choca con el altavoz al bajar.<br>Con estos adaptadores de 20 mm de grosor se gana el espacio necesario para montar altavoces de 165 mm (6.5&#34;) sin modificar la puerta y utilizando los puntos de fijación originales.</p><p>Diseño probado en vehículo real con altavoces Hertz, funcionando correctamente y permitiendo el movimiento completo del cristal.</p><h2>✔ Características</h2><ul><li>Compatibles con Volkswagen T5 (puertas delanteras)</li><li>Para altavoces de 165 mm / 6.5&#34;</li><li>Grosor: 20 mm</li><li>Encaje directo en agujeros originales (plug &amp; play)</li><li>No requiere modificar la puerta</li><li>Diseño sin soportes, impresión rápida</li><li>Válido para ambos lados (imprimir 2 unidades)</li><li>Solución ideal para altavoces con imán grande (aftermarket)</li></ul><h2>🧰 Montaje</h2><ul><li>Retirar altavoz original</li><li>Colocar separador en los puntos originales</li><li>Instalar altavoz sobre el separador</li><li>Usar tornillos aproximadamente 20 mm más largos que los originales</li><li>Volver a montar panel de puerta</li></ul><p>No requiere recortes ni modificaciones adicionales.</p><h2>🧪 Material recomendado</h2><ul><li>ASA (recomendado para automoción por resistencia térmica)</li><li>También válido: PETG o ABS</li></ul><p>El modelo está diseñado para imprimirse sin soportes.</p><h2>📦 Archivos incluidos</h2><ul><li>3MF (configuración lista para imprimir)</li><li>STL (malla estándar)</li></ul><p>El archivo incluye un separador. Imprimir dos unidades para el vehículo completo.</p><h2>⚠ Notas</h2><ul><li>Diseñado para altavoces aftermarket con imán grande (ej: Hertz)</li><li>No necesario para altavoces OEM de serie</li><li>Comprobar longitud de tornillos antes del montaje</li><li>La altura máxima de imán puede variar según modelo de altavoz</li></ul>

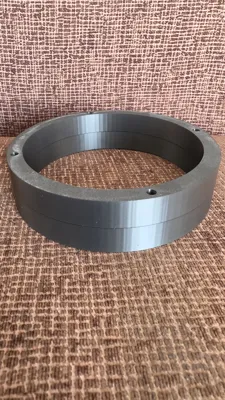

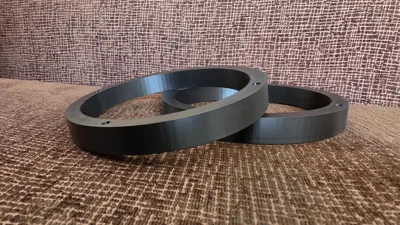

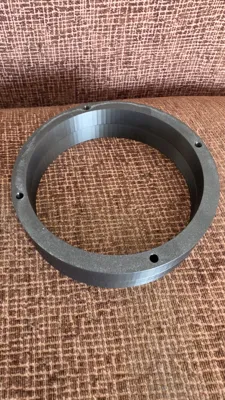

<h3>Solution for mounting speakers with large magnets without interfering with the window</h3><p>These spacers are specifically designed to solve the typical problem of the Volkswagen T5: when installing aftermarket speakers with large magnets, the window glass collides with the speaker when lowered.<br>With these 20 mm thick adapters, the necessary space is gained to mount 165 mm (6.5&#34;) speakers without modifying the door and using the original mounting points.</p><p>Design tested in a real vehicle with Hertz speakers, functioning correctly and allowing full window movement.</p><h2>✔ Features</h2><ul><li>Compatible with Volkswagen T5 (front doors)</li><li>For 165 mm / 6.5&#34; speakers</li><li>Thickness: 20 mm</li><li>Direct fit into original holes (plug &amp; play)</li><li>No door modification required</li><li>Support-free design, fast printing</li><li>Valid for both sides (print 2 units)</li><li>Ideal solution for speakers with large magnets (aftermarket)</li></ul><h2>🧰 Assembly</h2><ul><li>Remove original speaker</li><li>Place spacer at original mounting points</li><li>Install speaker on top of the spacer</li><li>Use screws approximately 20 mm longer than the originals</li><li>Reassemble door panel</li></ul><p>No additional cutting or modifications required.</p><h2>🧪 Recommended material</h2><ul><li>ASA (recommended for automotive due to heat resistance)</li><li>Also valid: PETG or ABS</li></ul><p>The model is designed to be printed without supports.</p><h2>📦 Included files</h2><ul><li>3MF (print-ready configuration)</li><li>STL (standard mesh)</li></ul><p>The file includes one spacer. Print two units for the complete vehicle.</p><h2>⚠ Notes</h2><ul><li>Designed for aftermarket speakers with large magnets (e.g., Hertz)</li><li>Not necessary for standard OEM speakers</li><li>Check screw length before assembly</li><li>Maximum magnet height may vary depending on speaker model</li></ul>

Print Profile(1)

Description

Solution for mounting speakers with large magnets without interfering with the window

✔ Features

🧰 Assembly

🧪 Recommended material

📦 Included files

⚠ Notes

Comment & Rating (2)

License

Related Models

Speaker spacers 165 mm for Volkswagen T5
