LF05 Bluetooth Amplifier Board Casing
Print Profile(1)
Description

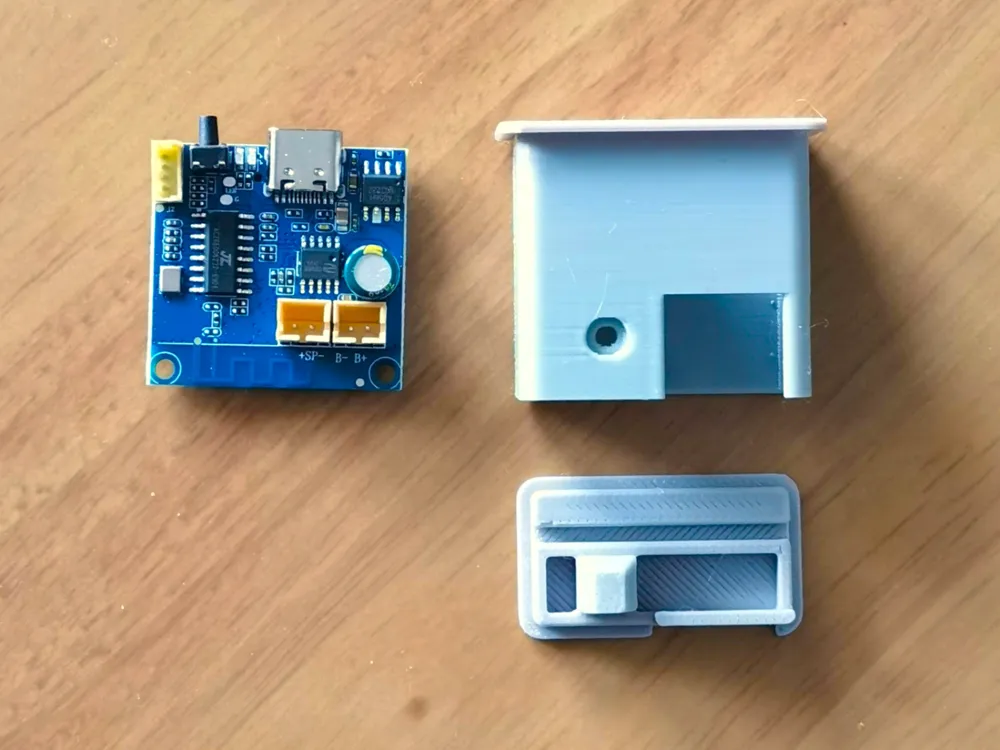

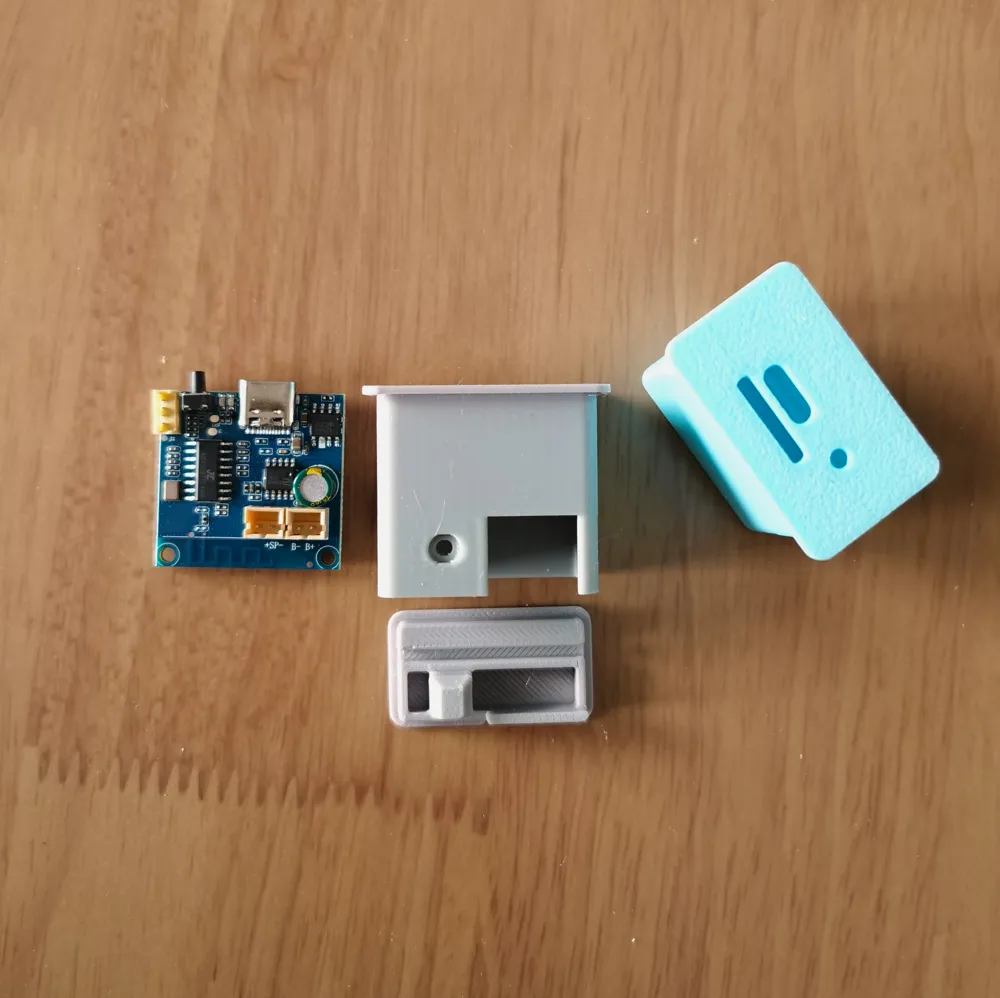

This is a casing designed for the LF05 Bluetooth amplifier board

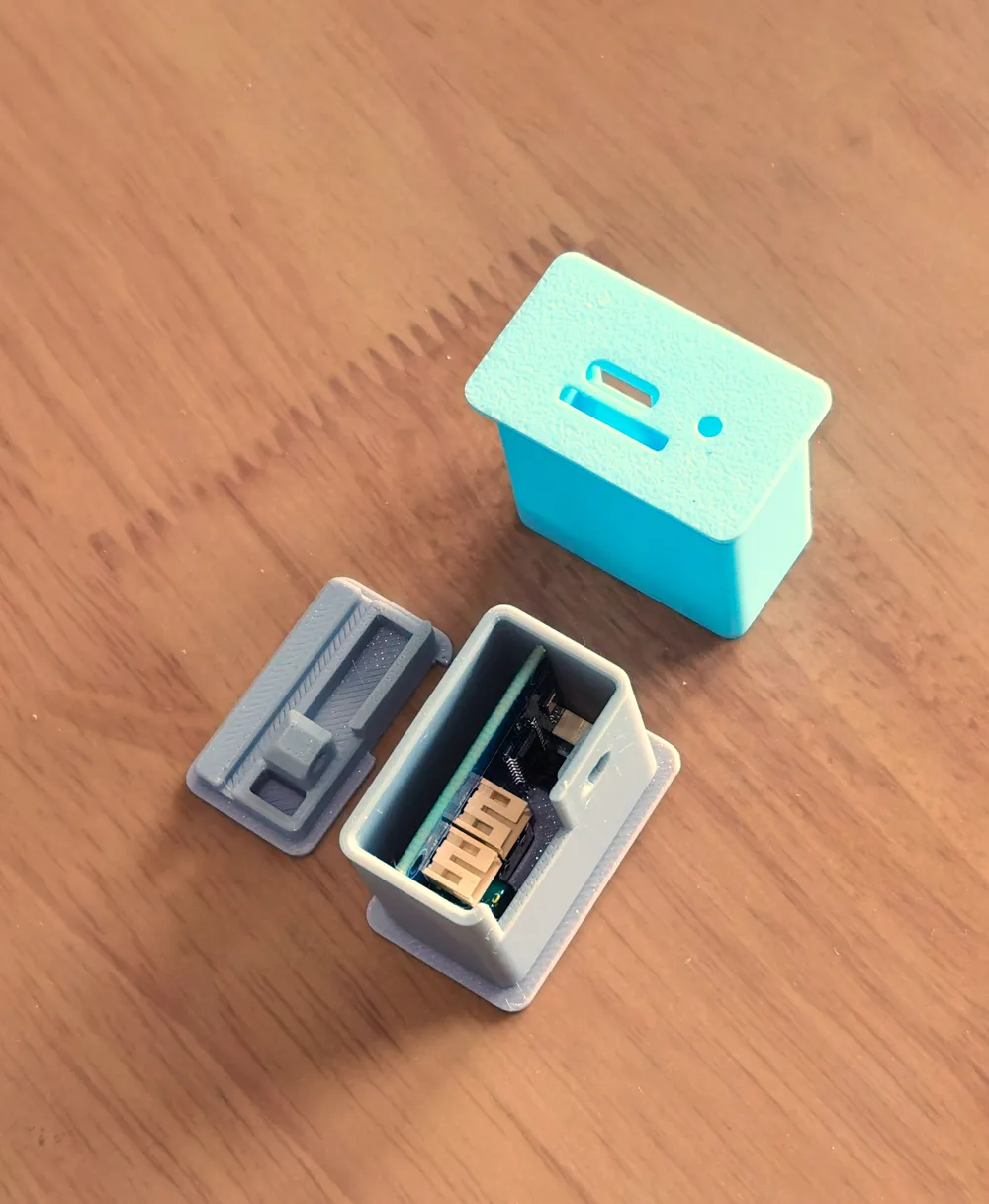

The back cover of the casing can be glued or secured with M2×6 self-tapping screws
Outlets for power and speakers are reserved at the back
There is no outlet for the front switch, as using this casing eliminates the need for a separate switch
Assembly method for this casing with a speaker: drill a hole in the speaker enclosure according to the casing dimensions marked in the image, then insert this casing, and finally secure it with glue
Design is not easy, please support me, thank you
Boost Me (for free)
Feed me peanuts!

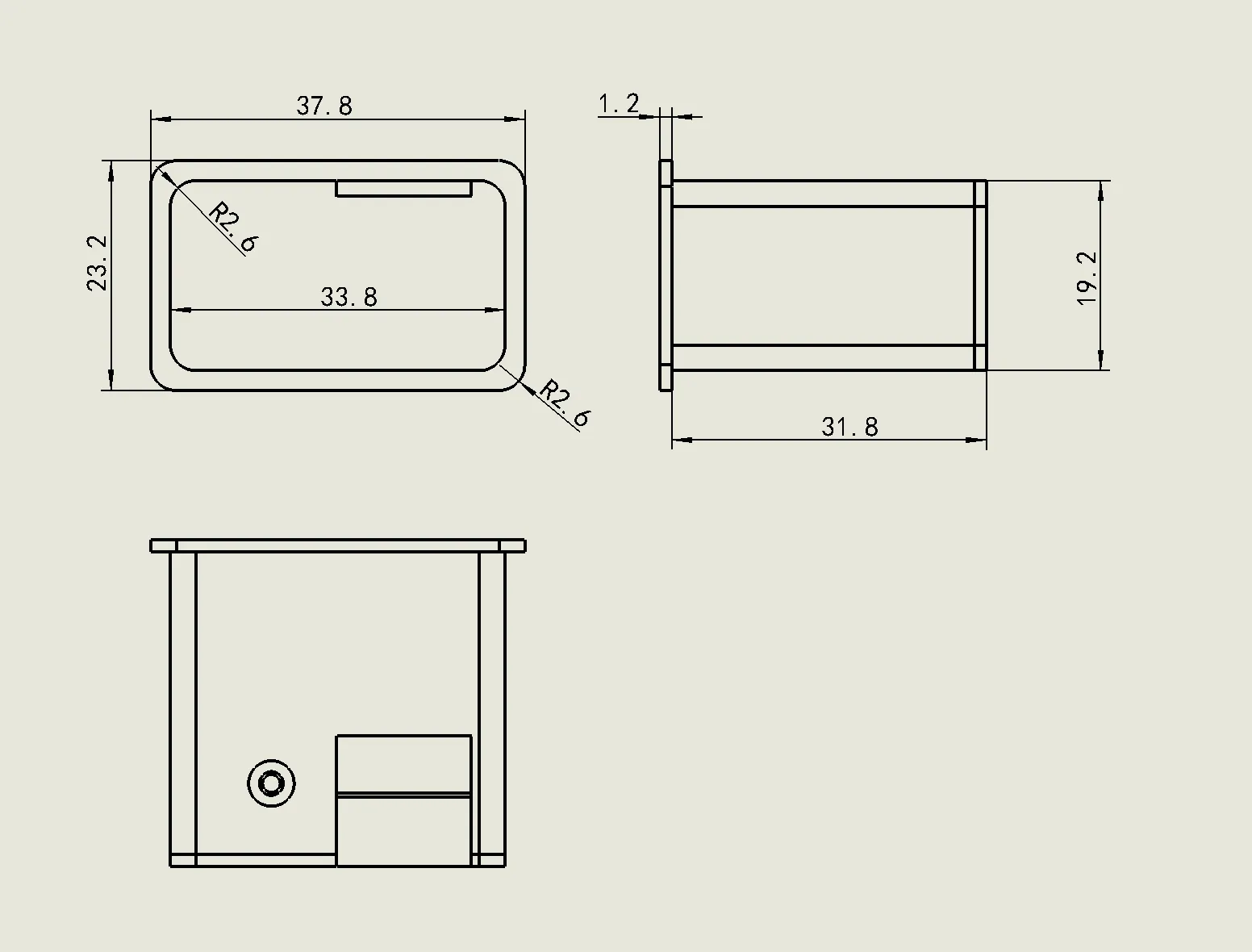

Below is the dimension drawing of the casing
