Mold Box - Round
Print Profile(3)
Description

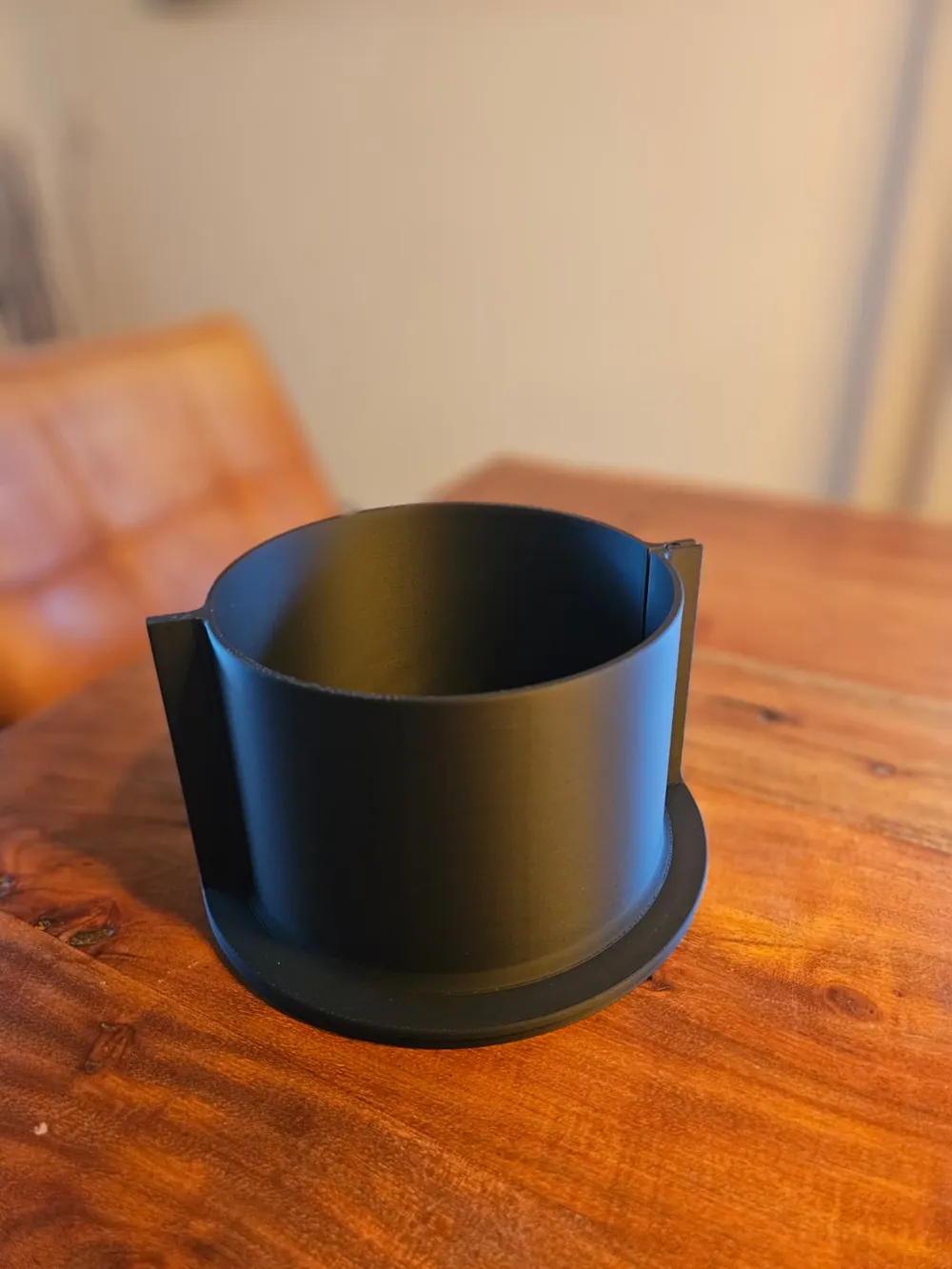

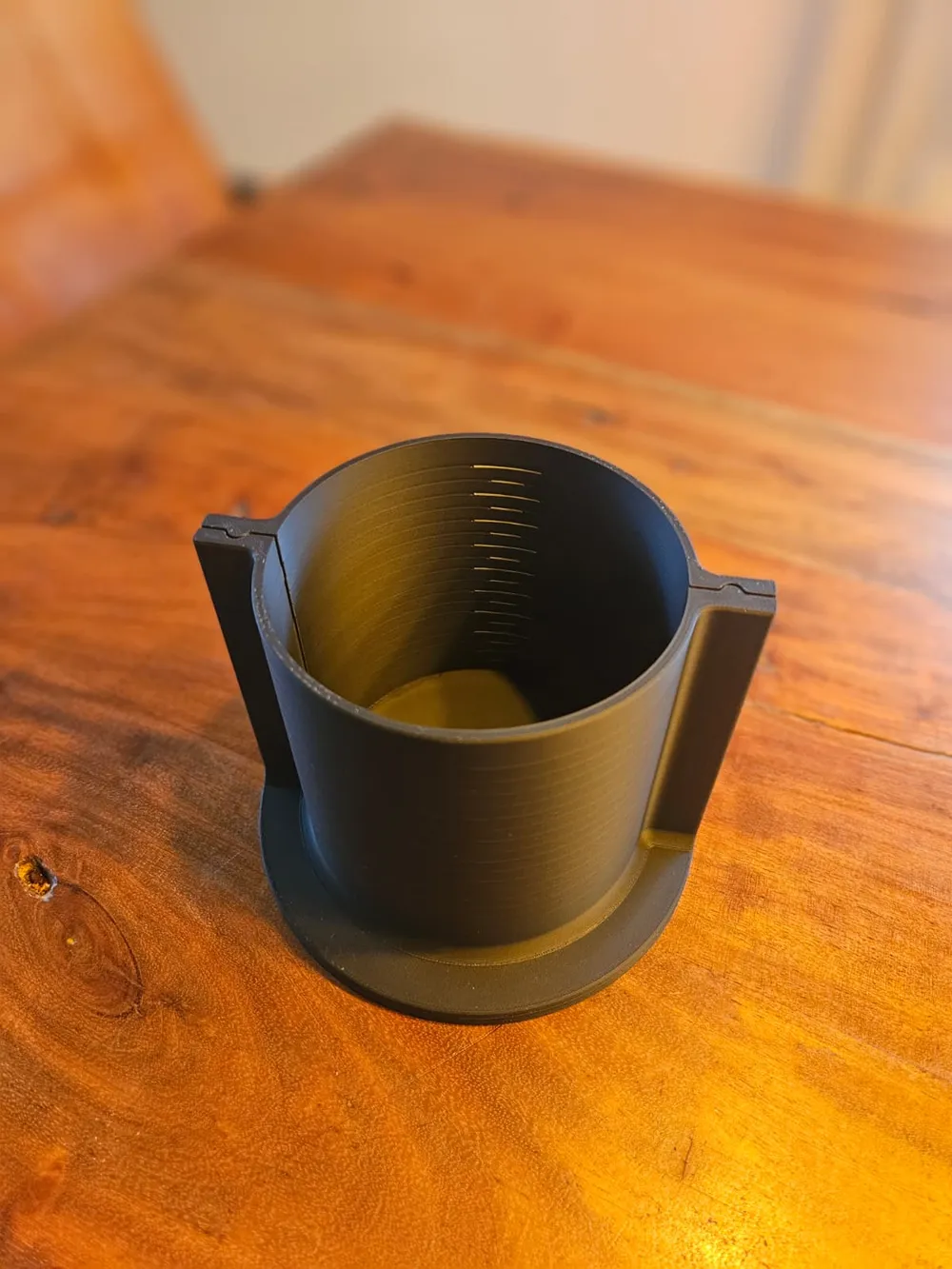

Round Mold Box
for individual casting of silicone models
The Round Mold Box has an inner height of 100mm.
An inner diameter selectable: D:50mm, D:100mm or D:150mm

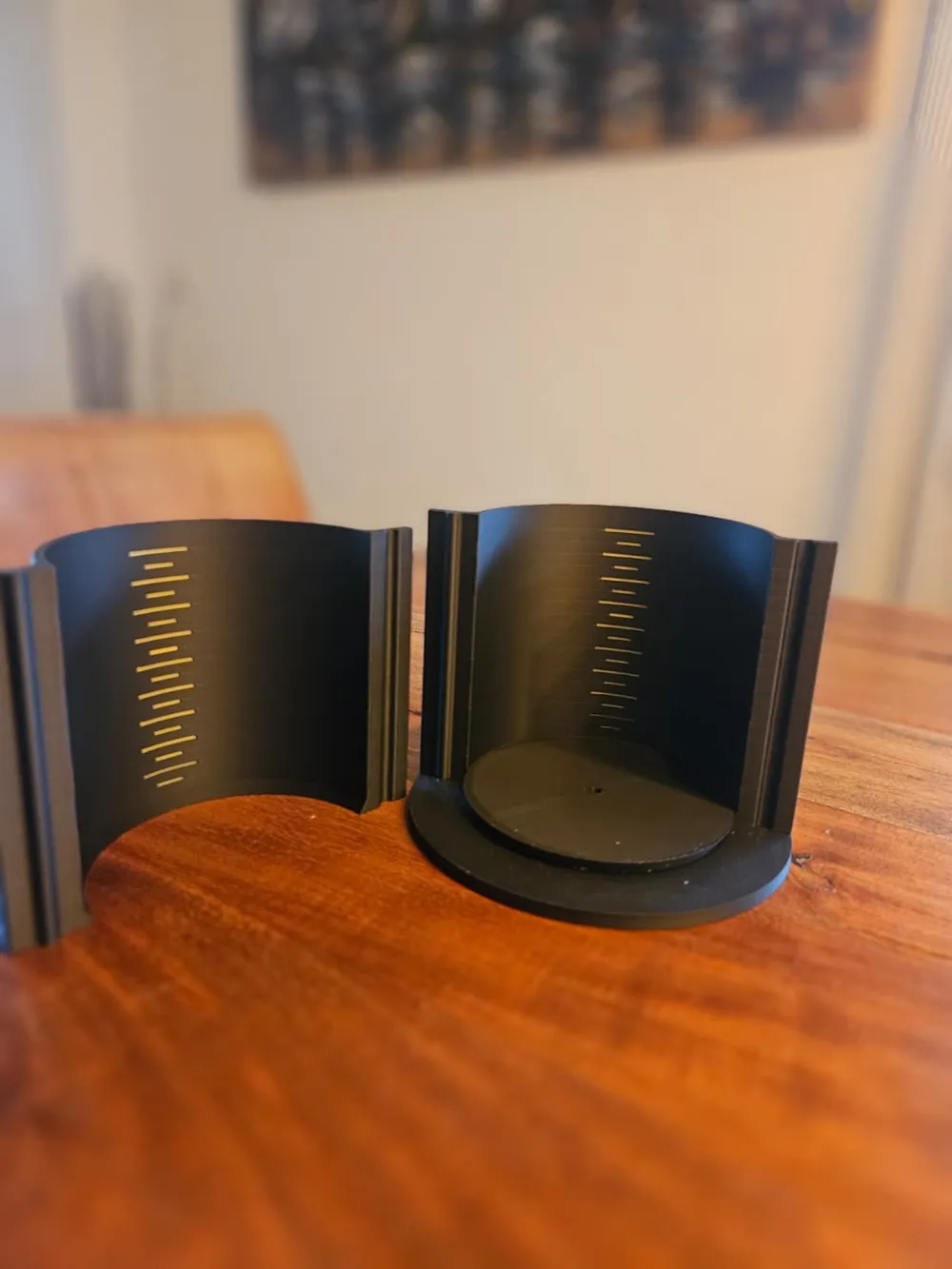

The side walls are provided with a colored scale in 5mm steps / Or single-colored.

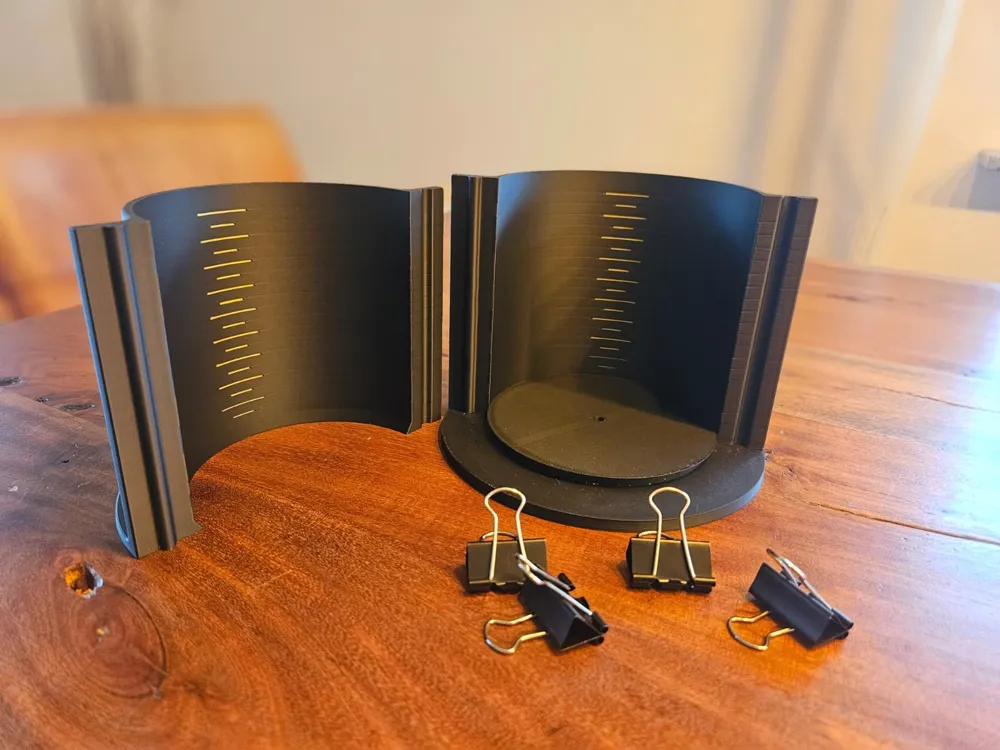

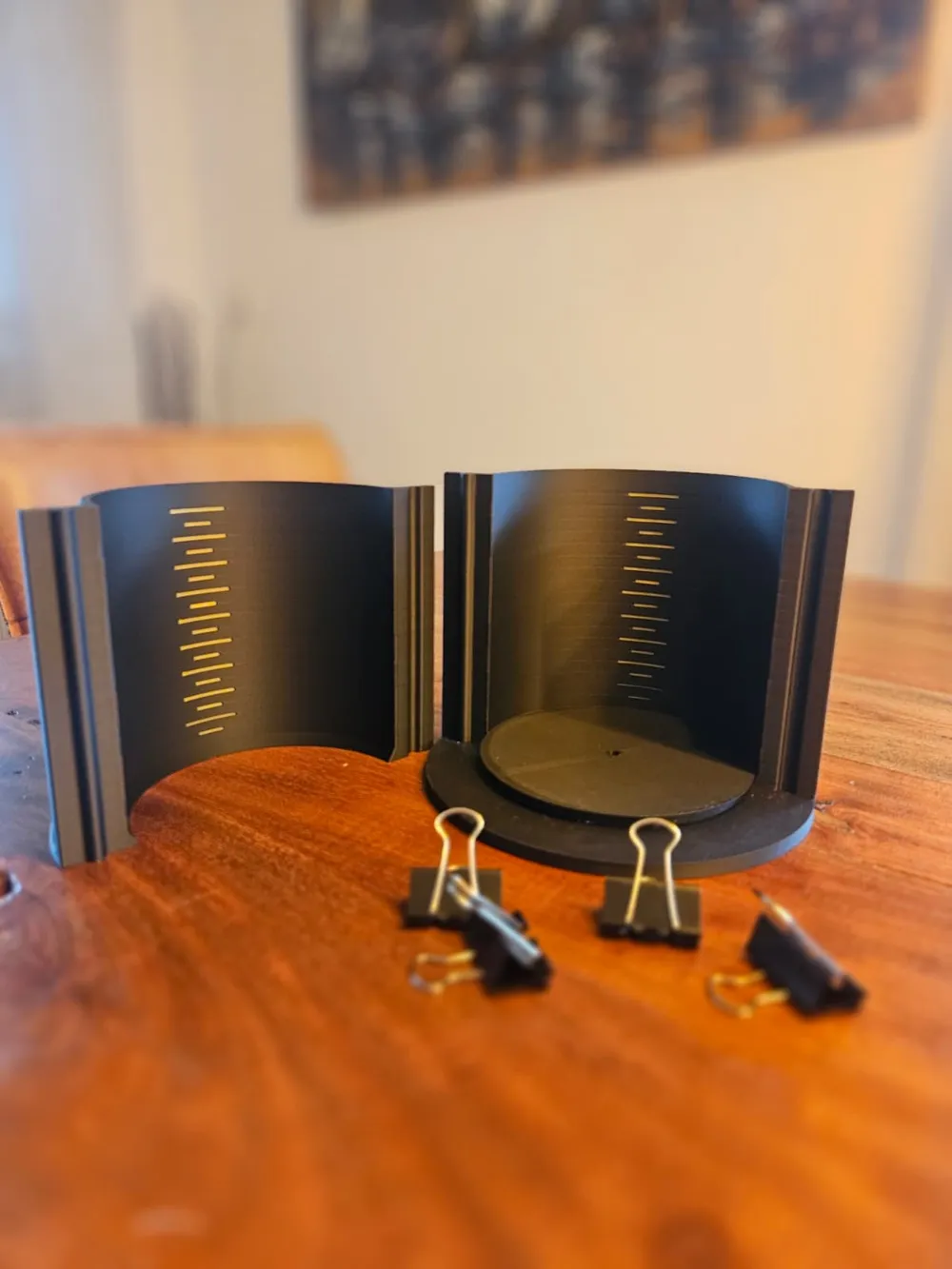

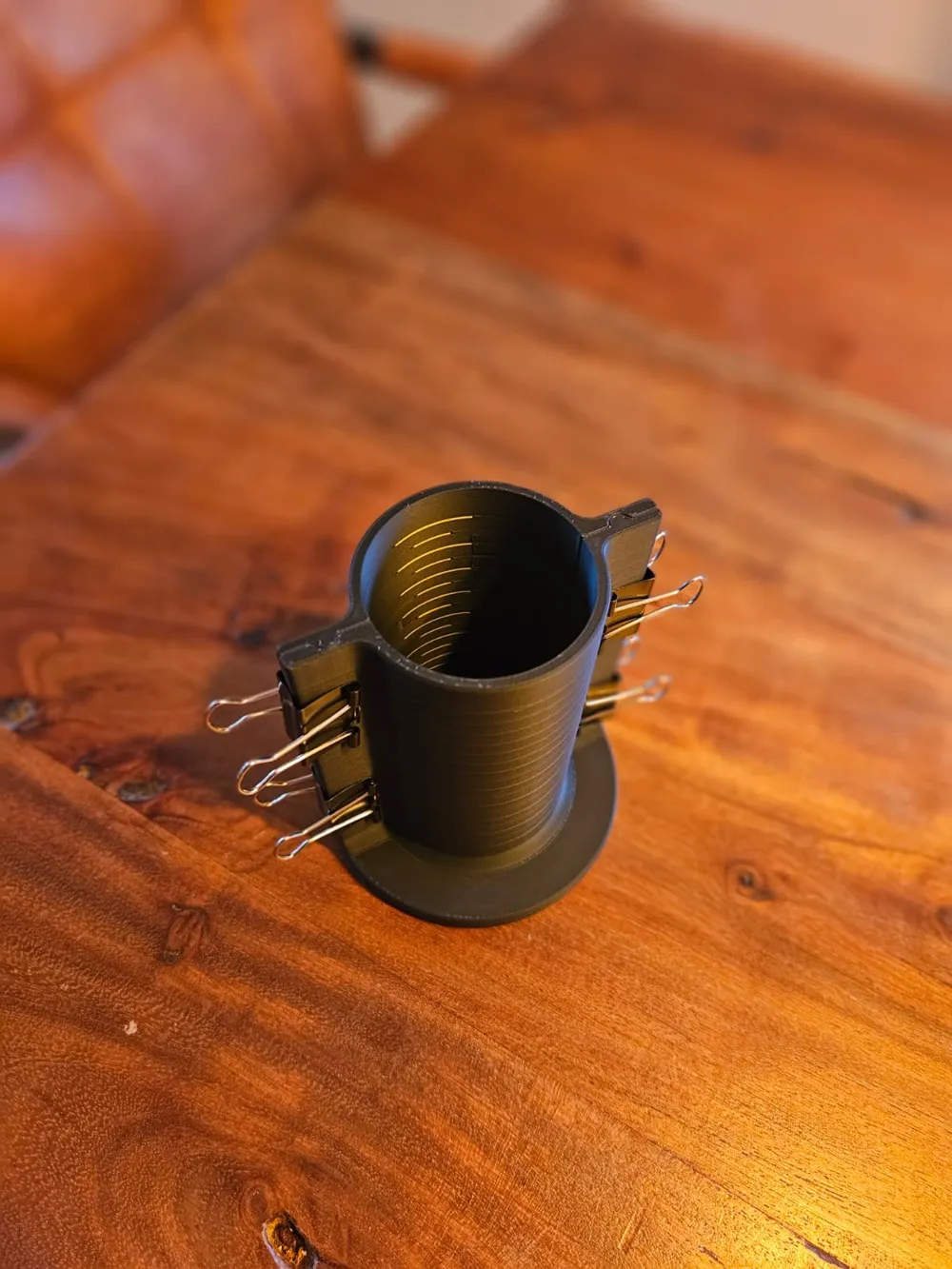

Simply assemble it. Secure it with foldback / paper clips on the sides.

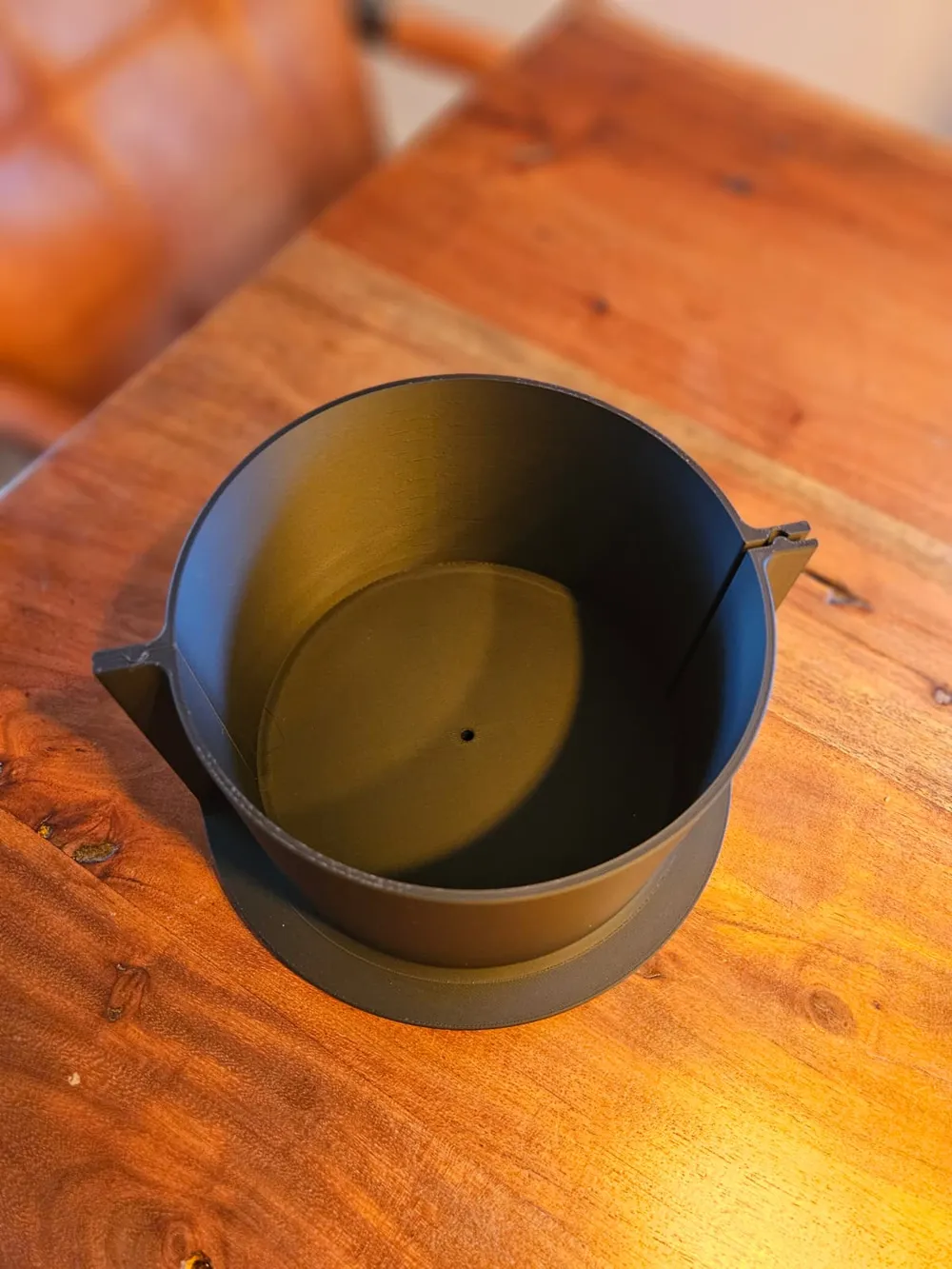

An M4 screw hole is provided in the middle to screw the model down, or you can simply glue it to the base plate.
Thanks to the colored scale, you can remember in advance what height you need to reach.
The wide lines are 10mm intervals and the shorter ones are 5mm.
I use these paper clips https://amzn.to/491MuWn in 25mm and 51mm.
And this silicone https://amzn.to/44TRIRL from LM kreativ
If you need specific diameters or a specific inner geometry, do not hesitate to contact me.
