5x Robot arm model

The final frontier  Star date

“We will boldly go where no man has gone before”

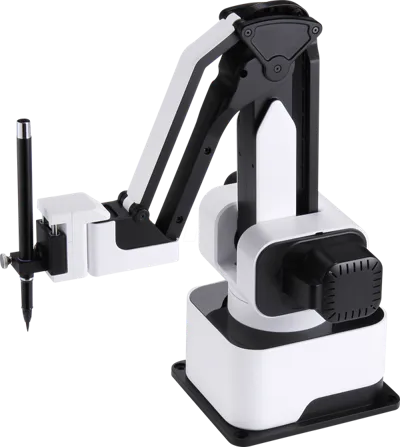

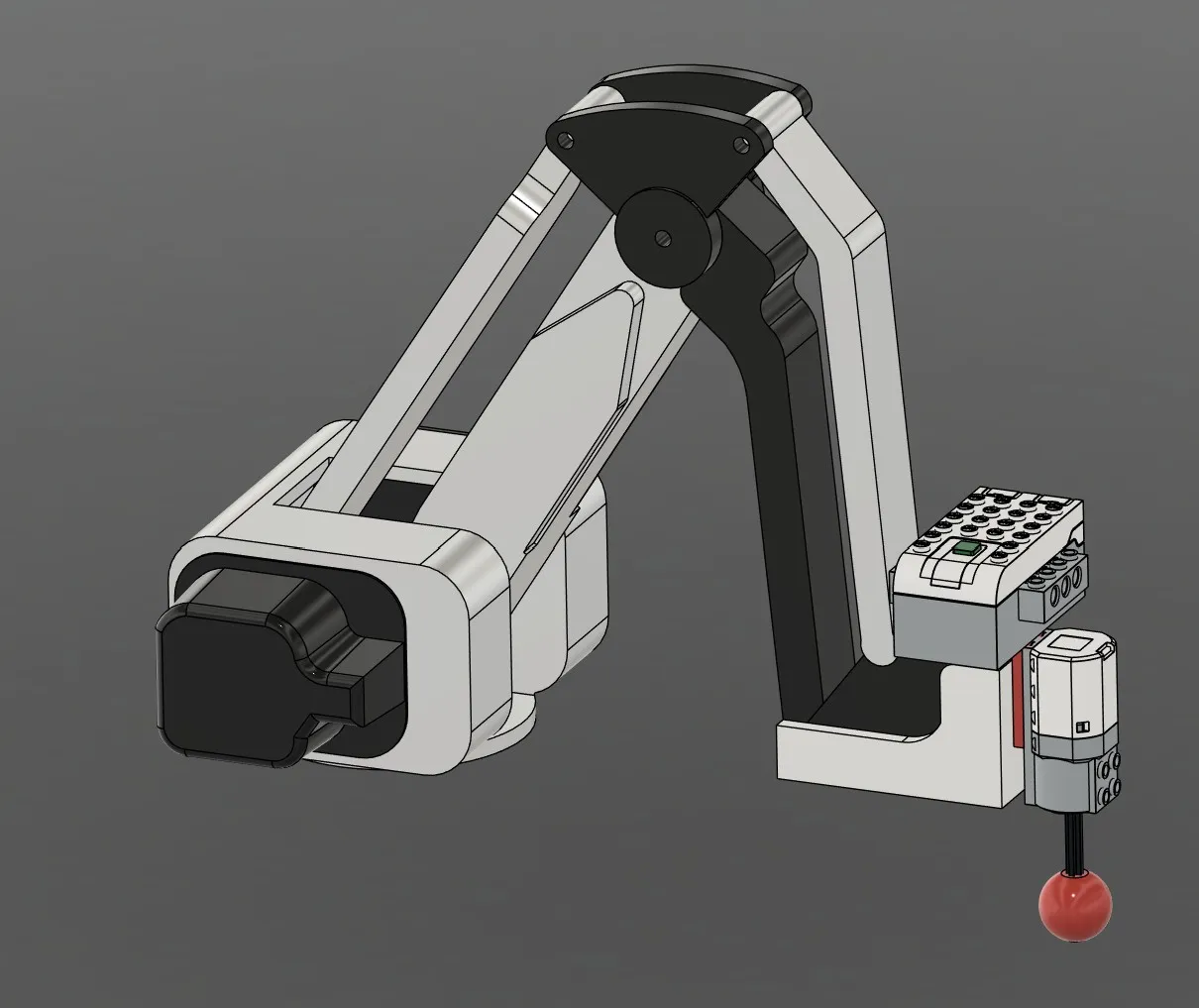

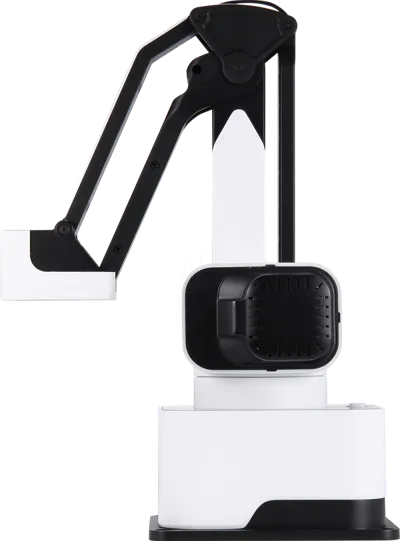

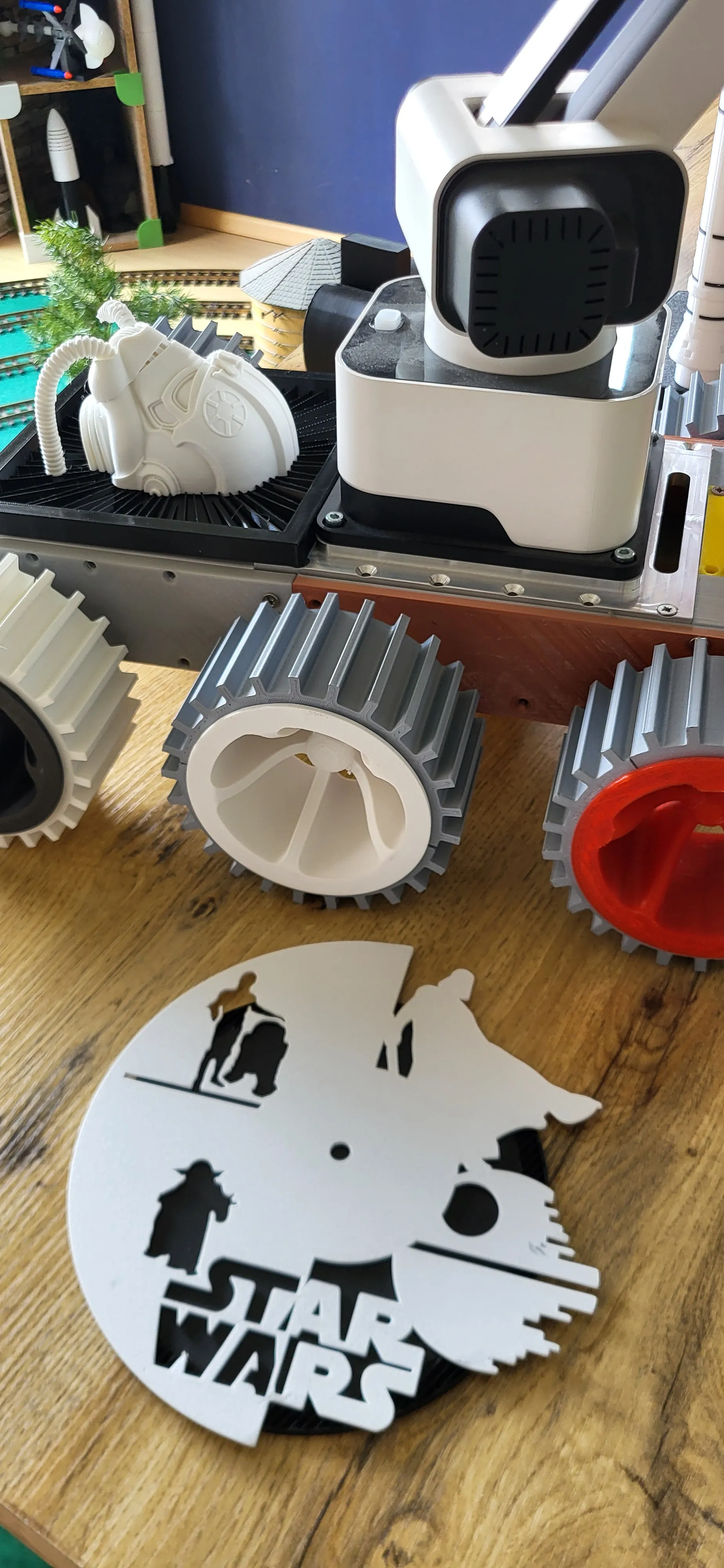

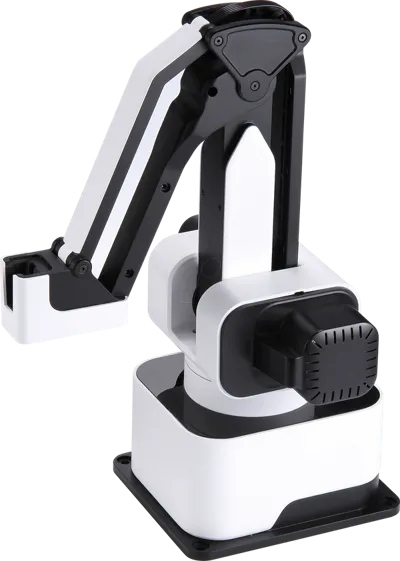

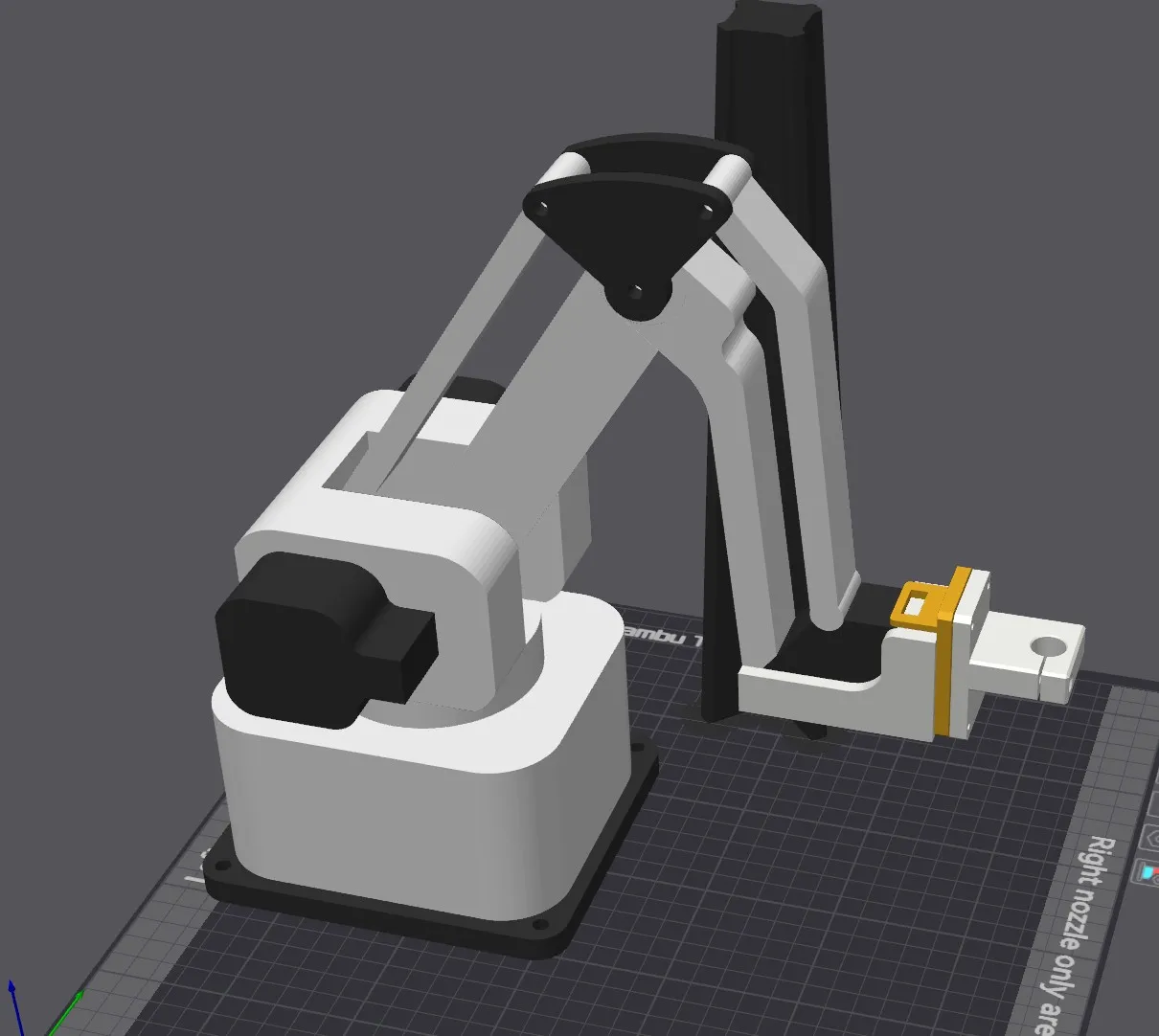

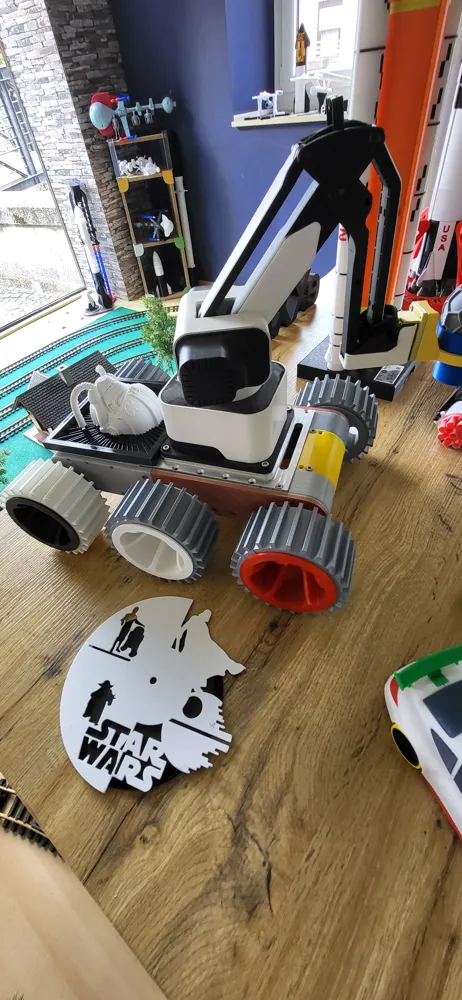

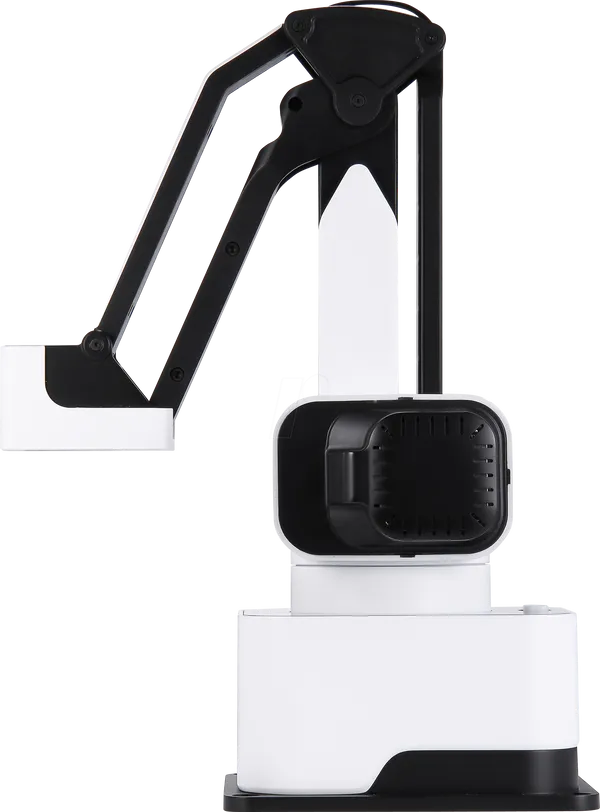

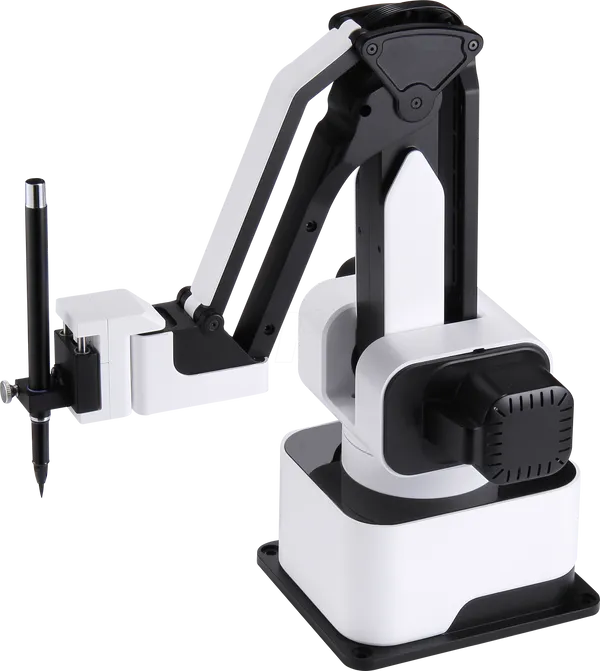

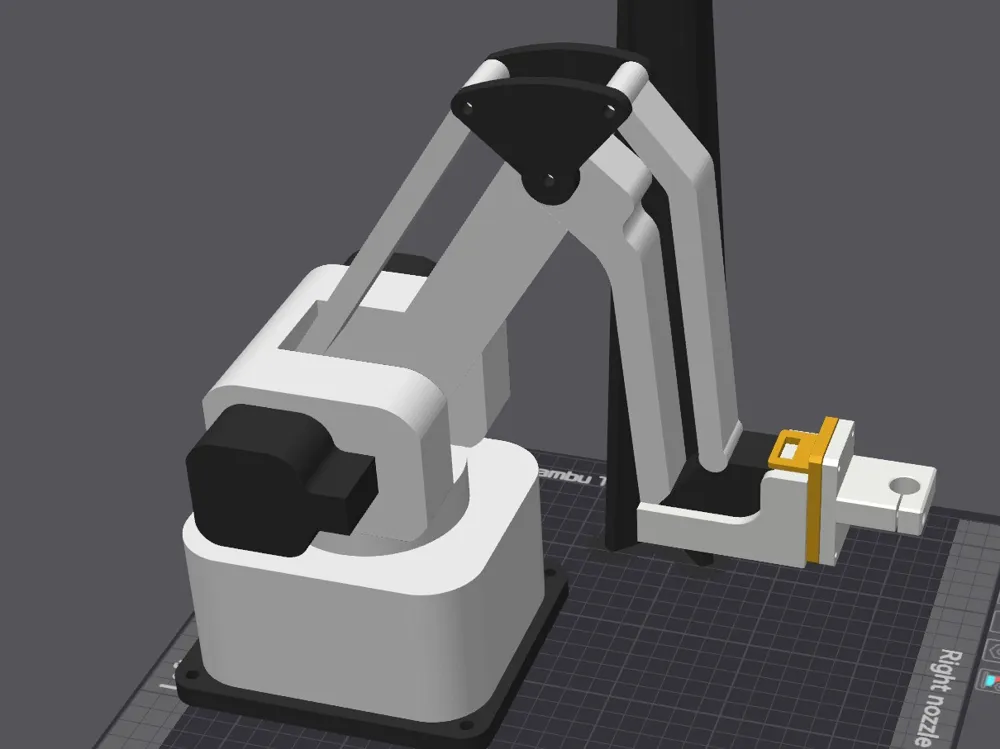

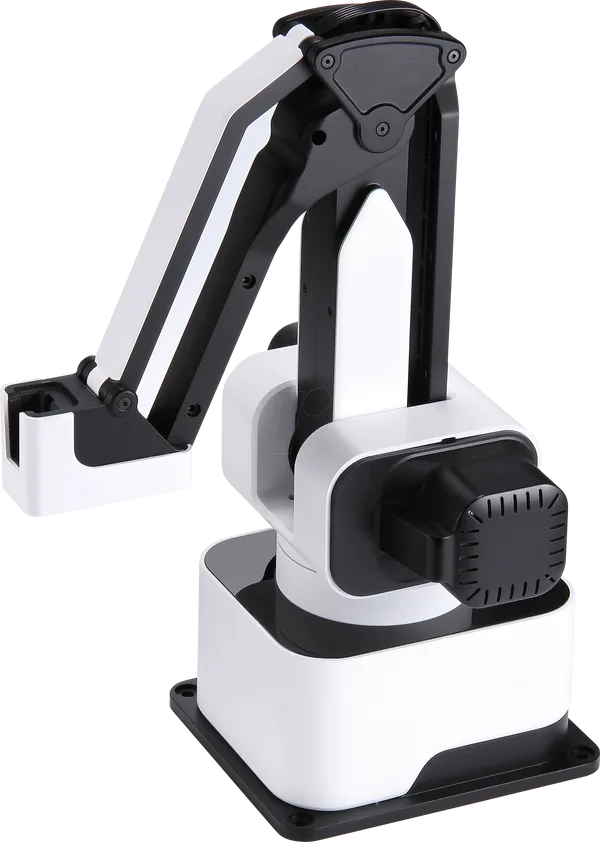

I took my Rotrics- Dexarm robot arm as a template and customized it according to my wishes

General

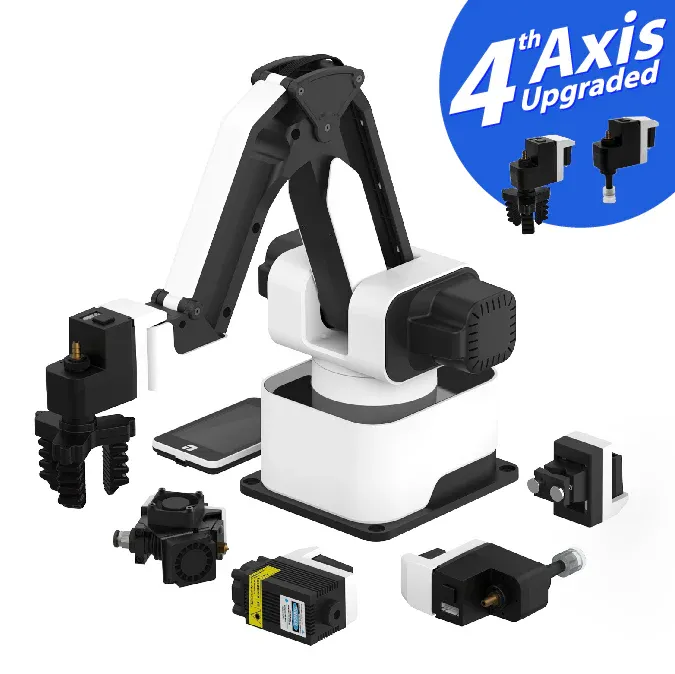

The Rotrics DexArm is a multifunctional robotic arm that can be used for a variety of applications. Besides 3D printing & precise gripping, the DexArm can also be used for drawings and paintings. Depending on your intended use, you can choose between the Maker and Luxury Kit for the DexArm, which include all additional parts needed for the various application possibilities

Expansion Options

In addition to the Maker and Luxury Kits, a conveyor belt and a slide rail kit can also be purchased optionally. This further expands the already extensive range of applications by enabling possibilities such as replicating production processes or allowing the DexArm to work on larger surfaces

Technical Specifications

Base Version:

• Payload: max 500g
• Dimensions: 175 x 128 x 315mm
• Repeatability: 0.05mm
• Speed: max 500mm/s
• Axes: 4
• Precision: 0.1mm
• Weight: 2.4kg

3D Printing:

• Build Volume: 220 x 220 x 250mm
• Layer Resolution: 0.1mm
• Printable Materials: PLA, ABS, Wood, Carbon Fiber
• Nozzle Travel Speed: up to 150mm/s

Rotrics DexArm Maker & Luxury Kit | MYBOTSHOP.DE

"May the Force be with you"
