Dupont connector bridge
Print Profile(1)
Description

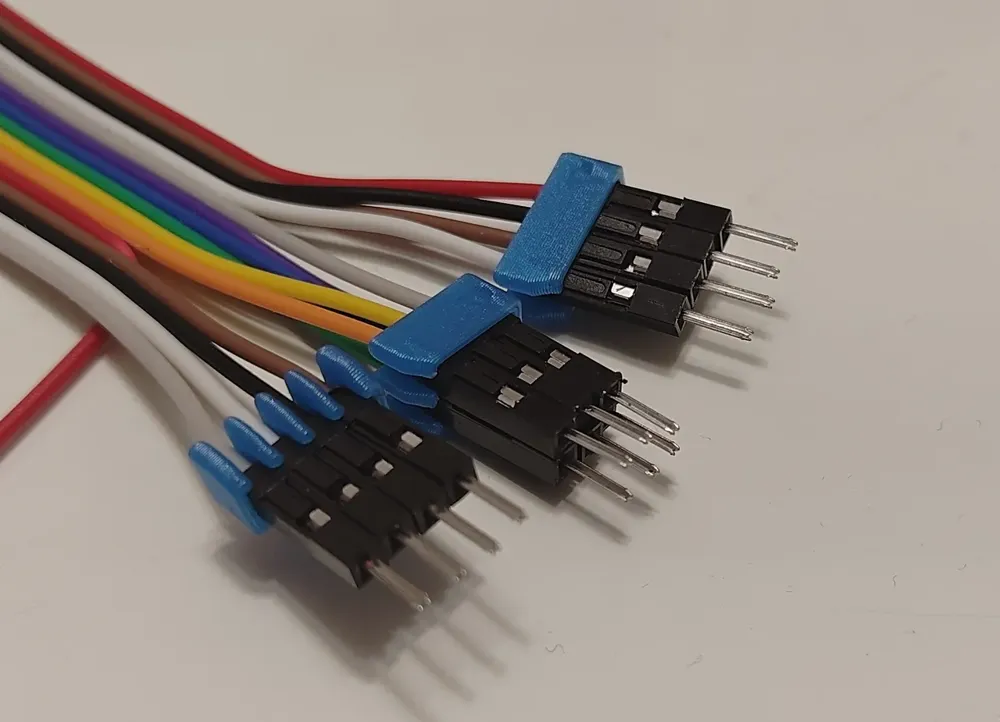

Combine and rearrange single- or multiple-contact Dupont connectors into a same-pitch bridge.
Now with multiple row support!
The assemblies can be a bit tight, but still much easier to modify than re-populating a dedicated housing.

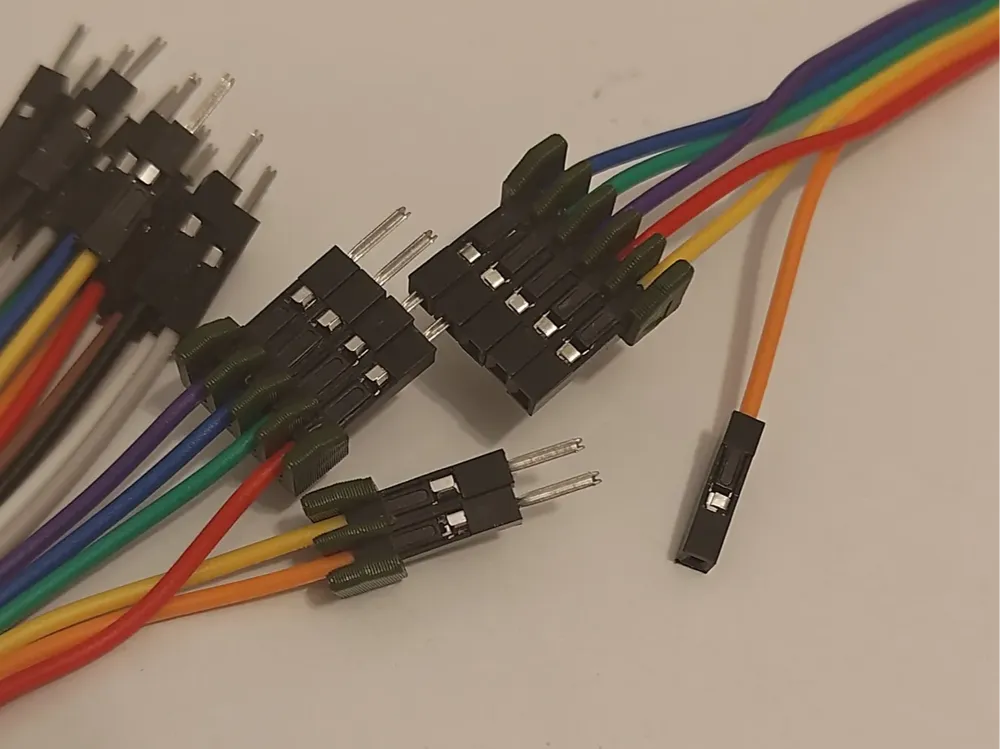

If you're having trouble, try inserting middle contacts last. Alternatively, try transposed versions -- those are looser, but work surprisingly well!
The resulting connector is reasonably compact and has a pin 1 mark.
Originally made for easily switching JTAG emulator between different projects with different pinouts, but should be pretty universal.
