0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill

Designer

5.7 h

1 plate

Open in Bambu Studio

Boost

Released

Description

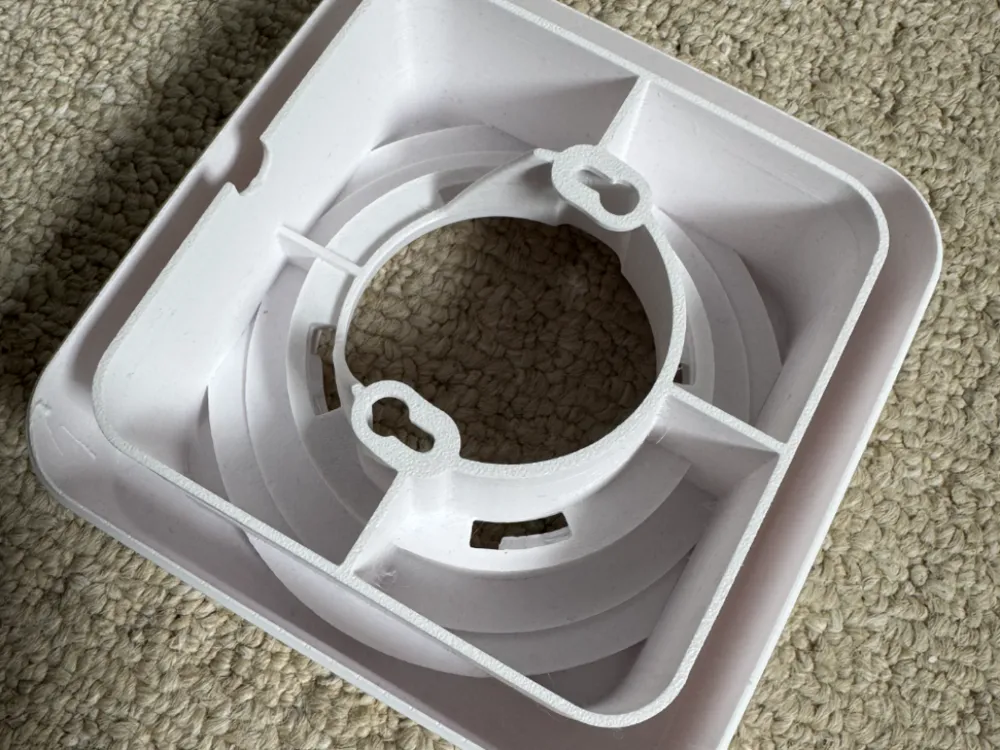

Lutron Radio RA3 or QSM or QSX Radio shelf bracket.

Improved over the factory bracket. This model has better accessibility to the ethernet ports.

This is my very first 3D CAD model and dive into 3D printing. I learned FreeCAD 1.02 to do this! It's very similar to the Lutron L-SMNT-WH. I hand measured and cloned most of it. Hope it works well for you and boost if you like. Be sure to print without carbon fibre to avoid RF issues. PETG and PLA support interface is probably best, and so is a dual nozzle printer.
