Wall Feed-Through Kit (200mm Wall Thickness)

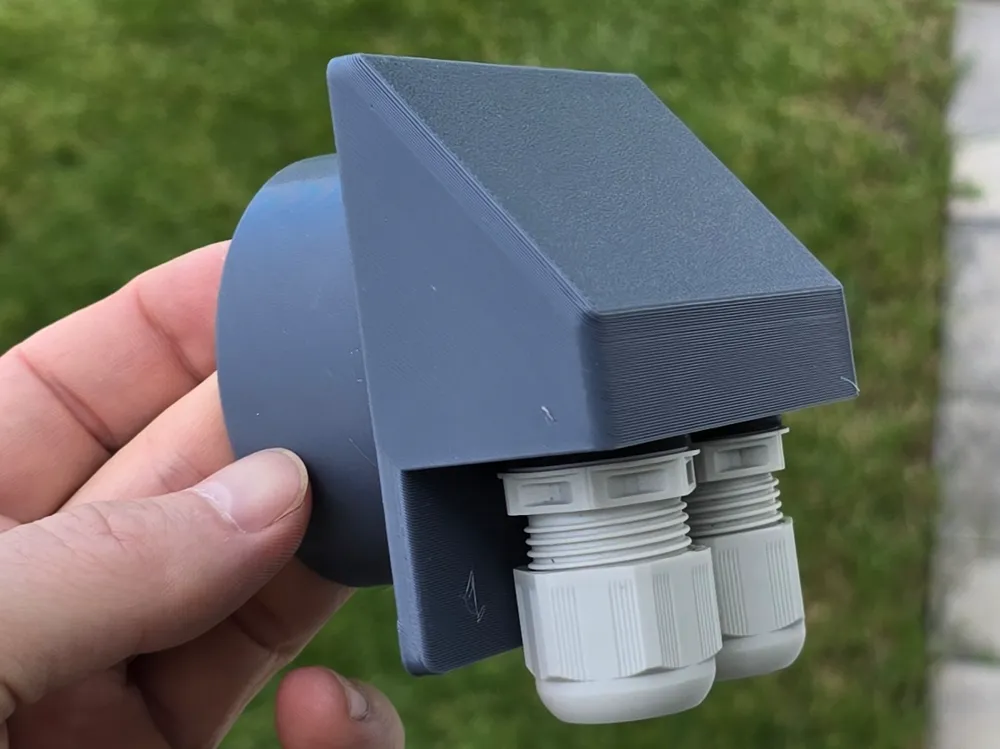

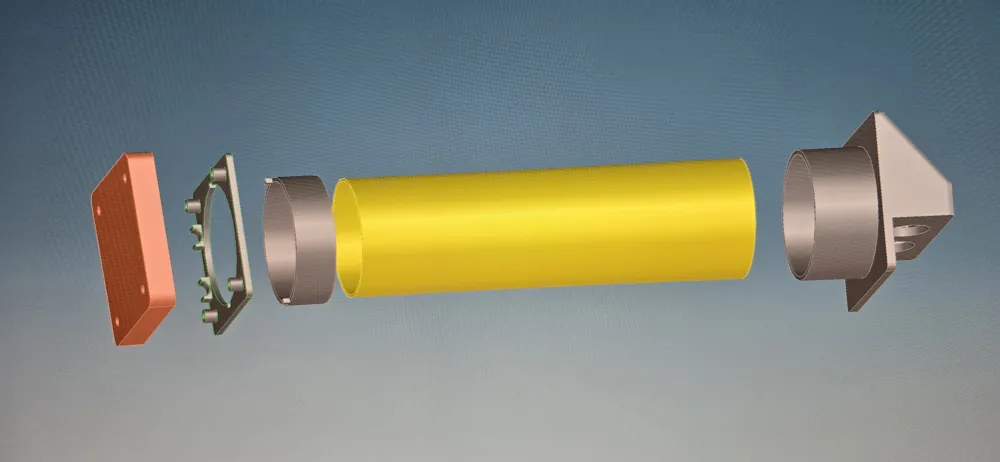

Wall feedthrough kit with 2x PG20 screw connections. The connecting pipe between the inner and outer parts is 200mm but can, of course, be scaled as needed. The inner part is designed for 2x PV cables with strain relief provided by screwing on the cover. All parts can be printed without supports. Gluing should also ensure the construction is adequately sealed. I drilled the hole in the wall with a 68mm core drill bit.
