🔋 Xiaomi G10 /G9/ Dreame G10-T20 Dual Battery Charging Dock
Description

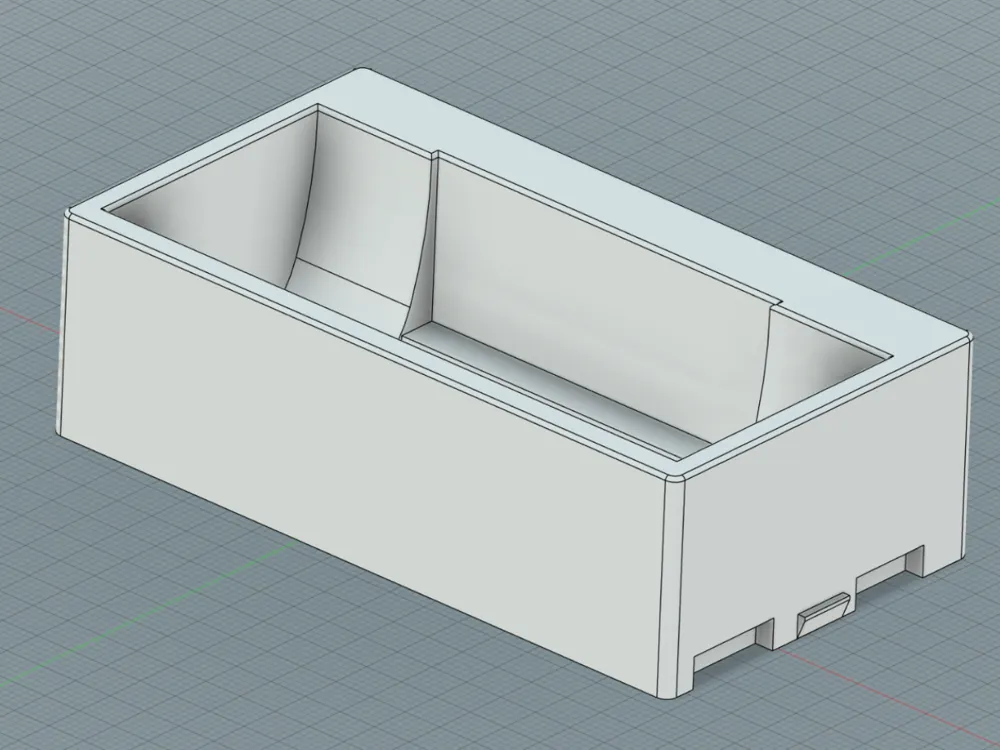

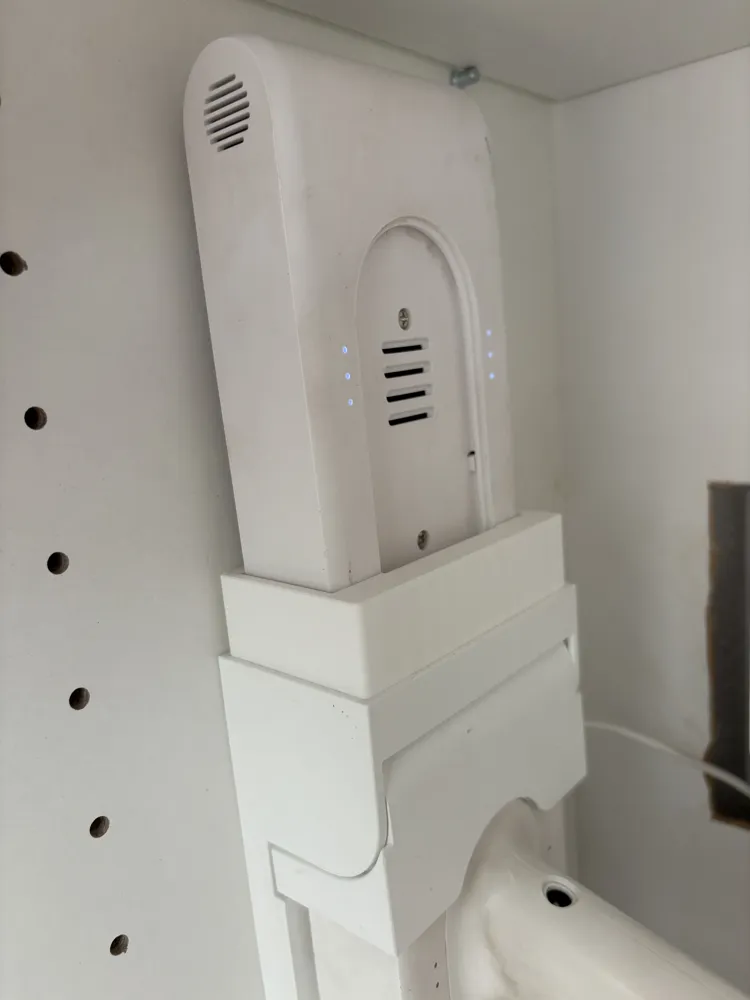

Tired of waiting for your vacuum to charge This 3D-printable adapter allows you to charge a second battery for your Xiaomi G10 (and compatible models) simultaneously or separately It is designed to be a cost-effective, DIY solution to keep your vacuum ready for deep cleaning sessions
Compatibility
This dock is compatible with the following models (as they share the same battery interface)
- Xiaomi Mi Vacuum Cleaner G10 / G10 Plus
- Xiaomi G9 / G9 Plus
- Dreame T10 / T20 / T30 (Verify pin layout)
Electrical Connection (DIY)

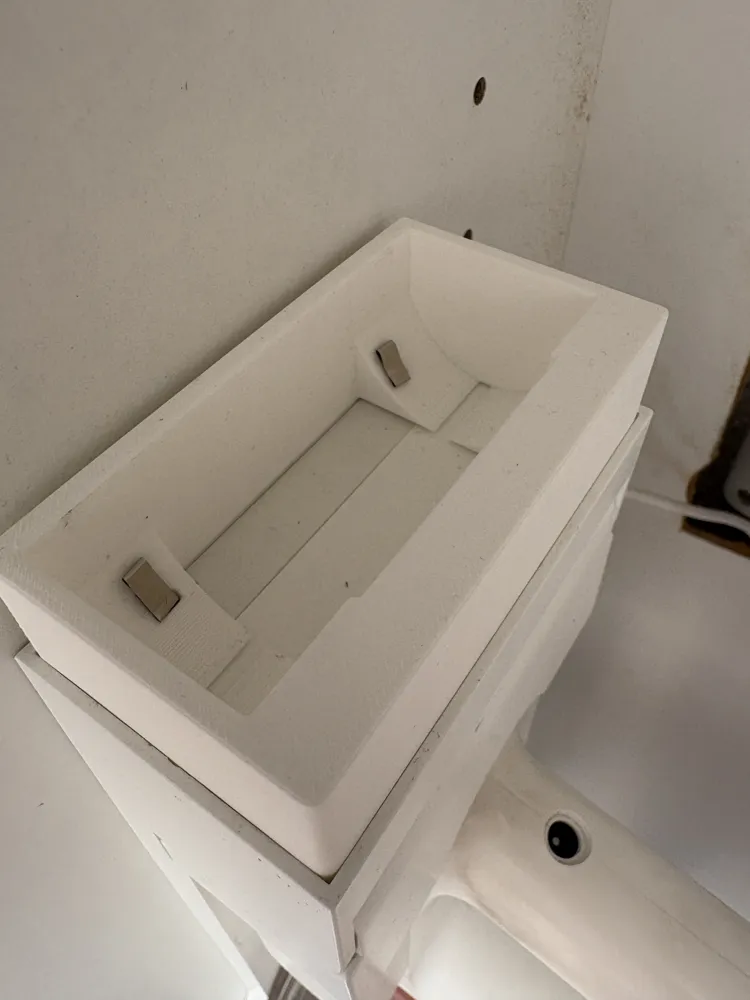

* Materials: For the electrical contacts, I used nickel strips (the ones used for spot welding 18650 batteries)
- Process: Simply cut and bend the metal strips to match the internal slots of the print until they make a solid connection with the battery terminals
- Safety: Ensure there are no short circuits and that the polarity matches your charger’s output
Printing Recommendations
* Material: Can be printed in any material (PLA, PETG, ABS, or ASA) PETG is recommended for better clip flexibility and durability
- Supports: Minimal supports may be needed depending on your printer's bridging capabilities
Technical Settings
- Layer Height: 0.2mm
- Wall Loops: 3
- Infill: 15-20%
⚠️ Safety Disclaimer
> Use at your own risk. This is a DIY project involving electrical components and Lithium-ion batteries
- Polarity: Always double-check the positive (+) and negative (-) polarity before connecting Incorrect wiring can damage your battery or charger
- Contacts: Ensure that the metal strips are securely fastened and cannot move, as a short circuit could lead to overheating or fire
- Responsibility: By downloading this model, you agree that the designer is not responsible for any damage to your vacuum, battery, or property caused by incorrect assembly or usage
