I’ve seen many 3D-printed sprinklers, but none of them met my need for a design that can be easily adjusted from a small opening to a large one. So, I designed my own—this is the second version.

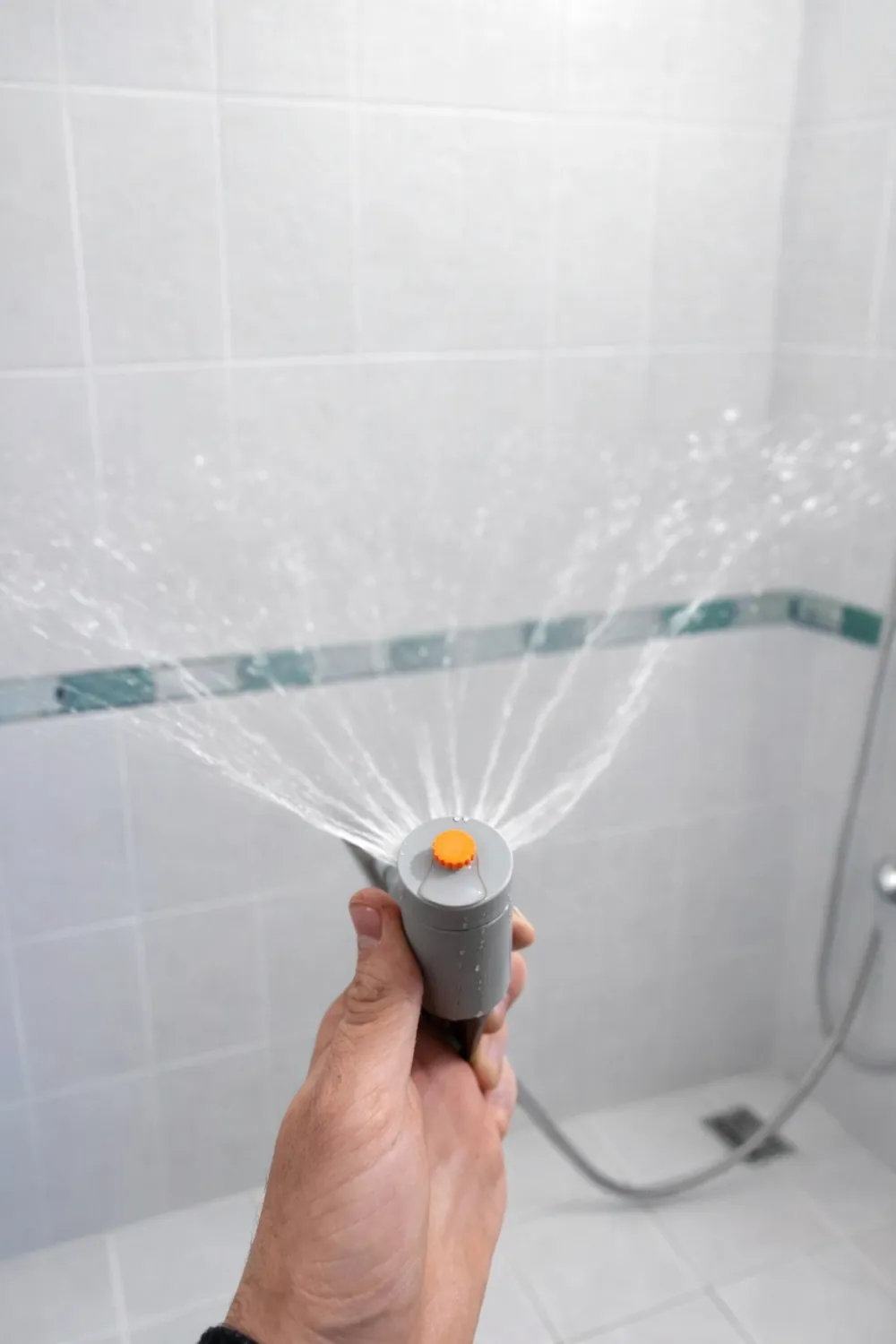

This sprinkler allows smooth adjustment of water flow, making it suitable for a variety of watering needs.
Assembly Instructions
Assembly is required. Refer to the provided images for visual guidance.
Boost Me (for free)
boost me make my one step to my dream

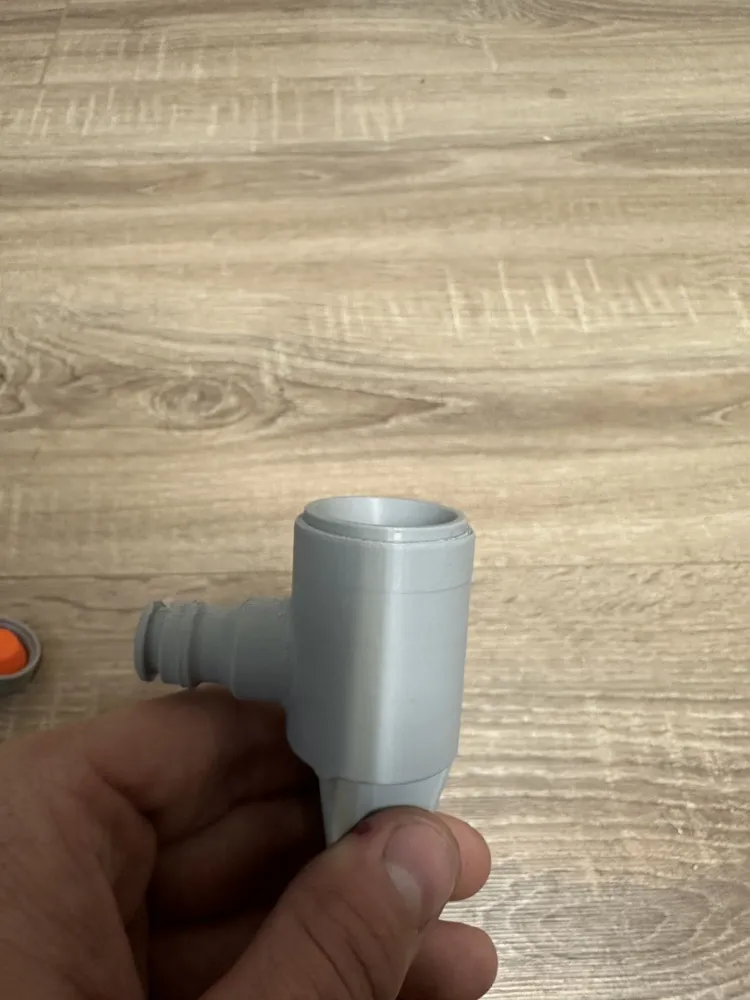

- Assemble the main body components as shown in the photos.

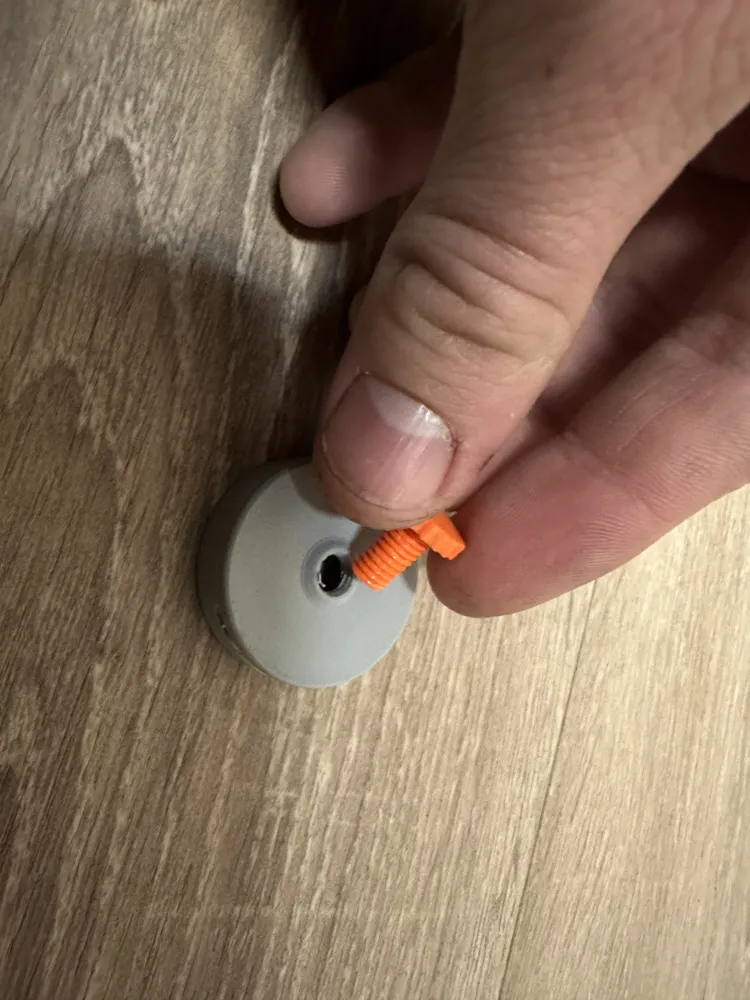

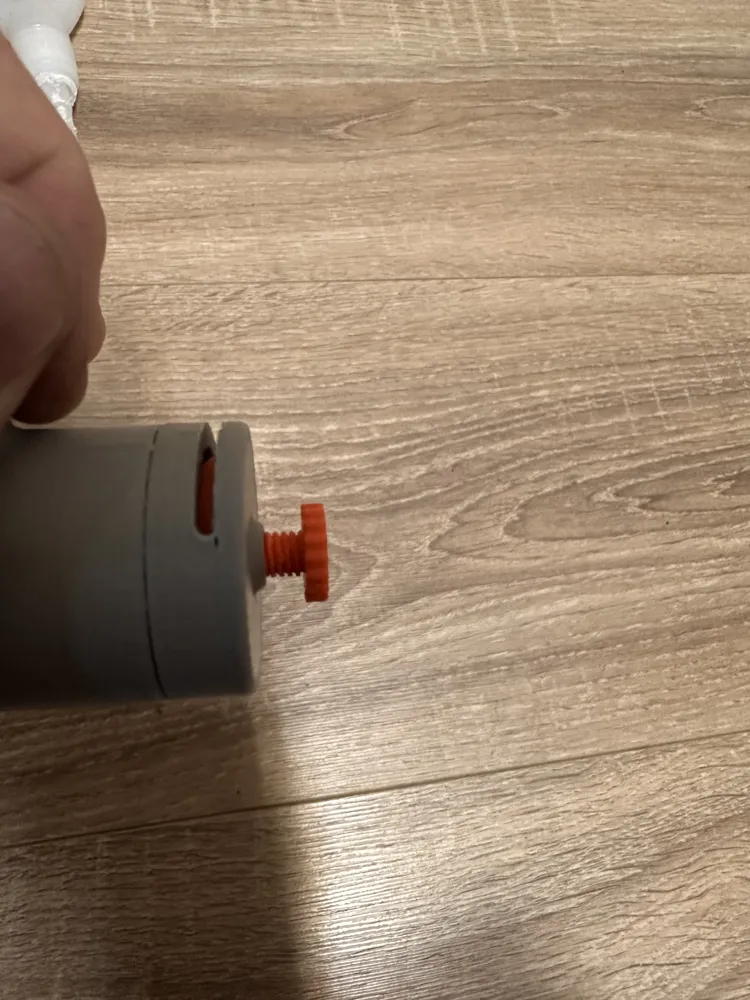

- Insert and screw the threaded rod into the upper body part.

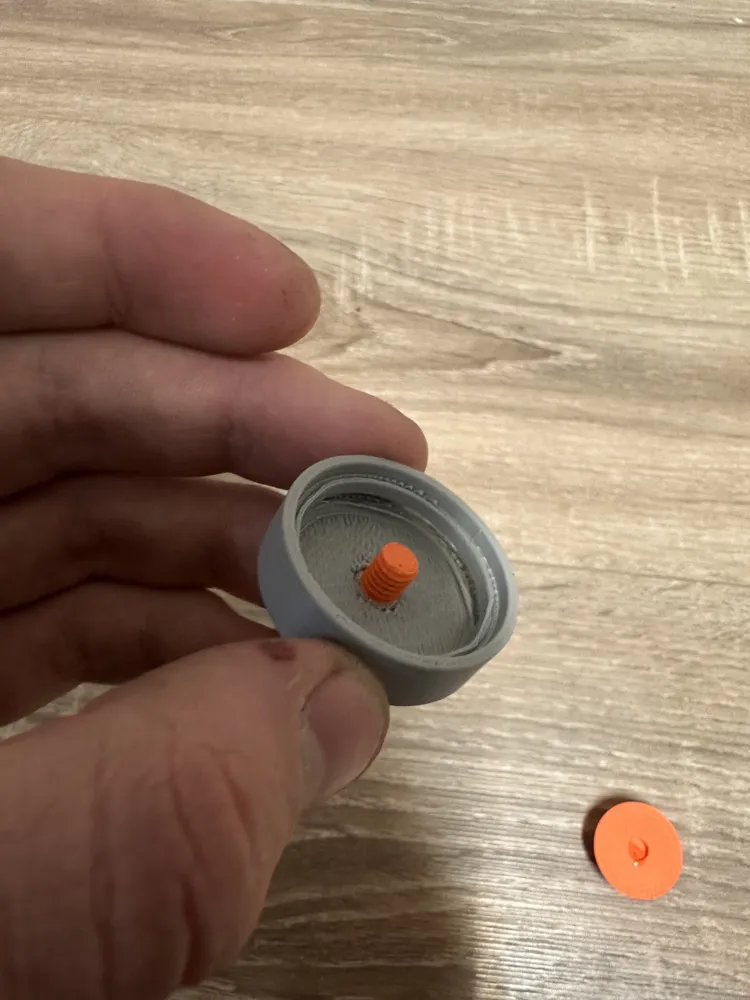

- Attach the pisto to the scree.
- Glue the piston onto the threaded rod.
- then glue it into the top section of the main body.
- Install the O-ring in its designated slot.
Boost Me (for free)
boost me make my one step to my dream
Additional Notes
- After printing, the threaded parts may feel stiff or not function smoothly.
- To improve performance, screw and unscrew the threaded components several times until they move freely.
