Mitsubishi Pajero 4 Rear Window Vents V80 Overland
Print Profile(2)
Description

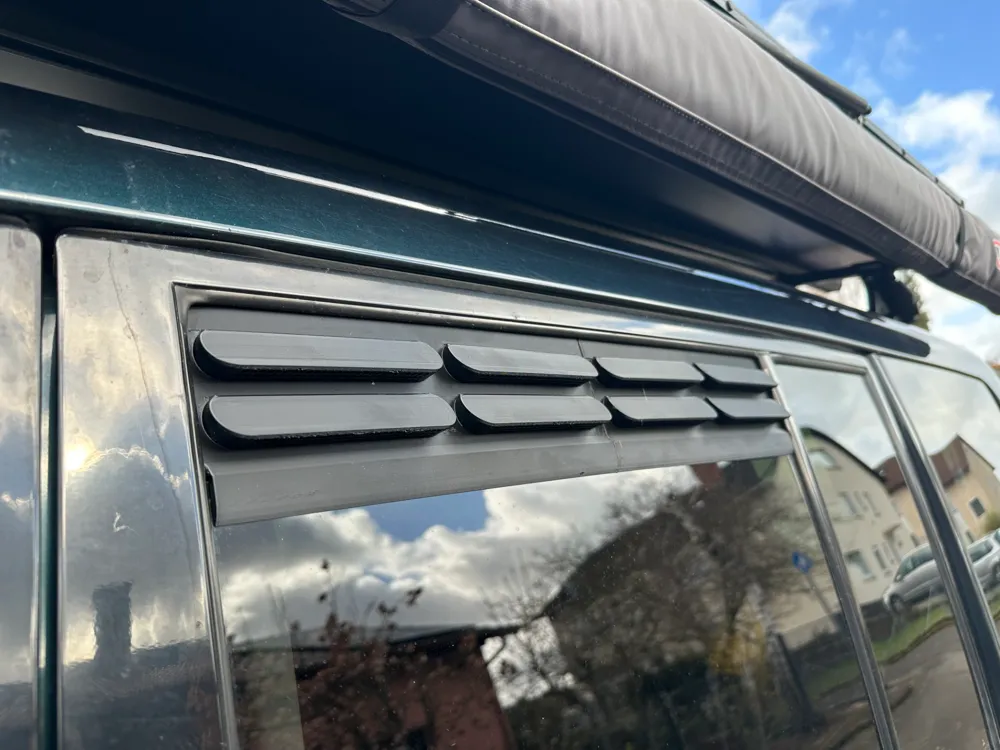

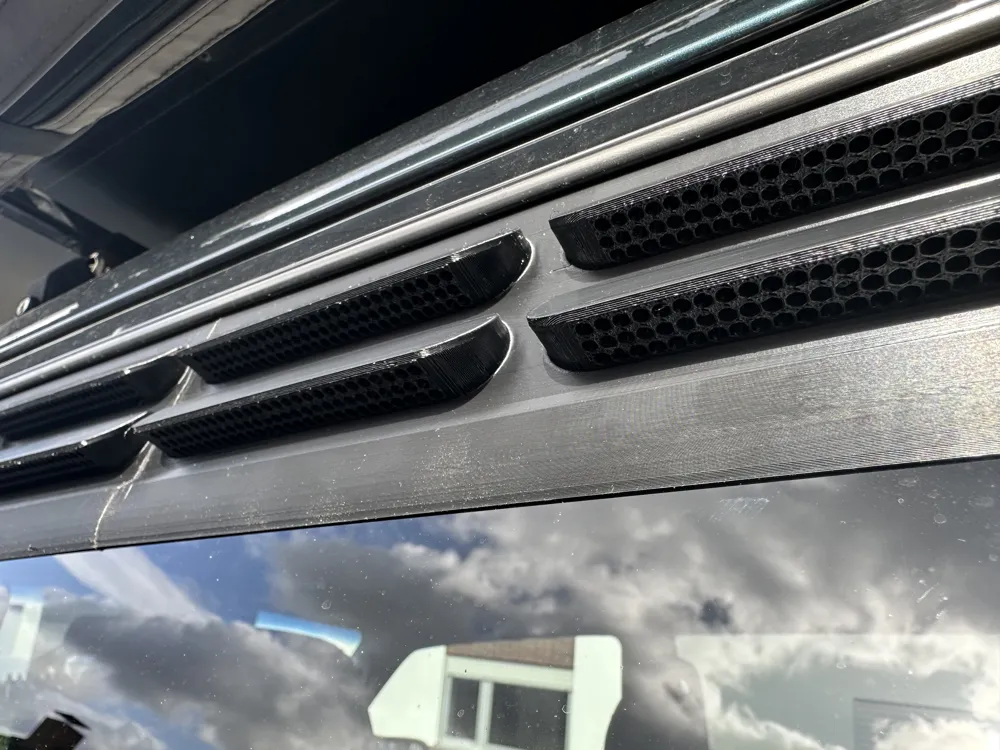

I designed this Vents for the rear Windows (works for left and right) of the Pajero Gen 4.
These may fit the Gen3 Pajero / Montero, but I'm not sure.
I printed mine in PETG, 2 walls, 25% infill, custom supports.
ABS should be fine too.

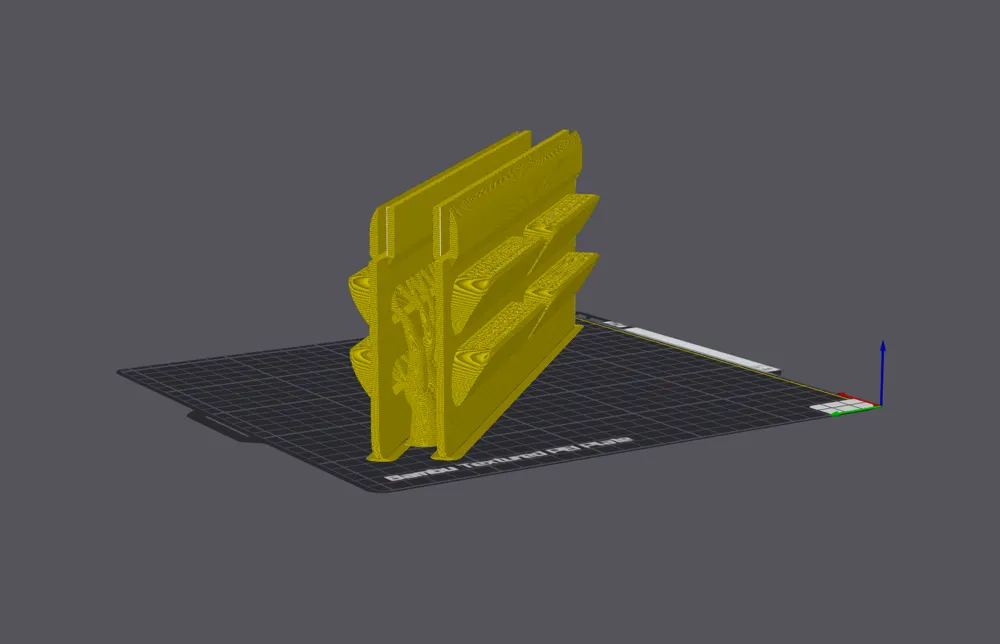

First file is the 2 piece design you see in the pictures. You need to print them standing with a brim. I added custom supports in the 3mf file for faster prints. Feel free to glue the two parts together, although you don't need to.
Be aware, that because of the size and print orientation, this design unfortunately tends to warp like crazy.

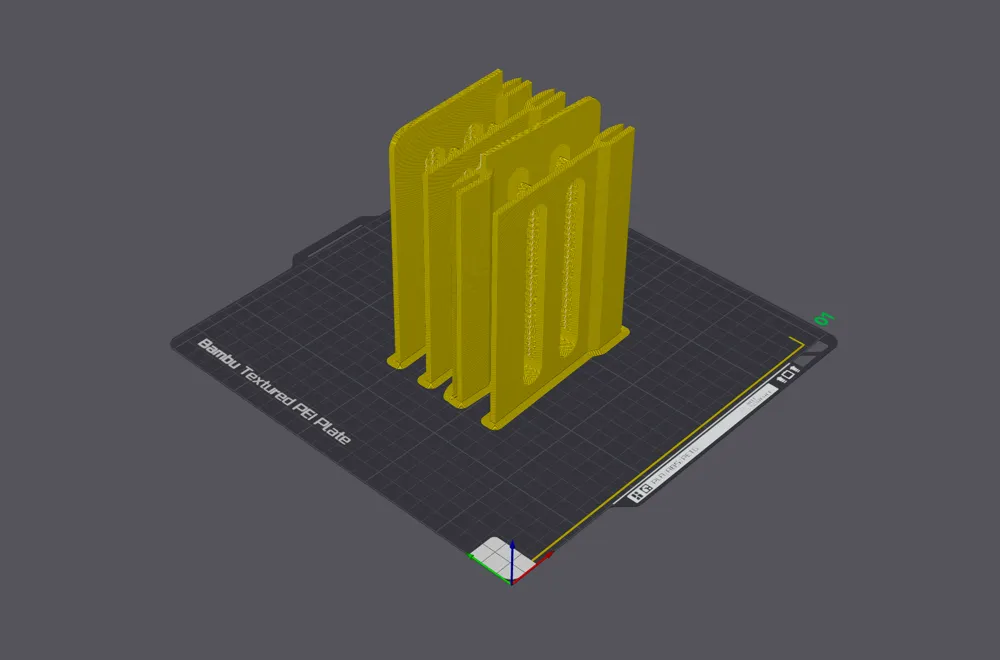

This is why i designed a 4 piece model, which should help with warping. This also needs way less supports (no custom supports needed) and prints quite a bit faster.
Let me know if you like this model and feel free to leave a comment with ideas for improvement!
Check out my other designs!
